7" Split View Digital Monitor-Dual camera inputs
SKU#: CS-7SP
Availability:
In Stock
SKU#:
CS-7SP
$139.00
Quantity
7" Split View Universal Monitor
Description
7" digital display can display 2 cameras simultaneously or one at a time! Ideal for agriculture applications, RV's and semi-trucks with multiple camera configurations.

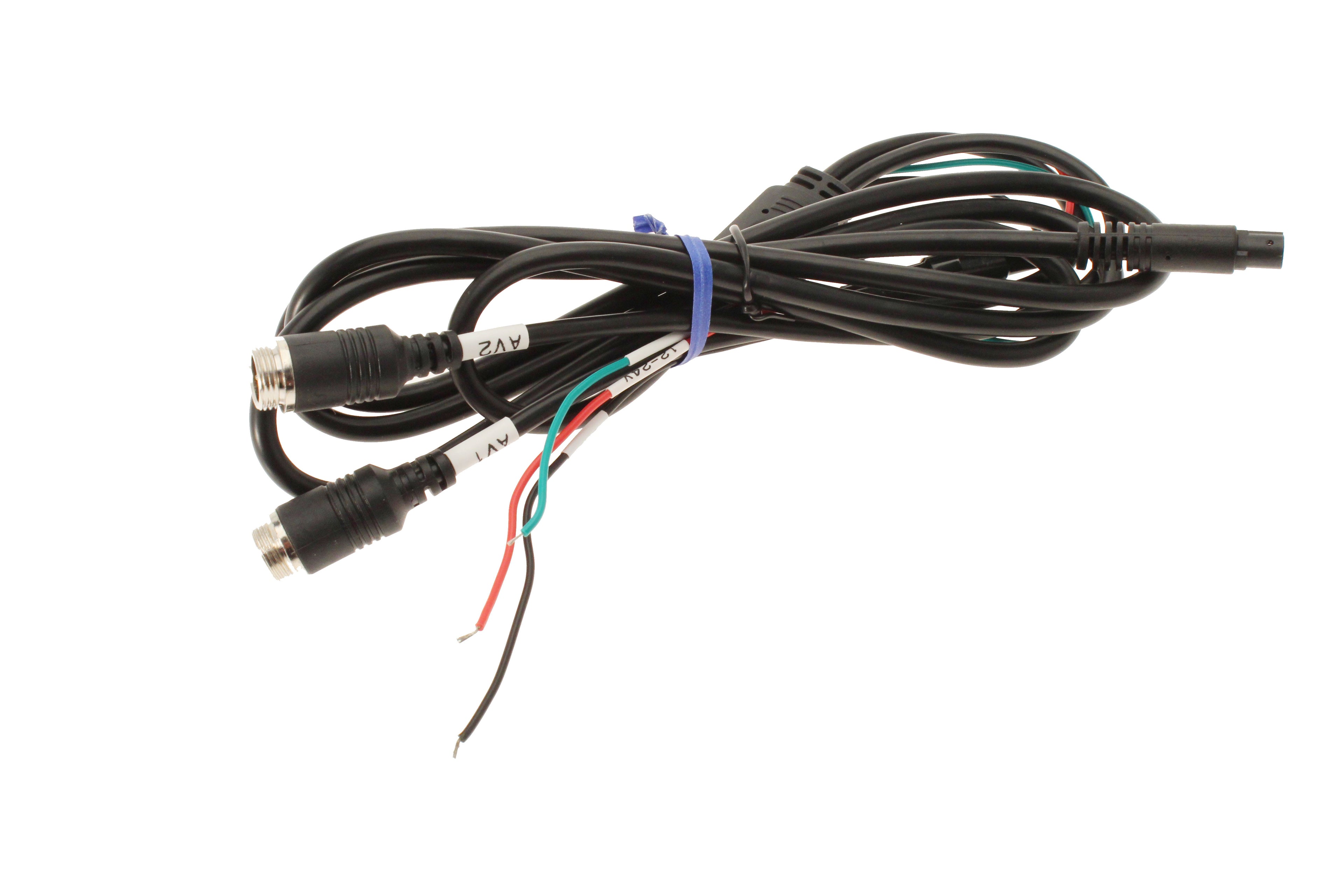

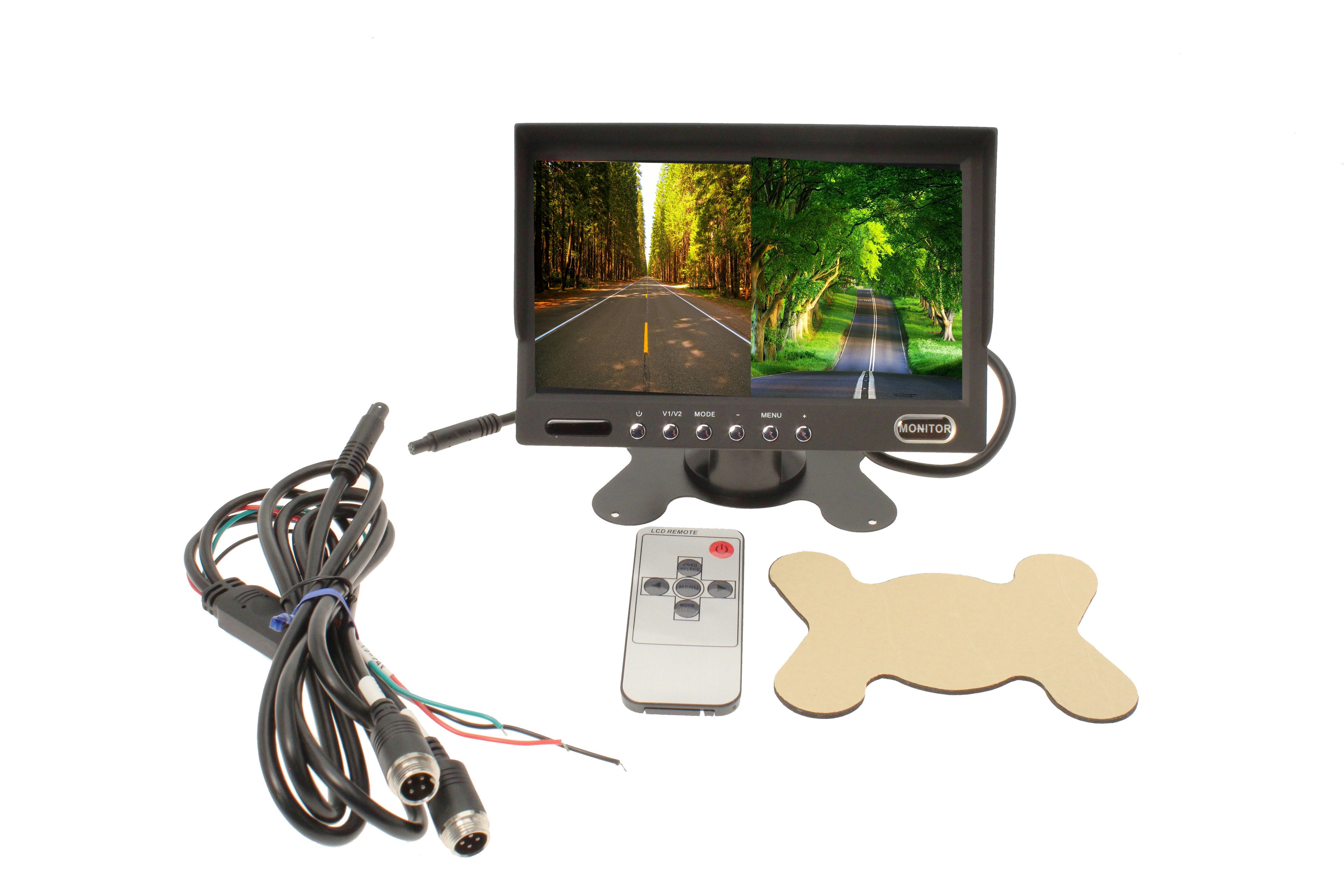

This 7" digital color monitor has an ultra-clear digital display and designed to work in any car, truck, tractor, or any other application. The included mount will attach easily, and the wire harness can adapt to all backup cameras with an RCA or locking screw type connector. Works on all 12v or 24v systems! Package includes the monitor, monitor mount, wire harness, and remote.
Specifications:
- screen size: 7 inch (diagonal length)
- Built-in Split screen display
- High resolution
- 16 : 9 wide screen display
- PAL& NTSC system auto switching
- 800x480 resolution
- Power supply is DC 12 V/24V compatible
- Built in speaker

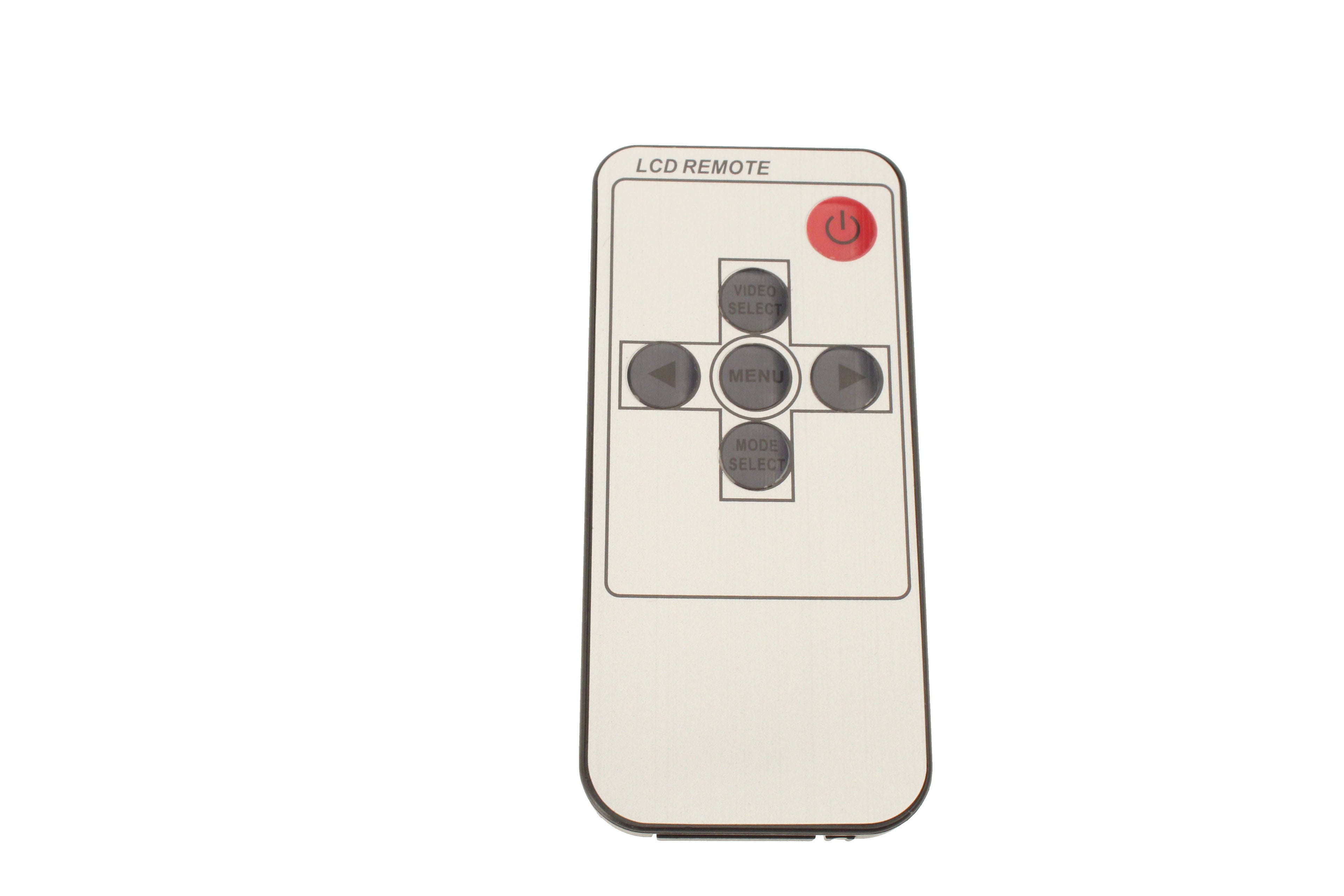

- Remote control, OSD menu;
- (2) 4 PIN connector for our commercial grade cameras
- Inputs for up to 2 cameras. Not compatible with AHD cameras
Cameras are not included in this package Bundle with our camera systems for a discounted price!
Warranty Information 1 year warranty.
Specifications
| System Manufacturer | EVI Systems |
| Audio Input Ports | 1 |
| Bracket Type | Plastic pedestal type |
| Fit Type | Universal fit |
| Impact Rating | 4g |
| Connection | Commercial 4 Pin Coax |
| Includes Remote | Yes |
| Monitor Size | 7" |
| Number of Triggers | 4 |
| Overall Dimensions | 172 x 115 x 22 mm |
| Power Supply | 12-24 Volts |
| Screen Resolution | 800x480 |
| Split Screen | Yes |
| System Type | Standard Build |
| Camera Input Ports | 2 |
| Video System | NTSC/PAL auto switching |
| Warranty | 1 Year |
| Wiring Type | Hard Wired |
Compatibility
Compatible with any 12v or 24v system.
Installation
Installs on any flat surface! Requires 12 or 24v accessory power or reverse activated power (if desired). Two commercial 4 pin coax style video inputs. 4 pin to RCA adapters required for RCA cameras.
