7" Quad Screen High Definition trailer camera kit with DVR - 1 AHD rear cam, 2 AHD side cams
SKU#: CS-7QAHD1-SLR
Availability:
In Stock
SKU#:
CS-7QAHD1-SLR
$580.99
Quantity
7" Quad Screen trailer camera kit w/rear and side cams
Description

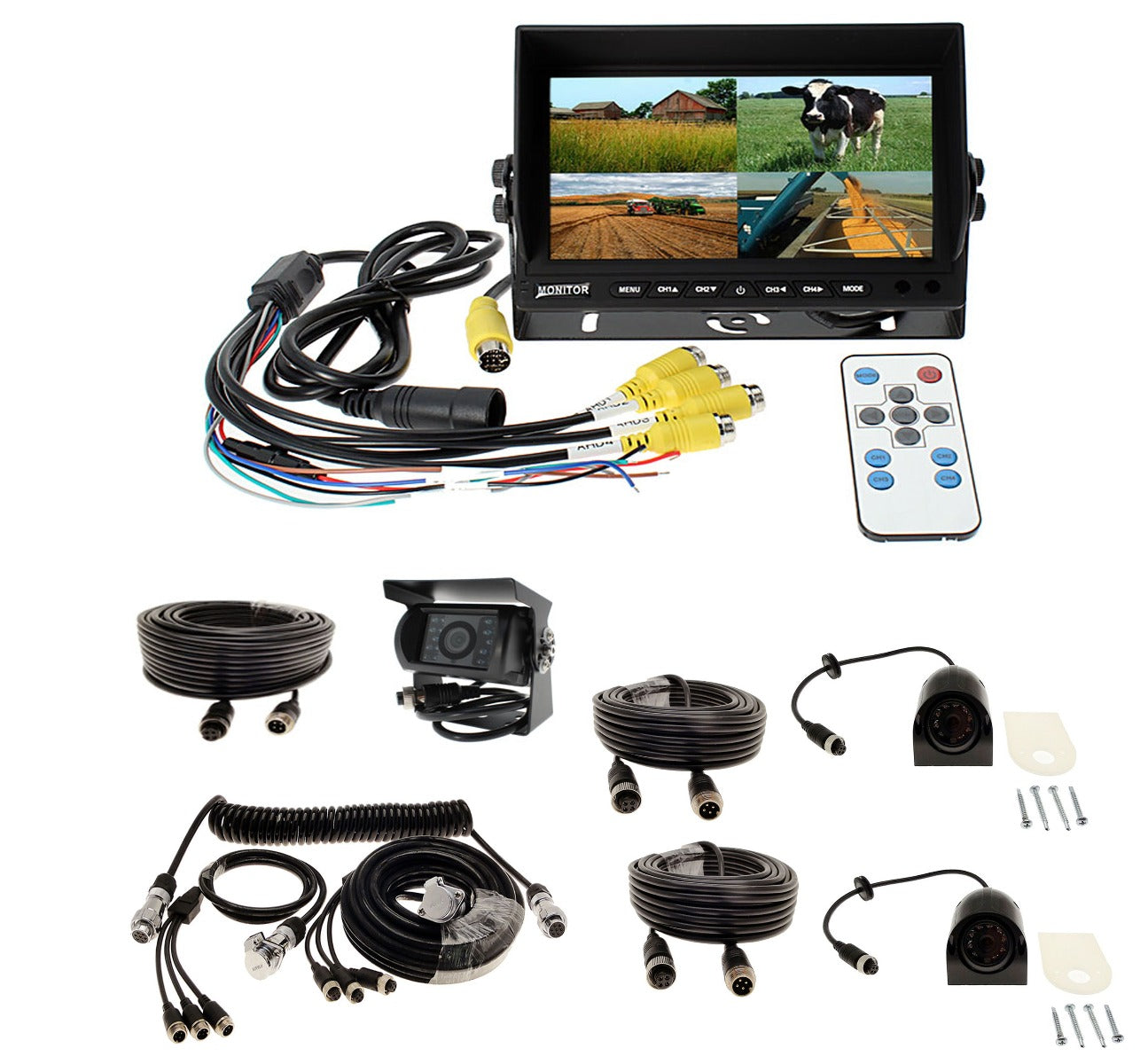

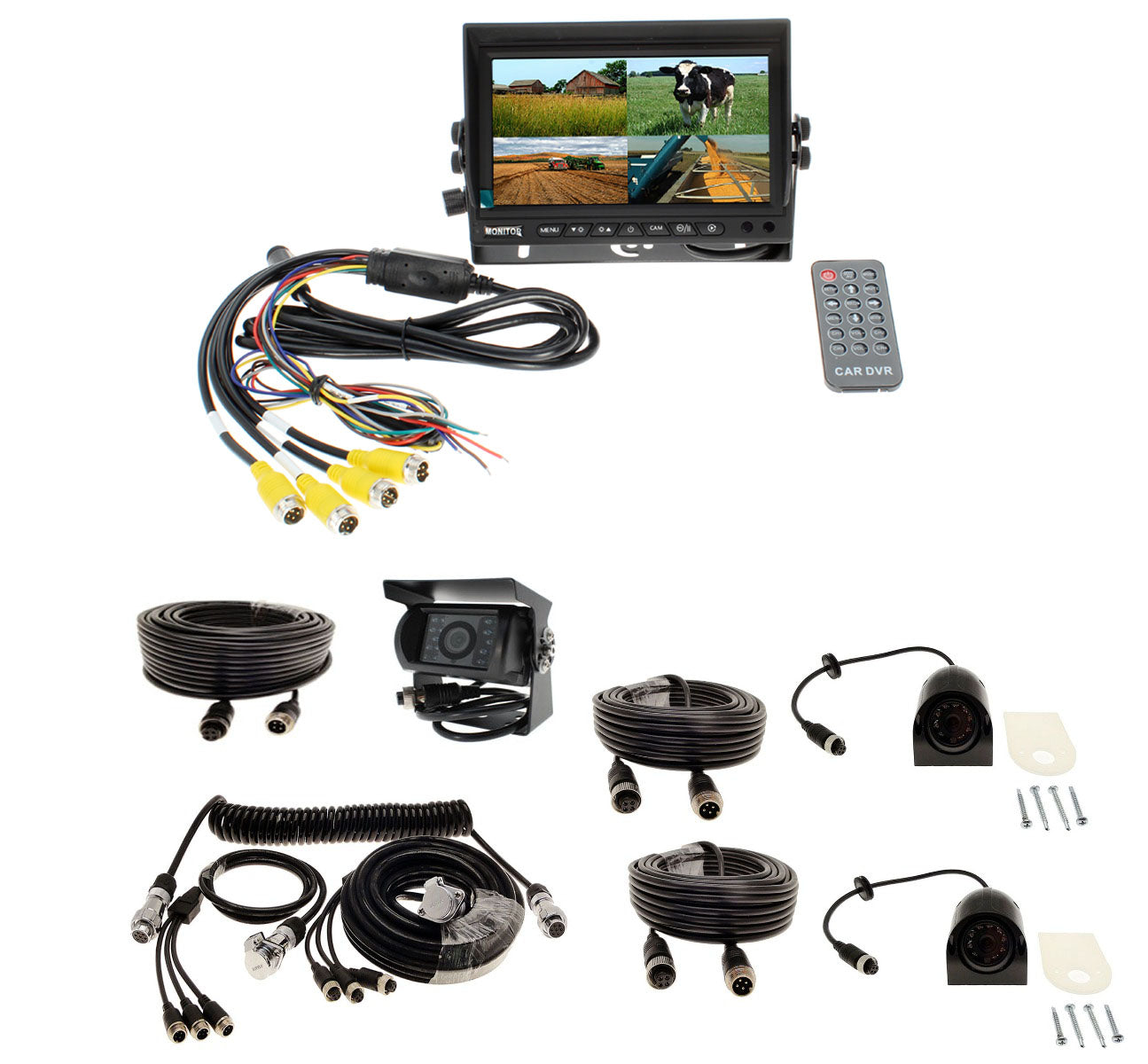

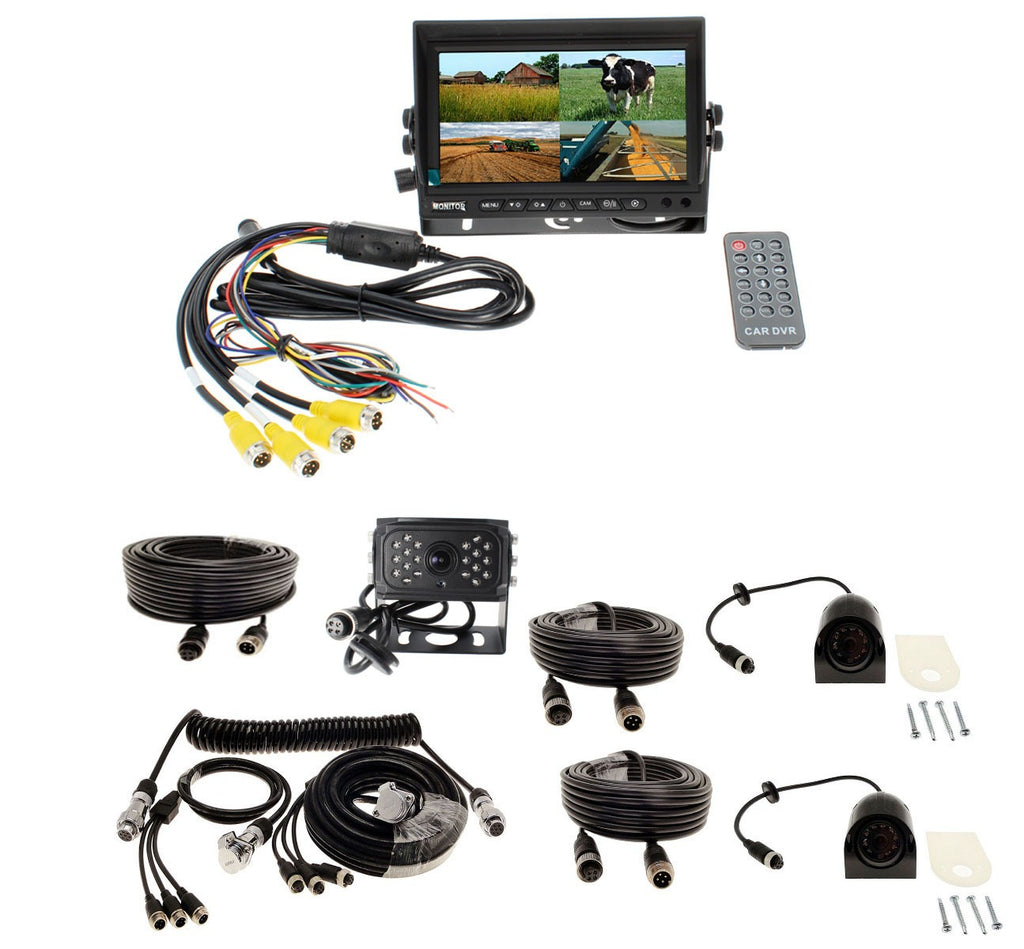

Complete trailer camera kit includes a 7"quad High Definition screen monitor with DVR, one rear AHD camera(1080P), and two AHD side cameras(960P) for maximum visibility!

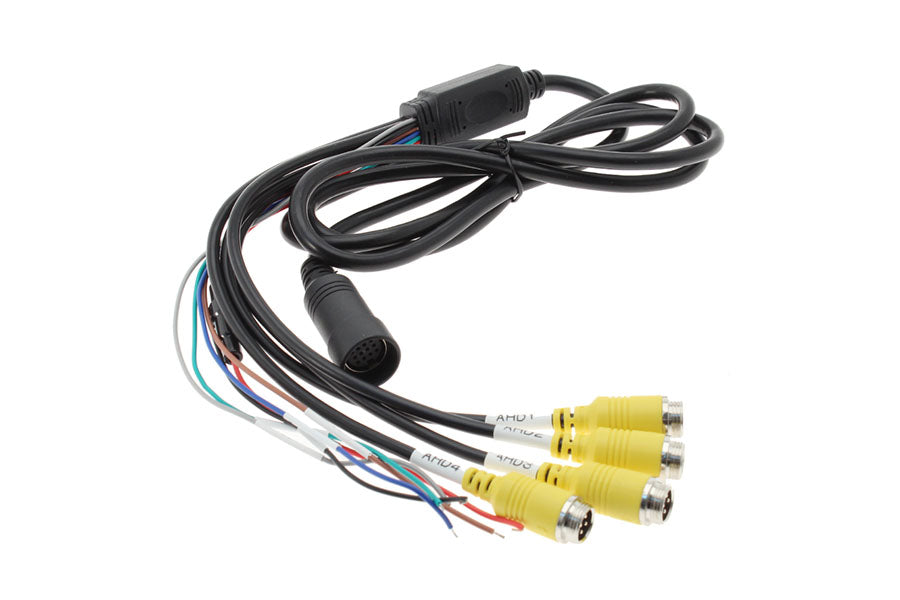

This complete kit contains everything you need to wire one trailer or camper for three total cameras and connect to the included 7" monitor. The monitor can be configured to view all three cameras at once or you can switch between views to do single screen or split screen as well. A quick disconnect harness is included but can be deselected if you plan to use this kit on a motor home or RV that doesn't require camera disconnect capability. These harnesses are extremely durable and weatherproof - designed to make it simple to disconnect your trailer with quick camera releases.
This kit includes the following:

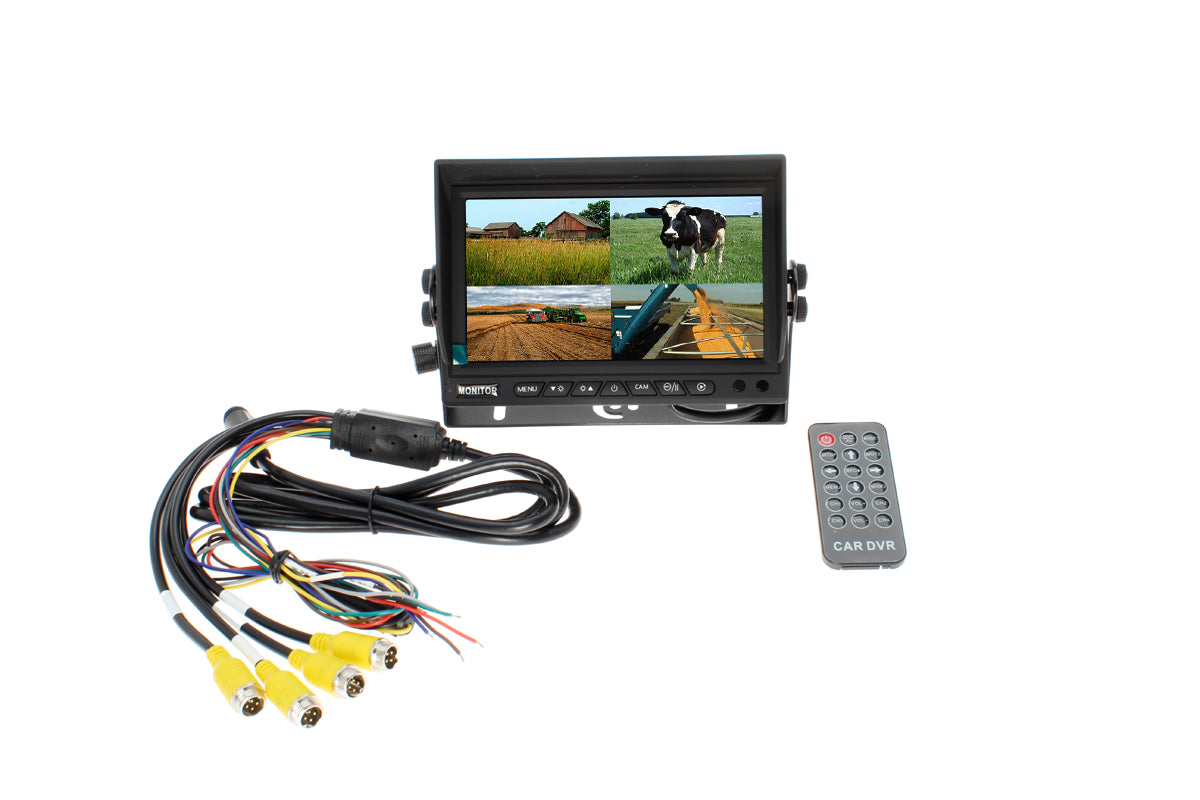

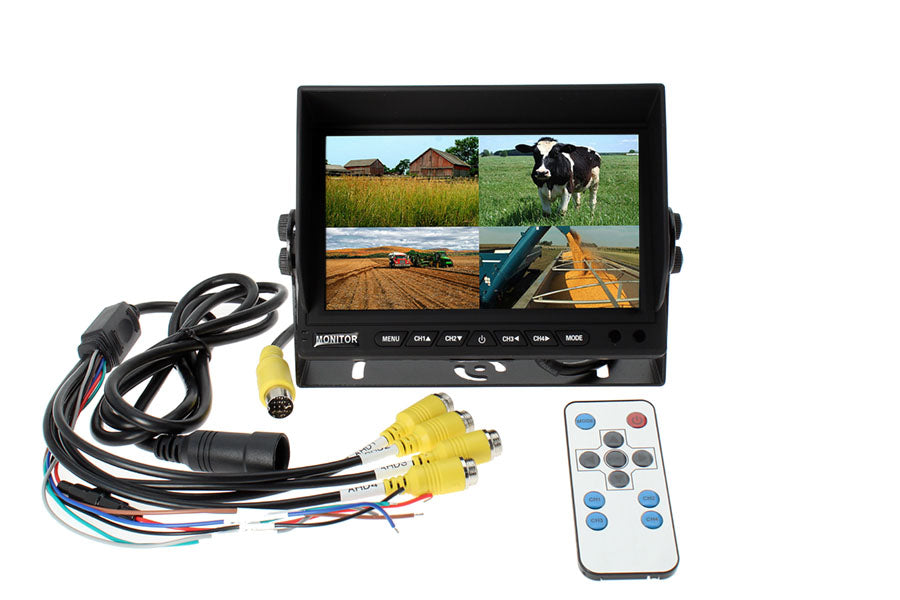

- (1) 7" quad High Definition screen monitor with DVR- can handle up to 4 Analog High Definition cameras at once, three included in this kit
- (1) AHD commercial grade rear view camera-1080P and night vision, see specs
- (2) AHD commercial grade side view cameras-960P, night vision

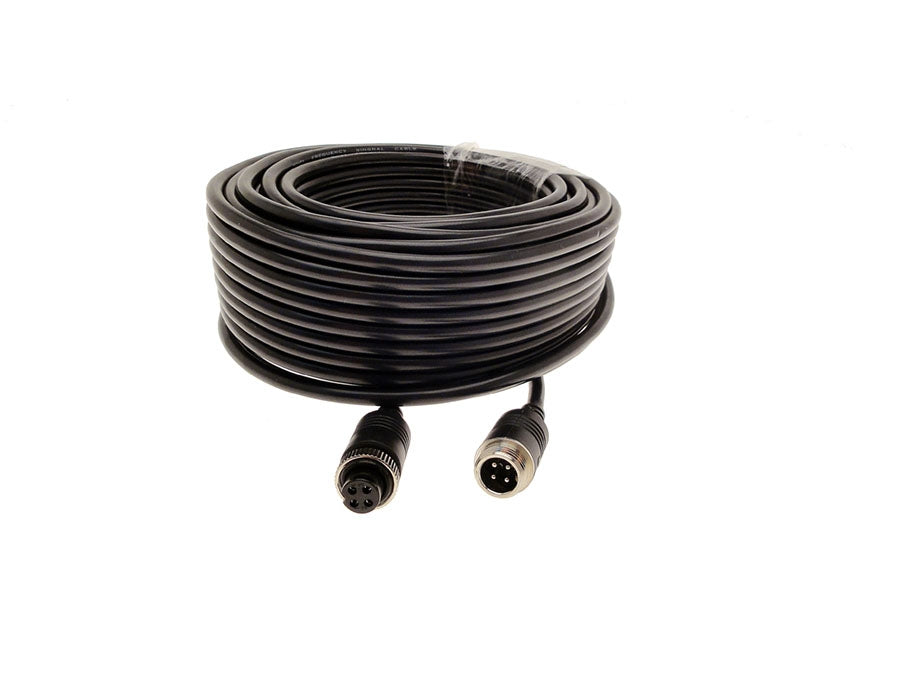

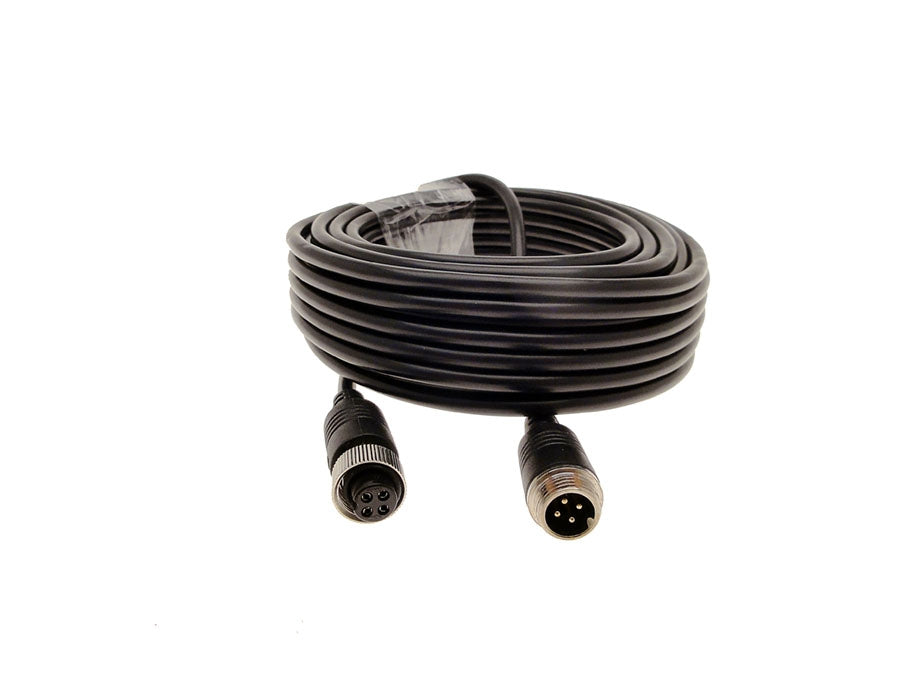

- (2) 32' 4 pin coaxial camera cables
- (2) 64' 4 pin coaxial camera cable (for rear camera)

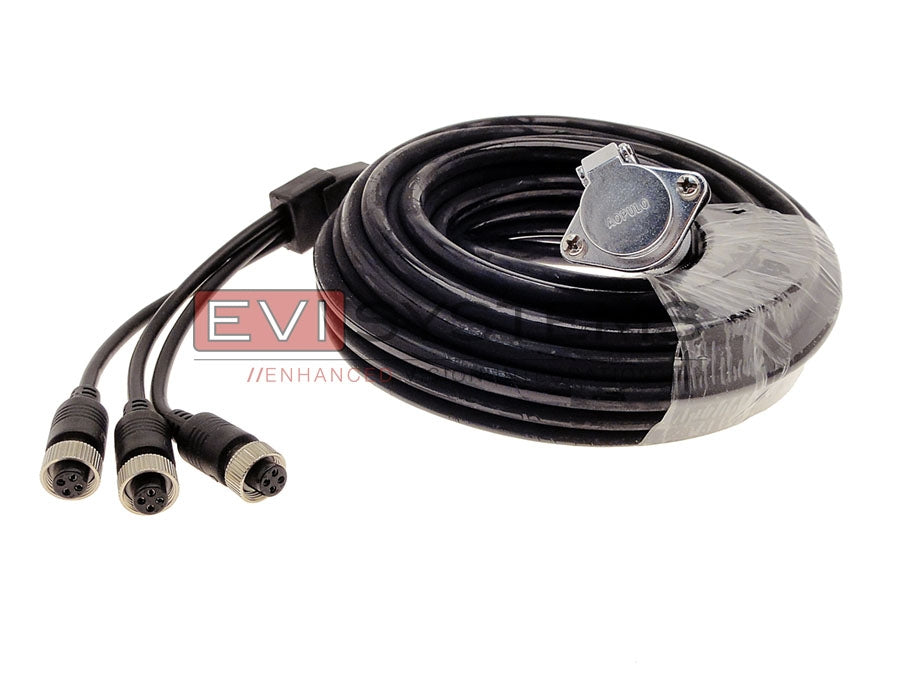

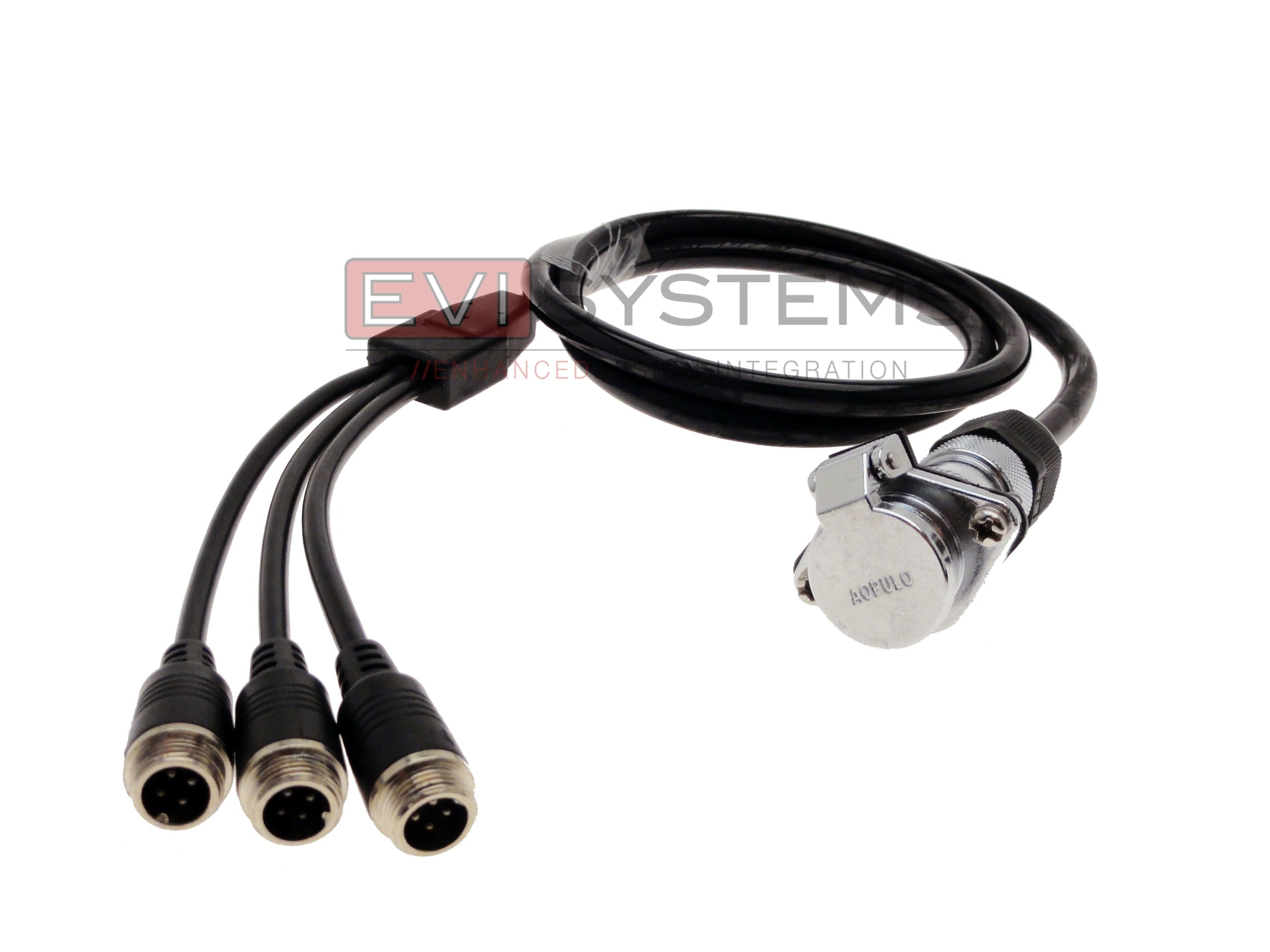

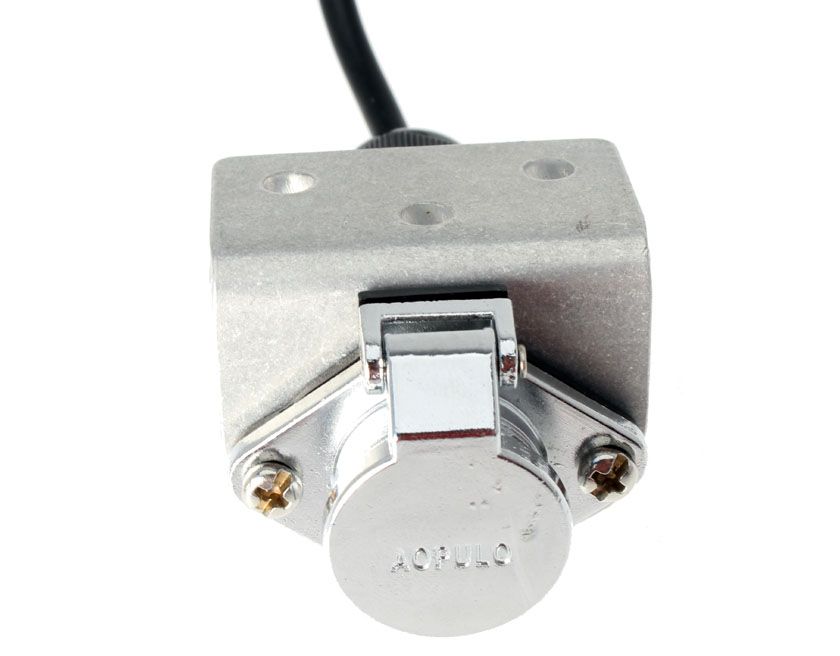

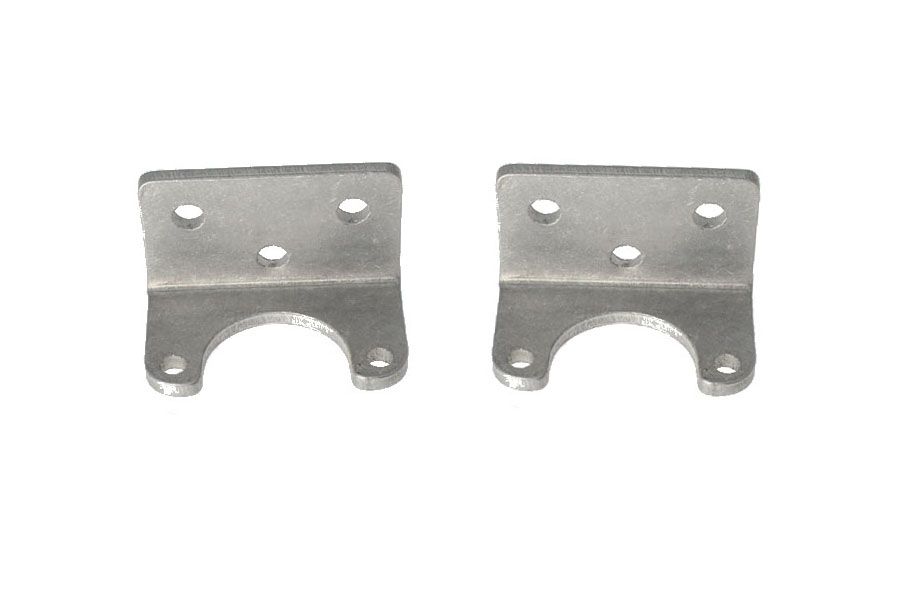

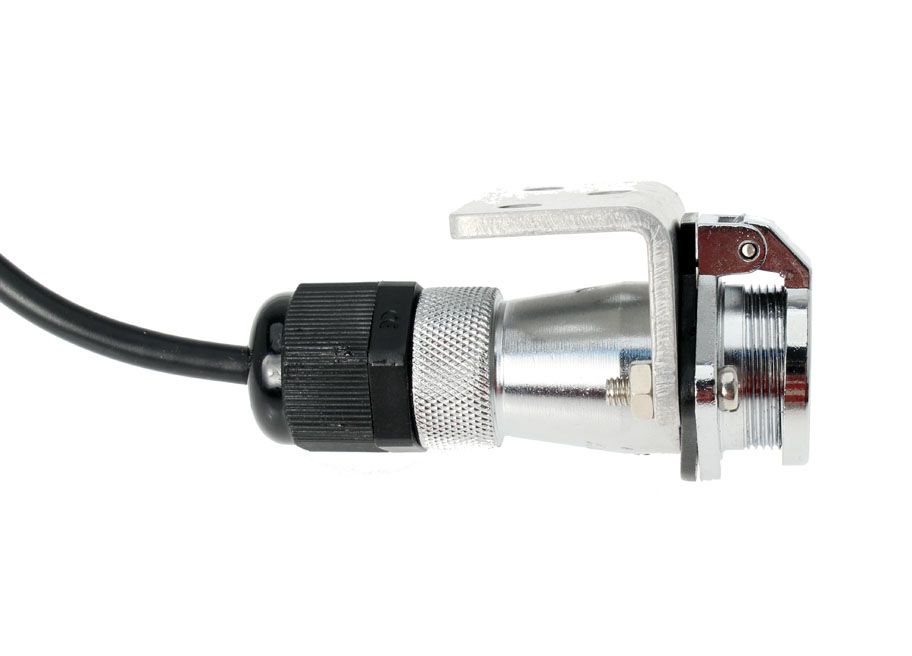

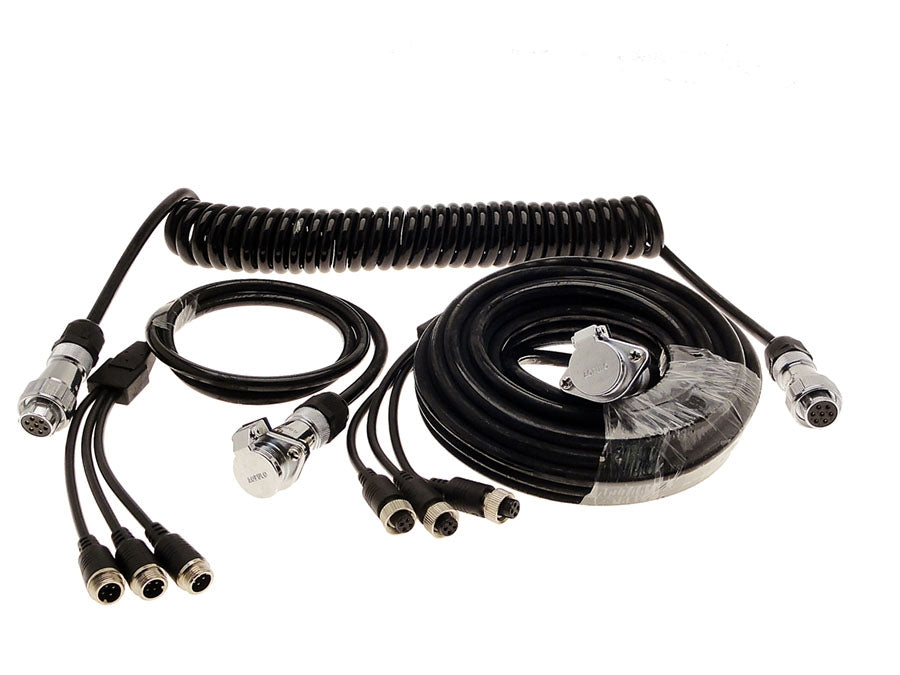

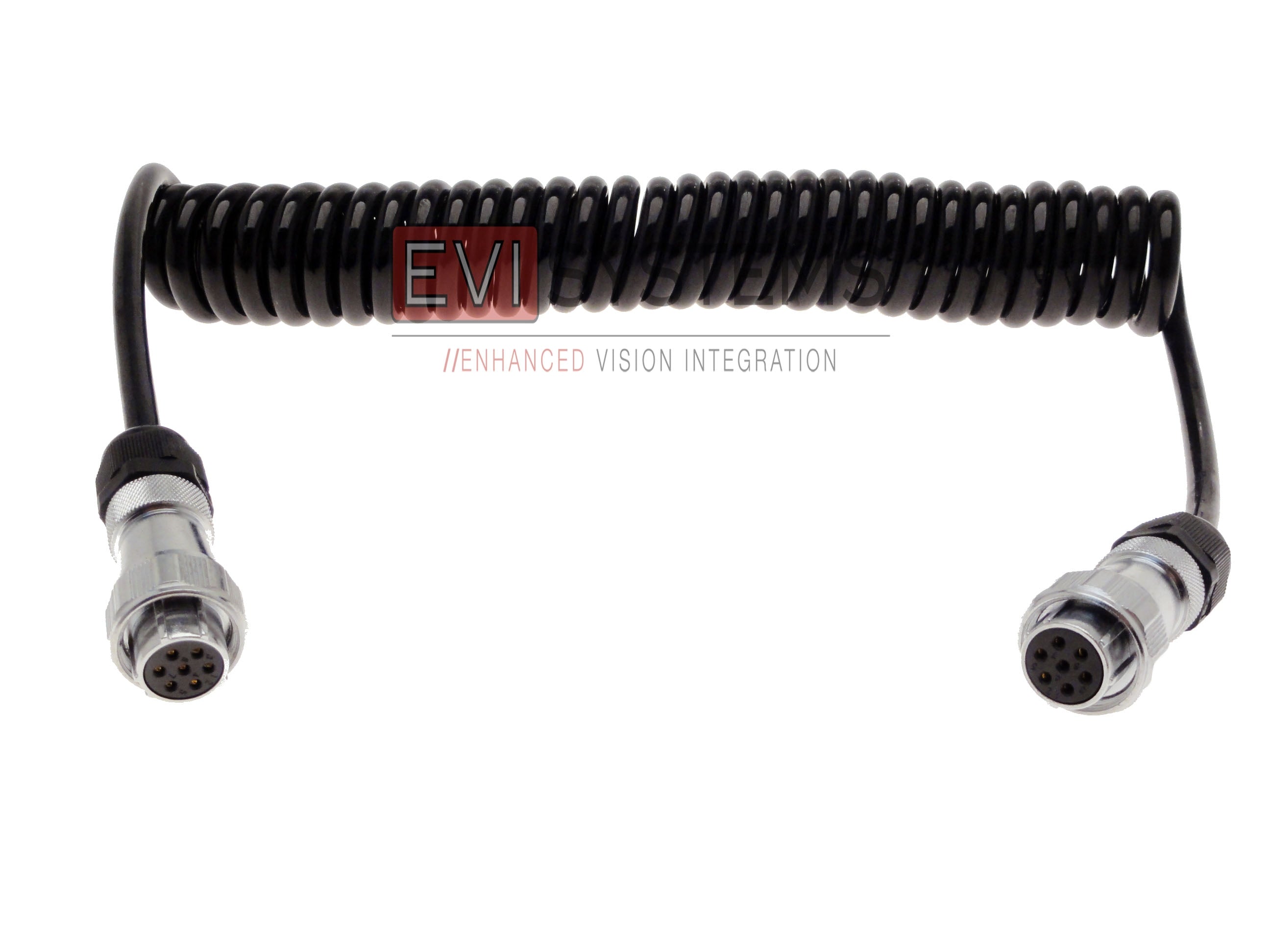

- OPTIONAL 3 camera Quick disconnect system with mounting brackets
- 1 year warranty on everything!
Monitor specs:
- Screen size: 7 inch (diagonal length)
- Built-in quad display
- Built in DVR-Built in DVR- SD slot supports up to 256GB for approximately 20 hours of recording(SD card not included)
- 16 : 9 wide screen display
- NTSC system auto switching
- 1024x600 resolution
- Power supply is DC 12 V/24V compatible

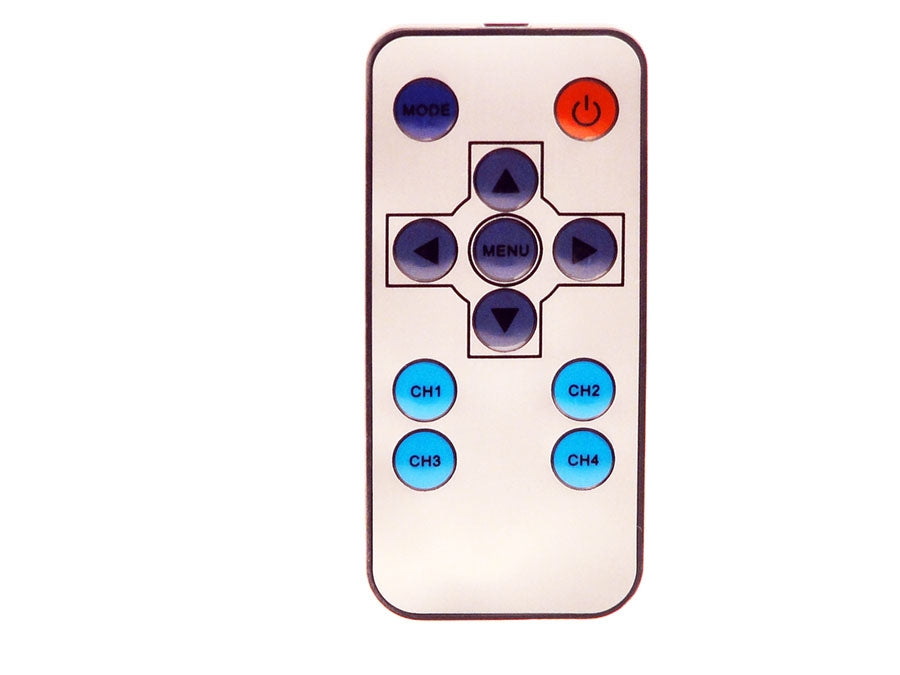

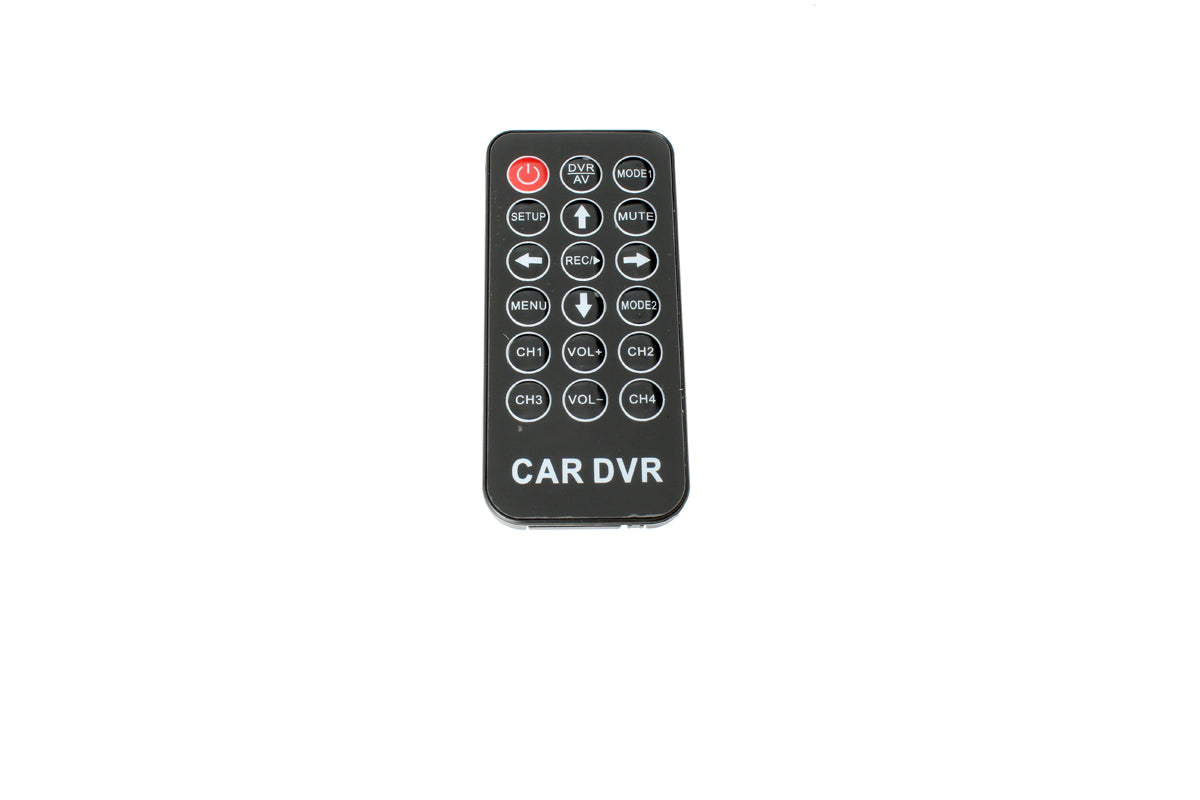

- Remote control, OSD menu
- 4 PIN connectors for our AHD commercial grade cameras, Inputs for up to 4 cameras.

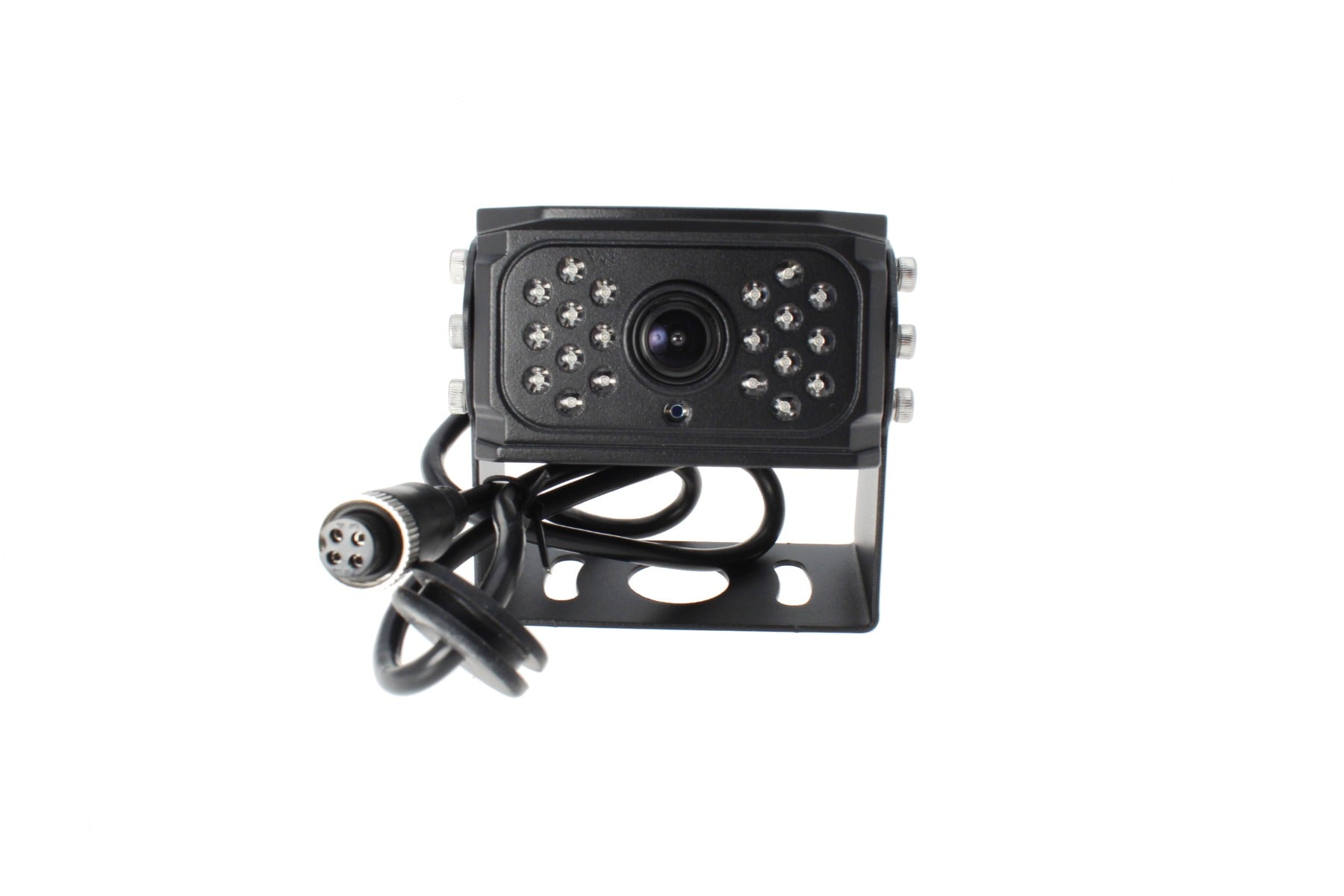

Rear Camera Specs:
- Analog High Definition
- 1080 resolution!
- 150 degree view
- 20 IR LED's for clear night vision even in complete blackness
- Weather grommet for easy cable passage to the interior
- Steel weather tight casing with IP68 water resistance
- Weather tight screw connectors for extremely secure and dry connection

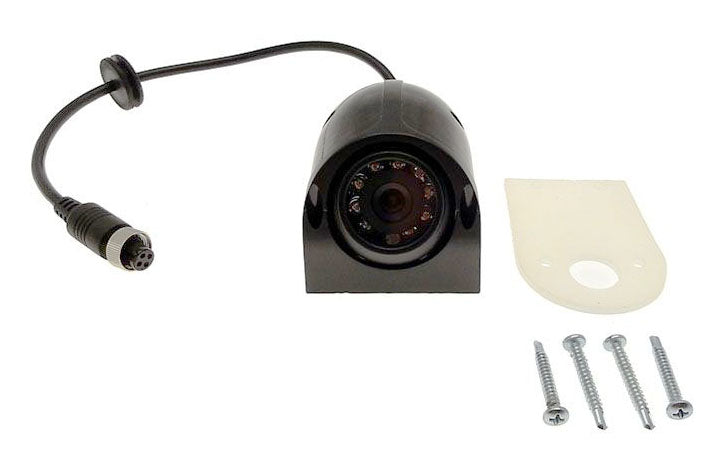

Side Camera Specs:
- 1/3” APTINA CMOS- Analog High Definition
- 960x1280 resolution!
- 120 degree view
- 9 IR LED's for clear night vision even in complete blackness
- Weather grommet for easy cable passage
- Durable weather tight casing with IP68 water resistance
- Weather tight screw connectors for extremely secure and dry connection
If you require something different please contact us directly so we can ensure you get what you need to make your system function to your specifications.
Specifications
| System Manufacturer | EVI Systems |
| Agriculture / Commercial | Agriculture |
| Bracket Type | steel monitor and camera mounts |
| Number of Cameras | 3 |
| Camera Type | Rear Camera, Side Camera, Multiple cameras (kit), Trailer/Camper/5th Wheel camera |
| Cam Only/Complete Kit | Complete Kit |
| For a monitor it uses | Packaged w/Aftermarket Monitor |
| Fit Type | Universal fit |
| Impact Rating | 4g monitor, 20g camera |
| Connection | Commercial 4 Pin Coax |
| Includes Remote | Yes |
| Monitor Size | 7" |
| Camera Mount Location | Universal Mount |
| Night Vision | 0 Lux |
| Number of Triggers | 4 |
| Camera Orientation | Rear Facing + Side Mount |
| Overall Dimensions | 172 x 115 x 22 mm |
| Parking Guidelines | Not Available |
| Power Supply | 12-24 Volts |
| Screen Resolution | 1200x600 |
| Sensor Brand | Sony |
| Sensor Type | CMOS |
| Sound Options | Without Microphone |
| Split Screen | Yes |
| System Type | Standard Build |
| Vehicle Category | Truck, Camper/Trailer (if needing standalone system), Farm Equipment, Fleet Vehicle (i.e. cargo van), RV, Universal |
| Camera Input Ports | 4 |
| Video Input Type | Commercial 4 pin coax |
| Video System | NTSC/PAL auto switching |
| Viewing Angle | 150 Degrees |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP 68 Cameras |
| Wiring Type | Hard Wired |
Compatibility
Will work on any 12-24 volt system. Cameras will mount anywhere and the cables can only go together one way!
Installation
Install from the camera end first and all the connectors will be simple to install. Monitor supplies power to all the cameras through the 4 pin coax cable and all required power connections are clearly labeled.
