7" AHD Single Screen + 2 AHD Camera - Camera System

7" AHD Single Screen + 2 AHD Camera - Camera System

SKU#: CS-7AHD2

Availability: In Stock
SKU#: CS-7AHD2
$291.00

Quantity

Incredible crisp picture-High Definition!

Description

Complete kit for any agriculture application! This kit has everything you need to wire the two included AHD (Analog High Definition)camera to this single 7" High Definition screen monitor for maximum visibility.

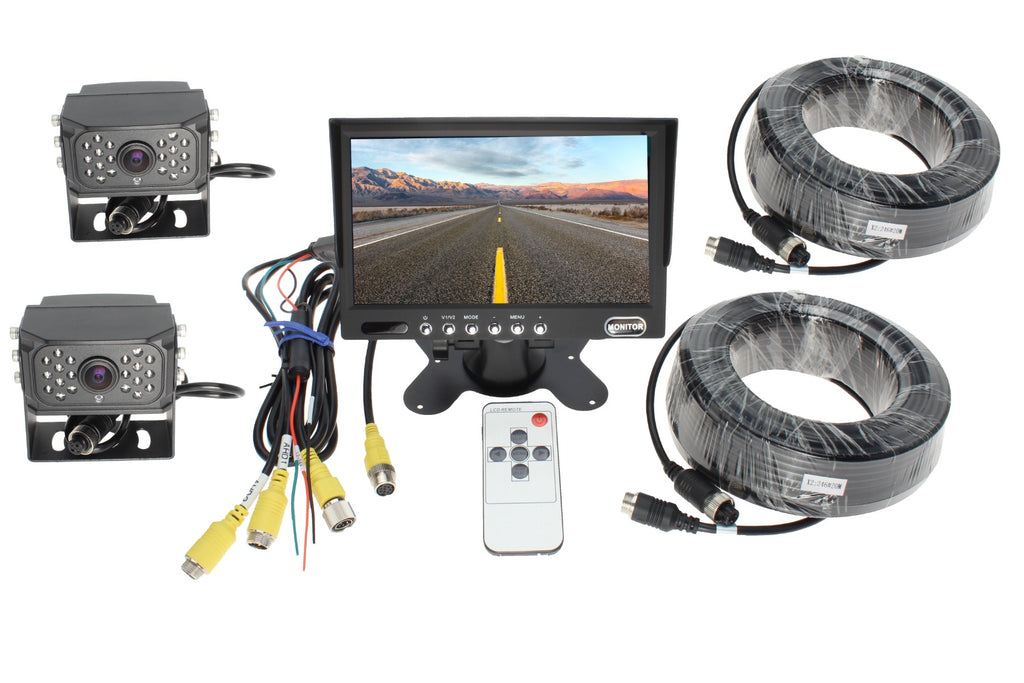

This camera system has our commercial grade AHD cameras (1080P!) with superb night vision along with our 7" High Definition digital monitor for the ultimate in clarity day or night! Camera can be mounted anywhere and the cable is 64 feet long giving you plenty of slack to even mount one on a towed vehicle if necessary. The kit comes with the following items:

  • 7" High Definition digital flat panel monitor - connect up to two AHD cameras, switch between views with a button on the front of the display or use the included remote.
  • Easy install monitor mount

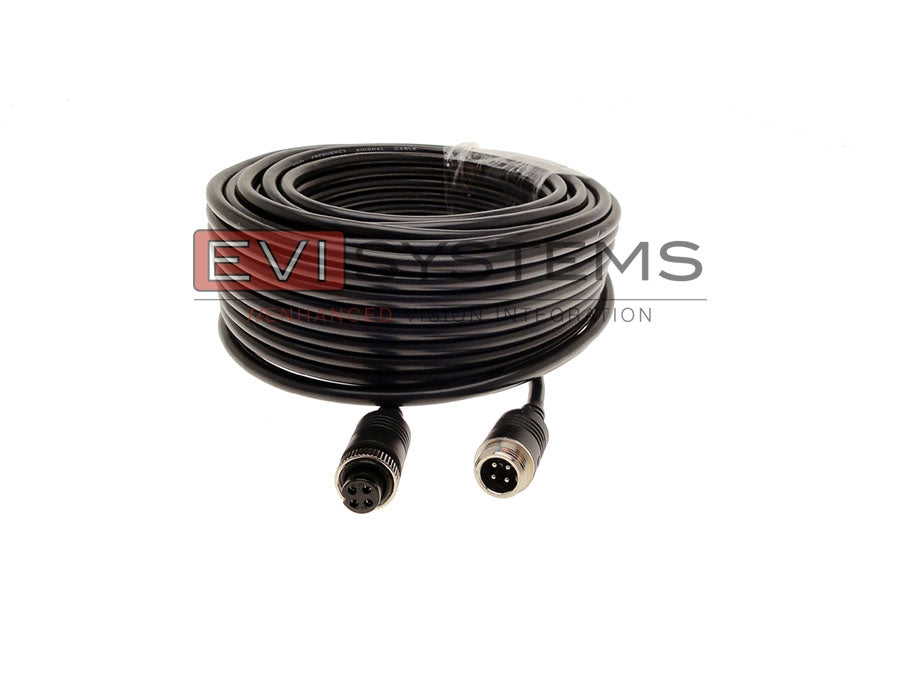

  • 64' twist lock heavy duty cables (2)
  • AHD commercial grade night vision cameras with built in infra-red LED's to allow visibility in zero light conditions (2)
  • Monitor wiring harness

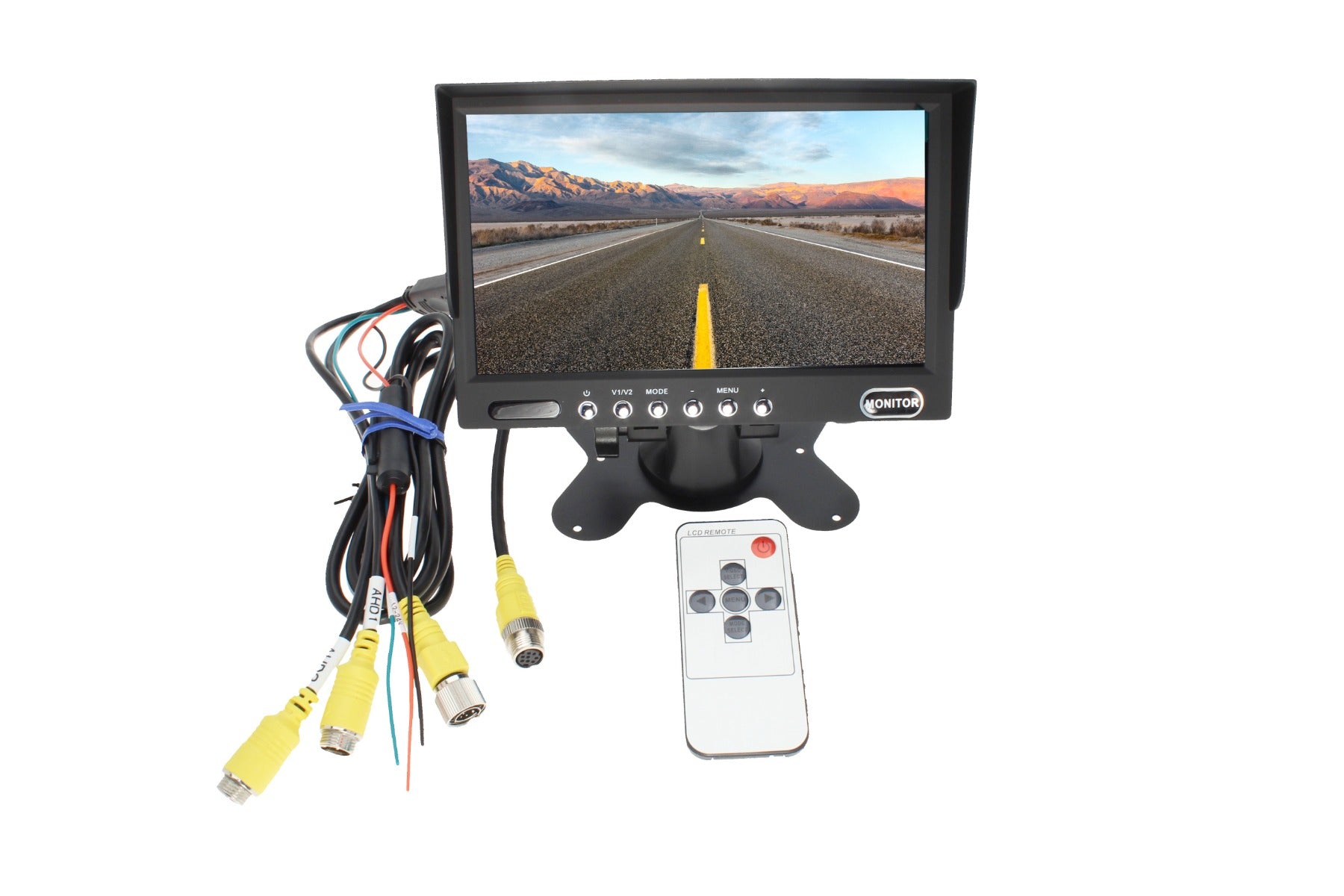

Monitor specs:

  • screen size: 7 inch (diagonal length)
  • High resolution
  • 16 : 9 wide screen display
  • NTSC system
  • 1024x600 resolution
  • Power supply is DC 12 V/24V compatible

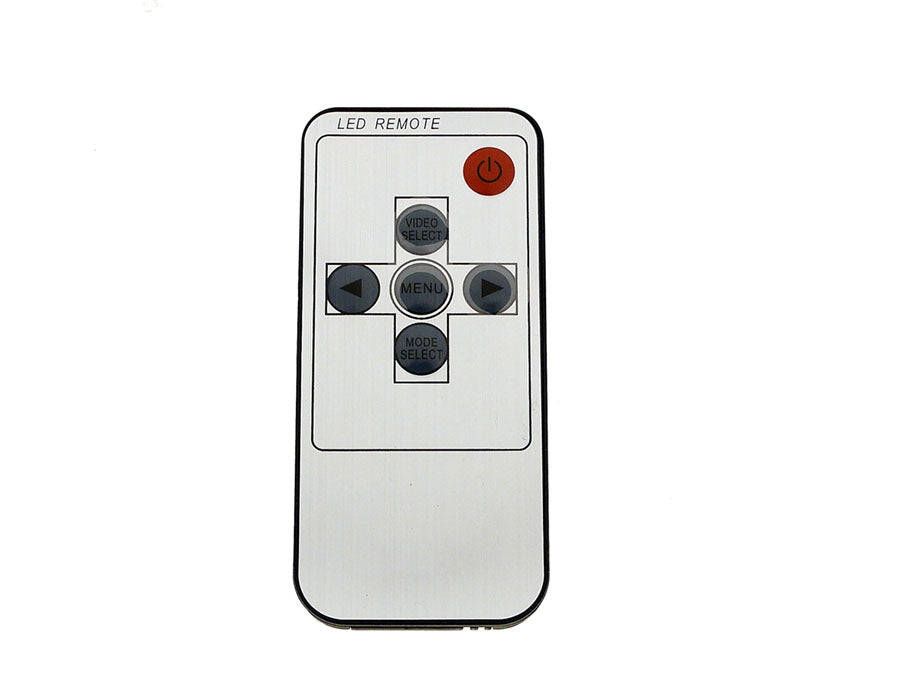

  • Remote control, OSD menu;
  • (2) 4 PIN connector for AHD commercial grade cameras. 2 camera inputs. (2 cams included)

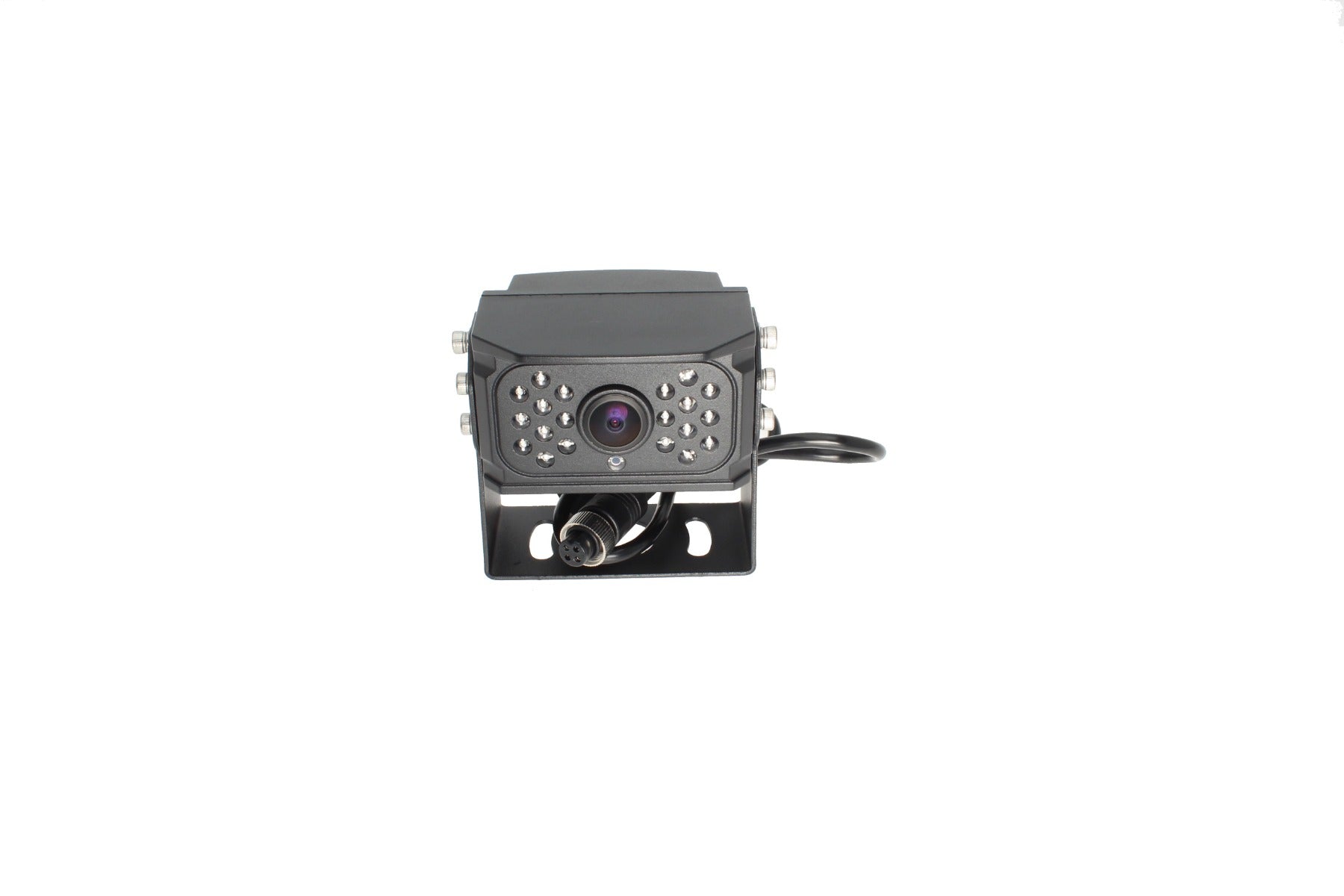

Camera specs:

  • Analog High Definition
  • 1080 resolution!
  • 150 degree view
  • 20 IR LED's for clear night vision even in complete blackness
  • Weather grommet for easy cable passage to the interior
  • Steel weather tight casing with IP69 water resistance
  • Weather tight screw connectors for extremely secure and dry connections

Warranty Information Camera Source warrants this product against material defects for a period of one (1) year from the date of purchase. Camera Source is not responsible for a defect in this system as a result of misuse, improper installation, damage or mis-handling of the electronic components. Most issues can be resolved over the phone or by email so please contact us before returning any items.

Specifications
System Manufacturer EVI Systems
Agriculture / Commercial Commercial
Audio Input Ports None
Bracket Type Steel mount monitor, steel u bracket camera
Number of Cameras 2
Camera Type Rear Camera, Multiple cameras (kit), Trailer/Camper/5th Wheel camera
Cam Only/Complete Kit Complete Kit
For a monitor it uses Packaged w/Aftermarket Monitor
Fit Type Universal fit
Impact Rating 5G monitor, 50G camera
Connection Commercial 4 Pin Coax
Includes Remote Yes
Monitor Size 7"
Camera Mount Location Universal Mount
Night Vision 0 Lux
Number of Triggers 2
Camera Orientation Rear Facing
Overall Dimensions 172 x 115 x 22 mm (monitor)
Parking Guidelines Not Available
Power Supply 12-24 Volts
Screen Resolution 1024x600
Sensor Brand Sony
Sensor Type CMOS
Sound Options Without Microphone
Split Screen No
System Type Standard Build
Vehicle Category Truck, Camper/Trailer (if needing standalone system), Farm Equipment, Fleet Vehicle (i.e. cargo van), RV, Universal
Camera Input Ports 2
Video System NTSC
Viewing Angle 150 Degrees
Warranty 1 Year
Waterproof/Dustproof Level IP 69 Cameras
Wiring Type Hard Wired
Compatibility

12-24 volt DC systems. Universal design will fit on anything! Use this camera system in a horse trailer for monitoring livestock while hauling, monitor grain carts to avoid spillage and overweight loads, see what is behind the combine or folding planter, use anywhere you need better visibility!

Installation

Very simple to install - everything is included in the package! Simple instructions are included.
