Complete kit for any agriculture application! This kit has everything you need to wire the included AHD (Analog High Definition)camera to this single 7" High Definition screen monitor for maximum visibility.

This camera system has our commercial grade AHD camera (1080P!) with superb night vision along with our 7" High Definition digital monitor for the ultimate in clarity day or night! Camera can be mounted anywhere and the cable is 64 feet long giving you plenty of slack to even mount one on a towed vehicle if necessary. The kit comes with the following items:

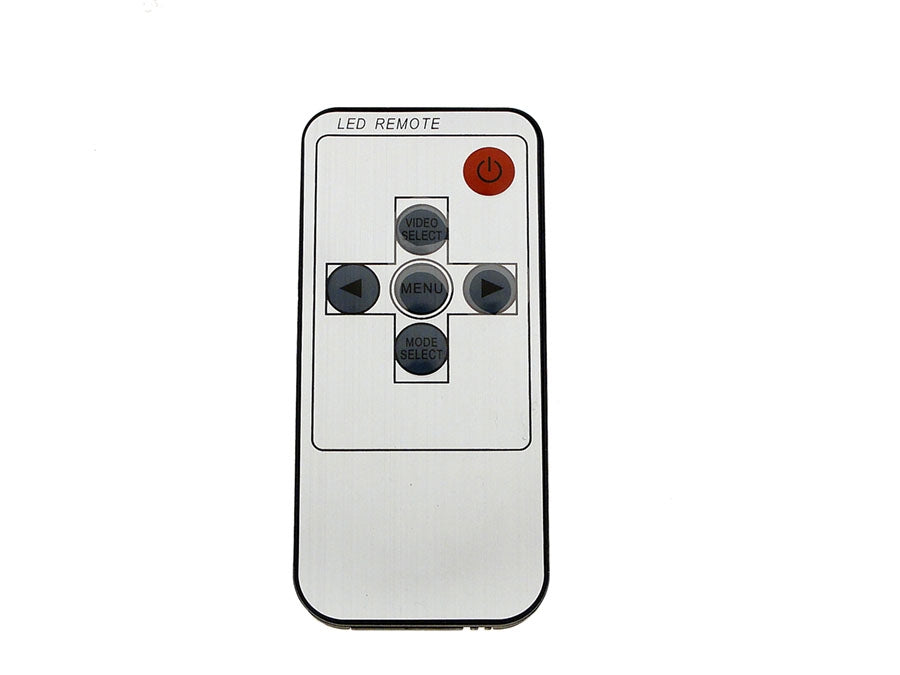

• EVI Systems-7" High Definition digital flat panel monitor - connect up to two AHD cameras, switch between views with a button on the front of the display or use the included remote.
• Easy install monitor mount

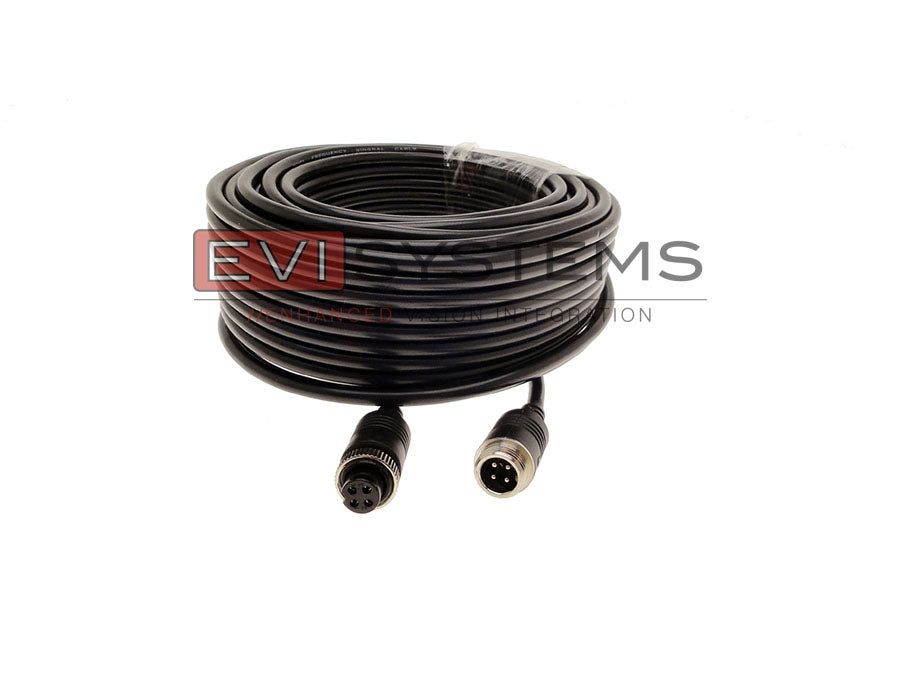

• 64' twist lock heavy duty cables (1)
• AHD commercial grade night vision cameras with built in infra-red LED's to allow visibility in zero light conditions (1)
• Monitor wiring harness and RCA converter for up to two cameras with RCA connector
• OPTIONAL: Single camera quick disconnect system(select from dropdown)

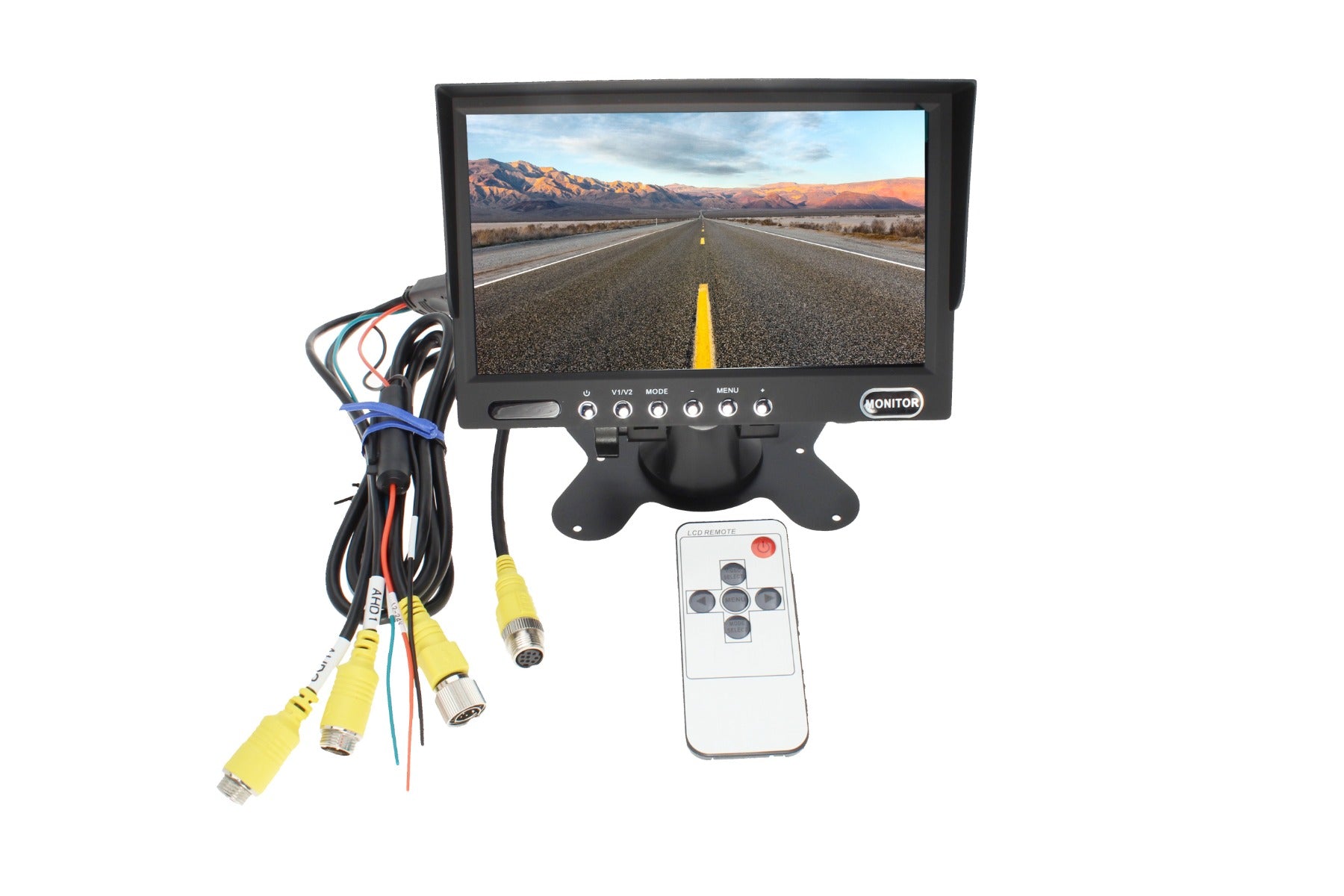

Monitor specs:

• screen size: 7 inch (diagonal length)
• High resolution
• 16 : 9 wide screen display
• NTSC system
• 1024x600 resolution
• Power supply is DC 12 V/24V compatible
• Remote control, OSD menu;
• (2) 4 PIN connector for AHD commercial grade cameras. 2 camera inputs. (1 cam included)

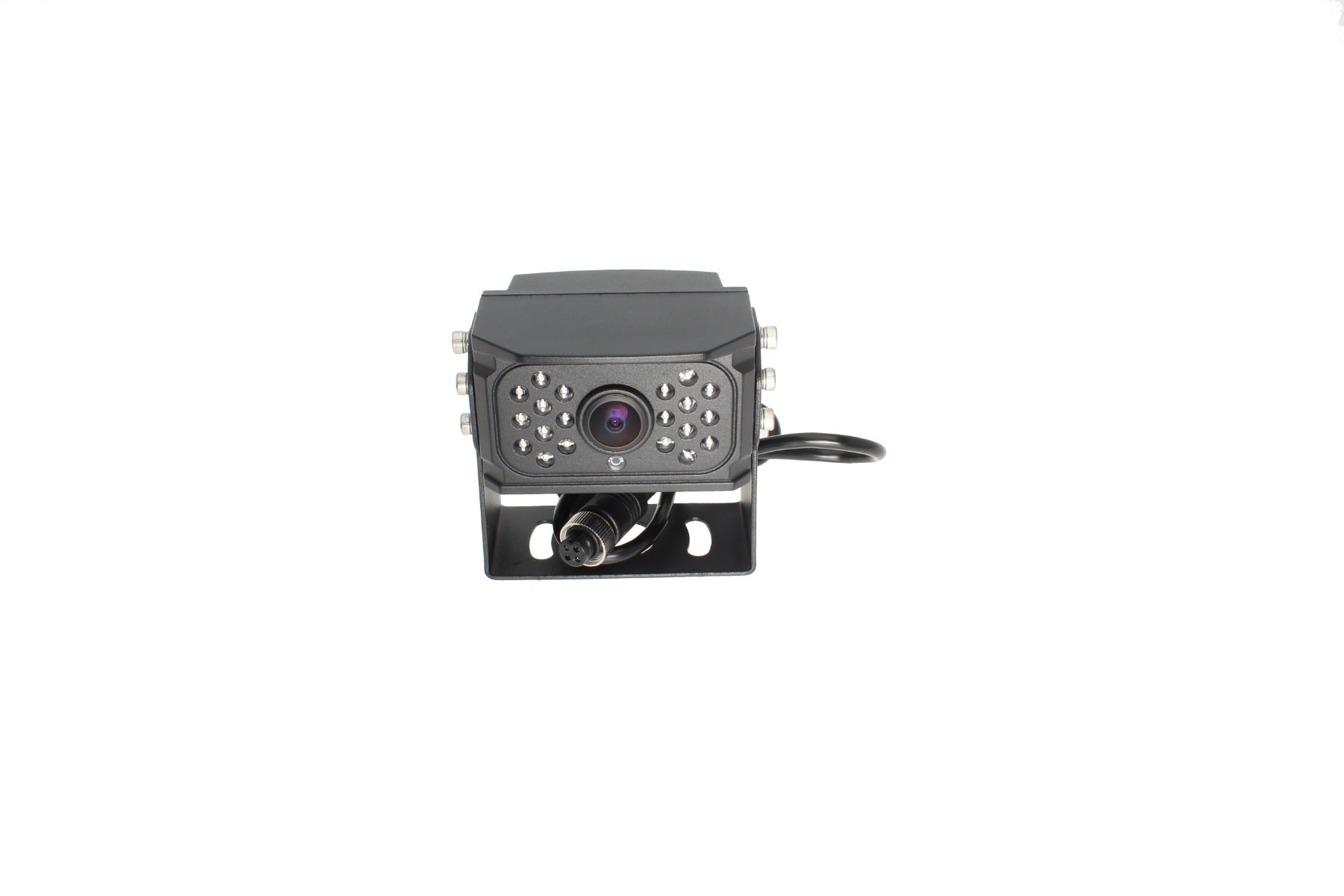

Camera specs:

• Analog High Definition
• 1080 resolution!
• 150 degree view
• 20 IR LED's for clear night vision even in complete blackness
• Weather grommet for easy cable passage to the interior
• Steel weather tight casing with IP68 water resistance
• Weather tight screw connectors for extremely secure and dry connections

Quick Disconnect (OPTIONAL):

This harness will allow you to quickly remove a trailer or other removable component with backup camera.

Quickly remove your fifth wheel, trailer, farm machinery, or anything else that requires the camera to be disconnected at the hitch. Heavy duty coil harness locks into matching receptacles on both ends. Screw type locking connectors are a perfect match for all our commercial camera systems. Coil extends to more than 10ft!

NOTE: This quick disconnect cable can handle ONE camera. This harness is designed to run from inside the cab all the way to the rear bumper, then there is a single coil harness that connects to the included trailer pigtail - approximately 30' long. The harness has one connector inside the cab that routes along the chassis to the rear bumper where it goes into the socket with spring loaded lid. The trailer end is a short pigtail that has provisions for 1 camera.

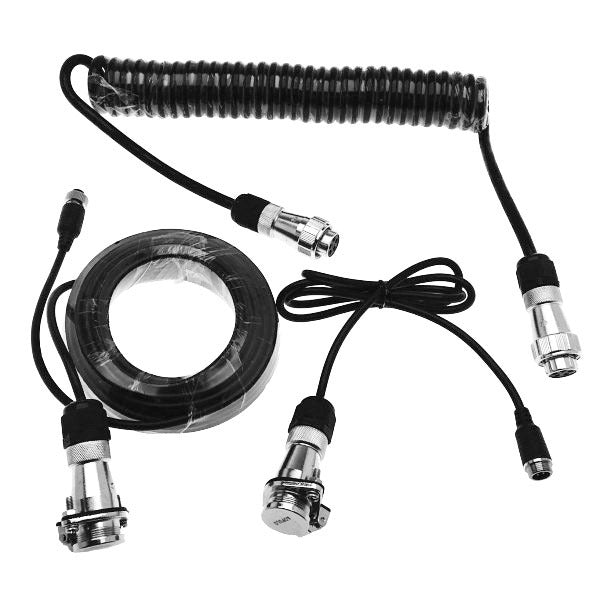

Quick Disconnect contents:

• Heavy Duty coil harness with screw type 4 pin locking connectors on both ends. This is the large coil cable that connects the truck end to the trailer end.

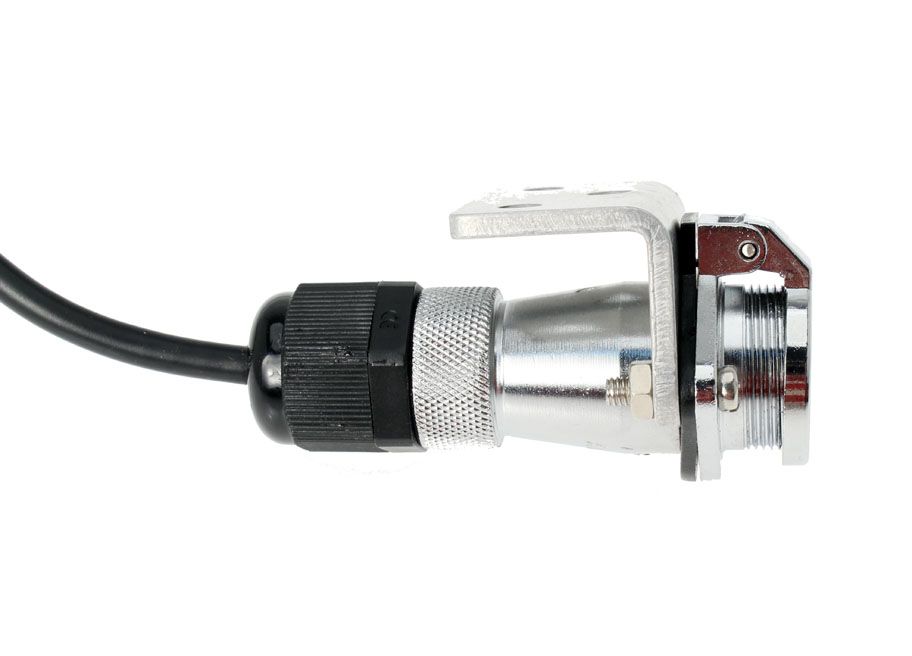

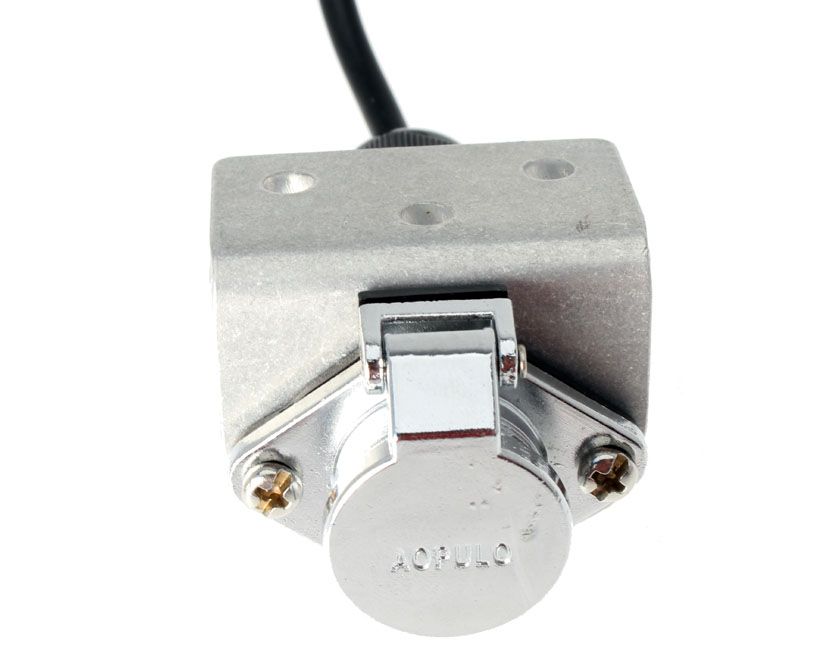

• Truck/Tractor vehicle harness integrated into 30' of cable, spring loaded flip lid on the coil connector side allows the socket to stay free of moisture and dust when not in use
• Trailer pigtail with one camera input. 1 additional cable is necessary to route to your camera so please choose desired length when ordering your camera.

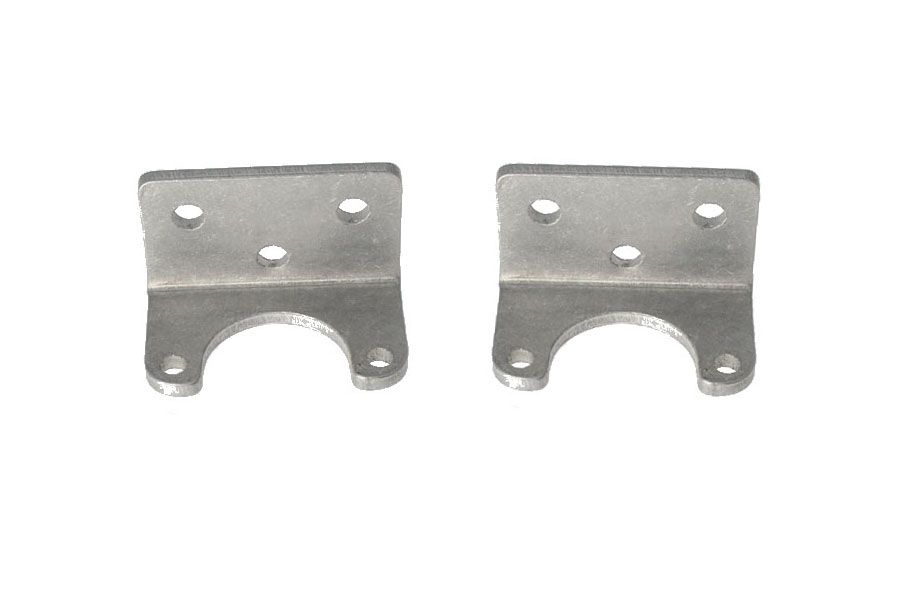

• Quick disconnect mounting brackets

Warranty Information Camera Source warrants this product against material defects for a period of one (1) year from the date of purchase. Camera Source is not responsible for a defect in this system as a result of misuse, improper installation, damage or mis-handling of the electronic components. Most issues can be resolved over the phone or by email so please contact us before returning any items.
