7" High Definition Heavy Duty Screen + 2 AHD Camera-Complete System
SKU#: CS-7HVAHD2
Availability:
In Stock
SKU#:
CS-7HVAHD2
$307.99
Quantity
Heavy Duty with High Definition!
Description
Need a monitor that can handle excessive vibration and abuse? This kit has everything you need to wire 2 AHD (Analog High Definition) cameras to a single 7" heavy duty High Definition monitor for maximum visibility in places that you wouldn't normally be visible.
This camera system has our commercial grade AHD cameras (1080P!) with superb night vision along with our 7" High Definition digital monitor for the ultimate in clarity day or night! Camera can be mounted anywhere and the cable is 64 feet long giving you plenty of slack. This camera system works great on Bobcat skid loaders and other skid steers.

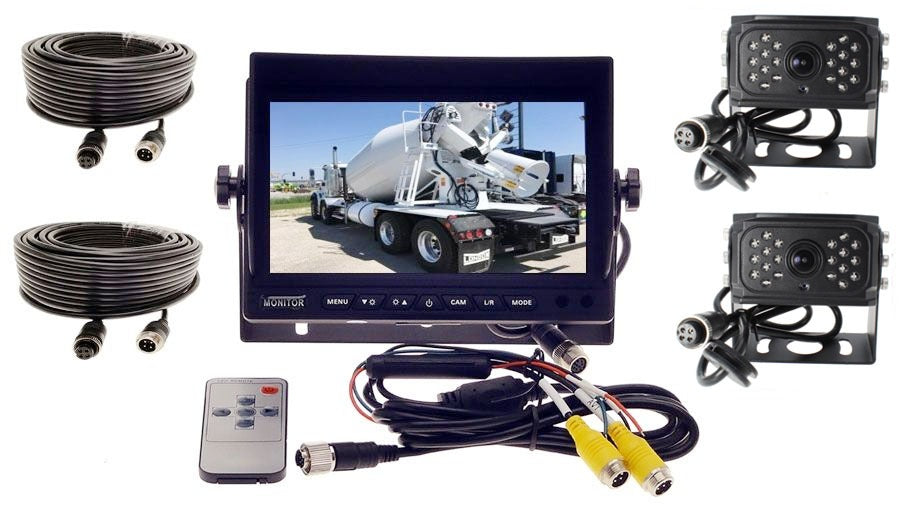

The kit comes with the following items:

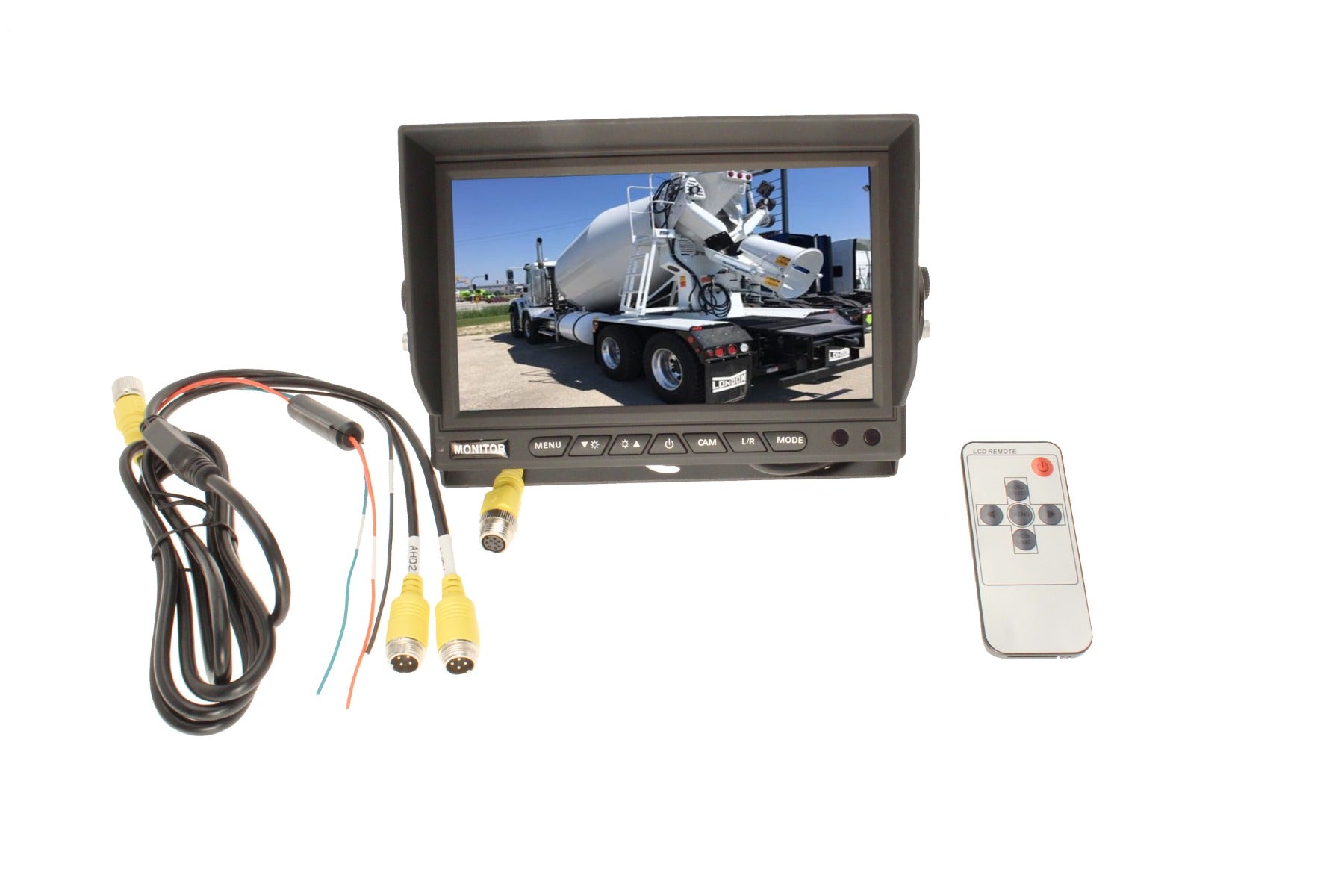

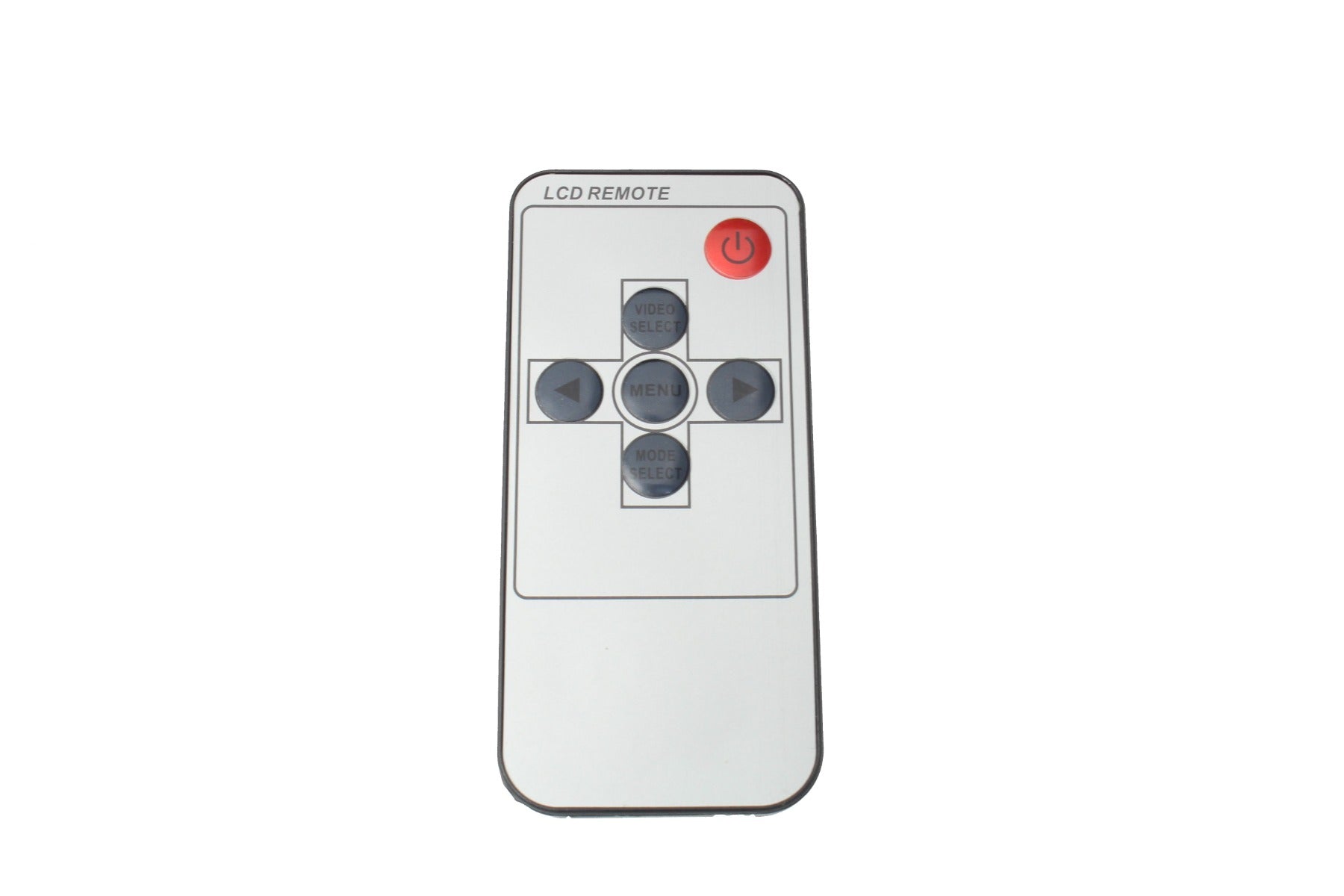

- 7" Heavy Duty High Definition digital flat panel monitor - connect up to two AHD cameras, switch between views with a button on the front of the display or use the included remote.
- Easy install monitor mount

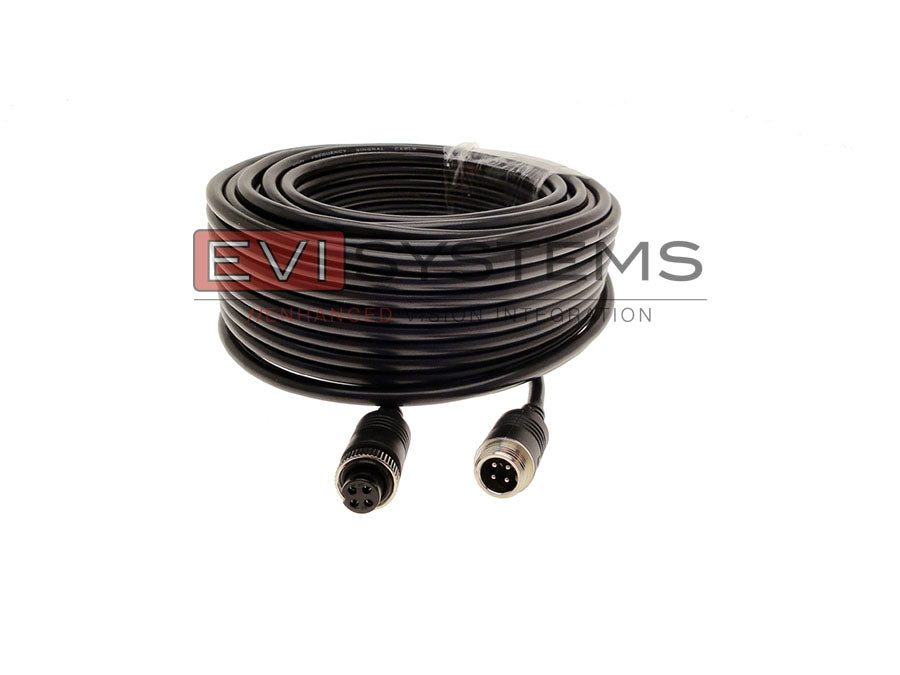

- 64' twist lock heavy duty cables (2)

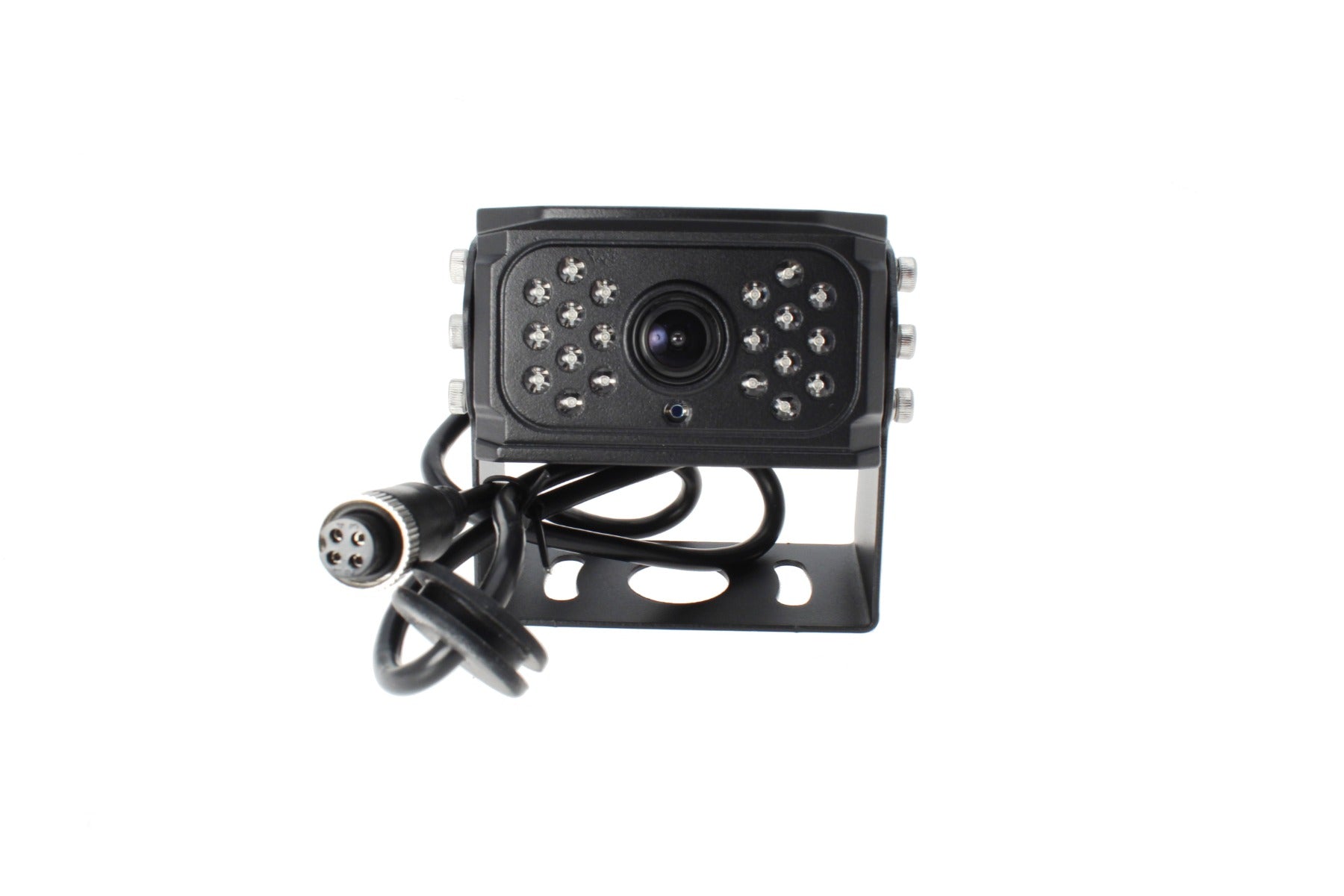

- AHD commercial grade night vision cameras with built in infra-red LED's to allow visibility in zero light conditions (2)
- Monitor wiring harness for up to two cameras
Monitor specs:
- screen size: 7 inch (diagonal length)
- High resolution
- Molded internals shields against excessive vibration and shock
- 16 : 9 wide screen display
- NTSC system
- 1024x600 resolution
- Power supply is DC 12 V/24V compatible
- Remote control, OSD menu;
- (2) 4 PIN connectors for AHD commercial grade cameras
Camera specs:
- Analog High Definition
- 1080 resolution!
- 150 degree view
- 18 IR LED's for clear night vision even in complete blackness
- Weather grommet for easy cable passage to the interior
- Steel weather tight casing with IP68 water resistance - adjustable glare shield included
- Weather tight screw connectors for extremely secure and dry connections
Warranty Information Camera Source warrants this product against material defects for a period of one (1) year from the date of purchase. Camera Source is not responsible for a defect in this system as a result of misuse, improper installation, damage or mis-handling of the electronic components. Most issues can be resolved over the phone or by email so please contact us before returning any items.
Specifications
| System Manufacturer | EVI Systems |
| Agriculture / Commercial | Commercial |
| Audio Input Ports | None |
| Bracket Type | Steel mount monitor, steel u bracket camera |
| Number of Cameras | 2 |
| Camera Type | Rear Camera, Multiple cameras (kit), Trailer/Camper/5th Wheel camera |
| Cam Only/Complete Kit | Complete Kit |
| For a monitor it uses | Packaged w/Aftermarket Monitor |
| Fit Type | Universal fit |
| Impact Rating | 10G monitor, 50G camera |
| Connection | Commercial 4 Pin Coax |
| Includes Remote | Yes |
| Monitor Size | 7" |
| Camera Mount Location | Universal Mount |
| Night Vision | 0 Lux |
| Number of Triggers | 2 |
| Camera Orientation | Rear Facing |
| Overall Dimensions | 172 x 115 x 22 mm (monitor) |
| Parking Guidelines | Not Available |
| Power Supply | 12-24 Volts |
| Reason for Shopping | Adding camera(s) |
| Screen Resolution | 1024x600 |
| Sensor Brand | Sony |
| Sensor Type | CMOS |
| Sound Options | Without Microphone |
| Split Screen | No |
| System Type | Heavy Duty |
| Vehicle Category | Truck, Camper/Trailer (if needing standalone system), Farm Equipment, Fleet Vehicle (i.e. cargo van), Construction Equipment (i.e. bulldozer), RV, Universal |
| Camera Input Ports | 2 |
| Video System | NTSC |
| Viewing Angle | 150 Degrees |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP 69 Cameras |
| Wiring Type | Hard Wired |
Compatibility
12-24 volt DC systems. Universal design will fit on anything! Use this camera system in a horse trailer for monitoring livestock while hauling, monitor grain carts to avoid spillage and overweight loads, see what is behind the combine or folding planter, use anywhere you need better visibility!
Installation
Very simple to install - everything is included in the package! Cable can only go one way, monitor wires are clearly marked for easy identification when installing - requires power, ground, and reverse trigger if desired. Camera power and video is supplied through the coaxial cable.
