5" Single Screen + 1 CCD Sony Camera-DEMO
SKU#: CS-5FCCD1-DEMO
Availability:
In Stock
SKU#:
CS-5FCCD1-DEMO
$189.00
Quantity
5" Commercial grade camera kit with 1 camera!
Description
DEMO KIT USED FOR TESTING ONLY. Screen even has the protective covering yet.
Complete kit for any agriculture application! This kit has everything you need to wire the included camera to a single 5" screen monitor for maximum visibility.
This camera system has a commercial grade CCD camera with superb night vision along with a 5" digital monitor for the ultimate in clarity day or night! Camera can be mounted anywhere and the cable is 64 feet long giving you plenty of slack to even mount on a towed vehicle if desired.

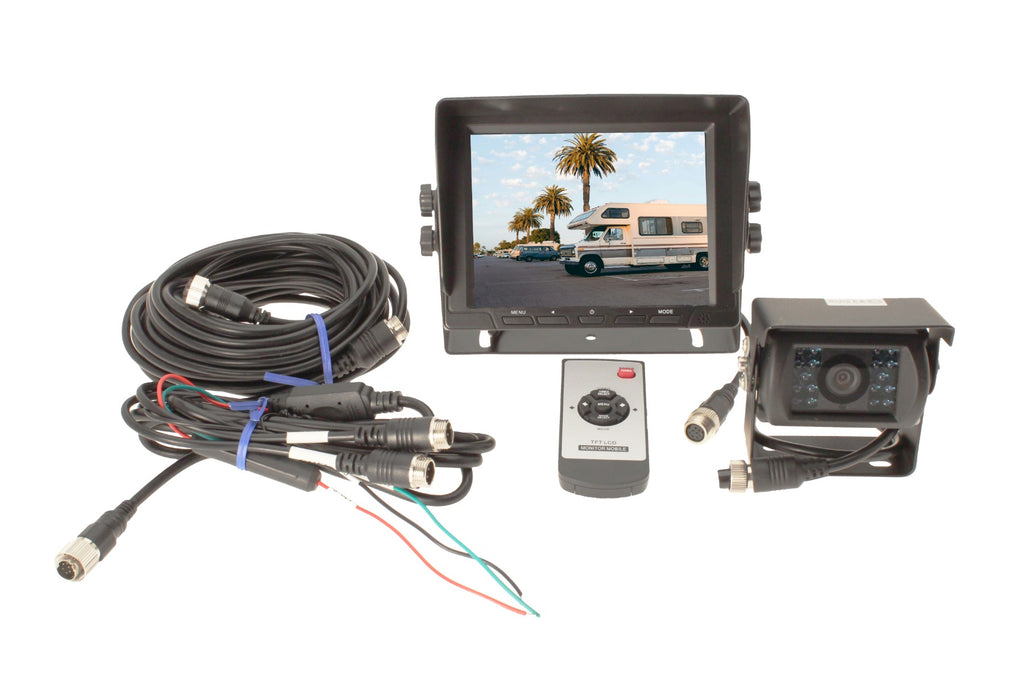

The kit comes with the following items:
- 5" digital flat panel monitor - connect up to two cameras, switch between views with a button on the front of the display or use the included remote.
- Easy install monitor mount

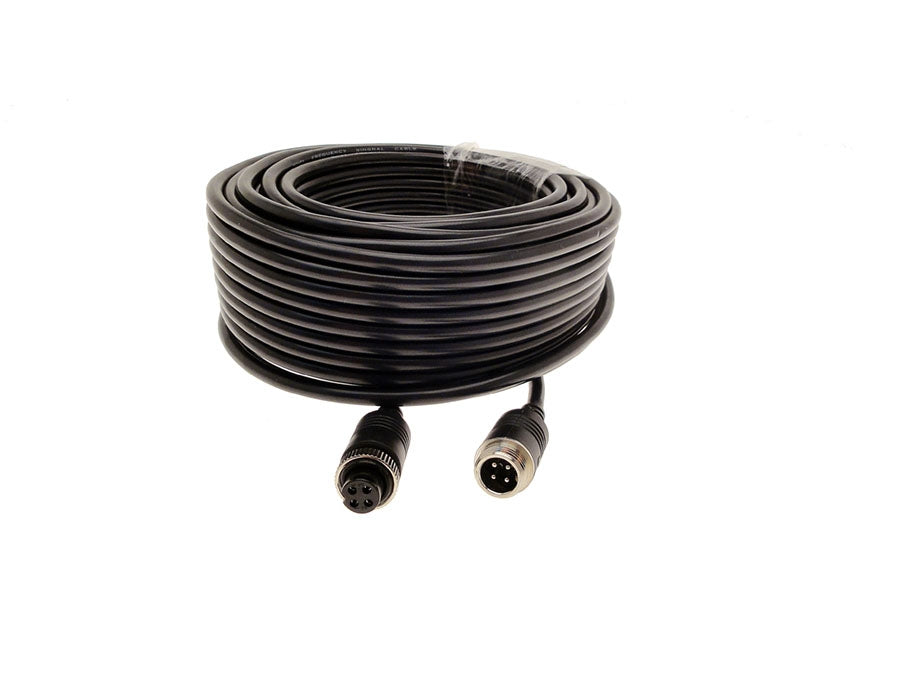

- 64' twist lock heavy duty cable (1)
- CCD commercial grade night vision camera with built in infra-red LED's to allow visibility in zero light conditions(1)
- Monitor wiring harness and RCA Converter for one camera with RCA connector
Monitor specs:
- Screen size: 5 inch (diagonal length)
- 16:9 wide screen display
- 2 video inputs- PAL and NTSC auto switching
- Power supply: DC 12V-24V compatible
- Built in speakers
- Remote control
- OSD menu

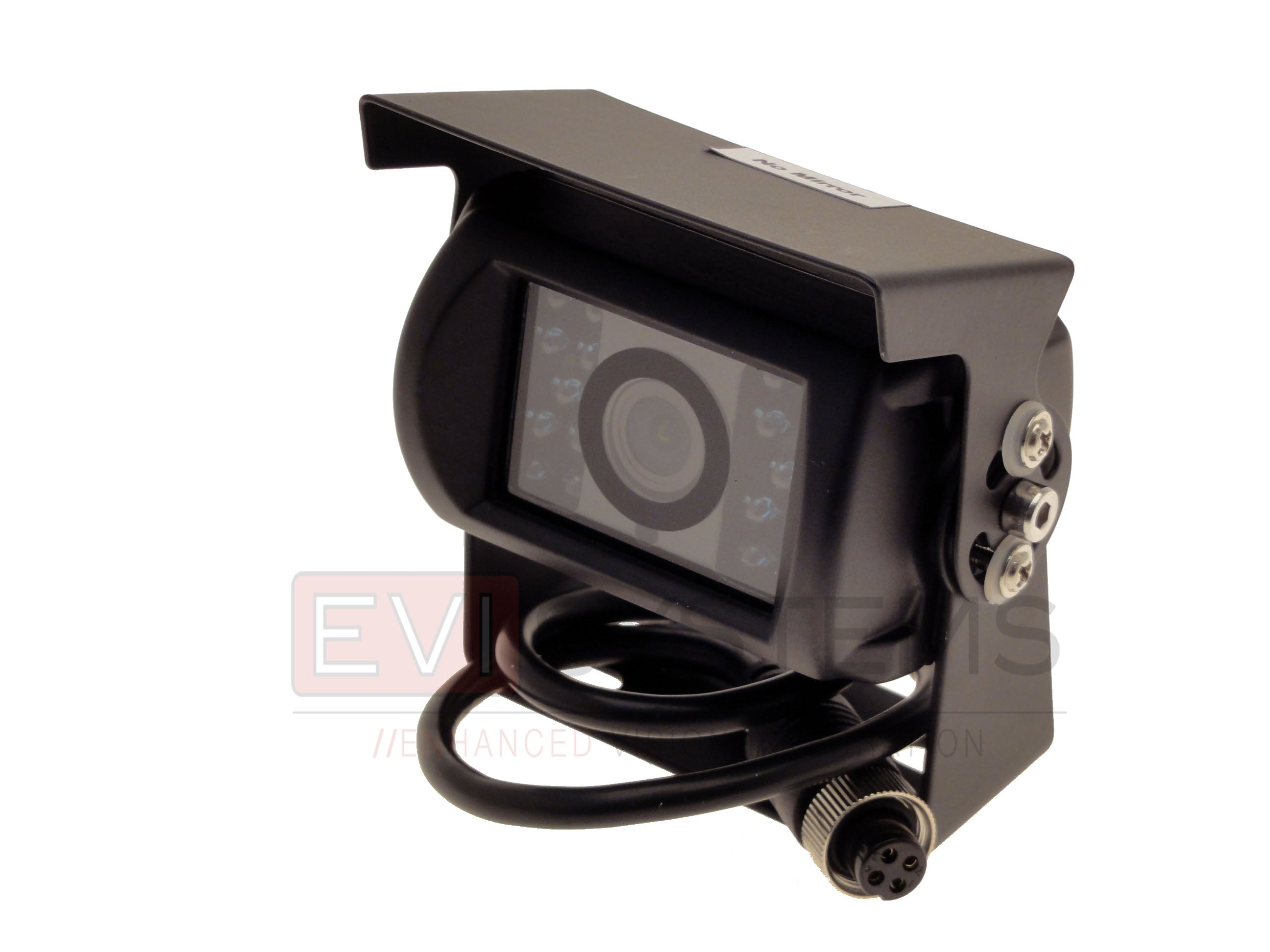

Camera specs:
- 1/3" Sony CCD
- 700 TV lines
- 150 degree view
- 18 IR LED's for clear night vision even in complete blackness
- Steel weather tight casing with IP68 water resistance - adjustable glare shield included
- Weather tight screw connectors for extremely secure and dry connections
No warranty.
Specifications
| System Manufacturer | EVI Systems |
| Agriculture / Commercial | Agriculture |
| Audio Input Ports | None |
| Bracket Type | Steel monitor u bracket, steel camera u bracket |
| Number of Cameras | 1 |
| Camera Resolution | 700 TVL |
| Camera Type | Rear Camera, Trailer/Camper/5th Wheel camera |
| Cam Only/Complete Kit | Complete Kit |
| For a monitor it uses | Packaged w/Aftermarket Monitor |
| Fit Type | Universal fit |
| Impact Rating | 4G Monitor, 20G Camera |
| Connection | Commercial 4 Pin Coax |
| Includes Remote | Yes |
| Monitor Size | 5" |
| Camera Mount Location | Universal Mount |
| Night Vision | 0 Lux |
| Number of Triggers | 1 |
| Camera Orientation | Rear Facing |
| Overall Dimensions | 191 x 140.5 x 132 mm |
| Parking Guidelines | Not Available |
| Power Supply | 12-24 Volts |
| Reason for Shopping | Adding camera(s) |
| Screen Resolution | 800x480 |
| Sensor Brand | Sony |
| Sensor Type | CCD |
| Sound Options | Without Microphone |
| Split Screen | No |
| System Type | Standard Build |
| Vehicle Category | Truck, Camper/Trailer (if needing standalone system), Farm Equipment, Fleet Vehicle (i.e. cargo van), Construction Equipment (i.e. bulldozer), RV, Universal |
| Camera Input Ports | 2 |
| Video System | NTSC/PAL Auto Switching |
| Viewing Angle | 150 Degrees |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Hard Wired |
Compatibility
12-24 volt DC systems. Universal design will fit on anything! Use this camera system to monitor livestock while hauling, monitor grain cart on-loading to avoid spillage or overweight loads, monitor the blind spot behind folding machinery, mount anywhere!
Installation
12 volt power source required. Very simple to install - everything is included in the package! Simple instructions are included.
