5" Commercial Grade Monitor with Universal Camera
SKU#: CS-5UABC
Availability:
In Stock
SKU#:
CS-5UABC
$263.00
Quantity
Adjustable Snap-In cam w/5" monitor
Description
This 5" digital color monitor has an ultra clear digital display and designed to work in any car or truck - comes with everything you need to install. Comes with our rear facing bullet camera system!

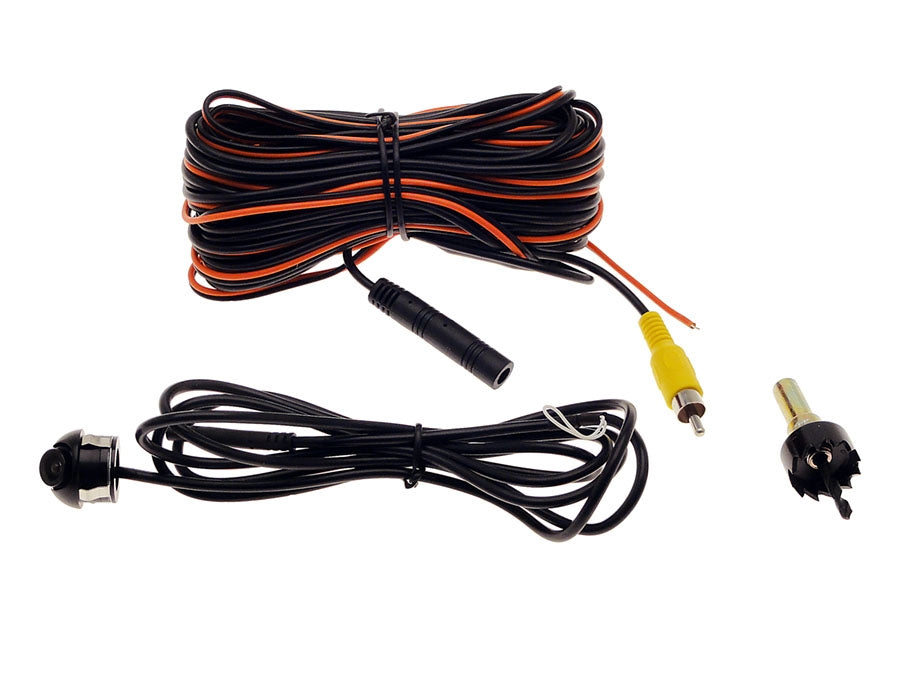

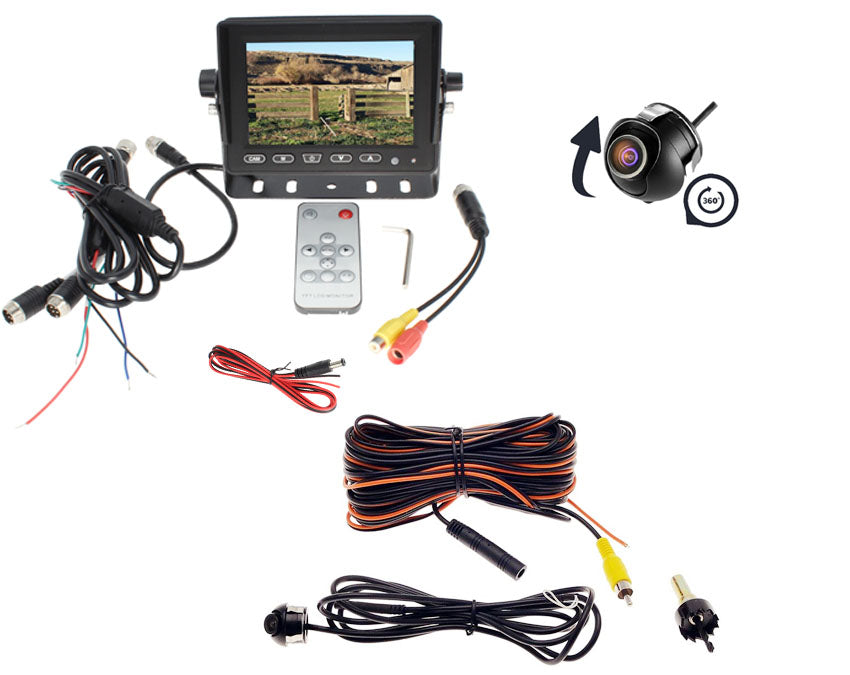

Package includes the monitor, monitor mount, wire harness, bullet camera, and remote.

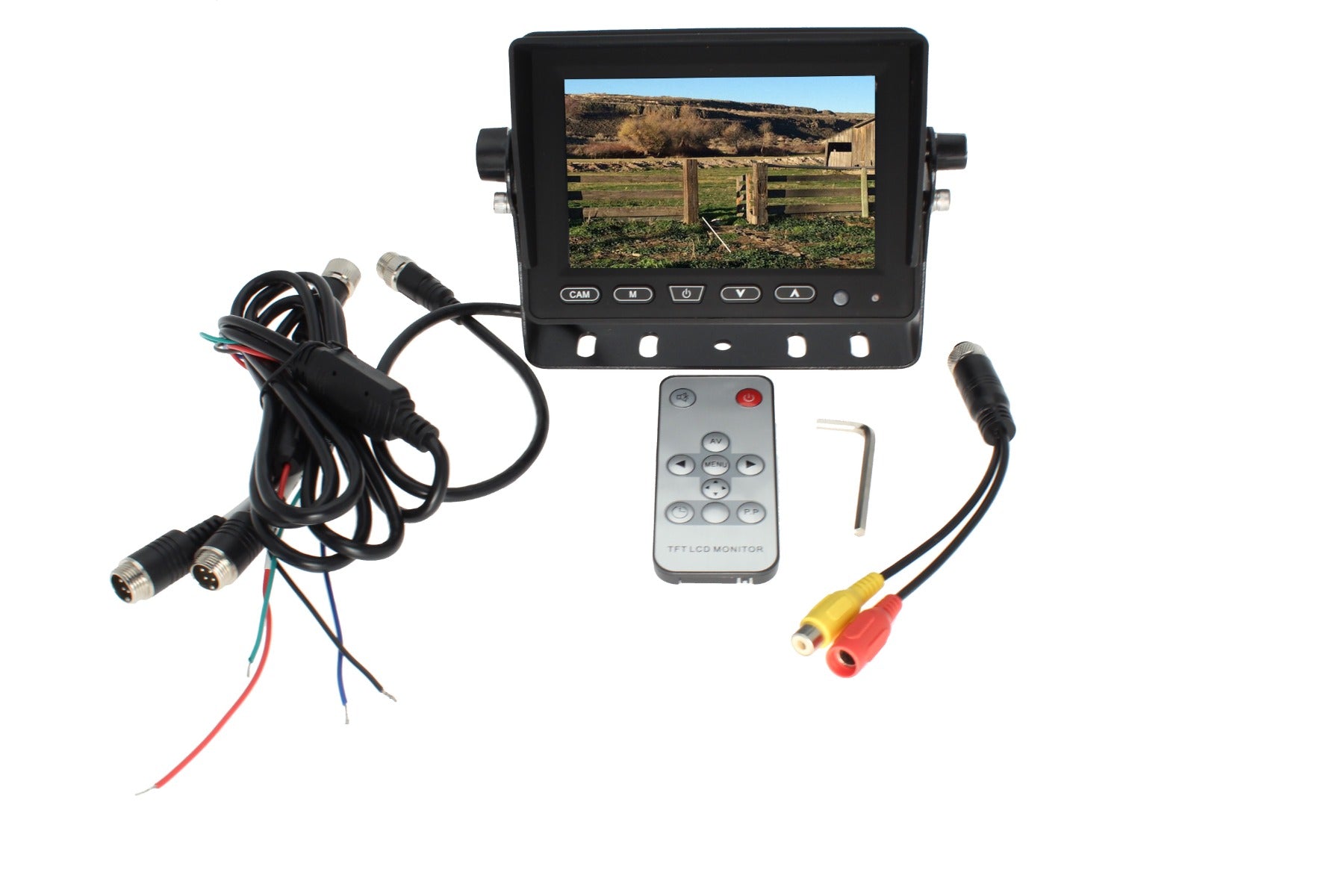

Monitor Specifications:
- screen size: 5 inch (diagonal length)
- 16:9 wide screen display
- 2 video inputs
- PAL & NTSC auto switching
- Power supply: DC 12V compatible
- Built in speakers
- Remote control
- OSD menu
- 4 PIN connector input and 1 RCA A/V connector input (both are included)
- 1 year limited warranty!
Overall monitor dimensions 5-3/8" wide, 4" tall, 2-1/4" deep at the sunshield. Note that these dimensions are for the monitor only and do not include the mount which adds an additional 3/4" to the overall height.

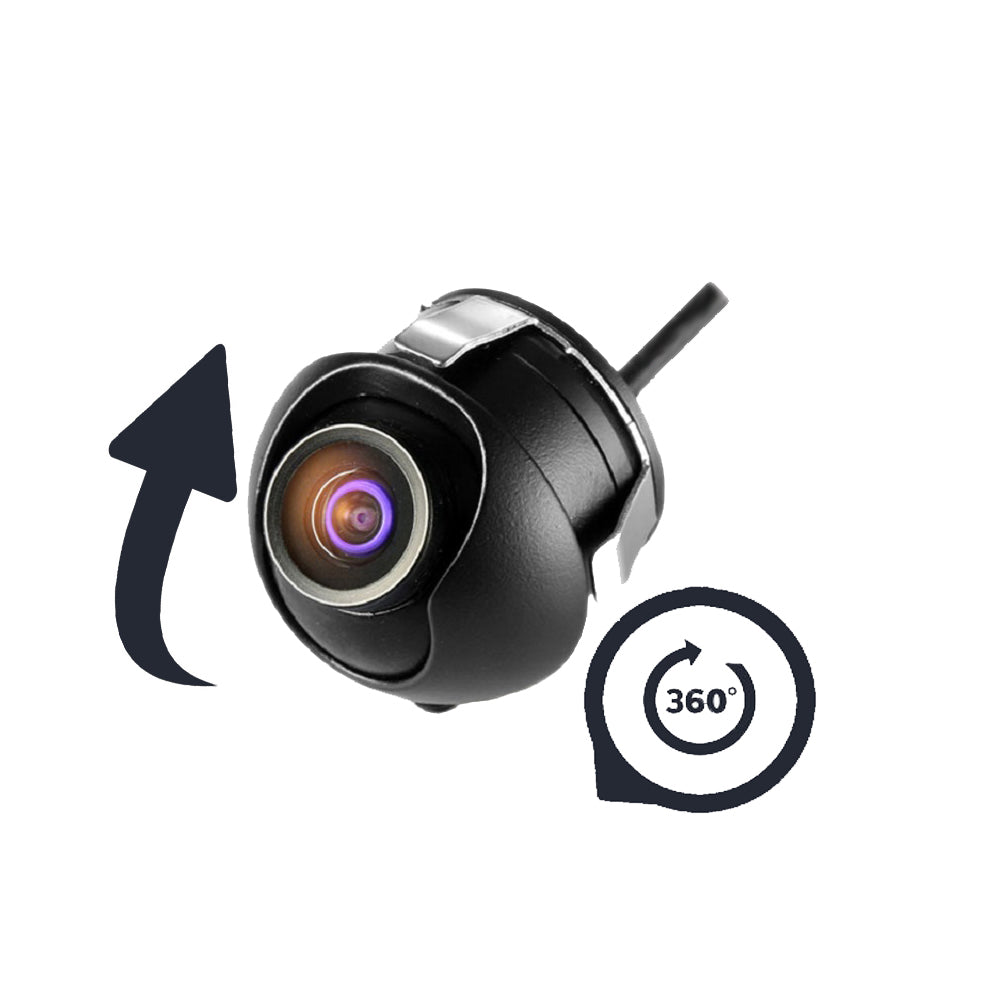

Camera Specifications:
- Camera Source exclusive Super CMOS - 600 TV lines of resolution for the ultimate color and clarity!
- 150 degree view
- Rear facing only
- Swivel lens to obtain the perfect view!
- 3 year limited warranty!
Specifications
| System Manufacturer | EVI Systems |
| Agriculture / Commercial | Commercial |
| Bracket Type | Steel U Bracket |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Front Camera, Trailer/Camper/5th Wheel camera |
| Cam Only/Complete Kit | Complete Kit |
| For a monitor it uses | Packaged w/Aftermarket Monitor |
| Fit Type | Universal fit |
| Impact Rating | 4G |
| Connection | Aftermarket Display (RCA) |
| Includes Remote | Yes |
| Monitor Size | 5" |
| Camera Mount Location | Universal Mount |
| Night Vision | < .2 Lux |
| Number of Triggers | 2 |
| Camera Orientation | Rear Facing |
| Overall Dimensions | 191 x 140.5 x 132 mm |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Screen Resolution | 800x480 |
| Sensor Brand | EVI Systems |
| Sensor Type | Super CMOS |
| Split Screen | No |
| System Type | Standard Build |
| Vehicle Category | Car, Truck, Camper/Trailer (if needing standalone system), Farm Equipment, Fleet Vehicle (i.e. cargo van), Universal |
| Camera Input Ports | 2 |
| Video Input Type | RCA |
| Video System | NTSC |
| Viewing Angle | 150 Degrees |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP68 |
| Wiring Type | Hard Wired |
Compatibility
Will work with any 12v system.
Installation
Rear facing camera installation only. Mount the camera and run the harness to the front of the vehicle. Find a 12V power source for the camera and the monitor.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
