5" Commercial Grade Monitor, White LED Commercial Camera
SKU#: CS-5LED
Availability:
In Stock
SKU#:
CS-5LED
Sale price
Now:
$204.00
Regular price
Was:
$263.00
Quantity

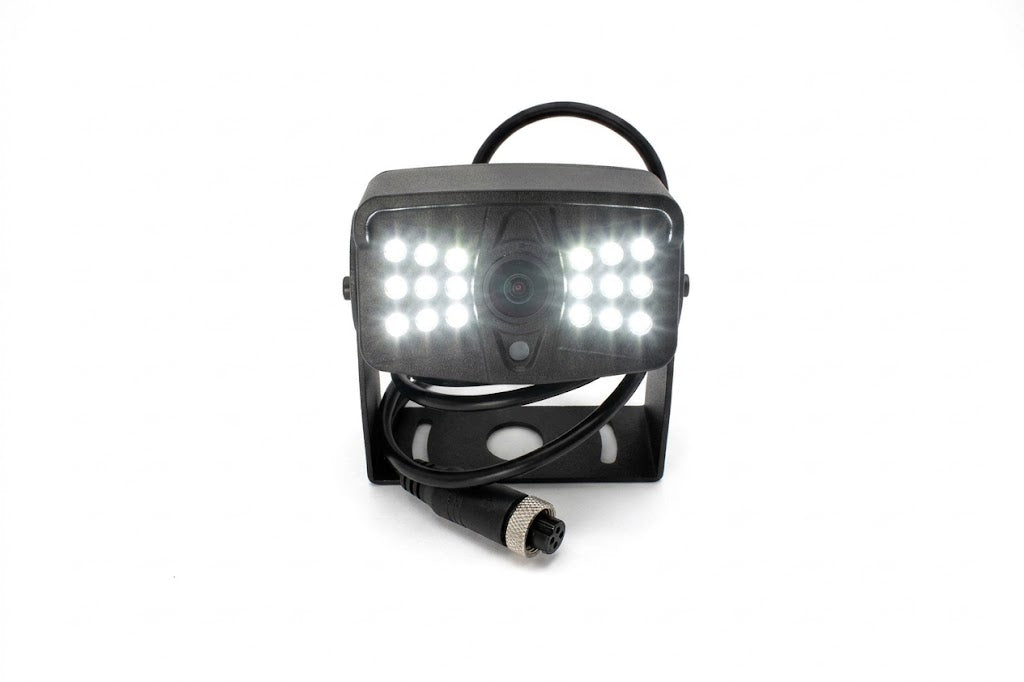

LED white light with integrated camera and 5" monitor
Description
Day-Like Visibility in Total Darkness! Excellent clear visibility in the darkest environment with super bright white LED lights with integrated camera! This 5" digital color monitor has an ultra clear digital display and designed to work in any vehicle with a 12 volt power source - comes with everything you need to install. Add up to 2 cameras total. (1 cam included in this kit)

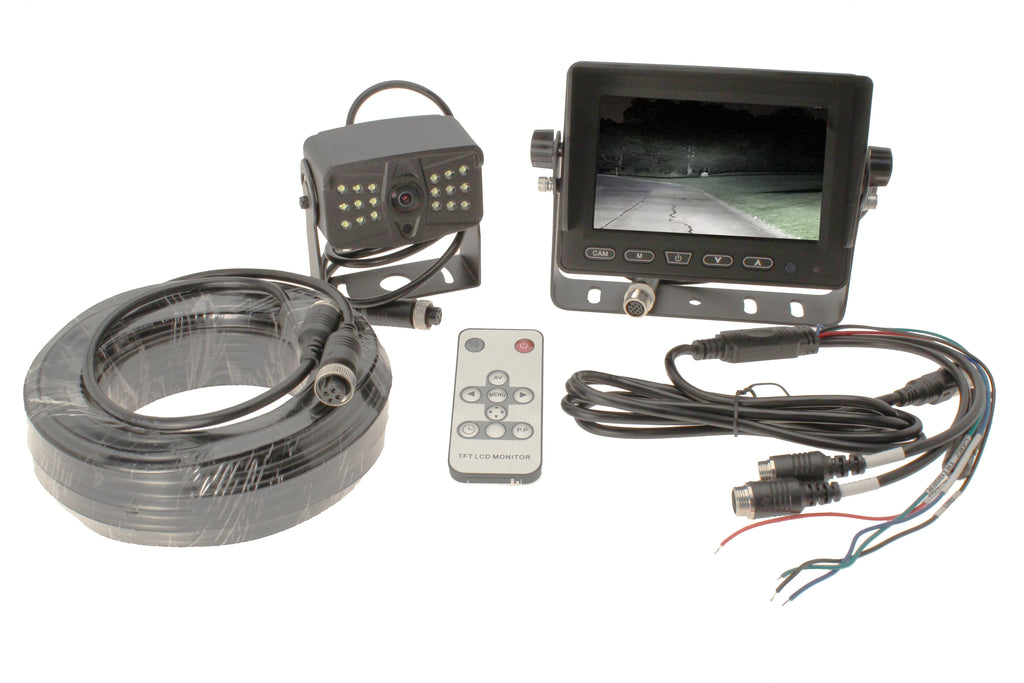

Package includes
- 5" Monitor
- Monitor mount
- Wire harness

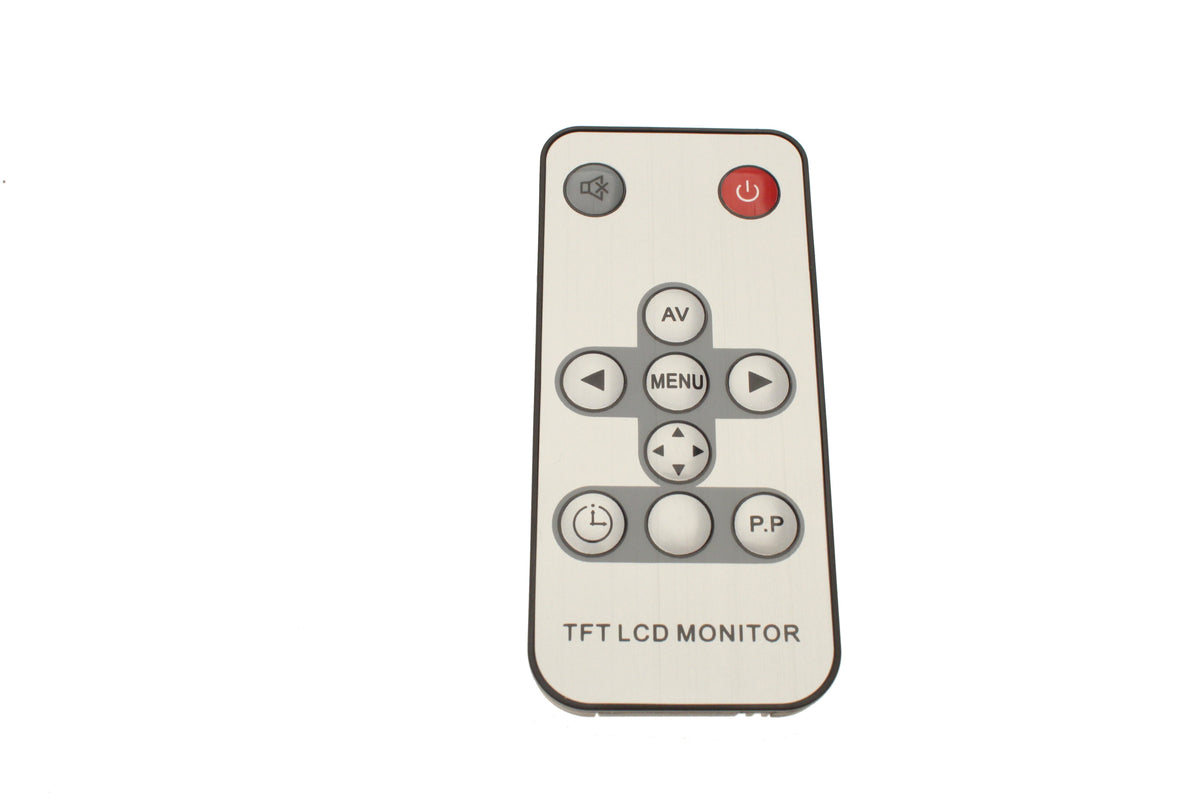

- Remote
- White light LED camera

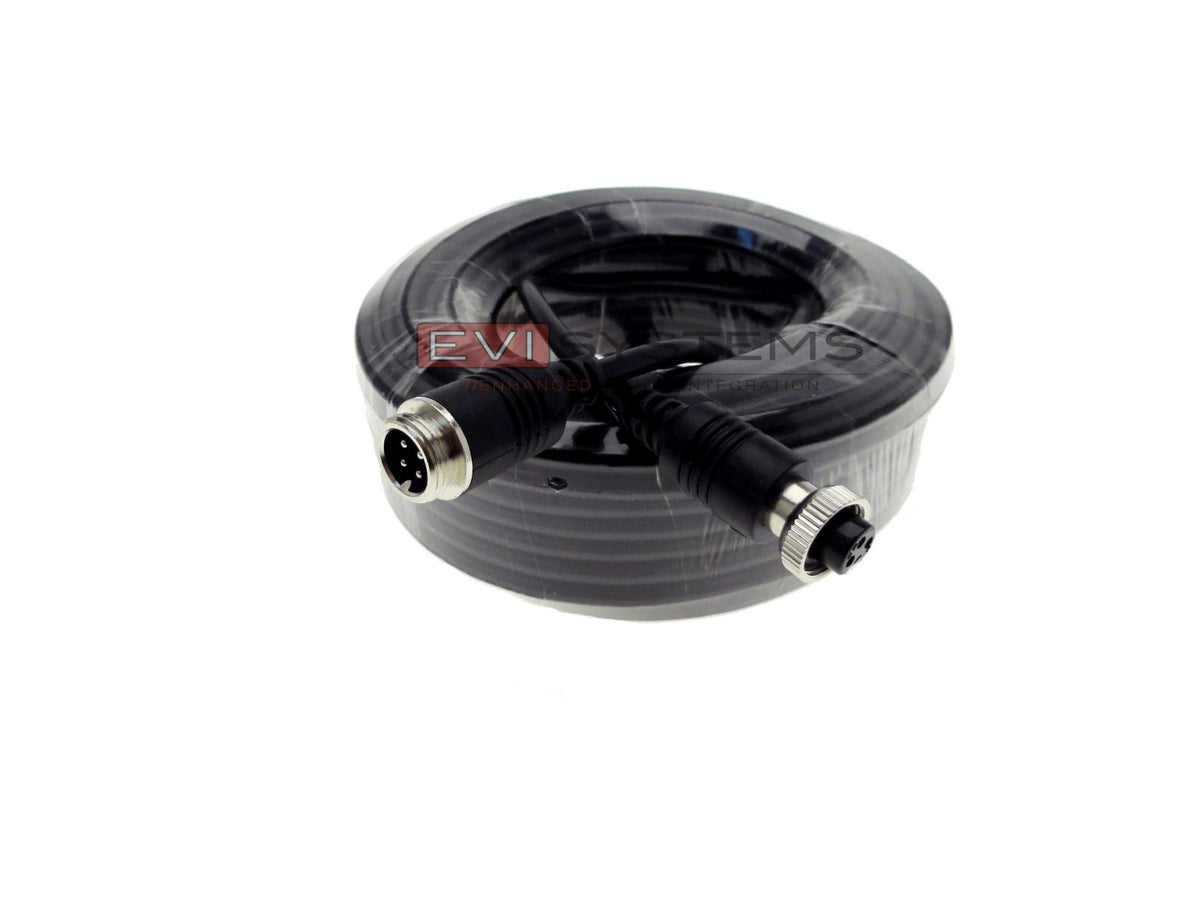

- 64' camera cable
Monitor Specifications:
- screen size: 5 inch (diagonal length)
- 16:9 wide screen display
- 2 video inputs
- PAL & NTSC auto switching
- Power supply: DC 12V compatible
- Built in speakers
- Remote control
- OSD menu
- 4 PIN connector input and 1 RCA A/V connector input (both are included)
Overall monitor dimensions 5-3/8" wide, 4" tall, 2-1/4" deep at the sun shield. Note that these dimensions are for the monitor only and do not include the mount which adds an additional 3/4" to the overall height.

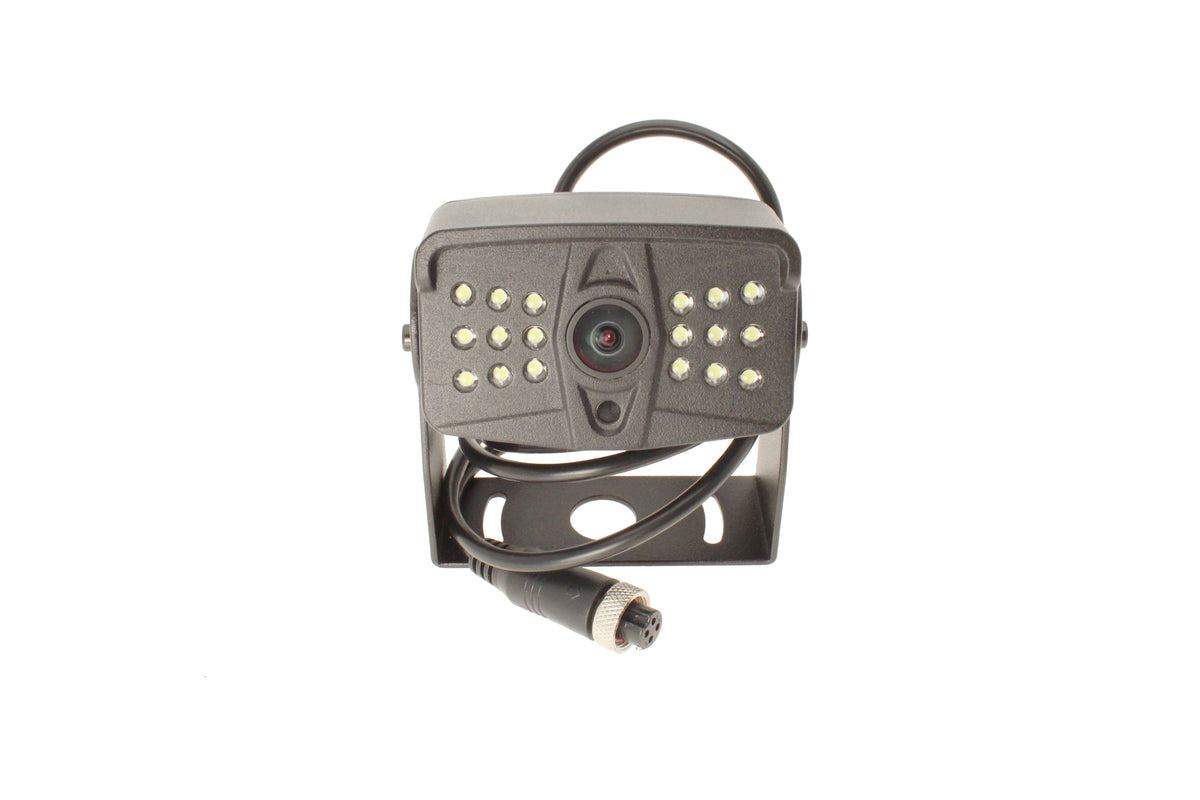

Camera specifications:
- 1/3" Sony CCD for the highest clarity available
- 700 TV lines of resolution
- 150 degree field of view
- White LED's for clear COLOR night vision even in complete blackness-white LEDs turn pitch-black areas into clear, brightly lit zones.
- Weather grommet for easy cable passage to the interior
- Aluminum alloy weather tight casing with IP68 water resistance
- 4 Pin-weather tight screw connectors for extremely secure and dry connections. *Additional parts required if adapting to RCA connection)
Warranty Information 30 day warranty.
Specifications
| System Manufacturer | EVI Systems |
| Agriculture / Commercial | Commercial |
| Bracket Type | Steel U Bracket |
| Number of Cameras | 1 |
| Camera Resolution | 700 TVL |
| Camera Type | Rear Camera, Trailer/Camper/5th Wheel camera |
| Cam Only/Complete Kit | Complete Kit |
| For a monitor it uses | Packaged w/Aftermarket Monitor |
| Fit Type | Universal fit |
| Impact Rating | 4G |
| Connection | Aftermarket Display (RCA) |
| Includes Remote | Yes |
| Monitor Size | 5" |
| Camera Mount Location | Universal Mount |
| Night Vision | .1 Lux |
| Number of Triggers | 2 |
| Camera Orientation | Rear Facing |
| Overall Dimensions | 191 x 140.5 x 132 mm |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Screen Resolution | 800x480 |
| Sensor Brand | EVI Systems |
| Sensor Type | CMOS |
| Sound Options | Without Microphone |
| Split Screen | No |
| System Type | Heavy Duty |
| Vehicle Category | Truck, Camper/Trailer (if needing standalone system), Farm Equipment, Construction Equipment (i.e. bulldozer), Universal |
| Camera Input Ports | 2 |
| Video Input Type | 4 pin |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Warranty | 30 day |
| Waterproof/Dustproof Level | IP68 |
| Wiring Type | Hard Wired |
Compatibility
Will work with any 12v system.
Installation
Very simple to install - install on any surface! System requires a 12 volt power source.
