5" Commercial Grade Monitor, Round flood light with camera
SKU#: CS-5WKLT-R
Availability:
In Stock
SKU#:
CS-5WKLT-R
$263.00
Quantity

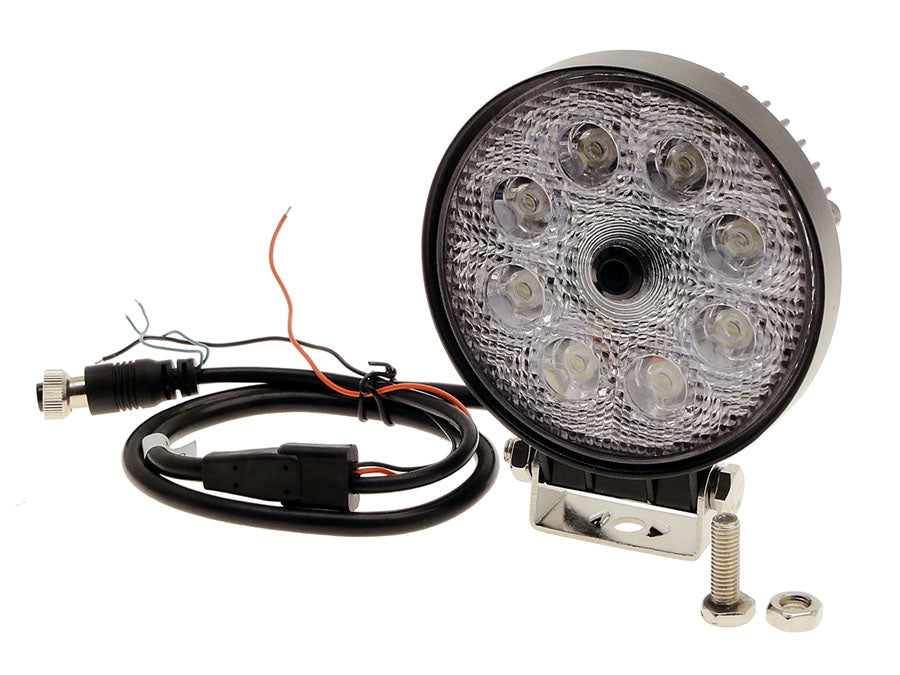

LED Flood light with integrated camera and 5" monitor
Description
Excellent clear visibility in the darkest environment with this super bright LED flood light with integrated camera! This 5" digital color monitor has an ultra clear digital display and designed to work in any vehicle with a 12 volt power source - comes with everything you need to install. Also comes with our high grade flood light camera system! Add up to 2 cameras total. (1 cam included in this kit)

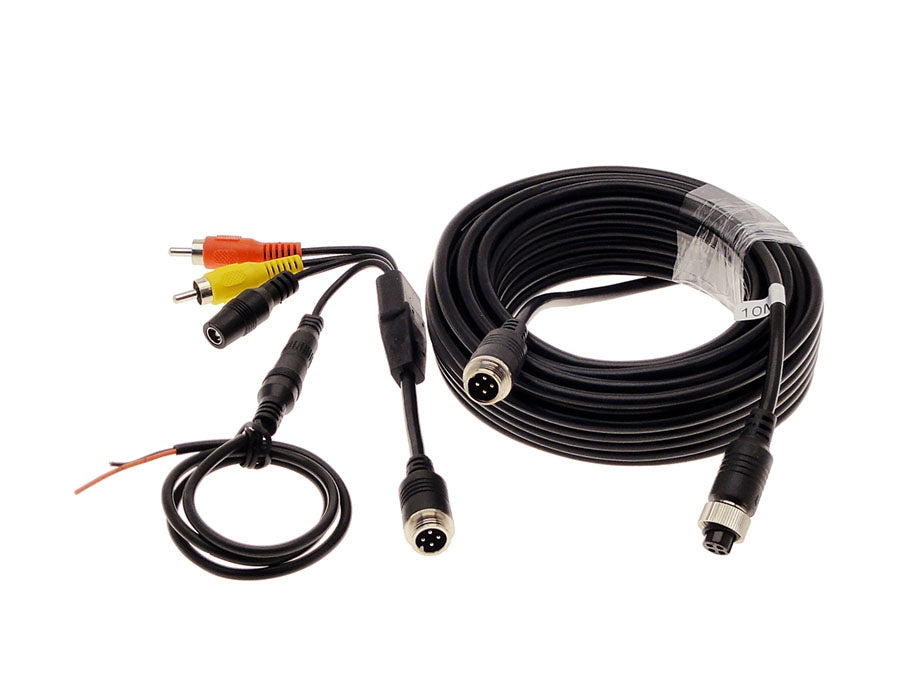

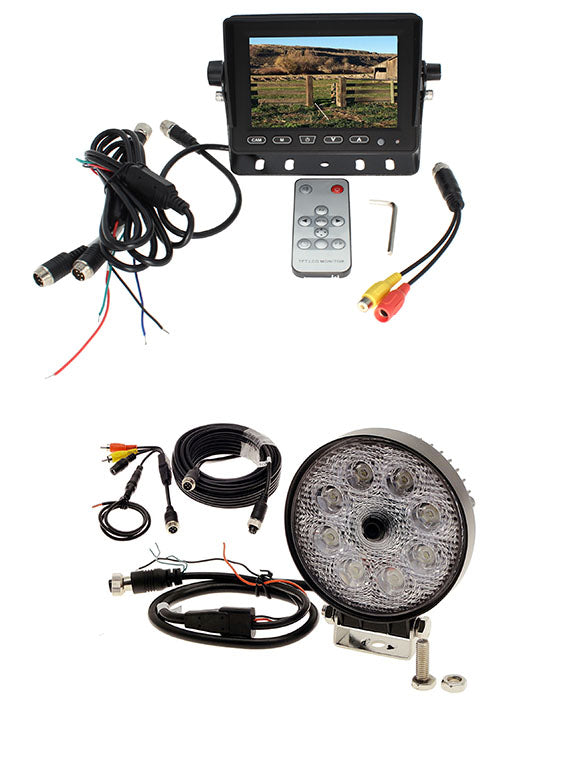

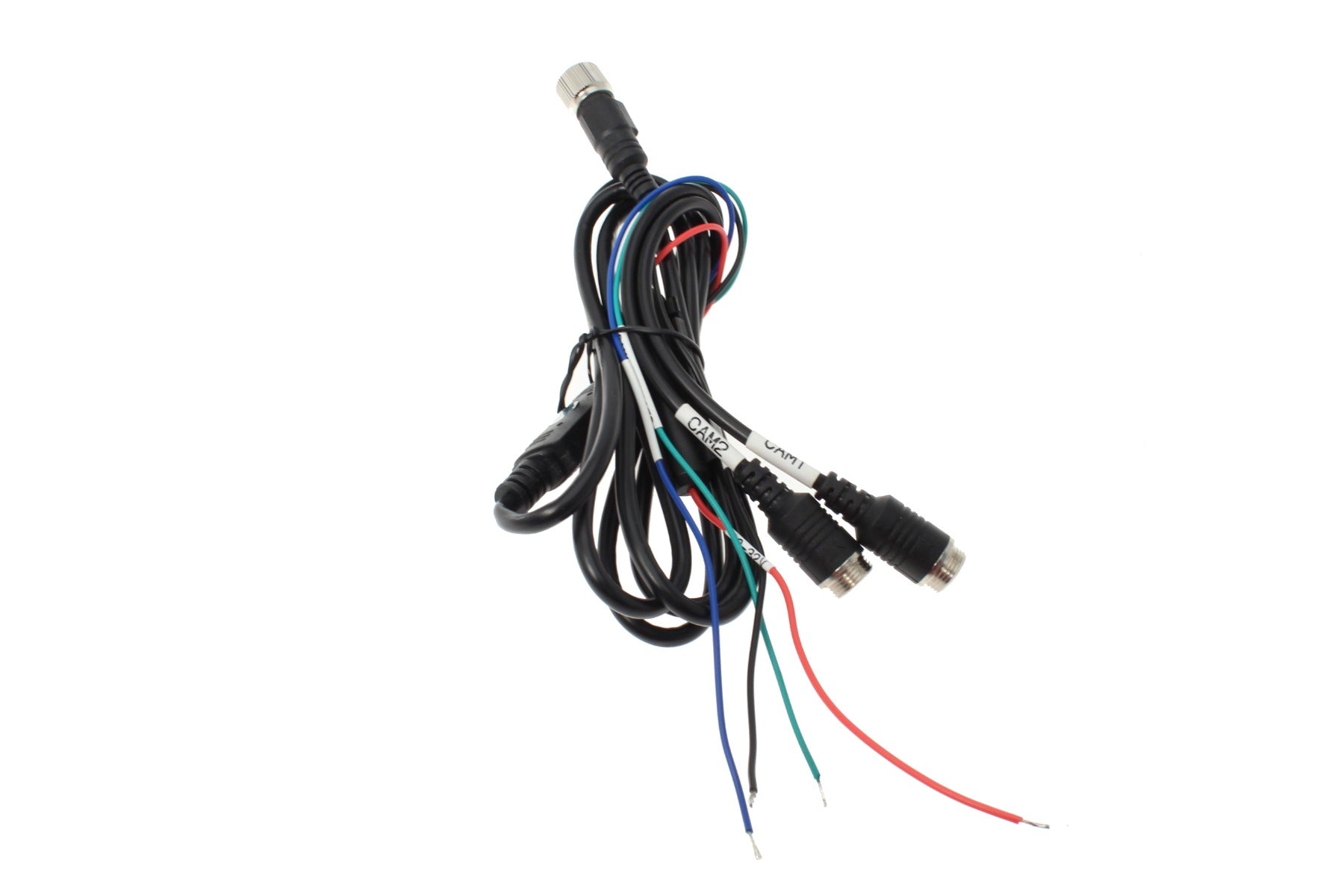

Package includes the monitor, monitor mount, wire harness,remote, flood light with integrated camera, camera cable.
*Select cable length from drop down menu above

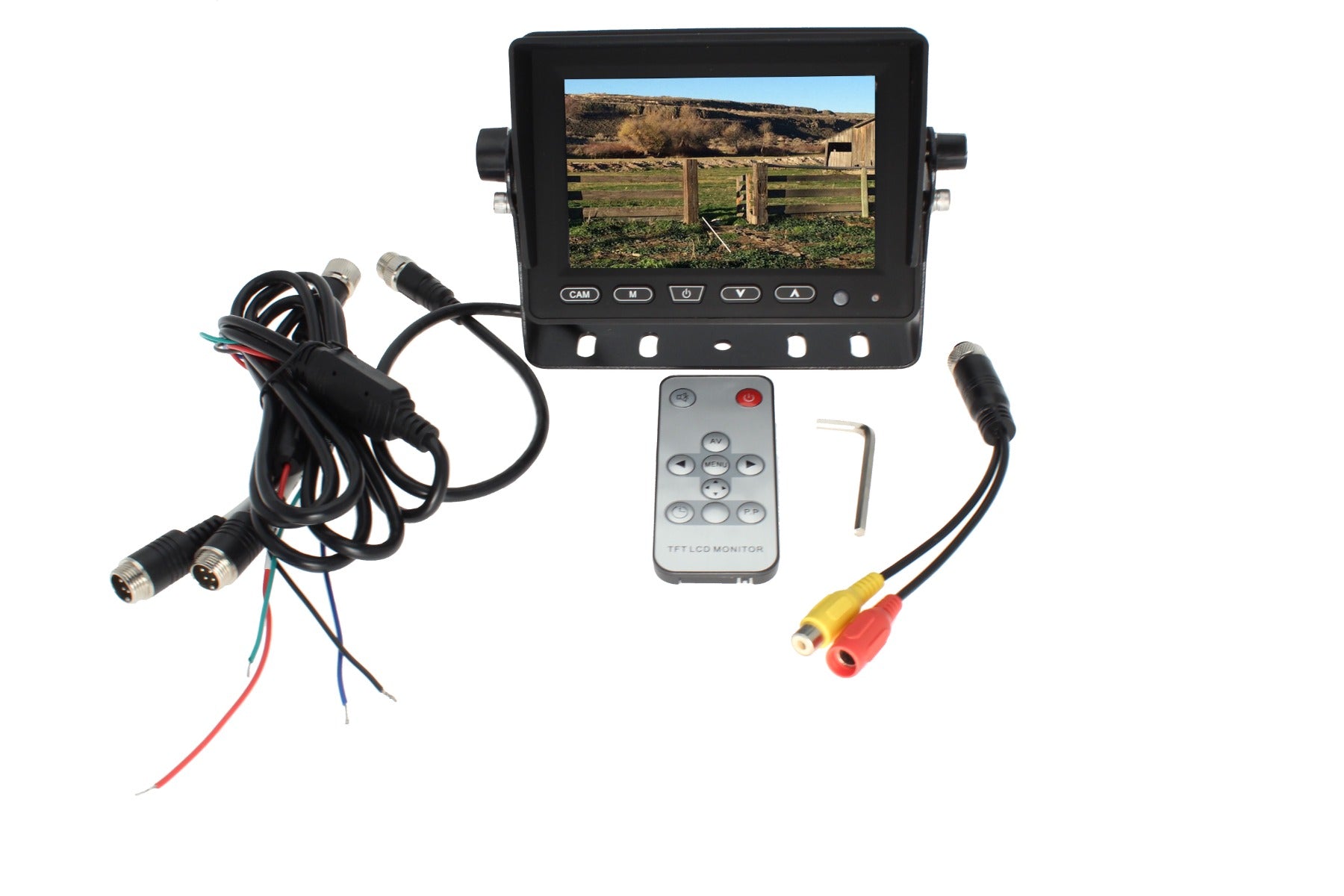

Monitor Specifications:
- screen size: 5 inch (diagonal length)
- 16:9 wide screen display
- 2 video inputs
- PAL & NTSC auto switching
- Power supply: DC 12V compatible
- Built in speakers
- Remote control
- OSD menu
- 4 PIN connector input and 1 RCA A/V connector input (both are included)
Overall monitor dimensions 5-3/8" wide, 4" tall, 2-1/4" deep at the sun shield. Note that these dimensions are for the monitor only and do not include the mount which adds an additional 3/4" to the overall height.

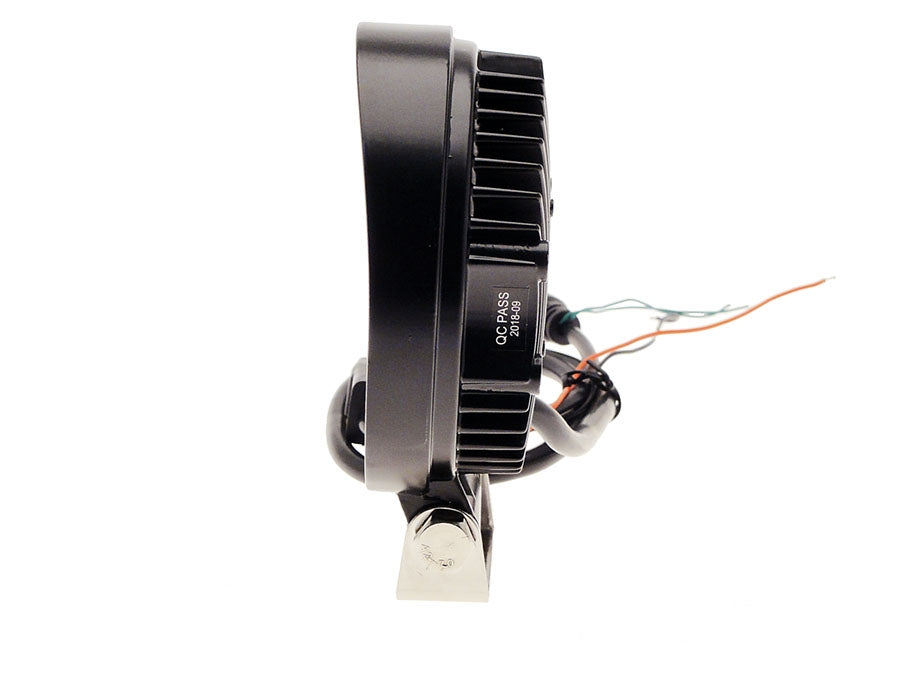

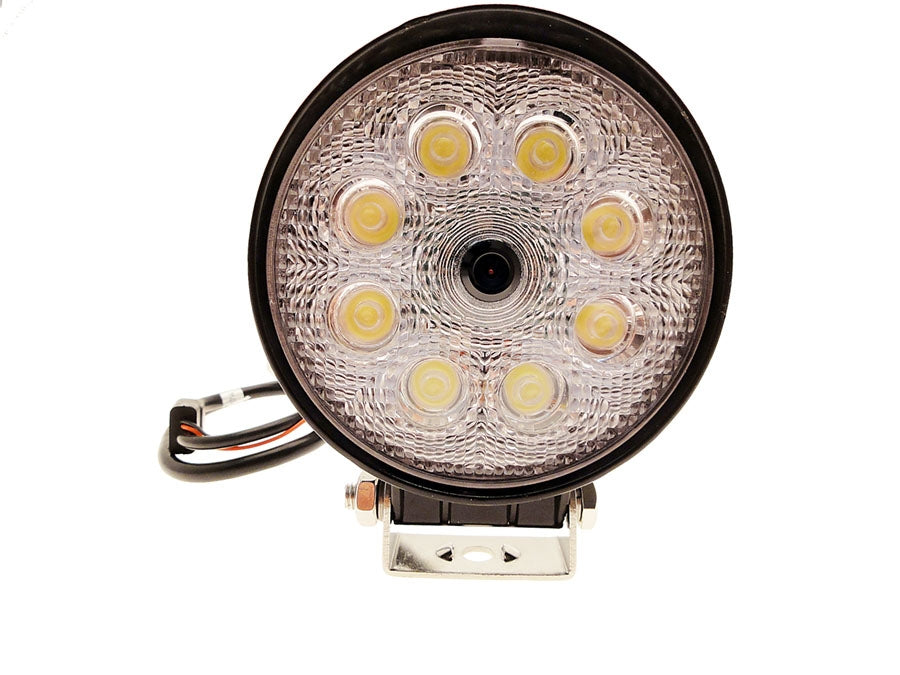

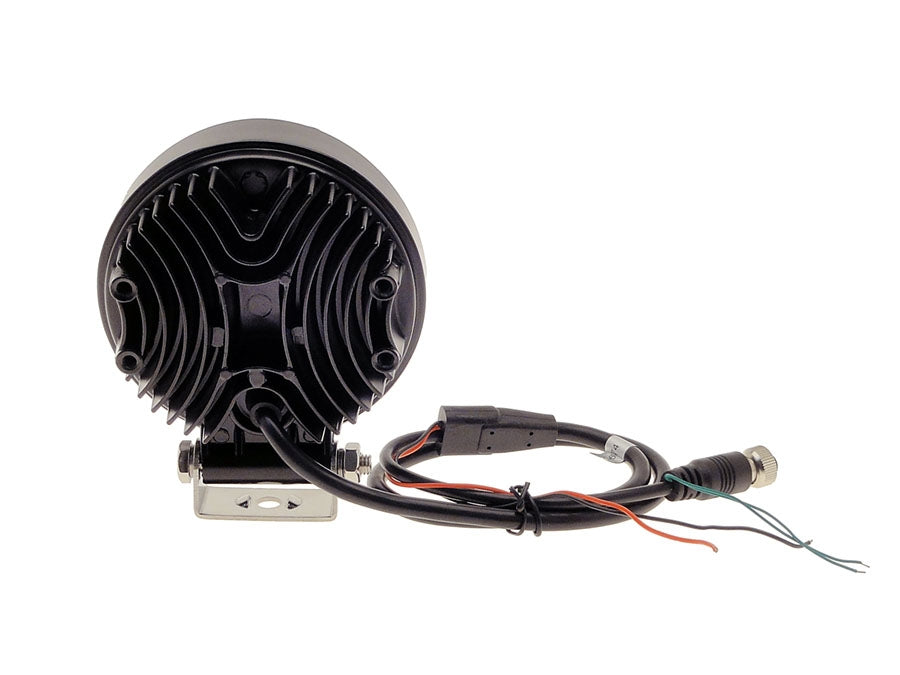

Camera Specifications:
- Round aluminum housing
- Sensor: 1/3 CMOS 1058
- Resolution: 976(H)*592(V)
- TV line: 700TVL
- LENS: 1.7mm
- Min illumination: 1 LUX( LED ON)
- IR led: white light 8 PCS
- Night vision distance: 150ft
- Waterproof: IP68
- View Angle: 170 degree
- Power Voltage: 12V
- LED: 3-Watt x 8 (24-Watt Total)
- Lumen Output: 1154
- LED Color Temp: 6000K
- Beam Pattern: Flood
- Mounting Hardware Included
Warranty Information 1 year warranty.
Specifications
| System Manufacturer | EVI Systems |
| Agriculture / Commercial | Commercial |
| Bracket Type | Steel U Bracket |
| Number of Cameras | 1 |
| Camera Resolution | 700 TVL |
| Camera Type | Rear Camera, Trailer/Camper/5th Wheel camera |
| Cam Only/Complete Kit | Complete Kit |
| For a monitor it uses | Packaged w/Aftermarket Monitor |
| Fit Type | Universal fit |
| Impact Rating | 4G |
| Connection | Aftermarket Display (RCA) |
| Includes Remote | Yes |
| Monitor Size | 5" |
| Camera Mount Location | Universal Mount |
| Night Vision | .1 Lux |
| Number of Triggers | 2 |
| Camera Orientation | Rear Facing |
| Overall Dimensions | 191 x 140.5 x 132 mm |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Screen Resolution | 800x480 |
| Sensor Brand | EVI Systems |
| Sensor Type | CMOS |
| Sound Options | Without Microphone |
| Split Screen | No |
| System Type | Heavy Duty |
| Vehicle Category | Truck, Camper/Trailer (if needing standalone system), Farm Equipment, Construction Equipment (i.e. bulldozer), Universal |
| Camera Input Ports | 2 |
| Video Input Type | 4 pin |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP68 |
| Wiring Type | Hard Wired |
Compatibility
Will work with any 12v system.
Installation
Very simple to install - install on any surface! System requires a 12 volt power source. Camera and light are powered separately.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
