2022-2026 Super Duty OE Style Front Emblem Camera Kit and Side Cameras for 8" SYNC 4 -Multi-Cam Interface
SKU#: 7CS-22FTRSDFOE-8S4FS
Availability:
In Stock
SKU#:
7CS-22FTRSDFOE-8S4FS
$1,195.00
Quantity
OE Style Front and Side Camera Kits for 8" SYNC 4!
Description
This system consists of an OEM style grille mounted front camera, side cameras and a multi-camera interface for your factory 8" SYNC 4 radio.

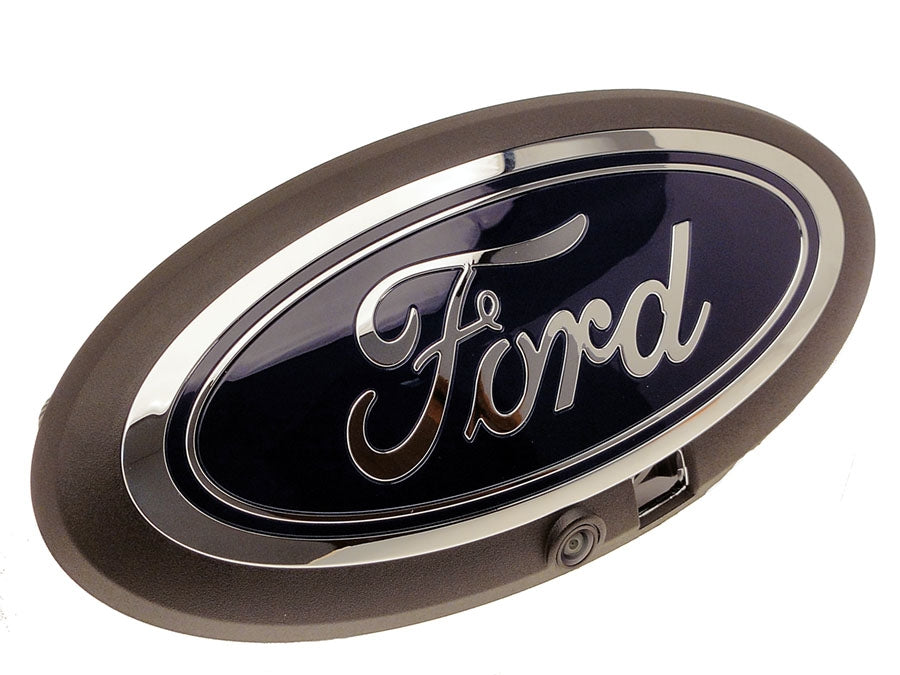

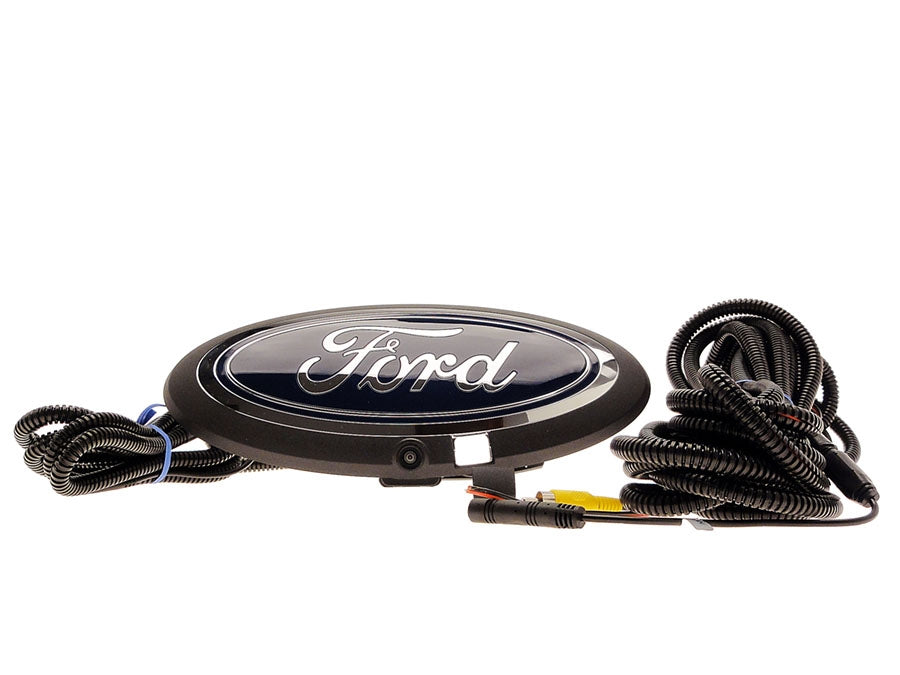

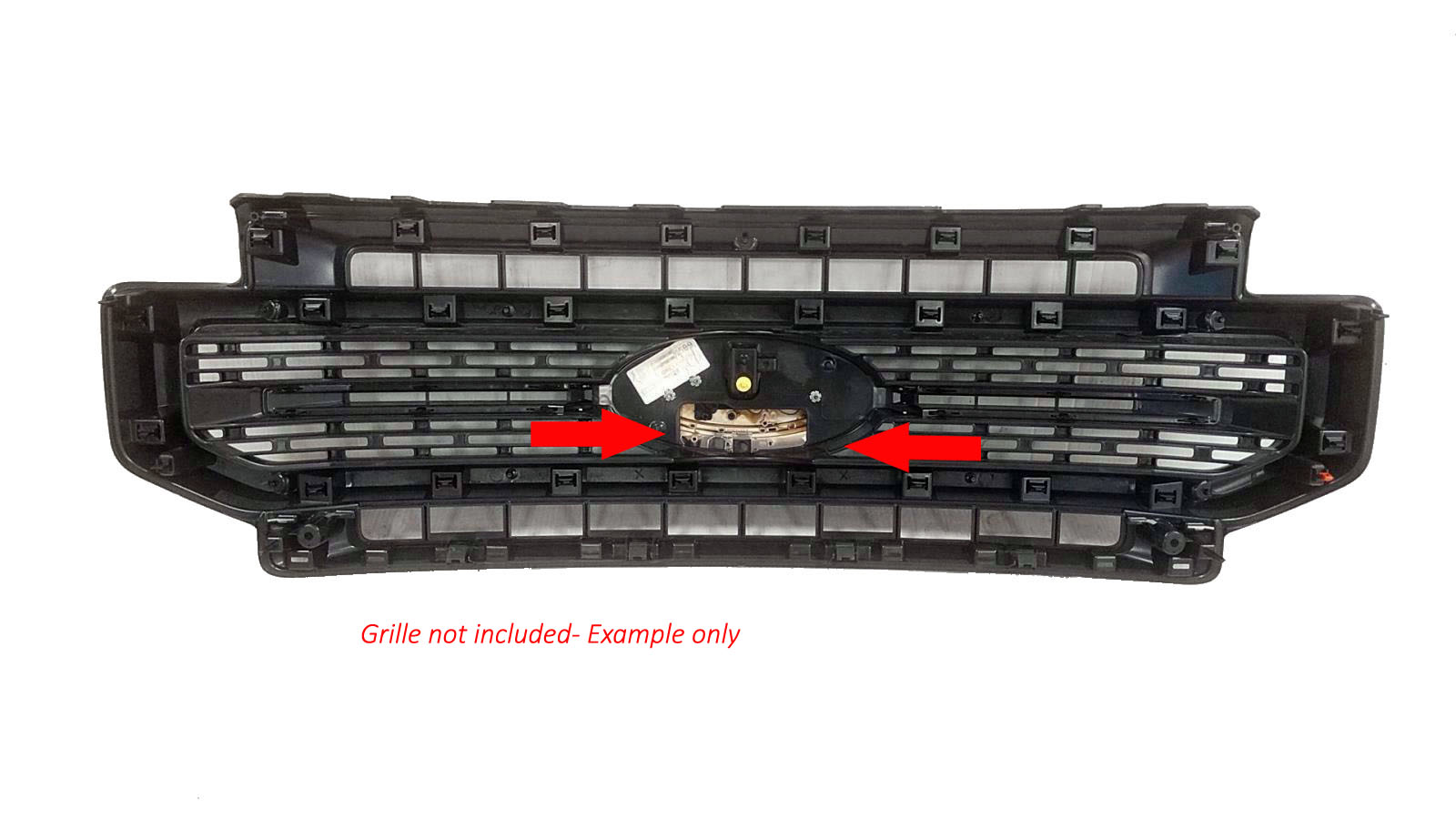

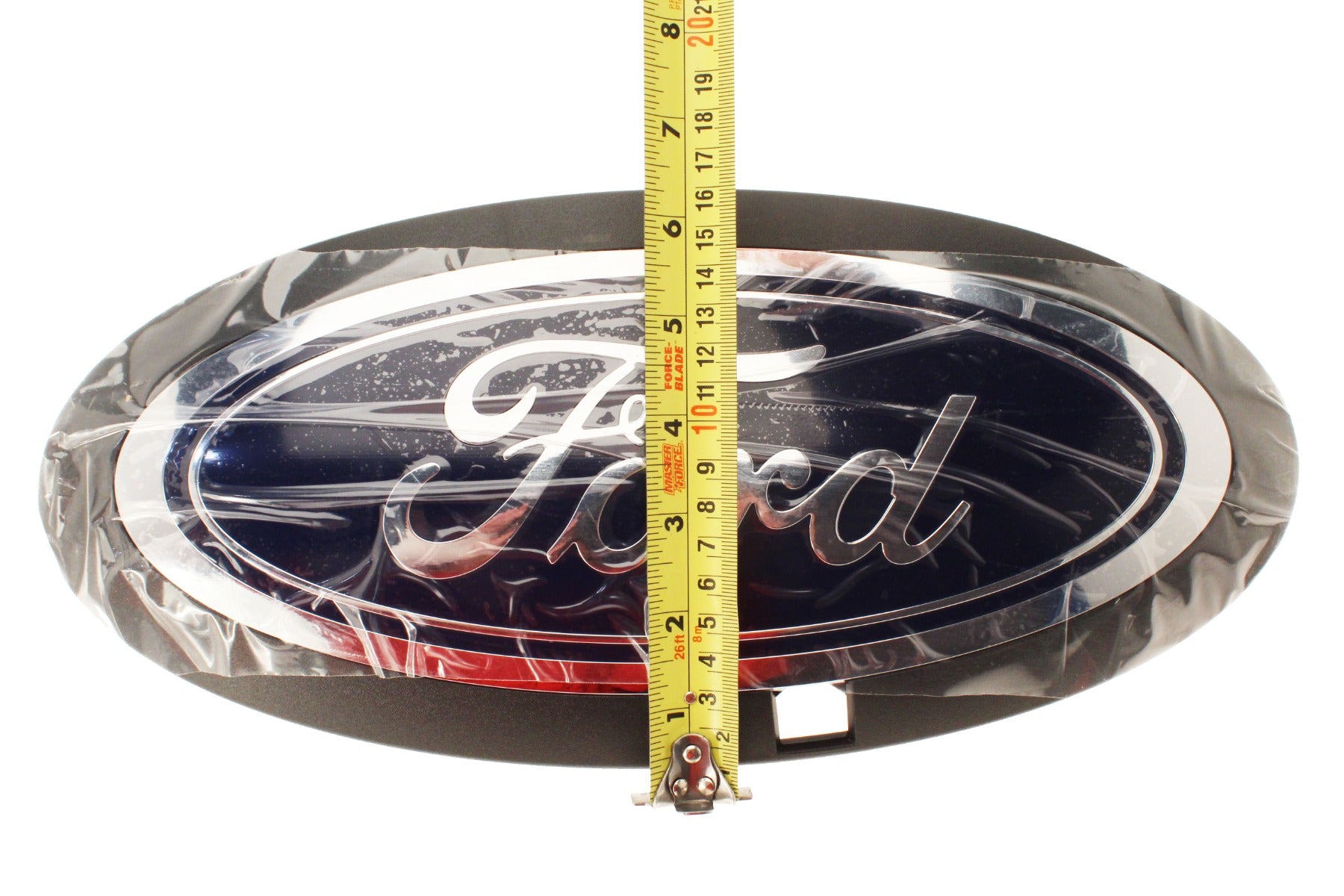

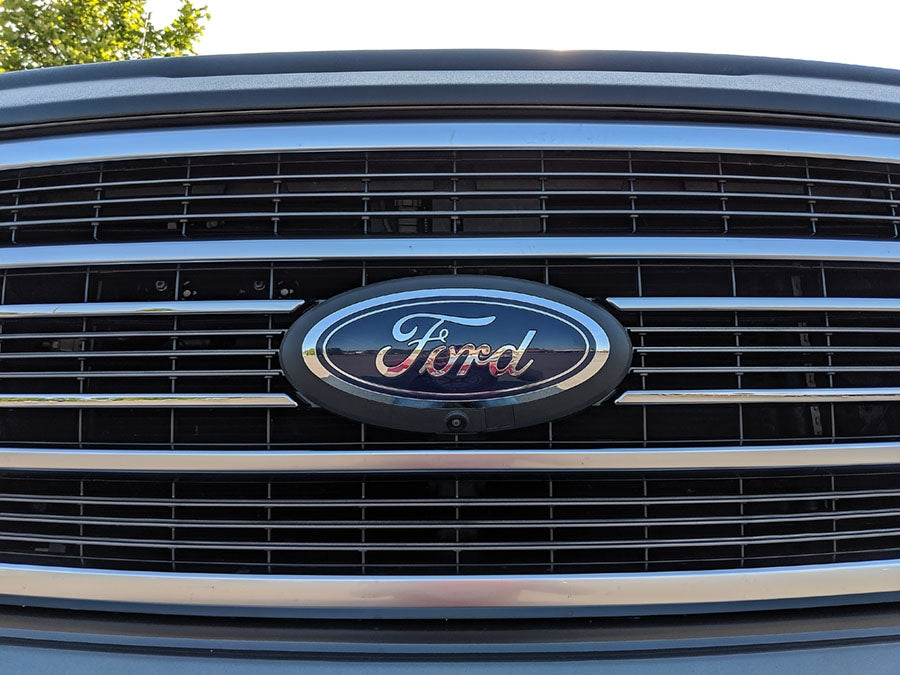

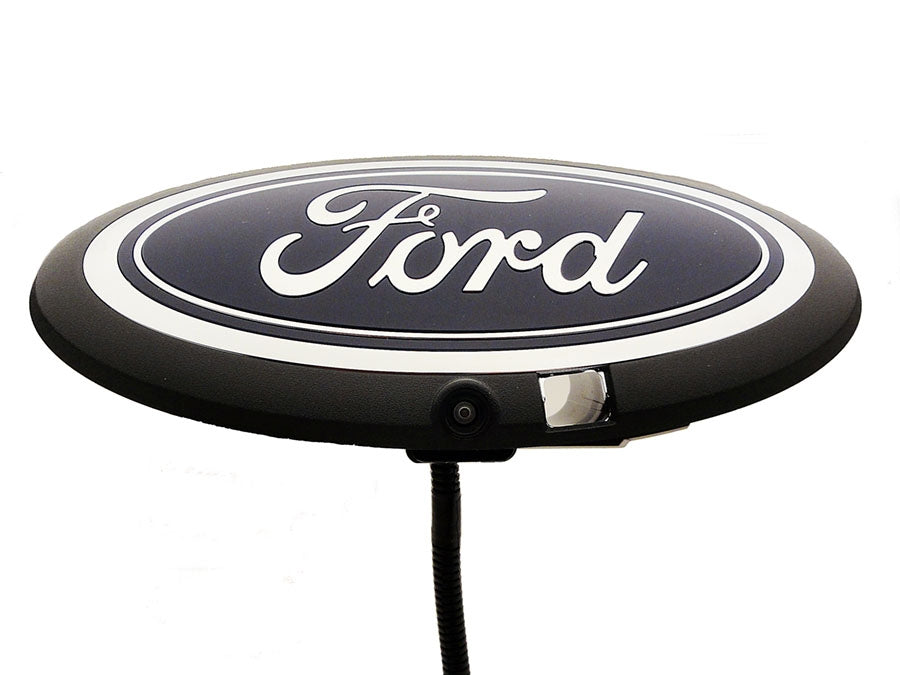

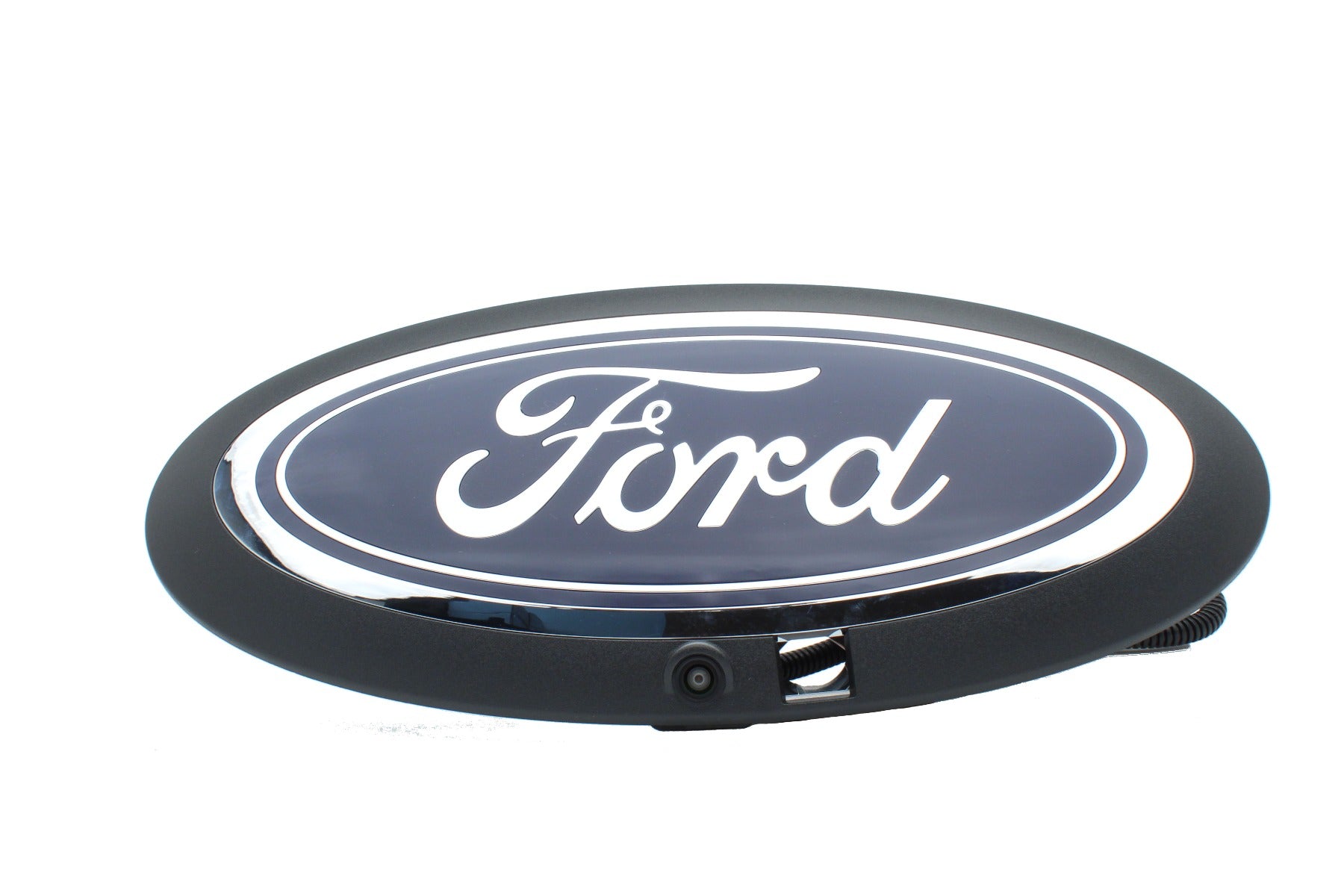

The front camera in this kit comes in an OEM Ford bracket so it will look like the front camera that comes from the factory! Swap out your existing factory emblem for this emblem and housing with a pre-mounted camera. ***Your factory grille must have the camera cutout for this kit to fit properly. If your grille does not have this cutout, your factory grille will have to be swapped with a different grille that is designed to mount the camera assembly and this grille is NOT included in the kit.*** See images for example of a grille with camera cutout. If needed, many times you can find a brand new grille with the required cutout on ebay or from a Ford dealership.

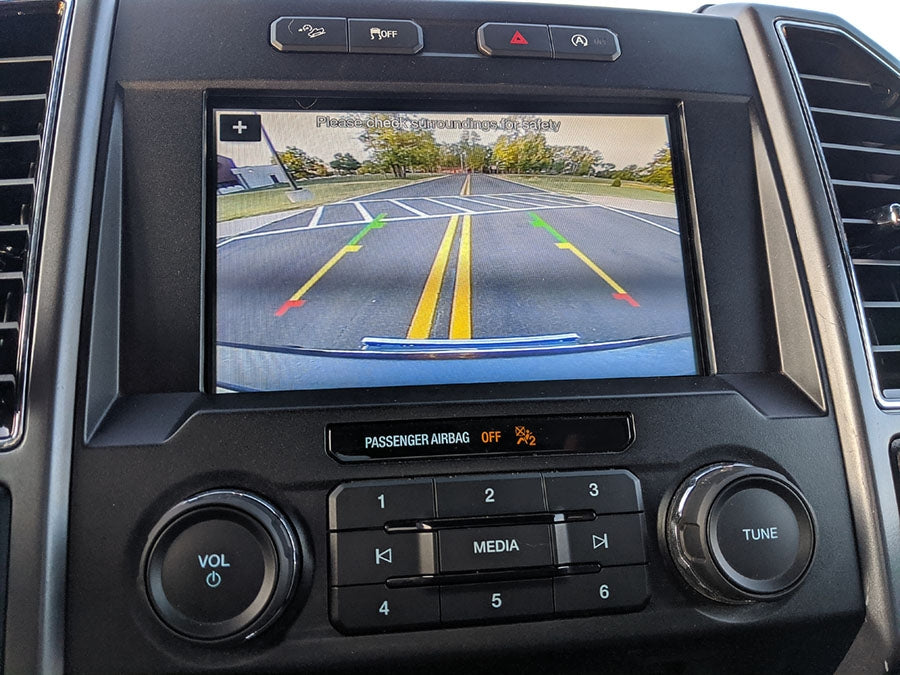

The side cameras get installed under your side mirrors to give you a full view of your typical blind spots - all automatically activated using your turn signals! The screen interface provides multi-cam support so you can add 4 cameras (in addition to your OEM camera) to your factory 8" SYNC 4 display screen -SCREEN NOT INCLUDED.

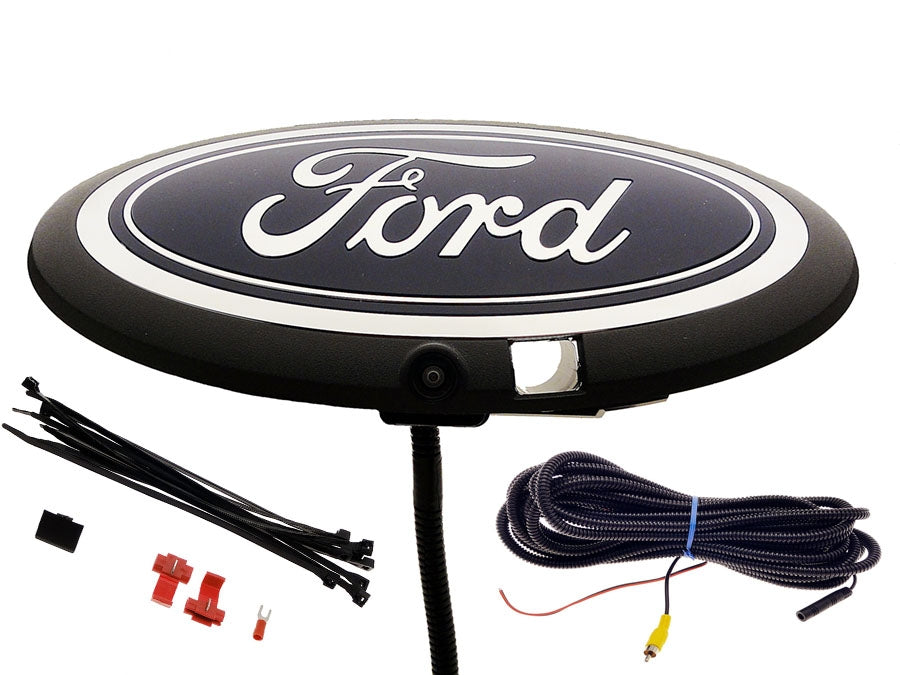

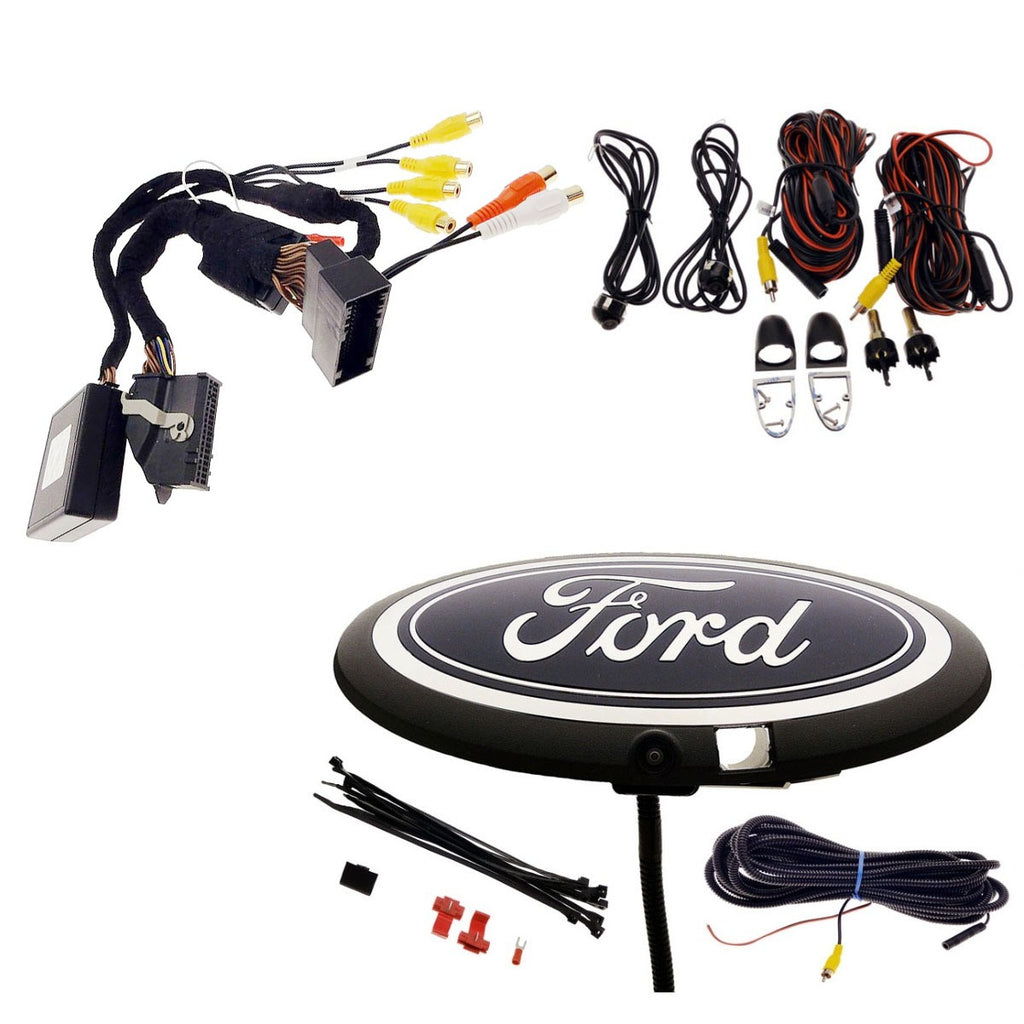

Kit includes:
-OEM style grille mount camera with our latest super CMOS camera - the latest camera technology!

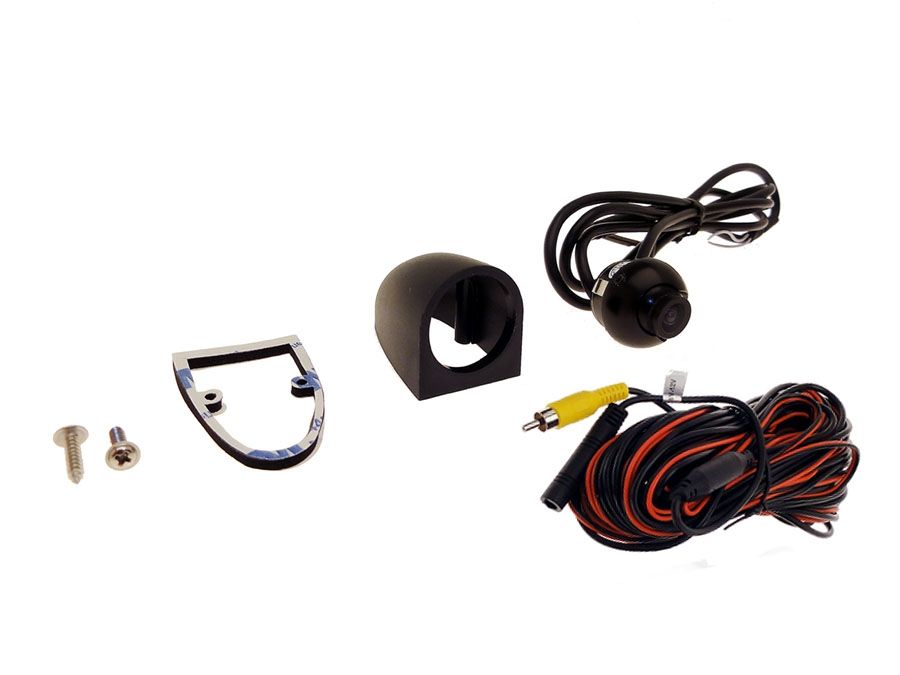

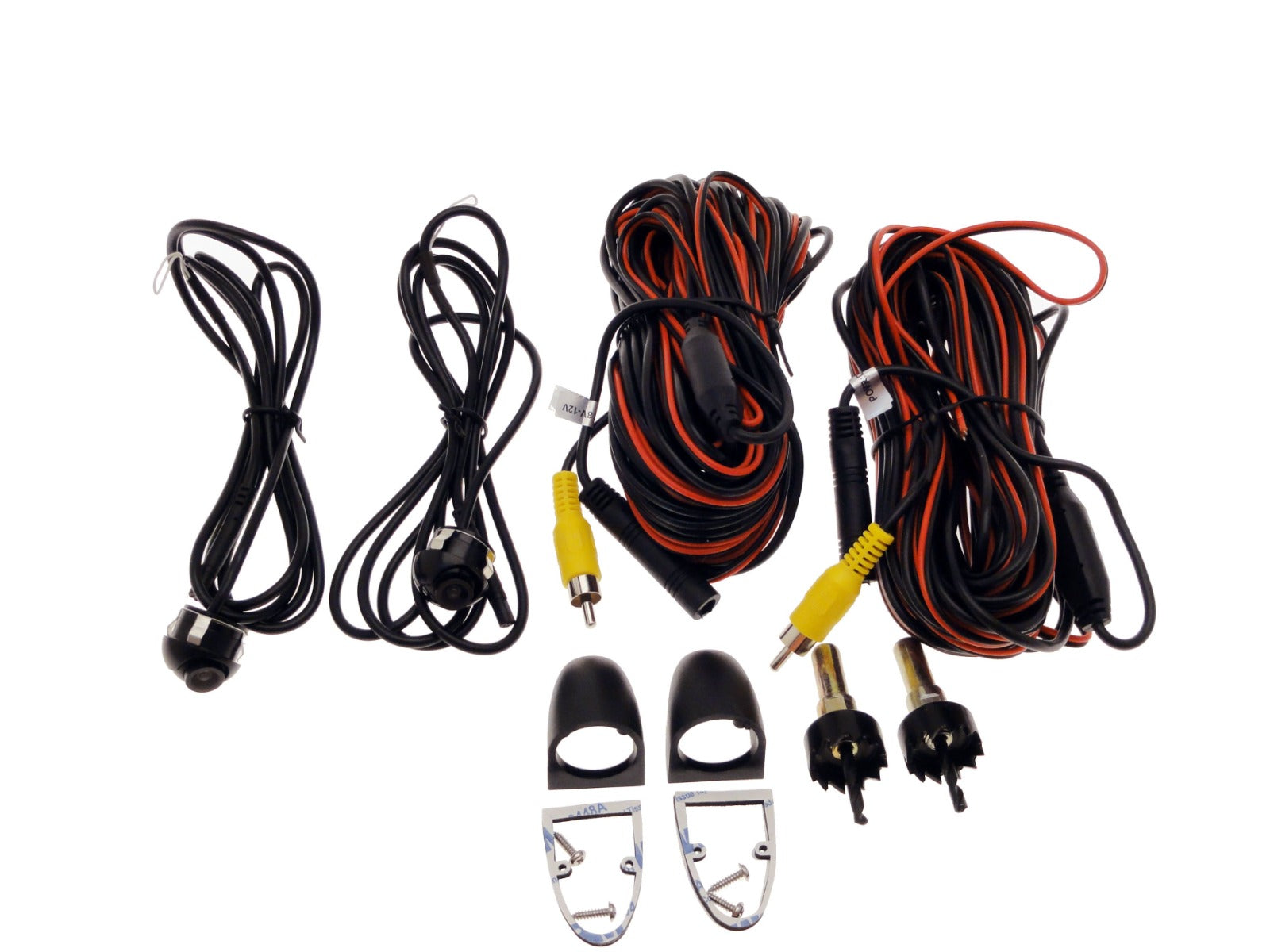

-(2) side cameras
-Mounting hardware
-Camera wiring harnesses
-Multi-cam integration module for 8" SYNC 4 display

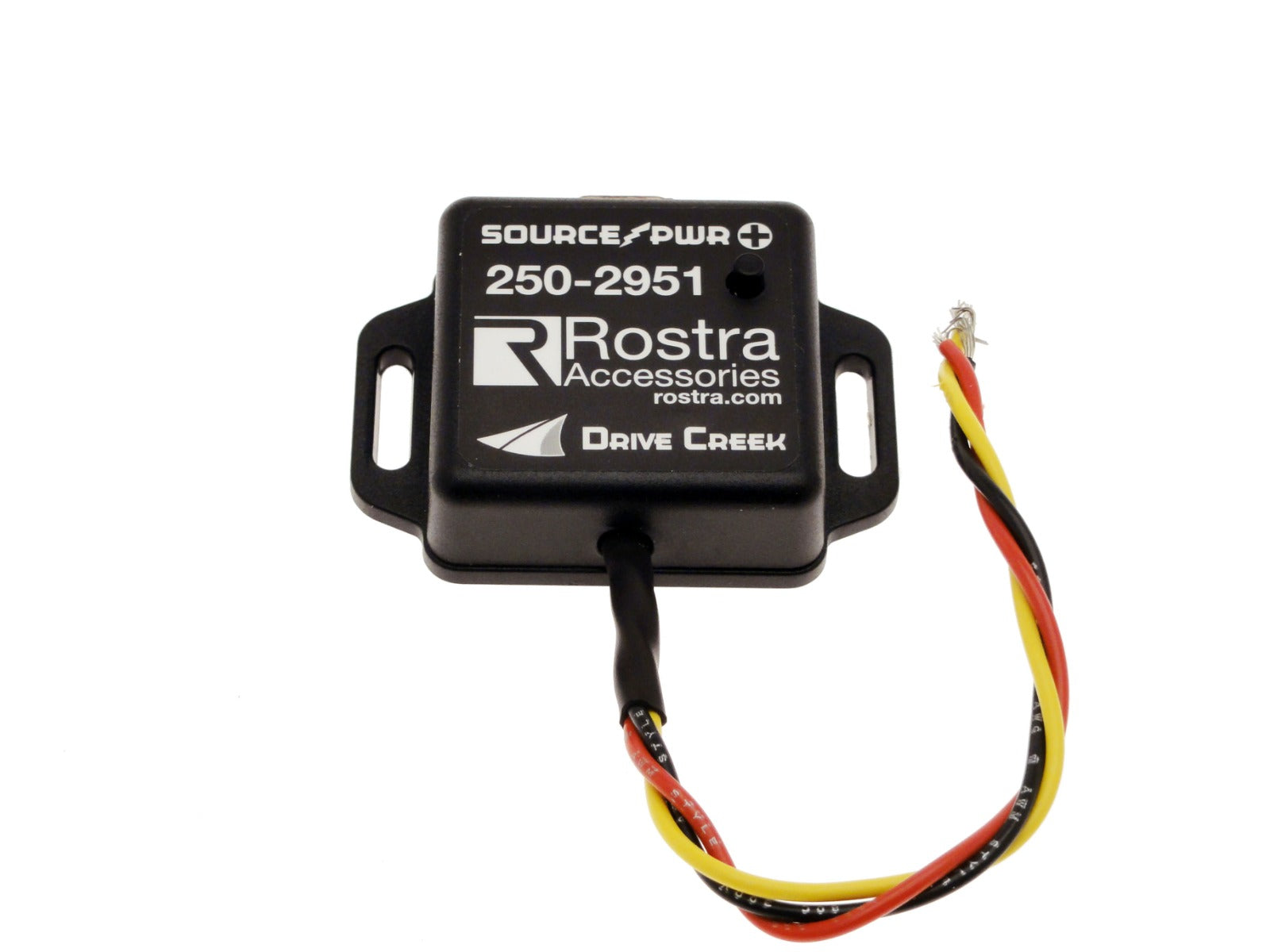

-12 Volt power module

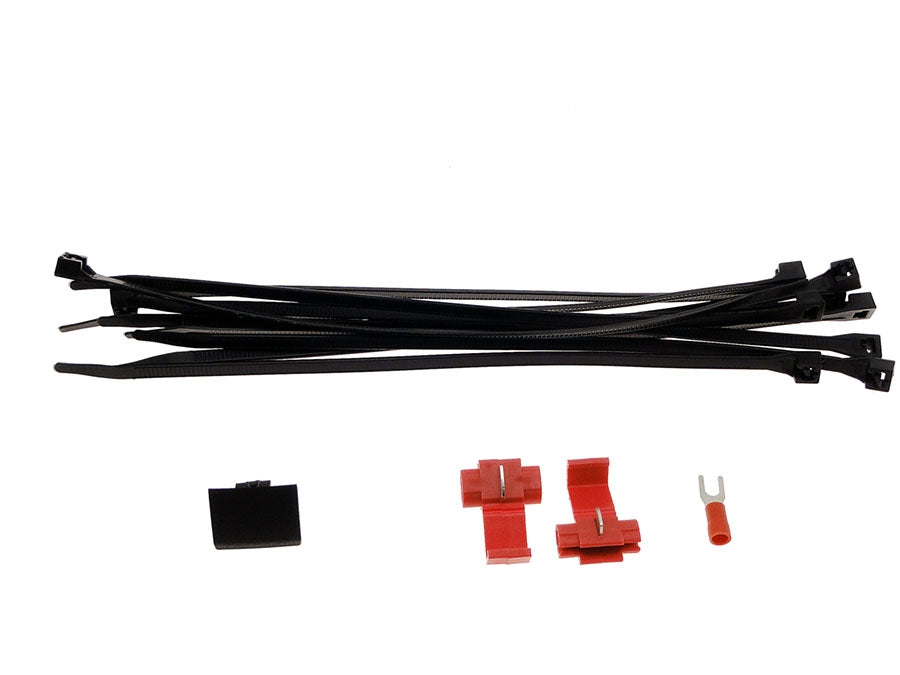

-Zip ties
-Detailed installation instructions
-3 year warranty on the camera
Camera Specifications:
-Super CMOS chip - outstanding color, contrast, and clarity!
-Forward looking camera - designed for front applications
-Side cameras are designed for rear-view applications and can be fully adjusted to meet your view needs
-170 degree view
-600 TV lines of resolution
-.1 lux minimum illumination - Outstanding night vision!
-Removable parking guidelines

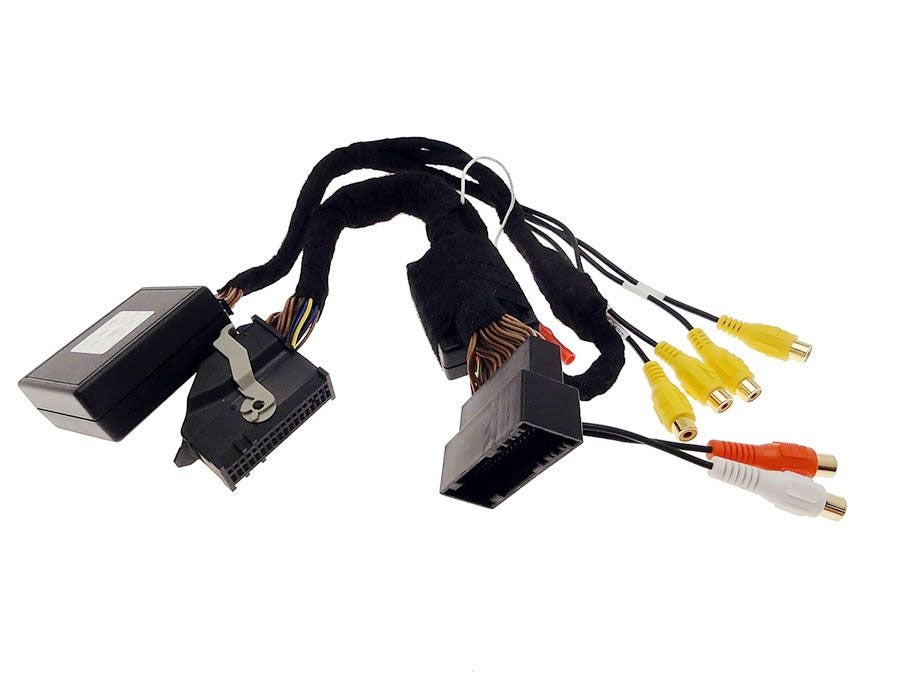

8" SYNC 4 Multi Cam interface:
-The integration module is plug and play with your factory 8" SYNC 4 system. Allows connection of 4 cameras to the factory screen in addition to the OEM backup camera.(additional cameras sold separately) Also, allows monitoring of any connected camera at any time while driving (not including OEM backup camera). Right and left blind spot camera inputs are automatically triggered by the turn signals. Factory rear camera is not available above 7 mph.
Features:
-1 Composite Video
-Left Camera
-Right Camera
-Front Camera input.
-Rear Camera input.
- Vehicles with OEM rear view camera: OEM rear camera will work as it did before
- Lane Watch Cameras (left and right): Automatically triggered with turn signals.
- Front Camera: Can be triggered at any time in any speed, by pressing and holding the radio volume button for 7 seconds.
- Rear Camera: Aftermarket rear view camera can be triggered at any time in any speed, by pressing and holding the radio volume button. Factory rear camera not available over 7 mph.
- Video in motion function: Allows passenger access to Navigation menu while vehicle is in motion.
- Video interface is 100% Plug & Play and requires no wire splicing.
- NO DEALER ACTIVATION REQUIRED!
- Composite Video Input: is controlled by the Volume button and is designed for***Sold separately***
- - 1. DVD
- - 2. Game Consoles
- - 3. PC’s
- - 4. Smartphones / Tablets (Depending on the type of smartphone / Tablet you intend to use a Smartphone Mirror Interface is required and sold separately)
Music or Video playback from Smartphones / Tablets can be achieved with a Smartphone Mirror Interface add-on.(sold separately) - NO DEALER ACTIVATION REQUIRED! This kit allows you to see what is directly in front of truck and will look like it came from the factory! The side cameras will complement this system perfectly!
This camera comes with a 3 year warranty and the interface module has a 1 year warranty. Professional installation is recommended. **Radio not included*
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 3 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera, Side Camera, Multiple cameras (kit) |
| For a monitor it uses | Your factory display |
| Grade Level | OE Grade |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford |
| Camera Mount Location | Side Mirror, Front Grille |
| Night Vision | .1 Lux |
| Camera Orientation | Front Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8\ Ford Sync 4 |
| Reason for Shopping | Adding camera(s) |
| Sensor Brand | EVI Systems |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Super Duty |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2022,2023,2024,2025,2026 |
| Make Filter | Ford |
| Model Filter | Super Duty |
| Year Filter | 2022, 2023, 2024, 2025, 2026 |
Compatibility
2022-2026 F250,F350,F450 with camera cutout in the grille and 8" SYNC 4 factory radio display.
***Your factory grille must have the camera cutout for this kit to fit properly. If your grille does not have this cutout, your factory grille will have to be swapped with a different grille that is designed to mount the camera assembly and this grille is NOT included in the kit.
*** See images for an example of a grille with camera cutout. If needed, many times you can find a brand new grille with the required cutout on ebay or from a Ford dealership.

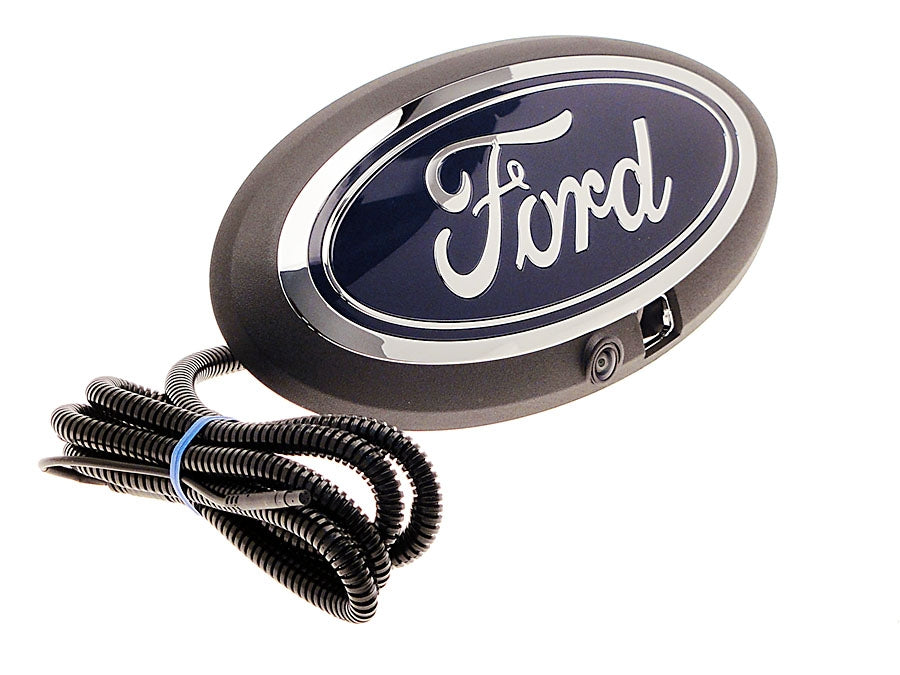

NOTE: This camera is pre-mounted into an OEM front Ford emblem. This kit uses an OEM bracket and cannot be retrofitted to any other application.
Installation

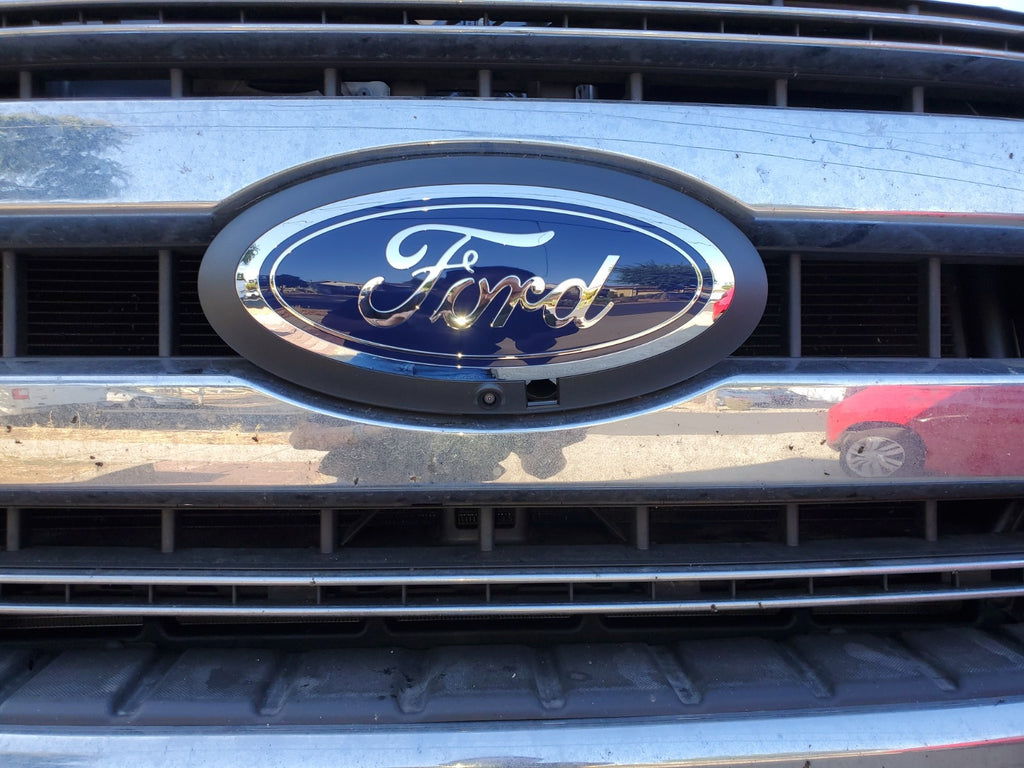

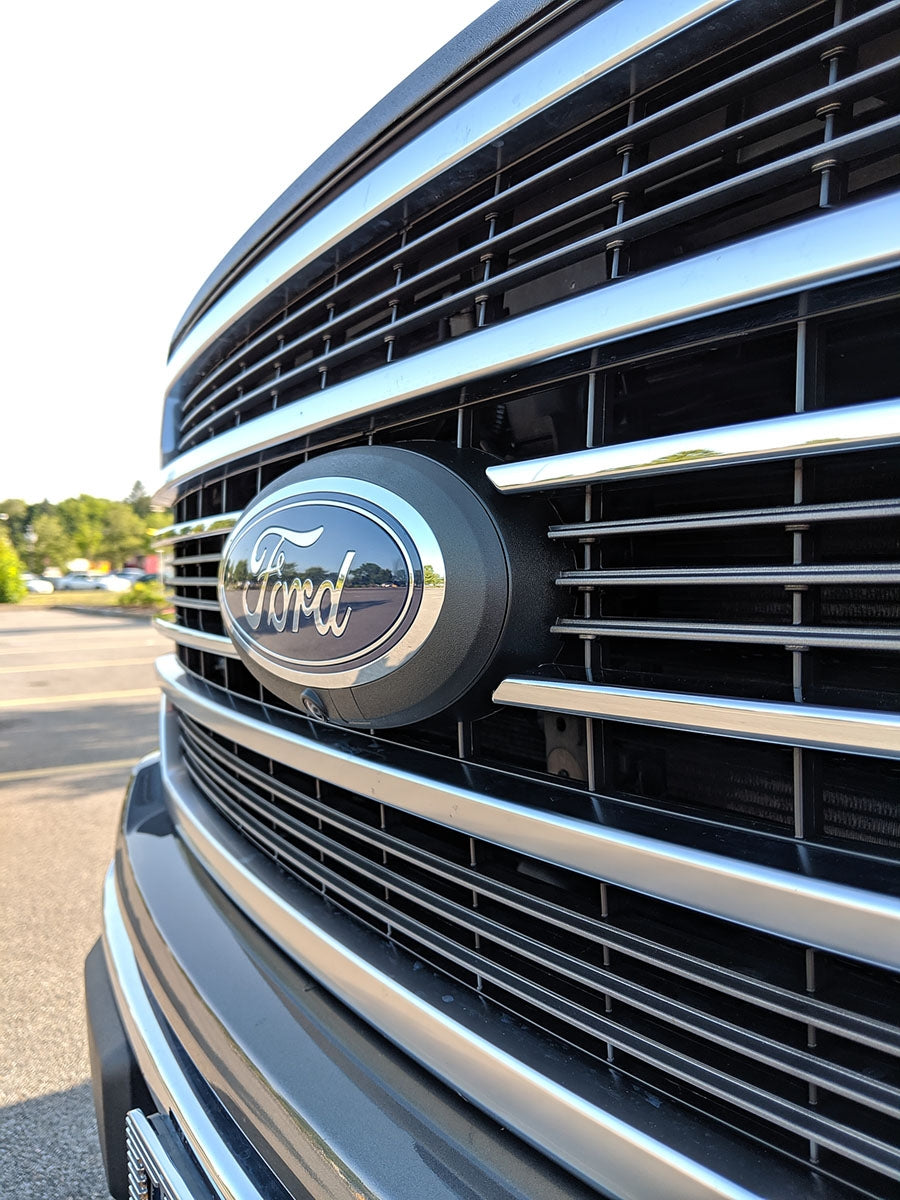

The front camera mounts into your factory grille by replacing your existing emblem assembly with this camera assembly. **Camera wash system not included. Cover for the opening of where the camera wash system installs is included.

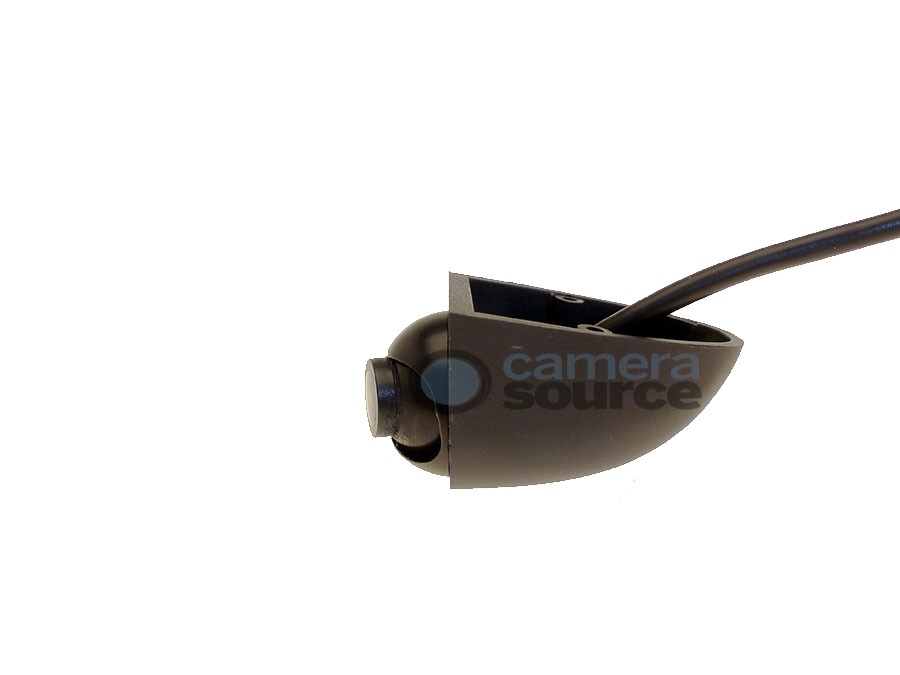

The side cameras will mount under your side mirrors, which will require complete removal and disassembly of your mirrors. You will need to have a flat level surface to mount the side cameras. A downward taper in your mirror mount will cause the camera to have a downward view and in some cases it cannot be overcome with the amount of camera adjustment available. Installing a bracket will solve that problem.
These mirrors can be challenging to disassemble so professional installation is recommended for this kit.
Run the harnesses to the cab and connect to your factory 8" SYNC 4 radio using the included multi-cam interface. All plug and play - no cutting of factory wires! You must remove your factory radio in order to gain access to the wiring, professional installation is recommended.
Connect 12 volt power module directly to the battery. Connect all camera power wires directly to the power module.
