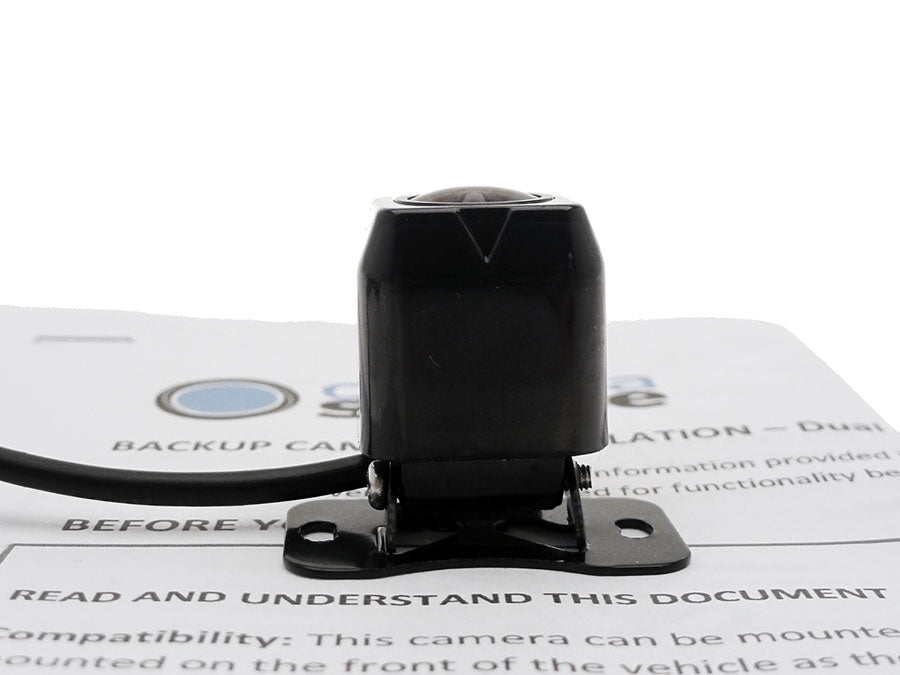

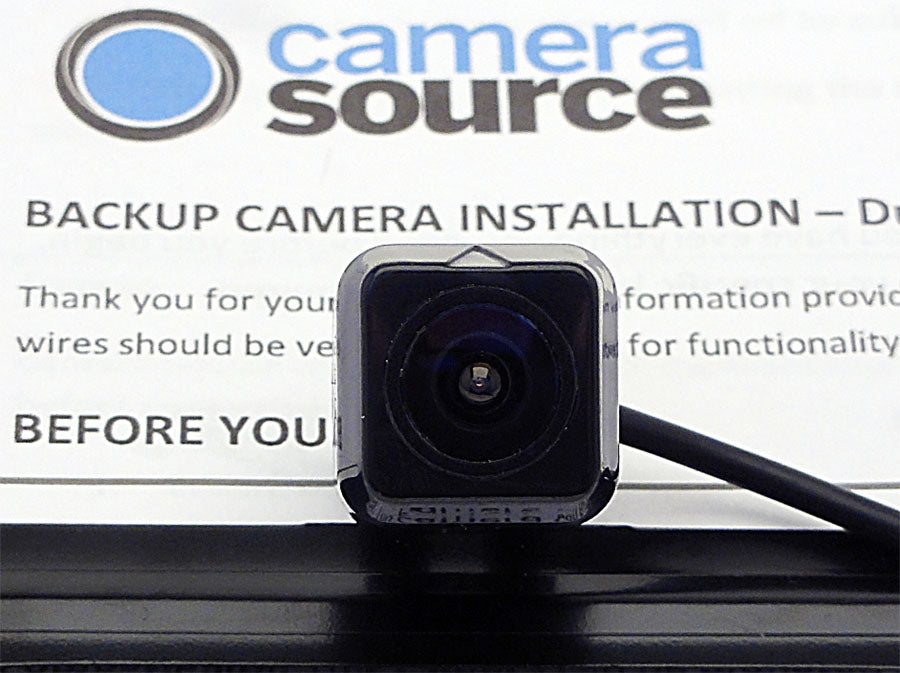

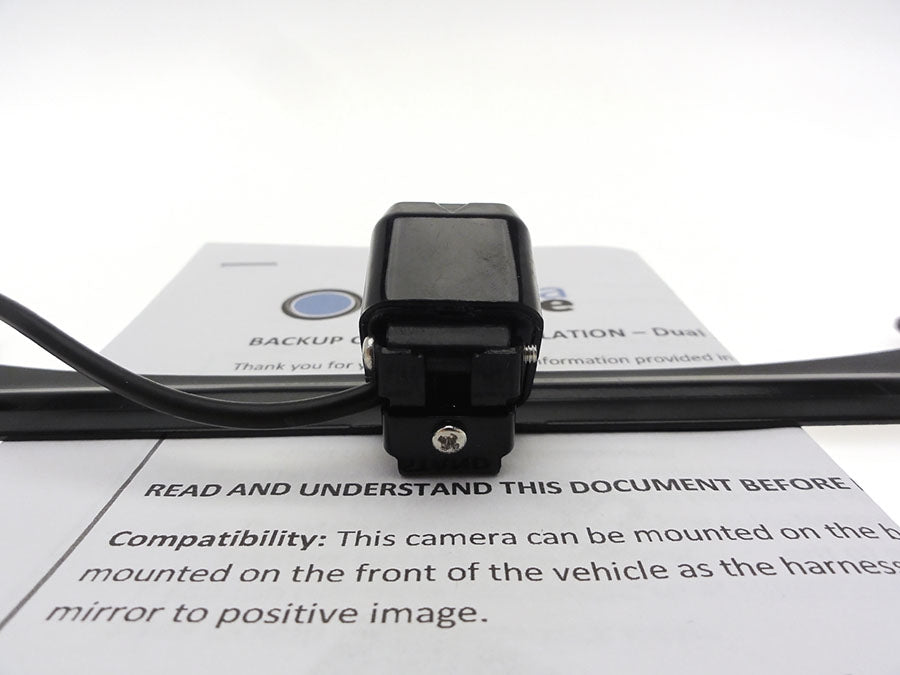

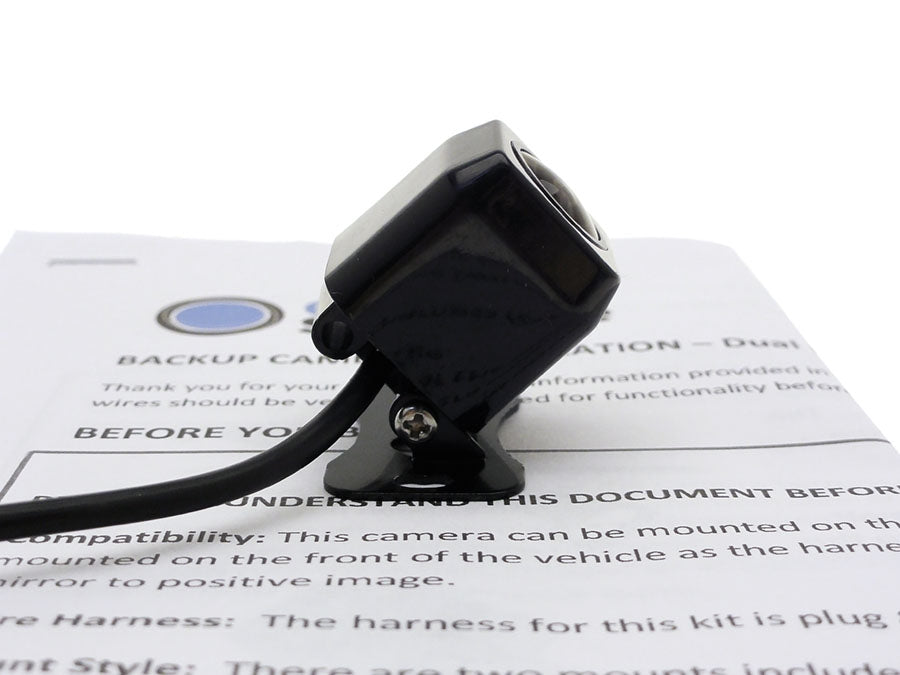

Plug & Play Mini Universal Cam, Fits 2020 GM® Heavy Duty Work Truck
SKU#: CS-20GMWTHD30-LP
Availability:
In Stock
SKU#:
CS-20GMWTHD30-LP
$219.00
Quantity
Uses 30 pin factory camera connector under tailgate!
Description
Camera is FMVSS 111 compliant! This is a plug and play camera kit that will allow you to replace your factory tailgate camera on a Sierra/Silverado 2500,3500,4500,5500 Series Work Truck with this mini license plate mounted camera - Plug and Play!
Your truck must be prewired and programmed for a camera or this kit will not work. Please see the compatibility tab for more information!

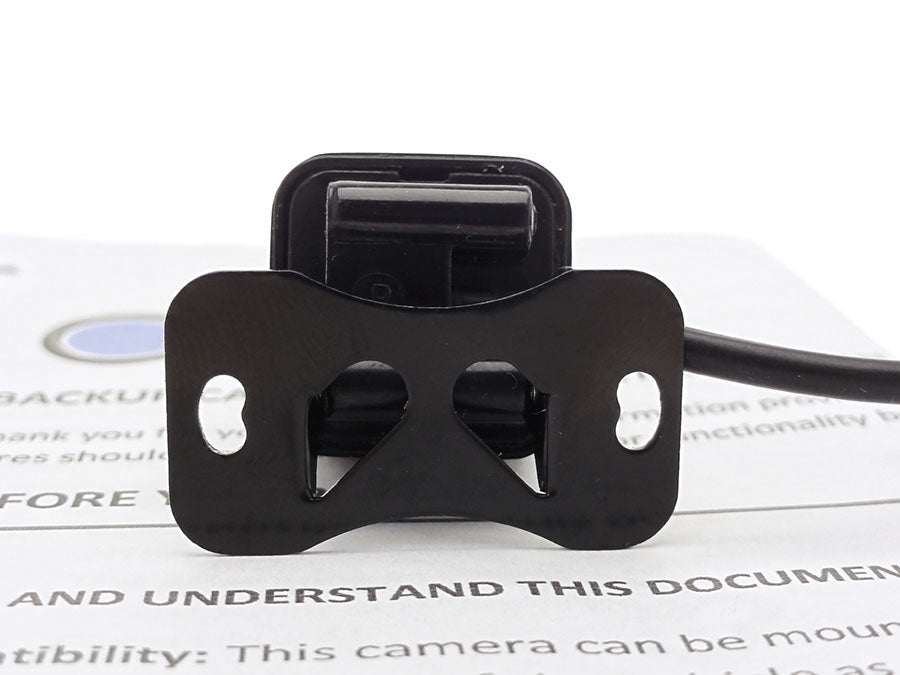

Use this camera for salt spreaders, bed campers, 5th wheel applications, airstream tailgates, and any other application where you are required to remove your factory tailgate. Simply mount the camera on your license plate or any flat surface and connect the cable to your factory backup camera connection for a simple and seamless installation. The kit comes with a license plate bracket and a mini-universal bracket, which allows flexibility in mounting locations.

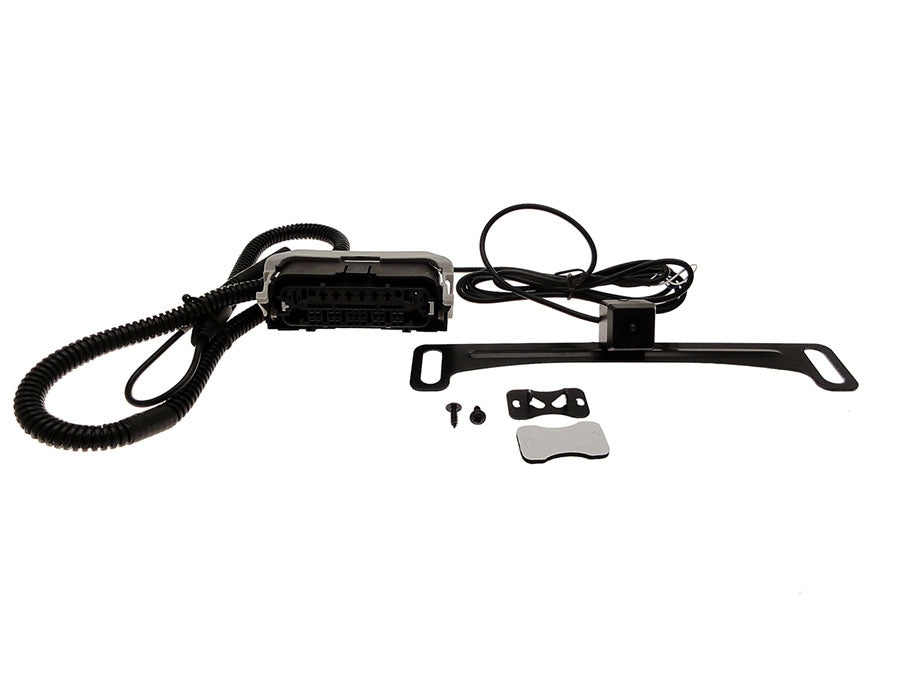

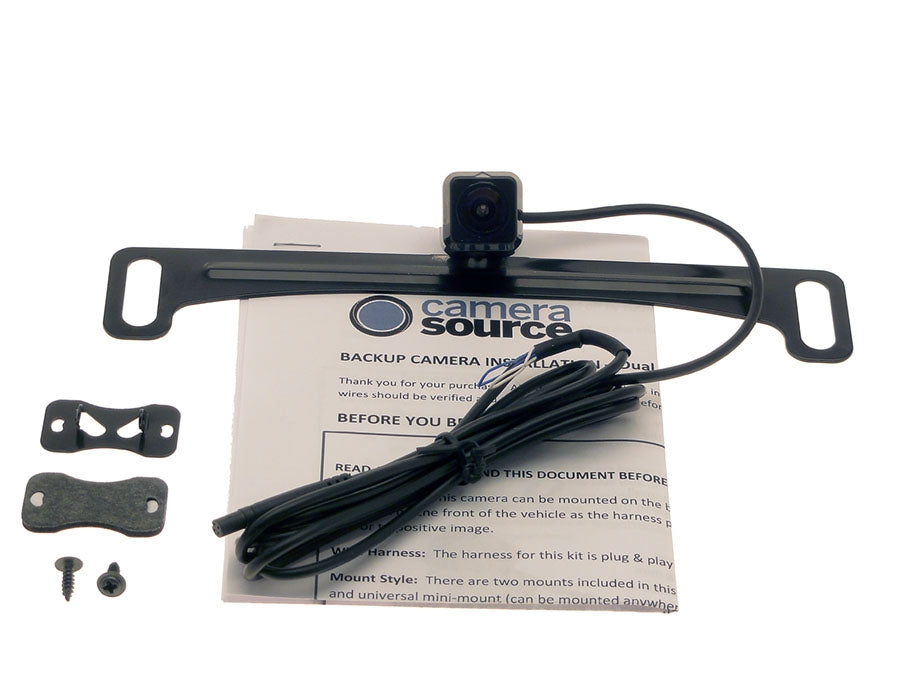

Kit includes the following:
- License plate/universal camera with Super CMOS sensor

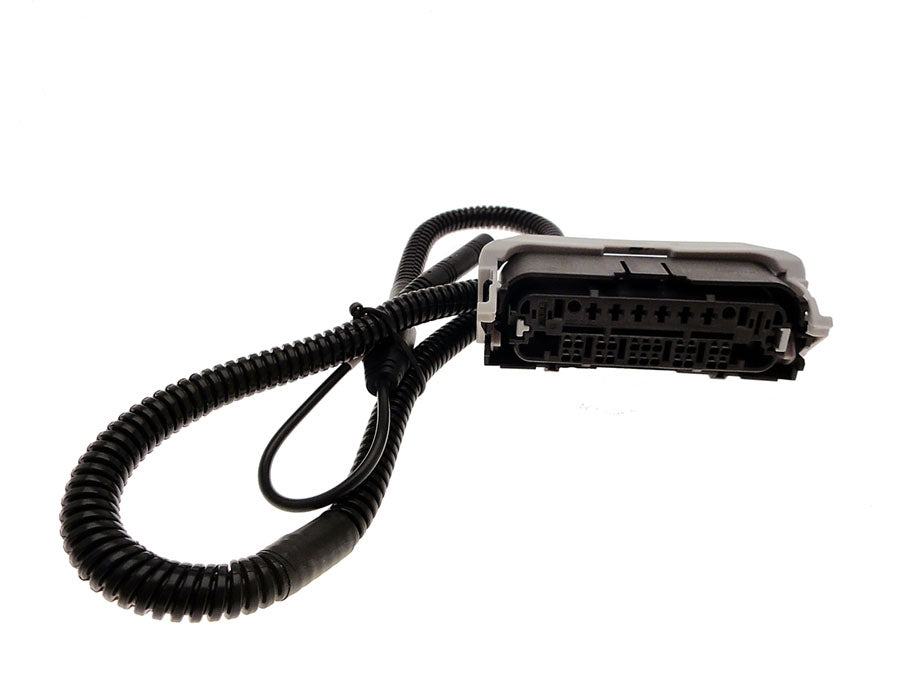

- OEM wiring conversion harness (30 pin) - allows the system to be plug and play with your factory camera connector, just plug it in!
- 5' (standard),10', 15', or 25' wiring harness optional, allows for flexibility in mounting location
- Camera harness has factory ends for plug and play with your existing wiring
- 3 year warranty!
Camera Specifications:
- Camera Source Super CMOS for a super clear image
- Night vision
- 170 degree view
- 600 TV lines of resolution
- Parking guidelines (selectable at the harness)
- Camera can face forward or backward (selectable at the harness)
**This is for a Work Truck only- Window sticker and/or VIN will show (WT).
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Utility Bed Camera Systems |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Factory Connector |
| Make | Chevrolet,GMC |
| Camera Mount Location | Camper/Utility Bed, Universal Mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | Factory LCD |
| Reason for Shopping | Relocating factory camera |
| Sensor Type | Super CMOS |
| Vehicle Category | Truck, Fleet Vehicle (i.e. cargo van) |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Silverado HD,Sierra HD |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Factory Plug&Play |
| Year | 2020 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Sierra HD, Silverado HD |
| Year Filter | 2020 |
Compatibility
2020 GMC® Sierra and Chevrolet® Silverado 2500,3500,4500,5500 "Work Truck" with factory installed backup camera wiring and "IOR" RPO code. Contact your GM® dealer with your VIN number to determine that your VIN has the "WT" specification and the "IOR" RPO code.
Also confirm that you have the 30 pin connector for the camera wiring at the back of the truck.
**This is for a Work Truck only- Window sticker and/or VIN will indicate (WT).
Installation

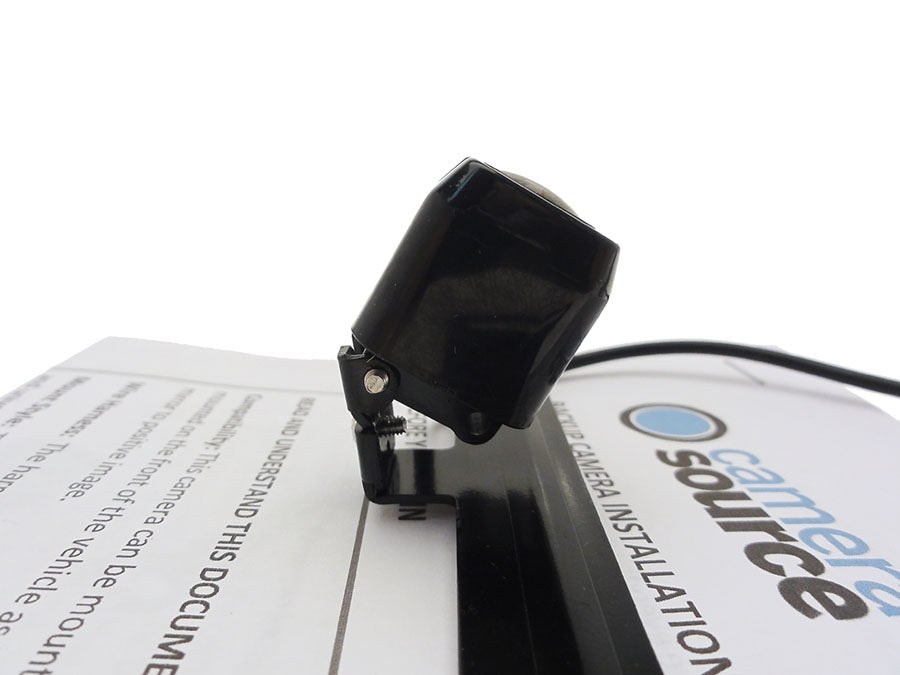

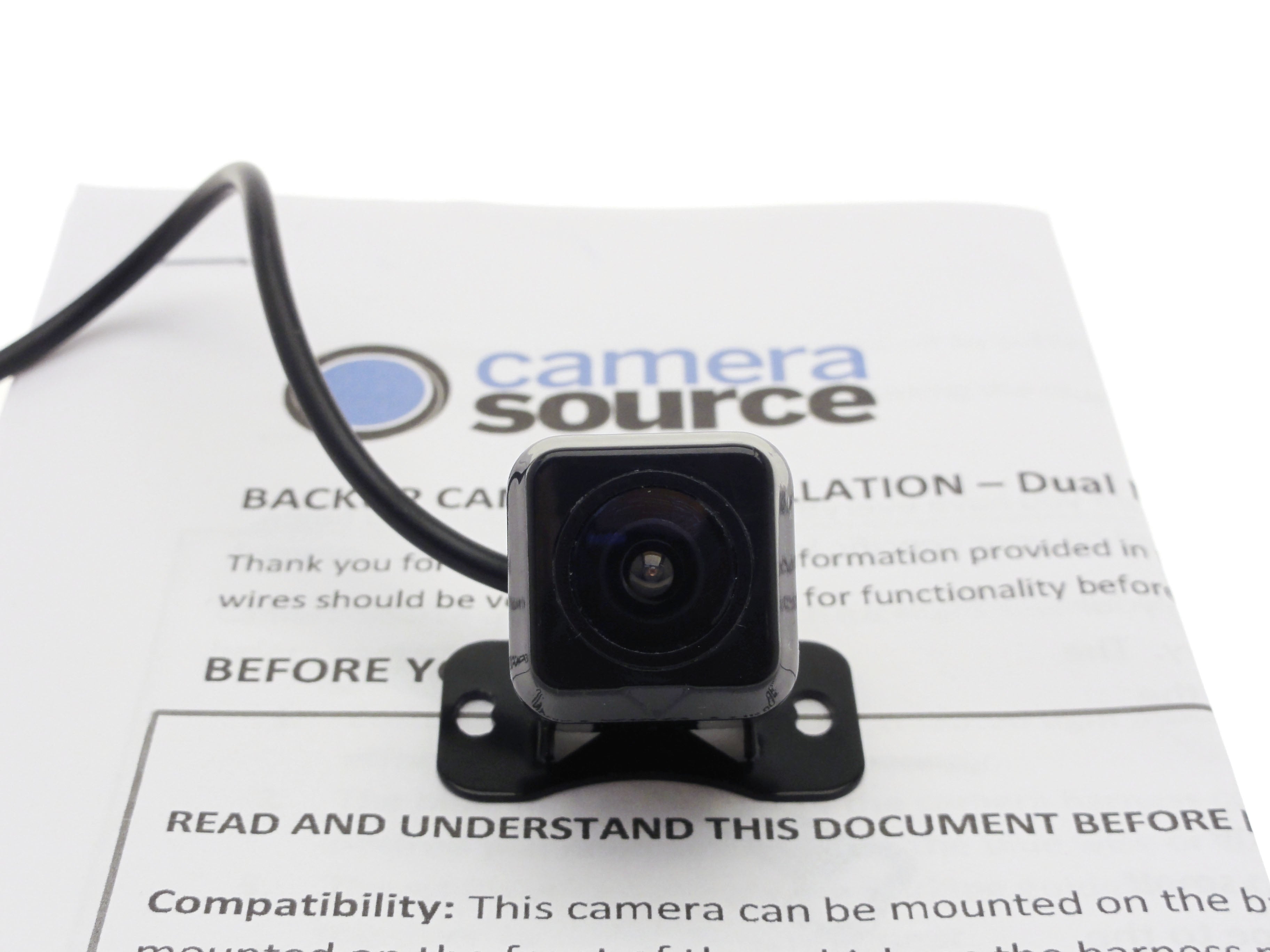

Mount the camera anywhere! Versatile mount allows for surface mount in virtually any location. Camera tilt is adjustable so the view can be adjusted to accommodate any view required!
Connect plug and play pigtail to 30 pin factory connector under the truck.
