Flush Mount Camera, Fits 2020-2023 GM® Heavy Duty Cab-Chassis- 8 Pin
SKU#: CS-20GMHDFM4-CC8
Availability:
In Stock
SKU#:
CS-20GMHDFM4-CC8
$199.00
Quantity
Easily add to a GM® Heavy Duty cab and chassis!
Description
FMVSS 111 compliant! This kit is for Cab and Chassis vehicles only and these are rare so chances are you need the non-Cab and Chassis version. See the compatibility tab for details before purchasing this kit. This is a plug and play camera kit that will allow you to add a camera to a cab and chassis truck that has been pre-wired at the factory and has a factory display that is already programmed for a camera. Your truck must be prewired and programmed for a camera or this kit will not work. Please see the compatibility tab for more information!
Use this camera for cab and chassis trucks that did not come with a bed from the factory. This universal camera mounts flush with a flat surface. Drill a 22.5mm hole(hole saw included) and run the cable through to your factory backup camera connection. Choose the cable length from the drop down above.
*Factory radio must be programmed for a back up camera from the factory or by a dealership.
If your truck has the 5 pin flat connector see SKU: CS-19GMTRFM5-CC

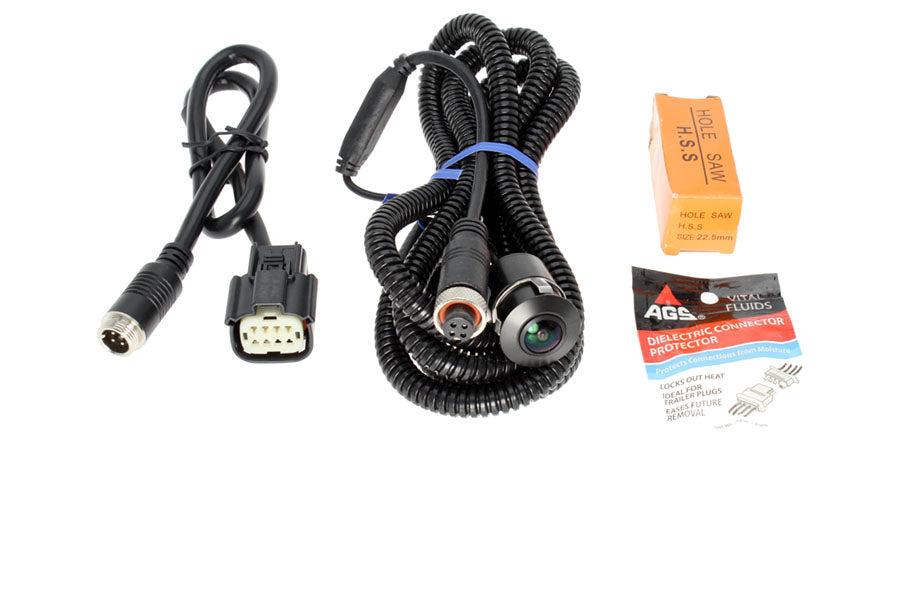

Kit includes the following:

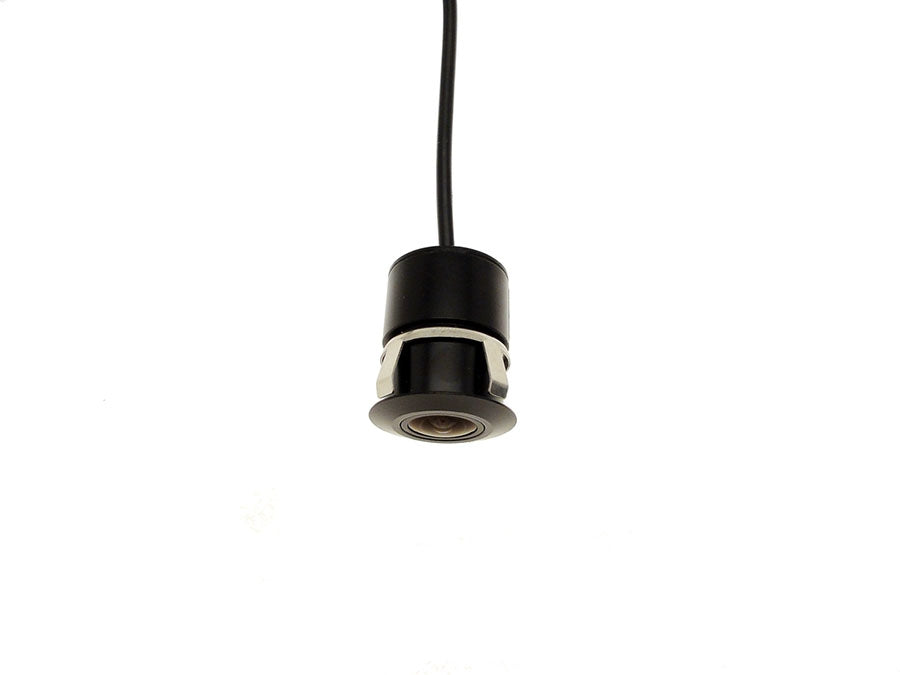

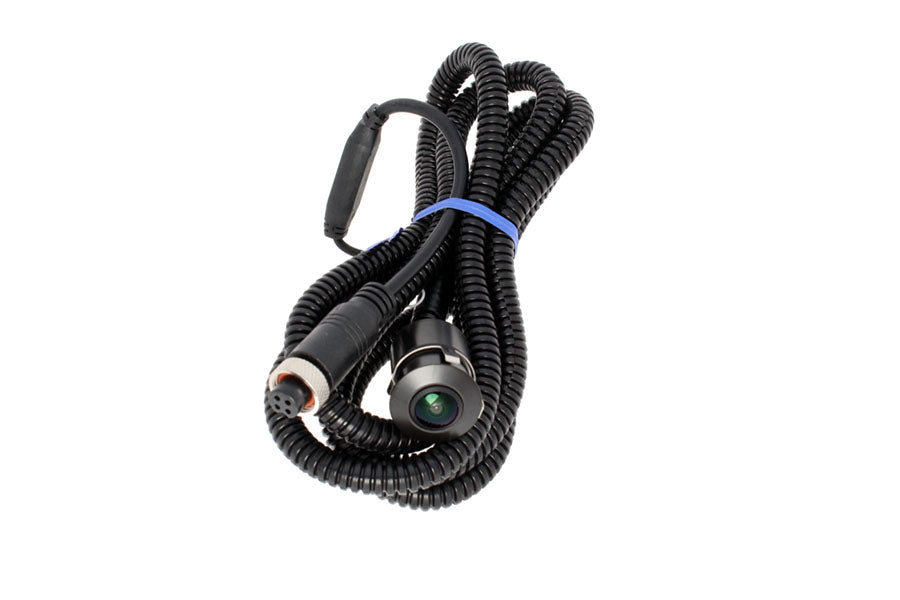

- Black rear facing flush mount camera with our latest super CMOS camera - the latest camera technology!

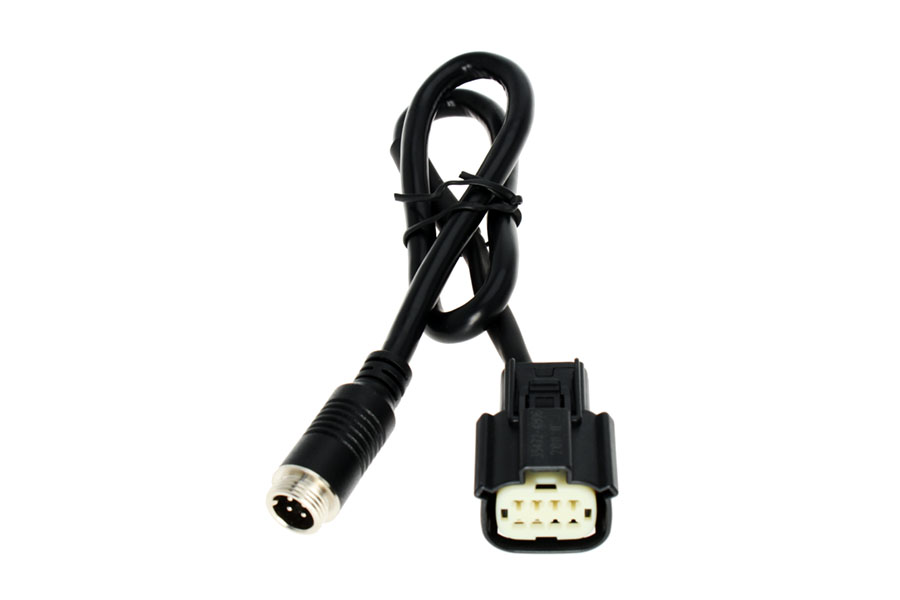

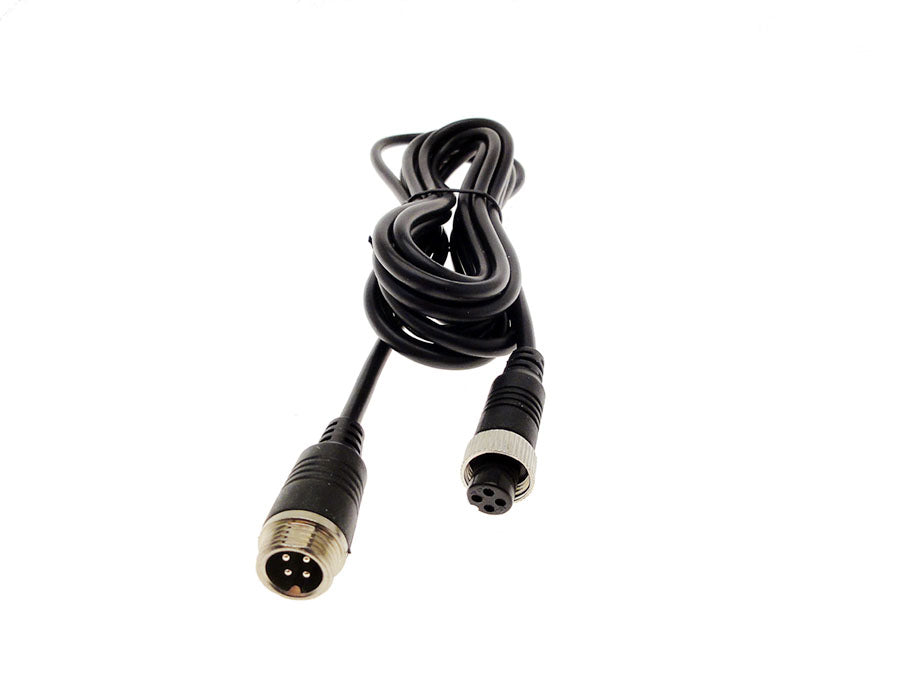

- OEM conversion harness 6',9',16',32',64' cable lengths available. Select from drop down above.
- 22.5 mm hole saw
- Installation instructions
- 3 year limited camera warranty
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- Removable parking guidelines
- 150 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Utility Bed Camera Systems |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Factory Connector |
| Make | GMC,Chevrolet |
| Camera Mount Location | Camper/Utility Bed, Universal Mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | Factory LCD |
| Reason for Shopping | Relocating factory camera |
| Sensor Type | Super CMOS |
| Vehicle Category | Truck, Fleet Vehicle (i.e. cargo van) |
| Video System | NTSC |
| Viewing Angle | 150 Degrees |
| Model | Cab & Chassis |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Factory Plug&Play |
| Year | 2019,2020,2021,2022,2023 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Cab & Chassis |
| Year Filter | 2019, 2020, 2021, 2022, 2023 |
Compatibility
2019-2023 GM® 2500,3500,4500,5500,6500 cab and chassis with 8 Pin connector
Truck must be pre-wired for a camera from the factory and have a factory display that is programmed to recognize a back up camera.
This kit relies on the factory camera chassis harness to operate.
Not compatible if your truck has the 360 view system.

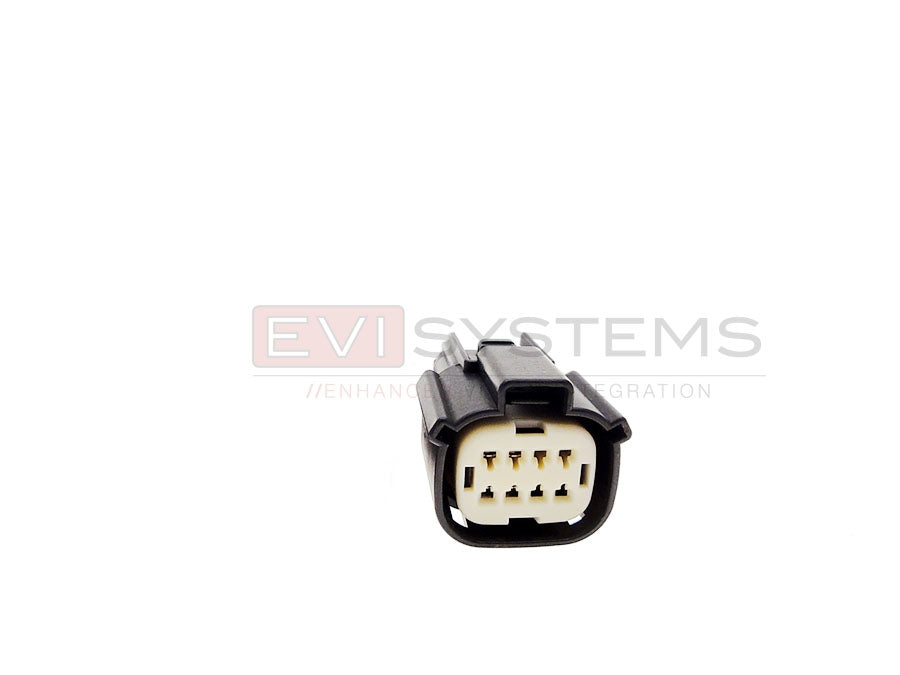

See our other GM® truck options if your truck came from the factory with a bed and you are removing the bed to add service body, utility bed, dump truck, flat bed, and any other application where you do not have a tailgate. This kit will only work on the trucks that came from the factory without a bed. Please verify the connector shown in the photos against the connector on your truck before ordering. If you are still not sure please call us for assistance.
If your truck has the 5 pin flat connector see SKU: CS-19GMTRFM5-CC
**EVI Systems has certified this camera system to comply with FMVSS 111 regulations as set forth by the National Highway Traffic Safety Administration (NHTSA). Testing has been performed jointly in-house and by a certified laboratory to meet or exceed the minimum requirements set forth by TP-111-V-01. FMVSS 111 field of view requirements and any other vehicle related certification is ultimately the responsibility of the vehicle up-fitter to ensure compliance.
Installation
Camera requires a 22.5 mm hole on a flat surface for flush mounting. It will require a flat section approximately 1" x 1" for mounting. Drill the hole and connect the camera harness to the OEM conversion harness. Run the cable to your factory backup camera connection under the truck and plug it in.
