Plug and Play Commercial Camera, Fits 2020-2023 GM® 1500 Work Truck
SKU#: CS-20GMWT30-SK
Availability:
In Stock
SKU#:
CS-20GMWT30-SK
$269.00
Quantity
Easily add to a GM® 1500 Work Truck!
Description
Camera is FMVSS 111 compliant! This is a plug and play camera kit that will allow you to replace your factory tailgate camera on a Sierra/Silverado 1500 Series Work Truck with this Commercial camera - Plug and Play! Your truck must be prewired and programmed for a camera or this kit will not work. Please see the compatibility tab for more information!
Use this camera for salt spreaders, bed campers, 5th wheel applications, airstream tailgates, and any other application where you are required to remove your factory tailgate. Simply mount the camera on any flat surface and run the cable to your factory backup camera connection for a simple and seamless installation. Choose the cable length from the drop down above.
*Factory radio must be programmed for a back up camera from the factory or by a dealership.

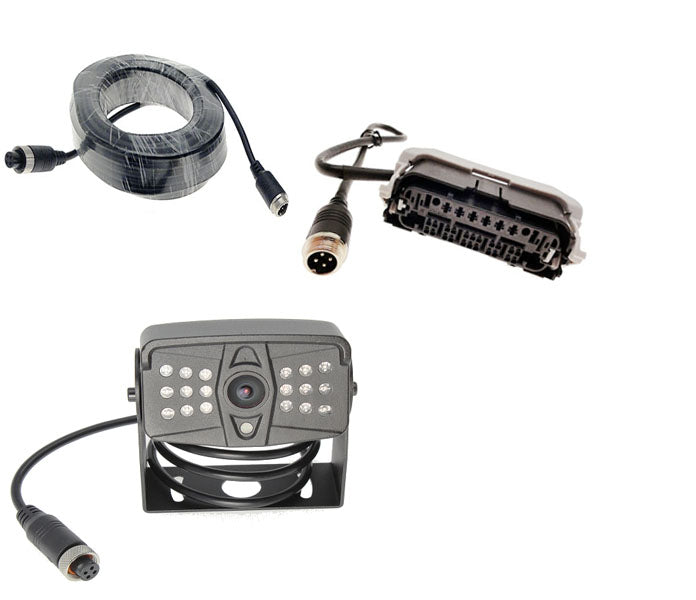

Kit includes the following:

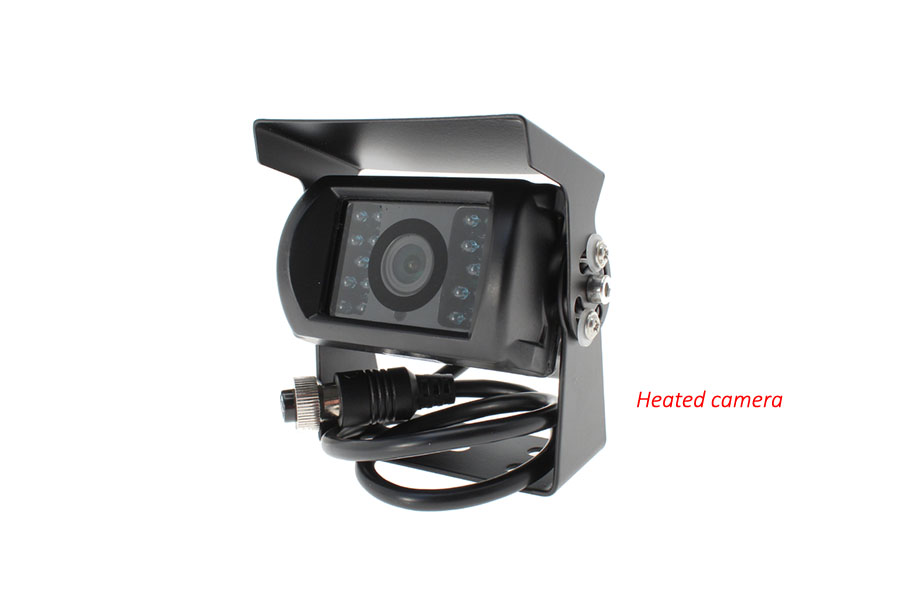

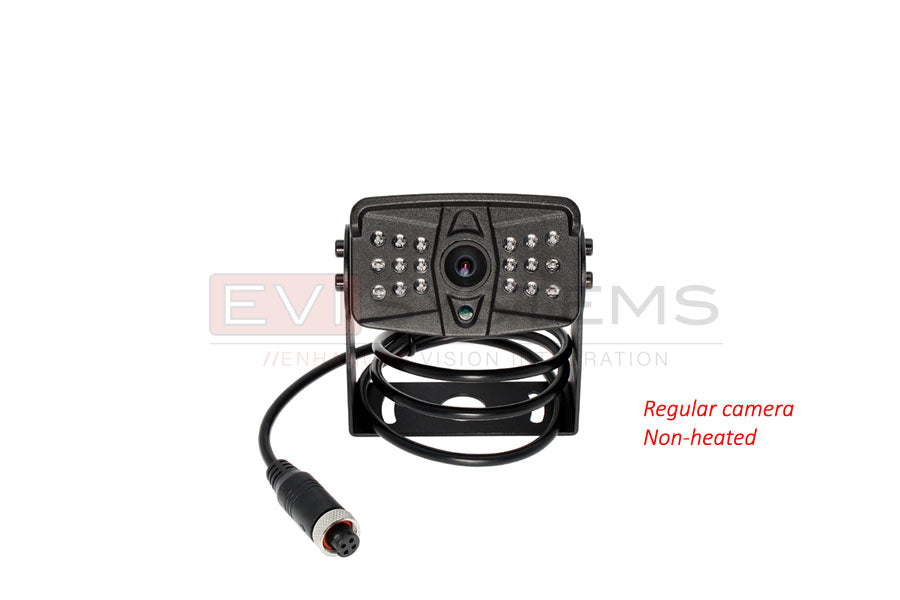

- Heavy duty commercial camera with Sony CCD sensor

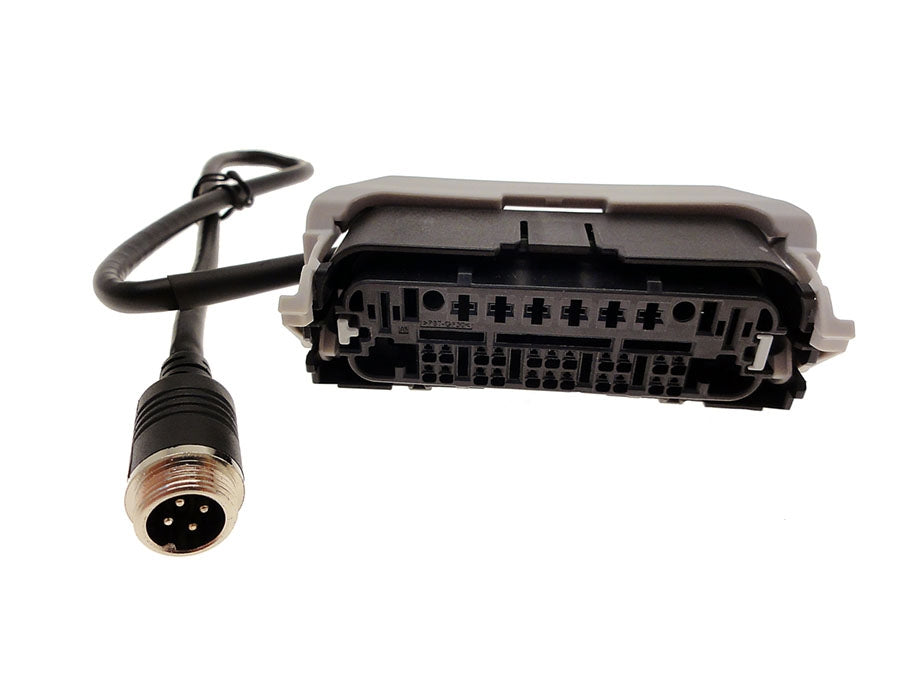

- OEM to commercial coax conversion harness-plug and play!

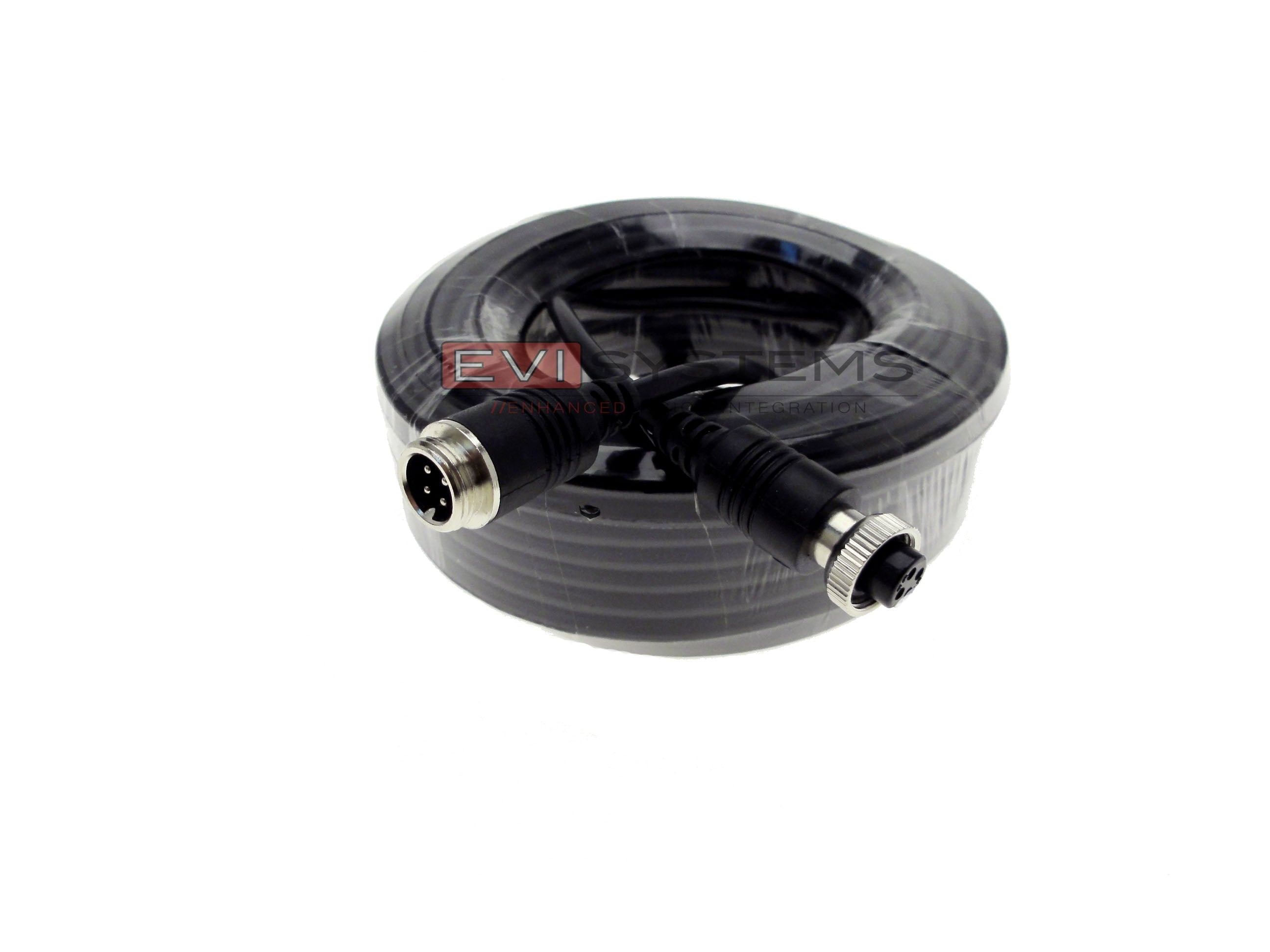

- Coaxial wire harness with weather tight connectors (select length above)
- Camera harness has factory ends for plug and play with your existing wiring.
- 1 year camera warranty!
Camera Specifications:
- Sony Ultra CCD for a super clear image
- Infra-red LED's that will create a daytime like display even in complete darkness
- 150 degree view
- 700 TV lines of resolution
- 0 lux (no light required to operate)
- Heavy cast casing, steel mounting bracket
- Locking weather tight connector
**This is for a Work Truck only- Window sticker and/or VIN will show (WT).
Specifications
| System Manufacturer | EVI Systems |
| Agriculture / Commercial | Commercial |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Utility Bed Camera Systems |
| Cam Only/Complete Kit | Complete Kit |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Factory Connector |
| Make | GMC,Chevrolet |
| Camera Mount Location | Camper/Utility Bed, Universal Mount |
| Night Vision | 0 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Not Available |
| Power Supply | 12 Volts |
| Radio Screen Size | Factory LCD |
| Reason for Shopping | Relocating factory camera |
| Sensor Type | CCD |
| Vehicle Category | Truck, Fleet Vehicle (i.e. cargo van) |
| Video System | NTSC |
| Viewing Angle | 150 Degrees |
| Model | Silverado,Sierra |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Factory Plug&Play |
| Year | 2020,2021,2022,2023 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Sierra, Silverado |
| Year Filter | 2020, 2021, 2022, 2023 |
Compatibility
2020-2023 GMC® Sierra and Chevrolet® Silverado 1500 series "Work Truck" with factory installed backup camera wiring and "IOR" RPO code. Contact your GM® dealer with your VIN number to determine that your VIN has the "WT" specification and the "IOR" RPO code.
Also confirm that you have the 30 pin connector for the camera wiring at the back of the truck.
**This is for a Work Truck only- Window sticker and/or VIN will indicate (WT).
**EVI Systems has certified this camera system to comply with FMVSS 111 regulations as set forth by the National Highway Traffic Safety Administration (NHTSA). Testing has been performed jointly in-house and by a certified laboratory to meet or exceed the minimum requirements set forth by TP-111-V-01. FMVSS 111 field of view requirements and any other vehicle related certification is ultimately the responsibility of the vehicle up-fitter to ensure compliance.
Installation
Mount the camera anywhere! Versatile mount allows for surface mount in virtually any location. Camera tilt is adjustable so the view can be adjusted to accommodate any view required! Plug OEM adapter harness into the factory camera 30 pin harness under the truck.
-Factory radio must be pre-programmed from the factory or a dealership for this camera kit to work.
