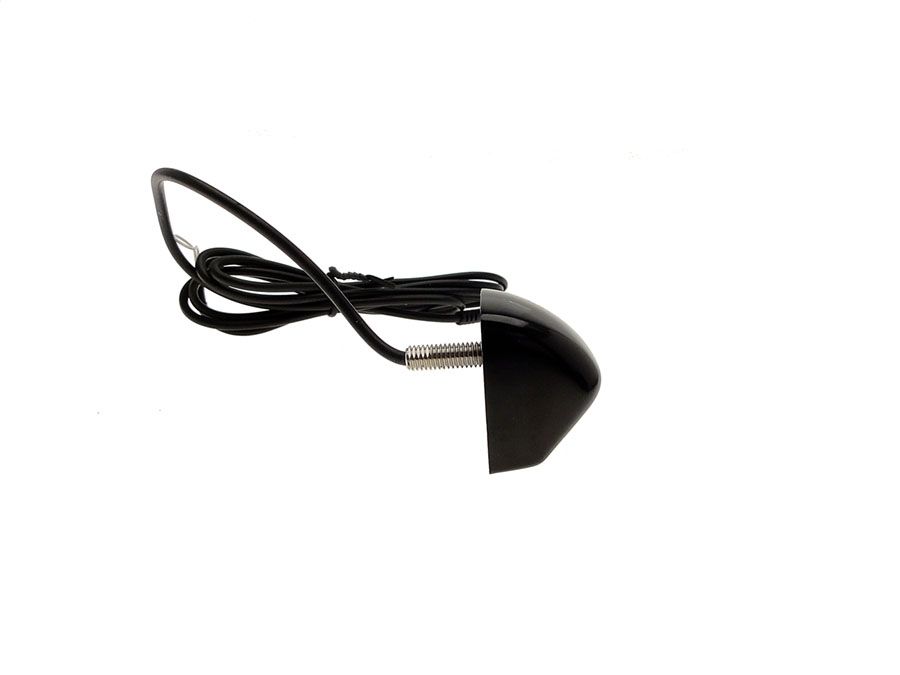

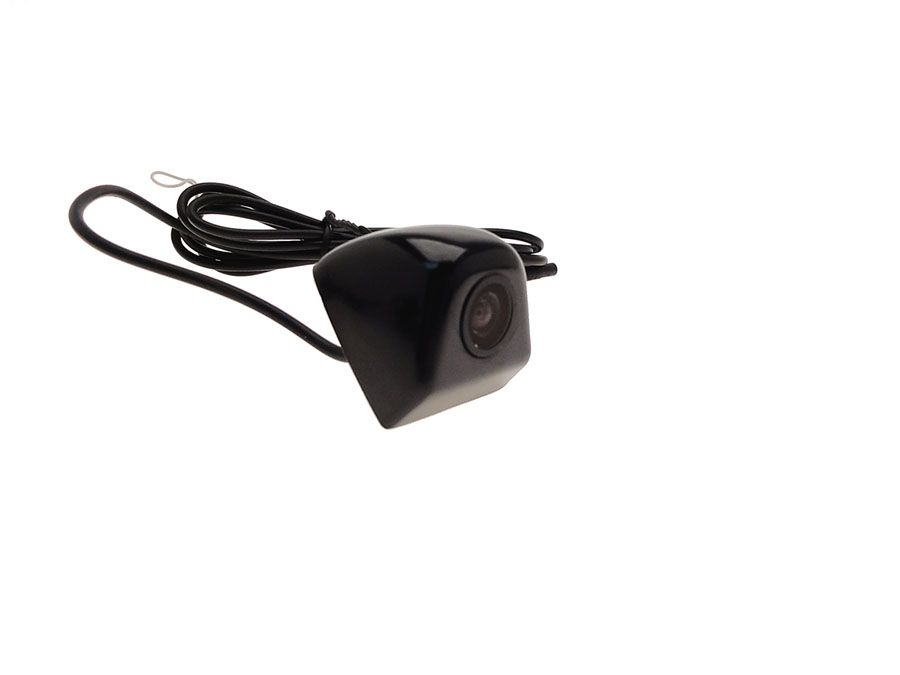

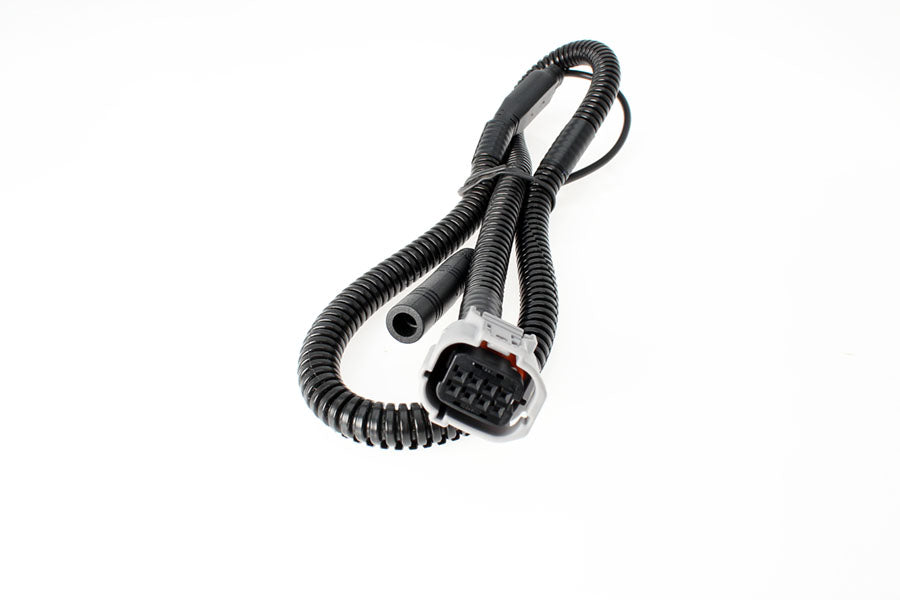

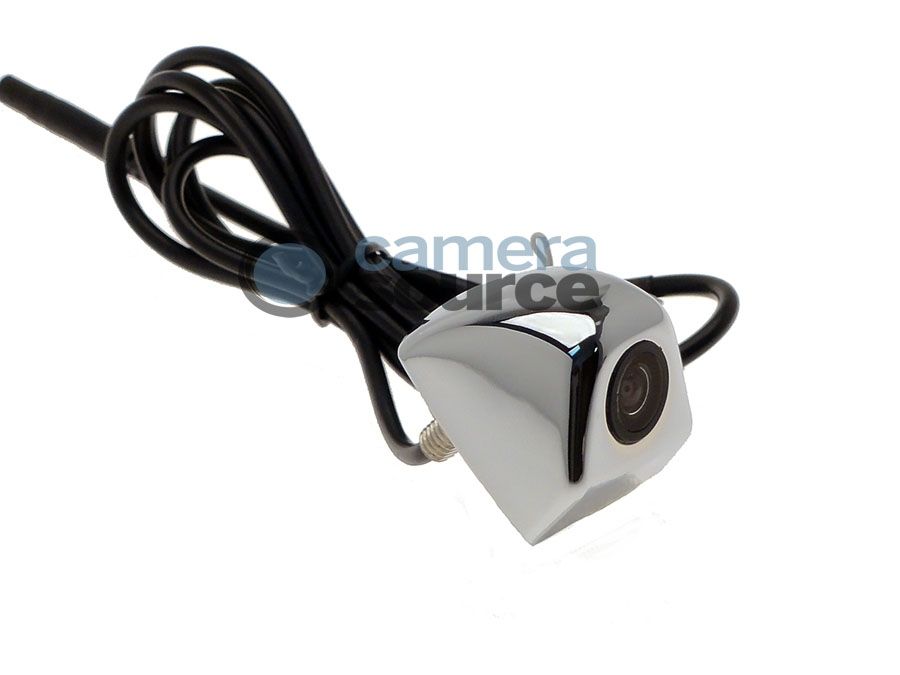

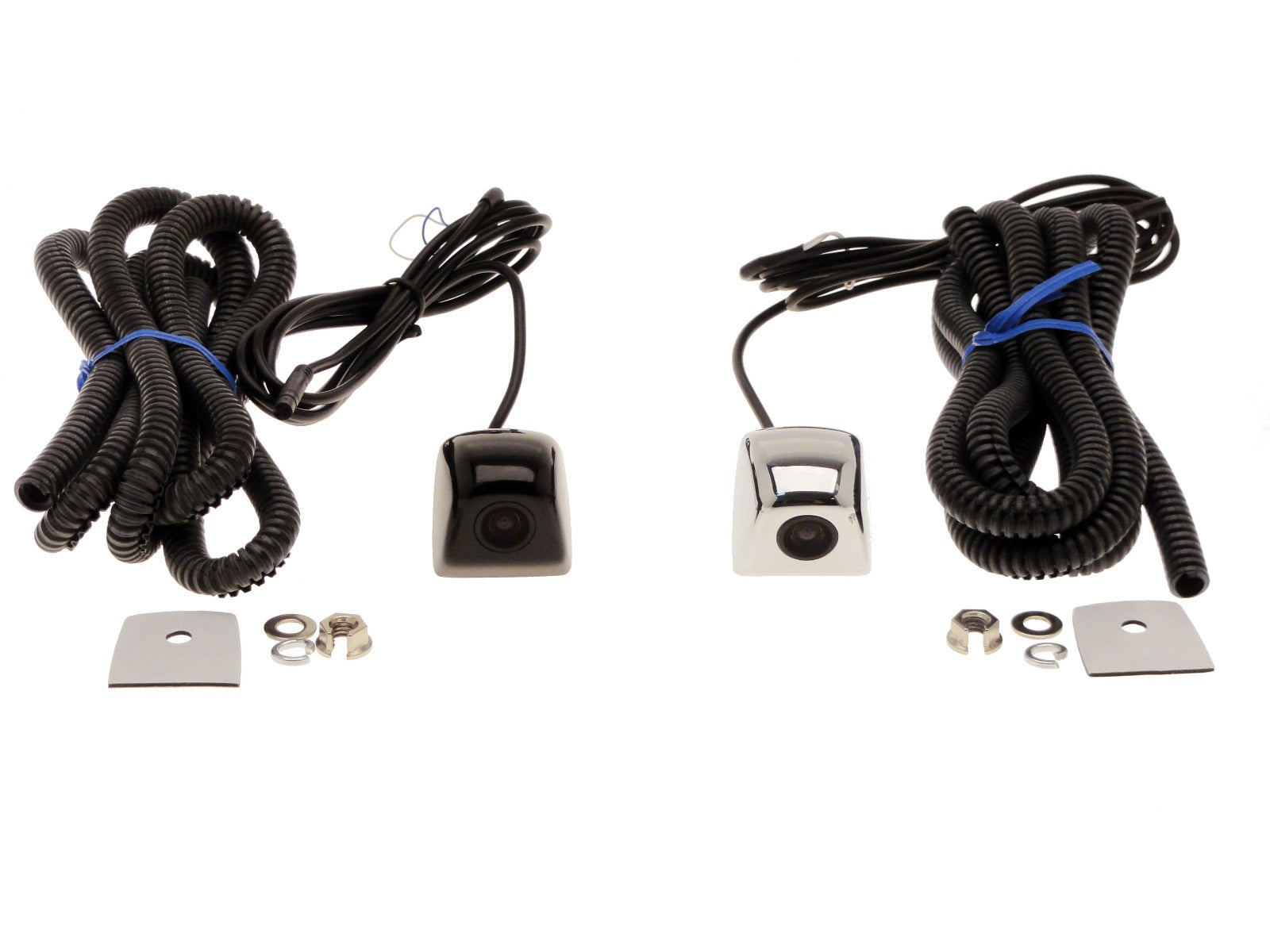

Plug and Play Surface Mount Camera Kit, Fits 2020-2023 Tacoma
SKU#: CS-20TAC-RSM
Quantity
Uses your factory camera connector!
Camera is FMVSS 111 compliant! New Product in stock and ready to ship! This is a plug and play camera kit that will allow you to mount a camera on your camper or trailer and have it plug into the existing camera connector behind your rear bumper.
This universal camera is surface mounted so it will require a flat section approximately 1" x 1" for mounting. Drill a small hole and run the cable through to your factory backup camera connection.
Use this camera for salt spreaders, bed campers, 5th wheel applications, airstream tailgates, and any other application where you are required to remove your factory tailgate.

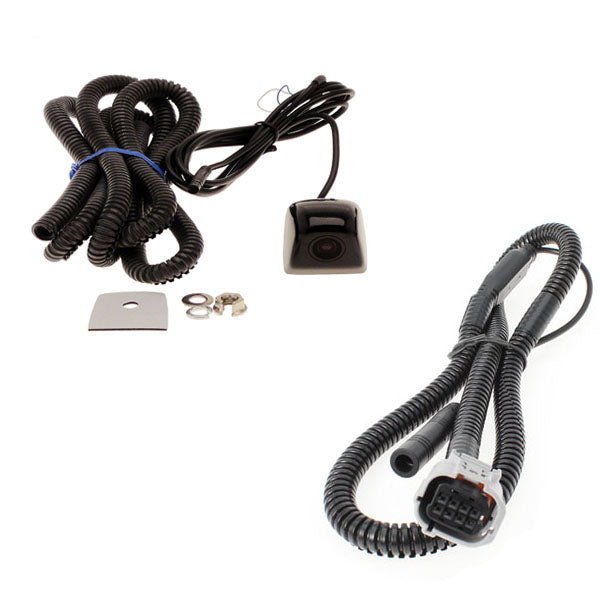

Kit includes the following:
Camera Specifications:
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Utility Bed Camera Systems |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Factory Connector |
| Make | Toyota |
| Camera Mount Location | Camper/Utility Bed, Universal Mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 6 Volts |
| Reason for Shopping | Relocating factory camera |
| Sensor Type | Super CMOS |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Tacoma |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Factory Plug&Play |
| Year | 2020,2021,2022,2023 |
| Make Filter | Toyota |
| Model Filter | Tacoma |
| Year Filter | 2020, 2021, 2022, 2023 |
2020-2023 Tacoma with factory installed backup camera.
NOTE: vehicle must have come from the factory with a rear camera in order for this kit to function.
Camera is drill-in style for flat mounting. It will require a flat section approximately 1" x 1" for mounting. Drill a small hole and connect the camera harness to the OEM conversion harness.
Run the cable to your factory backup camera connection under the truck and plug it in.
