2020-2021 Super Duty OE Style Front Emblem Camera For 8" SYNC 3 display
SKU#: CS-20FTRSDFOE-RU
Availability:
In Stock
SKU#:
CS-20FTRSDFOE-RU
$795.00
Quantity
View front camera anytime!
Description
Add an OE style front emblem camera to your vehicle and unlock the factory NAV system to allow the passenger to enter addresses while the vehicle is in motion!

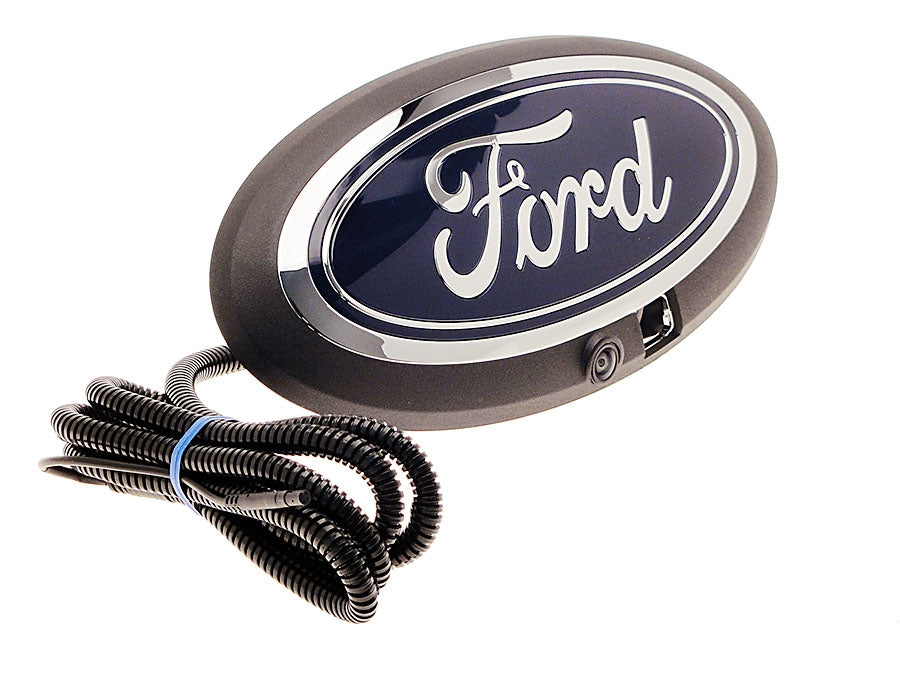

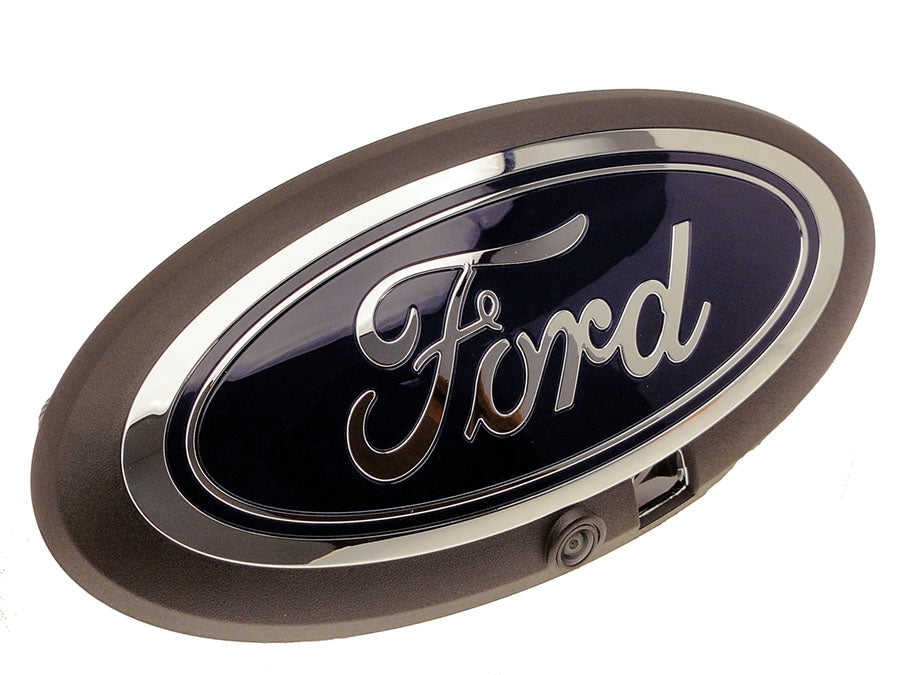

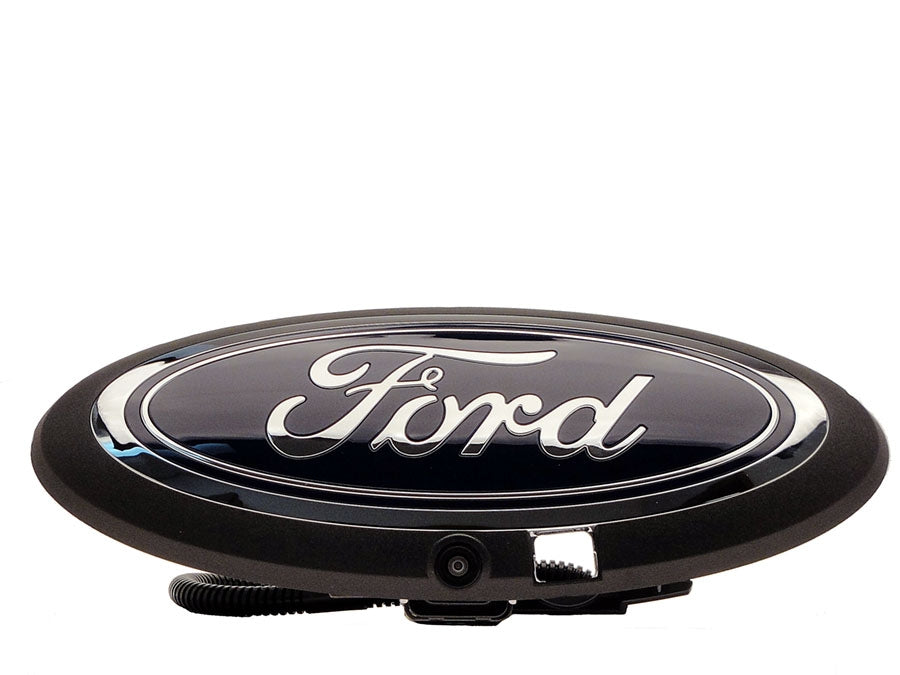

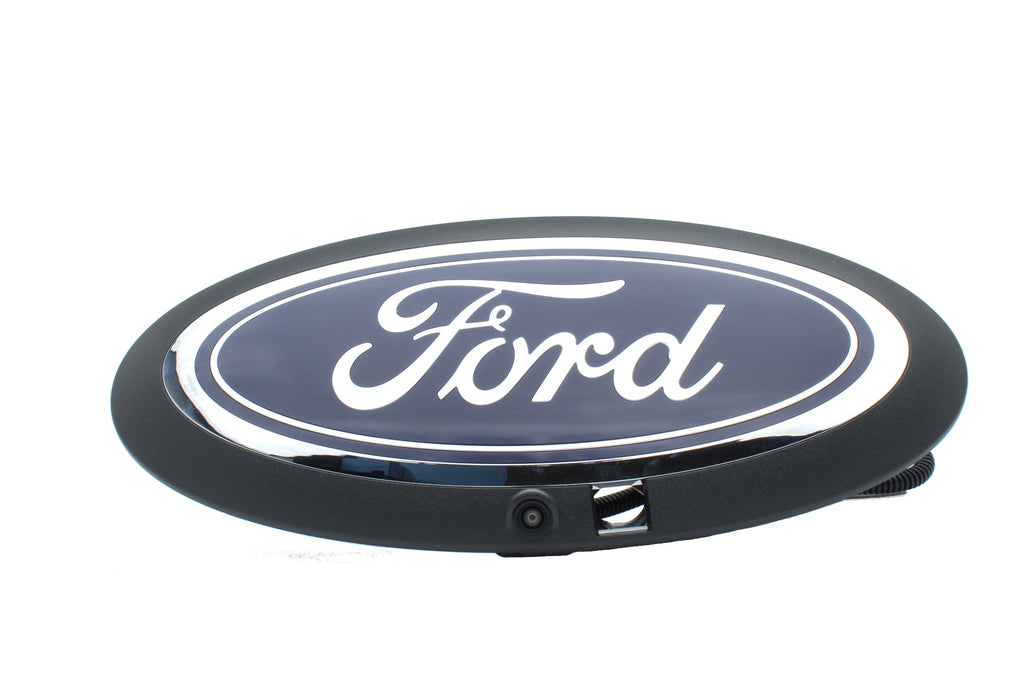

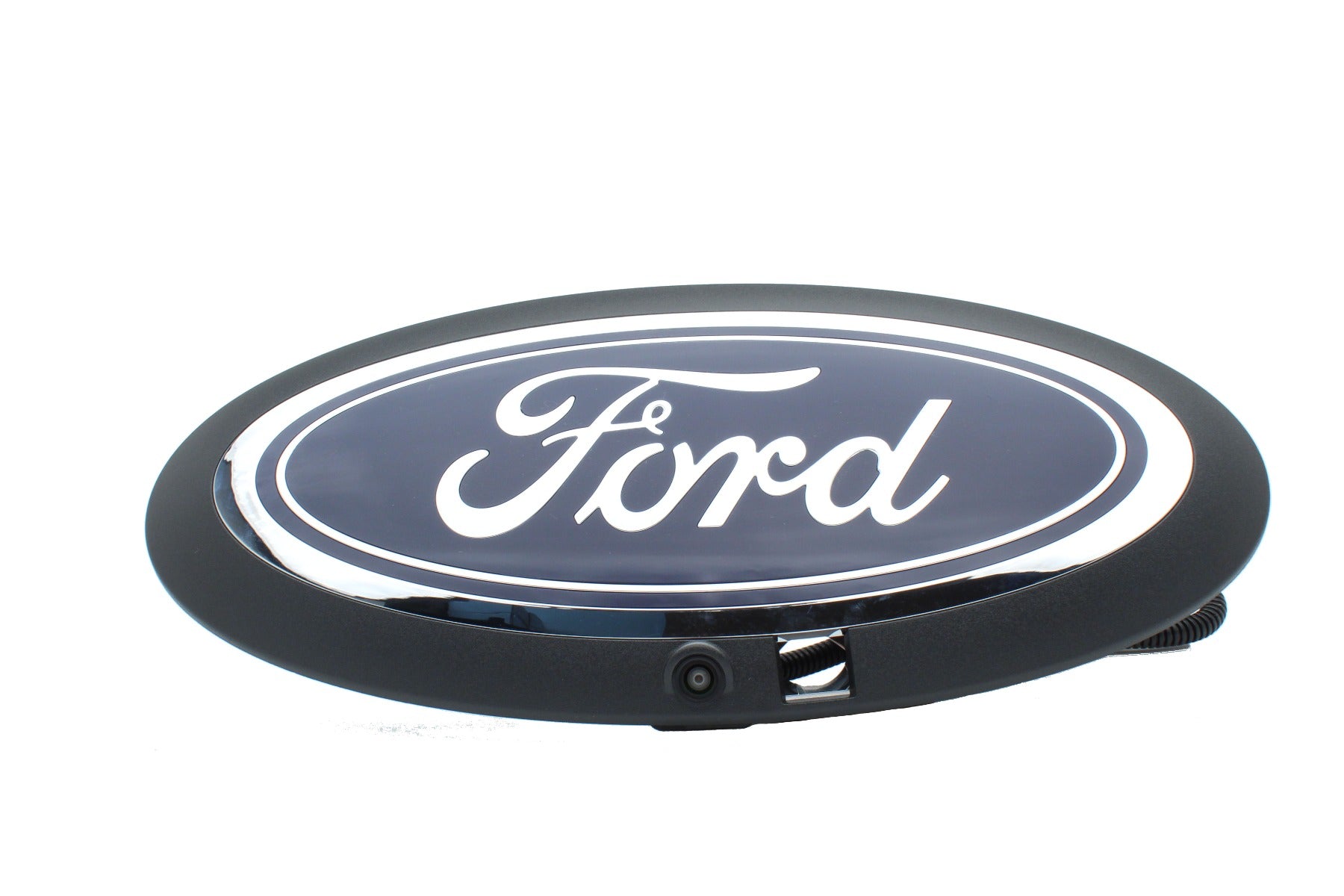

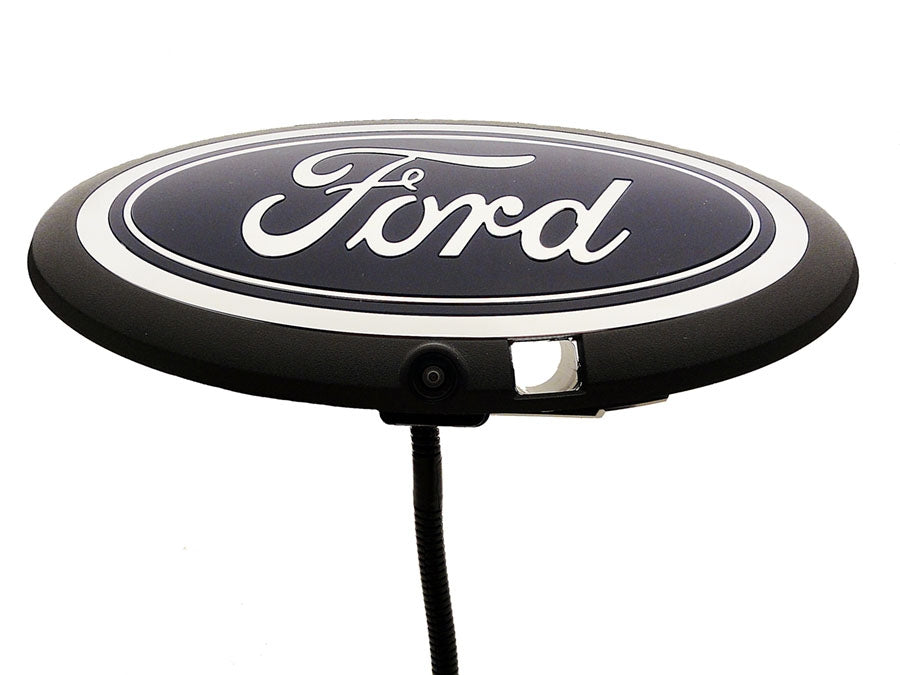

The front camera in this kit comes pre-mounted in an OEM Ford bracket so it will look like the front camera that comes with the Ford 360 system. Swap out your existing factory emblem for this emblem and housing with a pre-mounted camera.
***Your factory grille must have the camera cutout for this kit to fit properly. If your grille does not have this cutout, your factory grille will have to be swapped with a different grille that is designed to mount the camera assembly, and this grille is NOT included in the kit.

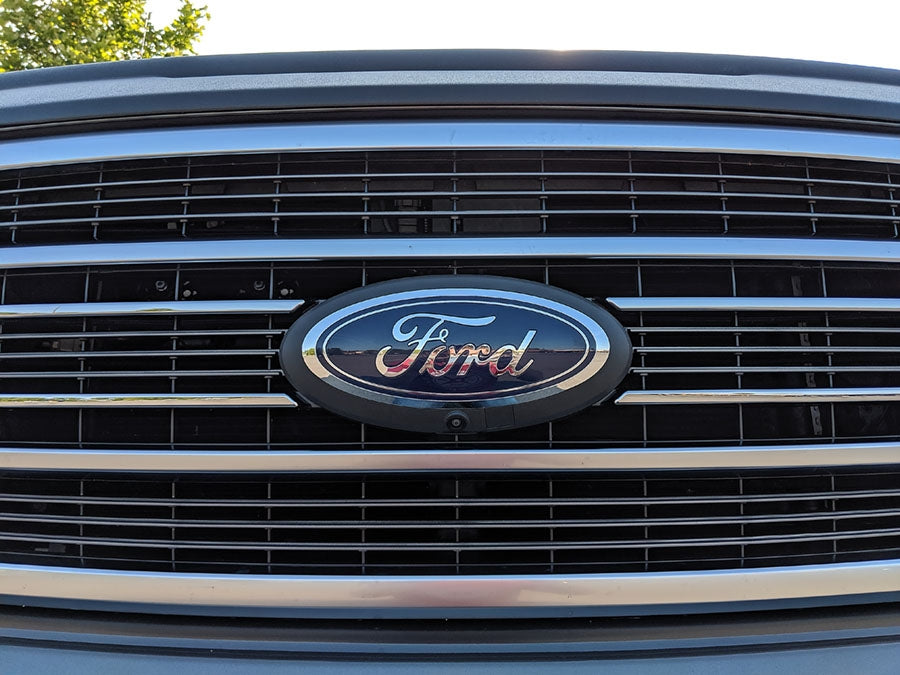

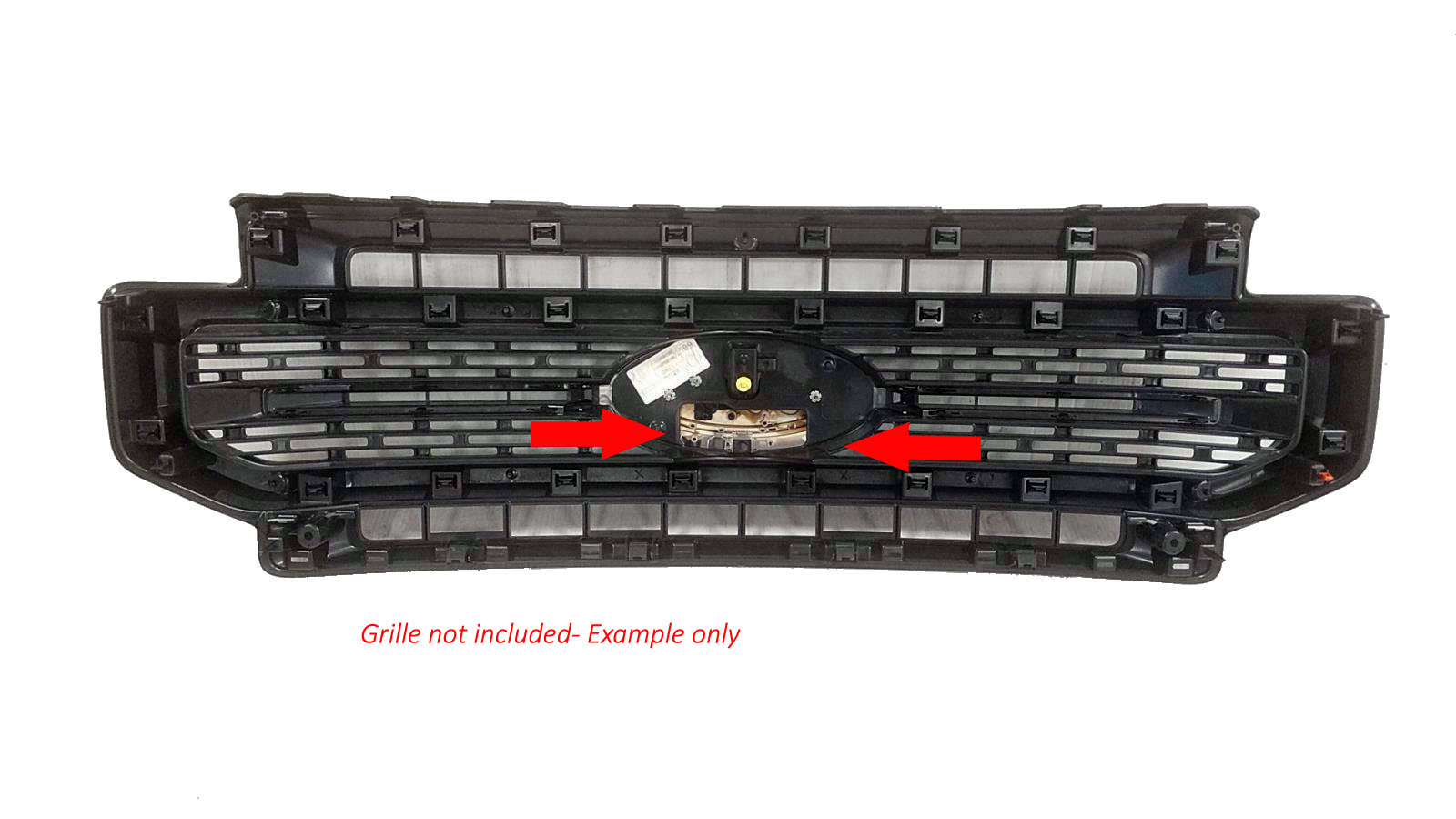

*** See images for an example of a grille with camera cutout. If needed, many times you can find a brand new grille with the required cutout on ebay or from a Ford dealership.

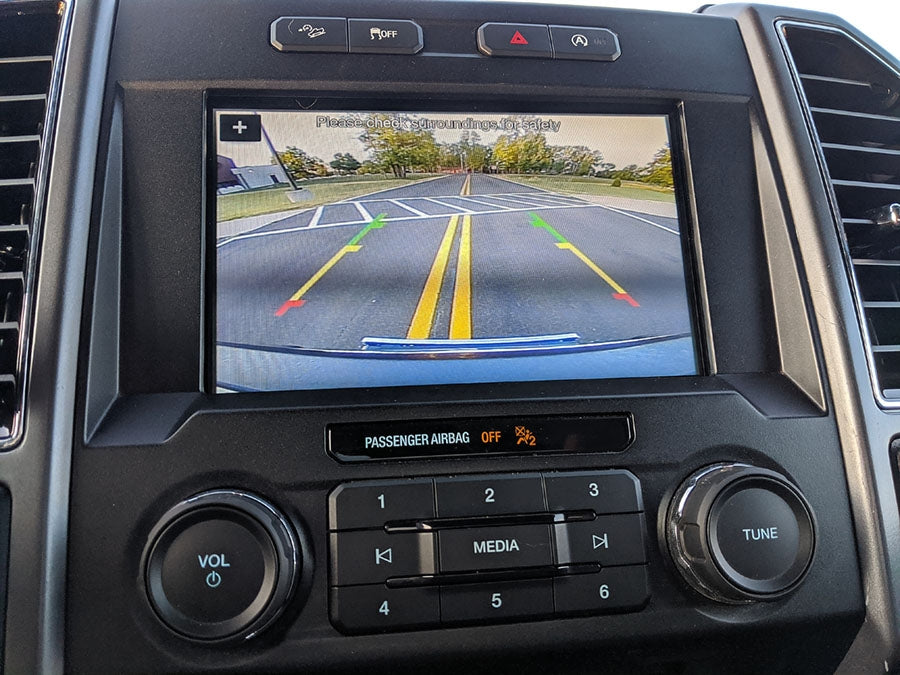

View Front camera at any time: Perfect for parking! Manually activate the front camera by pressing and holding the radio volume/power button for 7 seconds. The unit will automatically turn on the front camera for 7 seconds after you switch out of reverse gear.
Navigation unlock: This interface module allows passenger access to the Navigation menu while vehicle is in motion. Passenger can enter a destination address on the go!
Camera specifications:
- OEM style grille mounted camera with our latest super CMOS camera - the latest camera technology!
- Resolution: 600 TV lines
- Minimum Illumination: 0.2 Lux
- View Angle: 170
- Video Output: Full color video
- Working Voltage: DC 9-16V
- Parking Line: On/Off selectable
- Image: Forward facing
- Waterproof: IP67

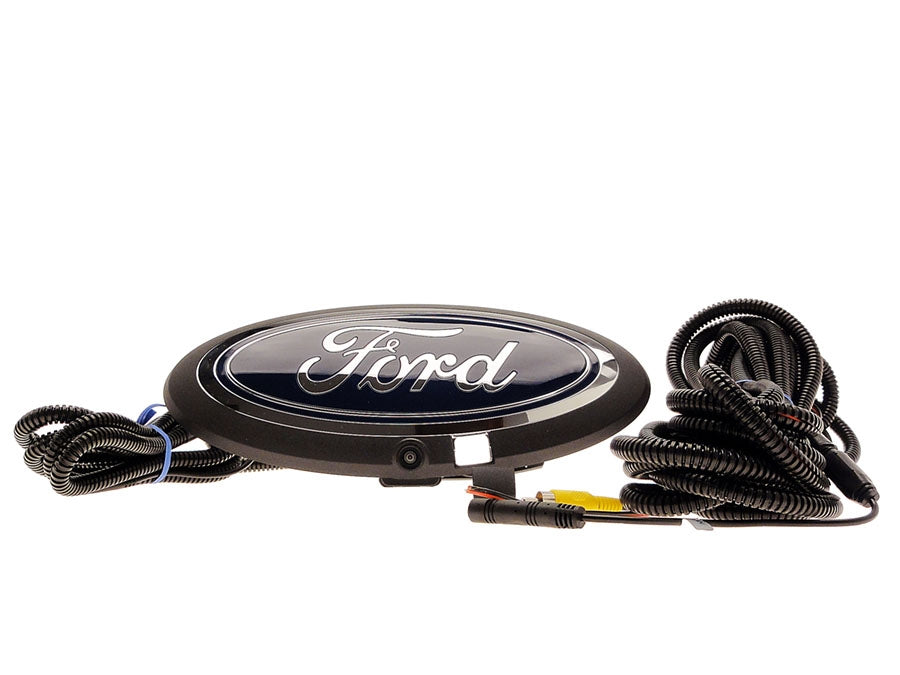

- 25 foot harness
- 3 year warranty on the camera

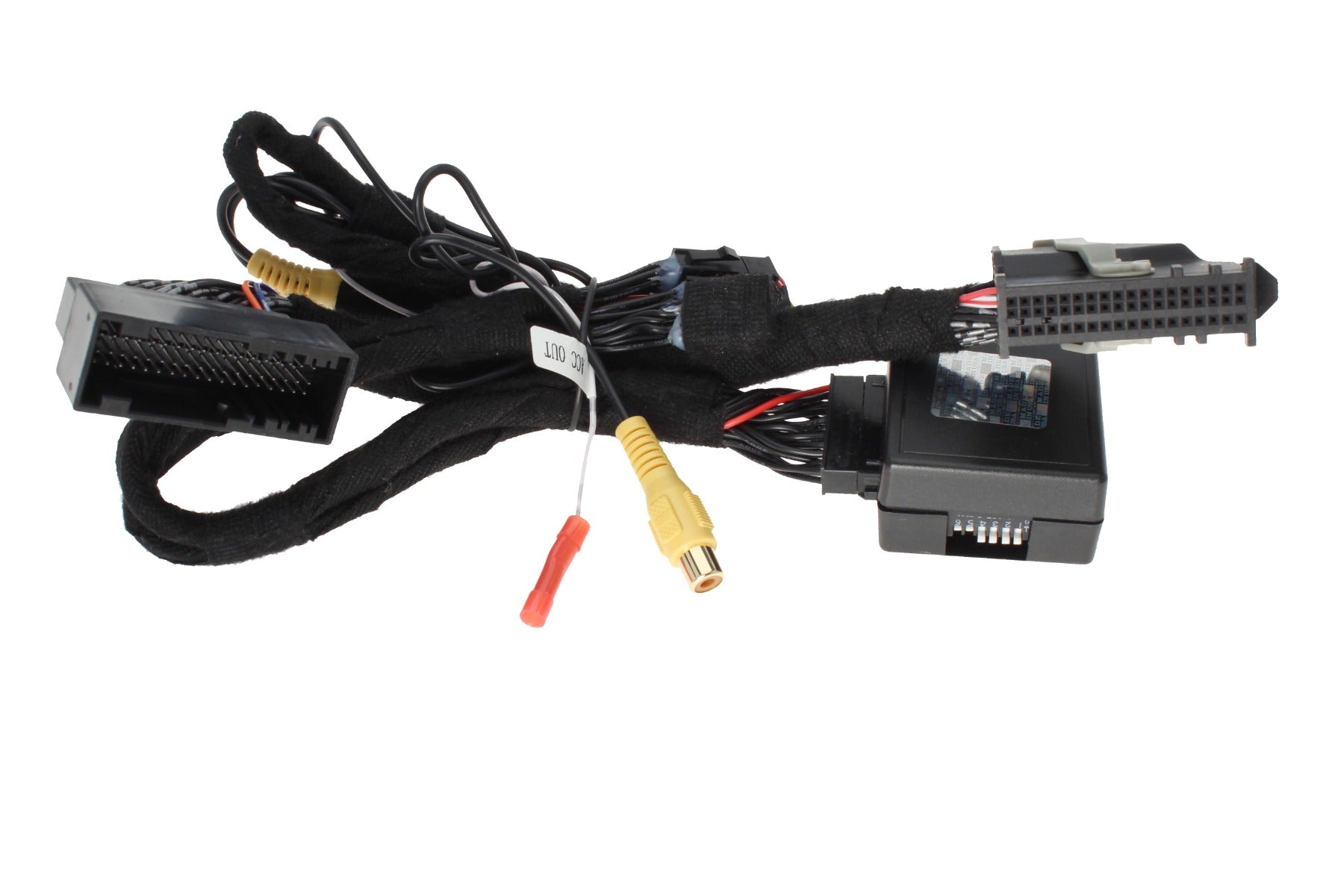

Interface module features:
- Front Camera-composite video input.
- Composite video input is controlled by the Volume button.
- Video interface will also enable: Passenger access to Navigation menu while vehicle is in motion.
- **NOTE** when certain functions are activated (viewing cameras in motion or nav bypass) navigation won't track / guide properly, disengage function to use the navigation.
- Force Front Camera at any time.
- Video Interface is Plug & Play
No monitor is included with this kit as it is designed to work with your existing factory radio screen. This camera comes with a 3 year warranty. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |

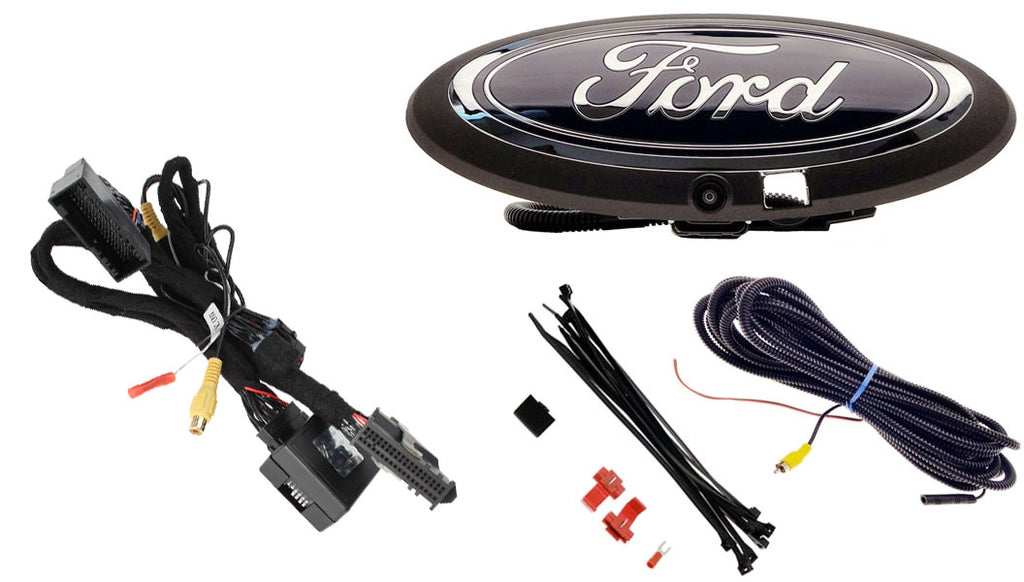

| Cam Only/Complete Kit | Complete Kit |
| For a monitor it uses | Your factory display |
| Grade Level | OE Grade |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford |
| Camera Mount Location | Front Grille |
| Night Vision | < .2 Lux |
| Camera Orientation | Front Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8\ Ford Sync 3 |
| Reason for Shopping | Adding camera(s) |
| Sensor Brand | EVI Systems |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 1 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Super Duty |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2020,2021 |
| Make Filter | Ford |
| Model Filter | Super Duty |
| Year Filter | 2020, 2021 |
Compatibility
2020-2021 F250, F350, F450 with SYNC 3 radio and camera cutout in the grille.
***Your factory grille must have the camera cutout for this kit to fit properly. If your grille does not have this cutout, your factory grille will have to be swapped with a different grille that is designed to mount the camera assembly and this grille is NOT included in the kit.
*** See images for an example of a grille with camera cutout. If needed, many times you can find a brand new grille with the required cutout on ebay or from a Ford dealership.
NOTE: This camera is pre-mounted into an OEM front Ford emblem. This kit uses an OEM bracket and cannot be retrofitted to any other application.
Installation

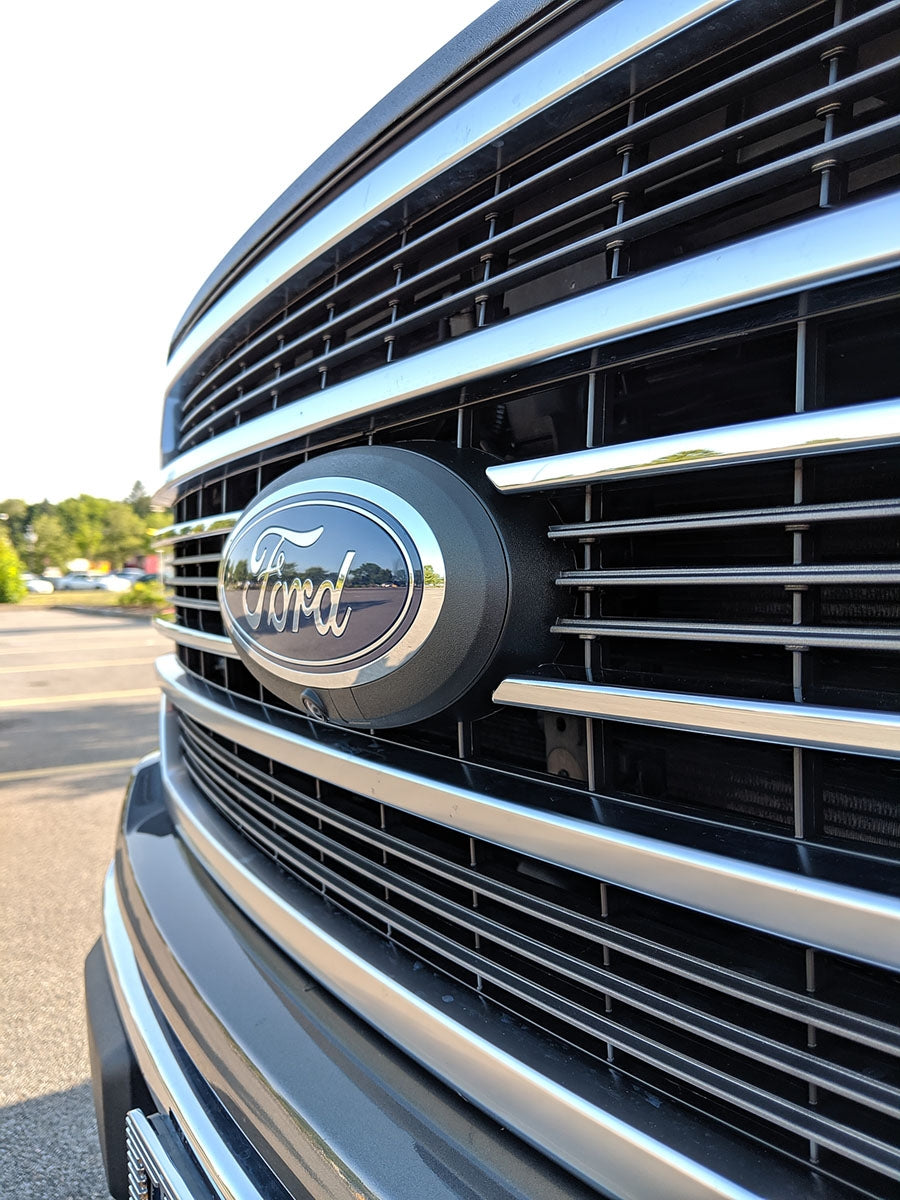

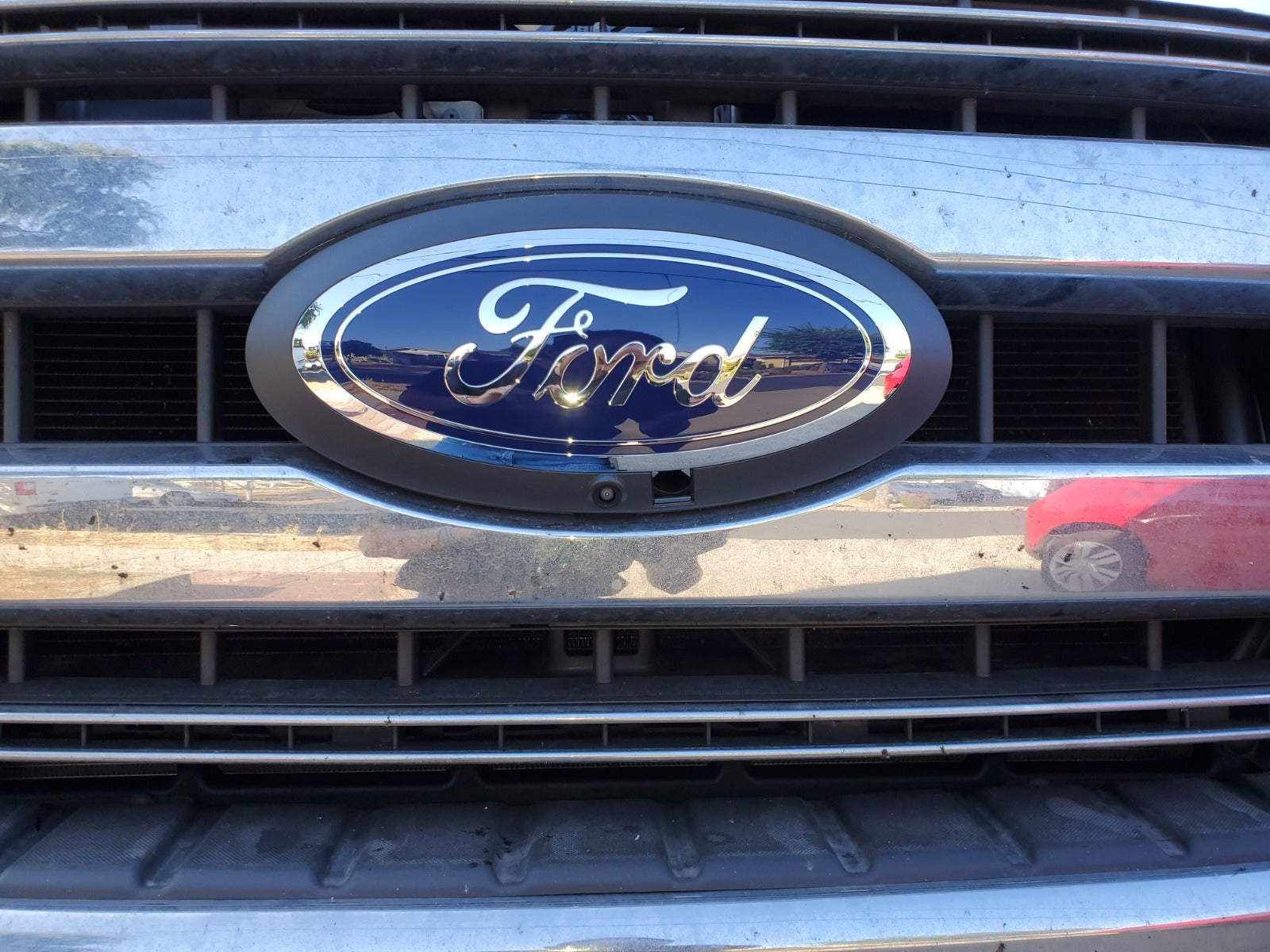

The front camera mounts into your factory grille by replacing your existing emblem assembly with this camera assembly.
Run the harness to the cab and connect to your factory SYNC 3 radio using the included interface. You must remove your factory radio in order to gain access to the wiring, professional installation is recommended.
Connect the camera power wire to the 12 volt output wire on the interface module.
Plug the camera RCA into the RCA input on the interface module.
**Camera wash system not included. Cover for the opening of where the camera wash system installs is included.
Activation Information:
Nav in Motion: Press and hold the Mute button on the steering wheel for 7 seconds, the function is activated for 60 seconds. This allows you to enter an address while the vehicle is in motion.
Force Front Camera: Press and hold the radio power button for 7 seconds to turn on the front camera at any time.
