2020-2021 Super Duty OE Style Front Emblem and Side Camera Kit for SYNC 3 With Multi-Cam Interface
SKU#: 7CS-20FTRSDFOE-8S3FS
Availability:
In Stock
SKU#:
7CS-20FTRSDFOE-8S3FS
$1,195.00
Quantity
OE Style Front and Side Cameras for SYNC 3!
Description
This system consists of an OEM style grille mounted front camera, side cameras, and a multi-camera interface for your factory SYNC 3 radio.

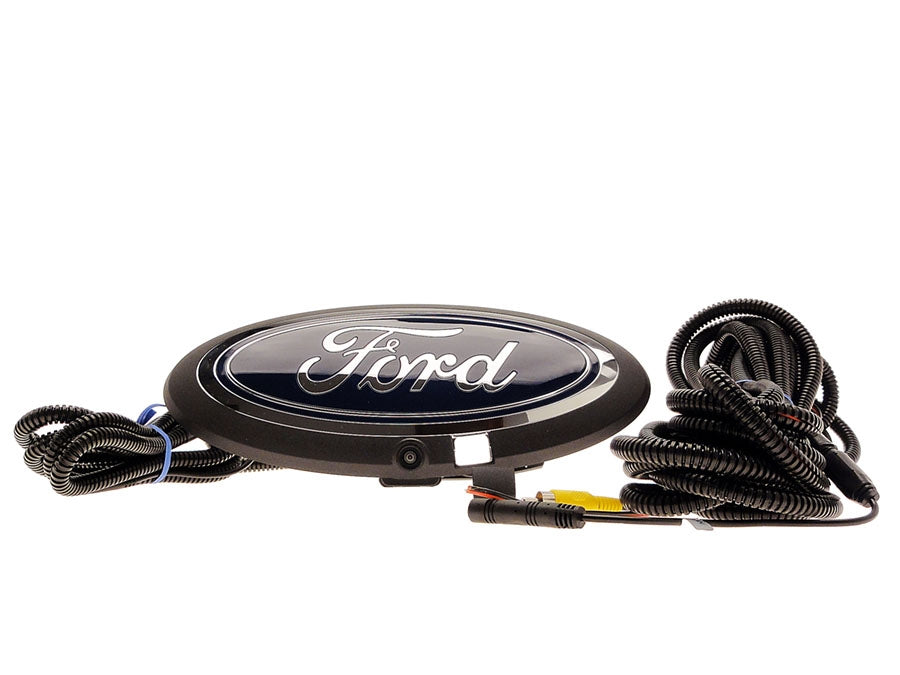

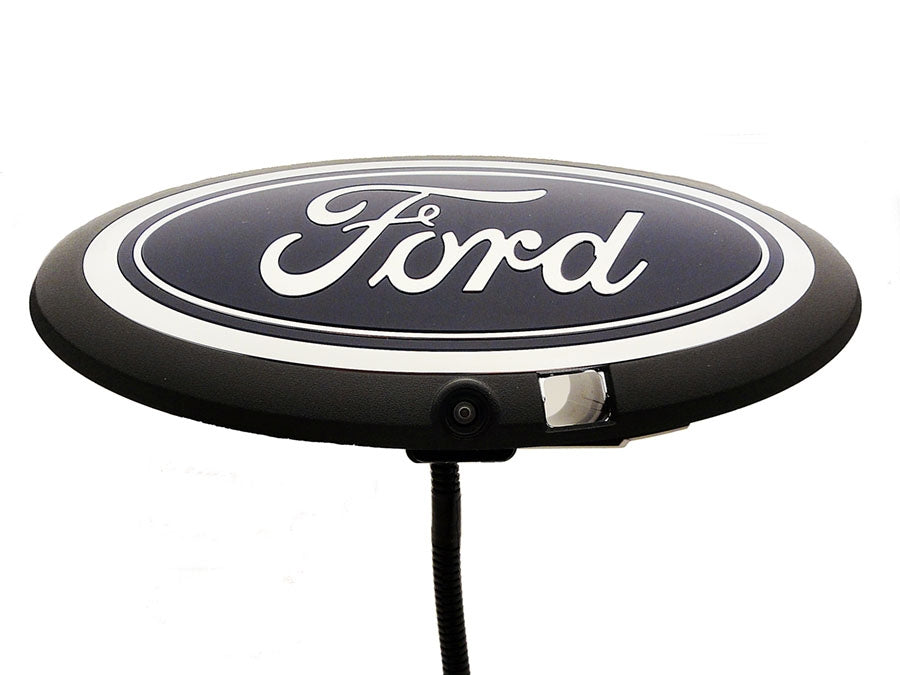

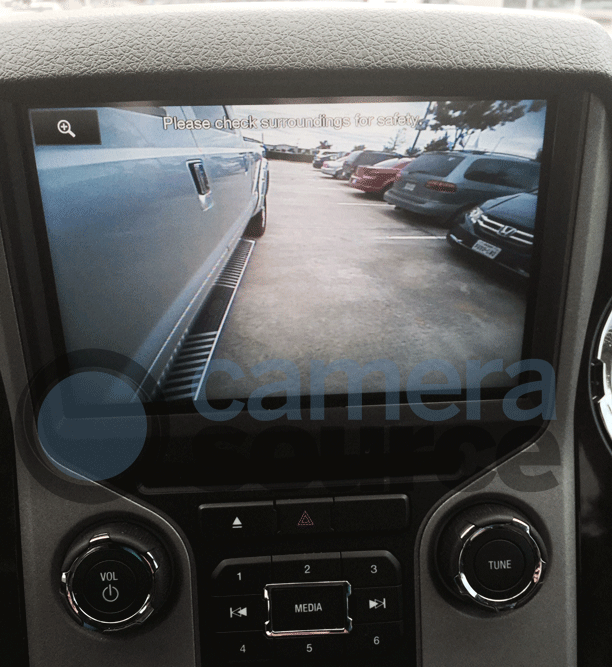

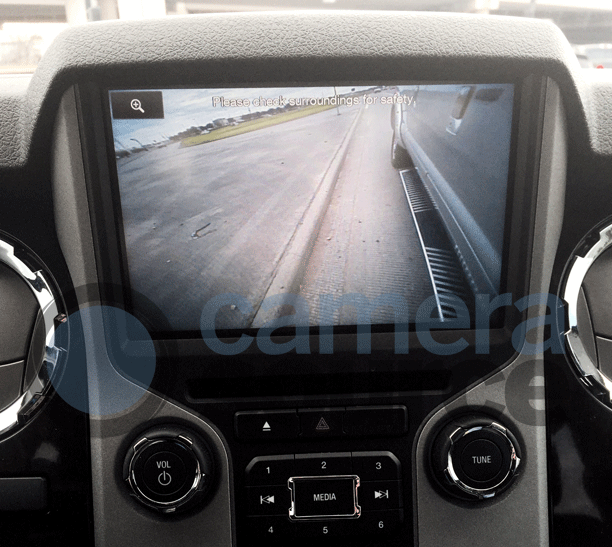

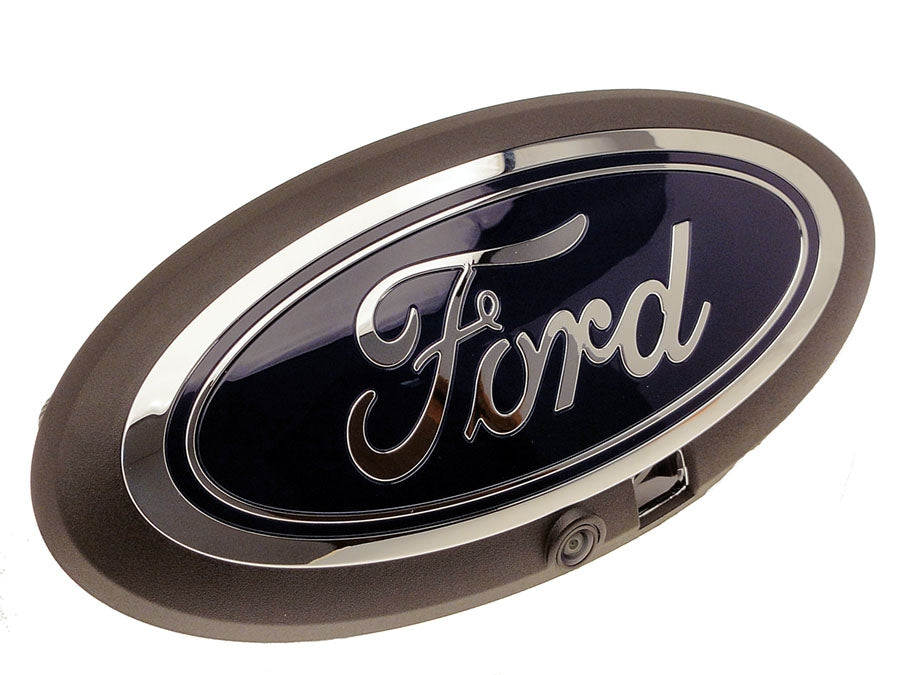

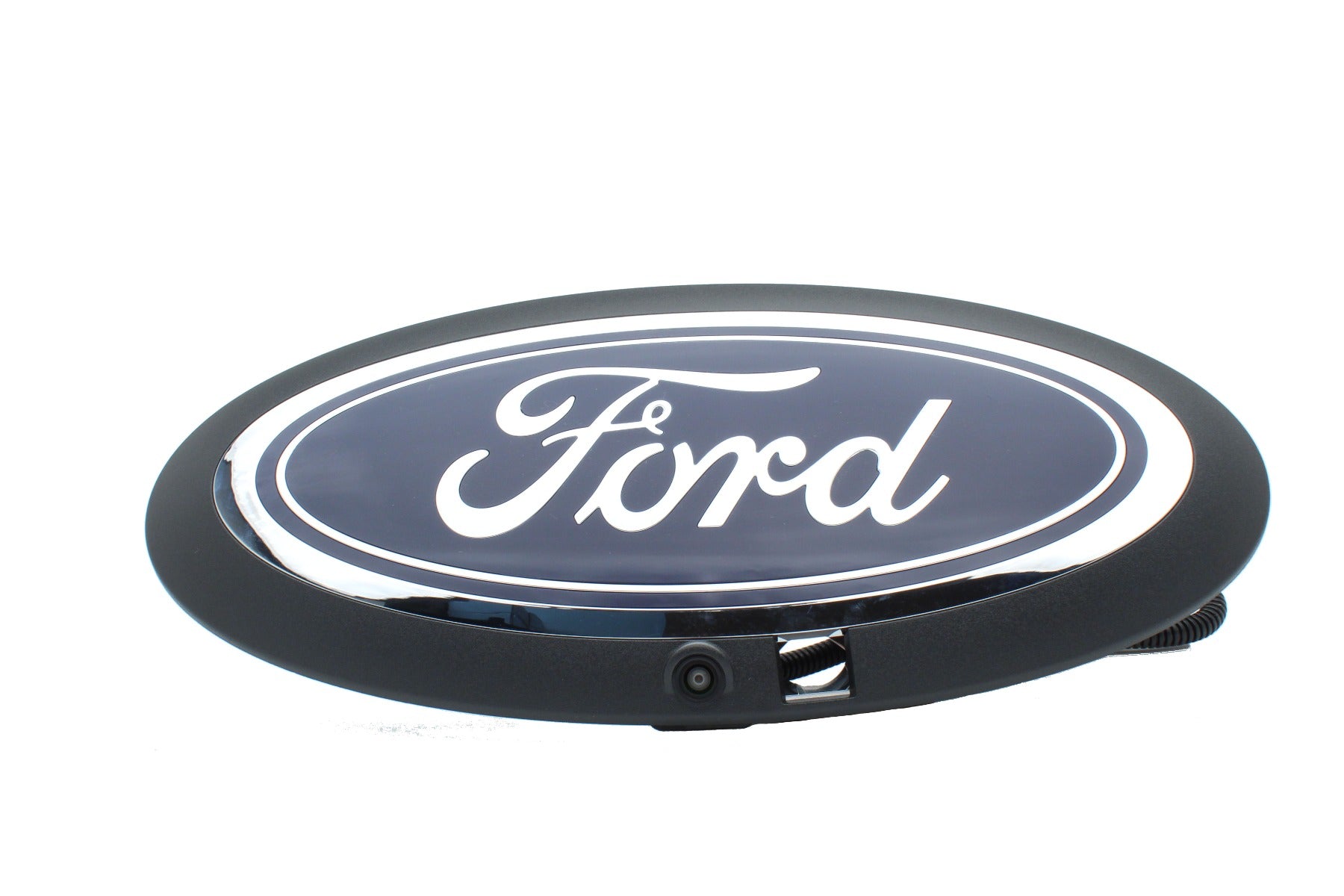

The front camera in this kit comes in an OEM Ford bracket so it will look like the front camera that comes from the factory. Swap out your existing factory emblem for this emblem and housing with a pre-mounted camera. The side cameras get installed under your side mirrors to give you a full view of your typical blind spots -automatically activated using your turn signals!

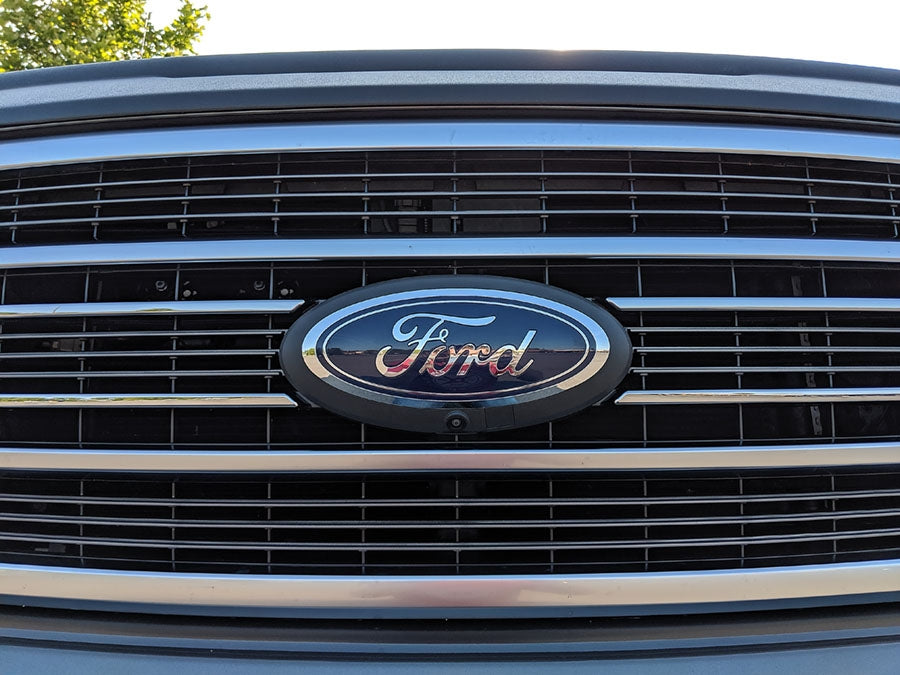

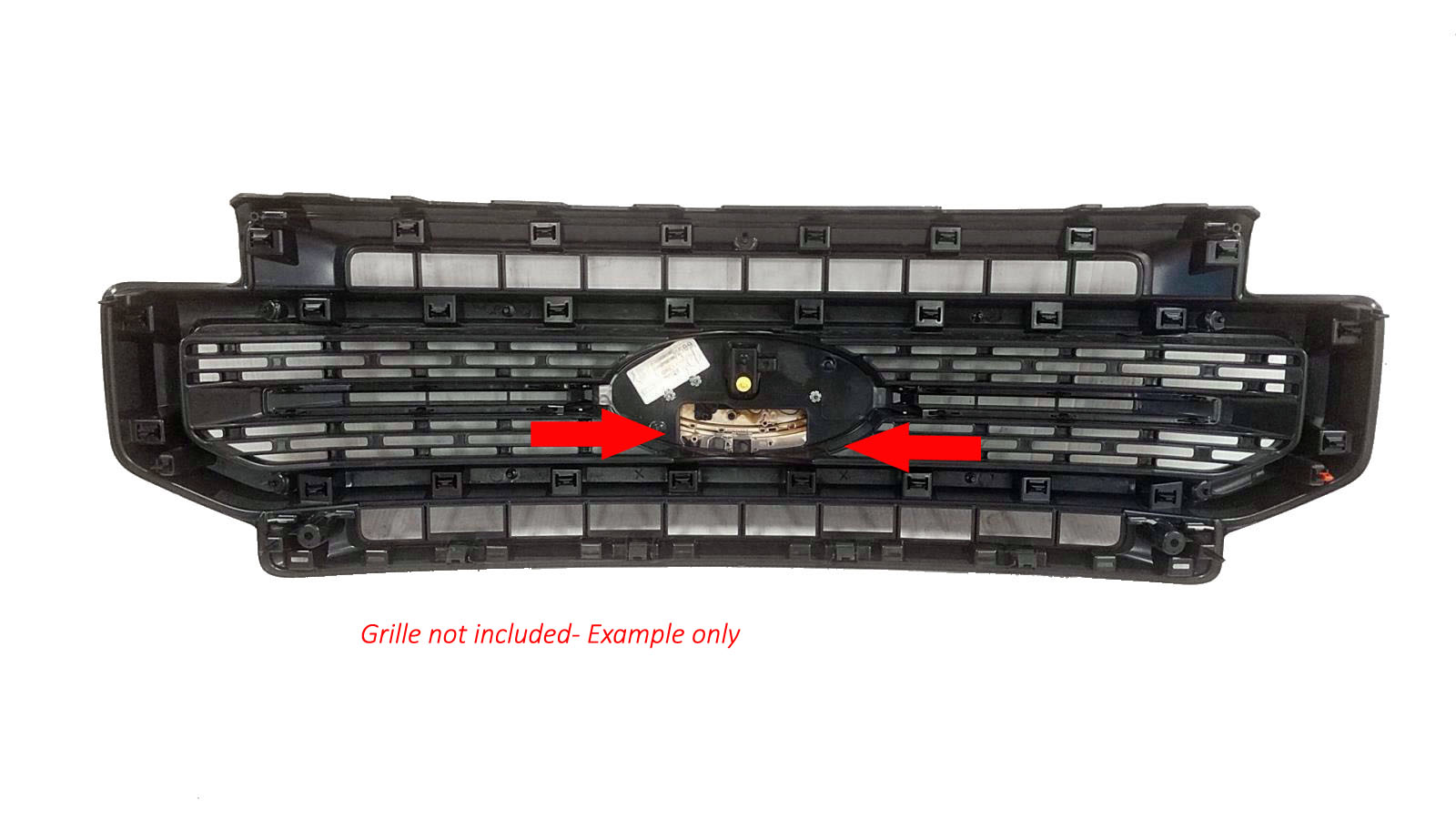

***Your factory grille must have the camera cutout for this kit to fit properly. If your grille does not have this cutout, your factory grille will have to be swapped with a different grille that is designed to mount the camera assembly and this grille is NOT included in the kit.*** See images for example of a grille with camera cutout. If needed, many times you can find a brand new grille with the required cutout on ebay or from a Ford dealership.

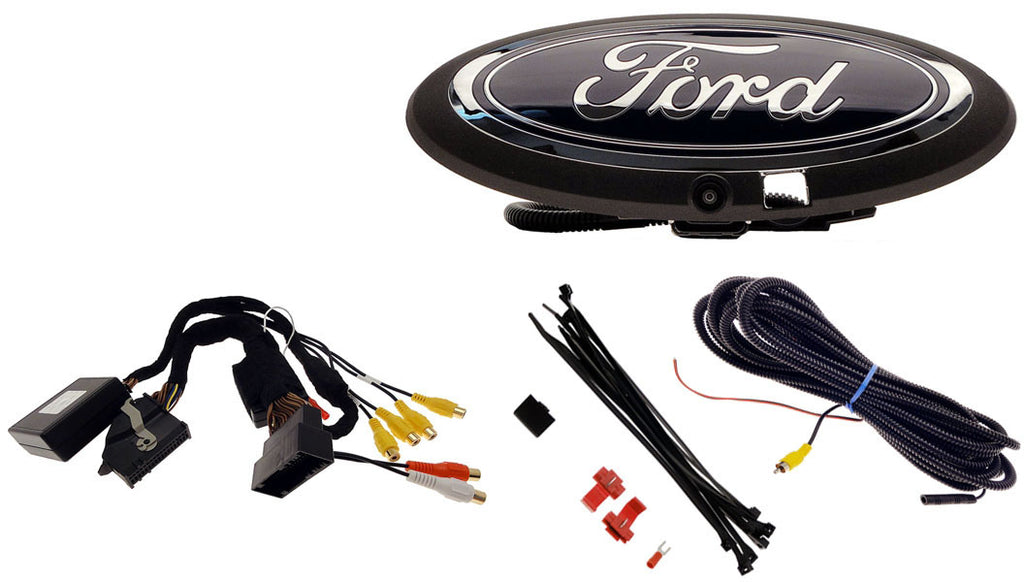

Kit includes:

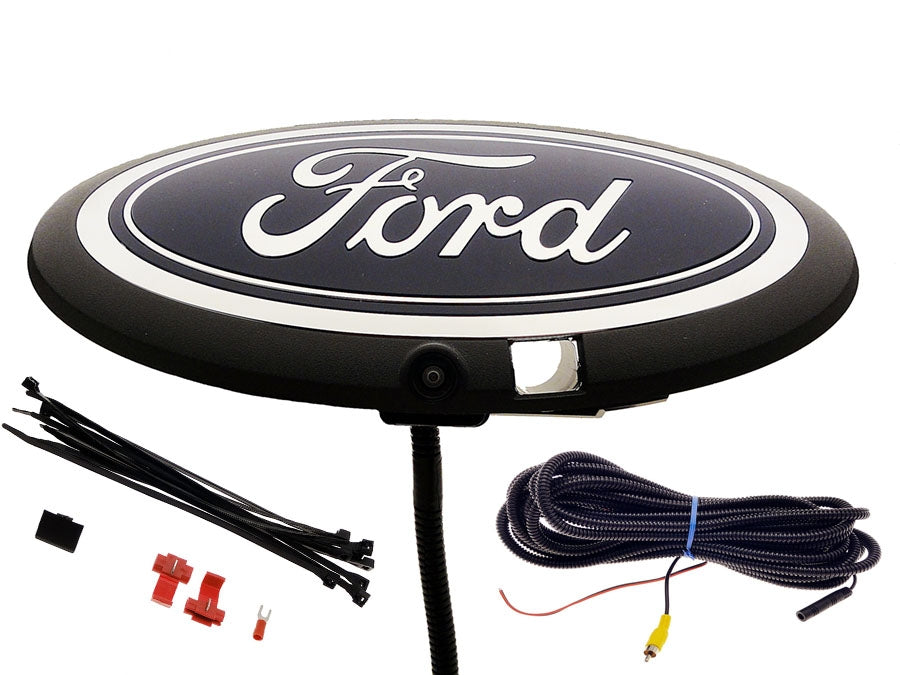

- OEM style grille mount camera with our latest super CMOS camera - the latest camera technology!
- Multi-cam integration module for SYNC 3

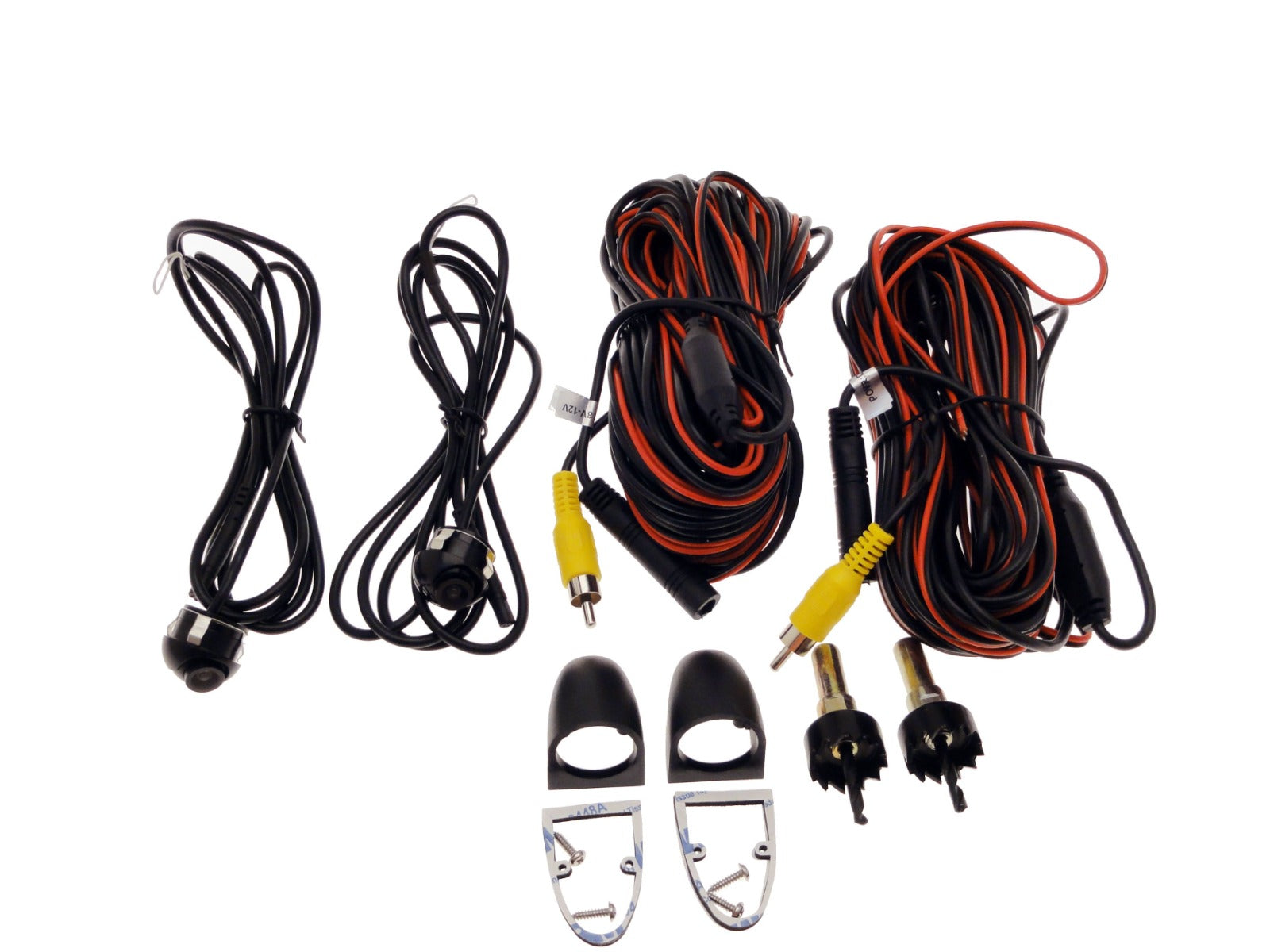

- (2) side cameras with wiring harnesses and mounting brackets
- Mounting hardware
- Camera wiring harness

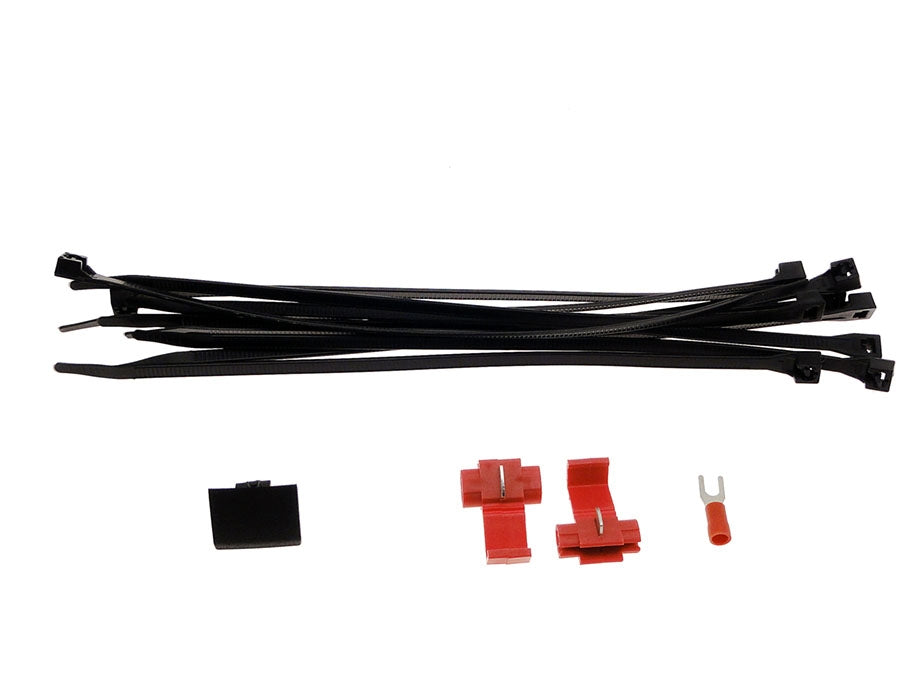

- Zip ties
- Detailed installation instructions
- 3 year warranty on the camera
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- Forward looking camera - designed for front applications
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!
- Removable parking guidelines

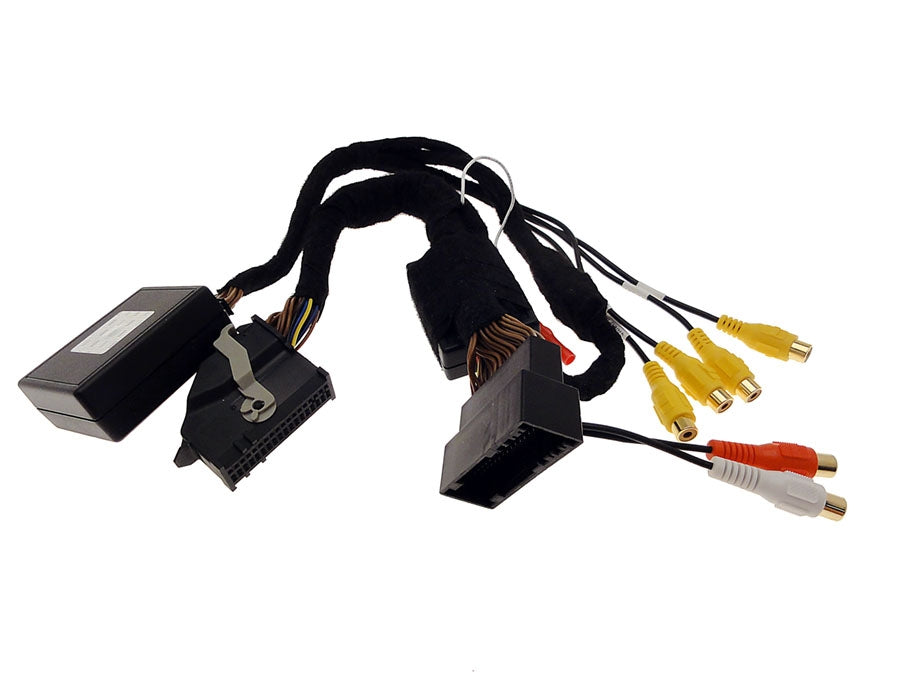

SYNC 3 Multi Cam interface:
The integration module is plug and play with your factory SYNC 3 system. Allows connection of 4 cameras to the factory screen in addition to the OEM backup camera.(additional cameras sold separately) Also, allows monitoring of any connected camera at any time while driving (not including OEM backup camera). Right and left blind spot camera inputs are automatically triggered by the turn signals. Factory rear camera is not available above 7 mph.
Features:
- 1 Composite Video input.
- Left Camera
- Right Camera
- Front Camera input.
- Rear Camera input. Vehicles with OEM rear view camera: OEM rear camera will work as it did before
- Lane Watch Cameras (left & right): Automatically triggered with turn signals.
- Front Camera: Can be triggered at any time in any speed, by a specific button.
- Rear Camera: Aftermarket rear view camera can be triggered at any time in any speed, by a specific button.
- Video in motion function: Allows passenger access to Navigation menu while vehicle is in motion.
- **NOTE** when certain functions are activated (viewing cameras in motion or nav bypass) navigation won't track / guide properly, disengage function to use the navigation.
- Video interface is 100% Plug & Play and requires no wire splicing.
- NO DEALER ACTIVATION REQUIRED!
Composite Video Input: is controlled by the Volume button and is designed for: Sold separately
1. DVD
2. Game Consoles
3. PC’s
4. Smartphones / Tablets (Depending on the type of smartphone / Tablet you intend to use a Smartphone Mirror Interface is required and sold separately)
Music or Video playback from Smartphones / Tablets can be achieved with a Smartphone Mirror Interface add-on.(sold separately)
NO DEALER ACTIVATION REQUIRED! This kit allows you to see what is directly in front of truck and will look like it came from the factory! We can also set you up with side cameras that will complement this system perfectly! This camera comes with a 3 year warranty and the interface module has a 1 year warranty. Professional installation is recommended.
**Radio not included*
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |

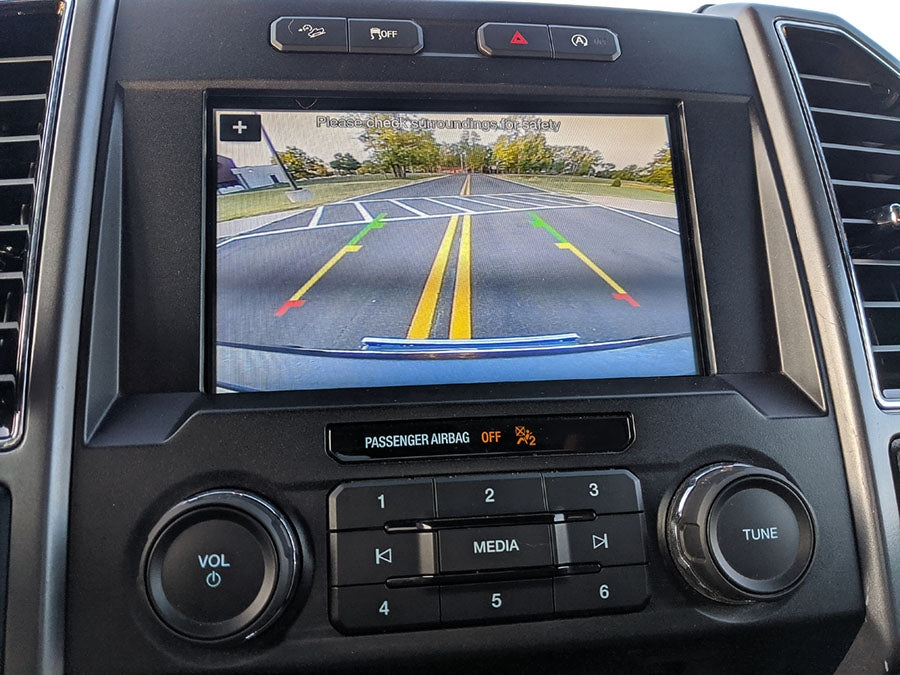

| For a monitor it uses | Your factory display |
| Grade Level | OE Grade |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford |
| Camera Mount Location | Front Grille |
| Night Vision | .1 Lux |
| Camera Orientation | Front Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8\ Ford Sync 3 |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Super Duty |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2020,2021 |
| Make Filter | Ford |
| Model Filter | Super Duty |
| Year Filter | 2020, 2021 |
Compatibility
2020-2021 F250,F350,F450 with camera cutout in the grille and 8" SYNC 3 display
***Your factory grille must have the camera cutout for this kit to fit properly. If your grille does not have this cutout, your factory grille will have to be swapped with a different grille that is designed to mount the camera assembly and this grille is NOT included in the kit.
*** See images for an example of a grille with camera cutout. If needed, many times you can find a brand new grille with the required cutout on ebay or from a Ford dealership.

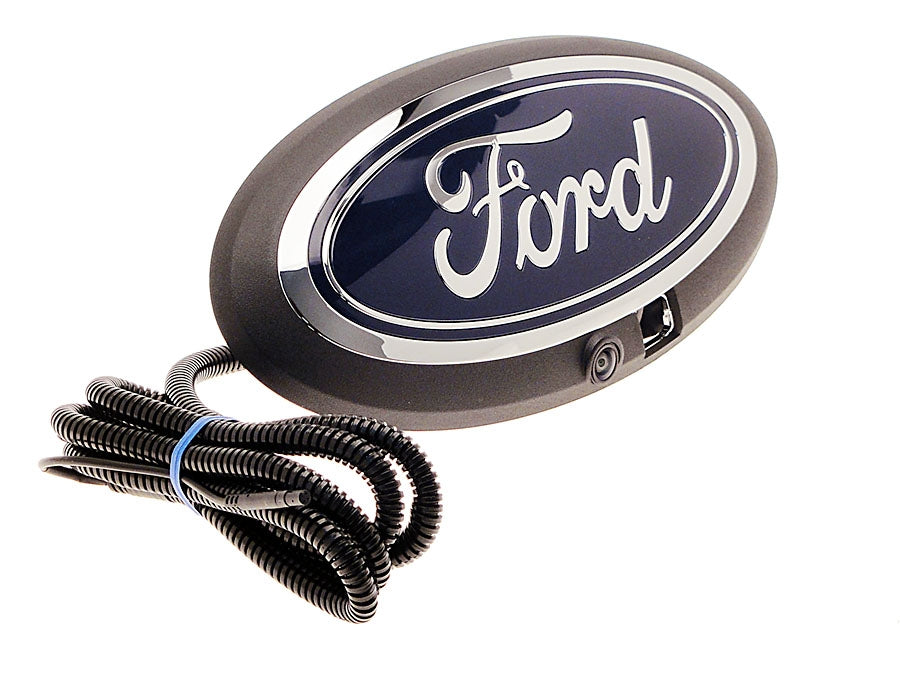

NOTE: This camera is pre-mounted into an OEM front Ford emblem. This kit uses an OEM bracket and cannot be retrofitted to any other application.
Installation

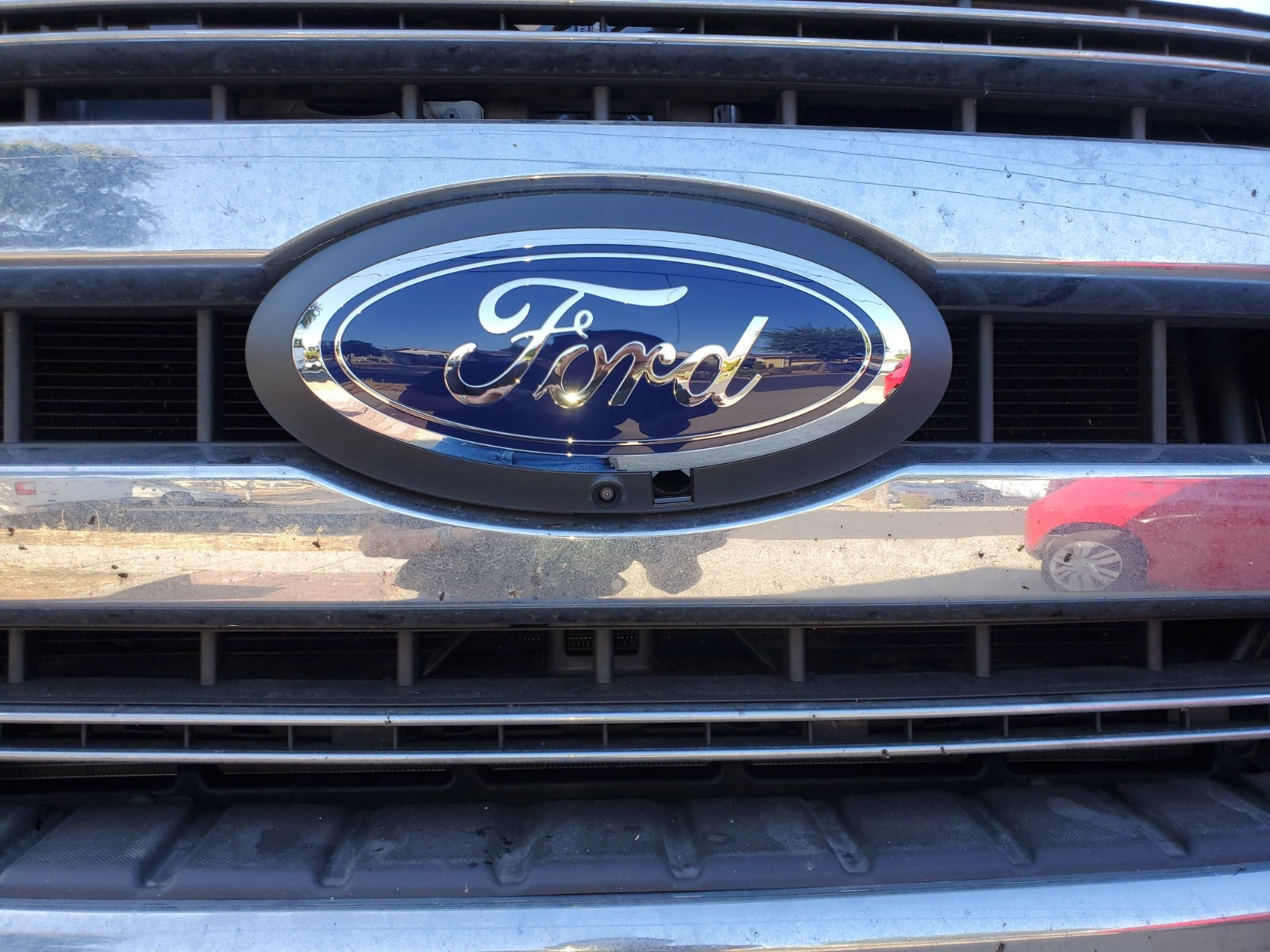

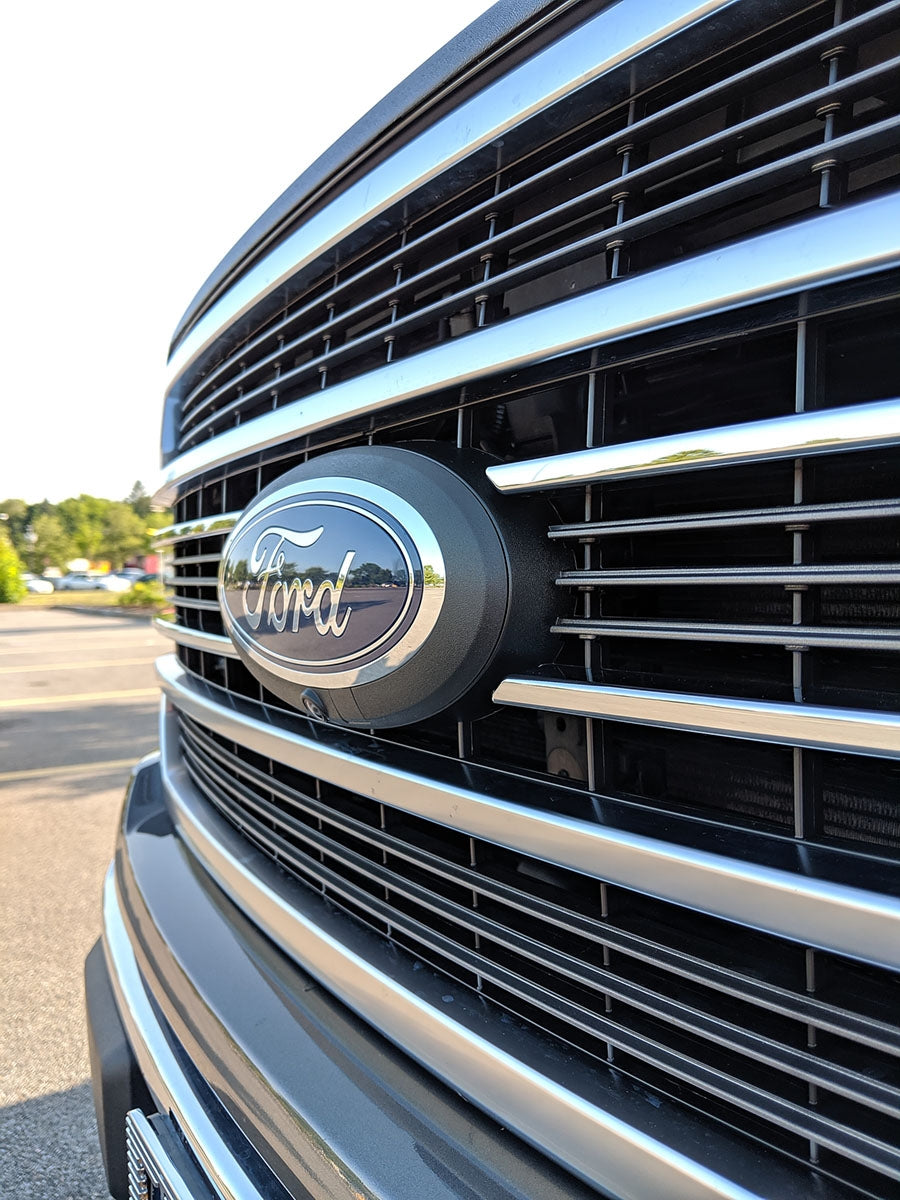

The front camera mounts into your factory grille by replacing your existing emblem assembly with this camera assembly.
Run the harness to the cab and connect to your factory SYNC 3 radio using the included multi-cam interface. All plug and play! You must remove your factory radio in order to gain access to the wiring, professional installation is recommended.
Side cameras mount in the bottom of each mirror. You will be required to drill a mounting hole in the bottom of each mirror. Run the harness to the interface module you installed behind the factory radio. Mirror disassembly can be challenging so we do recommend professional installation.
**Camera wash system not included. Cover for the opening of where the camera wash system installs is included.
