Front Camera Kit for 8" IOS/IOT/IOU Display, Fits 2019-2022 GM®
SKU#: CS-GMIOST-F
Availability:
In Stock
SKU#:
CS-GMIOST-F
$552.00
Quantity
Front cam for 8" IOS/IOT/IOU display
Description
This is a complete kit that contains our universal front camera and a front-cam integration module for your 8" factory IOS, IOT, or IOU radio.
Compatible with several 2019-2022 GM® trucks with factory 8" MyLink/CUE, IOS, IOT, or IOU radio. See compatibility tab.
This kit allows you to see what is directly in front of the truck! The front-cam integration module allows for integration into your factory screen without having the dealer flash a program your radio. The factory rear camera will come on automatically when in reverse and front camera will come on when you shift from reverse to drive or you can manually activate it using the included push button. Factory rear camera not available above speeds of 7mph.

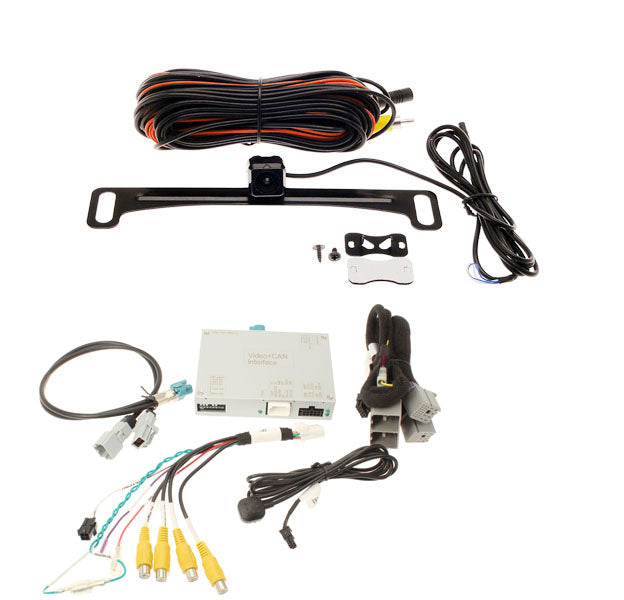

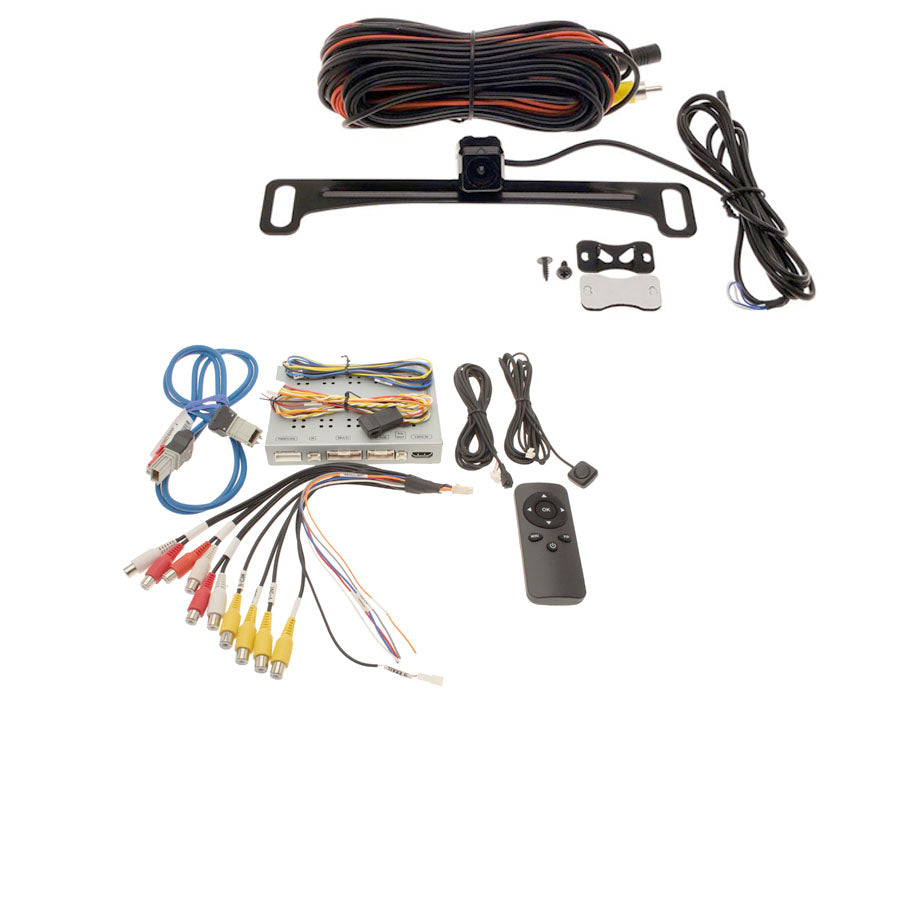

Kit includes:

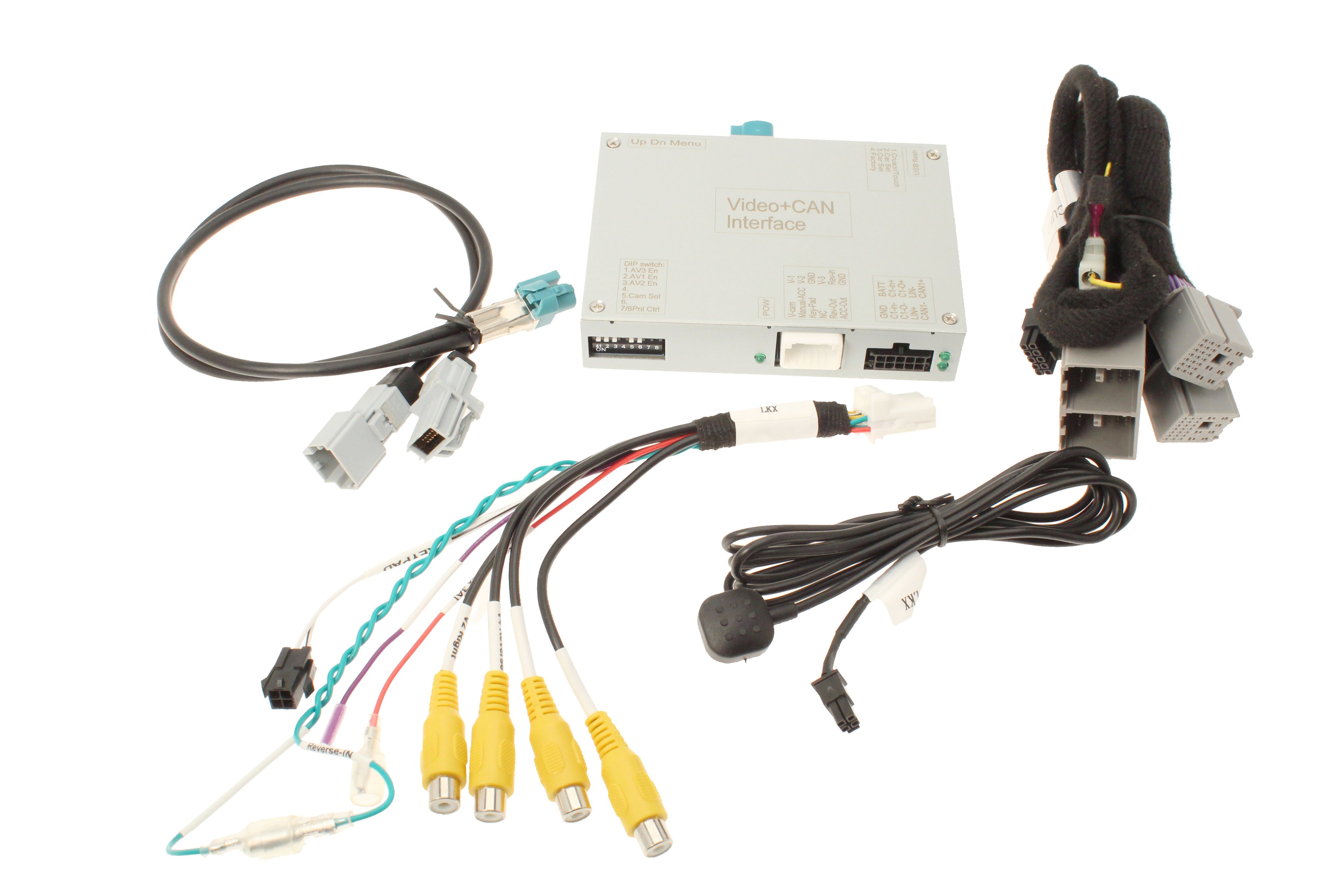

- Front-cam interface for your MyLink/CUE 8" factory GM® display with IOS, IOT, IOU radio code (display not included)- No dealer flashing required!

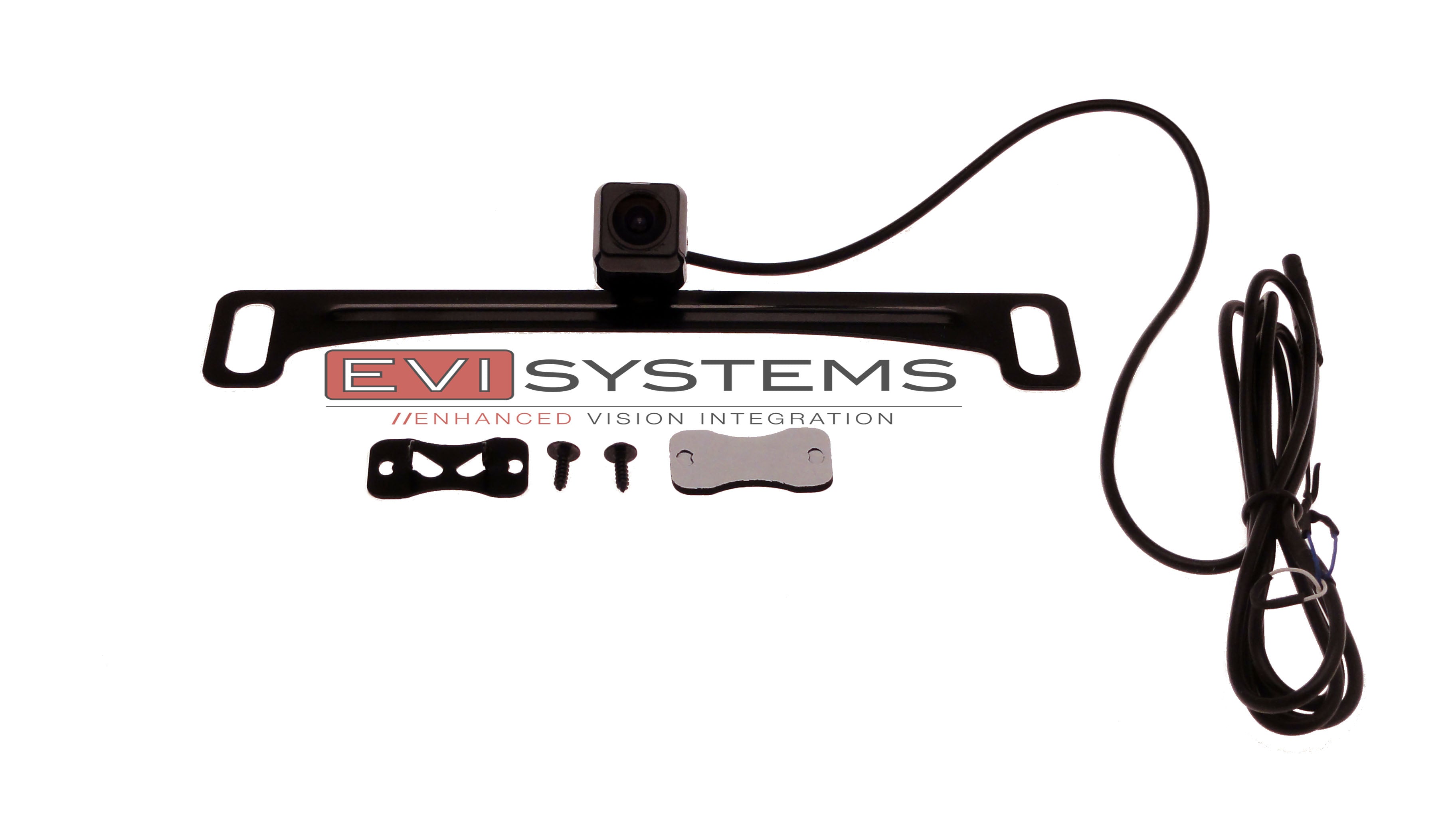

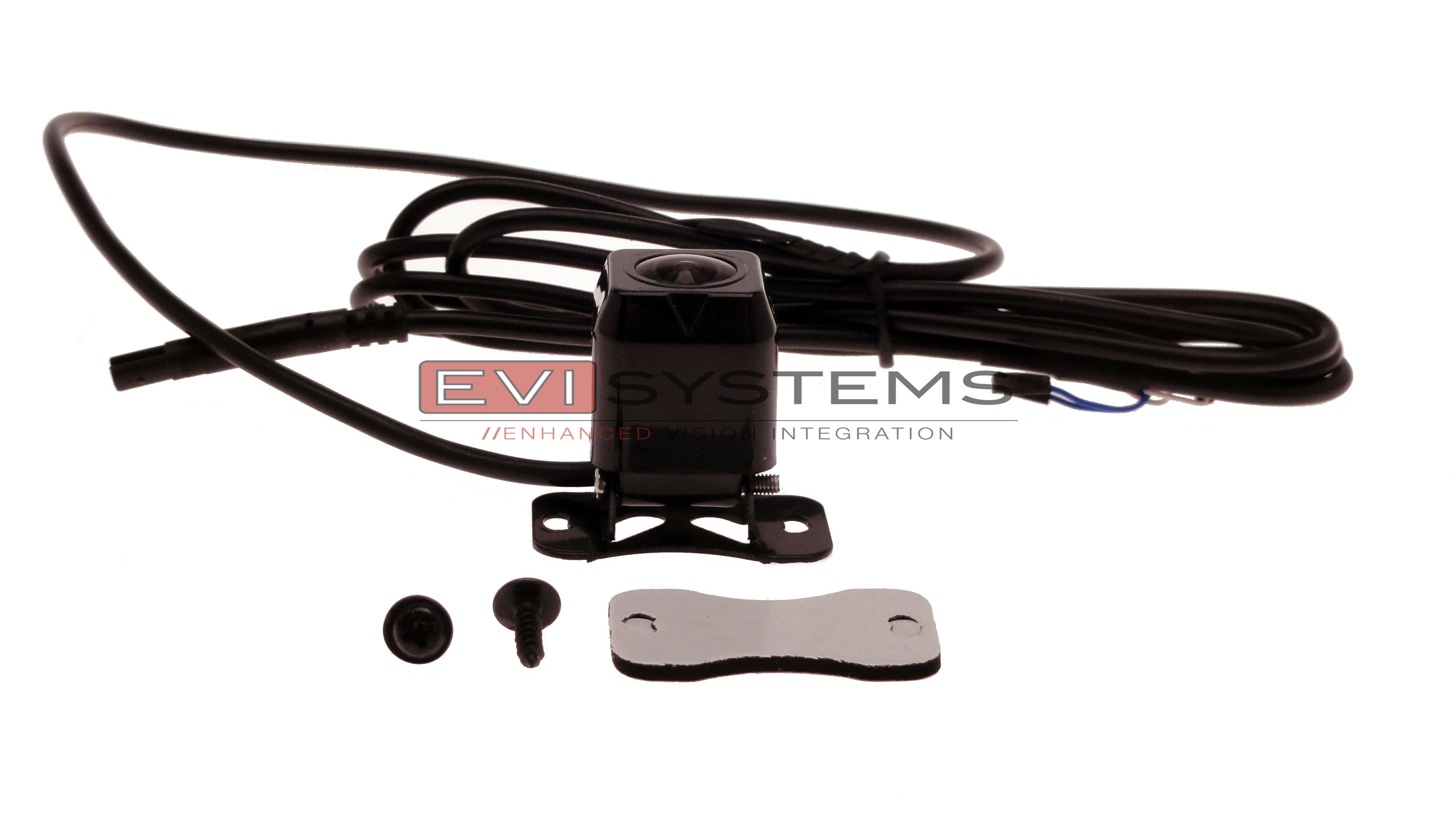

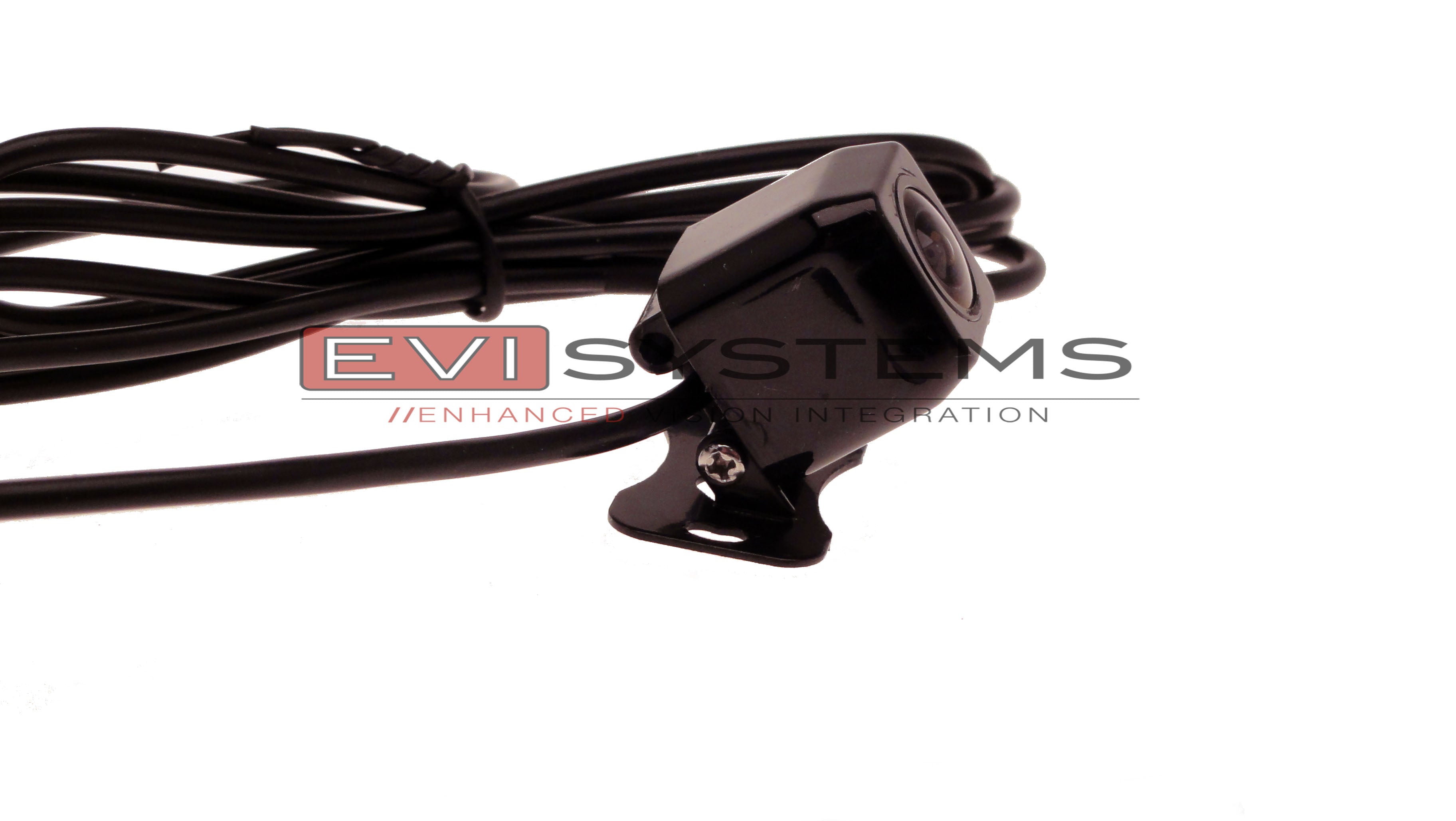

- Universal front camera with harness and dual mount brackets
- Zip ties
- Detailed installation instructions
- 3 year warranty on the camera
Camera Specifications:
- CMOS forward looking camera - designed for front applications
- 170 degree view
- 600 TV lines of resolution
- .2 lux minimum illumination - Outstanding night vision!
Front Cam interface features:
- Front facing camera can be triggered to power on automatically when the vehicle is shifted from reverse to drive. Or manually activated using the included push button.
- RCA inputs for 4 cameras
- NO DEALER ACTIVATION REQUIRED!
*Monitor is not included with this kit. It is designed to work with your existing 8" IOS, IOT, or IOU radio screen. This camera and interface module comes with a 3 year warranty. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | GMC,Chevrolet |
| Camera Mount Location | Front Grille |
| Night Vision | .2 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | Factory LCD |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 1 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Sierra,Sierra HD,Colorado,Silverado,Silverado HD,Canyon |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2019,2020,2021,2022 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Canyon, Colorado, Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2019, 2020, 2021, 2022 |
Compatibility

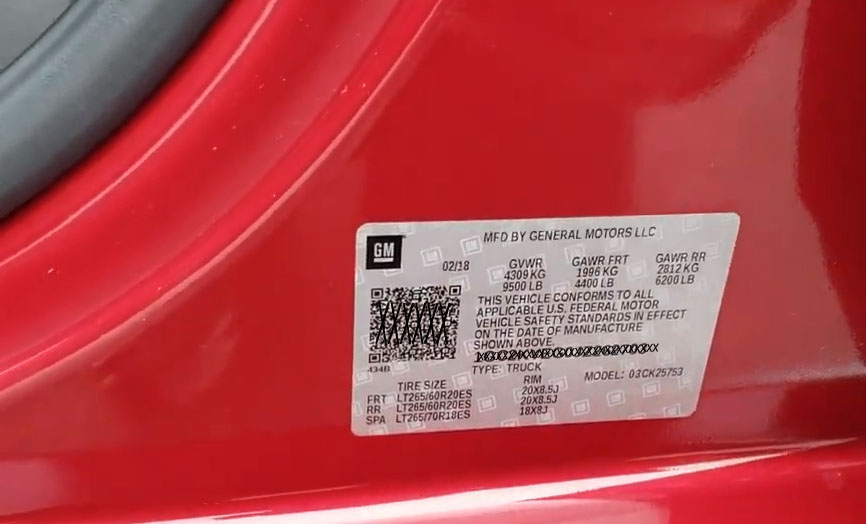

Vehicle must have IOS,IOT, or IOU option code on the service parts sticker located in the driver's side door jamb by the "B" pillar. You can scan the QR code on the sticker using a mobile device to view the vehicle options.
2019-2022 GMC® Sierra pickup truck with the IOS, IOT, or IOU 8" display screen.
2019-2022 GMC® Canyon pickup truck with the IOS, IOT, or IOU 8" display screen.
2019-2022 Chevrolet® Silverado pickup truck with the IOS, IOT, or IOU 8" display screen.
2019-2022 Chevrolet® Colorado pickup truck with the IOS, IOT, or IOU 8" display screen.
Installation
Determine which bracket is more suitable for your installation and swap the camera if necessary. The license plate bracket is already mounted on the camera. Universal bracket mounts to any flat surface and can be mounted on a rung in the grille or hanging from a rung in the grille.
The front-cam integration module connects your factory 8" IOS/IOT/IOU factory radio. You will need to open the dash to gain access to the radio connections. Splicing into the vehicle wiring is required.
