OE Front Emblem Camera Kit for 4.2" Factory Display, Fits 2018-2020 F150
SKU#: CS-18FTRFOE-42
Availability:
In Stock
SKU#:
CS-18FTRFOE-42
$618.00
Quantity
OE Front camera for MyFord® 4.2" Display!
Description
Can't see over that hood? This is your solution and is a Camera Source exclusive for your 2018-2020 F150 with the 4.2" MyFord® display!! This system consists of the OEM style grille mounted front emblem camera and a dual cam interface for your factory 4.2" radio.

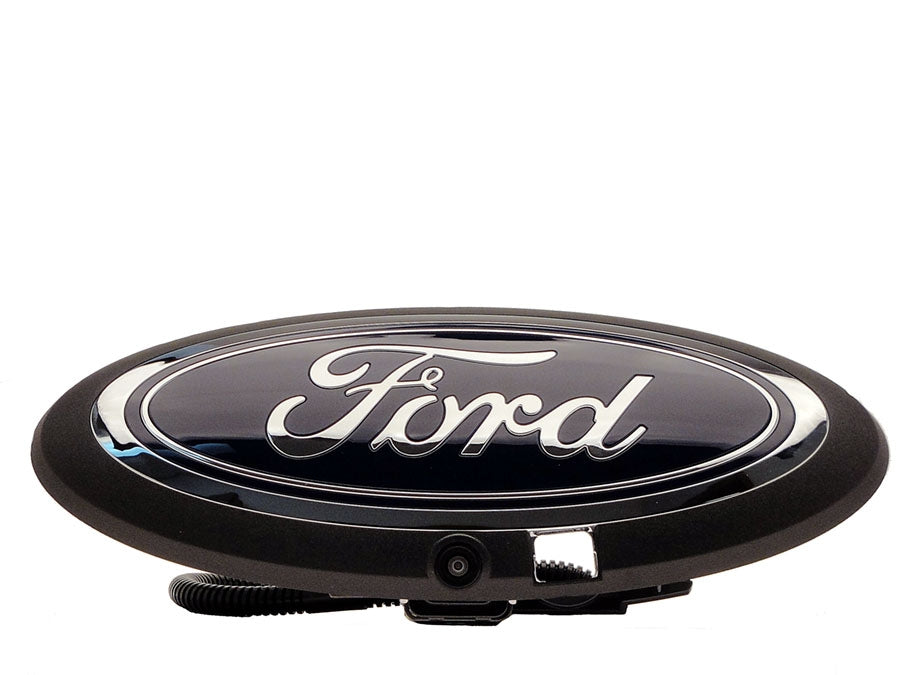

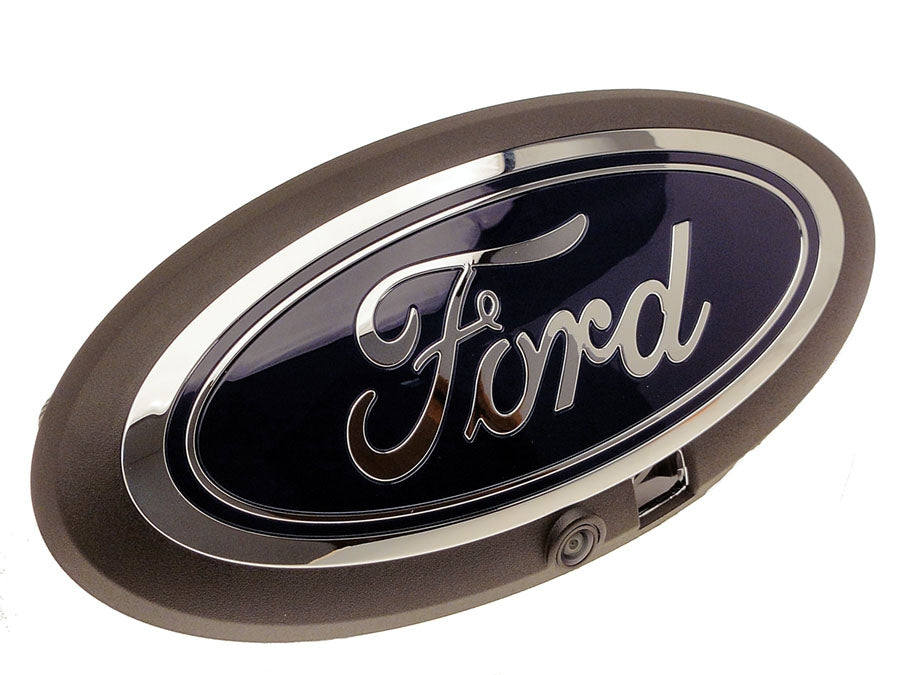

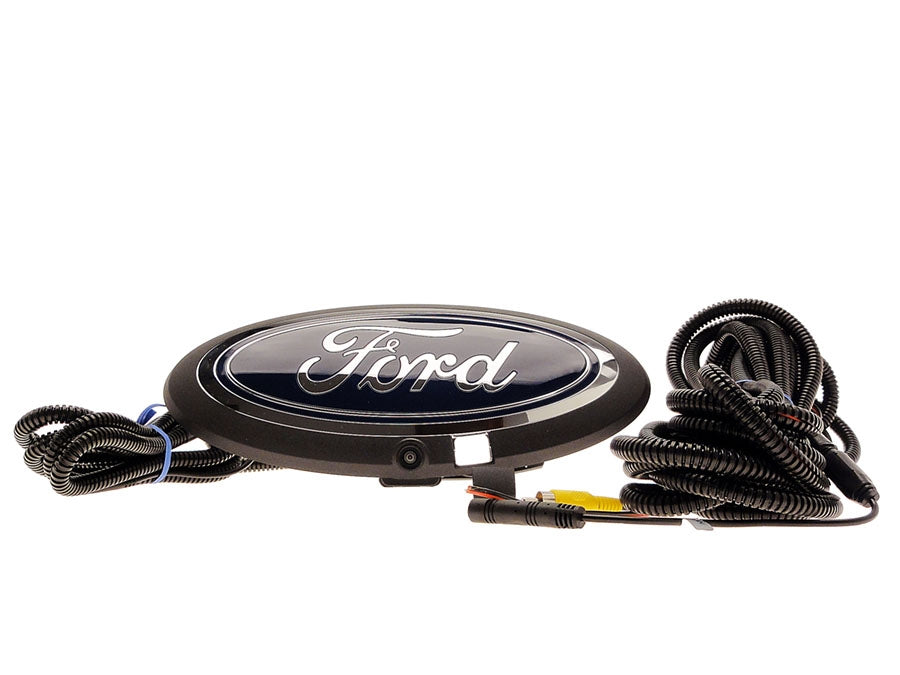

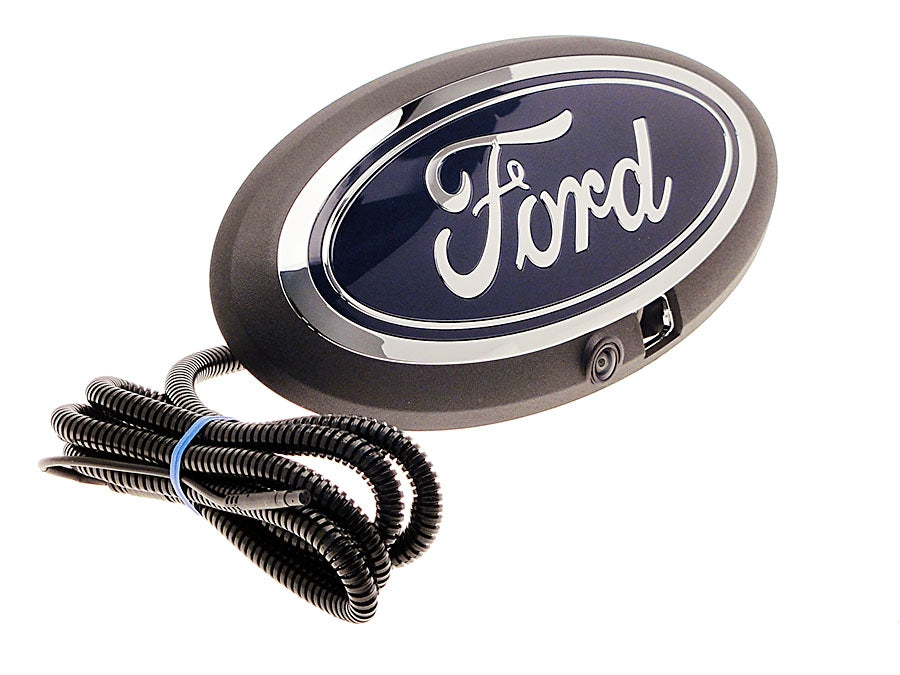

The front camera in this kit comes in an OEM Ford® bracket so it will look like the front camera that comes with the Ford® 360 system. Swap out your existing factory emblem for this emblem and housing with a pre-mounted camera.
If you have a factory 8" SYNC 3 display see SKU: CS-18FRTFOE-8S3
***Your factory grille must have the camera cutout for this kit to fit properly. If your grille does not have this cutout, your factory grille will have to be swapped with a different grille that is designed to mount the camera assembly and this grille is NOT included in the kit.
*** See images for an example of a grille with camera cutout. If needed, many times you can find a brand new grille with the required cutout on ebay or from a Ford® dealership.

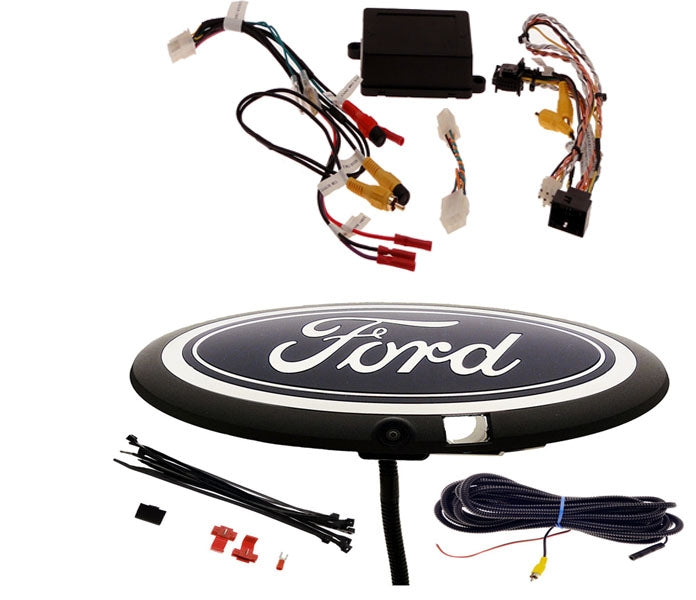

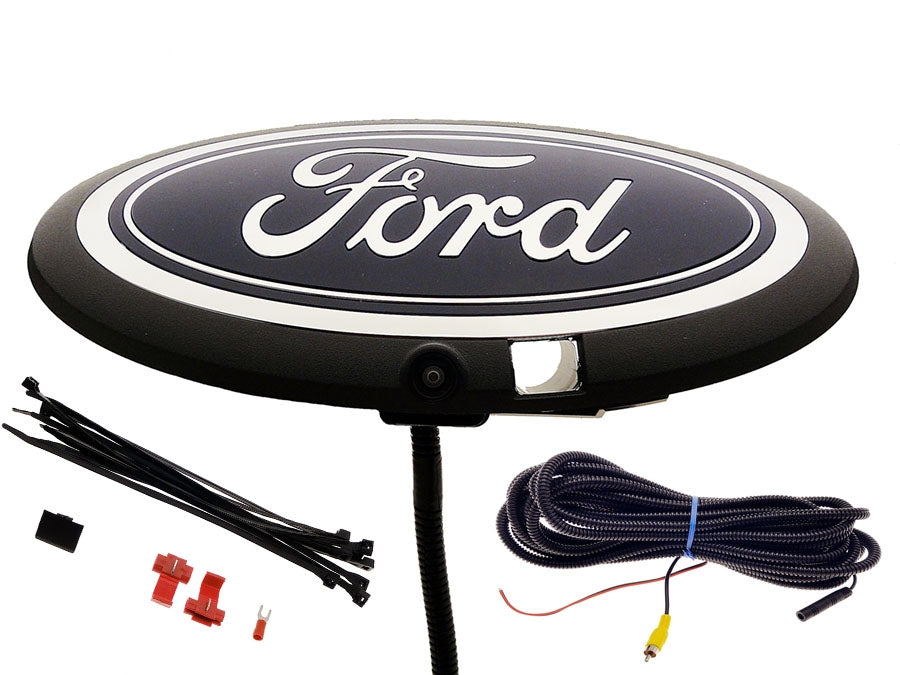

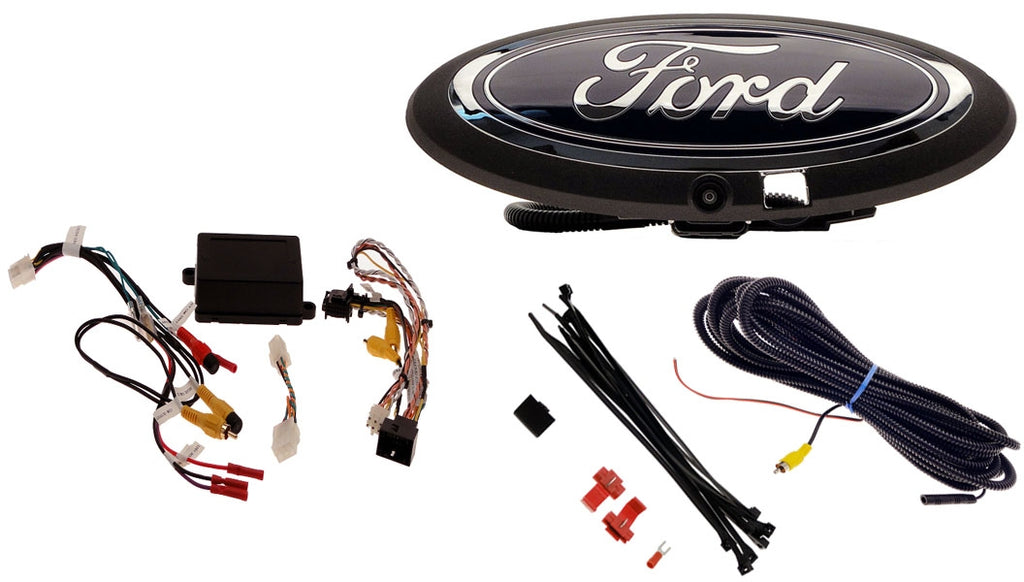

Kit includes:

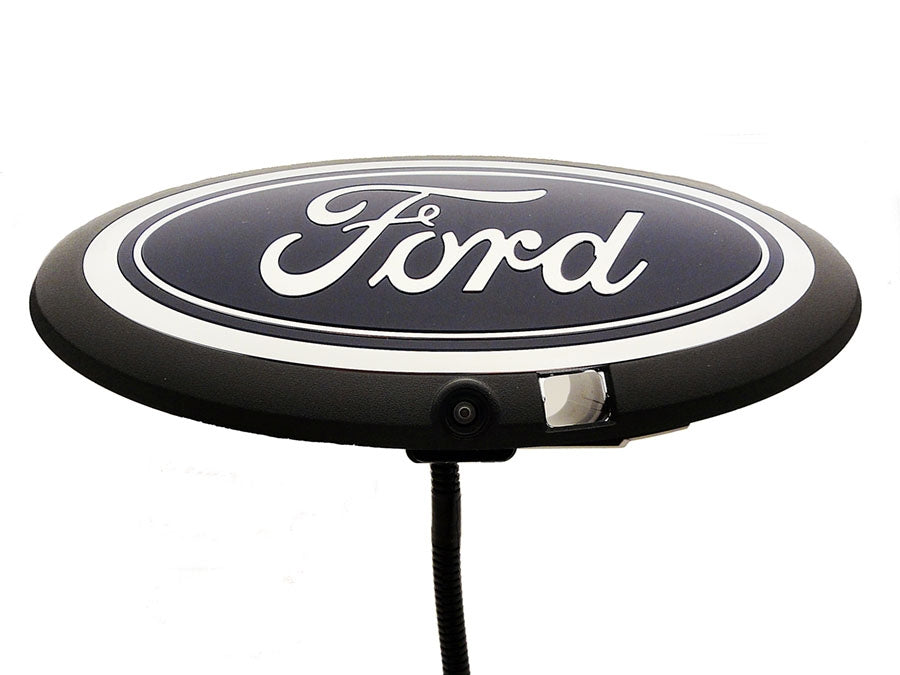

- OEM style grille mounted camera with our latest super CMOS camera - the latest camera technology!
- 4.2" Ford® radio multi-camera interface, capable of rear and front camera integration (2 input ports). If you already have a factory rear camera then it has 1 input port as the rear camera uses the additional circuit (see below). 4.2" RADIO NOT INCLUDED
- Mounting hardware
- Camera wiring harness

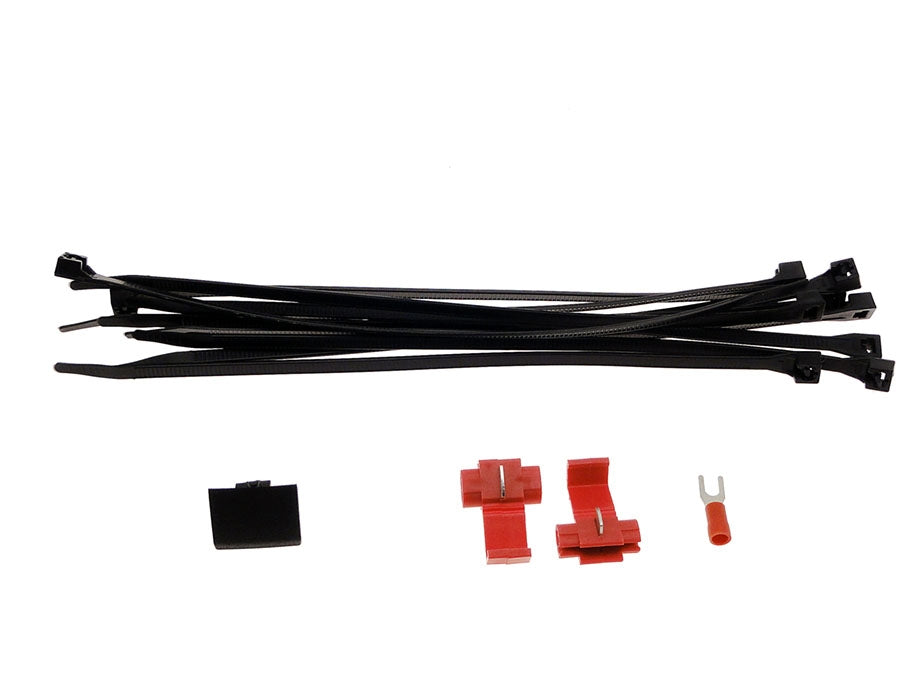

- Zip ties
- Detailed installation instructions
- 3 year warranty on the camera
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- Forward looking camera - designed for front applications
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!

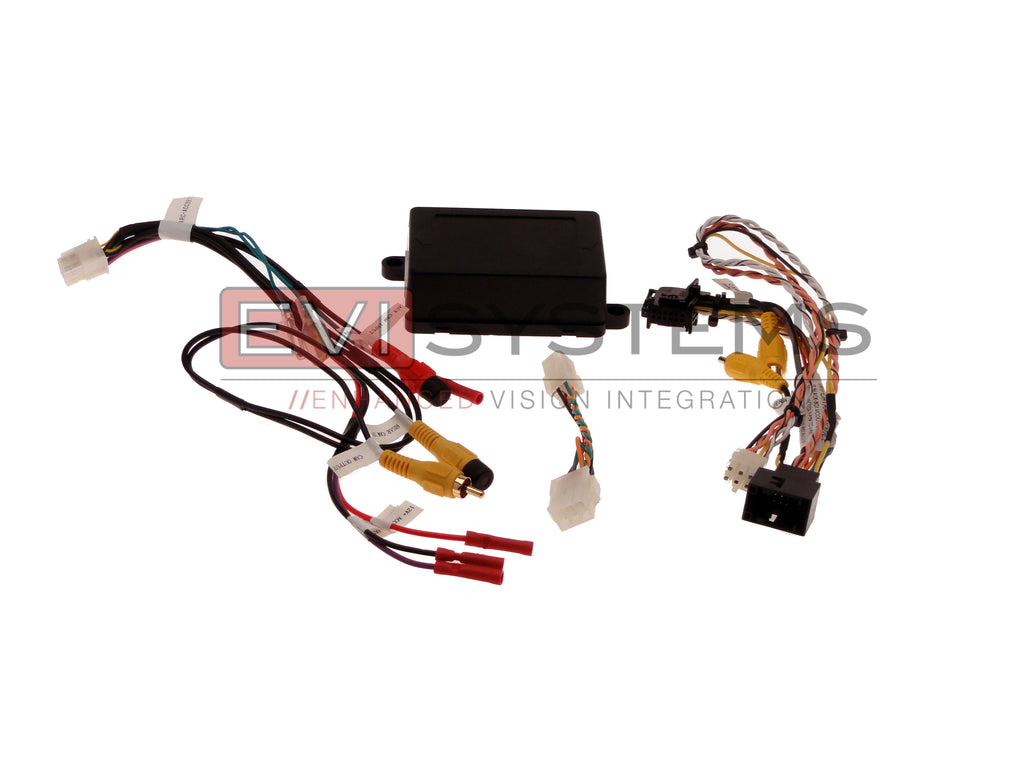

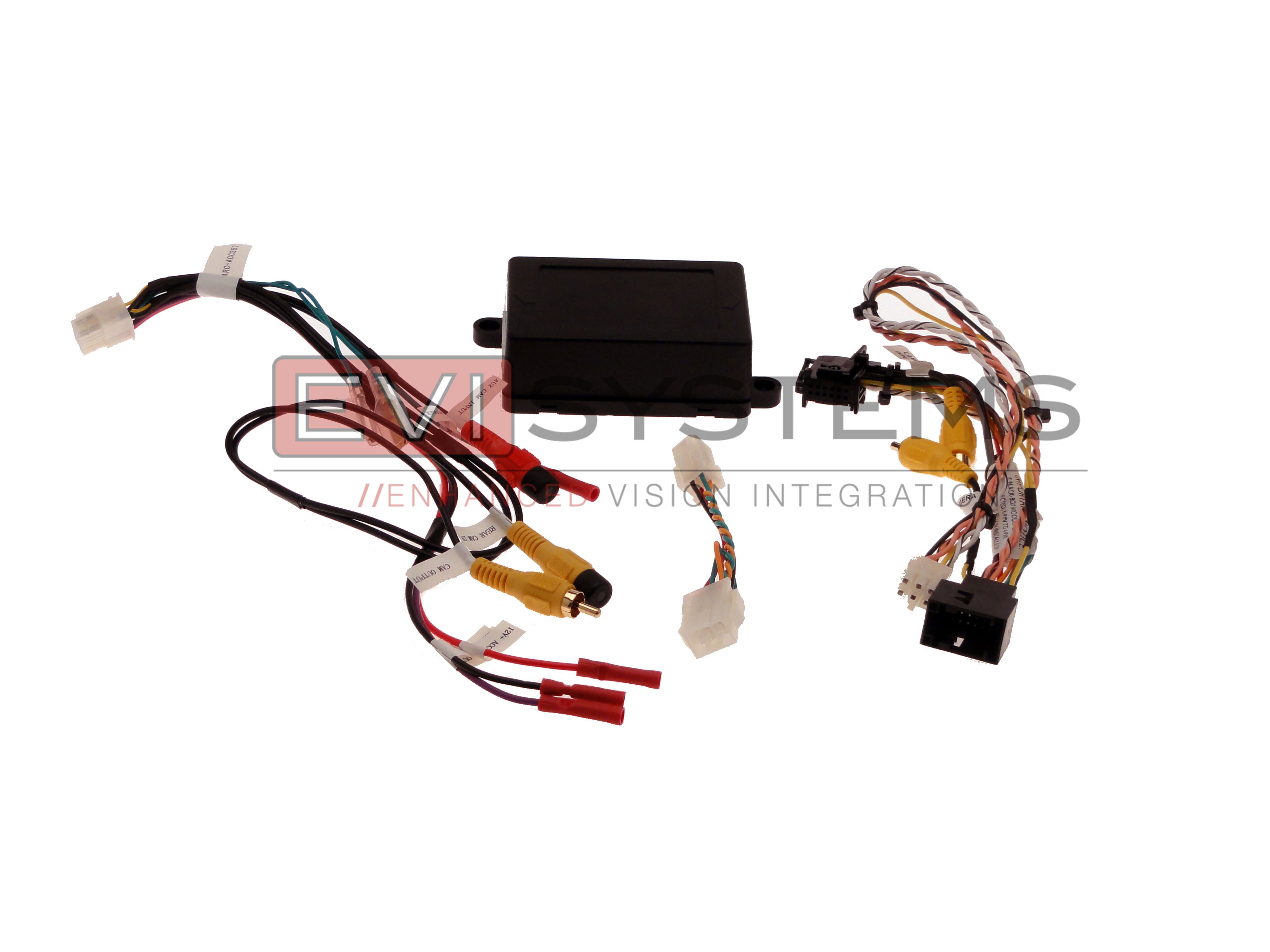

MyFord® 4.2" Multi Cam interface:
- Uses existing 4.2” MyFord® factory display (screen not included)
- Allows addition of this front camera that can be manually triggered using your steering wheel controls or toggle switch
- Pass through for existing factory backup camera. Rear camera will automatically come on in reverse.
- Press OK button on steering wheel to manually activate front camera, then tap ok button again to go back to normal mode

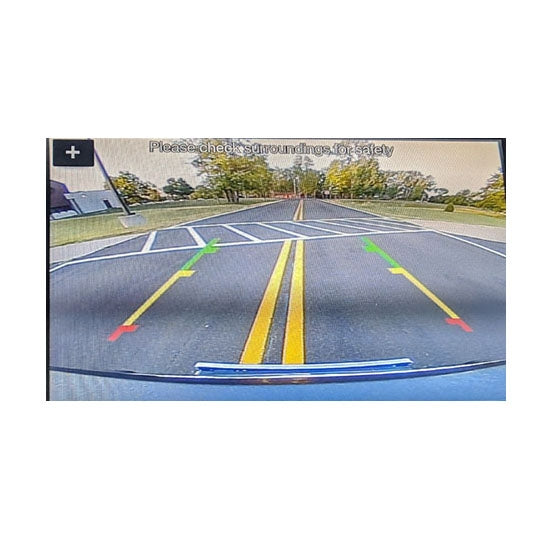

This kit allows you to see what is directly in front of truck and will look like it came from the factory! This camera comes with a 3 year warranty and professional installation is recommended. Camera wash system not included.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford |
| Camera Mount Location | Front Grille |
| Night Vision | .1 Lux |
| Camera Orientation | Front Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 4.2” Ford |
| Reason for Shopping | Adding camera(s) |
| Sensor Brand | EVI Systems |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 2 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | F-150 |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2018,2019,2020 |
| Make Filter | Ford |
| Model Filter | F-150 |
| Year Filter | 2018, 2019, 2020 |
Compatibility
2018-2020 F150 with a factory 4.2" MyFord® screen and camera cutout in the grille.
***Your factory grille must have the camera cutout for this kit to fit properly. If your grille does not have this cutout, your factory grille will have to be swapped with a different grille that is designed to mount the camera assembly and this grille is NOT included in the kit.
*** See images for an example of a grille with camera cutout. If needed, many times you can find a brand new grille with the required cutout on ebay or from a Ford dealership.
NOTE: This camera is pre-mounted into an OEM front Ford® emblem. This kit uses an OEM bracket and cannot be retrofitted to any other application.
Installation

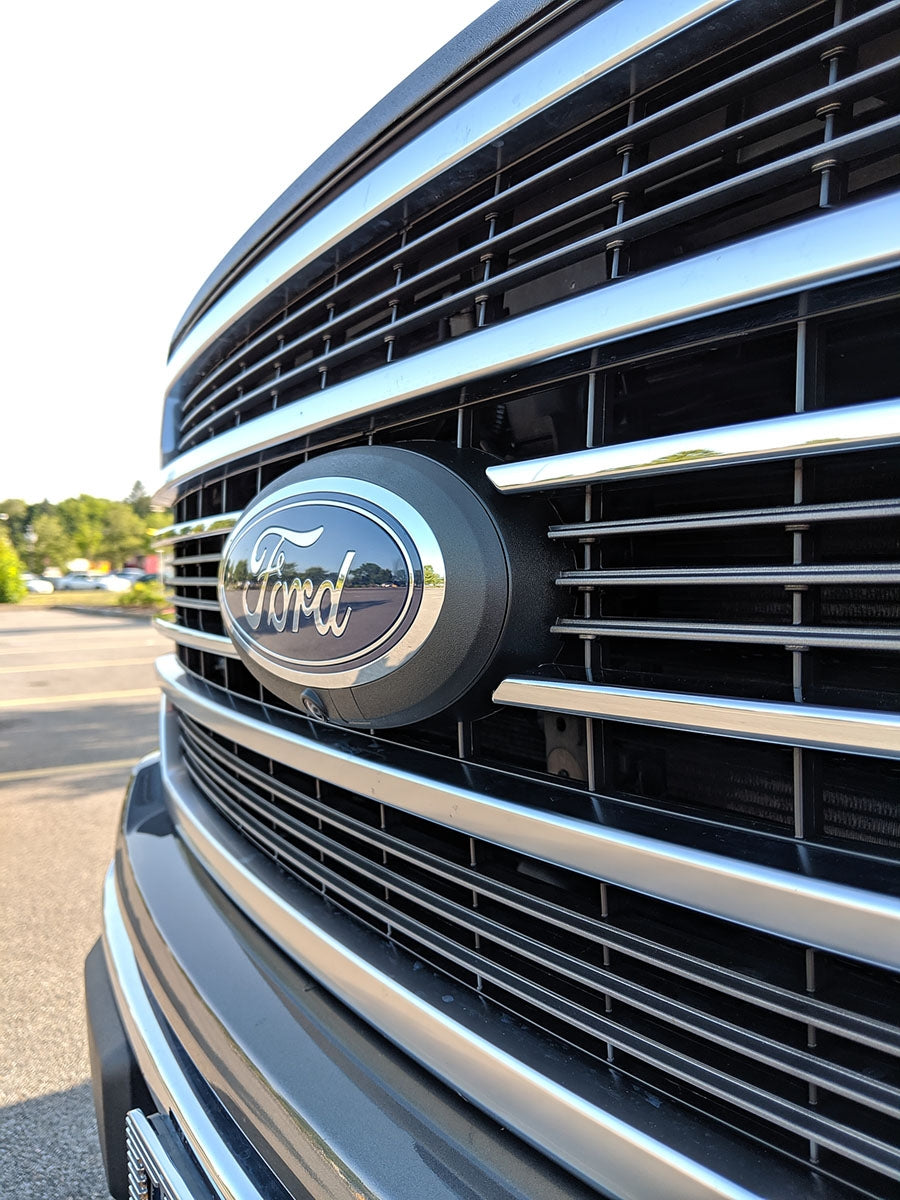

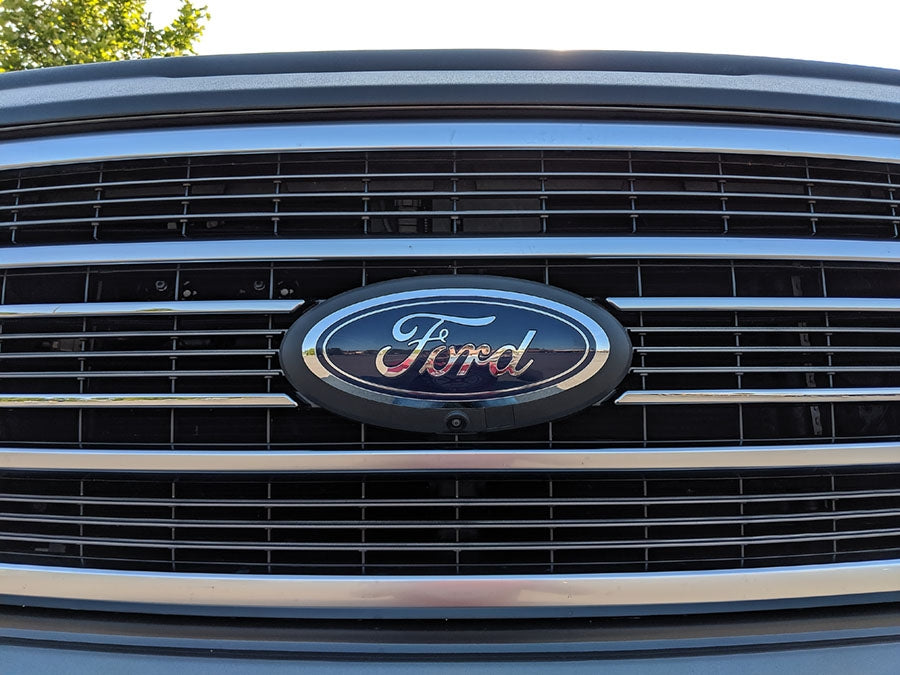

The front camera mounts into your factory grille by replacing your existing emblem assembly with this camera assembly.
Run the harness to the cab and connect to your factory 4.2" radio display using the included multi-cam interface. All plug and play - no cutting of factory wires! You must remove your factory radio in order to gain access to the wiring, professional installation is recommended.
**Camera wash system not included. Cover for the opening of where the camera wash system installs is included.
