OE Style Front Emblem Camera Kit for RCA Display, Fits 2018-2020 F150
SKU#: CS-18FTRFOE
Availability:
In Stock
SKU#:
CS-18FTRFOE
$329.00
Quantity
OE Style Front Camera for RCA Display!
Description

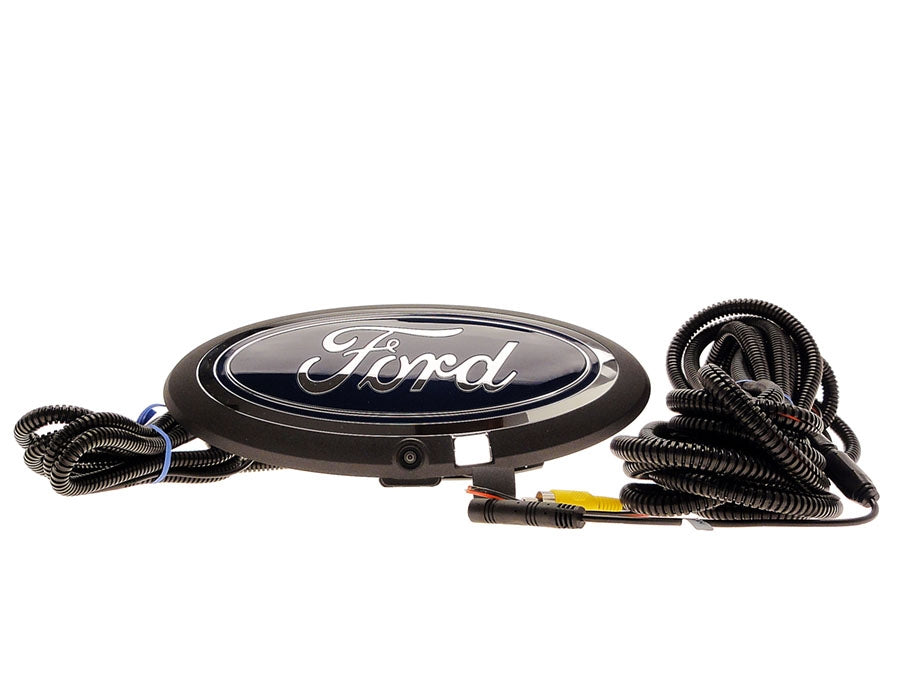

This system consists of the OEM style grille mounted front camera and camera harness that terminates in a RCA connection to connect to an aftermarket display or separate monitor.

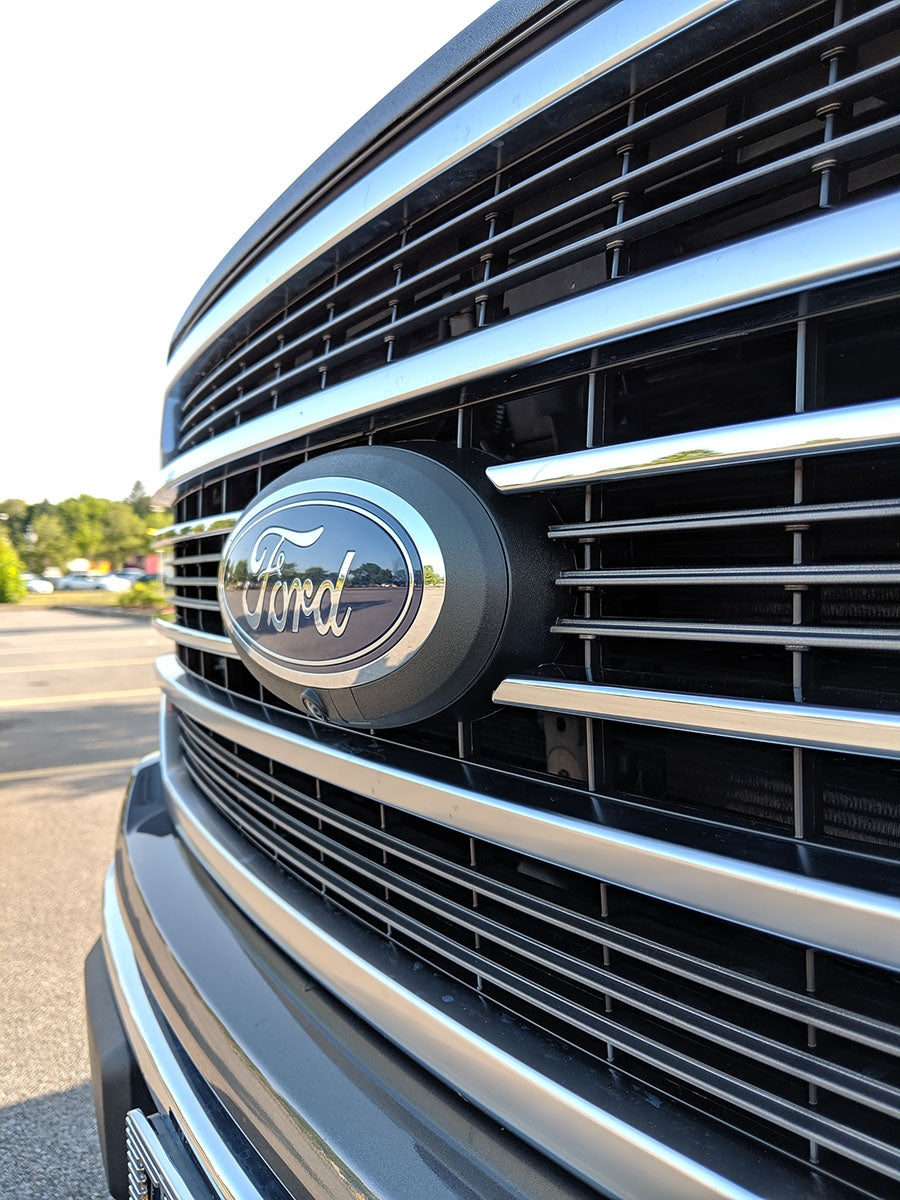

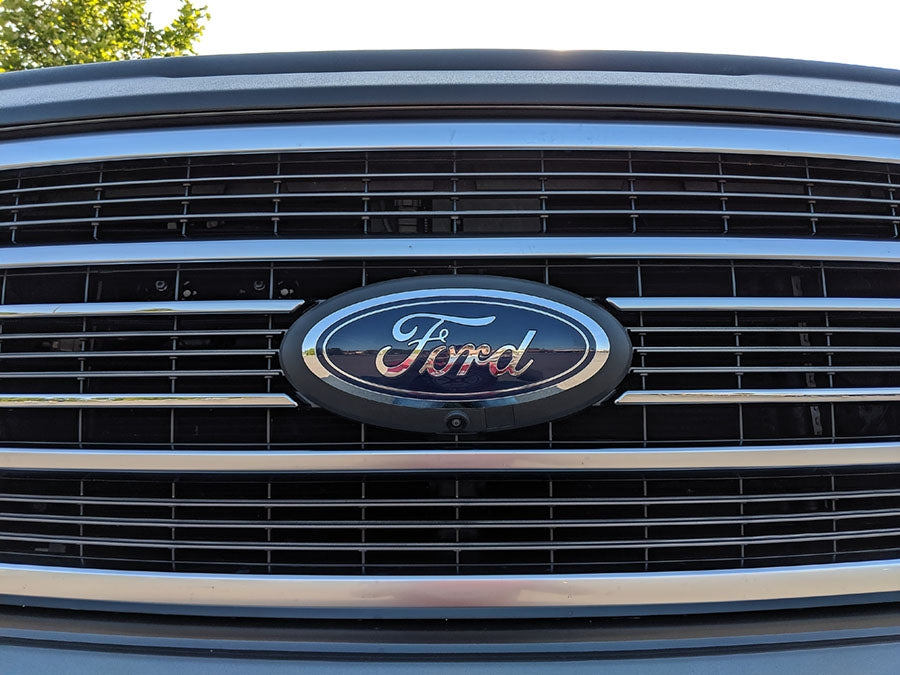

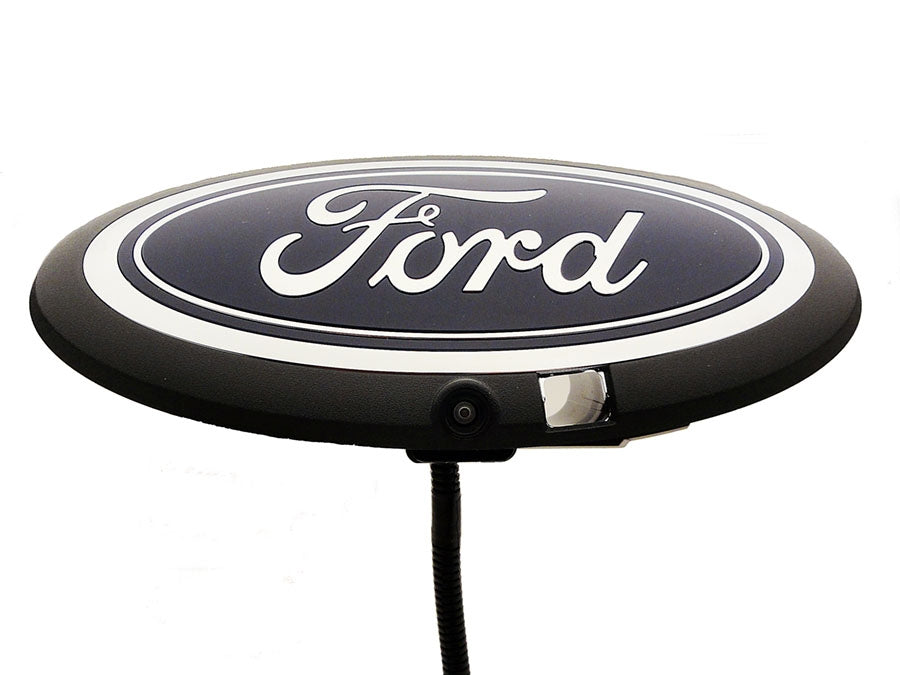

The front camera in this kit comes in an OEM Ford® housing and emblem so it will look just like the front camera that comes with the Ford® 360 system.

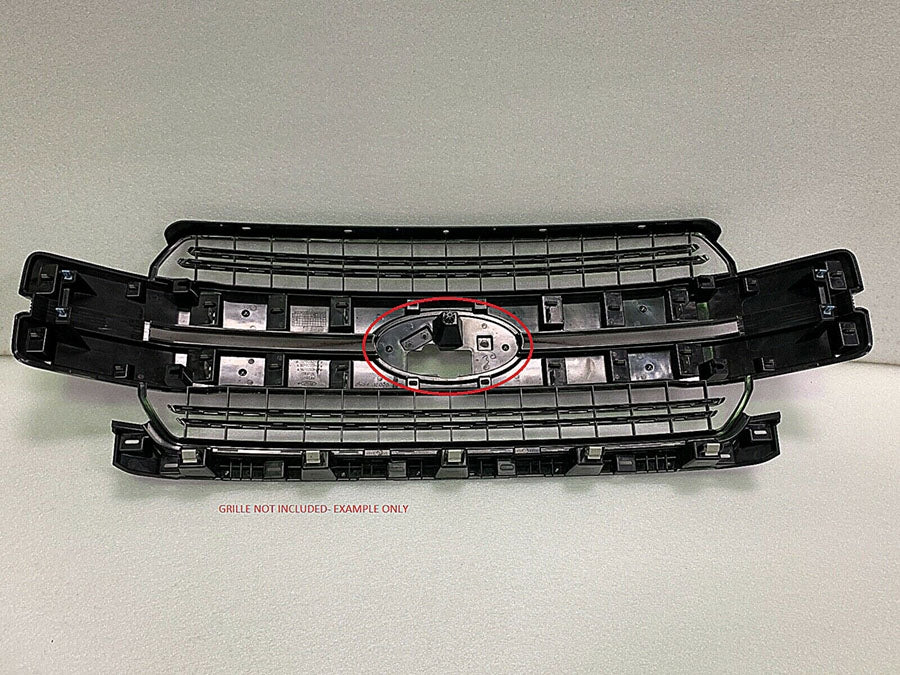

***Your factory grille must have the camera cutout for this kit to fit properly. If your grille does not have this cutout, your factory grille will have to be swapped with a different grille that is designed to mount the camera assembly and this grille is NOT included in the kit.*** See images for example of a grille with camera cutout.
**If you are looking to interface with a factory 8" or 4.2" display you will need additional parts.
See SKU: 7CS-18FTRFOE-8S3 for the kit compatible with the factory 8" display.
See SKU: 7CS-18FTRFOE-42 for the kit compatible with the factory 4.2" display.

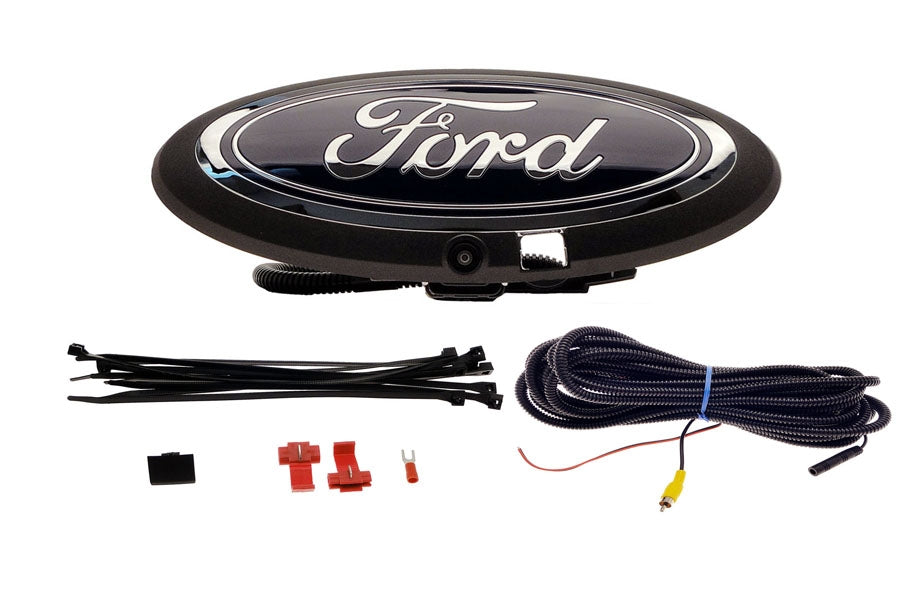

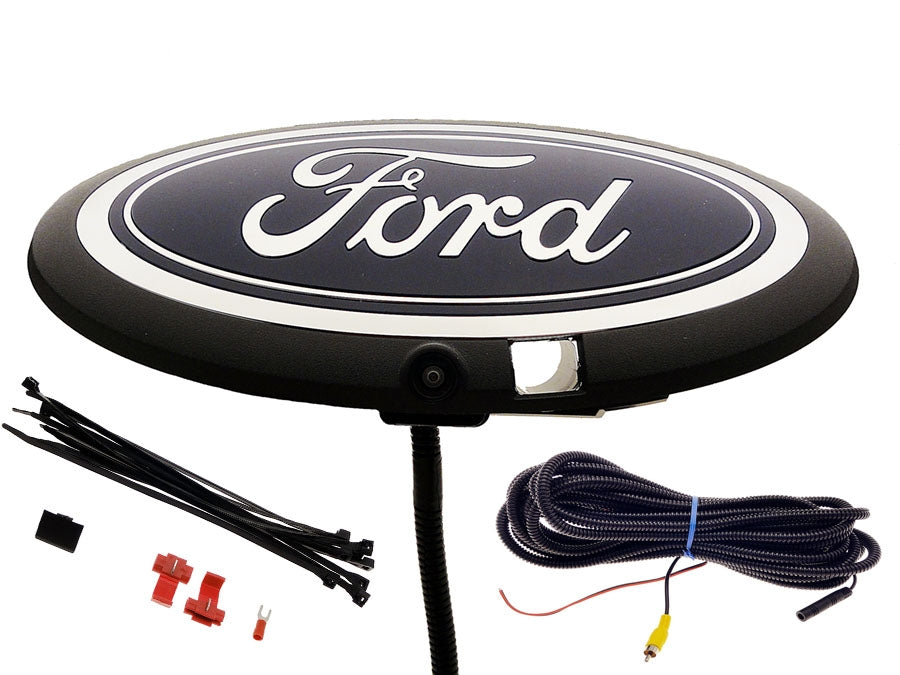

Kit includes:
- OEM style grille mounted camera with our latest super CMOS camera - the latest camera technology!
- Mounting hardware
- Camera wiring harness

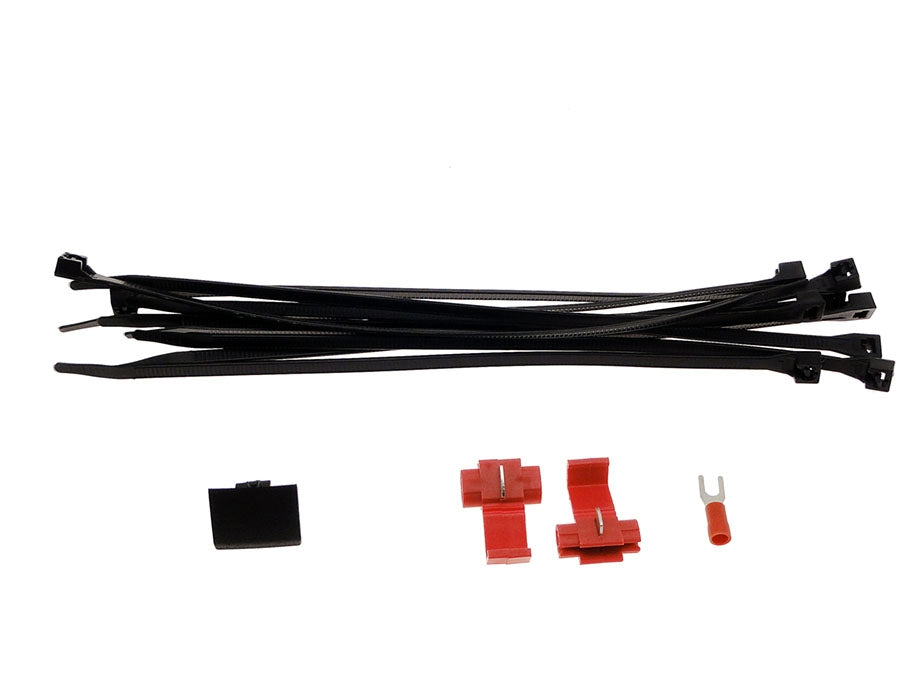

- Zip ties
- Detailed installation instructions
- 3 year warranty on the camera
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- Forward looking camera - designed for front applications
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!

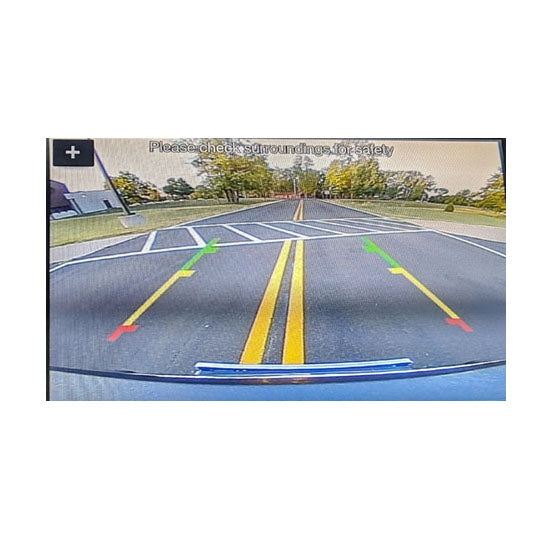

This kit allows you to see what is directly in front of truck and will look like it came from the factory! This camera comes with a 3 year warranty and is guaranteed to fit or your money back. Professional installation is recommended.
*Monitor not included* The wiring harness for this kit terminates in a RCA connection that will plug into an aftermarket display or separate monitor.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your aftermarket display (RCA) |
| Fit Type | Universal fit |
| Grade Level | OE Grade |
| Connection | Aftermarket Display (RCA) |
| Make | Ford |
| Camera Mount Location | Front Grille |
| Night Vision | .1 Lux |
| Camera Orientation | Front Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Not Included |
| Vehicle Category | Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | F-150 |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2018,2019,2020 |
| Make Filter | Ford |
| Model Filter | F-150 |
| Year Filter | 2018, 2019, 2020 |
Compatibility
2018-2020 F150 with camera cutout in the grille.
***Your factory grille must have the camera cutout for this kit to fit properly. If your grille does not have this cutout, your factory grille will have to be swapped with a different grille that is designed to mount the camera assembly and this grille is NOT included in the kit.
*** See images for an example of a grille with camera cutout. If needed, many times you can find a brand new grille with the required cutout on ebay or from a Ford dealership.

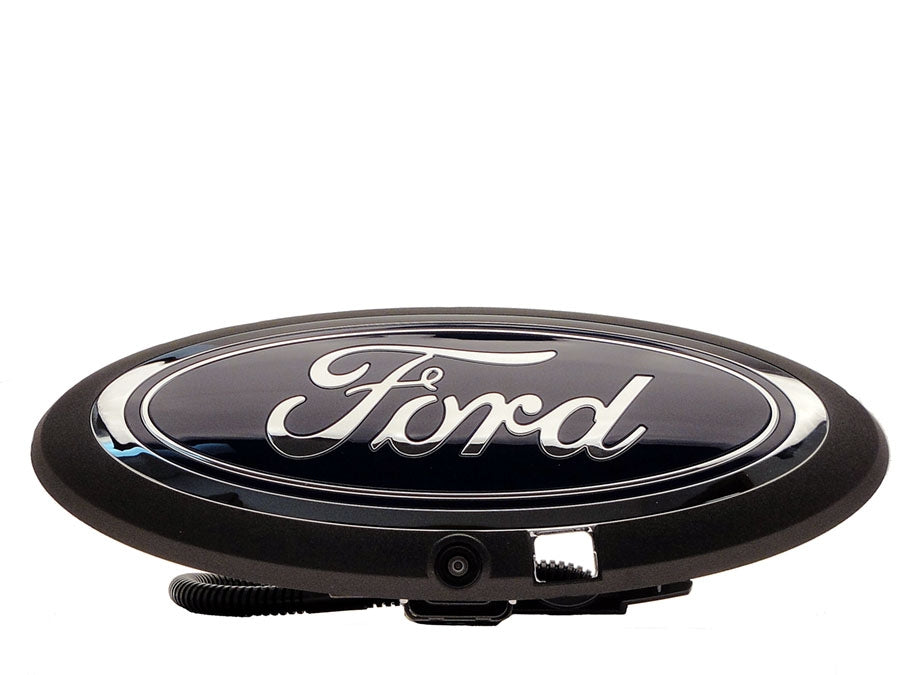

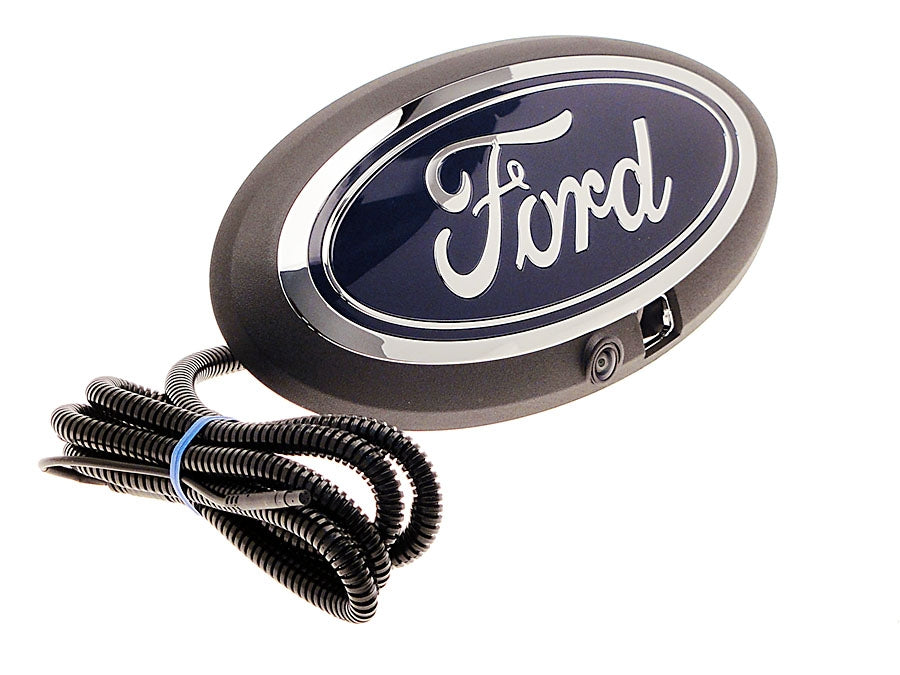

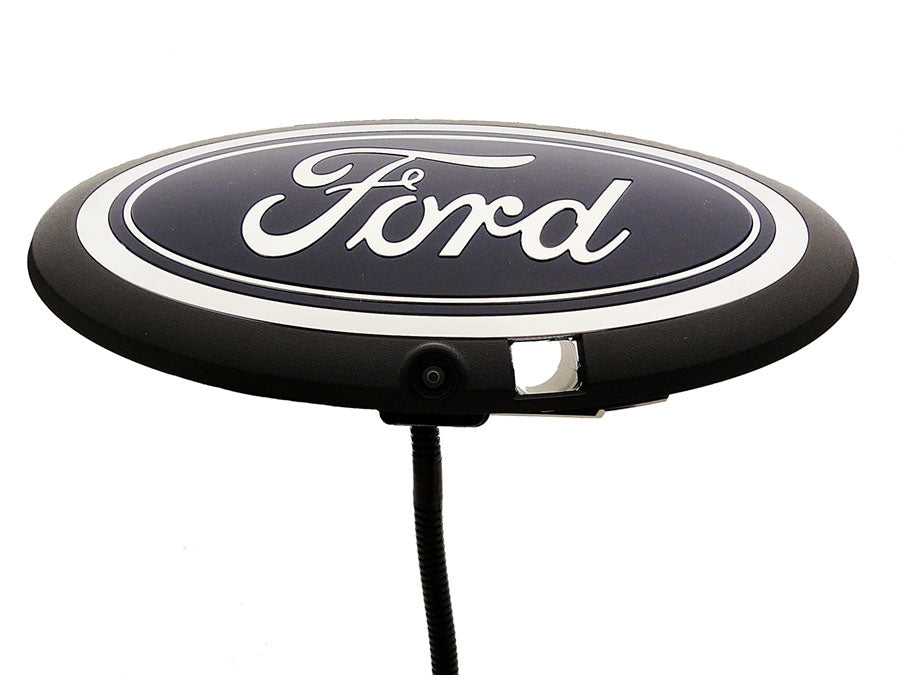

NOTE: This camera is pre-mounted into an OEM front Ford® emblem. This kit uses an OEM bracket and cannot be retrofitted to any other application.
Installation
The front camera assembly mounts into your factory grille by replacing your existing emblem assembly with this camera assembly.
Locate a 12 volt power and ground. Run the harness to the cab and connect to your RCA display.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
