Mini Universal Trailer cam, Fits 2017-2025 Super Duty w/ 360 view
SKU#: CS-FTRSD-LP-TRL
Availability:
In Stock
SKU#:
CS-FTRSD-LP-TRL
$199.00
Quantity
Plug & Play Universal Trailer camera for trucks with the 360 System!
Description
This is a plug and play camera kit that will allow you to add a mini-universal trailer camera to your 2017-2025 Ford® Super Duty truck that has the factory 360 degree view system!

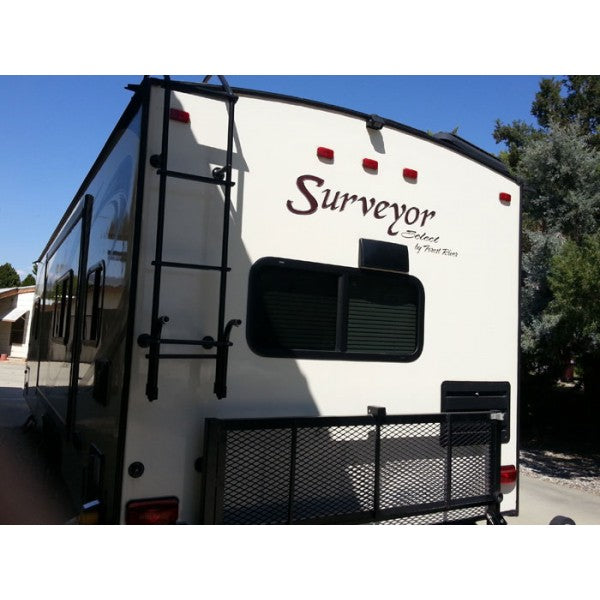

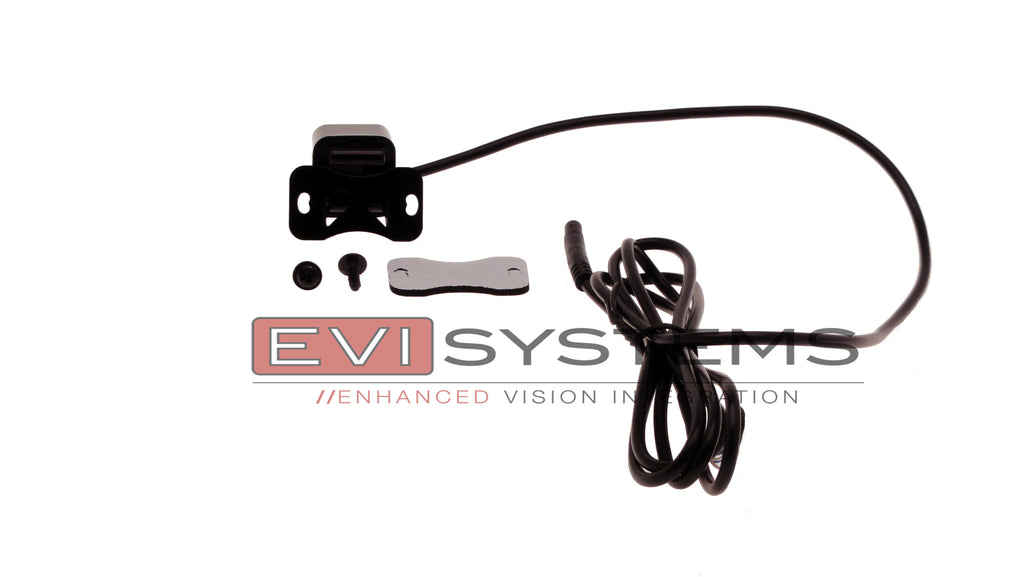

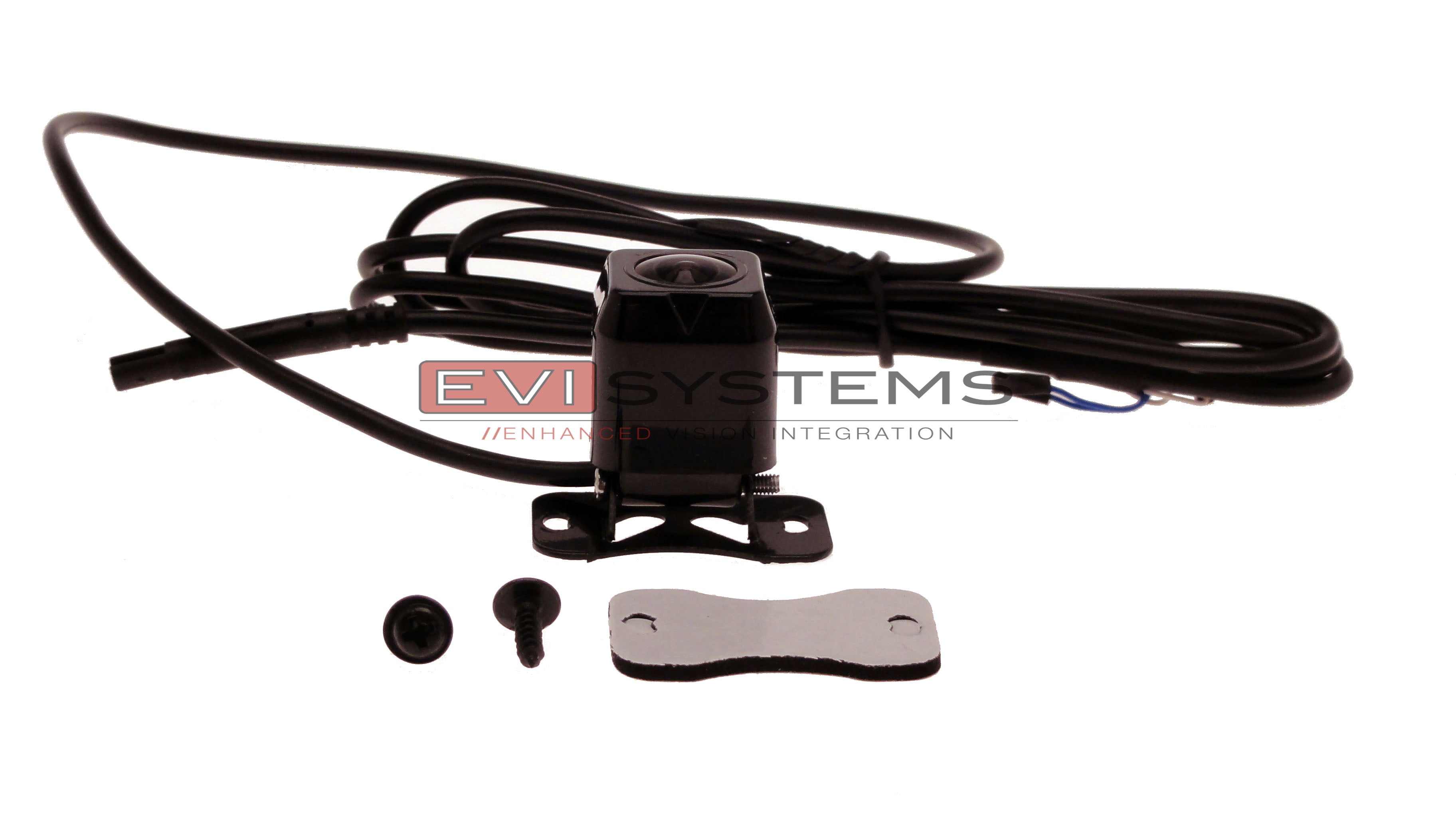

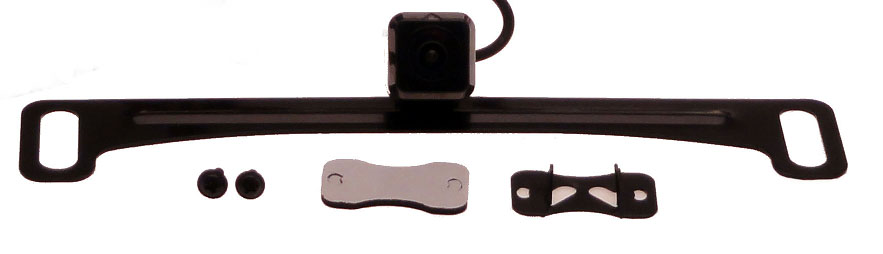

This camera comes in handy when you have a trailer behind the truck since the rear of the trailer is a serious blind spot! This kit is designed to solve that problem by adding the second rear camera on the rear of the truck or trailer. Comes with everything you need to install the camera. The kit comes with a license plate bracket and a mini-universal bracket, which allows flexibility in mounting locations. Simply mount the camera on your license plate or any flat surface and run the cable to the 12 pin auxiliary camera connection located under the spare tire. You will need to lower the spare tire to access the connection. This does not plug in at the tailgate connector. If you're looking to relocate your tailgate camera, see SKU: CS-FTRSD-17RSCU.

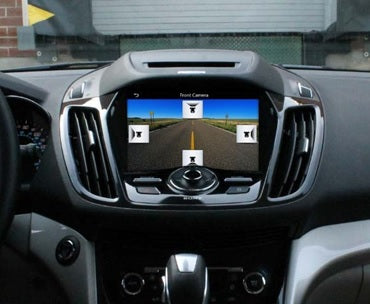

The camera can be viewed on your factory SYNC display by pressing the AUX option on the display while the truck is in reverse. Your truck will only have the 12 pin auxillary plug under the spare tire if the truck has the 360 degree/bird's eye view system from the factory. *NOTE: Image may appear slightly pixelated on 12" display due to the screen size.

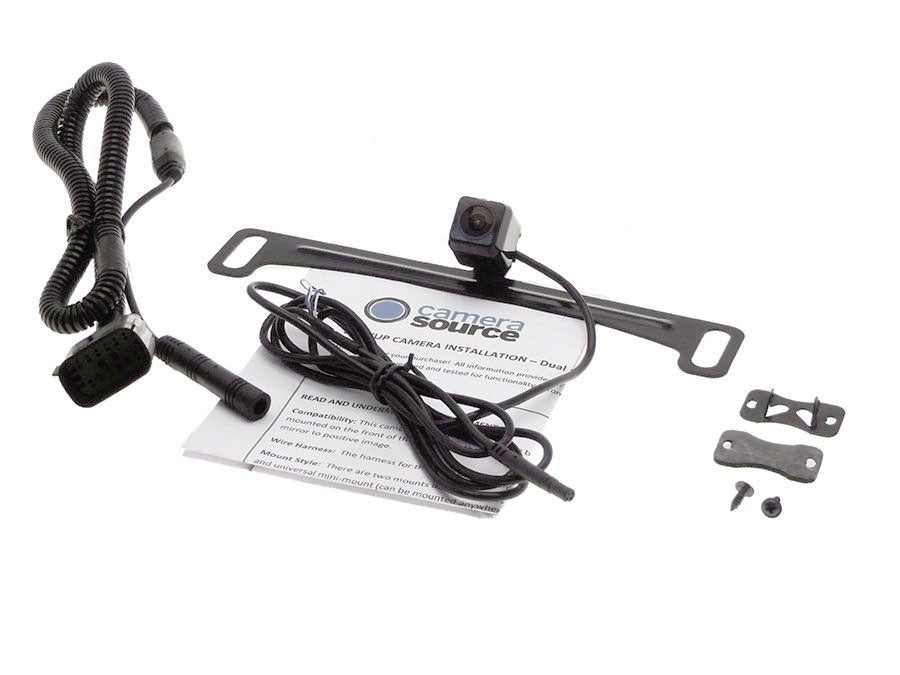

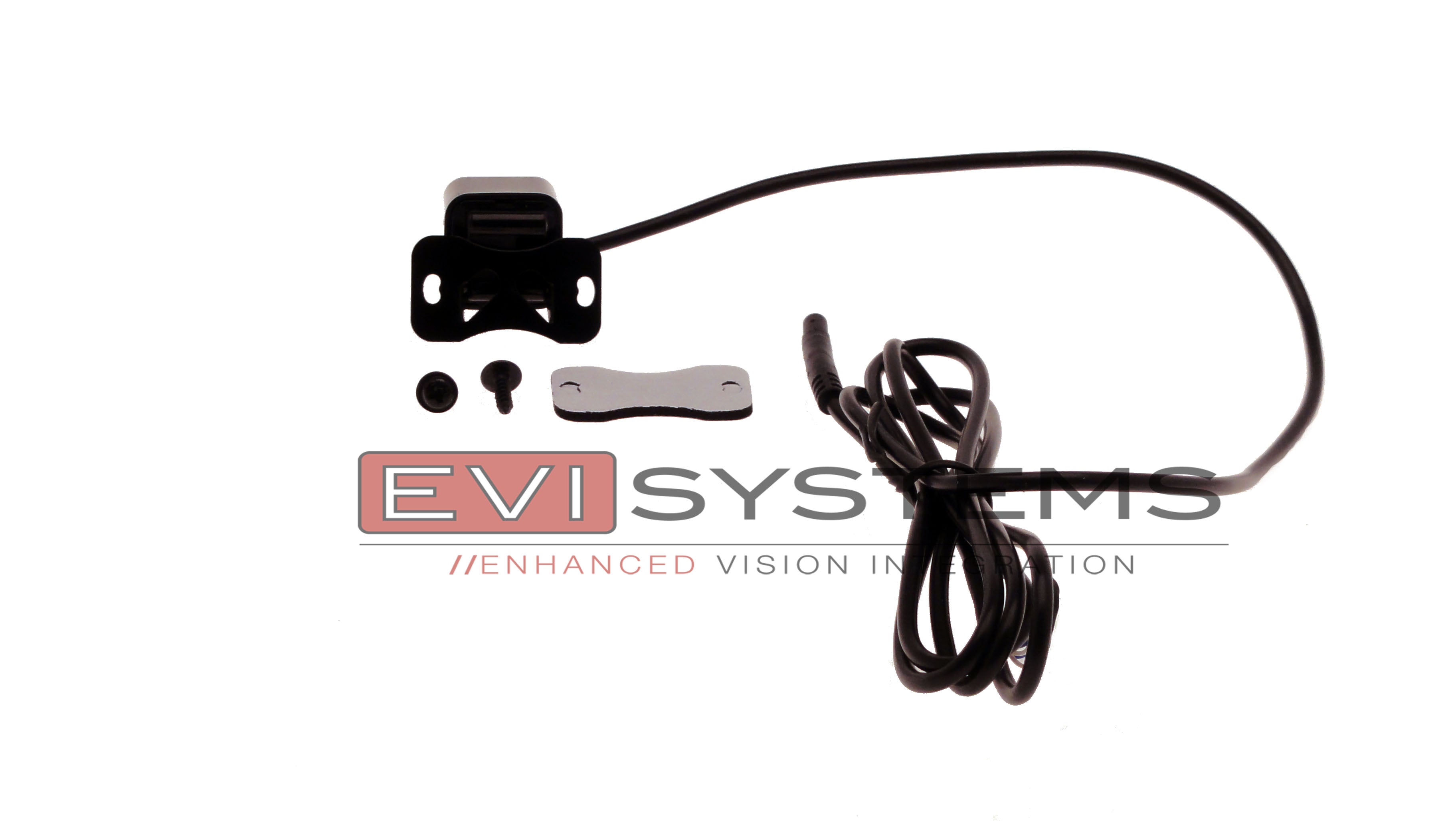

Kit includes the following:

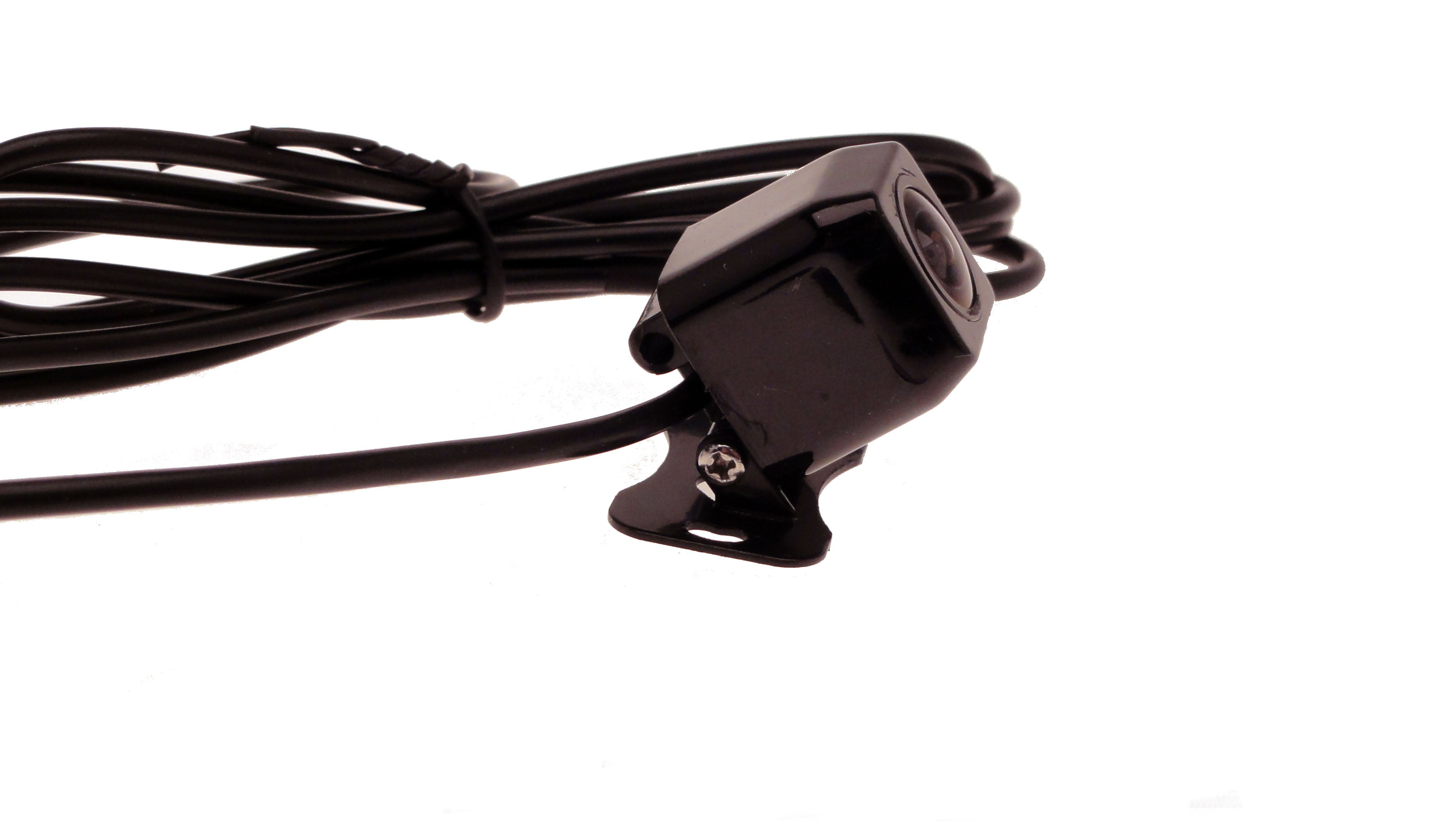

- License plate/universal camera with Super CMOS sensor

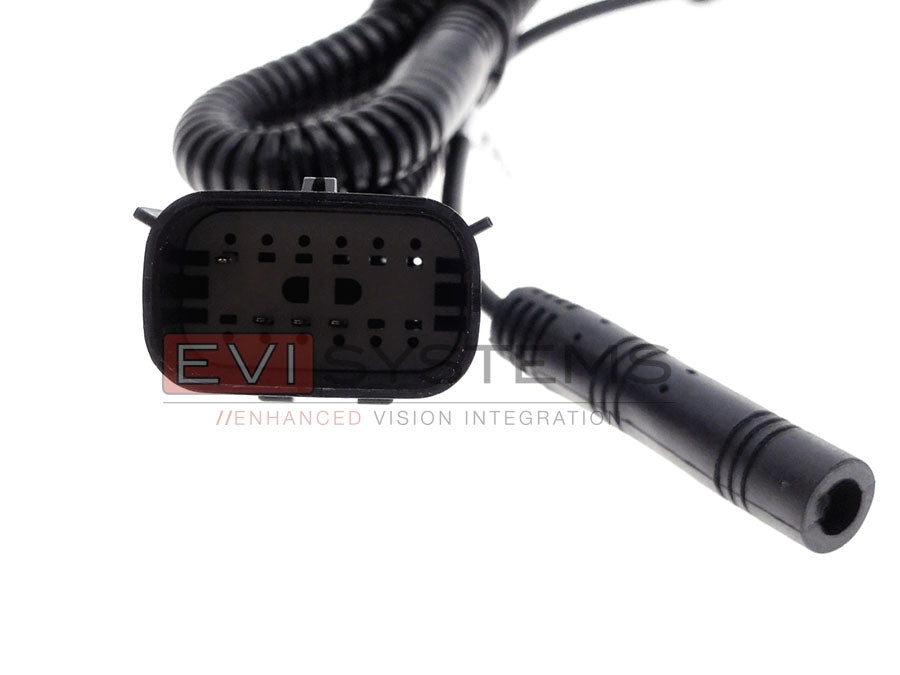

- OEM wiring conversion harness - allows the system to be plug and play with your factory auxiliary camera connector: 5', 10', 15', 25' cable length available. Select from drop down above.
- 3 year warranty!
Camera Specifications:
- Camera Source Super CMOS for a super clear image
- Night vision
- 170 degree view
- 600 TV lines of resolution
- Parking guidelines (selectable at the harness)
- Camera can face forward or backward (selectable at the harness)
Display not included.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Trailer/Camper/5th Wheel camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Factory Connector |
| Make | Ford |
| Camera Mount Location | Camper/Utility Bed, Universal Mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8\ Ford Sync 3, 8\ Ford Sync 4, 12\ Ford Sync 4, Factory LCD |
| Sensor Type | Super CMOS |
| Vehicle Interface | Not Included |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Super Duty |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Factory Plug&Play |
| Year | 2017,2018,2019,2020,2021,2022,2023,2024,2025 |
| Make Filter | Ford |
| Model Filter | Super Duty |
| Year Filter | 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 |
Compatibility
2017-2025 Ford® Super Duty trucks- F250, F350, F450, F550 with the 360 degree view system from the factory.
Your truck will only have the 12 pin auxiliary camera plug under the spare tire if the truck has the 360 degree/bird's eye view system from the factory. You will need to lower the spare tire to access this connector. This kit does not plug in at the tailgate.
If you're looking to relocate your tailgate camera see SKU: CS-FTRSD-17RSCU
The camera does not provide a 360 degree view.
*NOTE: Image may appear slightly pixelated on 12" display due to the screen size.
Installation
Mount the camera anywhere! Versatile mount allows for surface mount in virtually any location. Camera tilt is adjustable so the view can be adjusted to accommodate any view required!
This kit allows you to add a trailer camera to your 2017-2025 Ford® Super Duty factory radio that has the 360 degree view system from the factory. All plug and play - no cutting of factory wires!
Harness plugs into the 12 pin trailer/auxiliary camera connection located under your spare tire. You'll need to lower the spare tire to access this connection. This does not plug in at the tailgate connection.
Camera is activated by pressing the AUX camera option on the factory display.
