Commercial Trailer Cam-On Demand For 2017+ Super Duty w/ 360 view
SKU#: CS-FTRSK-17SD-TRL-OD
Availability:
In Stock
SKU#:
CS-FTRSK-17SD-TRL-OD
$729.00
Quantity
Activate cameras at anytime!
Description
This is a plug and play camera kit that will allow you to add a trailer camera to your 2017-2022 Ford® Super Duty truck that has the 360 degree view system from the factory plus unlock all other 360 view cameras to allow them to be viewed at any speed.

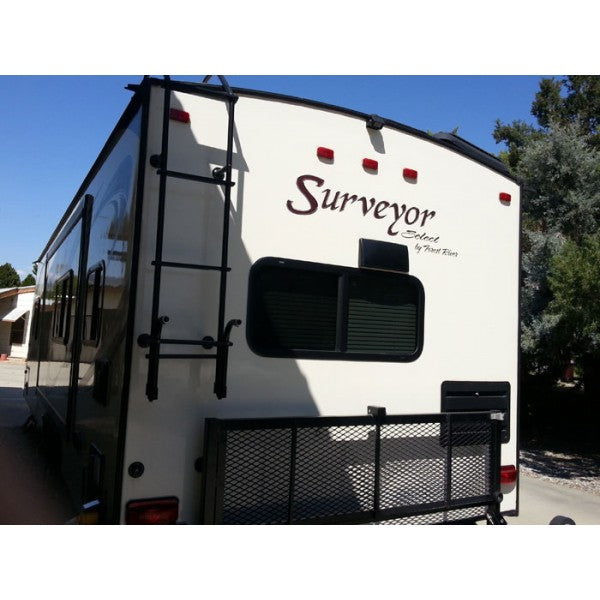

This kit is designed to add a rear camera to the back of your travel trailer or 5th wheel! This comes in handy when you have a trailer behind the truck since the rear of the trailer is a serious blind spot! This kit is designed to solve that problem by adding the second rear camera on the rear of the truck or trailer. Comes with everything you need to install. Simply mount the camera on any surface and run a plug and play harness to the 12 pin auxiliary camera plug under your spare tire.

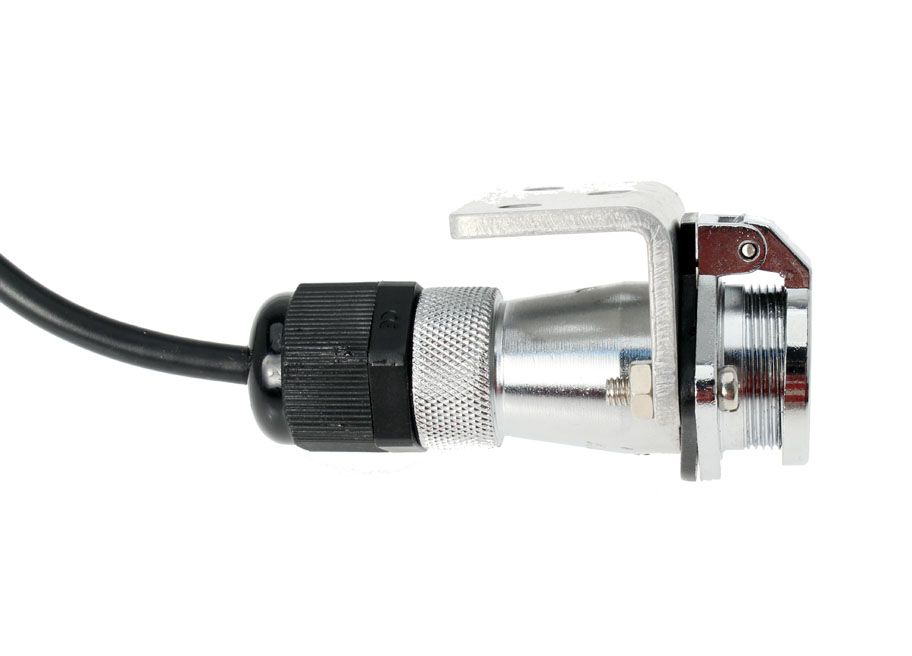

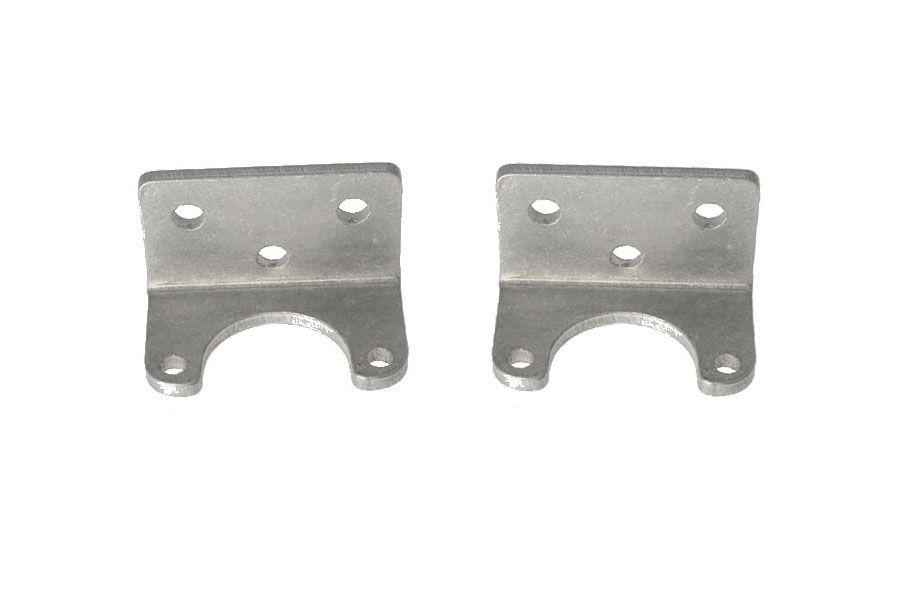

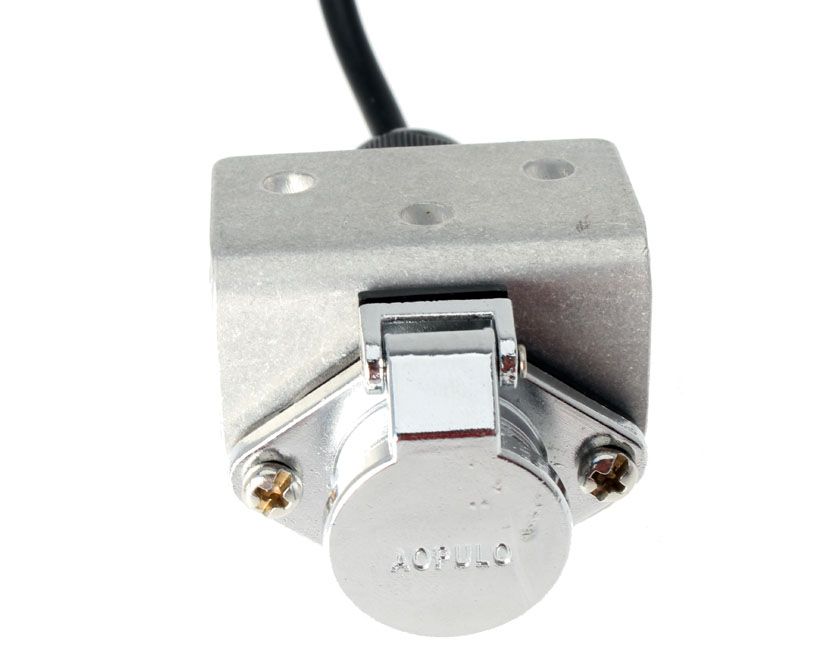

Optional: Add our trailer quick disconnect system allowing you to disconnect your trailer with ease by making the camera connections as simple as unplugging the lights of the trailer.

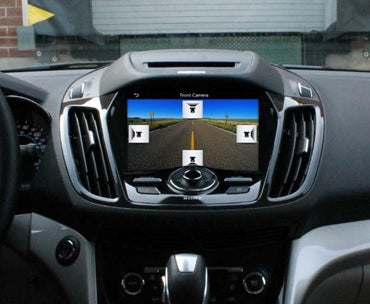

The included Camera on Demand module is plug and play with your factory 8" display with SYNC 3.
Your truck will only have the 12 pin auxiliary plug under the spare tire if the truck has the 5 cam/360 degree/Ulitmate trailer tow system from the factory.

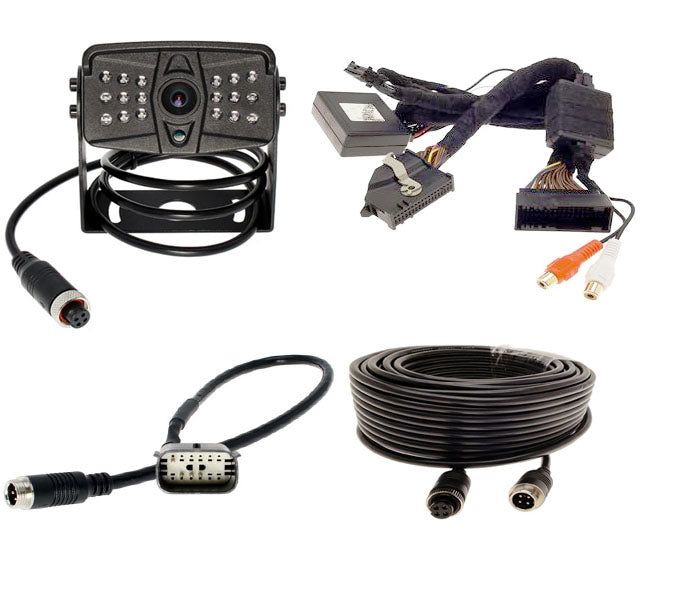

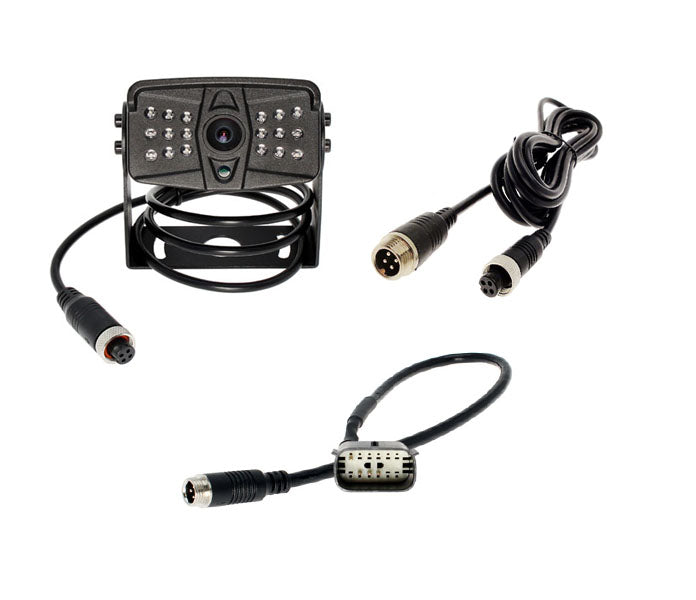

Kit includes the following:

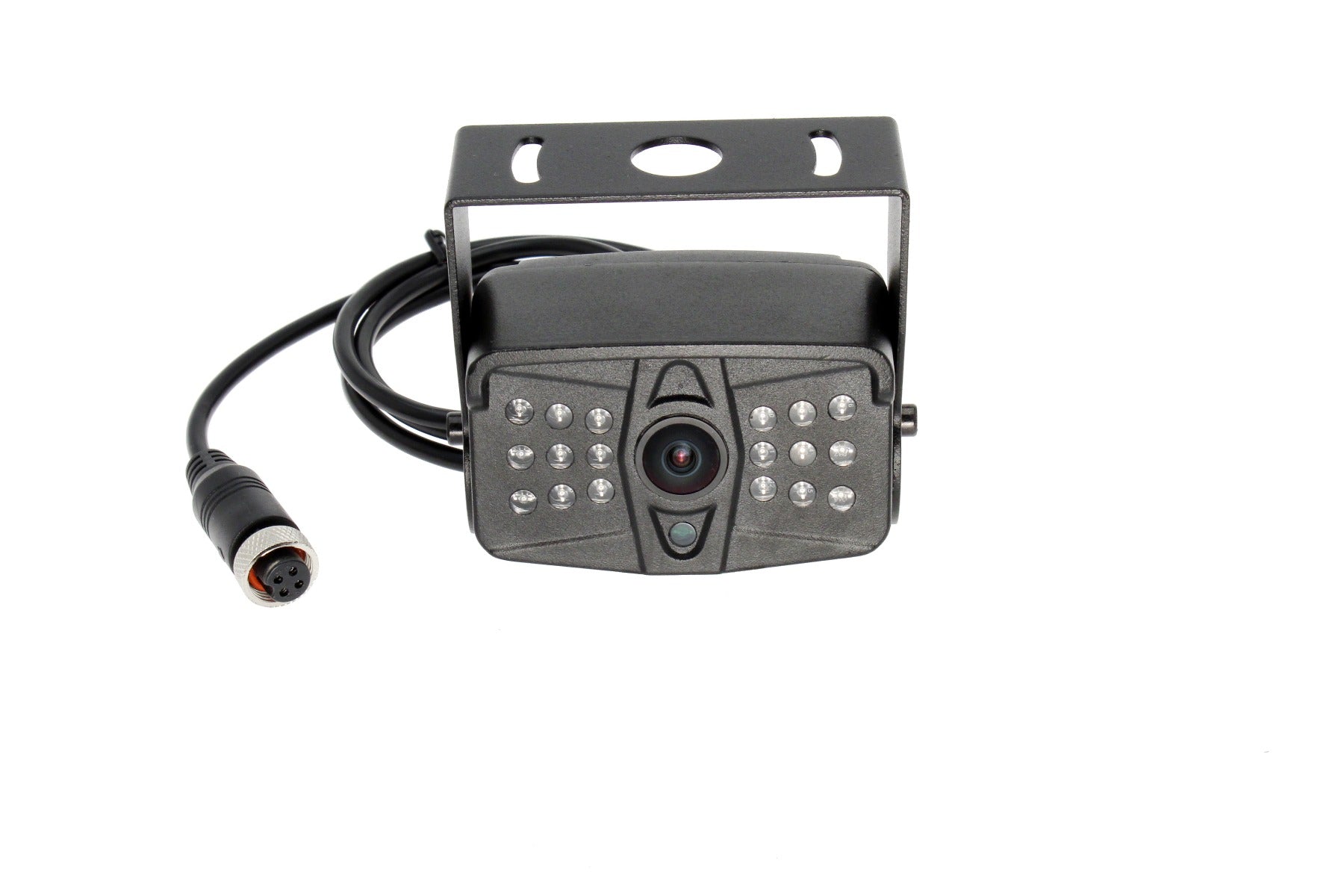

- Heavy duty commercial camera with Sony CCD sensor

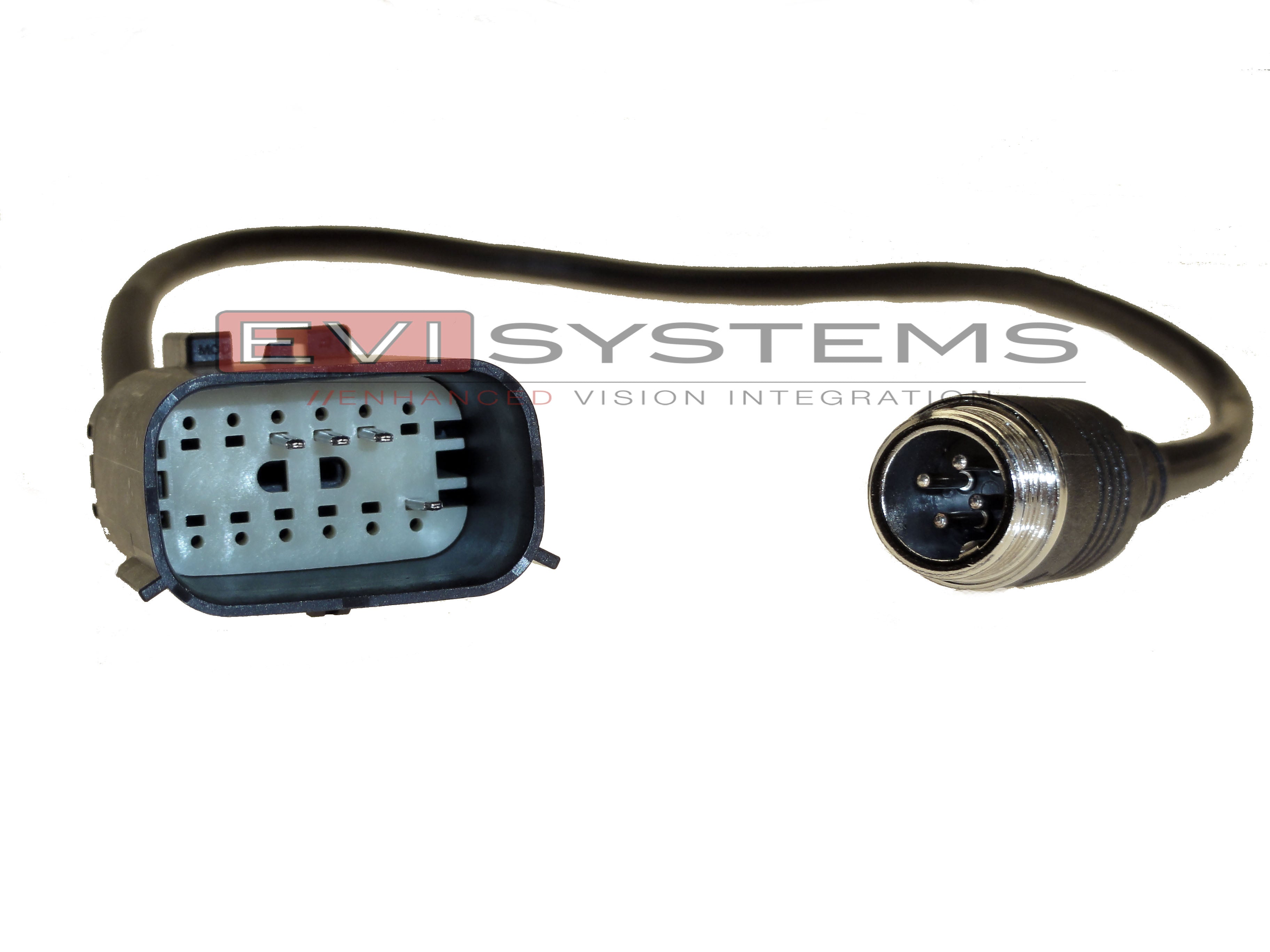

- OEM to commercial coax conversion harness

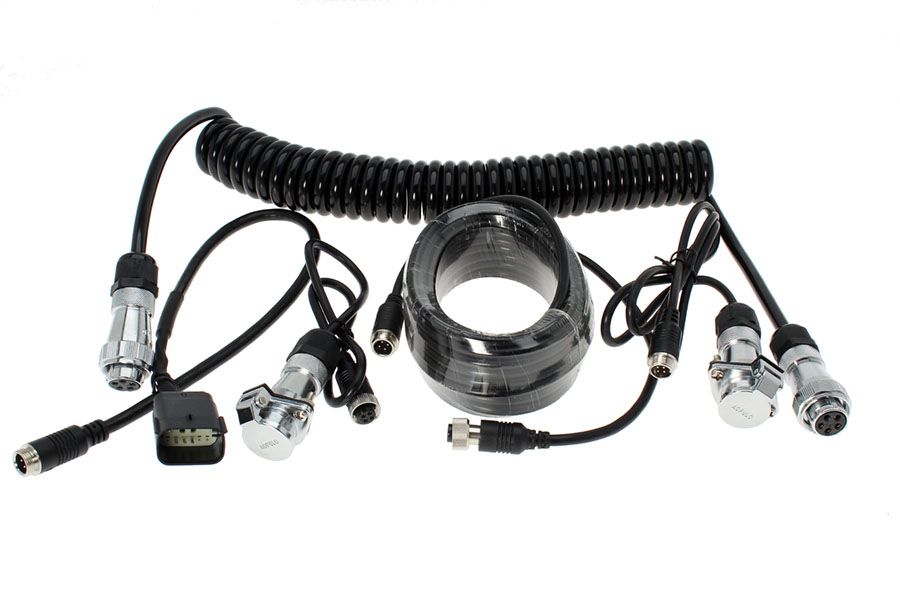

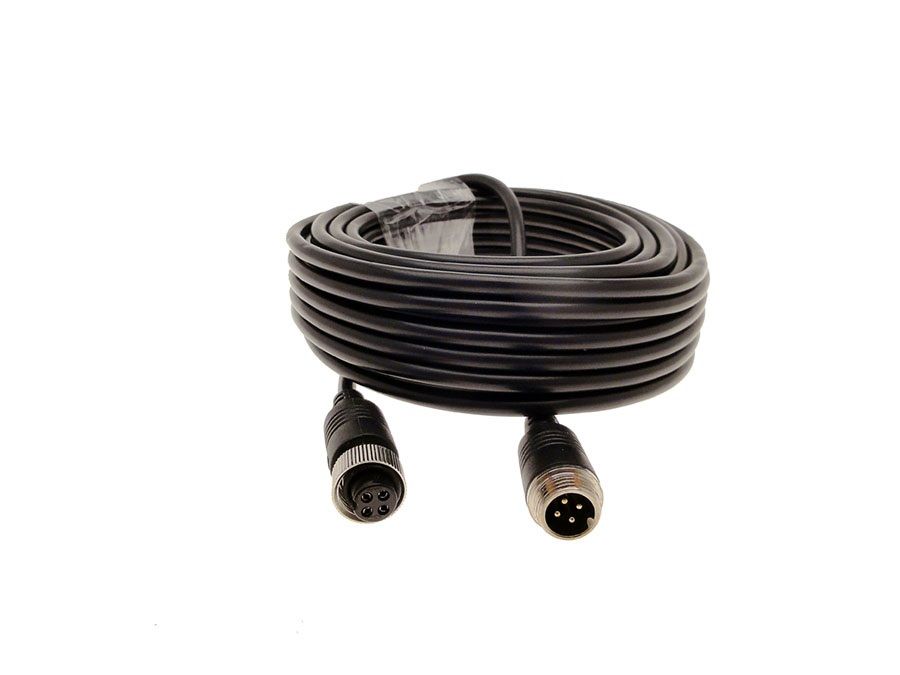

- 32' coaxial wire harness with weather tight connectors (unless other option selected above)
- Camera harness has factory ends for plug and play with your existing wiring

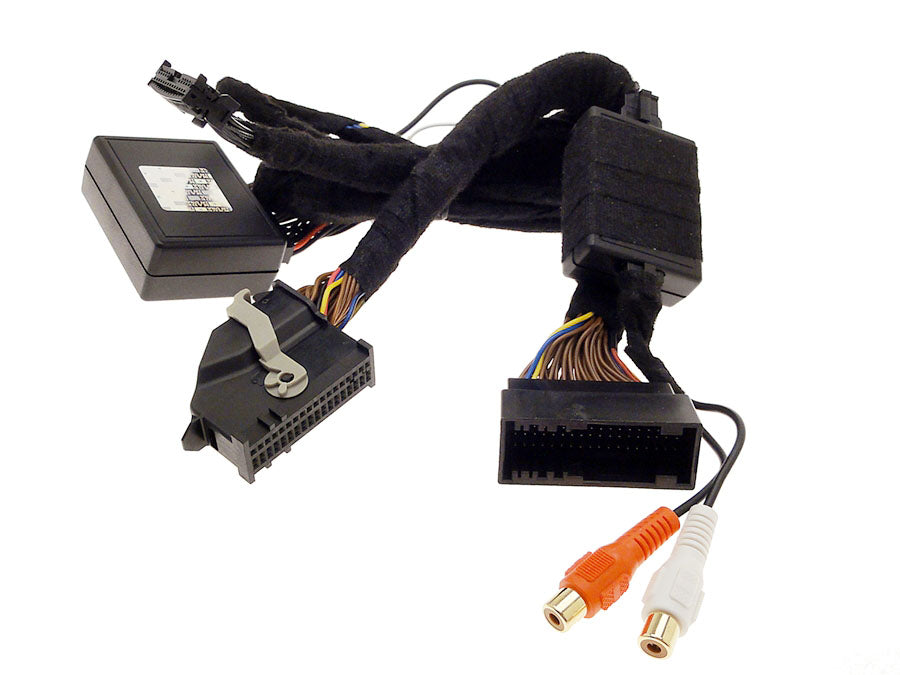

- Camera on Demand module
- One year warranty!
Camera Specifications:
- Sony Ultra CCD for a really clear image
- 19 infra-red LED's that will create a daytime like display even in complete darkness
- 150 degree view
- 700 TV lines of resolution
- 0 lux (no light required to operate)

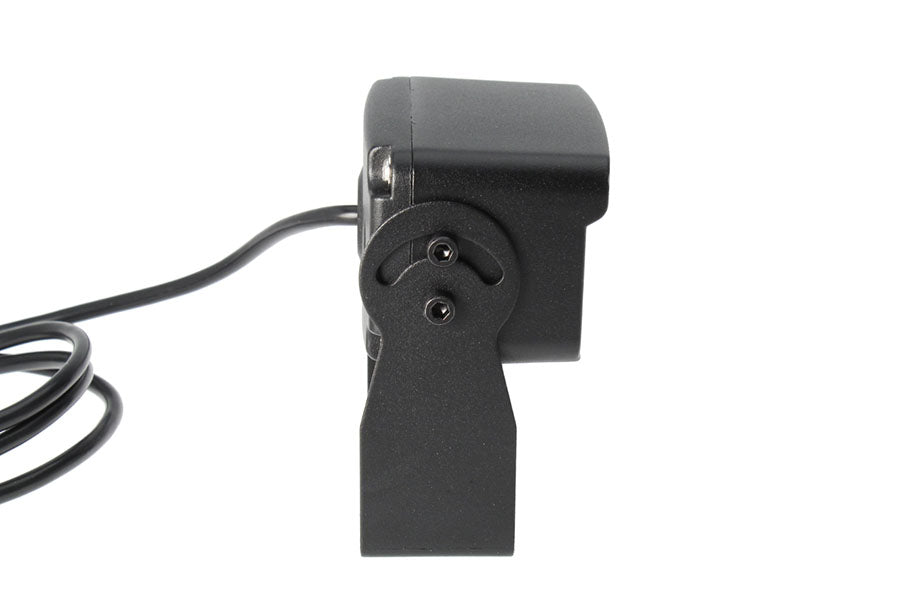

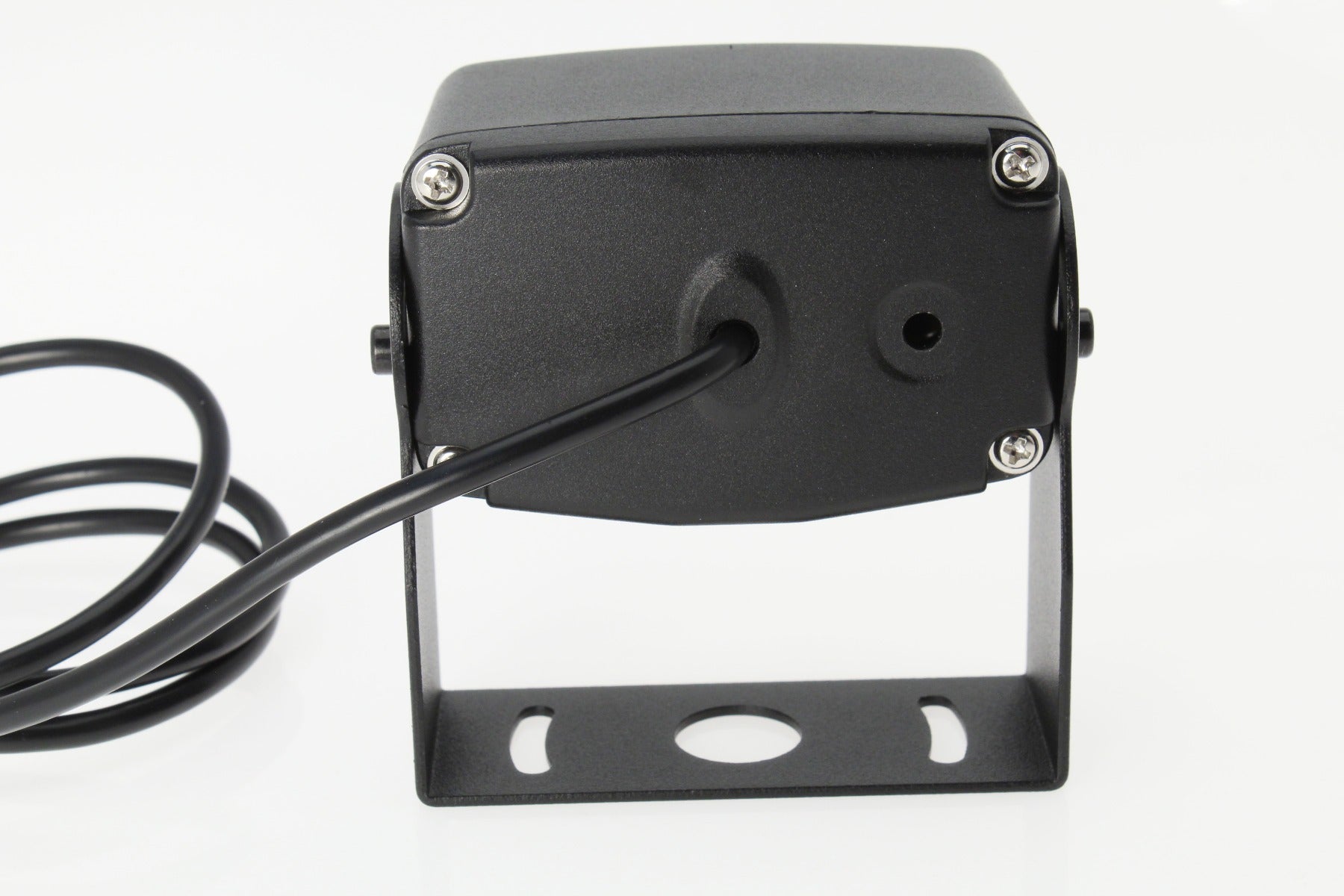

- Heavy cast casing, steel mounting bracket and steel sun shield
- Locking weather tight connector
Click HERE to see a video of the install!
360 Surround View-Camera On Demand Specs:
- NAV Motion Lockout bypass (grants passenger access to navigation menu while in motion). **NOTE** when certain functions are activated (viewing cameras in motion or nav bypass) navigation won't to track / guide properly, disengage function to use the navigation.
- 1 Composite video input (for external video source like: DVD Player, Smartphone Mirroring, etc.).
- View / access front camera, left & right side cameras, cargo camera, rear tail gate camera at higher speeds.
- Left and right turn signals activate OEM left and right side cameras (function can be disabled / enabled).
- Video Interface / Bypass is 100% Plug & Play with vehicle specific harness to ensure OEM wires remain intact and undamaged.
NOTE: This kit will NOT program any camera system. This module is only intended for use in SuperDuty trucks equipped with the OEM trailer package (5-camera system). **NOTE** when certain functions are activated (viewing cameras in motion or nav bypass) navigation won't track / guide properly, disengage function to use the navigation.
Display not included.
**Choose the cable length from the drop down above.
***Choose "Reverse" image camera if you want the image to be mirrored. Choose "Front facing" image for the camera if you will be mounting it in the bed of the truck and want the image to be non-mirrored.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 700 TVL |
| Camera Type | Rear Camera, Trailer/Camper/5th Wheel camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford |
| Camera Mount Location | Camper/Utility Bed, Universal Mount |
| Night Vision | 0 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Not Available |
| Power Supply | 12 Volts |
| Radio Screen Size | 8\ Ford Sync 3 |
| Reason for Shopping | Adding camera(s) |
| Sensor Brand | Sony |
| Sensor Type | CCD |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Video System | NTSC |
| Viewing Angle | 150 Degrees |
| Model | Super Duty |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Factory Plug&Play |
| Year | 2017,2018,2019,2020,2021,2022 |
| Make Filter | Ford |
| Model Filter | Super Duty |
| Year Filter | 2017, 2018, 2019, 2020, 2021, 2022 |
Compatibility
2017-2022 Ford® Super Duty trucks- F250, F350, F450, F550 with the 5 camera/360 degree/birds eye view system from the factory and SYNC 3 version 3.4. If your truck currently does not have version 3.4 you should update the software before installing this module. See vehicle owner's manual for update instructions.
Your truck will only have the 12 pin auxillary camera plug under the spare tire if the truck has the 360 degree/bird's eye view system from the factory.
NOTE: The camera does not provide a 360 degree view.
Installation
Camera installs virtually anywhere. Power is run to the camera through the coaxial cable so it is not necessary to locate power on the trailer or area where the camera is mounted.
This kit allows you to add a trailer camera to your 2017+ Ford® Super Duty factory 8" SYNC 3 radio that has the 360 degree view system from the factory. All plug and play - no cutting of factory wires! Harness plugs into the 12 pin trailer/auxiliary camera connection located under your spare tire.
On Demand camera interface module is plug and play with your factory SYNC 3 display.
**Choose "Reverse" image camera if you want the image to be mirrored. Choose "Front facing" image for the camera if you will be mounting it in the bed of the truck and want the image to be non-mirrored.
Click HERE to see a video of the install.
