Front Camera Kit for SYNC 3, Fits 2017-2021 Super Duty
SKU#: 7CS-17FTRSD-8S3F
Availability:
In Stock
SKU#:
7CS-17FTRSD-8S3F
$656.00
Quantity
Add front cam to SYNC 3 Display!
Description
Can't see over that hood? This is your solution and is a Camera Source exclusive for your 2017-2021 Super Duty with an 8" SYNC 3 display!!

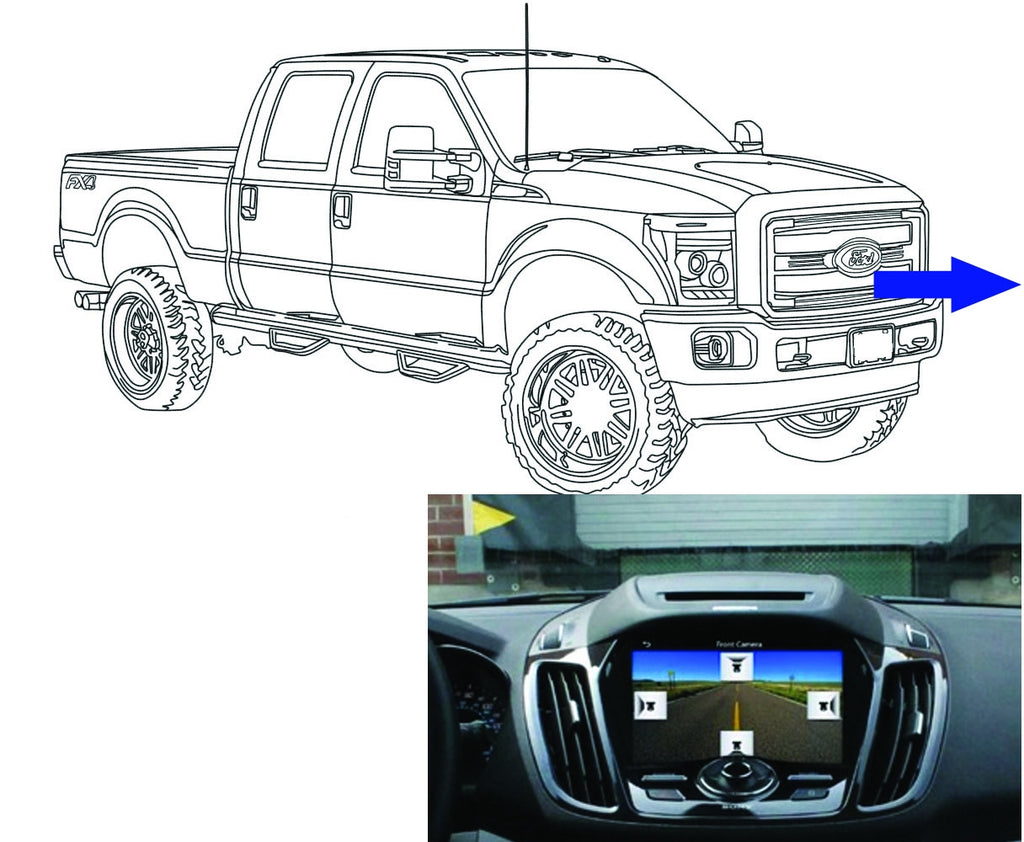

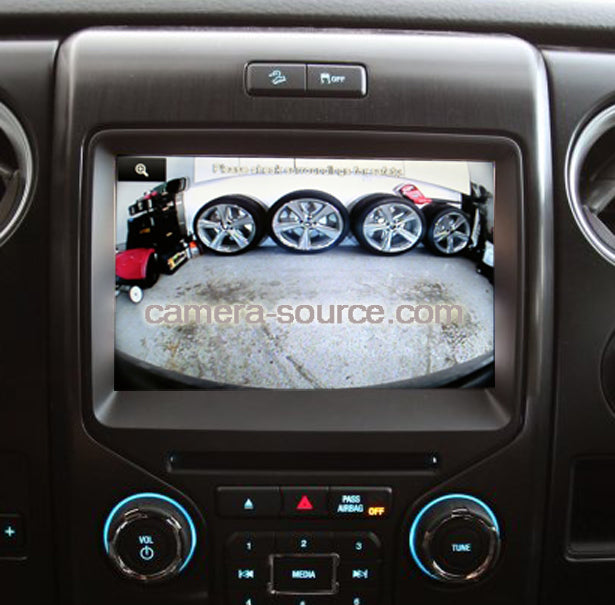

This kit does not require any splicing into factory wiring and will work with a 2017+ Ford® Super Duty truck with an 8" SYNC 3 screen. The multi-cam integration module allows for plug and play integration into your factory screen without having the dealer program your radio. The factory rear camera will come on automatically when in reverse and front camera will come on when you shift from reverse to drive or you can manually activate it using the touchscreen. Factory rear camera not available above speeds of 7mph.

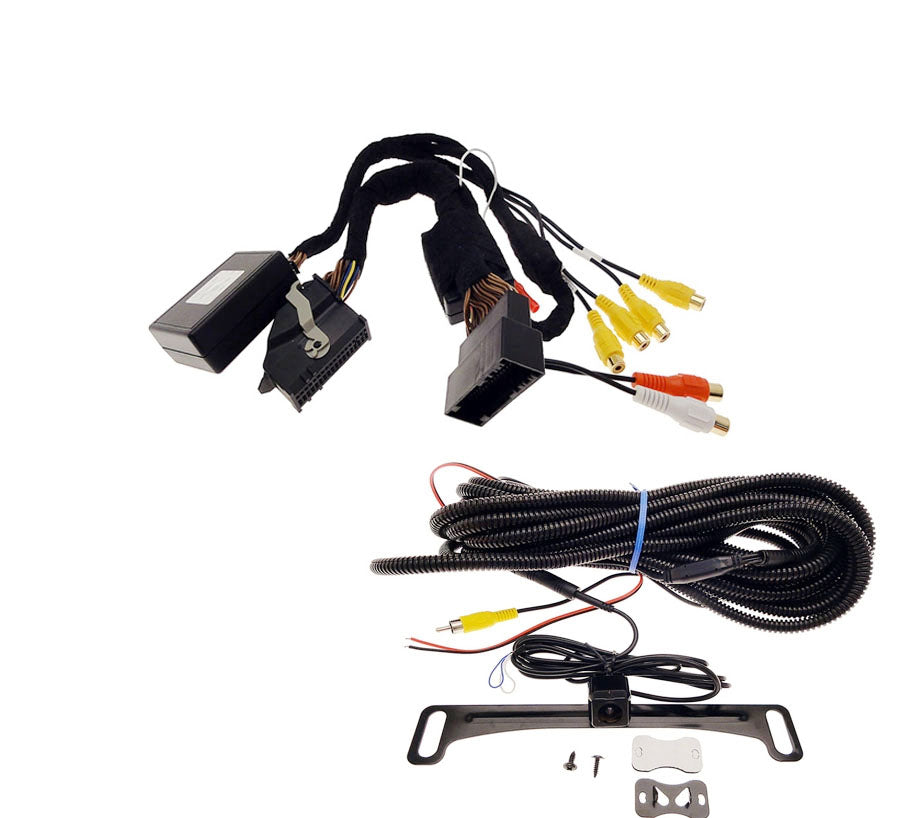

Kit includes:

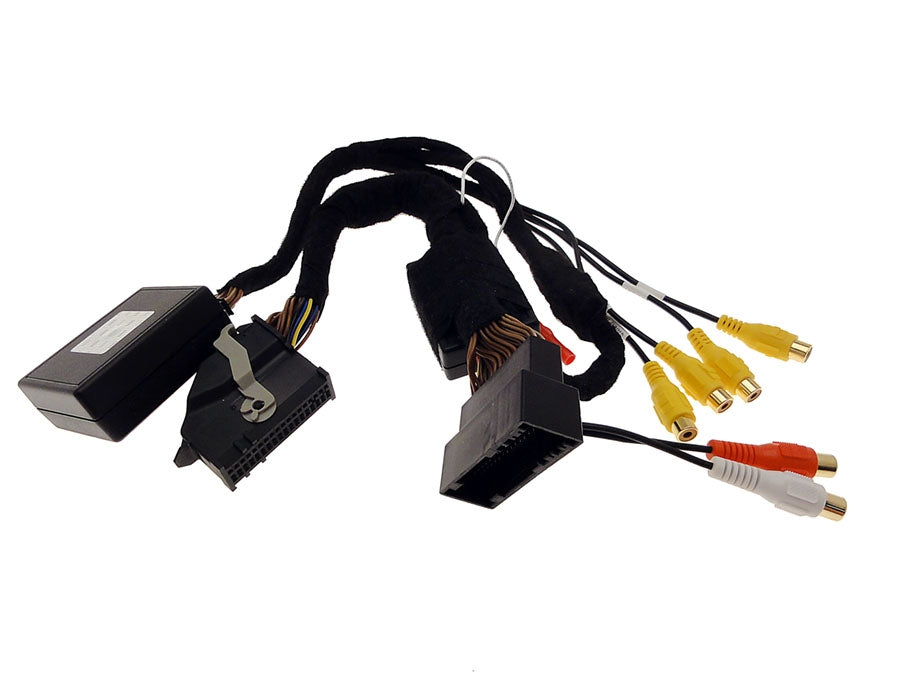

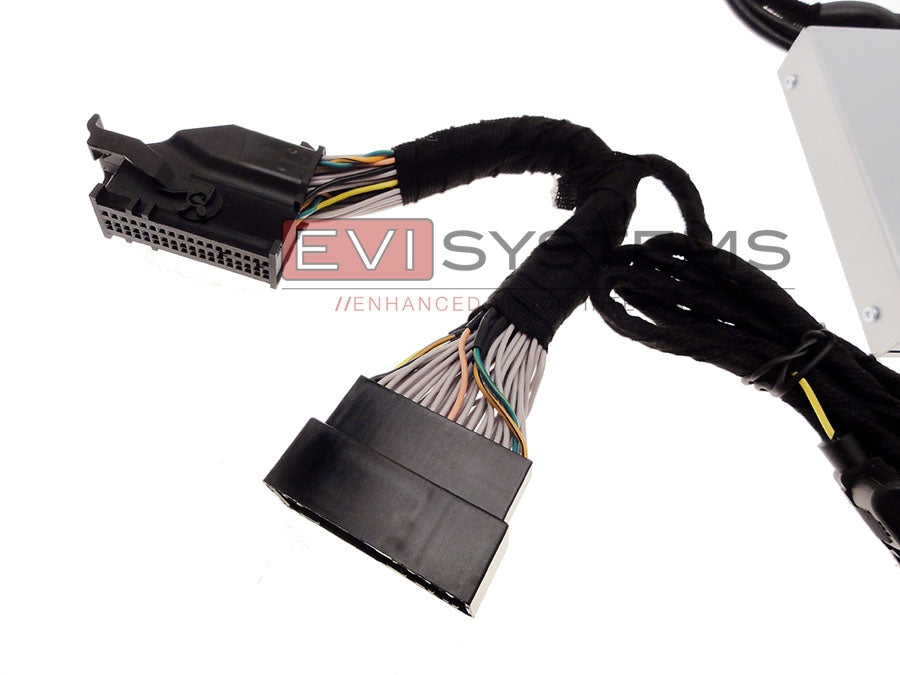

- Multi-cam interface for your SYNC 3 8" factory display (display not included)- plug and play and no dealer flashing required!

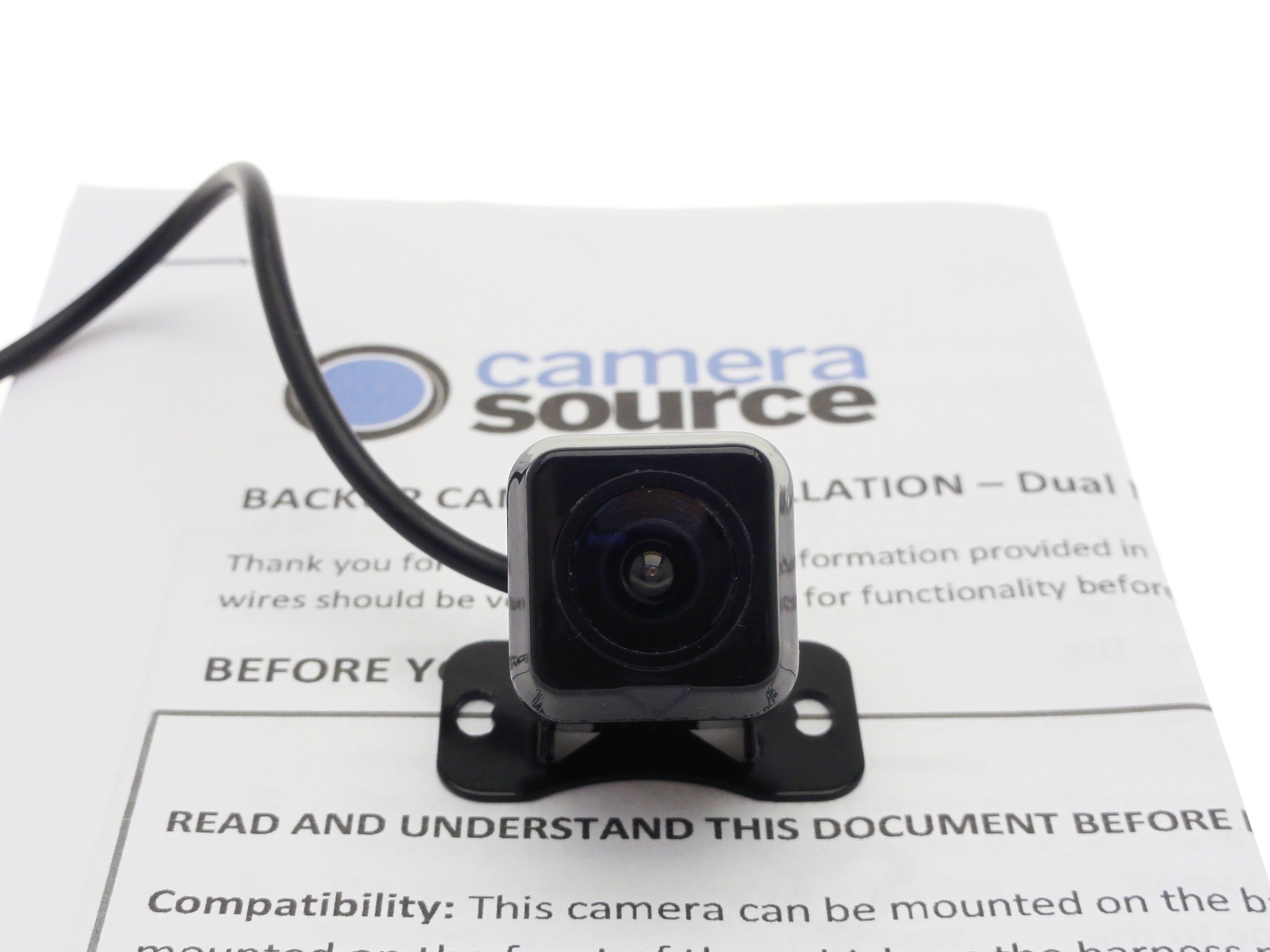

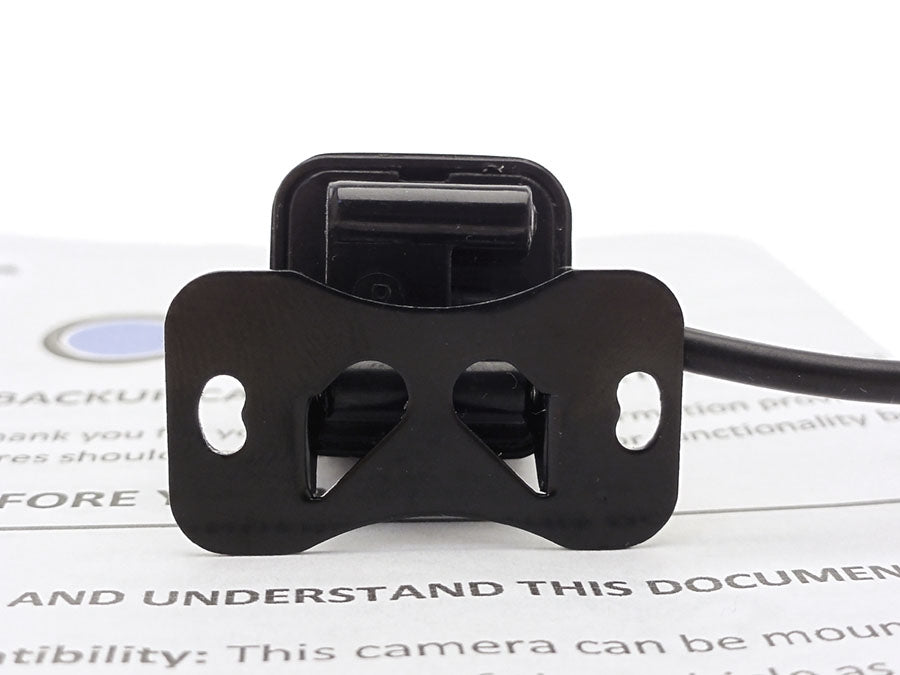

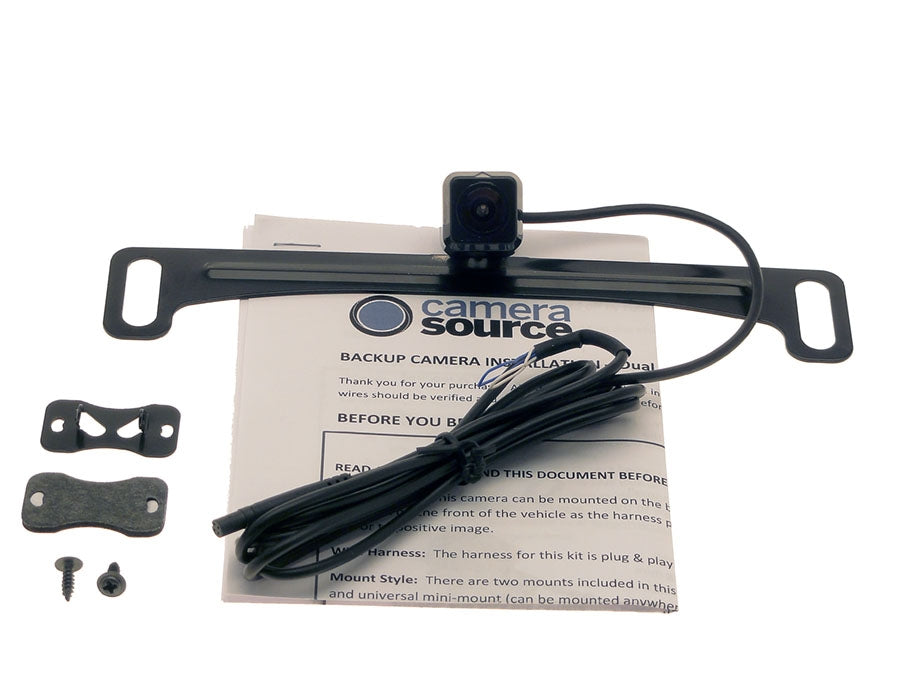

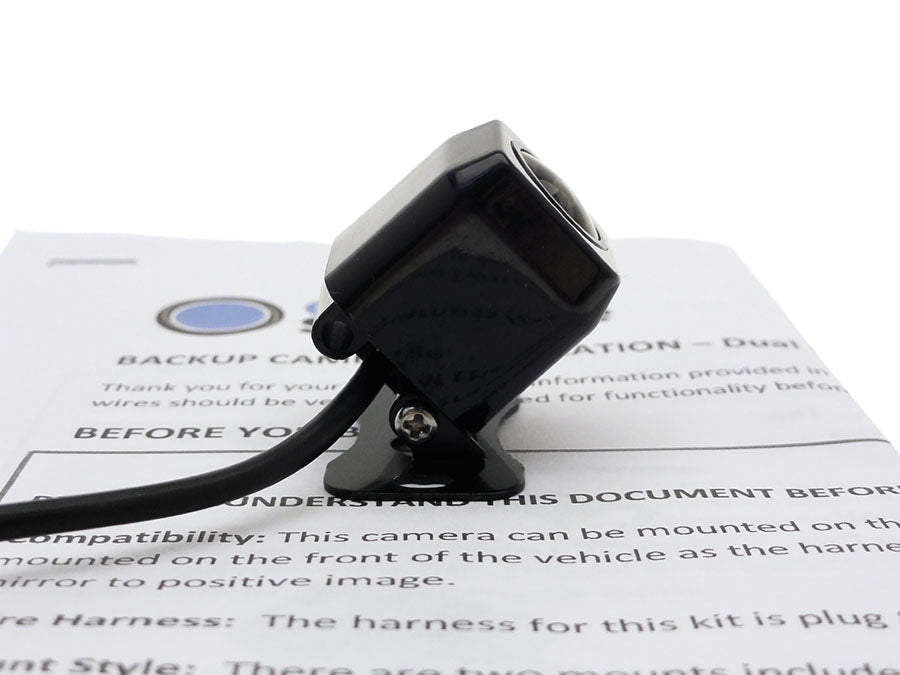

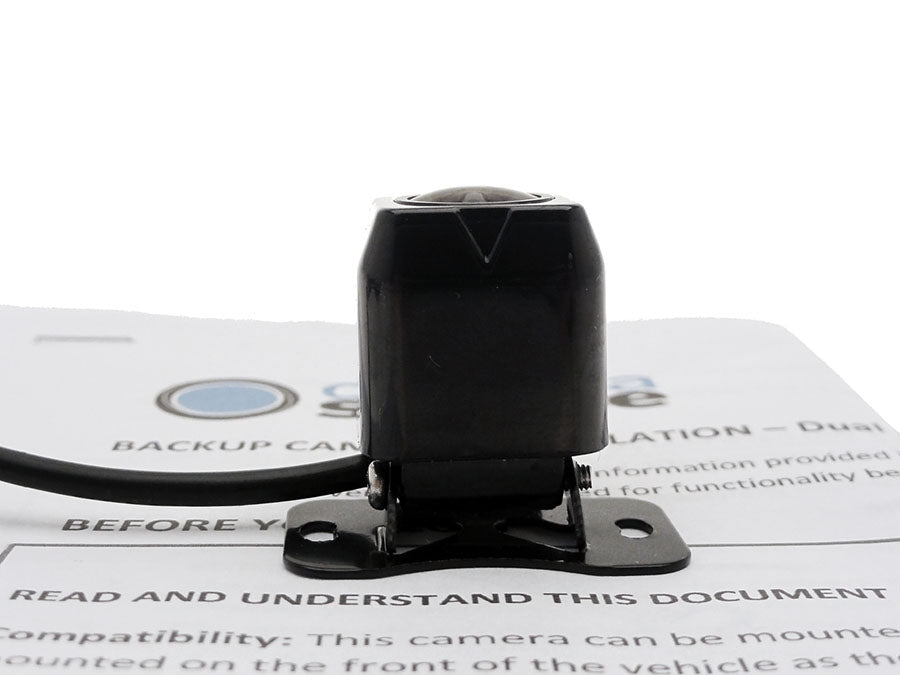

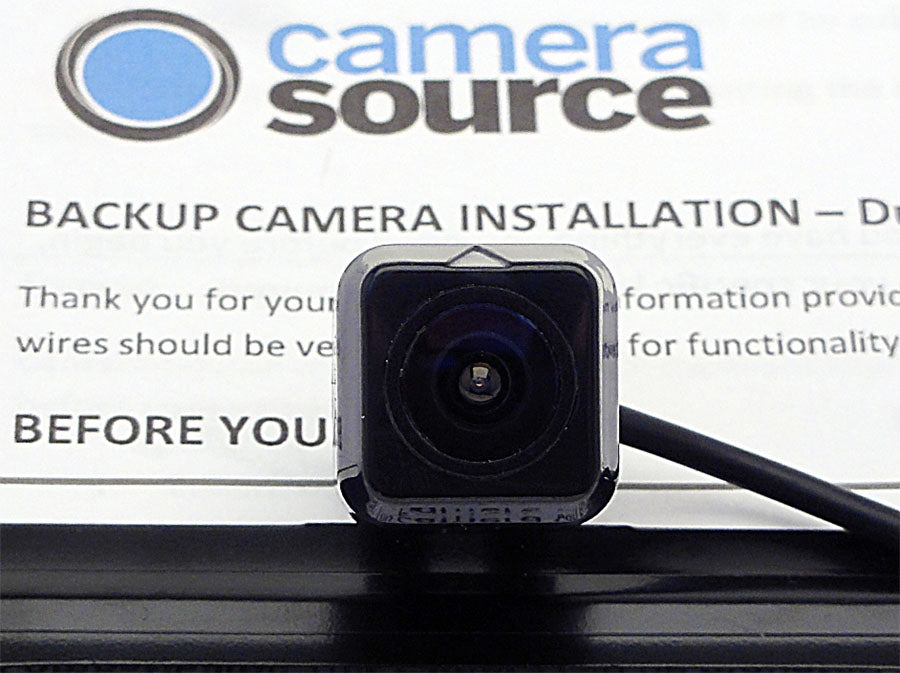

- Universal front camera with harness and dual mount brackets
- Zip ties
- Detailed installation instructions
- 3 year warranty on the camera
Camera Specifications:
- CMOS forward looking camera - designed for front applications
- Side cameras are designed for rear-view applications and can be fully adjusted to meet your view needs
- 150 degree view
- 600 TV lines of resolution
- .2 lux minimum illumination - Outstanding night vision!
Multi Cam interface: The integration module is plug and play with your factory SYNC 3 system. Allows connection of 4 cameras to the factory screen in addition to the OEM backup camera. Also, allows monitoring of any connected camera at any time while driving (not including OEM backup camera). Right and left blind spot camera inputs are automatically triggered by the turn signals. Factory rear camera is not available above 7 mph.
-
Features:
- 1 Composite Video input.
- Left Camera input.
- Right Camera input.
- Front Camera input.
- Rear Camera input.
- Vehicles with OEM rear view camera: OEM rear camera will work as it did before
- Lane Watch Cameras (left & right): Automatically triggered with turn signals.
- Front Camera: Can be triggered at any time in any speed, by a specific button.
- Rear Camera: Aftermarket rear view camera can be triggered at any time in any speed, by a specific button.
- Video in motion function: Allows passenger access to Navigation menu while vehicle is in motion.
- **NOTE** when certain functions are activated (viewing cameras in motion or nav bypass) navigation won't track / guide properly, disengage function to use the navigation.
- Video interface is 100% Plug & Play and requires no wire splicing.
- NO DEALER ACTIVATION REQUIRED!
Composite Video Input: is controlled by the Volume button and is designed for:
***Sold separately***
- 1. DVD
- 2. Game Consoles
- 3. PC’s
- 4. Smartphones / Tablets (Depending on the type of smartphone / Tablet you intend to use a Smartphone Mirror Interface is required and sold separately)
Music or Video playback from Smartphones / Tablets can be achieved with a Smartphone Mirror Interface add-on.(sold separately) - No dealer programming required
*Additional cameras and monitor are not included with this kit. It is designed to work with your existing 8" SYNC 3 factory radio. This kit allows you to see what is directly in front of the truck. This camera comes with a 3 year warranty. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford |
| Camera Mount Location | Front Grille, Universal Mount |
| Night Vision | .1 Lux |
| Camera Orientation | Front Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8\ Ford Sync 3 |
| Reason for Shopping | Adding camera(s) |
| Sensor Brand | EVI Systems |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Super Duty |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Year | 2017,2018,2019,2020,2021 |
| Make Filter | Ford |
| Model Filter | Super Duty |
| Year Filter | 2017, 2018, 2019, 2020, 2021 |
Compatibility
This kit is compatible with 2017-2021 Super Duty trucks with 8" SYNC 3 radio.
2017-2021 F250, F350, F450, and F550
Installation
Front camera mounts to any flat surface and has parking guidelines that can be turned off during installation. You will need to switch it to the forward looking image on the harness during the installation.
The Multi-cam integration module is plug and play with your factory 8" SYNC 3 screen. You will need to remove your factory 8" screen to gain access to the back of the connections. The module will be plug and play and stubs out to a RCA for the camera to connect directly to the screen.
Camera can be powered directly from the interface module. No cutting or splicing of factory wiring!
