Commercial Camera with Programmer Fits 2017-2022 Super Duty Cab and Chassis
SKU#: CS-17SDSK-CCP
Availability:
In Stock
SKU#:
CS-17SDSK-CCP
$378.00
Quantity
Easily add to a Super Duty cab and chassis!
Description
This kit is for Cab and Chassis vehicles only and these are rare so chances are you need the non-Cab and Chassis version. See the compatibility tab for details before purchasing this kit.
This is a plug and play camera kit that will allow you to add a camera to a cab and chassis truck that has been pre-wired at the factory and has a 4.2" or 8" factory display. Your truck must be prewired for a camera or this kit will not work. Please see the compatibility tab for more information!
Use this camera for cab and chassis trucks that did not come with a bed from the factory. Simply mount the camera on any flat surface and run the cable to your factory backup camera connection for a simple and seamless installation. Choose the cable length from the drop down above. The kit also comes with the radio programmer tool so you can turn on the camera function quickly and easily- without having to go to a dealer!

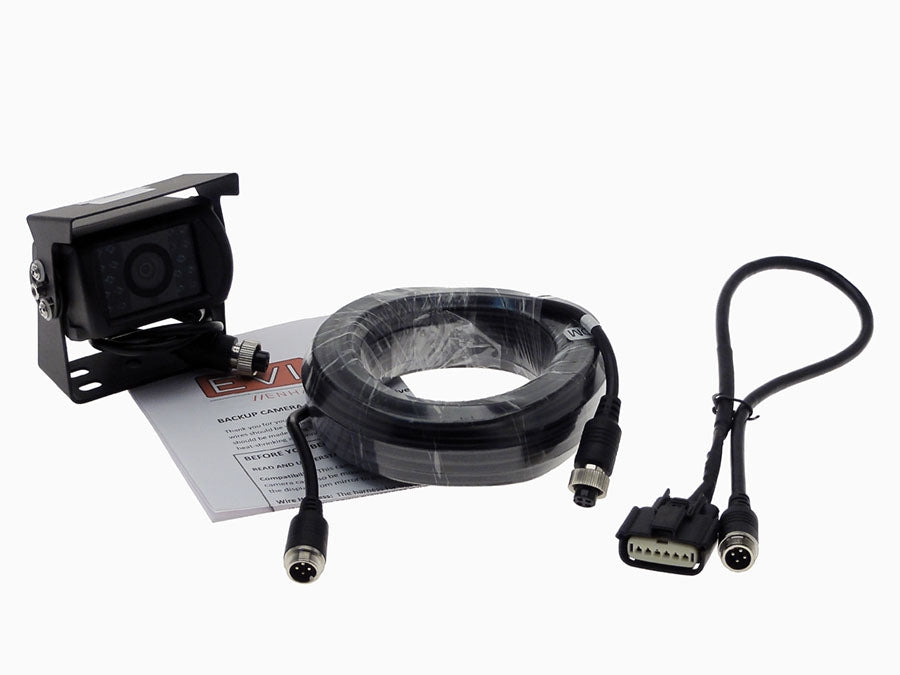

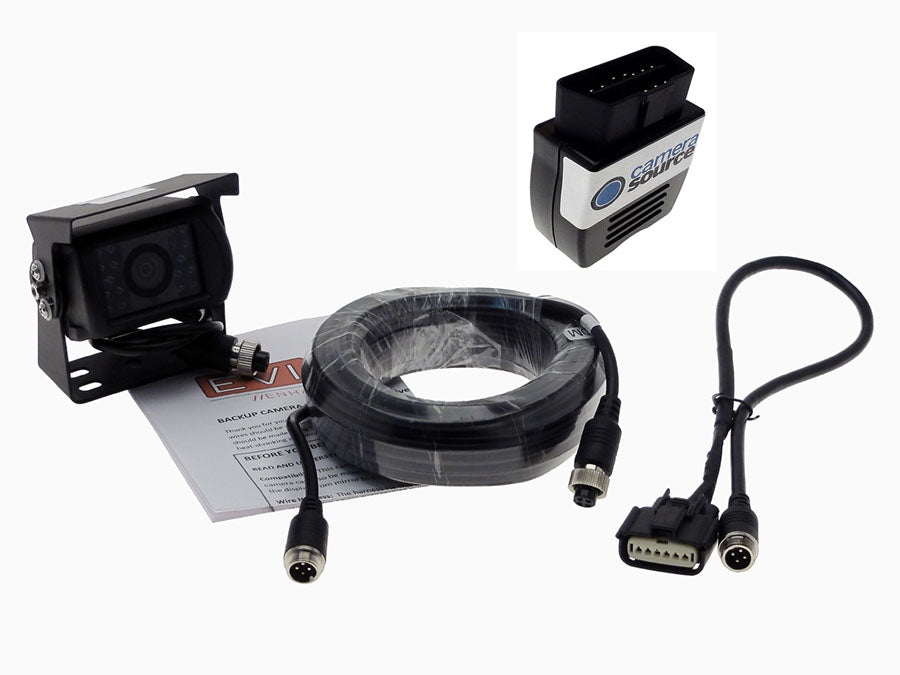

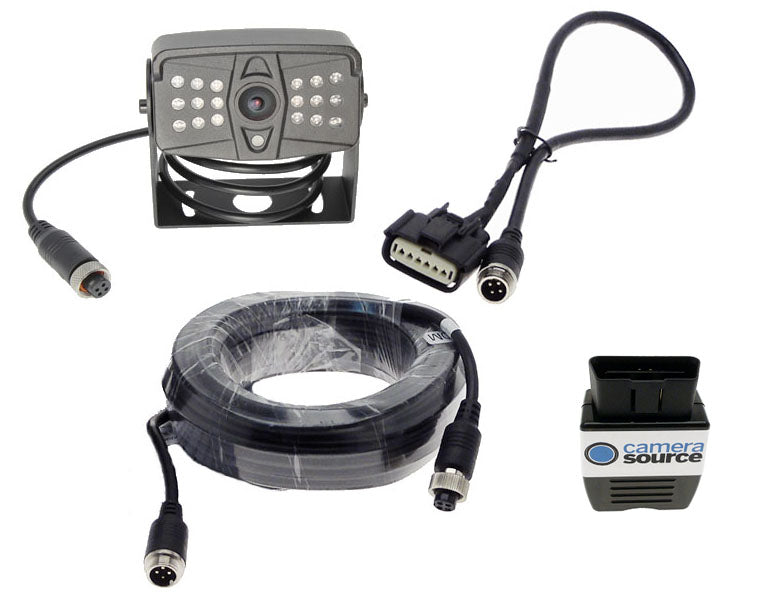

Kit includes the following:

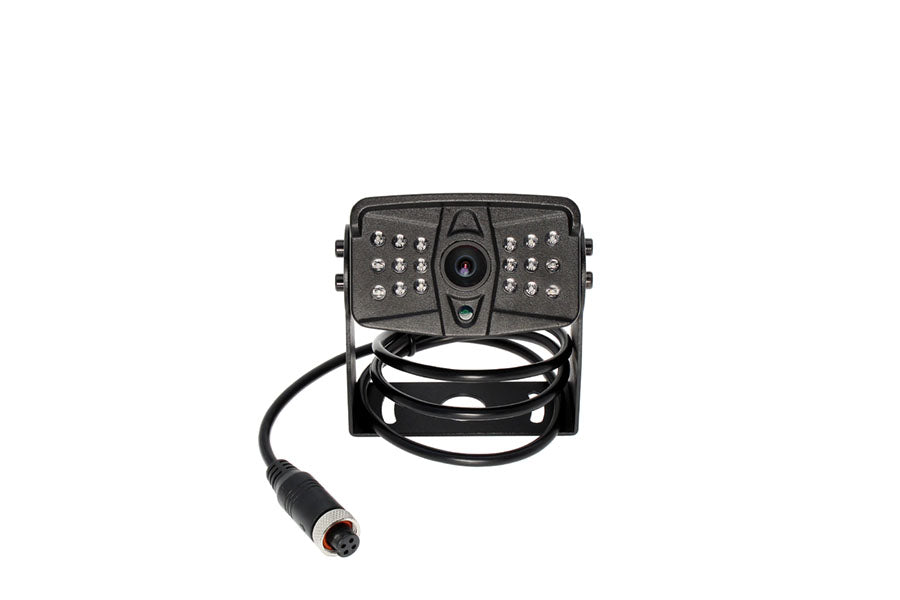

- Heavy duty commercial camera with Sony CCD sensor

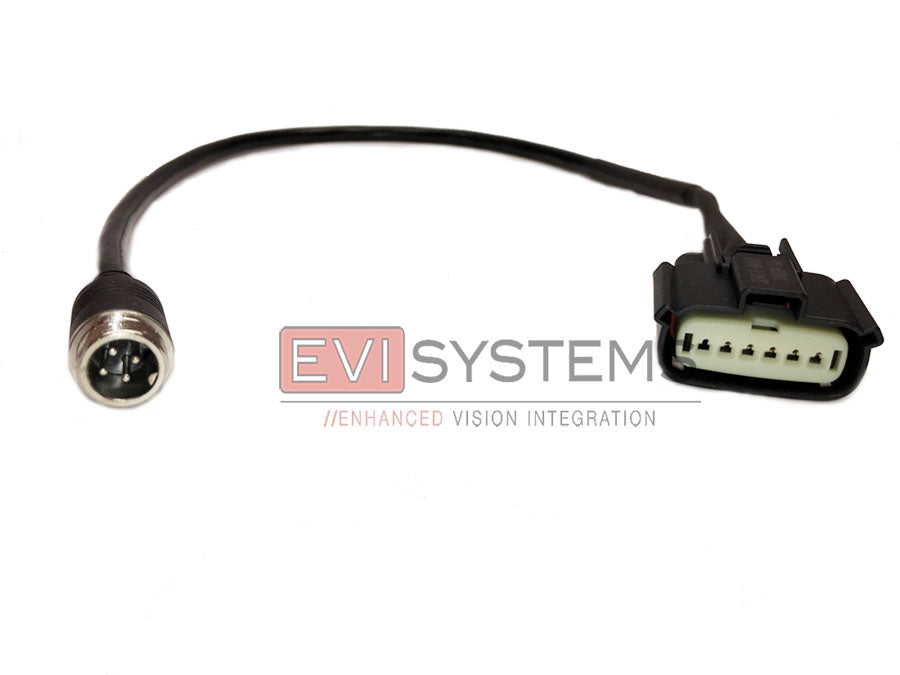

- OEM to commercial coax conversion harness-plug and play!

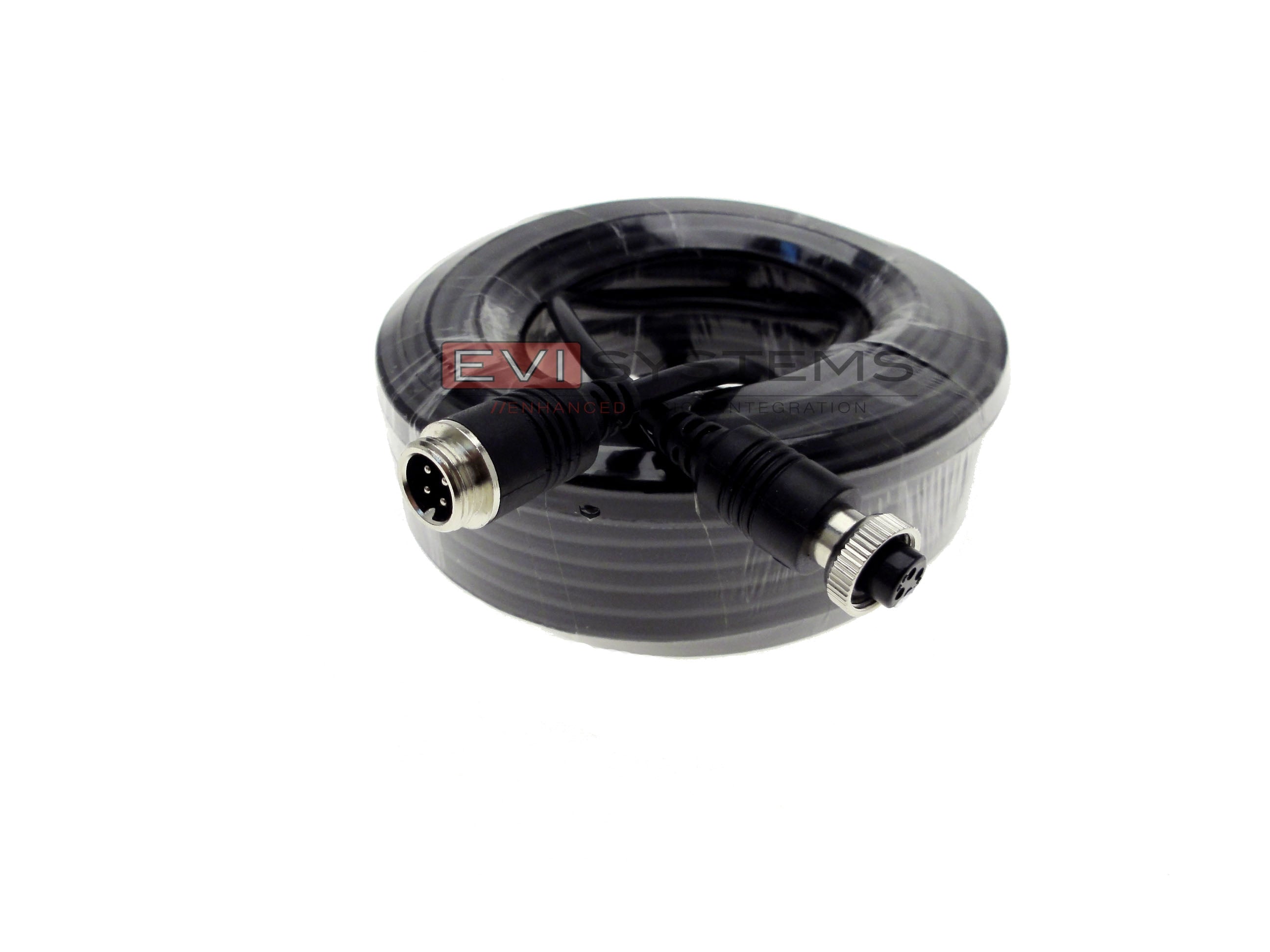

- Coaxial wire harness with weather tight connectors (select length above)
- Camera harness has factory ends for plug and play with your existing wiring.

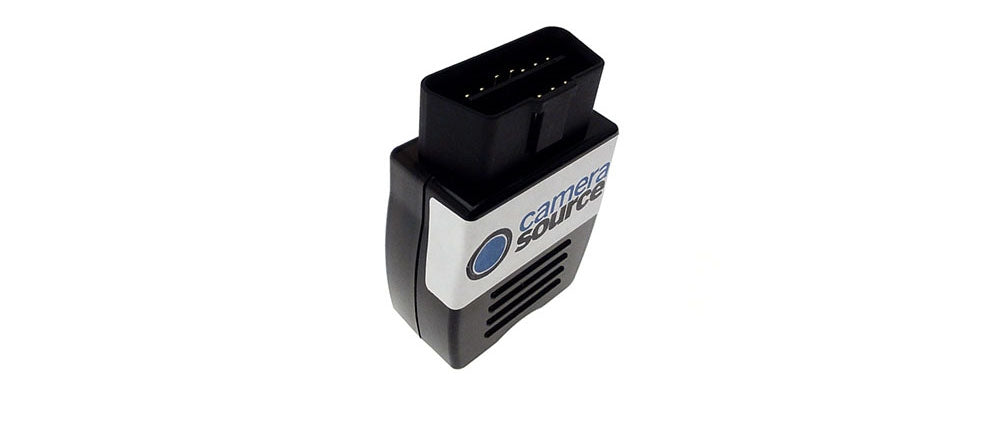

- OBD programmer for 4.2" or 8" factory display. NOT compatible with SYNC 4. See compatibility tab.
Camera Specifications:
- Sony Ultra CCD for a clear image-Infra-red LED's that will create a daytime like display even in complete darkness
- 150 degree view
- 700 TV lines of resolution
- 0 lux (no light required to operate)

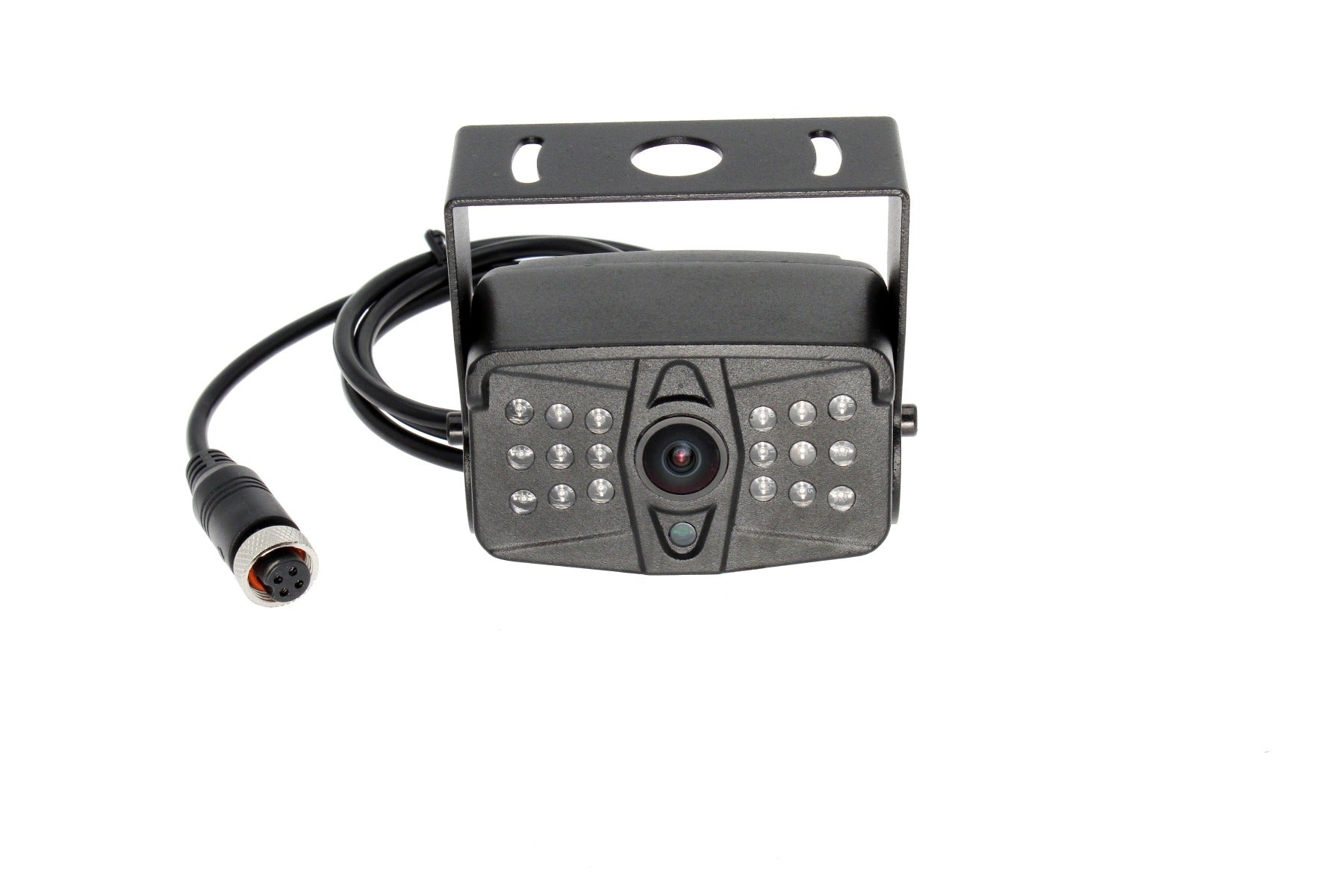

- Heavy cast casing and steel mounting bracket
- Locking weather tight connector
- 1 year camera warranty!
Specifications
| System Manufacturer | EVI Systems |
| Agriculture / Commercial | Commercial |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Utility Bed Camera Systems |
| Cam Only/Complete Kit | Complete Kit |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Factory Connector |
| Make | Ford |
| Camera Mount Location | Camper/Utility Bed, Universal Mount |
| Night Vision | 0 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Not Available |
| Power Supply | 12 Volts |
| Radio Screen Size | Factory LCD |
| Sensor Type | CCD |
| Vehicle Category | Truck, Fleet Vehicle (i.e. cargo van) |
| Video System | NTSC |
| Viewing Angle | 150 Degrees |
| Model | Cab & Chassis |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Factory Plug&Play |
| Year | 2017,2018,2019,2020,2021,2022 |
| Make Filter | Ford |
| Model Filter | Cab & Chassis |
| Year Filter | 2017, 2018, 2019, 2020, 2021, 2022 |
Compatibility
2017-2022 Ford® Super Duty F350, F450, F550 cab and chassis trucks that have been pre-wired for a camera from the factory and have a 4.2" or 8" SYNC 3 display from the factory.
This kit relies on the factory camera chassis harness to operate.
NOT compatible with SYNC 4. See SKU: CS-23SDSK-CCP
See our other Super Duty truck options if your truck came from the factory with a bed and you are removing the bed to add service body, utility bed, dump truck, flat bed, and any other application where you do not have a tailgate. This kit will only work on the trucks that came from the factory without a bed. Please verify the connector shown in the photos against the connector on your truck before ordering. If you are still not sure please call us for assistance.
Installation

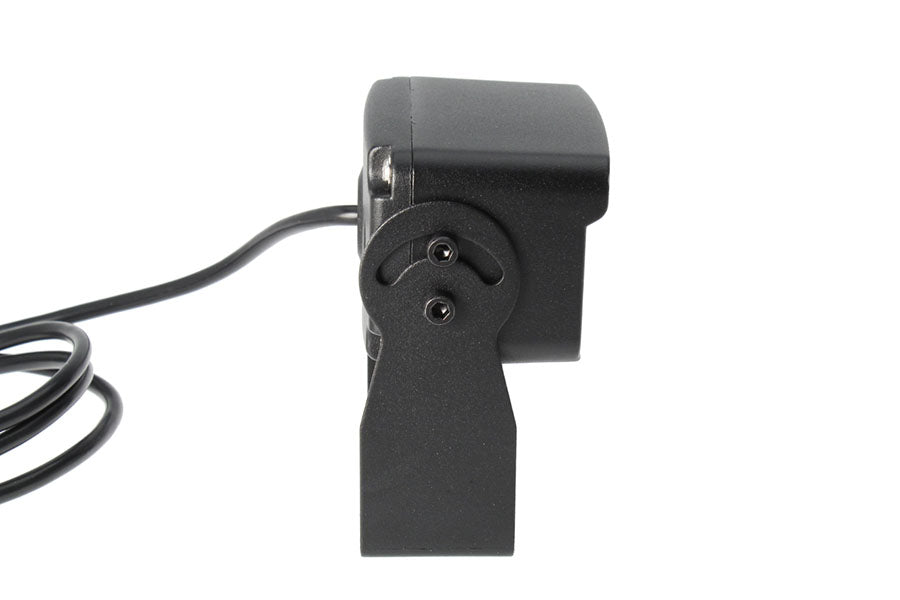

Mount the camera anywhere! Versatile mount allows for surface mount in virtually any location. Camera tilt is adjustable so the view can be adjusted to accommodate any view required! Plug OEM adapter harness into the factory camera harness under the truck.
Plug the OBD programmer into the OBD port. Programming takes less than a minute!
