Backup Camera for 8" SYNC 3 Display, Fits 2017+ Super Duty
SKU#: CS-17FTRSD-OBDS3
Availability:
In Stock
SKU#:
CS-17FTRSD-OBDS3
$635.00
Quantity
Factory OEM handle with Camera!
Description
This is an OEM backup camera solution for your Ford® Super Duty truck with 8" SYNC 3 factory display! This will fit the new generation 2017+ Super Duty pickup trucks as a direct factory replacement handle with pre-mounted CMOS camera. See the bumper and hitch while hooking up trailers! This kit will look like it was installed at the factory, but cost you a fraction of the price!

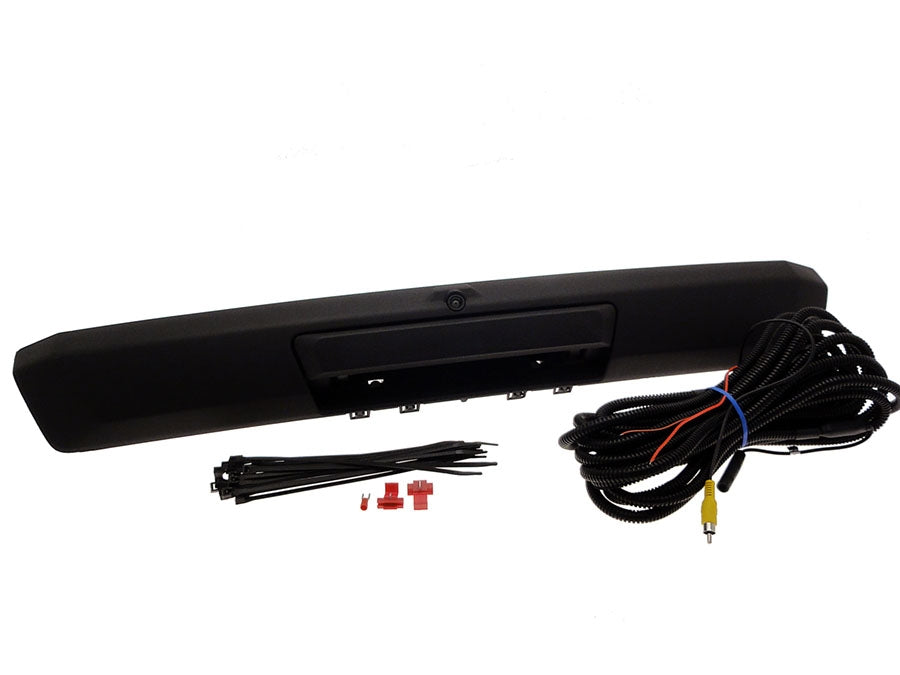

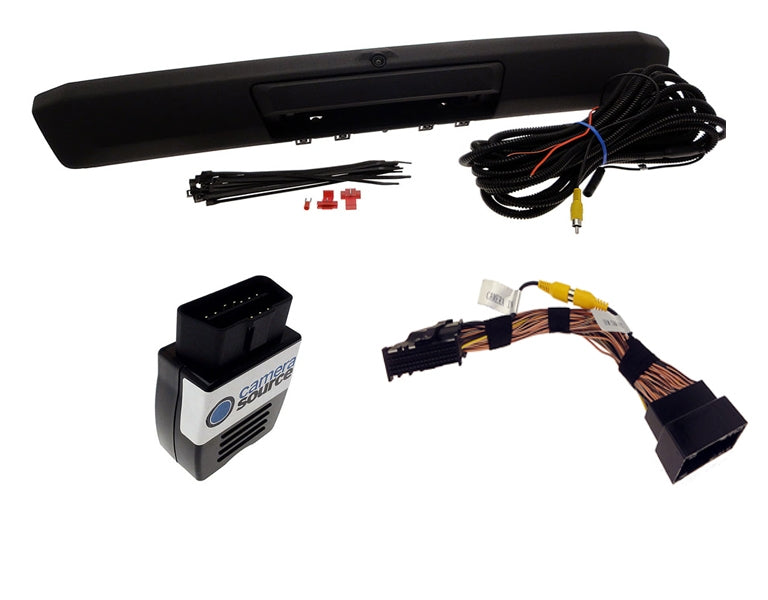

Kit includes:

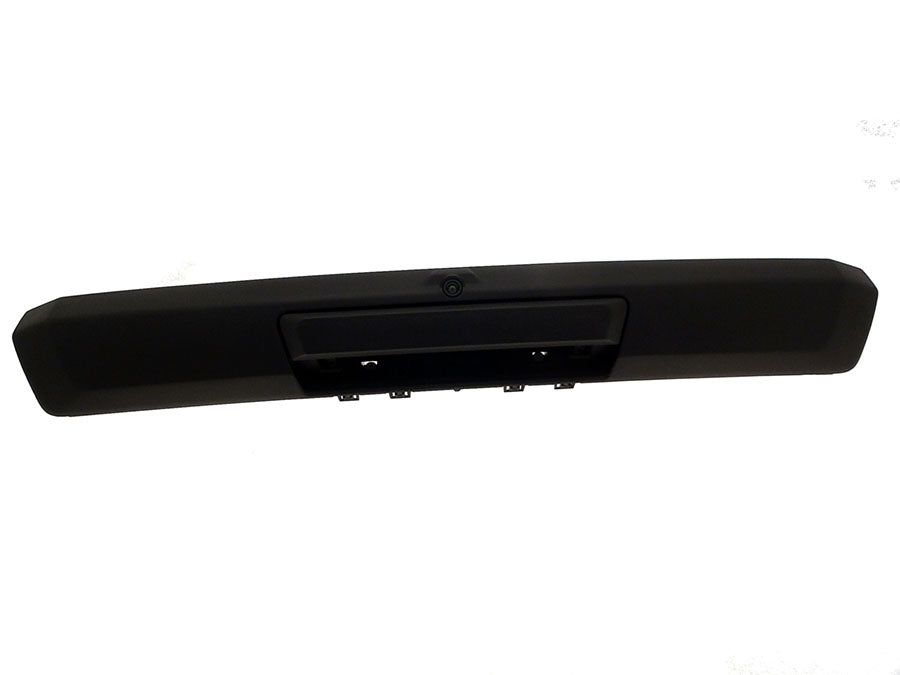

- Super CMOS camera mounted in an OEM Ford® rear handle system. Black handle
- 25' wiring harness-Loomed for extra protection!

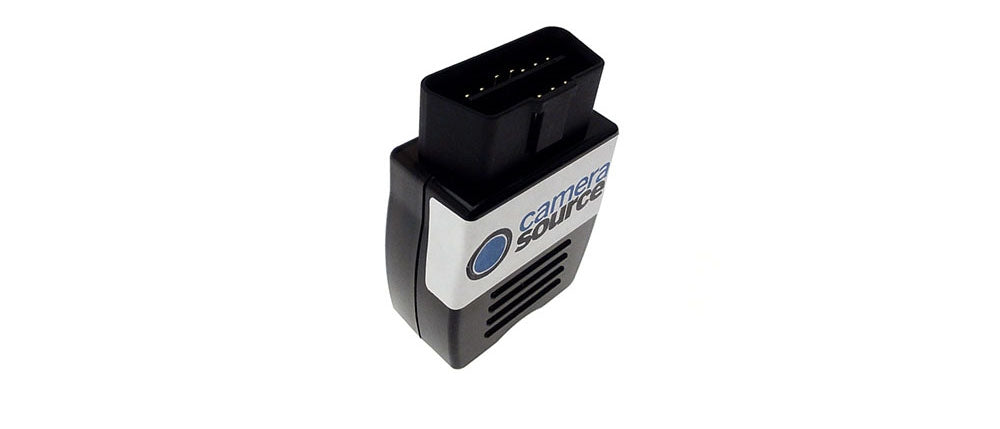

- OBD programmer for radio

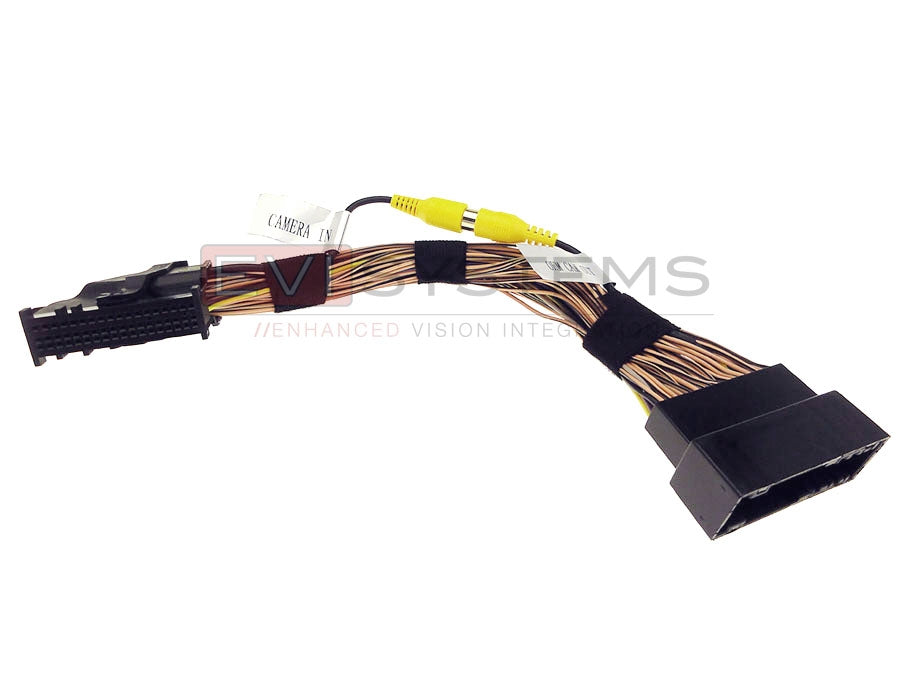

- T-harness to create the camera connection to your factory radio
- Wire connectors
- Zip ties
- Detailed installation instructions
Camera Specifications:
- Sensor: SUPER CMOS
- Resolution: 600 TV lines
- Minimum Illumination: <0.2 Lux
- View Angle: 170
- Working Voltage: DC 9-16V
- Video Color: Full
- Parking Line: On/Off switchable
- Operating Temperature: -30C to +70C
- Water proof: IP67
This kit allows you to see what is directly behind the truck, including the bumper and hitch, and will look like it came from the factory! Camera is secured into the OEM handle using screws, not glue like others out there.
Display is not included as this kit connects to your existing factory display.
This camera comes with a 3 year warranty and is guaranteed to fit or your money back. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your factory display |
| Connection | RCA with opt. Factory Interface |
| Make | Ford |
| Camera Mount Location | Factory Tailgate |
| Night Vision | .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8\ Ford Sync 3 |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Category | Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Super Duty |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2017,2018,2019 |
| Make Filter | Ford |
| Model Filter | Super Duty |
| Year Filter | 2017, 2018, 2019 |
Compatibility
Compatible with 2017+ F250, F350, F450, and F550 with an 8" SYNC 3 display.
Installation

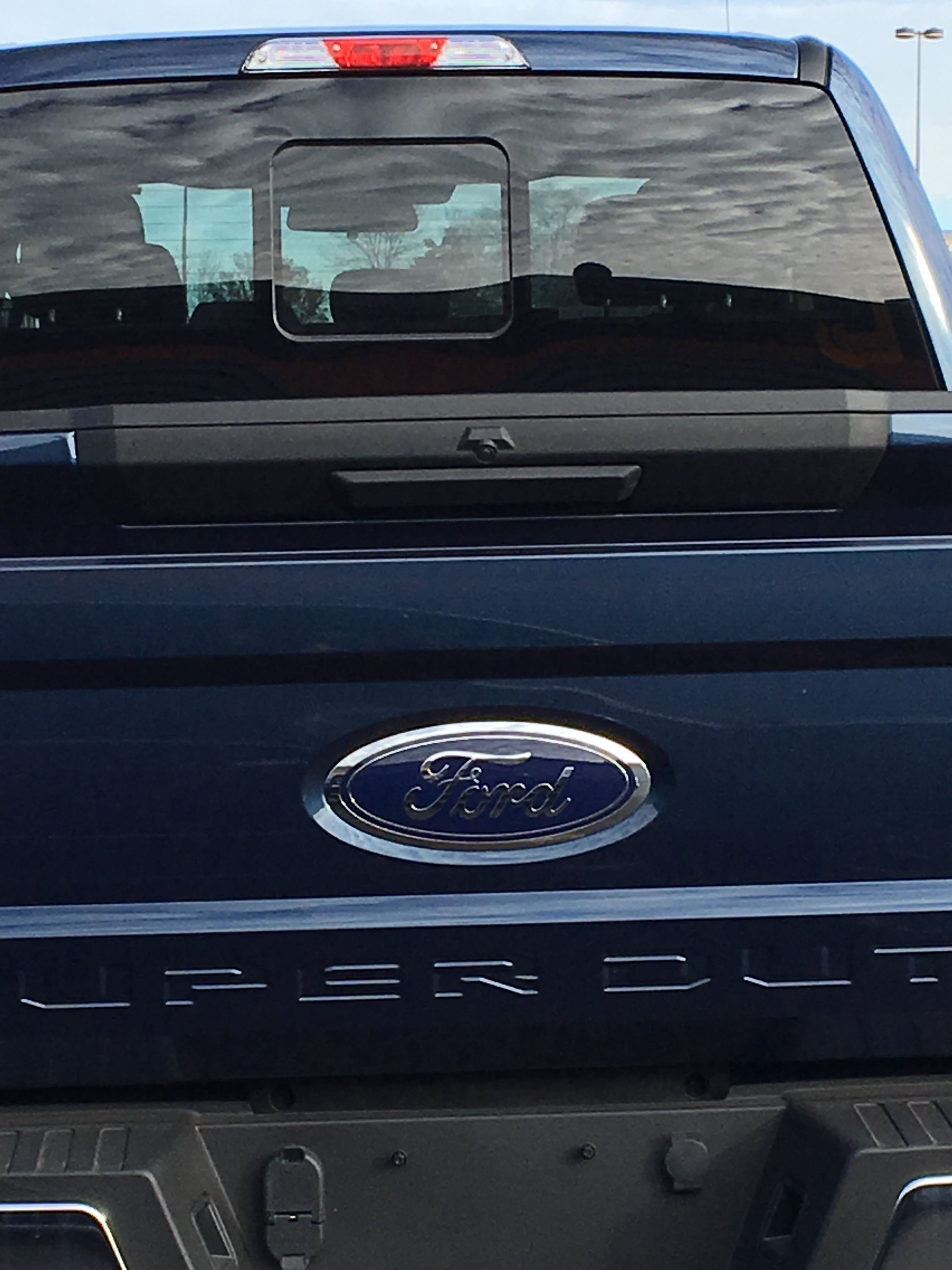

The rear camera kit will replace your factory rear tailgate handle. Route the power/video RCA into the cab. Open the dash to access the back of your factory SYNC 3 display and connect the included T- harness to the display. Connect camera power wire to a 12v reverse power source. Connect black ground wire to a suitable ground on the frame.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
Plug the OBD programmer into your truck's OBD port under the steering column to program the radio. Takes 1-2 minutes to program!
