Backup Camera for RCA Display-Black OEM Handle, Fits 2017+ Super Duty
SKU#: CS-17FTRSD
Availability:
In Stock
SKU#:
CS-17FTRSD
$378.00
Quantity
Black Factory OEM handle with Upgraded Cam!
Description
This is an OEM backup camera solution for your Ford® Super Duty truck ! This will fit the new generation 2017+ Super Duty pickup trucks as a direct factory Ford® replacement handle with pre-mounted Super CMOS camera. This kit will look like it was installed at the factory, but cost you a fraction of the price! See the bumper and hitch while hooking up trailers!

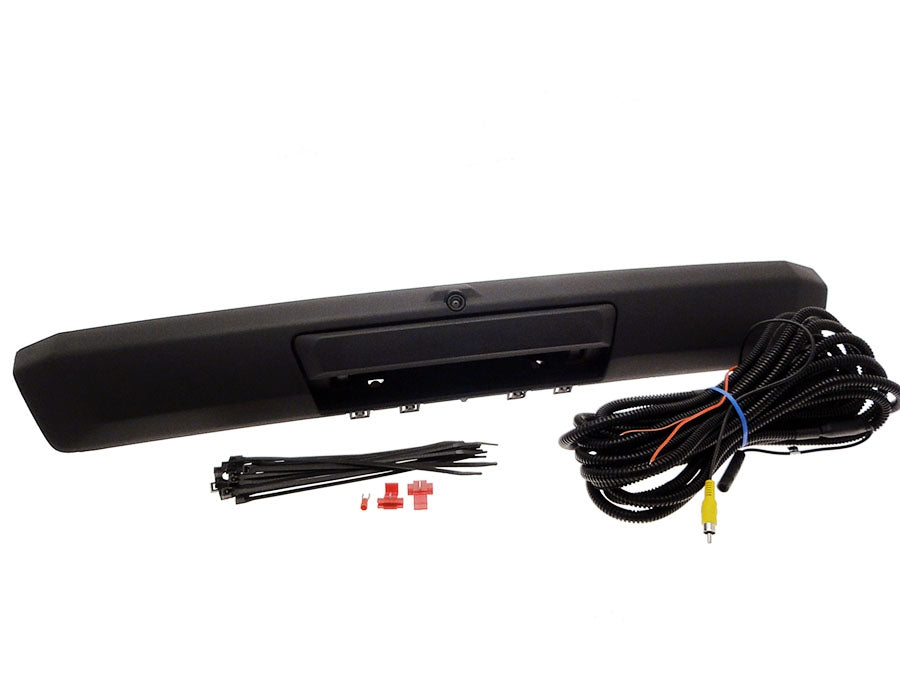

Kit includes:

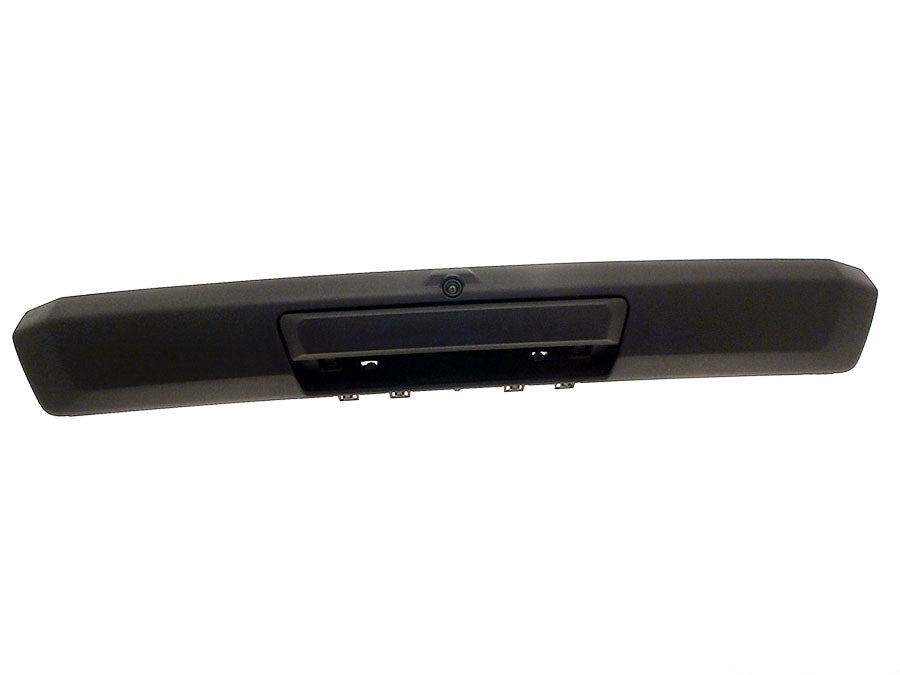

- Super CMOS camera mounted in an OEM Ford® factory rear handle system. Black handle.
- 25' Loomed wiring harness- Extra protection for the wiring!
- Wire connectors
- Zip ties
- Detailed installation instructions
Camera Specifications:
- Sensor: SUPER CMOS
- Resolution: 600 TV lines
- Minimum Illumination: <0.2 Lux
- View Angle: 170
- Working Voltage: DC 9-16V
- Video Color: Full
- Parking Line: On/Off switchable
- Operating Temperature: -30C to +70C
- Water proof: IP67
This kit allows you to see what is directly behind the truck and will look like it came from the factory! This is a high-quality camera that will see the bumper and hitch!

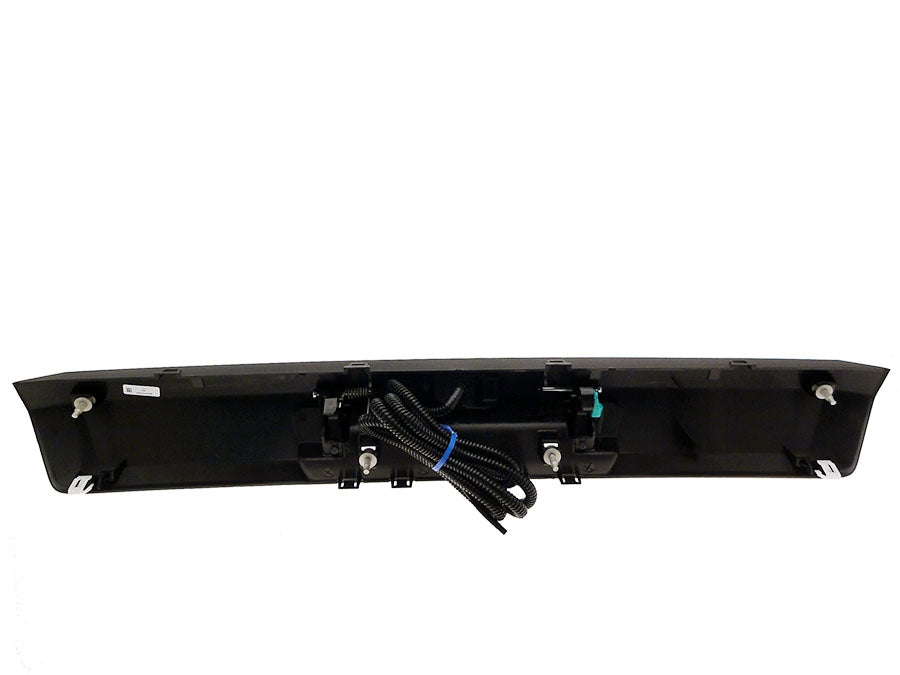

Camera is secured into the OEM handle using screws, not glue like others out there.
Wiring harness terminates in a RCA connection that will connect to an aftermarket display or separate monitor.
No monitor or mirror is included in this kit. We also sell this camera as a bundle with 4.2" and 8" display interface modules.
This camera comes with a 3 year warranty and is guaranteed to fit or your money back. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your aftermarket display (RCA) |
| Connection | Aftermarket Display (RCA) |
| Make | Ford |
| Camera Mount Location | Factory Tailgate |
| Night Vision | .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Not Included |
| Vehicle Category | Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Super Duty |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2017,2018 |
| Make Filter | Ford |
| Model Filter | Super Duty |
| Year Filter | 2017, 2018 |
Compatibility
Compatible with 2017+ F250, F350, F450, and F550 with an aftermarket radio or separate monitor.
**Additional parts required if connecting to a factory radio. See our other kits for bundled pricing.
Installation

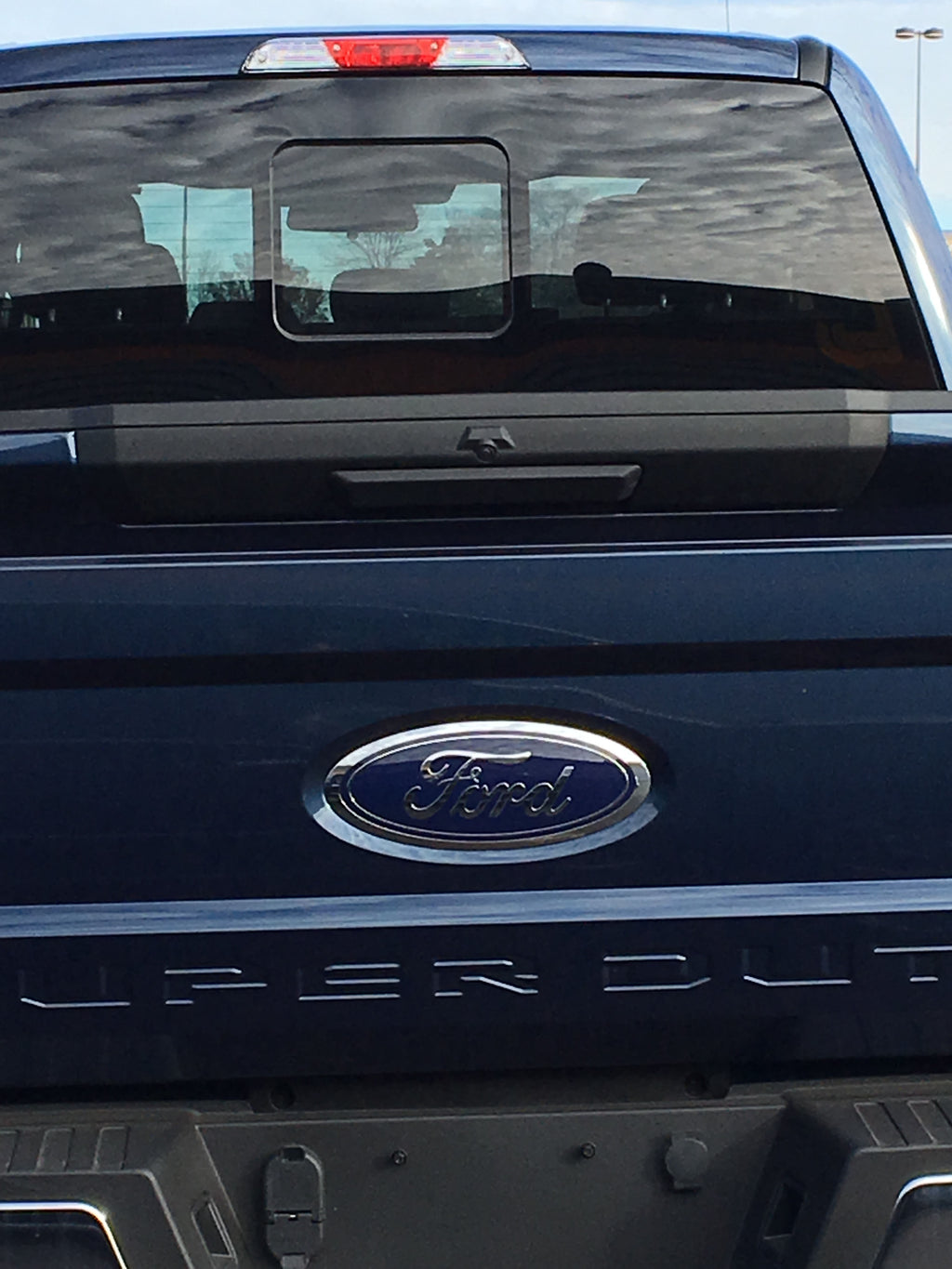

The rear camera kit will replace your factory rear tailgate handle. Route the power/video RCA into the cab and connect to an aftermarket radio or separate display. Connect to a 12v reverse or ACC power source. Connect to a suitable ground.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
