Front camera for 7" IOB systems, Fits 2016-2018 Sierra, Silverado
SKU#: CS-16GMTR-7F4
Availability:
In Stock
SKU#:
CS-16GMTR-7F4
$454.00
Quantity
Front cam for factory 7" screen!
Description
Can't see over that hood? This is your solution and is a Camera Source exclusive for your 2016-18 GM® truck with 7" IOB screen that will allow you to see forward in tight spaces! The screen interface provides multi-cam support so you can add up to 4 total cameras to your factory 7" IOB display screen!
This camera kit is the perfect solution for those who own a 2016-2018 GM® truck with the 7" IOB screen and want a front view camera. The kit comes with a universal front camera. Comes with all the wiring and OEM screen integration harness needed to interface directly with your IOB system with no dealer flashing required. This system will also enable the steerable parking guidelines directly into your screen!

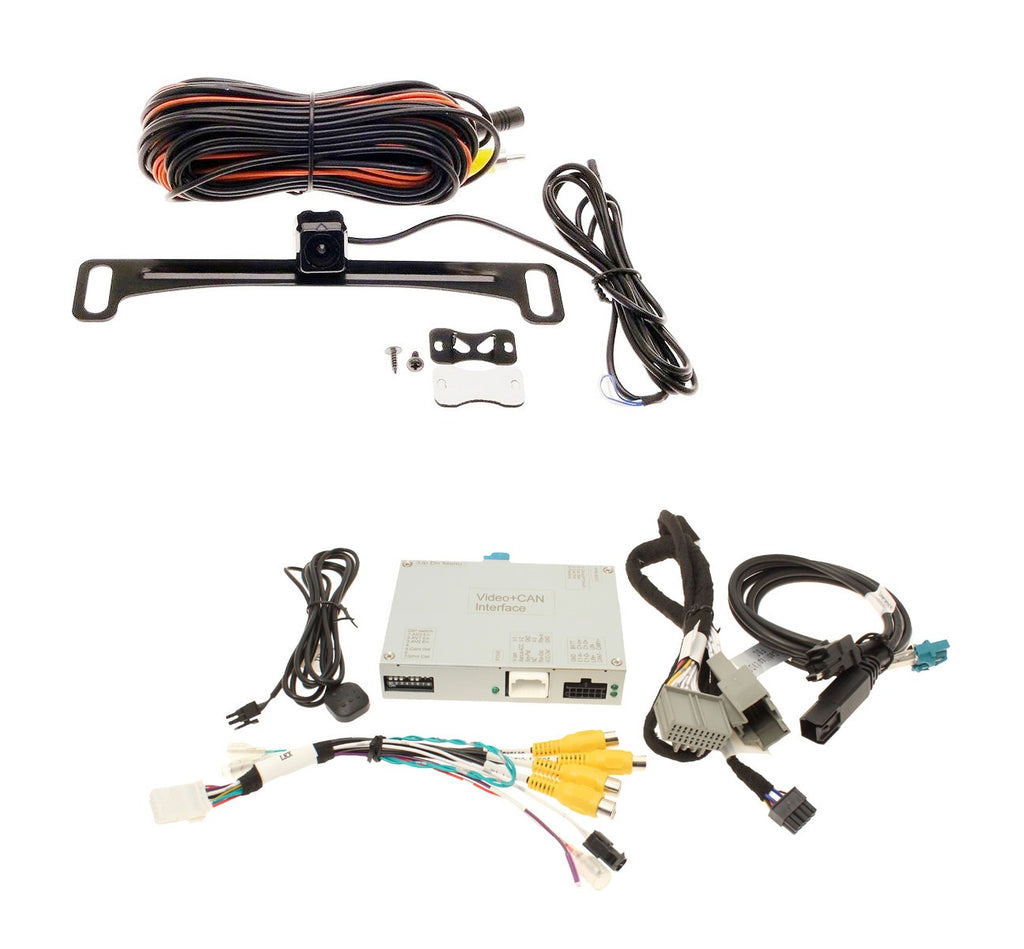

The kit comes with the following:

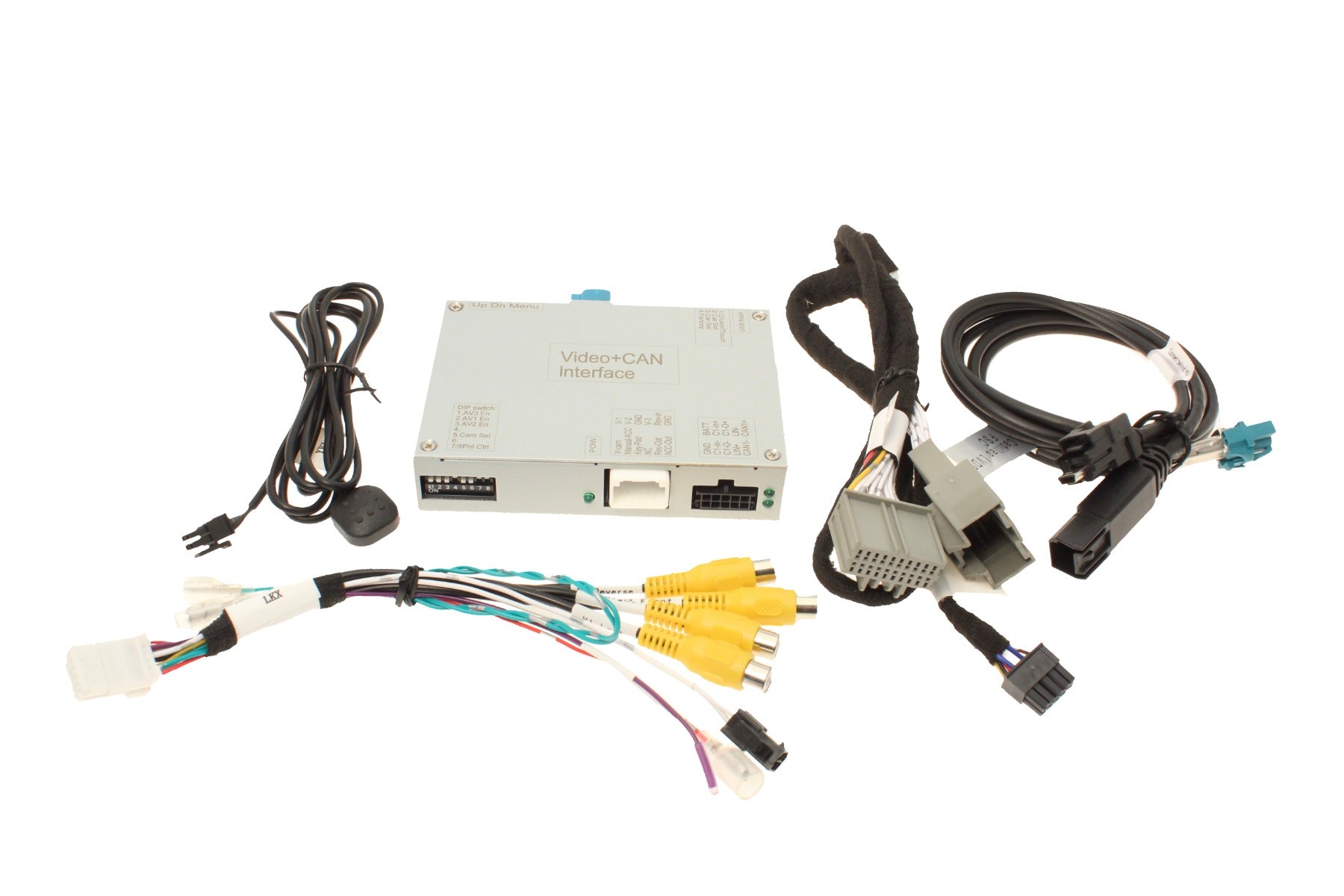

- IOB integration harness and module

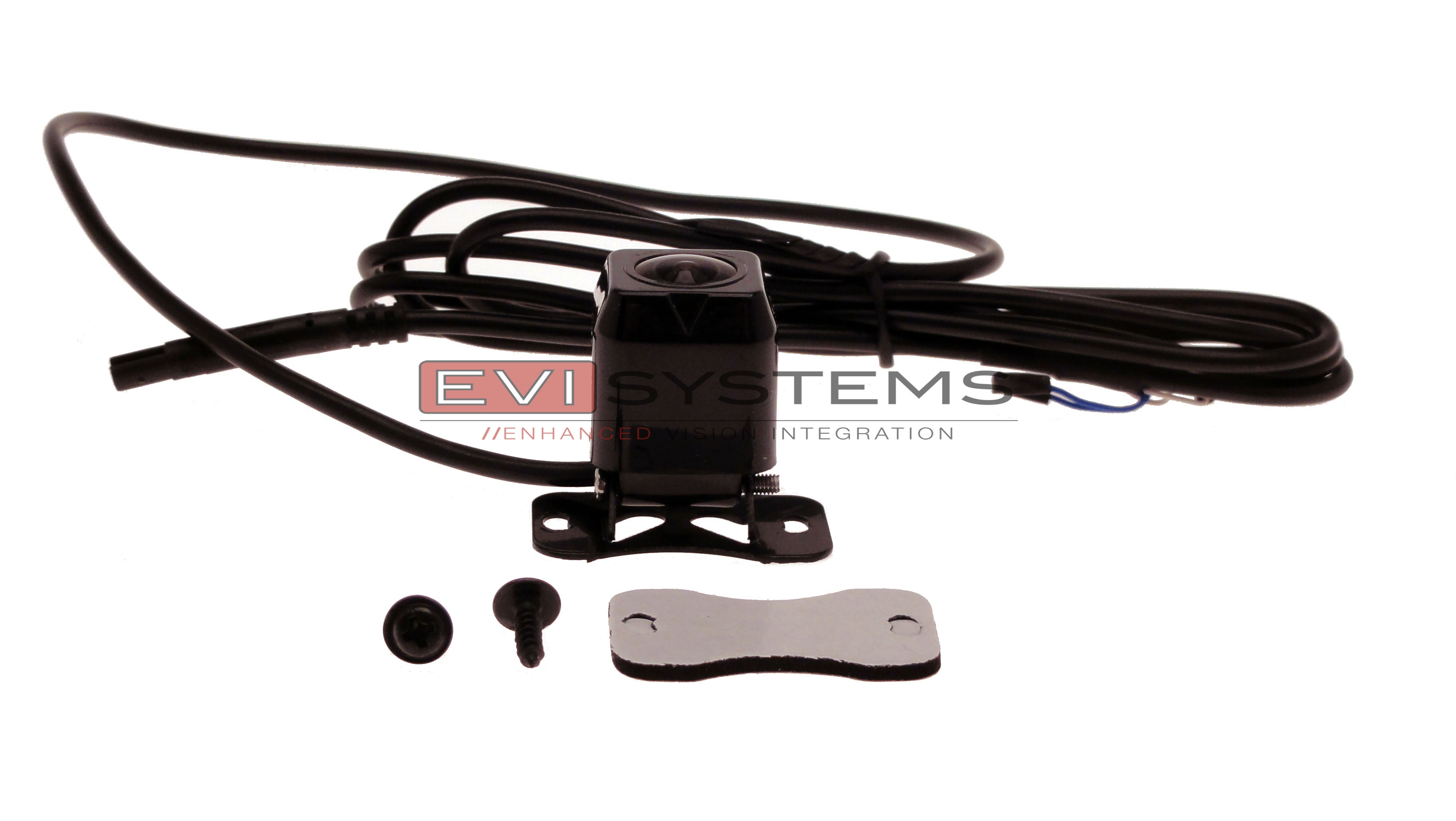

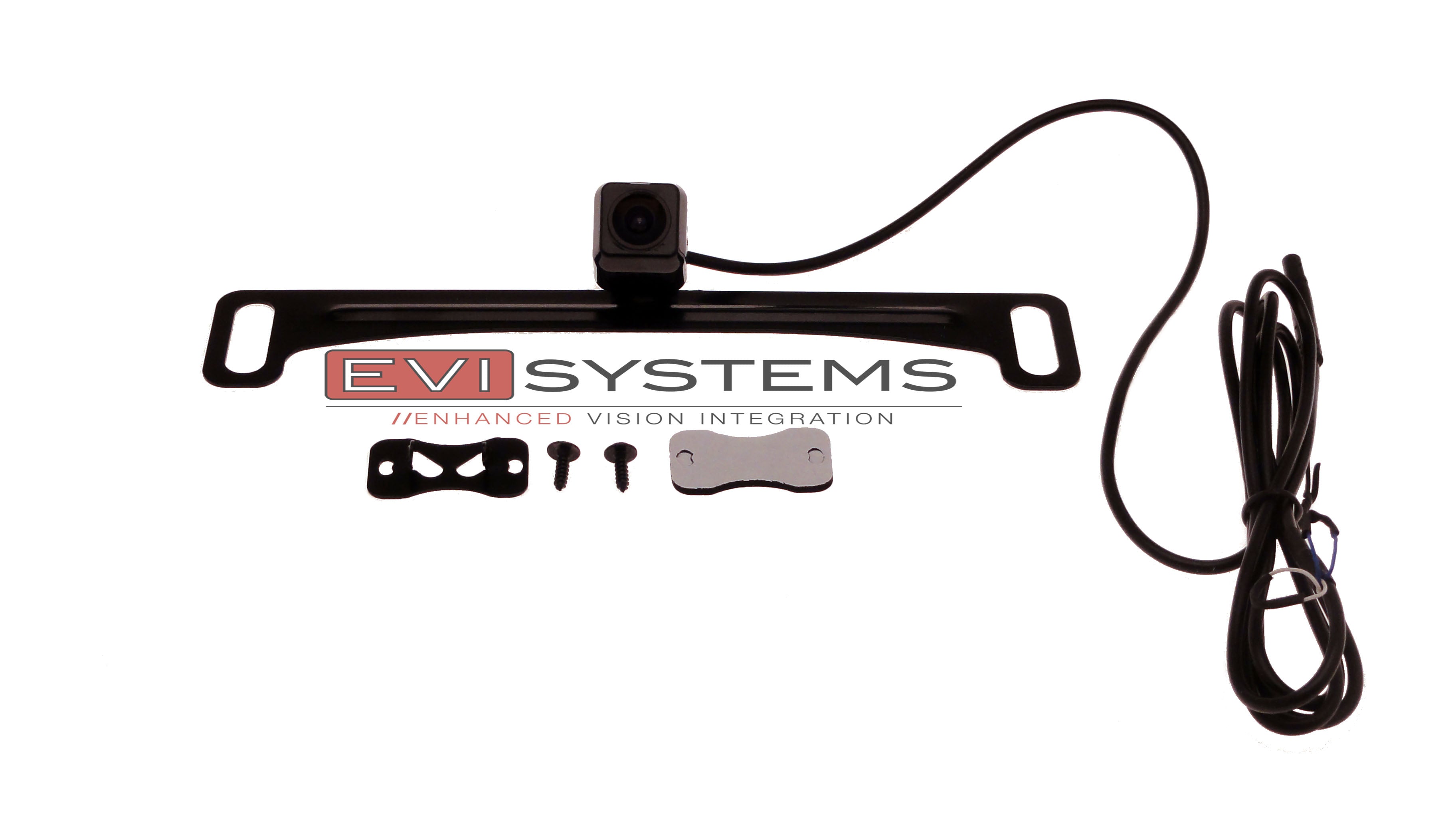

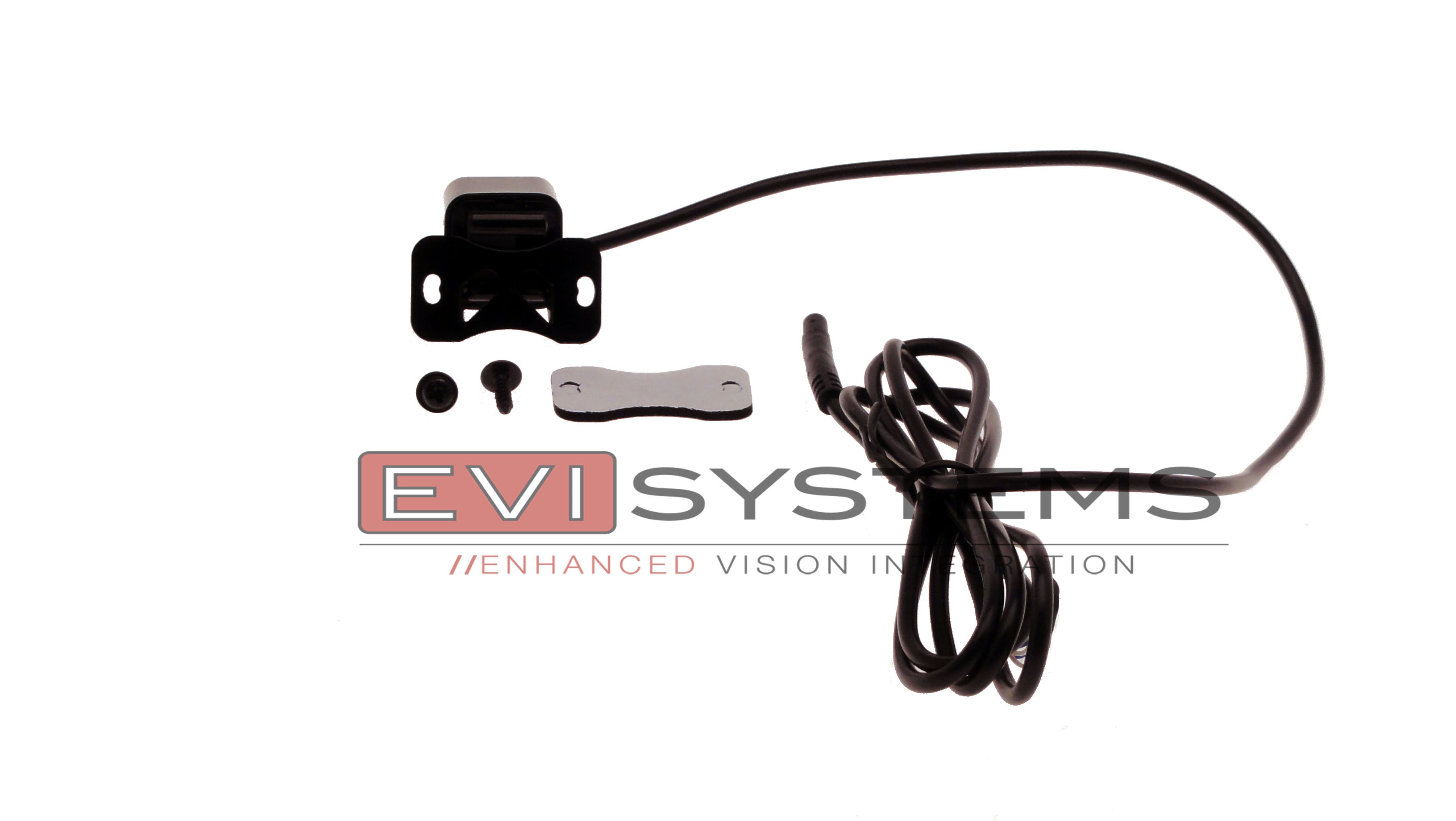

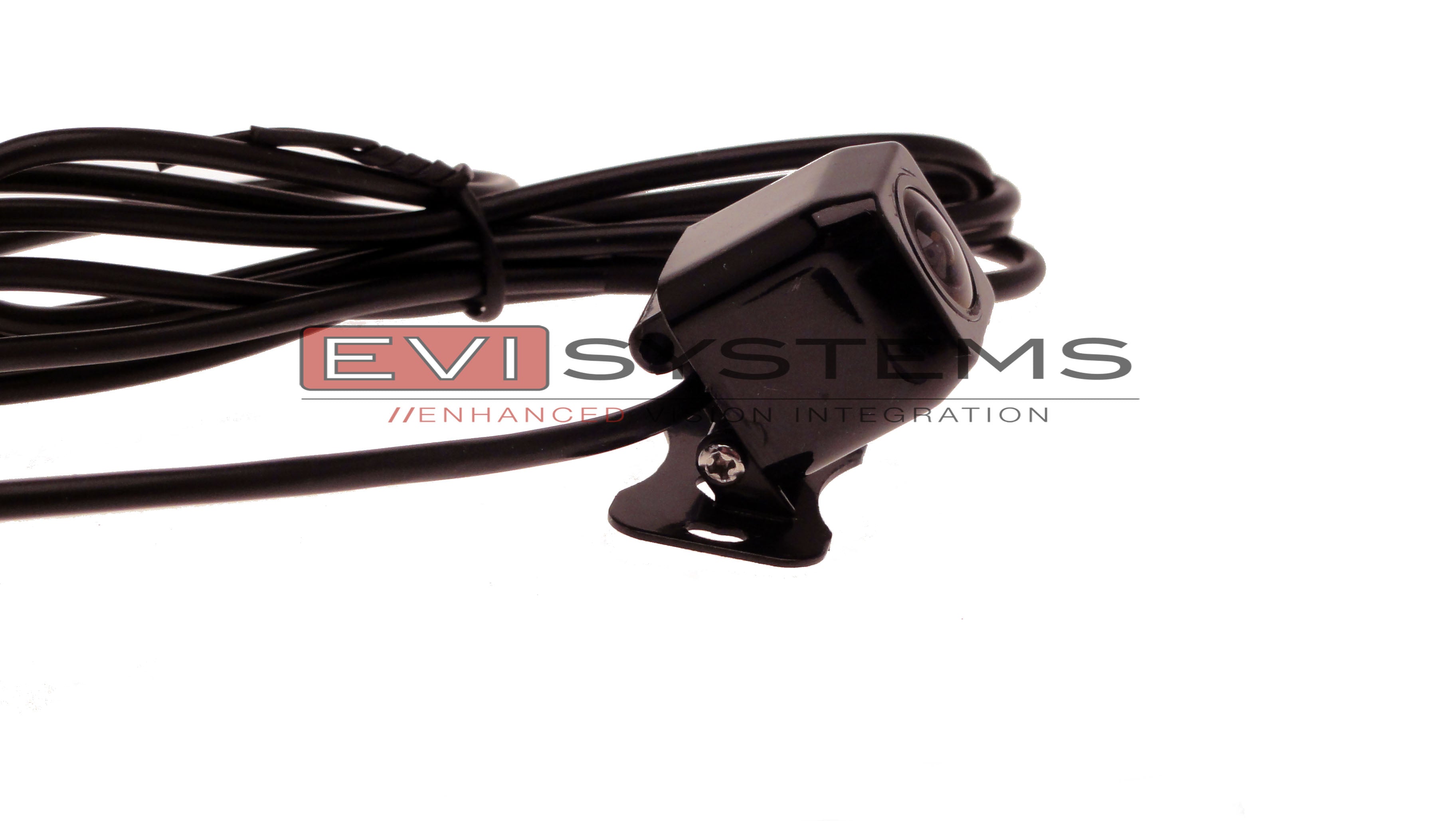

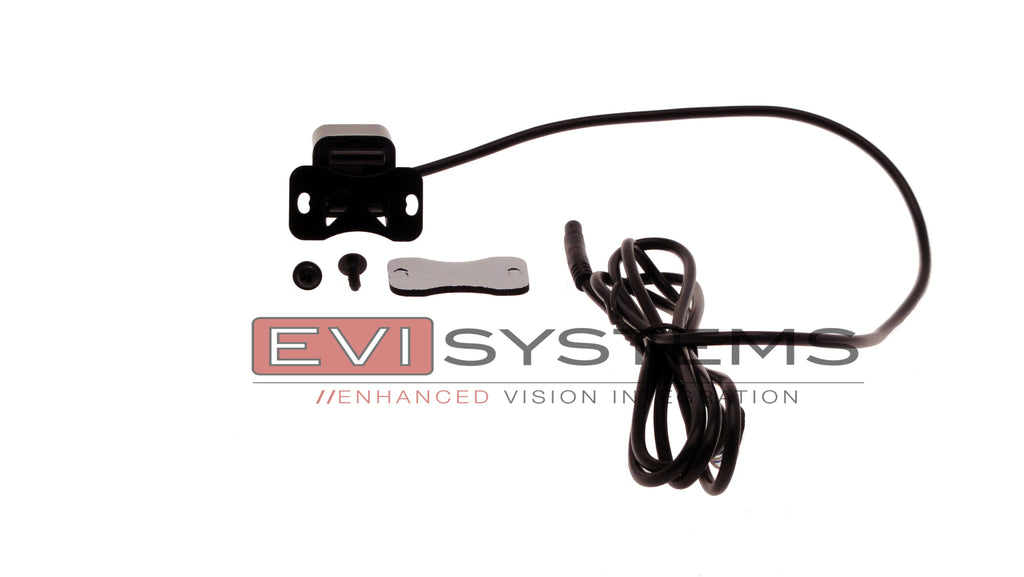

- Universal front camera with harness
- Required mounting hardware/connectors
Camera Specifications:
- Camera Source exclusive Super CMOS high grade sensor with night vision
- Selectable parking guidelines (can be turned off if desired) NOTE: Black center line is not present on actual display
- 600 TV lines of resolutions
- .2 lux minimum illumination - Outstanding night vision!
- 170 degree viewing angle
- 3 year camera warranty
Interface module features:

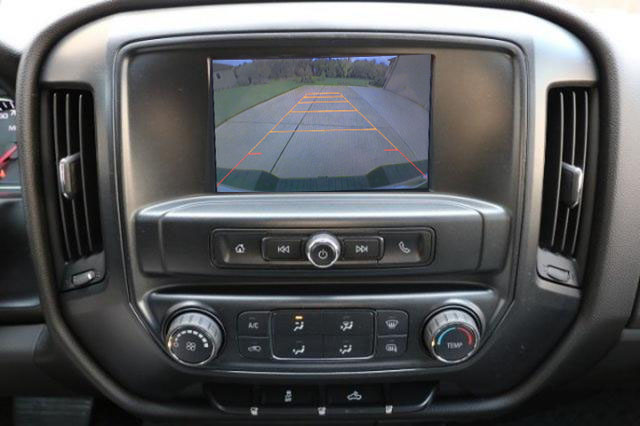

- Uses existing 7" IOB factory display (display radio not included)
- Left and Right turn signal activated inputs
- Front camera input -Can be setup to come on automatically when shifting from reverse to drive or manually activated by pressing the external activation button
- Rear camera input (to either sustain factory camera or add your own)
- Dynamic Parking lines (with the option to turn them on or off)
- 3 year warranty
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Plug and Play to Factory Dash Display |
| Make | Chevrolet,GMC |
| Camera Mount Location | Front Grille, Universal Mount |
| Night Vision | .3 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Yes |
| Power Supply | 12 Volts |
| Radio Screen Size | 7\ MyLInk/Intellilink |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Silverado,Silverado HD,Sierra,Sierra HD,Colorado,Canyon |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2016,2017,2018 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Canyon, Colorado, Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2016, 2017, 2018 |
Compatibility
2016-2018 Silverado, Sierra, Colorado, Canyon
IOB systems with a 7" screen
Installation
You will need to open the dash to install the IOB integration module and harness to the back of your factory radio. Front camera mounts to any flat surface and has parking guidelines that can be turned off. You will need to switch it to the forward looking image on the harness during the installation.
NO DEALER ACTIVATION REQUIRED
