Commercial Camera Kit with Quick Disconnect, Fits 2016+ GM® Truck
SKU#: CS-16GMTRSK-QD
Availability:
In Stock
SKU#:
CS-16GMTRSK-QD
$370.00
Quantity
Plug & Play! Includes quick disconnect!
Description
This is a plug and play camera kit that will allow you to replace your factory tailgate camera with this heavy duty commercial camera - PLUG AND PLAY!
This kit comes in handy when you have a trailer behind the truck since the rear of the trailer is a serious blind spot! This kit is designed to solve that problem by adding a camera to the back of a trailer. This camera has built in LED's for better night vision. Comes with everything you need to install the camera on the rear of the trailer and plug into your existing factory camera wiring at the back of the truck. This kit even comes with our trailer quick disconnect system allowing you to disconnect your trailer with ease by making the camera connections as simple as unplugging the lights of the trailer.

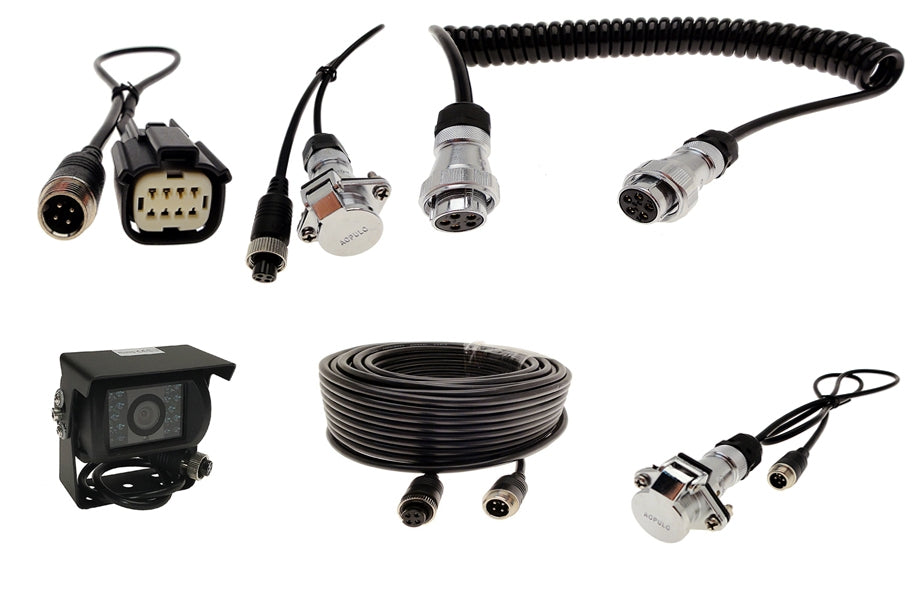

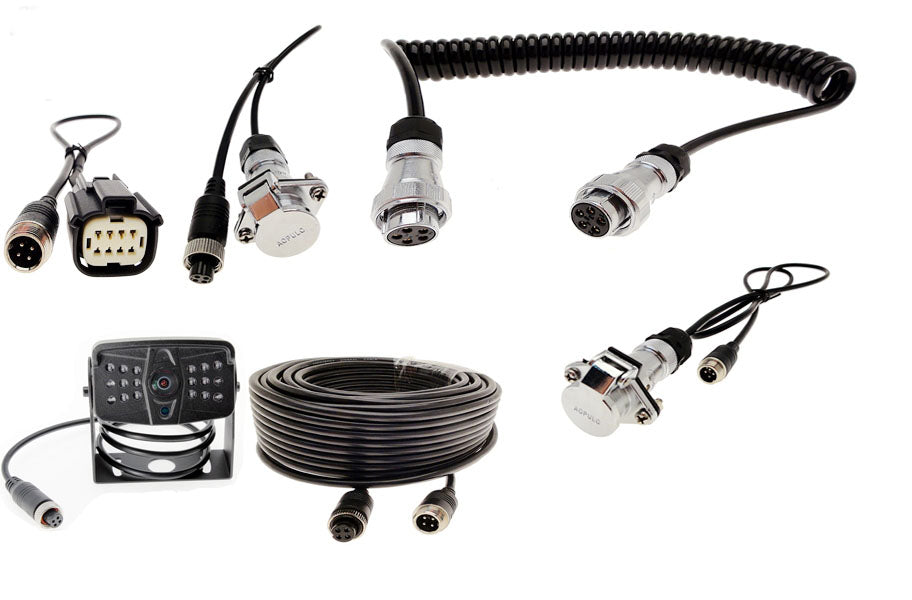

Kit includes the following:

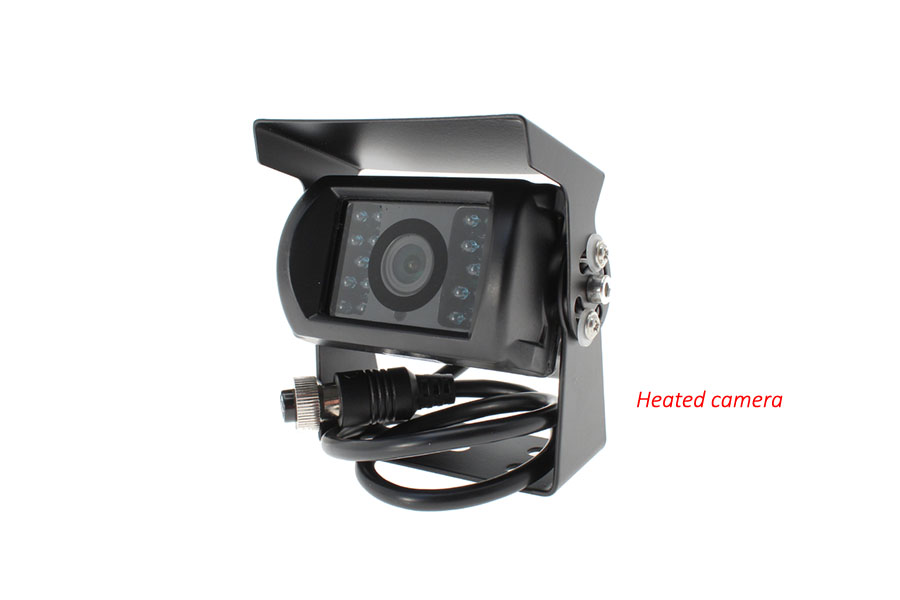

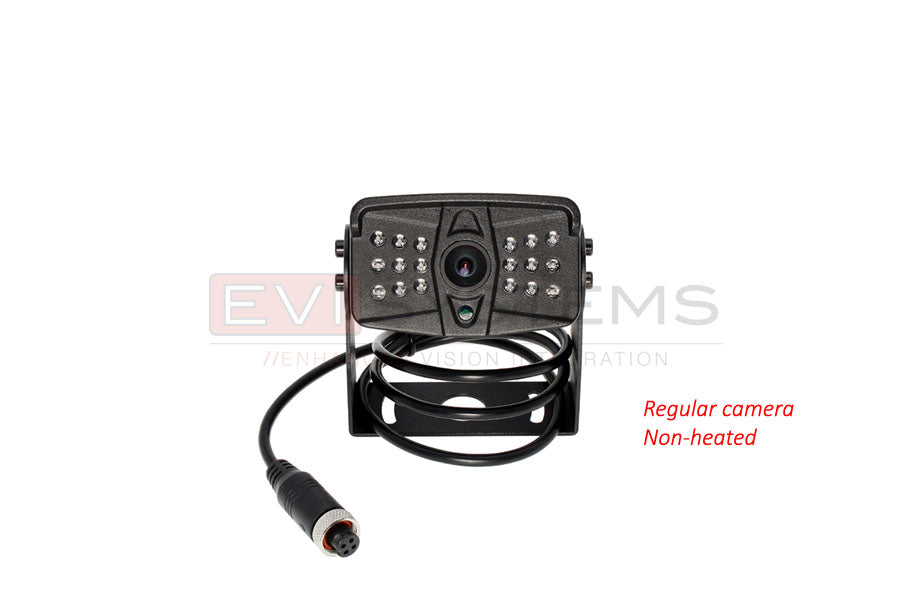

- Heavy duty commercial camera with Sony CCD sensor

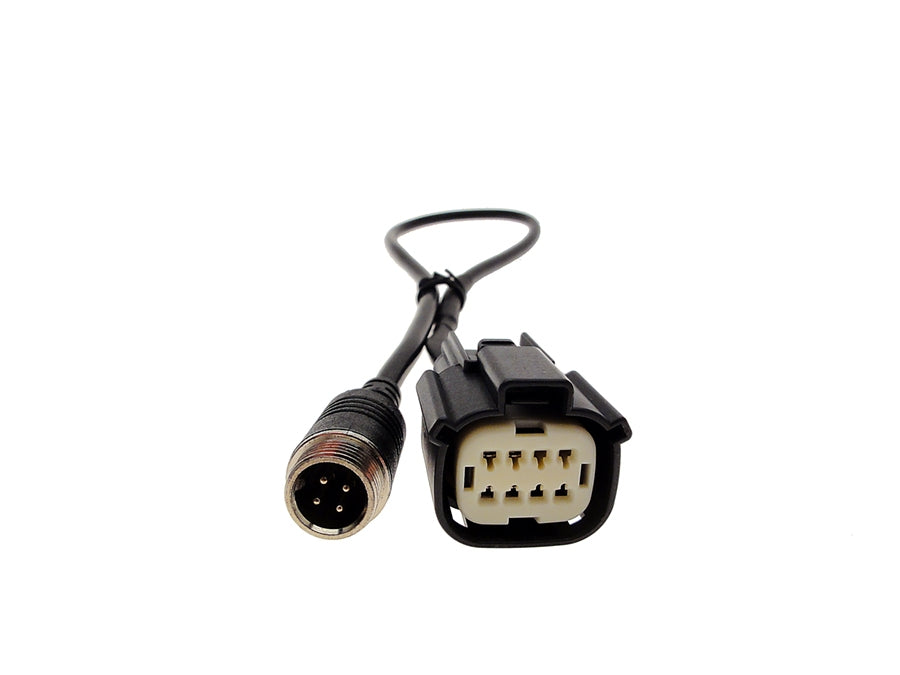

- OEM to commercial coax conversion harness-plug and play! Adapts to the factory connectors for plug and play with your existing wiring (8 pin factory connector) - no cutting or splicing!

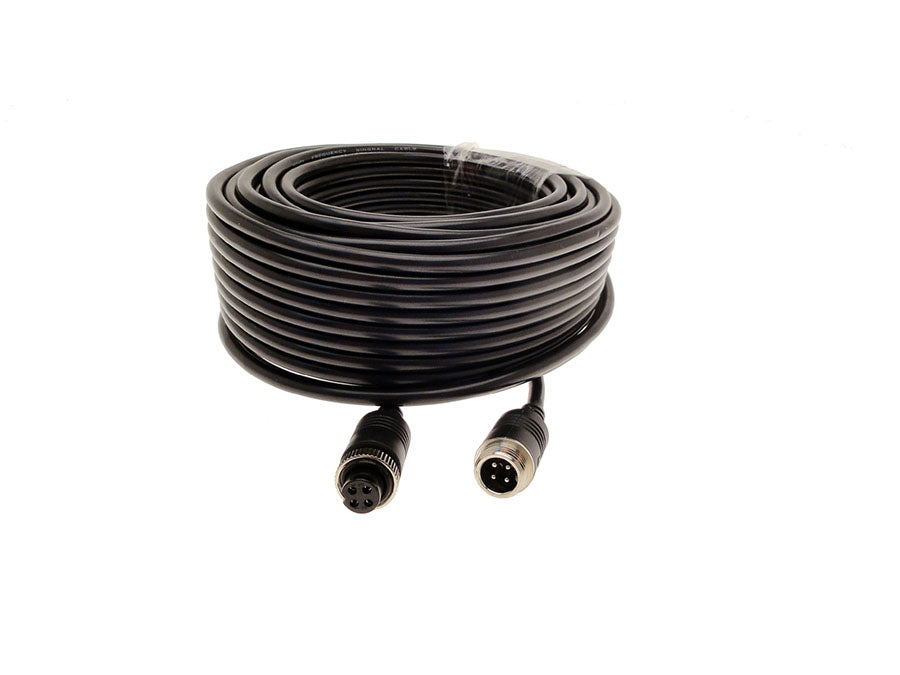

- 10',16',32' or 64' coaxial wire harness with weather tight connectors (select option above)

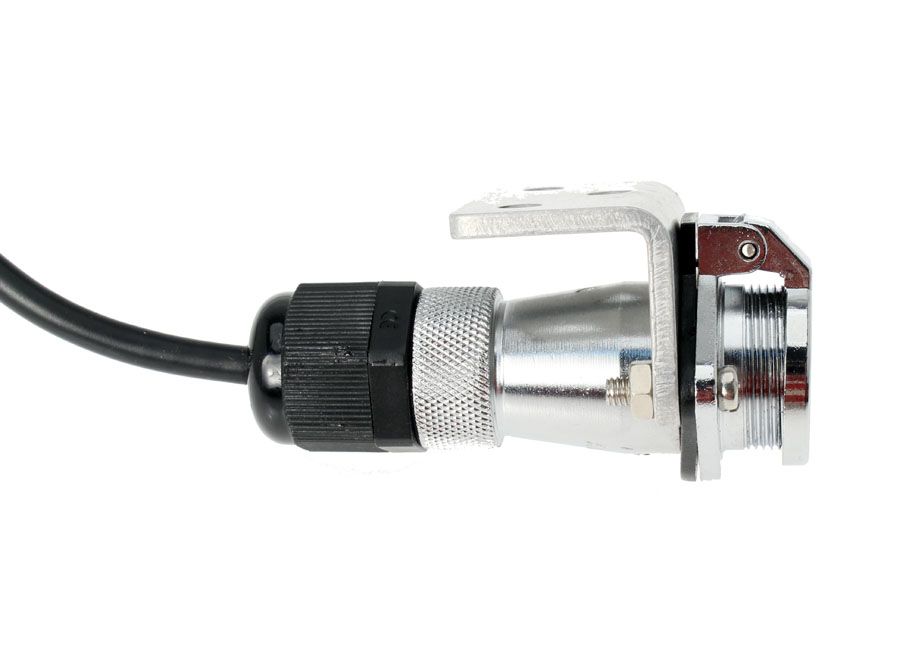

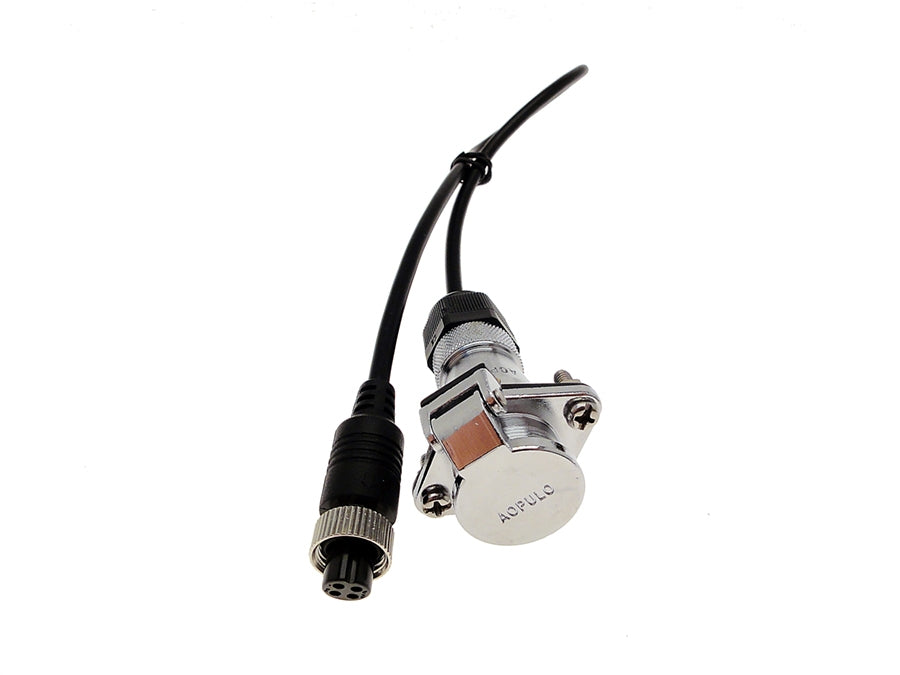

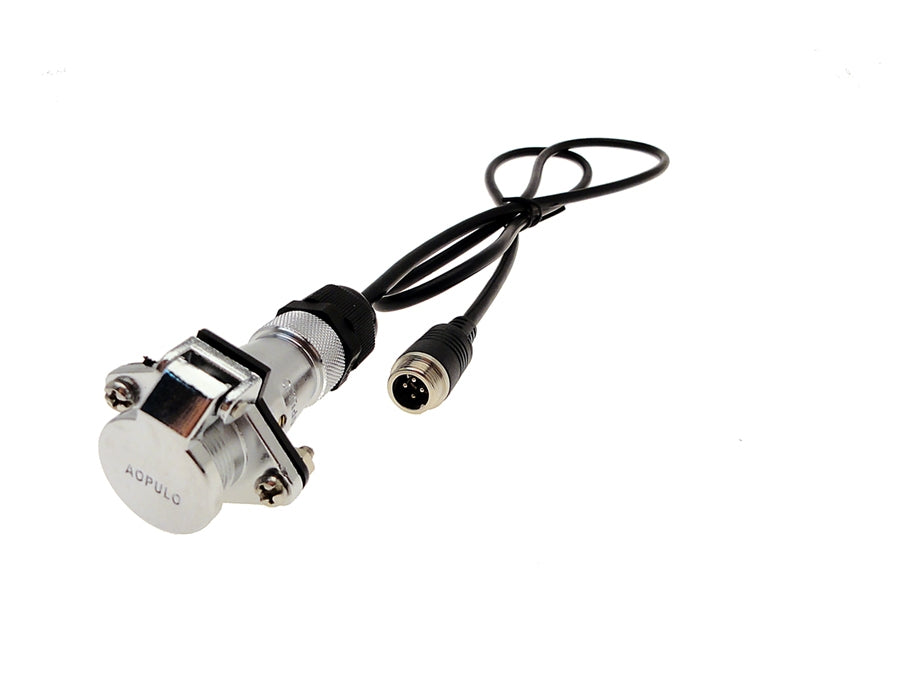

- Trailer quick disconnect system for easy camera connections - weather tight! (CS-UTQC)

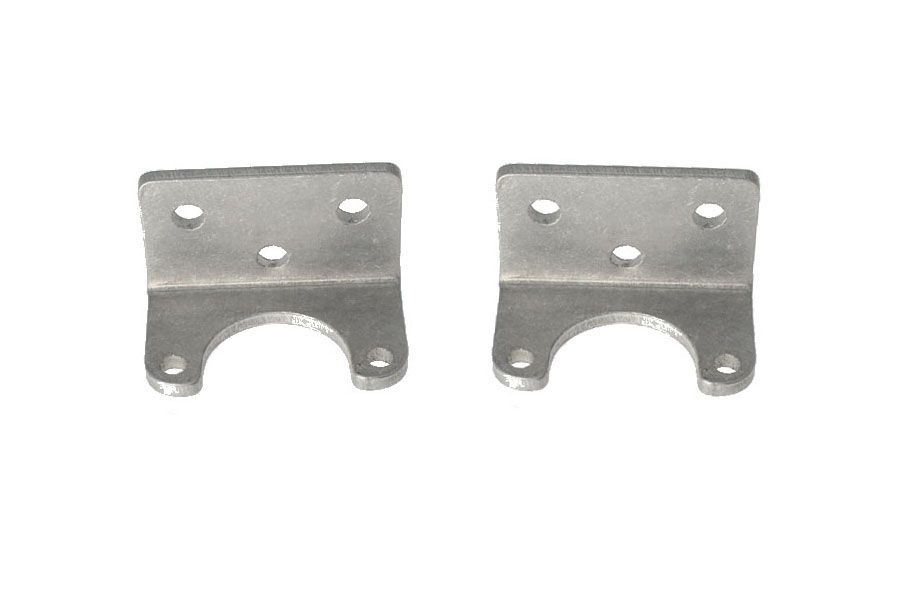

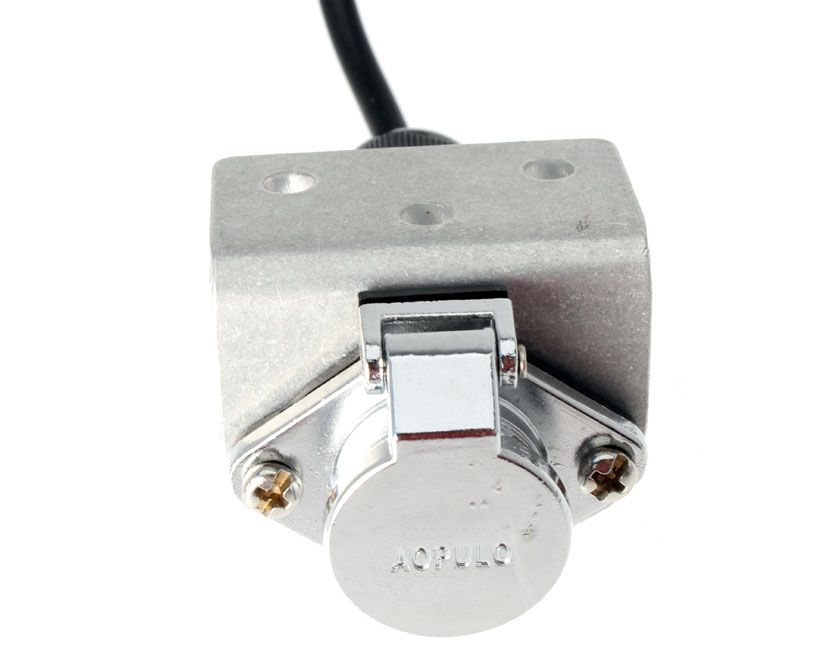

- Mounting brackets for quick disconnect
- One year warranty!
Camera Specifications:
- Sony Ultra CCD for a super clear image
- Infra-red LED's that will create a daytime like display even in complete darkness
- 150 degree view
- 700 TV lines of resolution
- 0 lux (no light required to operate)
- Heavy cast casing and steel mounting bracket
- Locking weather tight connector
Specifications
| System Manufacturer | EVI Systems |
| Camera Resolution | 700 TVL |
| Camera Type | Rear Camera, Trailer/Camper/5th Wheel camera |

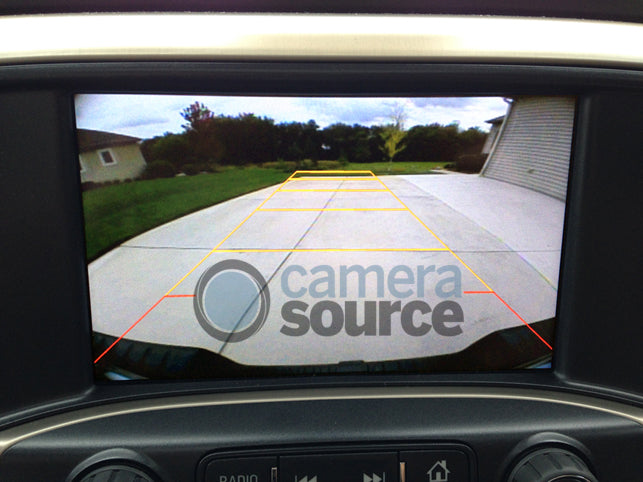

| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Factory Connector |
| Make | GMC,Chevrolet |
| Camera Mount Location | Camper/Utility Bed, Universal Mount |
| Night Vision | 0 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Not Available |
| Power Supply | 12 Volts |
| Radio Screen Size | 4.2\ MyLink, 8\ MyLInk/Intellilink |
| Reason for Shopping | Relocating factory camera |
| Sensor Brand | Sony |
| Sensor Type | CCD |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Video System | NTSC |
| Viewing Angle | 150 Degrees |
| Model | Sierra,Sierra HD,Silverado,Silverado HD |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Factory Plug&Play |
| Year | 2016,2017,2018 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2016, 2017, 2018 |
Compatibility
2016-2018 Chevrolet® Silverado, GMC® Sierra, Denali, and HD trucks with factory installed backup camera. Must have 8 pin factory camera connector. Relies on the factory camera chassis harness to operate.
2019 Chevrolet® Silverado, GMC® Sierra, Denali, HD 2500,3500 series trucks with factory installed back up camera.
Installation

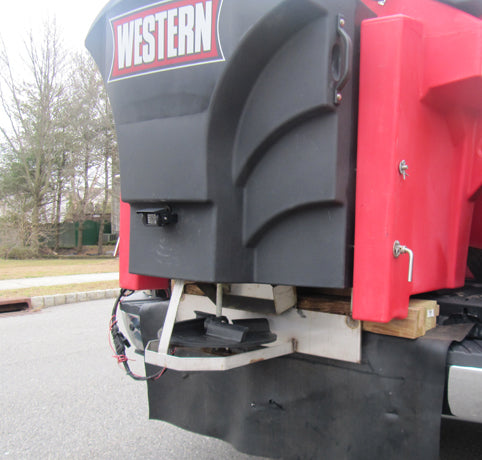

Mount the camera anywhere! Versatile mount allows for surface mount in virtually any location. Camera tilt is adjustable so the view can be adjusted to accommodate any view required!
Power is run to the camera through the coaxial cable so it is not necessary to locate power on the trailer or area where the camera is mounted.

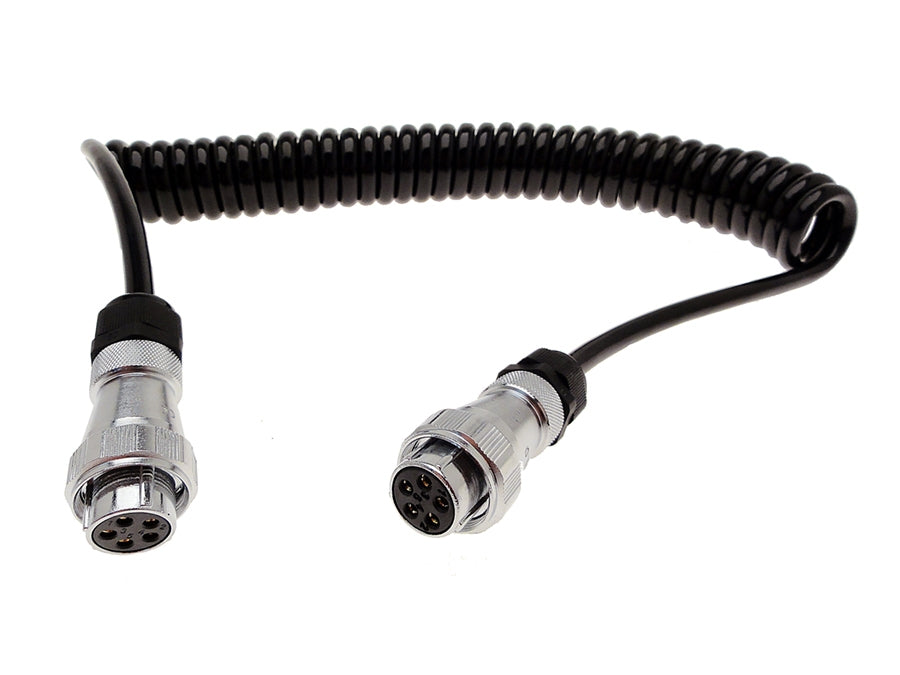

OEM conversion harness plugs directly into the factory camera connection located under the truck, behind the rear bumper. Quick disconnect port mounts to the back of the truck. Quick disconnect coil extends between the truck and trailer quick disconnect ports.
