Front and Side Camera Kit for 7" IOB Display, Fits 2016-2018 GM®
SKU#: CS-16GMTR-7FS4
Availability:
In Stock
SKU#:
CS-16GMTR-7FS4
$545.00
Quantity
Front & Side cams for 7" IOB display
Description
This is a complete kit that contains our universal front camera, two side cameras, and a multi-cam integration module for your 7" factory IOB screen.
Compatible with 2016-2018 GM® trucks with factory 7" IOB radio.
This kit allows you to see what is directly in front of truck and both sides! This kit does not require any splicing into factory wiring. The multi-cam integration module allows for plug and play integration into your factory screen without having the dealer flash a program your radio. The factory rear camera will come on automatically when in reverse and front camera can be set to come on automatically for 10 seconds when shifting from reverse to drive or manually activated using the external activation button. Factory rear camera not available above speeds of 7mph. The side cameras get installed under your side mirrors to give you a full view of your typical blind spots - all automatically activated using your turn signals!
Because of the complexity of the side mirror disassembly professional installation is recommended.

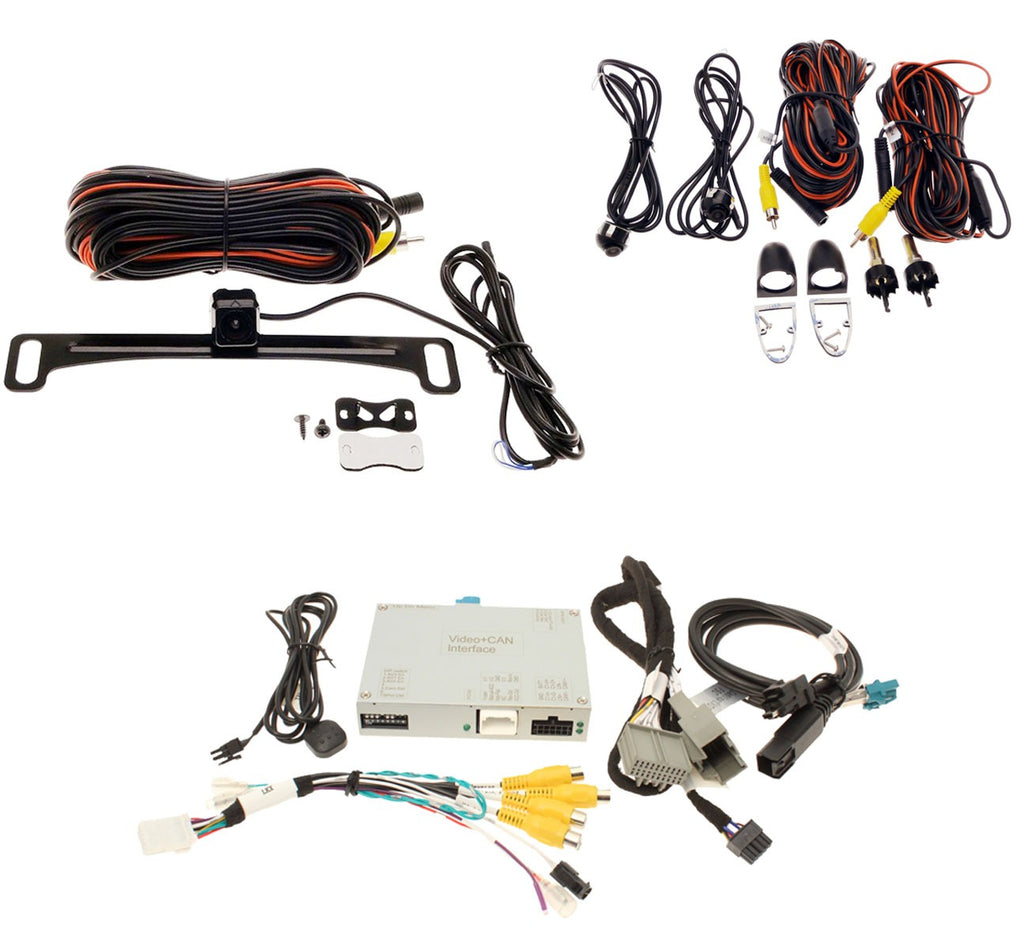

Kit includes:

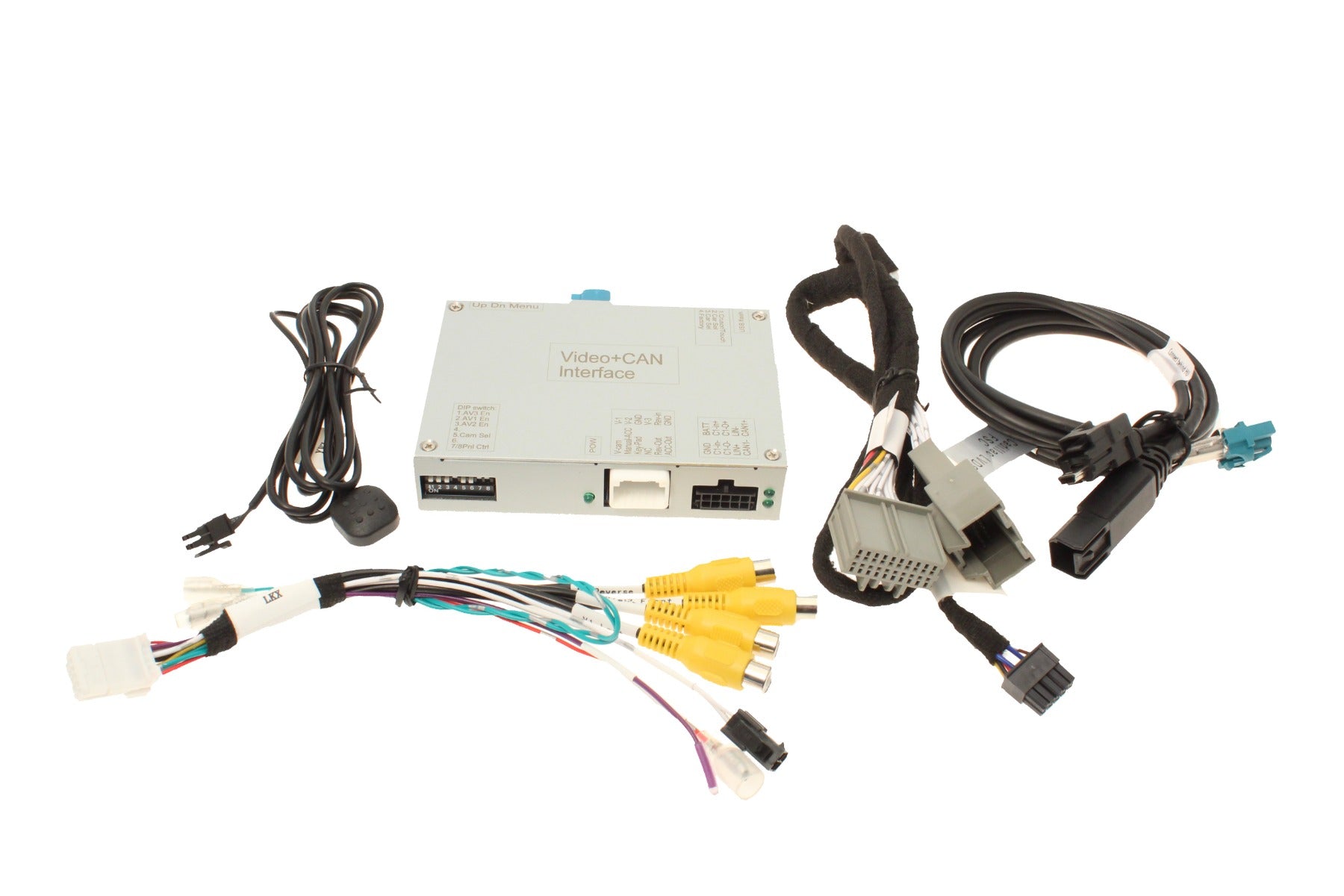

- Multi-cam interface for your IOB 7" factory display (display not included)- plug and play and no dealer flashing required!
- Universal front camera with harness and dual mount brackets

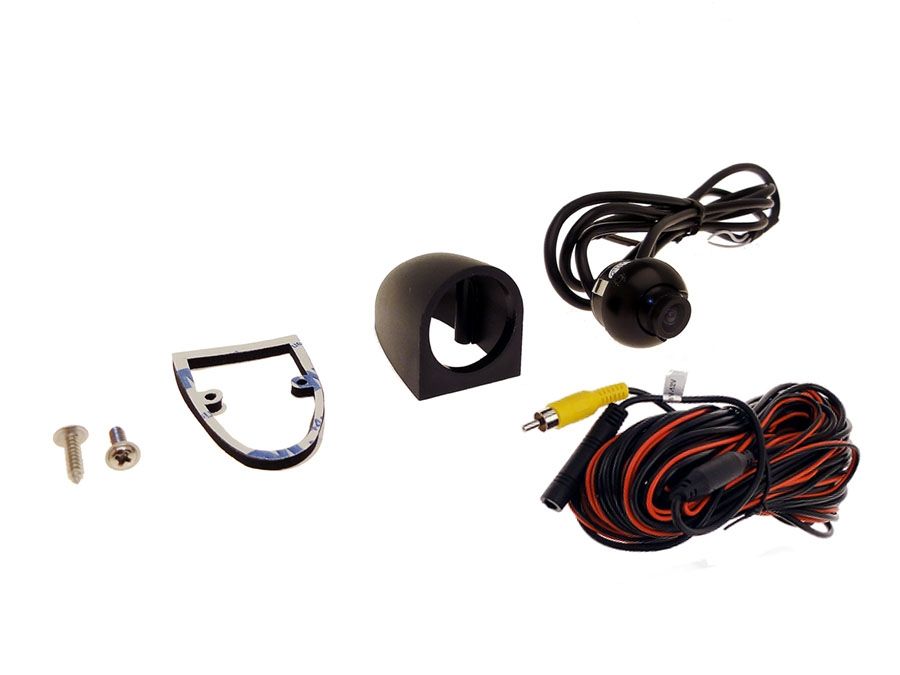

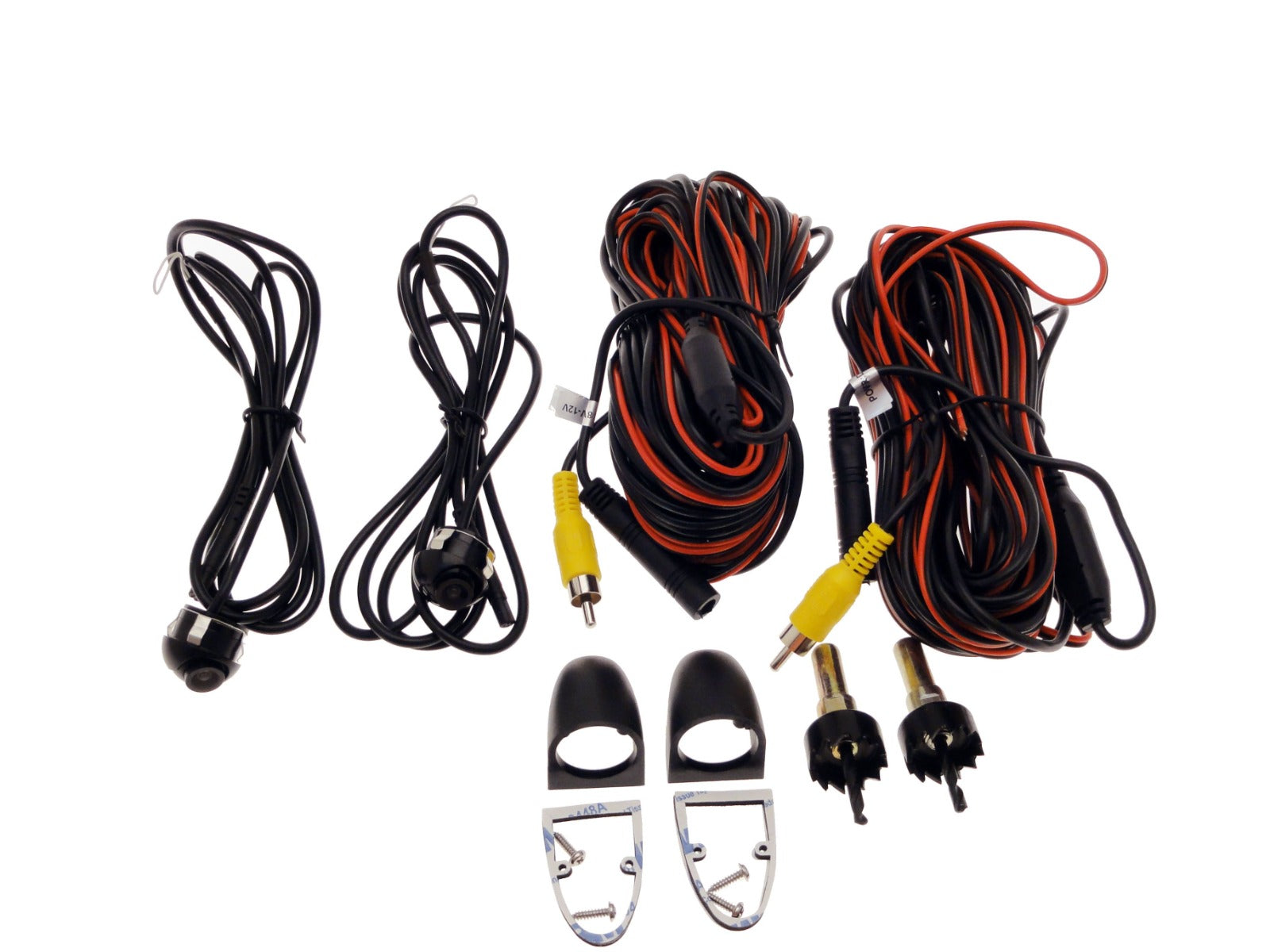

- Two side cameras (mount under your side mirrors)
- Mounting hardware
- Camera wiring harnesses
- Zip ties
- Detailed installation instructions
- 3 year warranty on the cameras and interface
Camera Specifications:
- CMOS forward looking camera - designed for front applications
- Removable guidelines
- Side cameras are designed for rear-view applications and can be fully adjusted to meet your view needs
- 150 degree view
- 600 TV lines of resolution
- .2 lux minimum illumination - Outstanding night vision!
Interface Module Features:
- Uses existing 7" IOB factory display (display radio not included)
- Left and Right turn signal activated inputs
- Front camera input -Can be setup to come on automatically when shifting from reverse to drive or manually activated by pressing the external activation button
- Rear camera input (to either sustain factory camera or add your own)

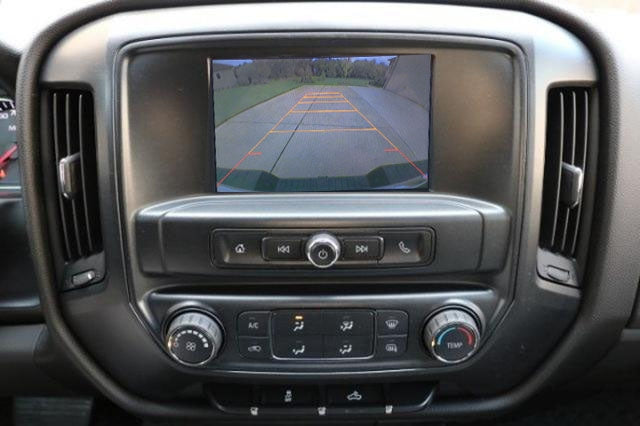

- Dynamic Parking lines (with the option to turn them on or off)
- 3 year warranty
*Additional cameras and display monitor are not included with this kit. This kit allows you to see what is directly in front of the truck as well as beside the truck! Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 3 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera, Side Camera, Multiple cameras (kit) |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | Chevrolet,GMC |
| Camera Mount Location | Side Mirror, Front Grille |
| Night Vision | .2 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 7\ MyLInk/Intellilink |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 150 Degrees |
| Model | Silverado,Silverado HD,Sierra,Sierra HD,Colorado,Canyon |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2016,2017,2018 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Canyon, Colorado, Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2016, 2017, 2018 |
Compatibility
2016-2018 Silverado, Sierra, Colorado, Canyon
IOB systems with a 7" screen
Installation
The side cameras will mount under your side mirrors, which will require complete removal and disassembly of your mirrors. These mirrors can be challenging to disassemble so professional installation is recommended for this kit.
Front camera mounts to any flat surface and has parking guidelines that can be turned off. You will need to switch it to the forward looking image on the harness during the installation.
The IOB multi-cam integration module is plug and play with your factory 7" IOB screen. You will need to remove your factory 7" screen to gain access to the back of the connections. The module will be plug and play and stubs out an RCA for the cameras to connect directly to the screen.
