Front and Side Camera Kit for SYNC 3, Fits 2016-2020 F150
SKU#: 7CS-FTRFSM-8S3FS
Availability:
In Stock
SKU#:
7CS-FTRFSM-8S3FS
$964.00
Quantity
Add front and side cams to 8" SYNC 3!
Description
Can't see over that hood? Want to see what's next to you before changing lanes? This is your solution and is a Camera Source exclusive for your 2016-2020 F150 with a SYNC 3 display!!
This front camera is chrome or black plated and utilizes our latest Super CMOS forward looking camera for a kit that looks like it came from the factory! The side cameras get installed under your side mirrors to give you a full view of your typical blind spots - all automatically activated using your turn signals! The screen interface provides multi-cam support so you can add 4 cameras (in addition to your OEM camera) to your factory SYNC 3 display screen -SCREEN NOT INCLUDED).

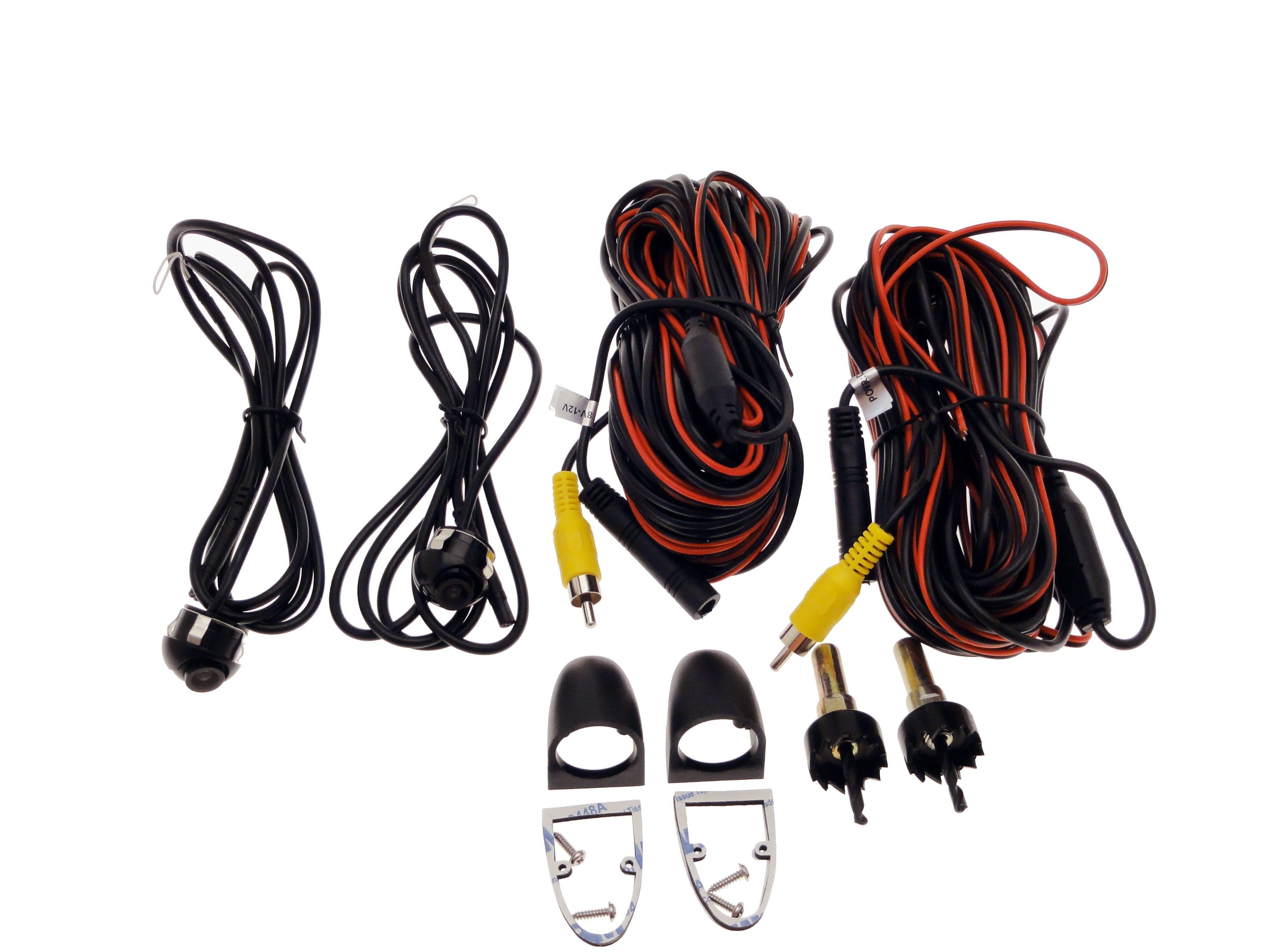

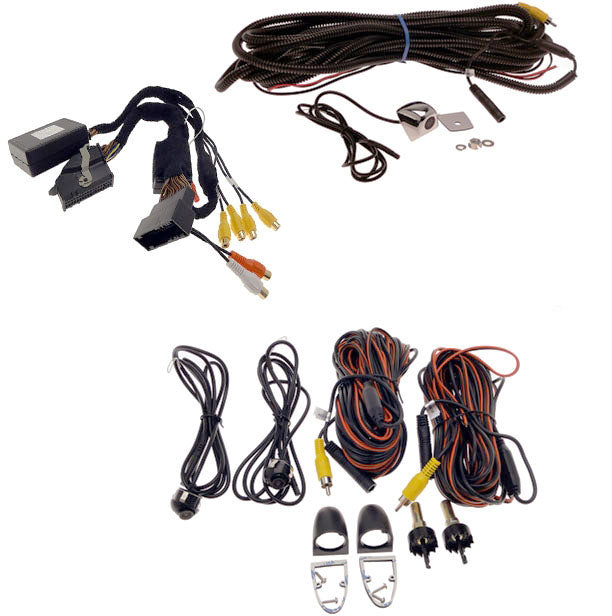

Kit includes:

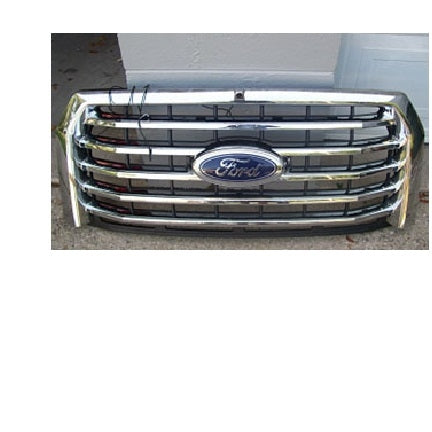

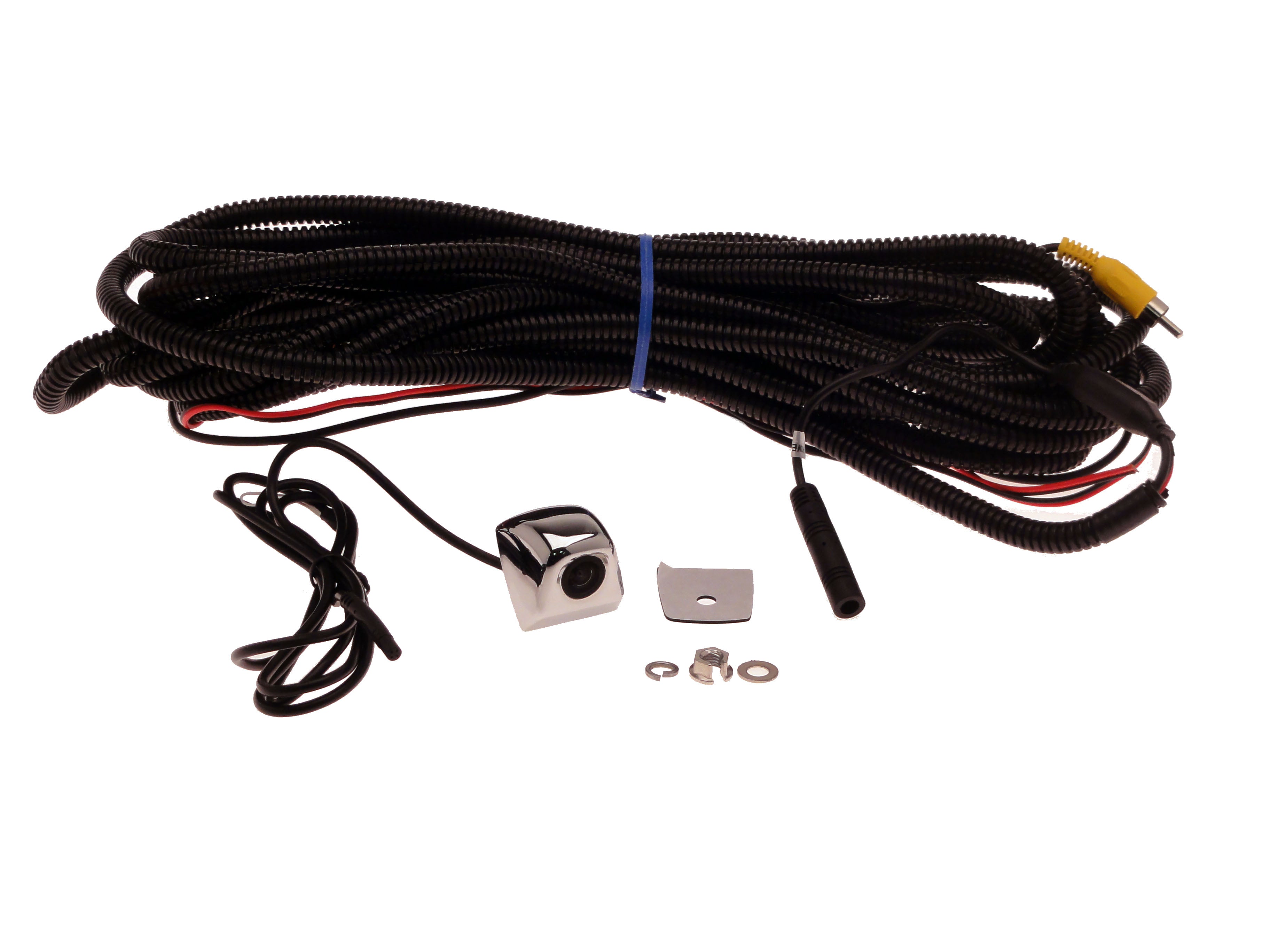

- Black or Chrome plated metal grille mount camera with our latest super CMOS camera - the latest camera technology! (grille not included)

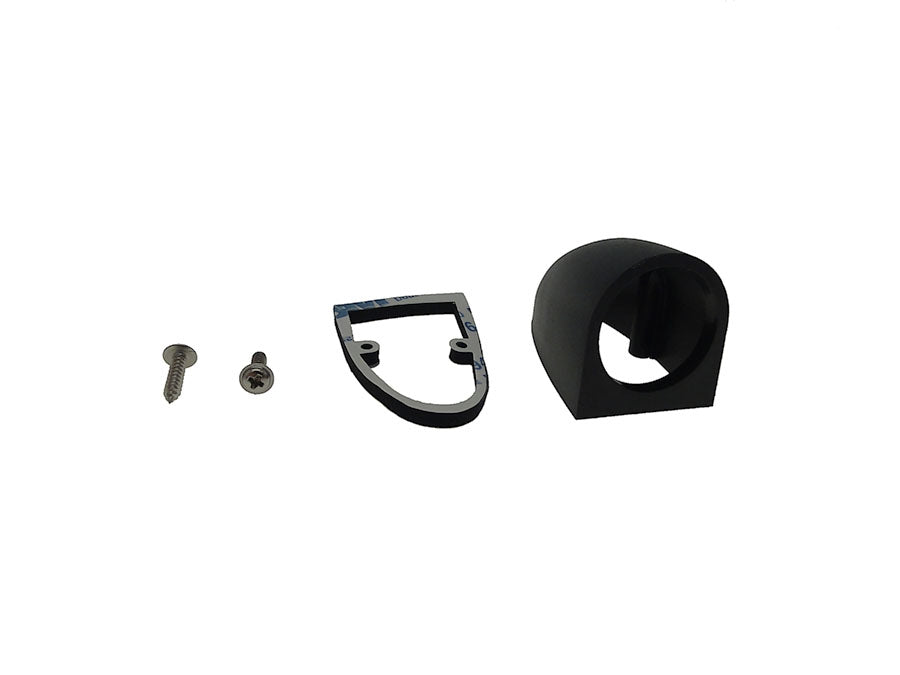

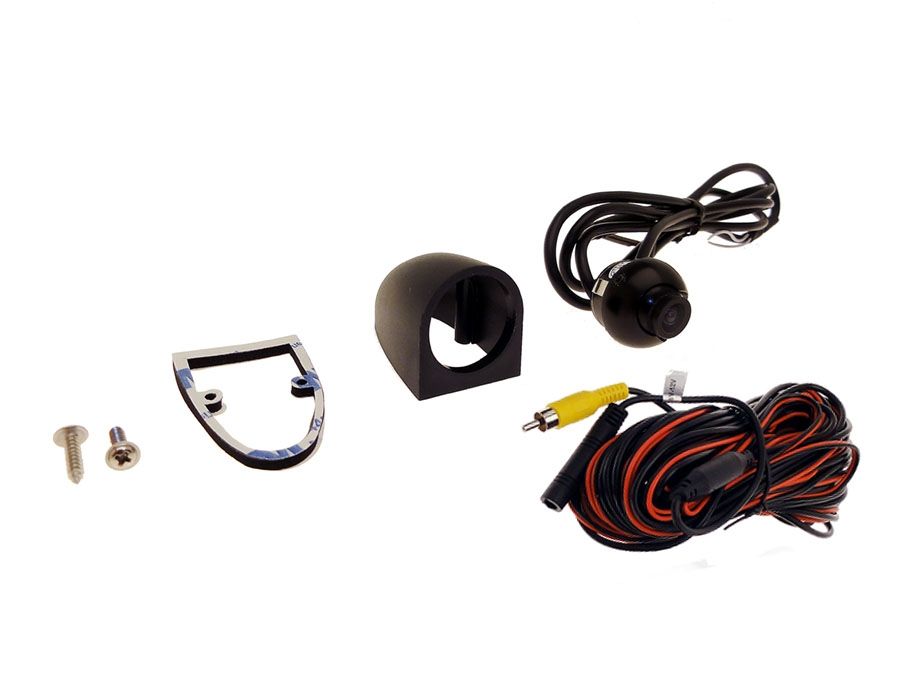

- Camera Source Super CMOS side cameras (2) with brackets

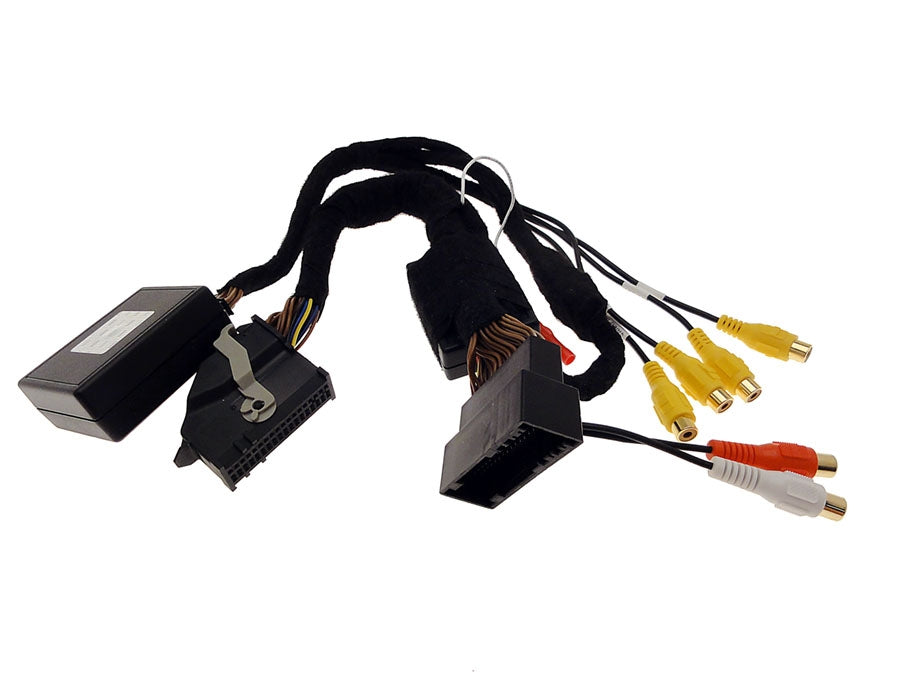

- Interface module for your factory SYNC 3 radio (radio not included). Provides multi-camera support for up to 5 total cameras!
- Mounting hardware
- Camera wiring harnesses
- Zip ties
- Detailed installation instructions
- 3 year limited camera warranty
Camera Specifications:
- Super CMOS - outstanding color, contrast, and clarity!
- Forward looking camera - designed for front applications (removable parking lines)
- Side cameras are designed to aim backwards and can be fully adjusted to meet your view needs (no parking lines)
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!

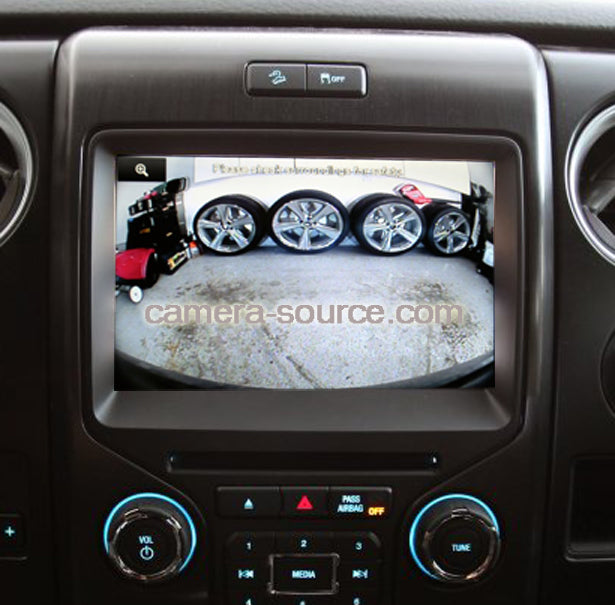

SYNC 3 Multi Cam interface: The integration module is plug and play with your factory SYNC 3 system. Allows connection of 4 cameras to the factory screen in addition to the OEM backup camera. Also, allows monitoring of any connected camera at any time while driving (not including OEM backup camera). Right and left blind spot camera inputs are automatically triggered by the turn signals. Factory rear camera is not available above 7 mph.
-
Features:
- 1 Composite Video input.
- Left Camera input.
- Right Camera input.
- Front Camera input.
- Rear Camera input.
- Vehicles with OEM rear view camera: OEM rear camera will work as it did before

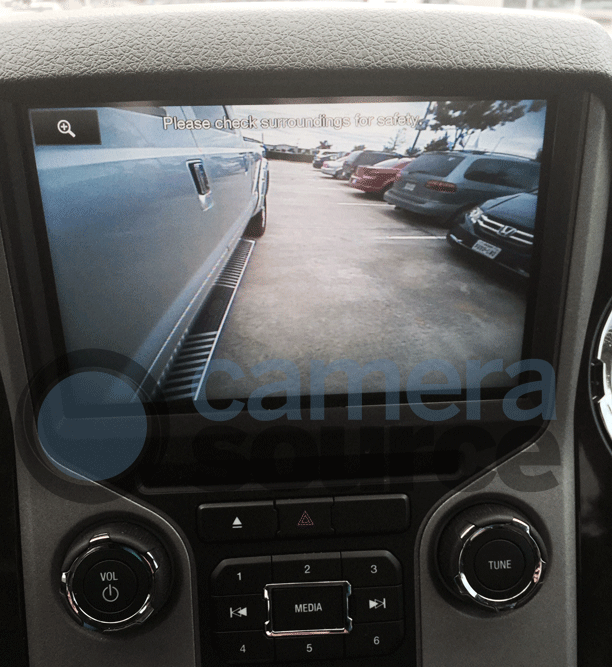

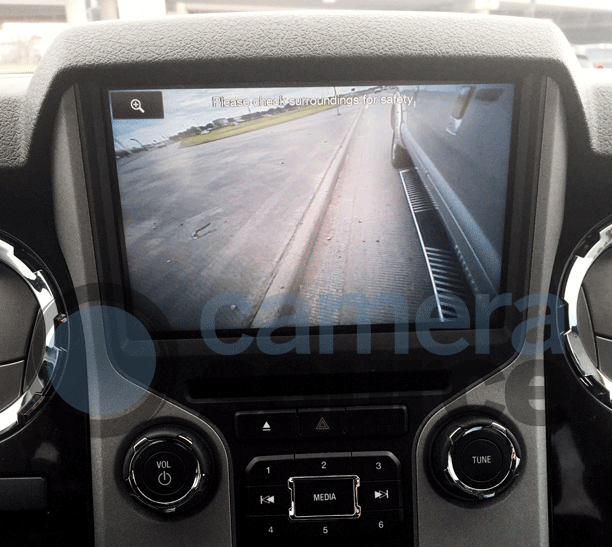

- Lane Watch Cameras (left & right): Automatically triggered with turn signals.
- Front Camera: Can be triggered at any time in any speed, by a specific button.
- Rear Camera: Aftermarket rear view camera can be triggered at any time in any speed, by a specific button.
- Video in motion function: Allows passenger access to Navigation menu while vehicle is in motion.
- **NOTE** when certain functions are activated (viewing cameras in motion or nav bypass) navigation won't track / guide properly, disengage function to use the navigation.
- Video interface is 100% Plug & Play and requires no wire splicing.
- NO DEALER ACTIVATION REQUIRED!
Composite Video Input: is controlled by the Volume button and is designed for:
***Sold separately***
- 1. DVD
- 2. Game Consoles
- 3. PC’s
- 4. Smartphones / Tablets (Depending on the type of smartphone / Tablet you intend to use a Smartphone Mirror Interface is required and sold separately)
Music or Video playback from Smartphones / Tablets can be achieved with a Smartphone Mirror Interface add-on.(sold separately) - NO DEALER ACTIVATION REQUIRED!
This kit allows you to see what is directly in front of truck and each side. This camera comes with a 3 year warranty, interface has a 1 year warranty. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 3 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera, Side Camera, Multiple cameras (kit) |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford |
| Camera Mount Location | Side Mirror, Front Grille |
| Night Vision | .1 Lux |
| Parking Guidelines | Yes |
| Power Supply | 12 Volts |
| Radio Screen Size | 8\ Ford Sync 3 |
| Reason for Shopping | Adding camera(s) |
| Sensor Brand | EVI Systems |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | F-150 |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Year | 2016,2017,2018,2019,2020 |
| Make Filter | Ford |
| Model Filter | F-150 |
| Year Filter | 2016, 2017, 2018, 2019, 2020 |
Compatibility
This kit is compatible with F150 trucks with the SYNC 3 radio.
2016-2020 F150
Professional installation recommended.
Installation
Multi-cam ntegration module plugs into the back of your factory SYNC 3 display. Dash removal required.
Front camera installation requires the removal of the front grille, drill hole for camera mount, and run harness to the cab through an existing grommet in the firewall, and connect to your factory SYNC 3 screen using the included multi-cam tnterface module. All plug and play - no cutting of factory wires!
Locate a 12 volt accessory power source on the vehicle to power the cameras.
The side cameras will mount under your side mirrors, which will require complete removal and disassembly of your mirrors. You will need to have a flat level surface to mount the side cameras. A downward taper in your mirror mount will cause the camera to have a downward view and in some cases it cannot be overcome with the amount of camera adjustment available. Installing a bracket will solve that problem.
These mirrors can be challenging to disassemble so professional installation is recommended for this kit.
