Front, Rear, and Side Camera Kit for 7" IOB Display, Fits 2016-2018 GM®
SKU#: CS-16GMTR-7FRS4
Availability:
In Stock
SKU#:
CS-16GMTR-7FRS4
$758.00
Quantity
See all 4 sides of the vehicle!
Description
This is a complete kit that contains our GM® tailgate handle with our exclusive rear camera, universal front camera, two side cameras, and a multi-cam integration module for your 7" factory IOB screen. Compatible with 2016-2018 Chevrolet®/GMC® trucks with factory 7" IOB radio.
This kit allows you to see what is directly in front of the truck, behind the truck, both sides and will look like it came from the factory! This kit does not require any splicing into factory wiring and will work on several 2016-18 Chevrolet®/GMC® trucks with an 7" IOB screen. The multi-cam integration module allows for plug and play integration into your factory screen without having the dealer flash program your radio. The rear camera will come on automatically when in reverse and front camera can be programmed to come on when you shift from reverse to drive or you can manually activate it using the included button. The side cameras get installed under your side mirrors to give you a full view of your typical blind spots - all automatically activated using your turn signals! Because of the complexity of the side mirror disassembly professional installation is recommended.

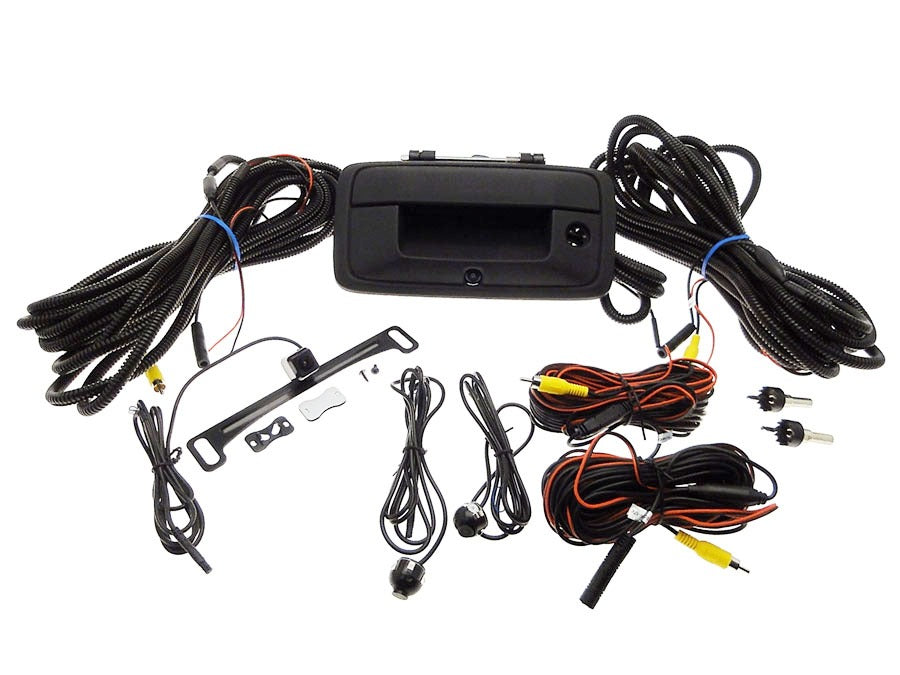

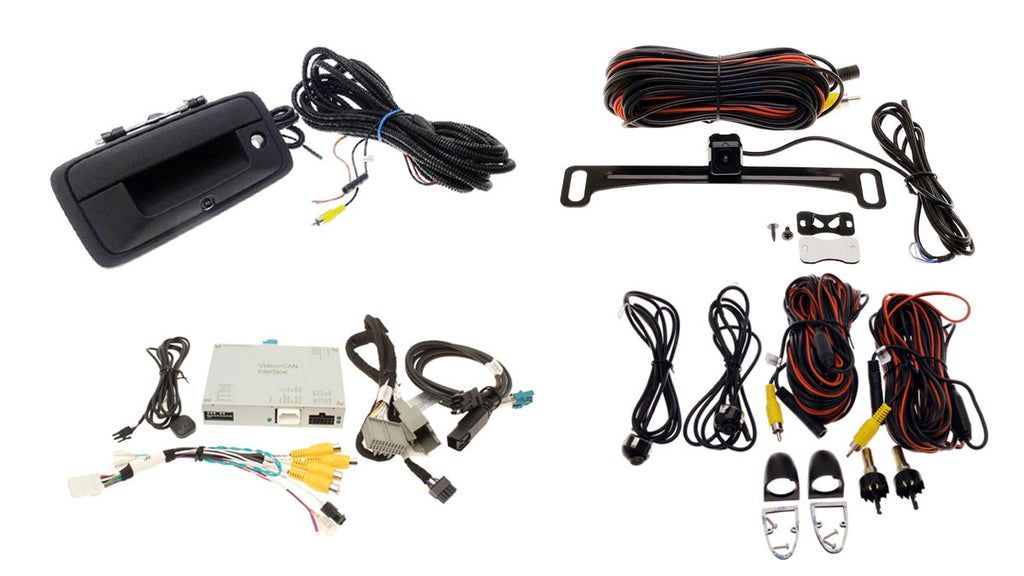

Kit includes:
- Multi-cam interface for your 7" factory IOB display (display not included)- plug and play and no dealer flashing required!

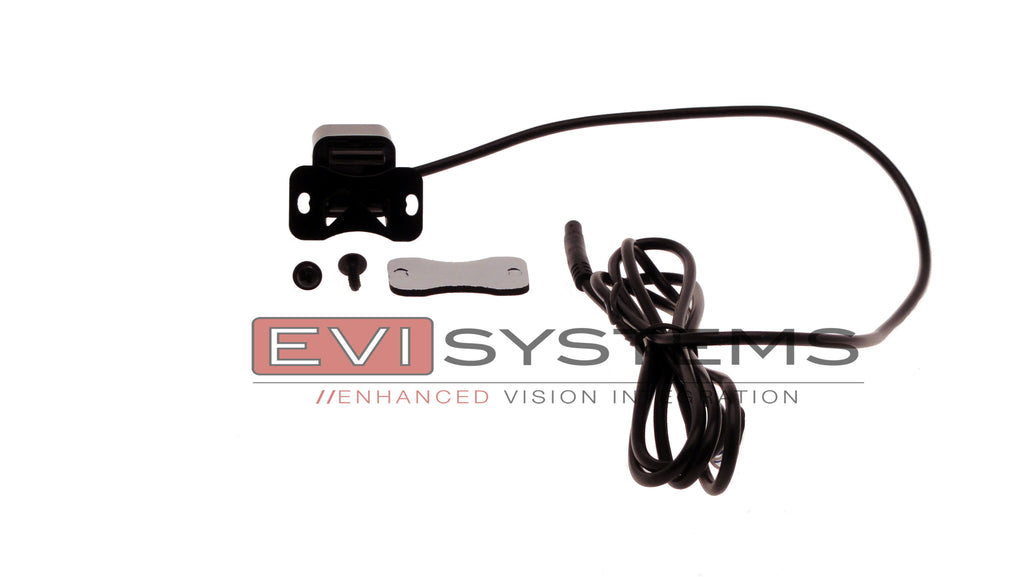

- Universal front camera with harness and dual mount brackets

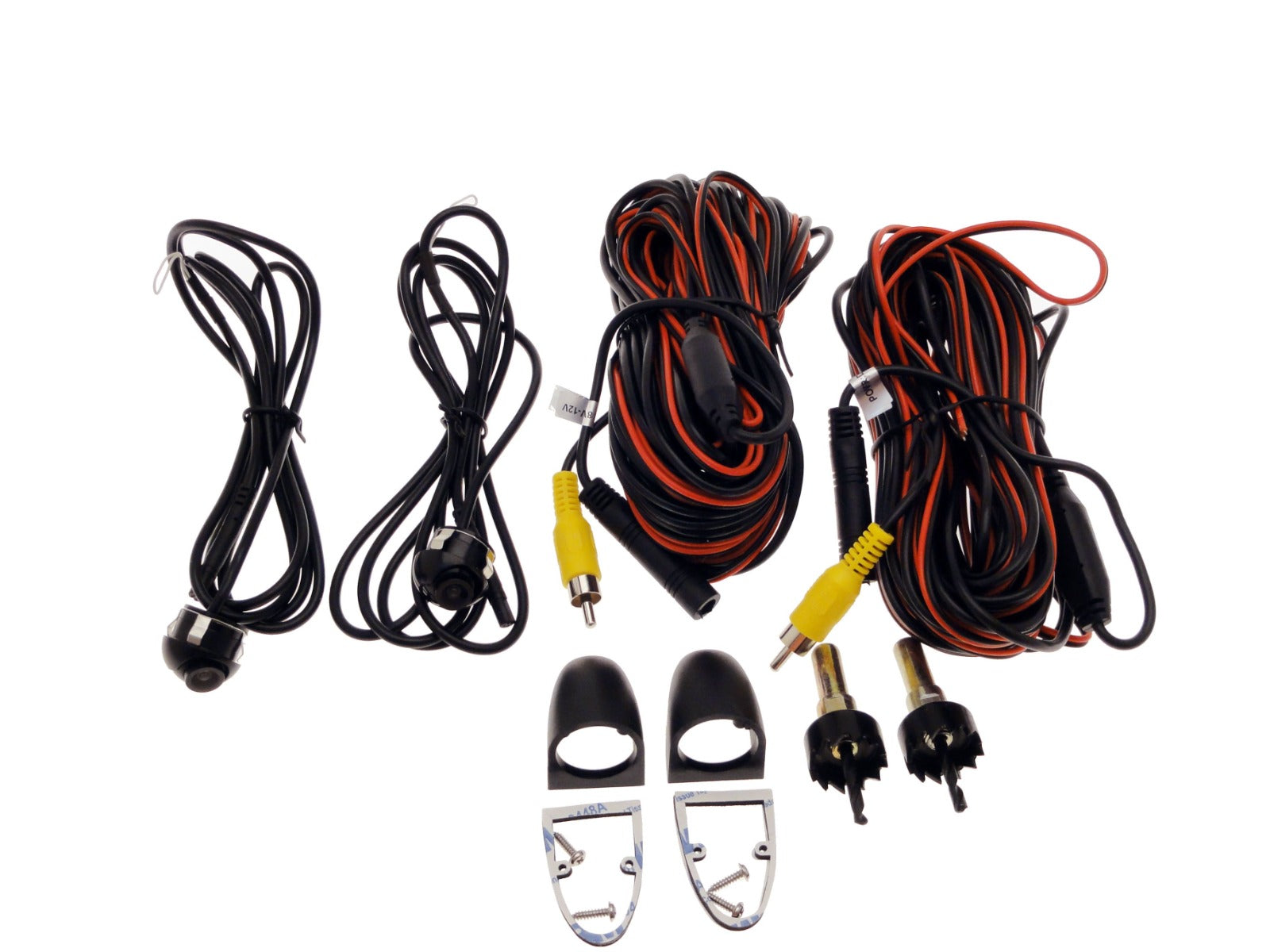

- Two side cameras with brackets (mount under your side mirrors)

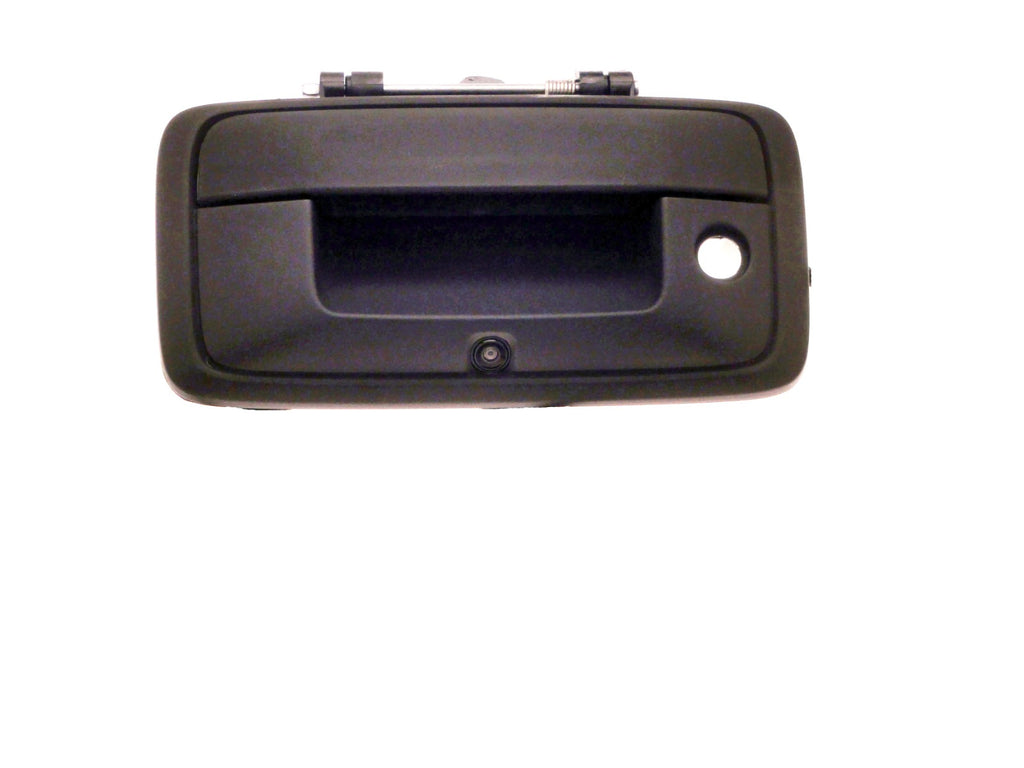

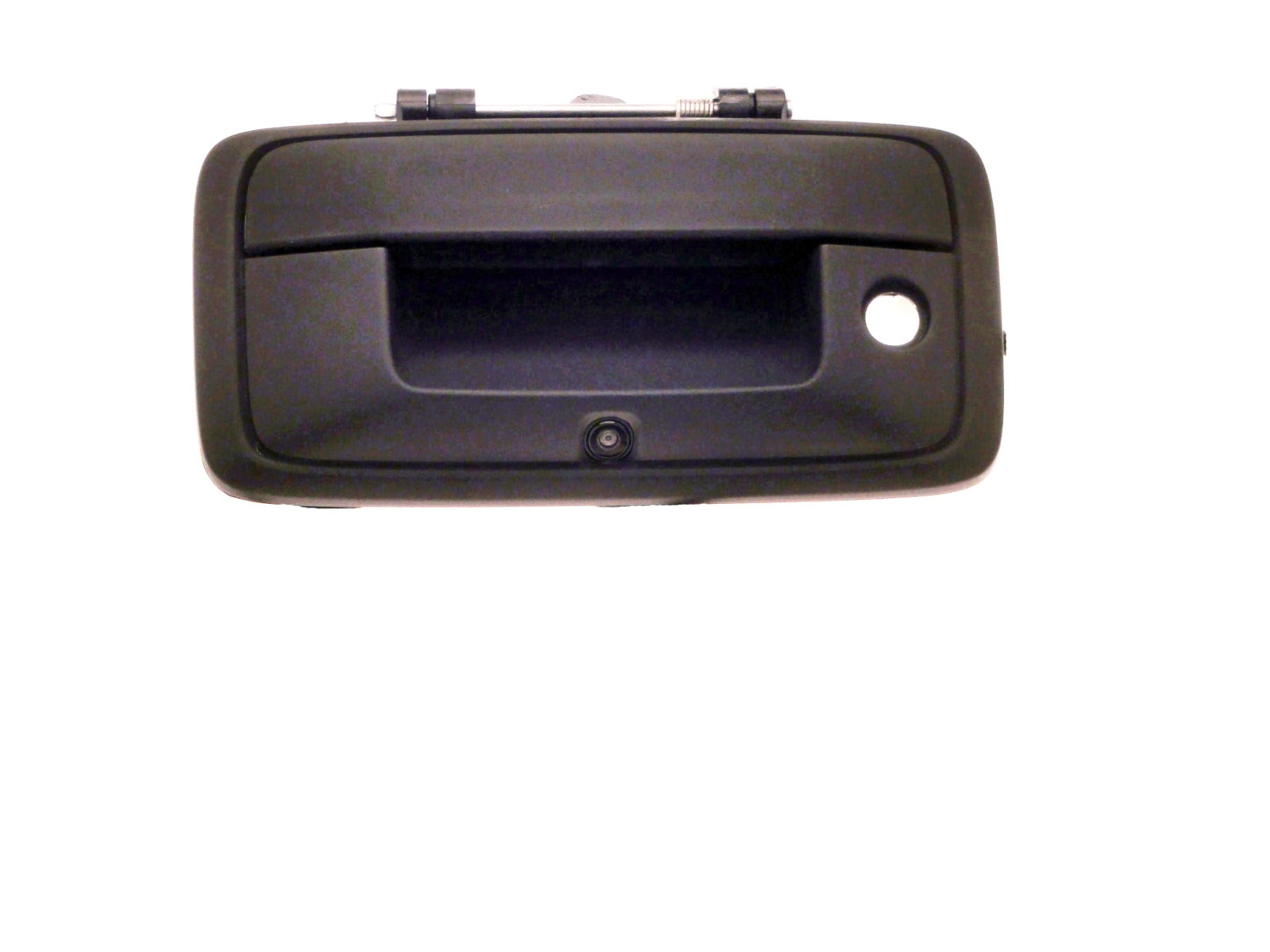

- OEM Rear Tailgate Handle with our exclusive pre-mounted camera
- Mounting hardware
- Camera wiring harnesses
- Zip ties
- Detailed installation instructions
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- Forward looking camera - designed for front applications
- Side cameras are designed for rear-view applications and can be fully adjusted to meet your view needs
- 170 degree view
- 600 TV lines of resolution
- .2 lux minimum illumination - Outstanding night vision!
- 3 year warranty on the cameras!

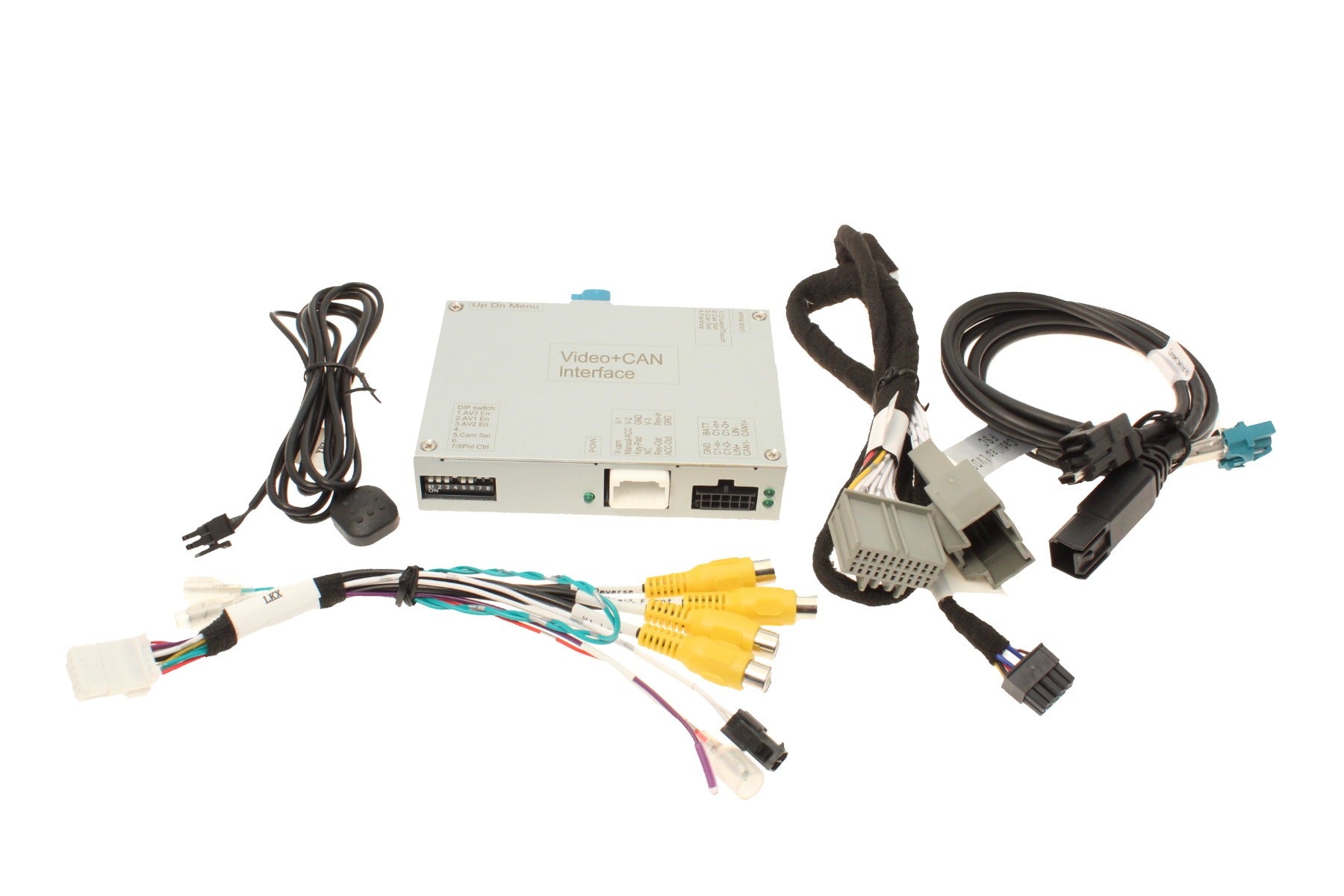

Interface Module Features:
- Uses existing 7" IOB factory display (display radio not included)
- Left and Right turn signal activated inputs
- Front camera input -Can be setup to come on automatically when shifting from reverse to drive or manually activated by pressing the external activation button
- Rear camera input (to either sustain factory camera or add your own)
- Dynamic Parking lines (with the option to turn them on or off)
- 3 year warranty
This kit allows you to see what is directly in front of truck, behind the truck, and both sides! Will only display one camera at a time. Cameras and interface module come with a 3 year warranty. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 4 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Front Camera, Side Camera, Multiple cameras (kit) |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | GMC,Chevrolet |
| Camera Mount Location | Factory Tailgate, Side Mirror, Front Grille |
| Night Vision | < .2 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 7\ MyLInk/Intellilink |
| Reason for Shopping | Adding camera(s) |
| Sensor Brand | EVI Systems |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Sierra,Sierra HD,Canyon,Silverado,Silverado HD,Colorado |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 |
| Wiring Type | Hard Wired |
| Year | 2016,2017,2018 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Canyon, Colorado, Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2016, 2017, 2018 |
Compatibility
Vehicle must have IOB option code on the service parts sticker located in the glove box OR 2018 vehicles will have this sticker located in the driver's side door jam by the "B" pillar. You can scan the QR code on the sticker using a mobile device to view the options.
2016-2018 GMC® Sierra pickup truck with 7" IOB display screen.
2016-2018 GMC® Canyon pickup truck with 7" IOB display screen.
2016-2018 Chevrolet® Silverado pickup truck with 7" IOB display screen.
2016-2018 Chevrolet® Colorado pickup truck with 7" IOB display screen.
Not compatible if vehicle has Rear Seat Entertainment system.
Installation
The side cameras will mount under your side mirrors, which will require complete removal and disassembly of your mirrors. These mirrors can be challenging to disassemble so professional installation is recommended for this kit.

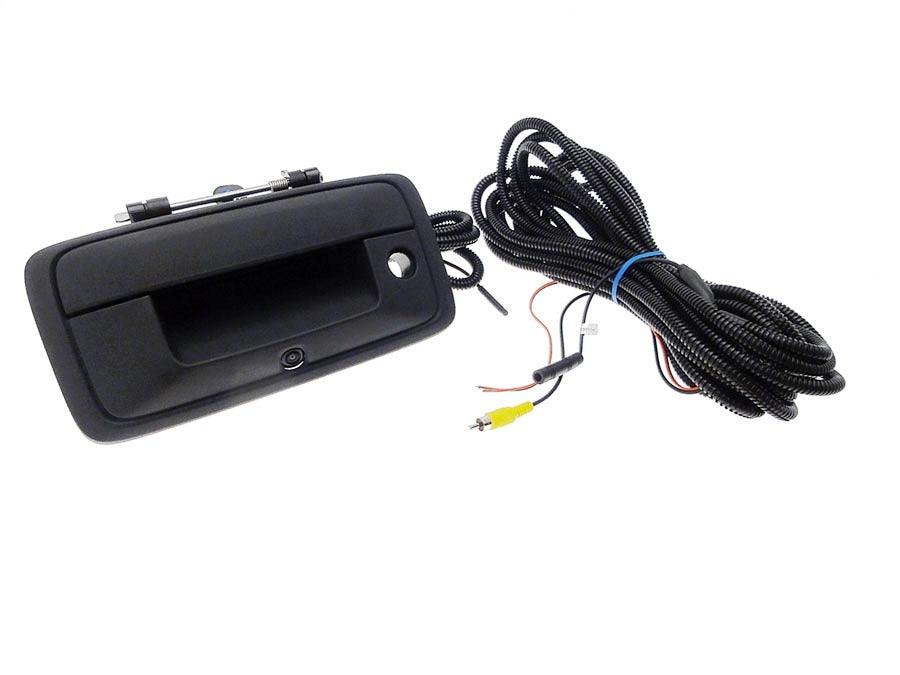

The rear camera kit will replace your factory tailgate handle.
Front camera mounts to any flat surface and has parking guidelines that can be turned off. You will need to switch it to the forward looking image on the harness during the installation.
The Multi-cam integration module is plug and play with your factory 7" IOB screen. You will need to remove your factory 7" screen to gain access to the back of the connections. The module creeates the RCA connections for the cameras to connect directly to the screen, programs the radio to accept the camera, and is the power source for the cameras. No cutting or splicing of factory wiring! No dealer programming required!
