Surface Mount Front Camera Kit for 8" Displays, Fits 2015 F150
SKU#: CS-FTRFSM-8a
Availability:
In Stock
SKU#:
CS-FTRFSM-8a
$441.00
Quantity
Front Cam + Multi-camera Support!
Description

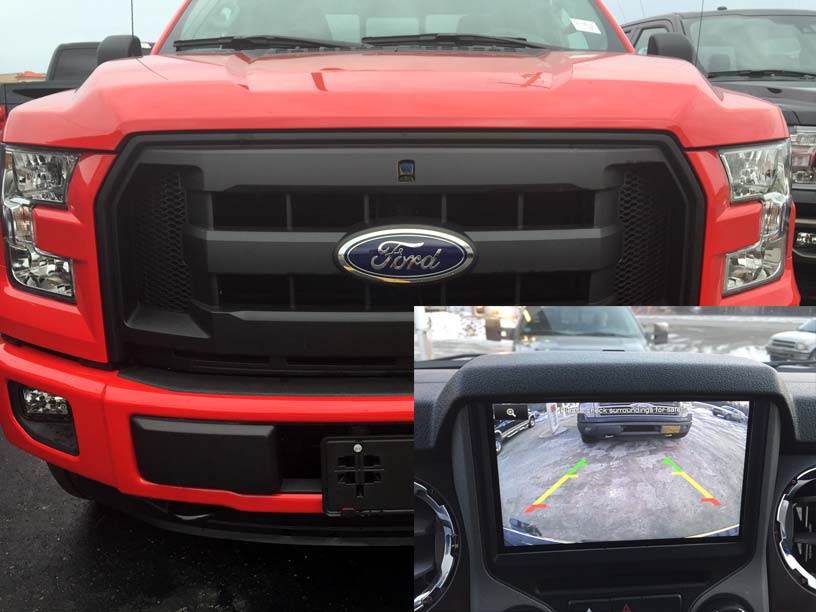

Can't see over that hood? Want to see what's next to you before changing lanes? This is your solution and is a Camera Source exclusive for your 2015 F150 Lariat or XL with a MyFord® Touch 8" SYNC 2 display!! This camera is chrome or black plated and utilizes our latest Super CMOS forward looking camera for a kit that looks like it came from the factory! Includes factory Ford® parking guidelines in the display. The screen interface provides multi-cam support so you can add up to 2 total cameras to your factory MyFord® Touch 8" SYNC 2 display screen!

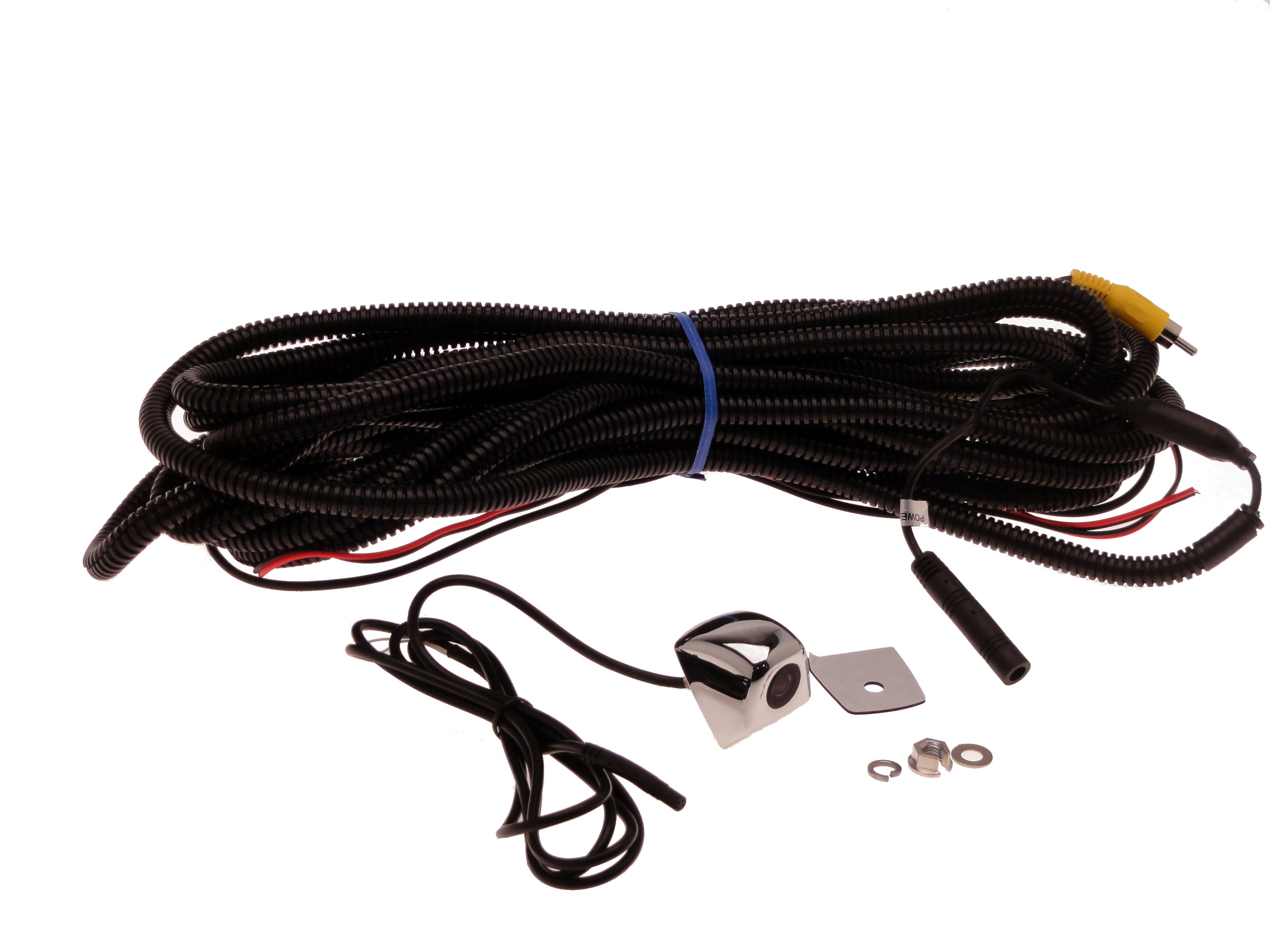

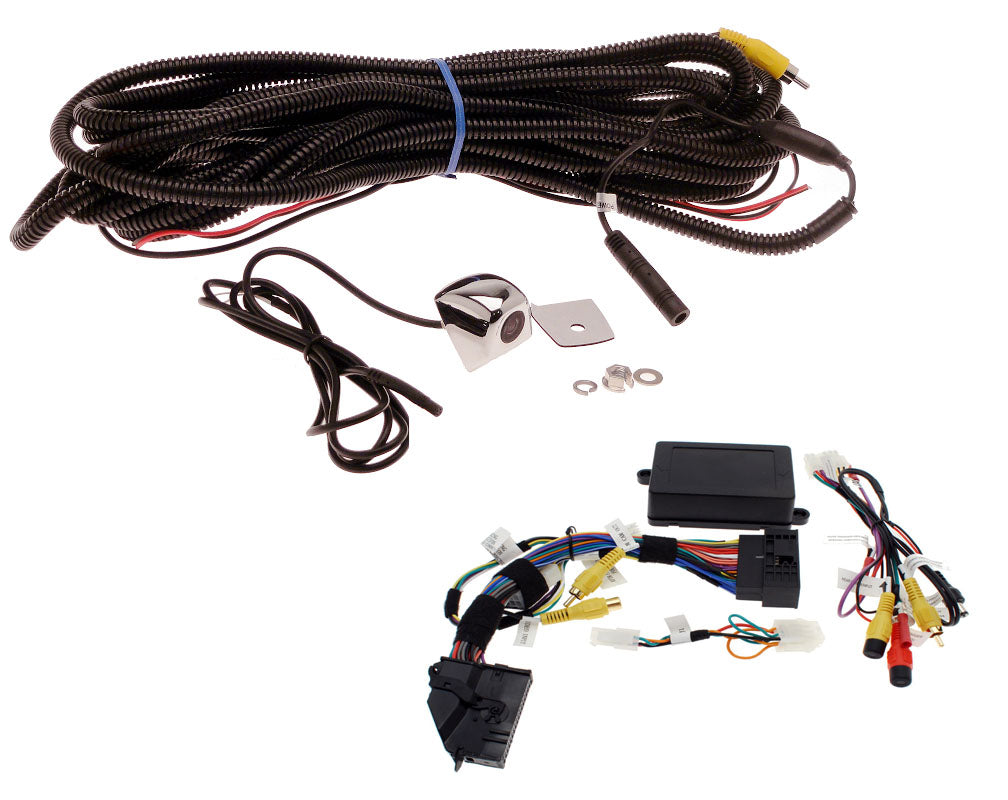

Kit includes:

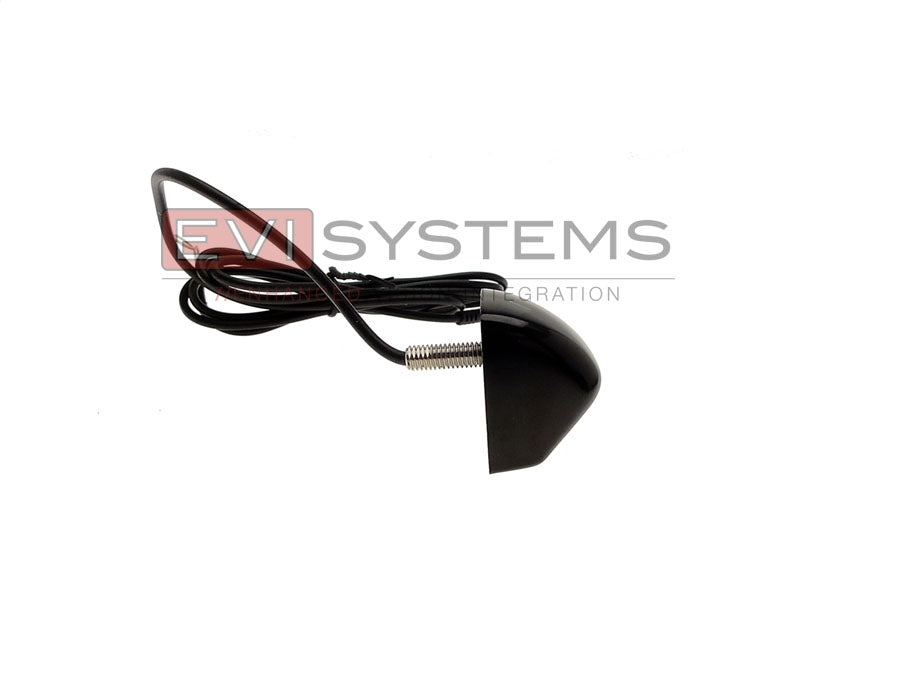

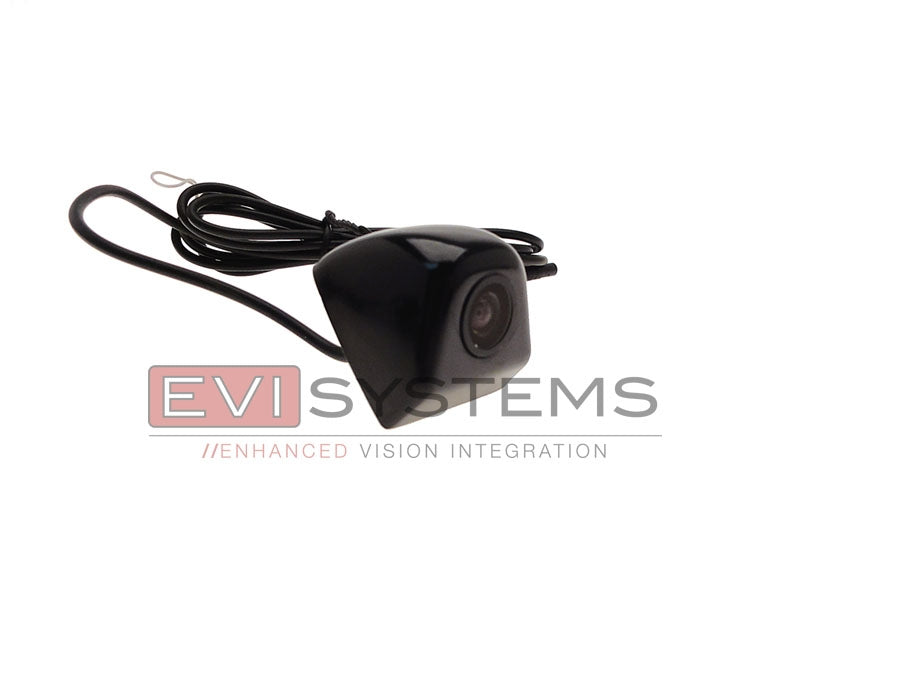

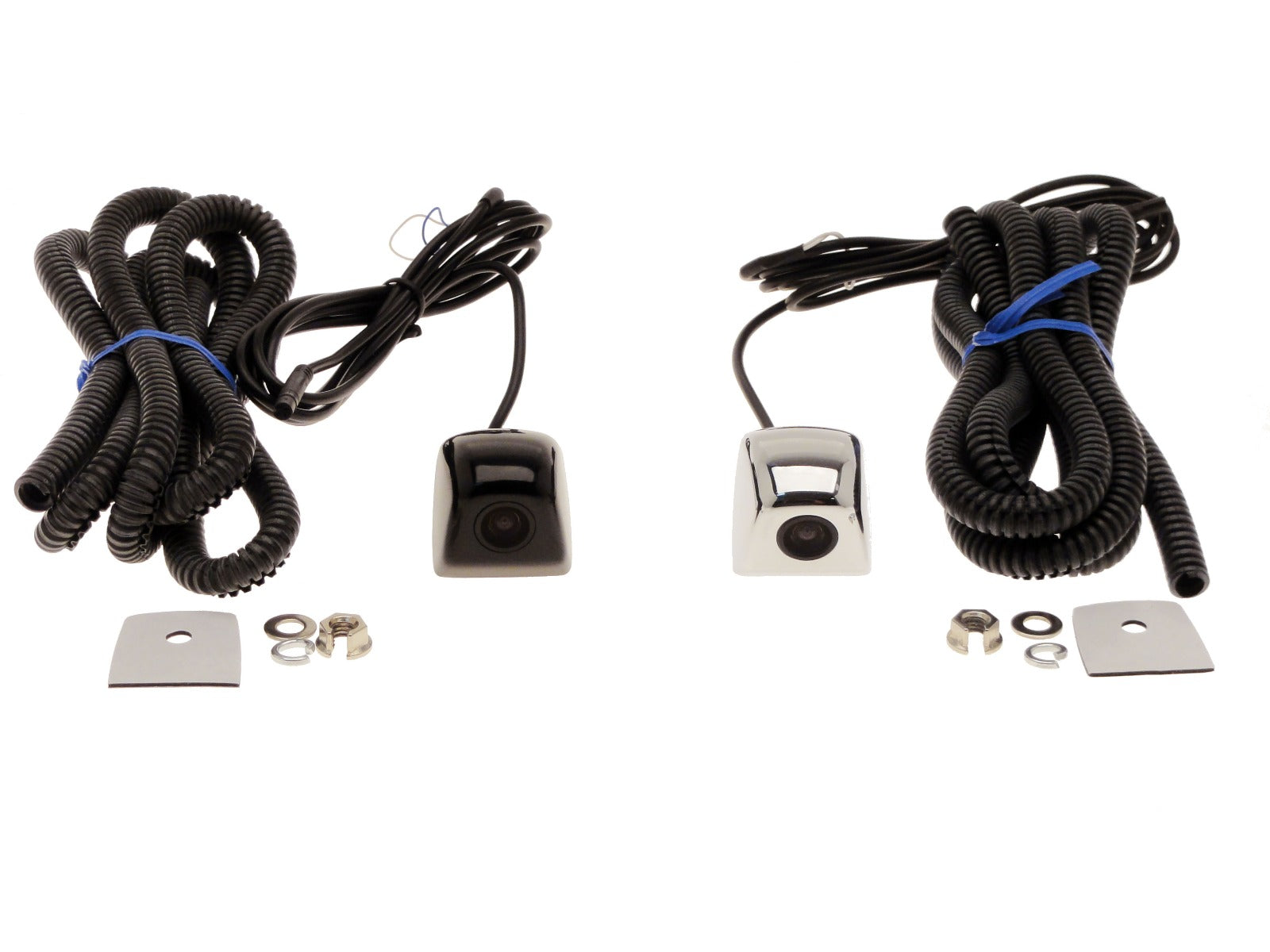

- Chrome or black plated metal grille mounted camera with our latest super CMOS camera - the latest camera technology!

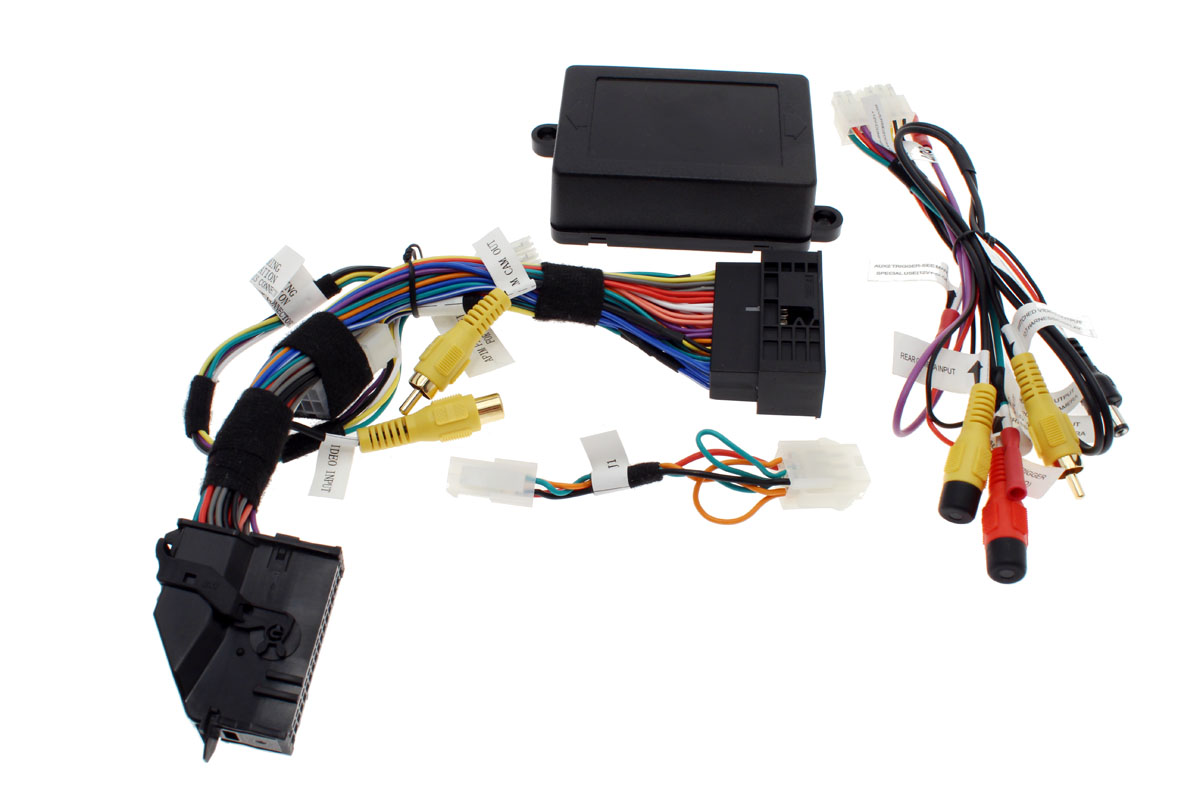

- Screen interface module for your factory radio (radio not included). Provides multi-camera support for up to 2 total cameras!
- Mounting hardware
- Camera wiring harness
- Zip ties
- Detailed installation instructions
- 3 year limited camera warranty
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity! forward looking camera - designed for front applications
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!
MyTouch Multi Cam interface:
- Uses existing 8” MyFord® Touch SYNC 2 factory display-(screen not included)

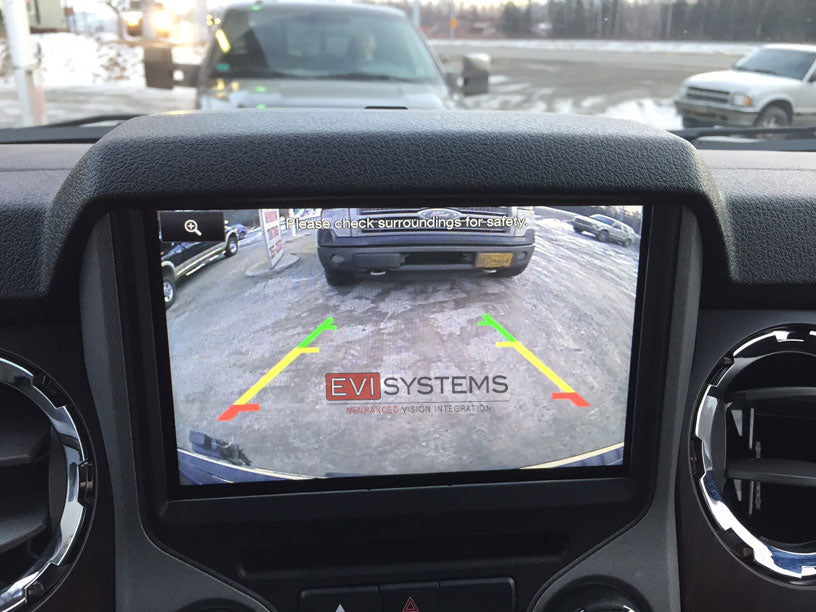

- Allows addition of front camera that can be manually triggered by using the OK button on your radio controls or steering wheel.
- Pass through for existing factory backup camera
- Shuts off front video at speeds over 7mph.Factory rear camera not available above 7mph.
This kit allows you to see what is directly in front of truck and will look like it came from the factory! We can also set you up with side cameras that will complement this system perfectly! This camera comes with a 3 year warranty and professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Lockpick AV Out | No |
| Lockpick Bluetooth | No |
| Includes Remote | No |
| Make | Ford |
| Camera Mount Location | Front Grille |
| Night Vision | .1 Lux |
| Camera Orientation | Front Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8” Ford Sync 2 |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 2 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | F-150 |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2015 |
| Make Filter | Ford |
| Model Filter | F-150 |
| Year Filter | 2015 |
Compatibility
This kit is compatible with 2015 F150 Lariat or XL with MyFord® Touch 8" SYNC display radio. Not compatible with basic XLT grille.
2015-F150

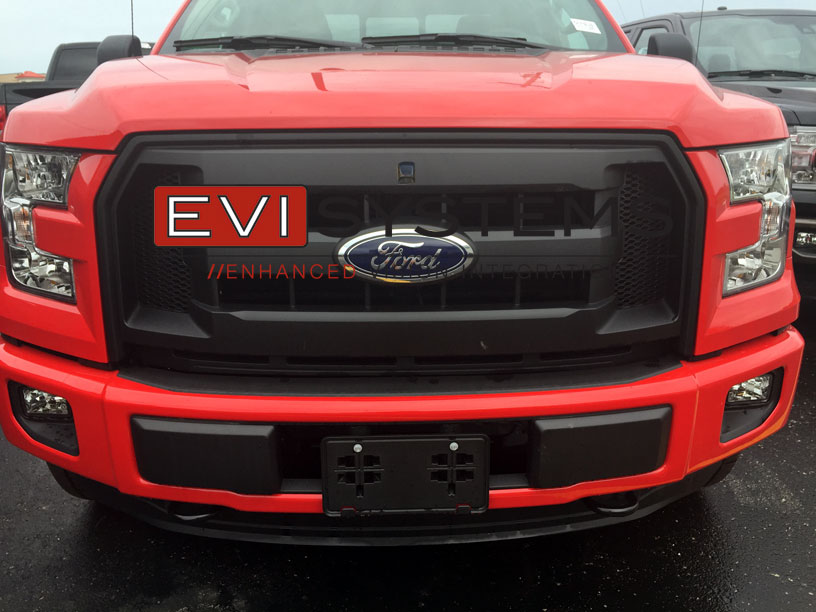

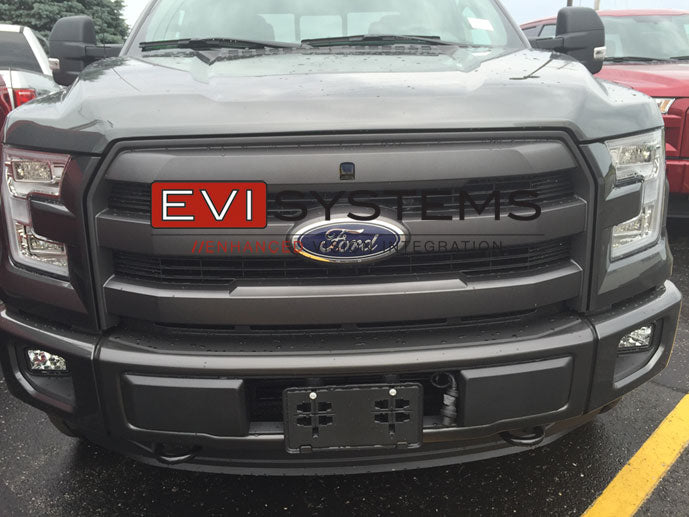

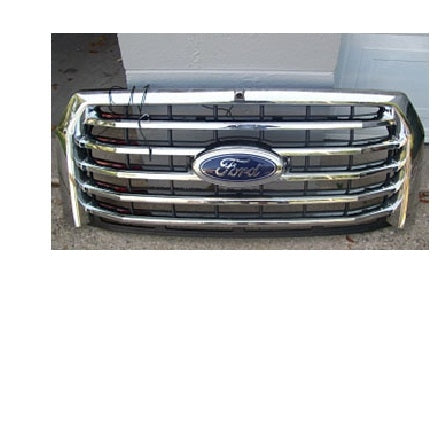

2015 F150 Lariat and XL with Chrome or Black Grille are compatible. XLT is not compatible with this kit. Camera is surface mounted on a cross section of the grille so it will require a flat section approximately 1" x 1" for mounting. Camera is secured with a nut, which threads over the shaft mount of the camera on the back-side of the grille.
NOTE: if you have an older F150 with the 9"x3.5" emblem on your grille you should use our other kit - CS-FTRF-8a.
Installation
This camera mounts into your factory grille by drilling a single hole in your upper cross member, then run the harness to the cab and connect to your factory MyFord Touch screen using the included 8" SYNC 2 interface module. All plug and play - no cutting of factory wires!
The instructions walk you through the entire installation process.
