OE Style Front Camera Kit for RCA Display, Fits 2015-17 F150
SKU#: CS-FTRFOE
Availability:
In Stock
SKU#:
CS-FTRFOE
$203.00
Quantity
OE Style Front Camera for RCA Display!
Description
This system consists of the OEM style grille mounted front camera and camera harness that terminates in a RCA connection to connect to an aftermarket display or separate monitor.
The front camera in this kit comes in an OEM Ford bracket so it will look exactly like the front camera that comes with the Ford® 360 system. ***Your factory grille will have to be swapped with a different grille that is designed to mount the camera assembly and this grille is NOT included in the kit.*** See your Ford® dealer for replacement grille options.
If you do not wish to swap your entire grille please see our surface mounted front camera kit part number CS-FTRFSM.
Kit includes:

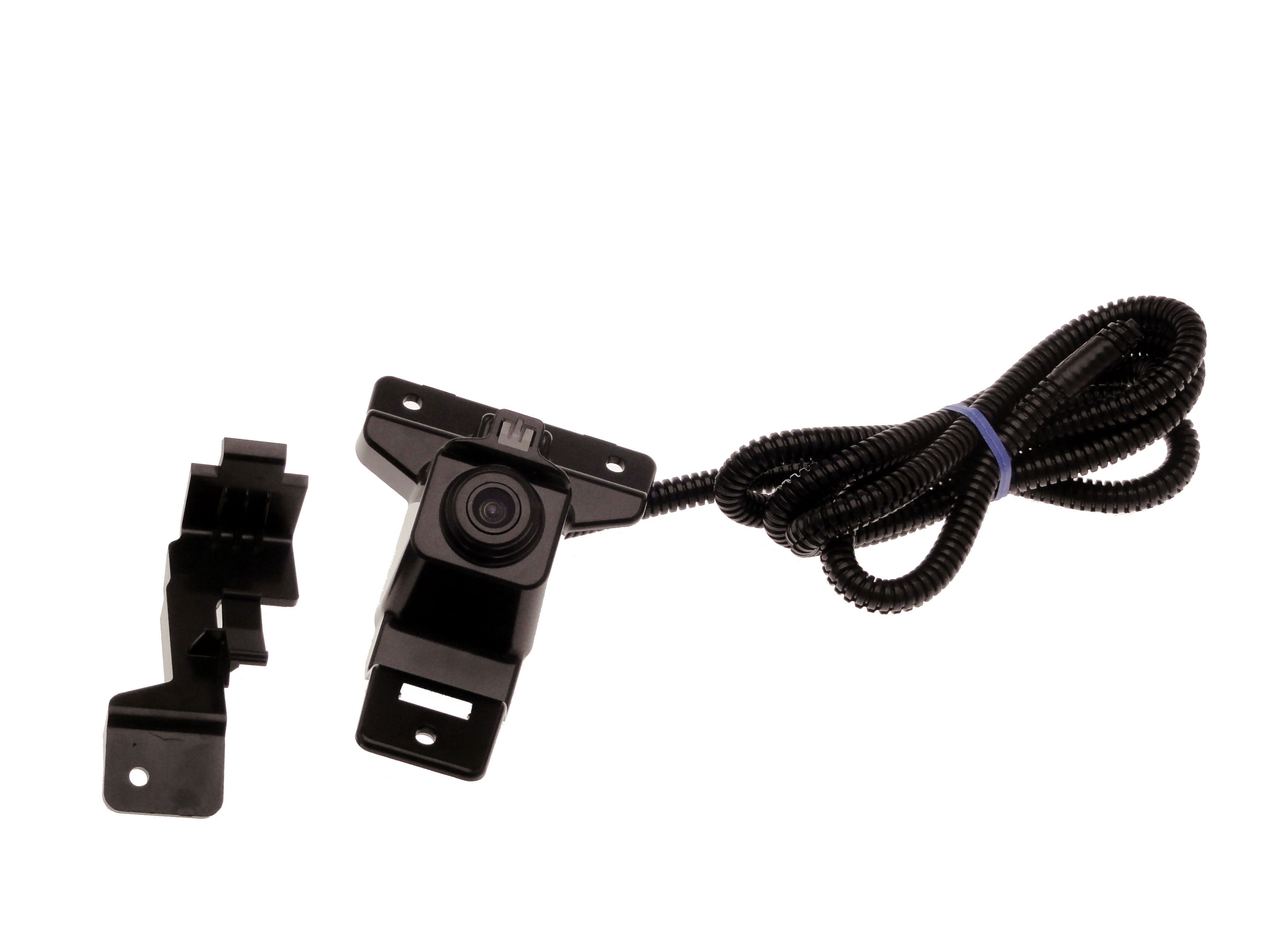

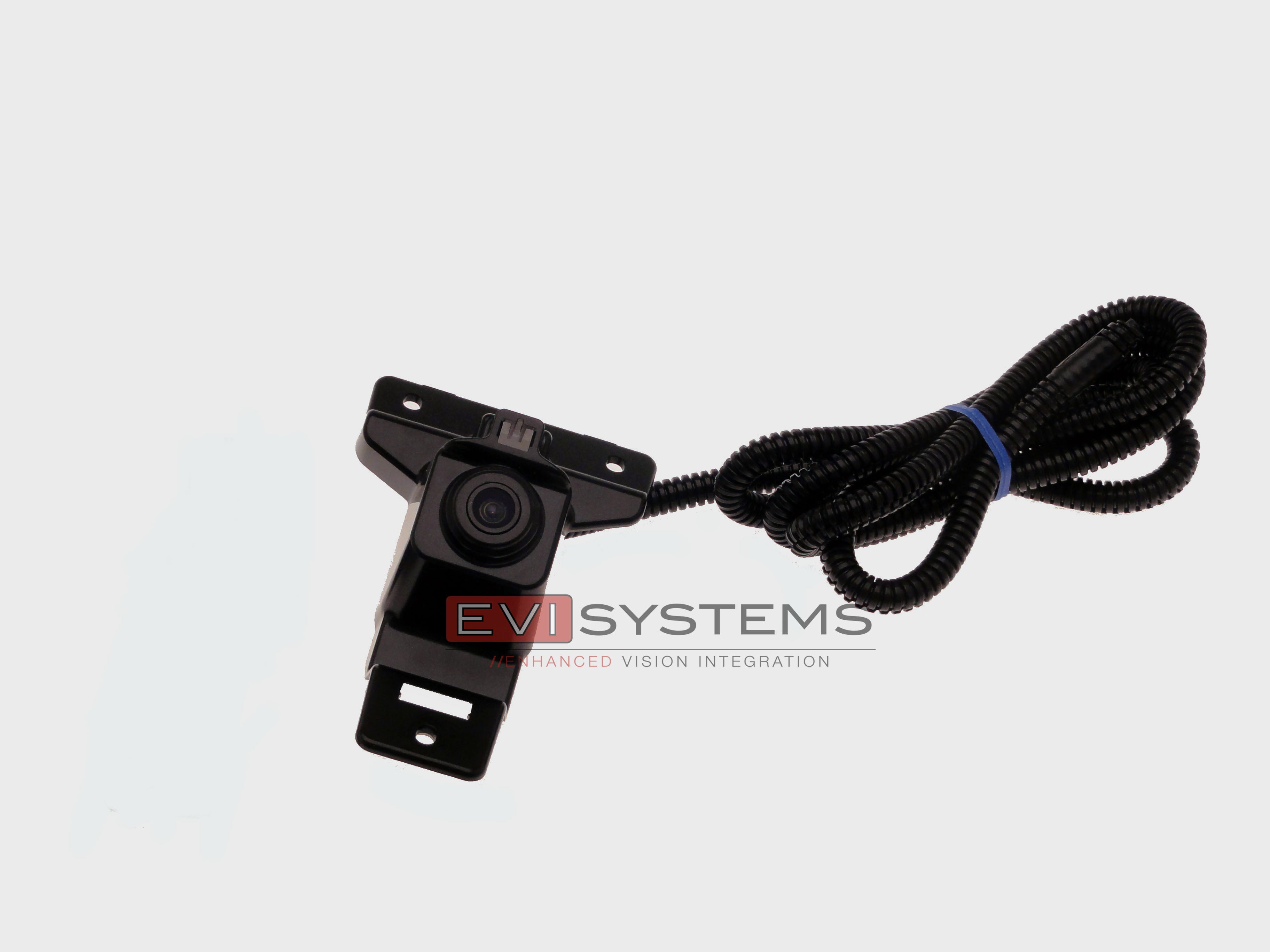

- OEM style grille mounted camera with our latest super CMOS camera - the latest camera technology!
- Mounting hardware

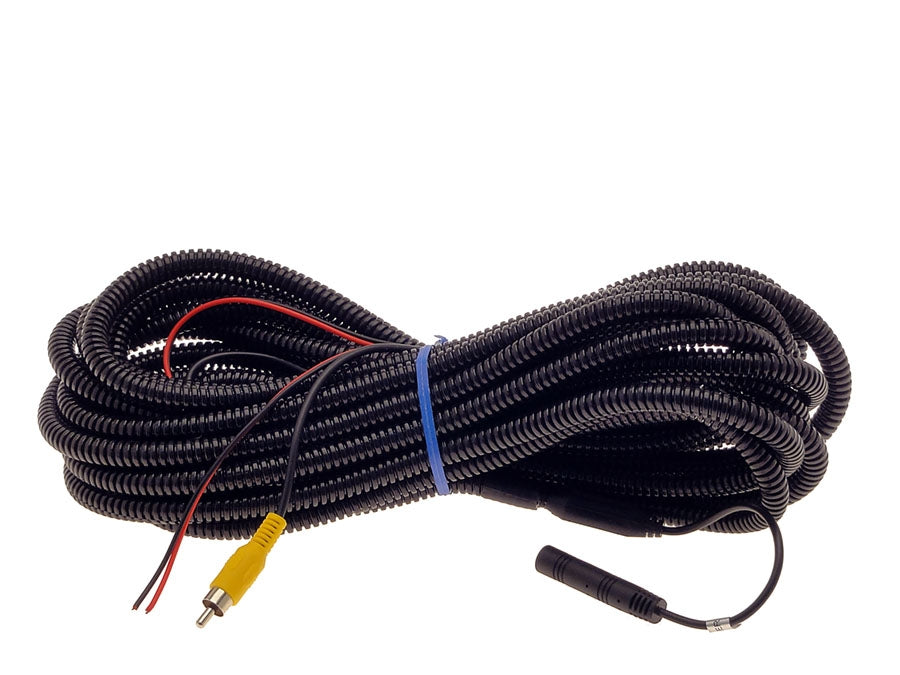

- Camera wiring harness
- Zip ties
- Detailed installation instructions
- 3 year warranty on the camera
- NOTE: Parking guidelines are not available in this front camera
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- forward looking camera - designed for front applications
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!
This kit allows you to see what is directly in front of truck and will look like it came from the factory! This camera comes with a 3 year warranty and is guaranteed to fit or your money back. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your aftermarket display (RCA) |
| Fit Type | Universal fit |
| Connection | Aftermarket Display (RCA) |
| Make | Ford |
| Camera Mount Location | Front Grille |
| Night Vision | .1 Lux |
| Camera Orientation | Front Facing |
| Parking Guidelines | Not Available |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Not Included |
| Vehicle Category | Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | F-150 |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2015,2016,2017 |
| Make Filter | Ford |
| Model Filter | F-150 |
| Year Filter | 2015, 2016, 2017 |
Compatibility
2015-2017 F150 **Not compatible with standard grille so this kit will require a grille replacement, grille not included. See your Ford® dealer for a replacement grille that is designed for the Ford® 360 front camera.
NOTE: You cannot use the CS-FTRF emblem camera kit because the factory blue oval housing is no longer removable from the existing grille. This camera is a bracket style system that is designed by Ford to mount under the center of the front Ford emblem. This kit uses an OEM bracket and cannot be retrofitted to any other application.
Installation

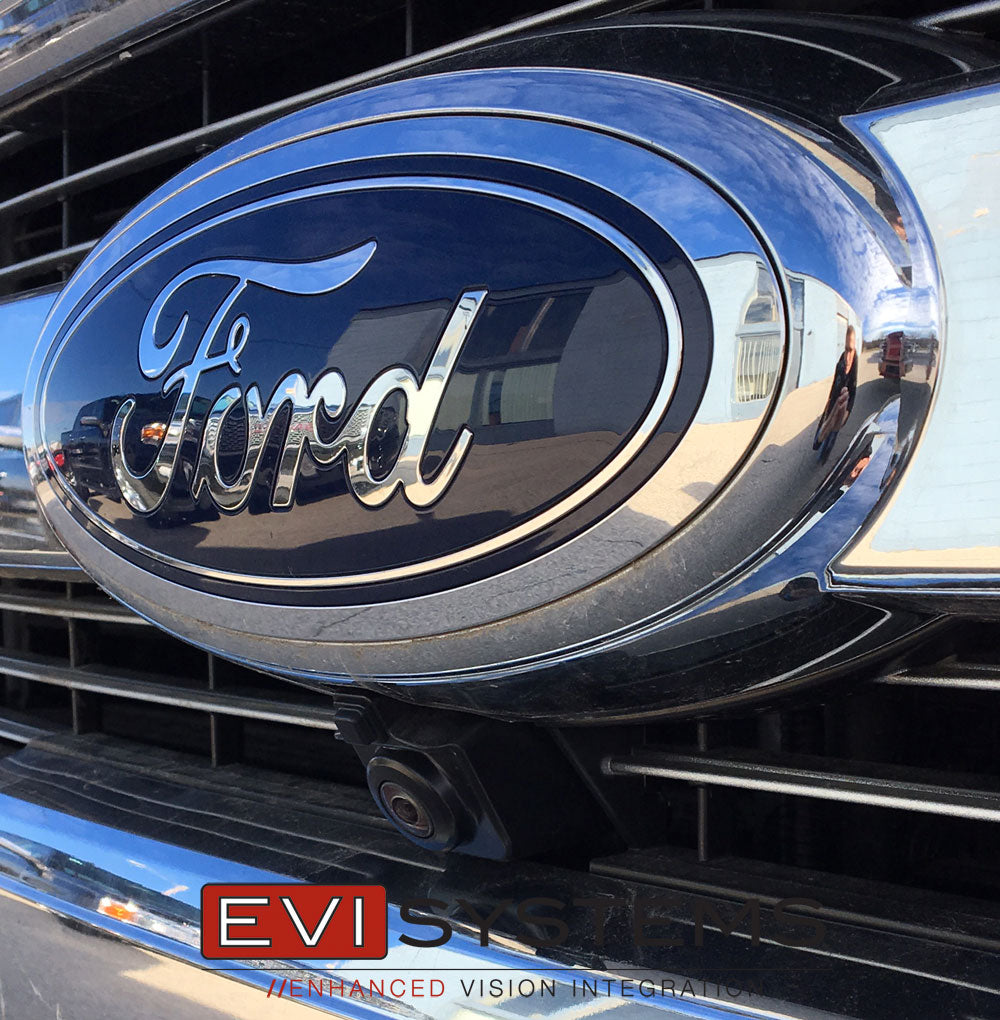

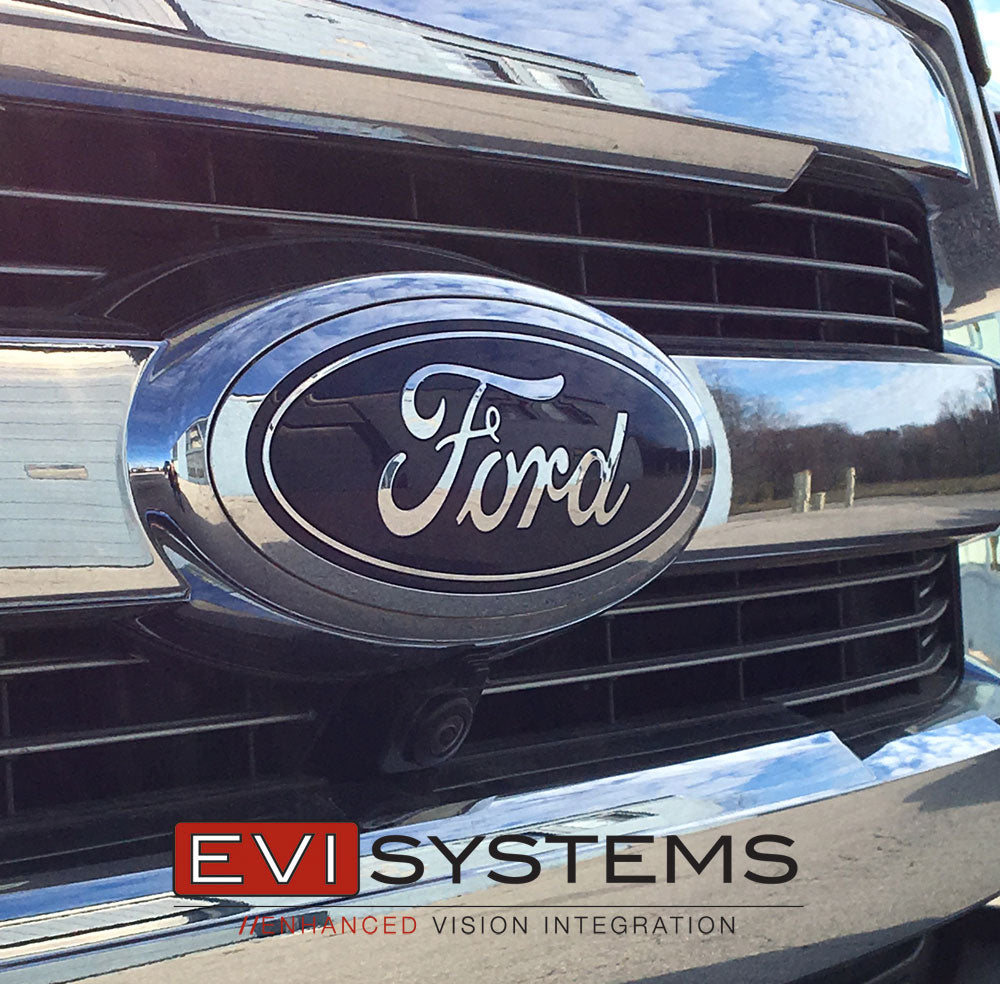

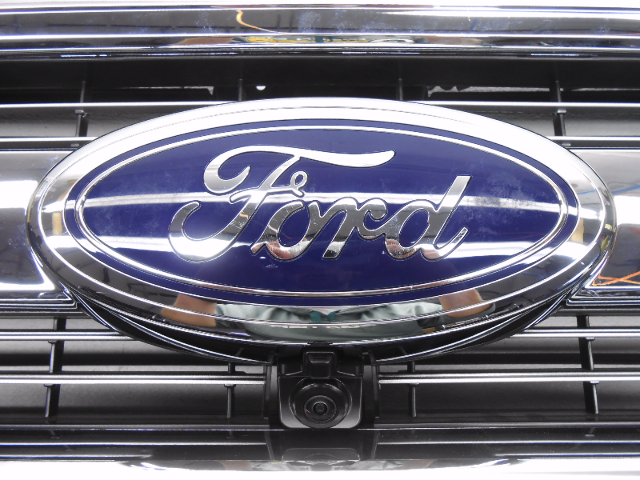

The front camera mounts into your factory grille by attaching to the cutout location under the Ford® emblem, then run the harness to the cab and connect to your RCA display.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
