OE Style Front Camera Kit for 8" Display, Fits 2015 F150
SKU#: CS-FTRFOE-8a
Availability:
In Stock
SKU#:
CS-FTRFOE-8a
$459.00
Quantity
OE Style Front Camera for 8" Display!
Description
This system consists of the OEM style grille mounted front camera and a multi-camera interface for your factory MyFord® Touch 8" SYNC 2 radio. The front camera in this kit comes in an OEM Ford® bracket so it will look exactly like the front camera that comes with the Ford 360 system.
***Your factory grille will have to be swapped with a different grille that is designed to mount the camera assembly and this grille is NOT included in the kit.*** See your Ford® dealer for replacement grille options.
If you do not wish to swap your entire grille please see our surface mounted front camera kit part number CS-FTRFSM-8a.
Cameras can also be manually activated using the included push button or the OK button on the steering wheel for 3 seconds.

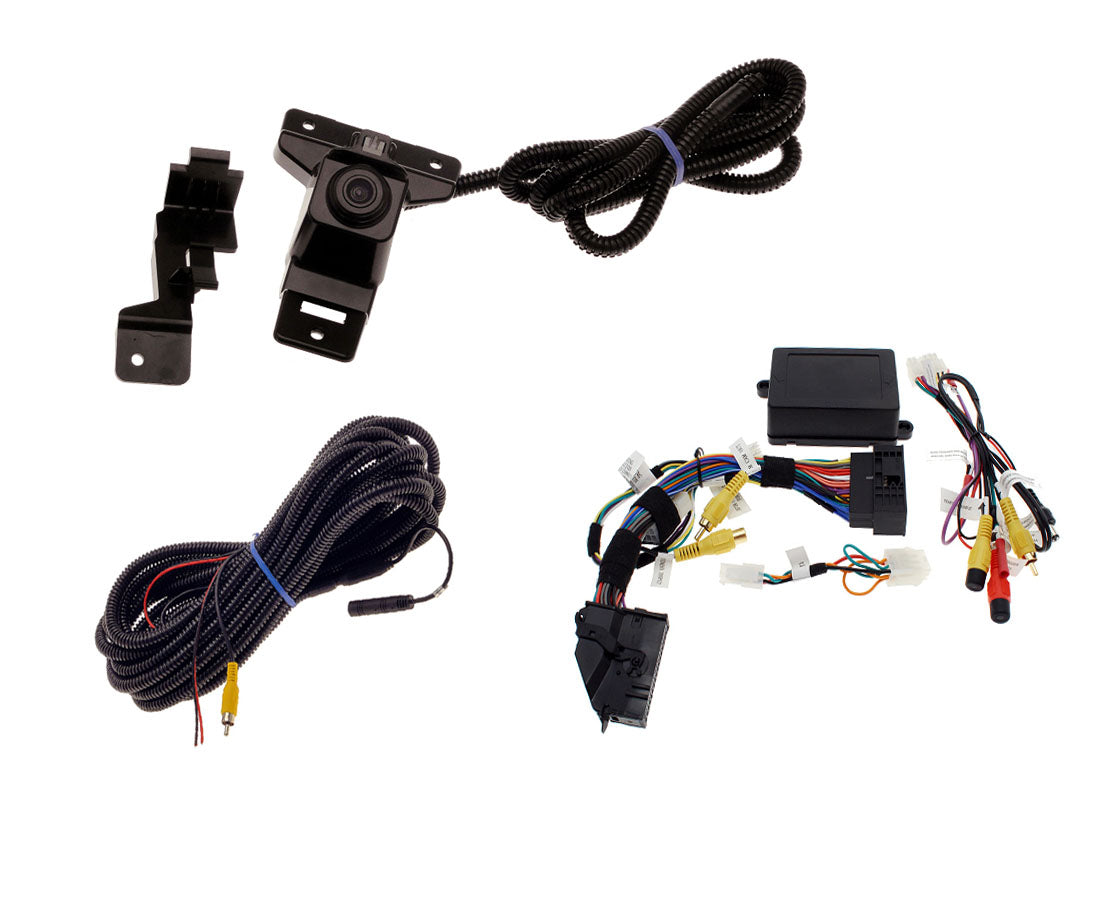

Kit includes:

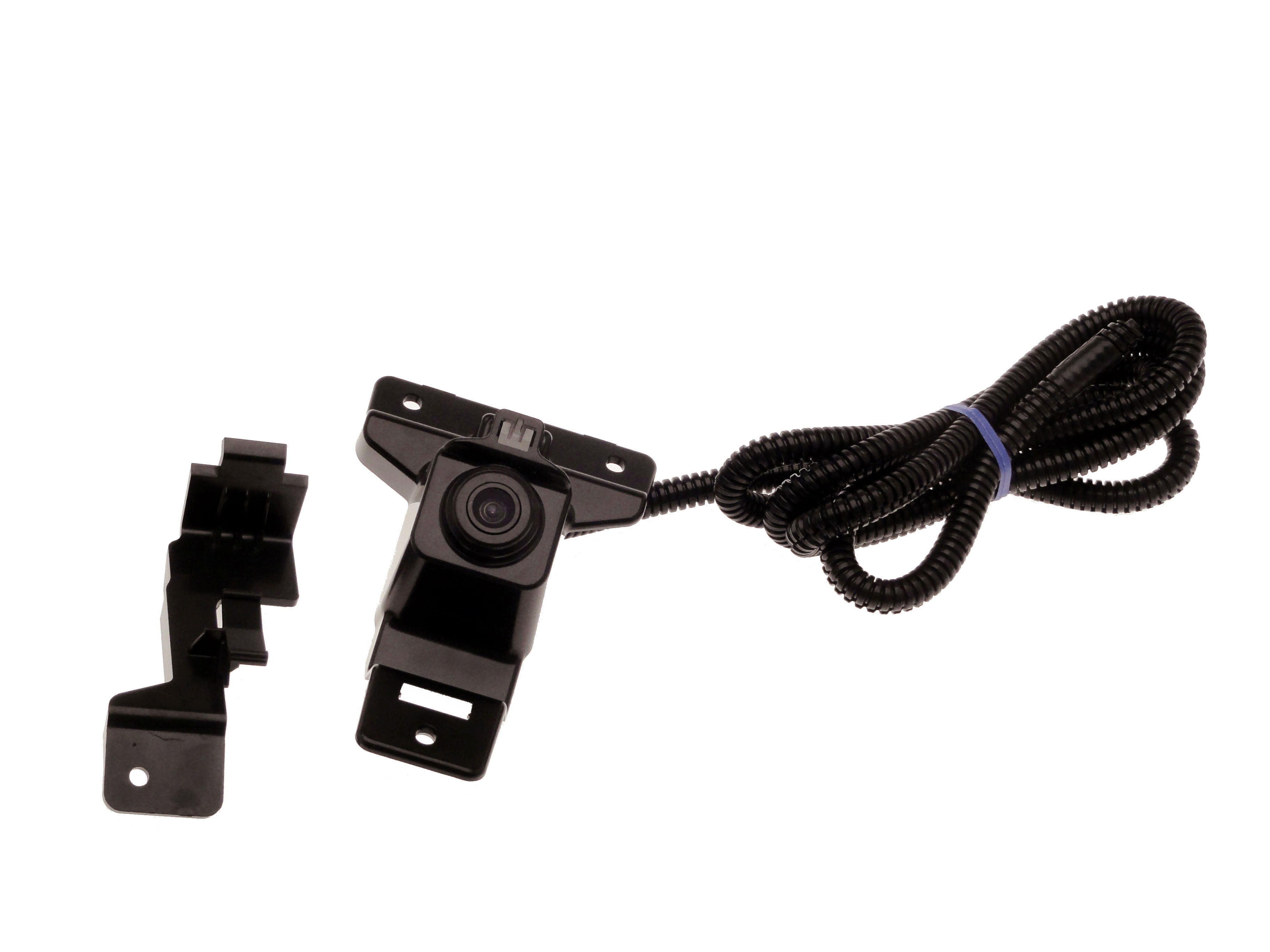

- OEM style grille mounted camera with our latest super CMOS camera - the latest camera technology!
- Mounting hardware

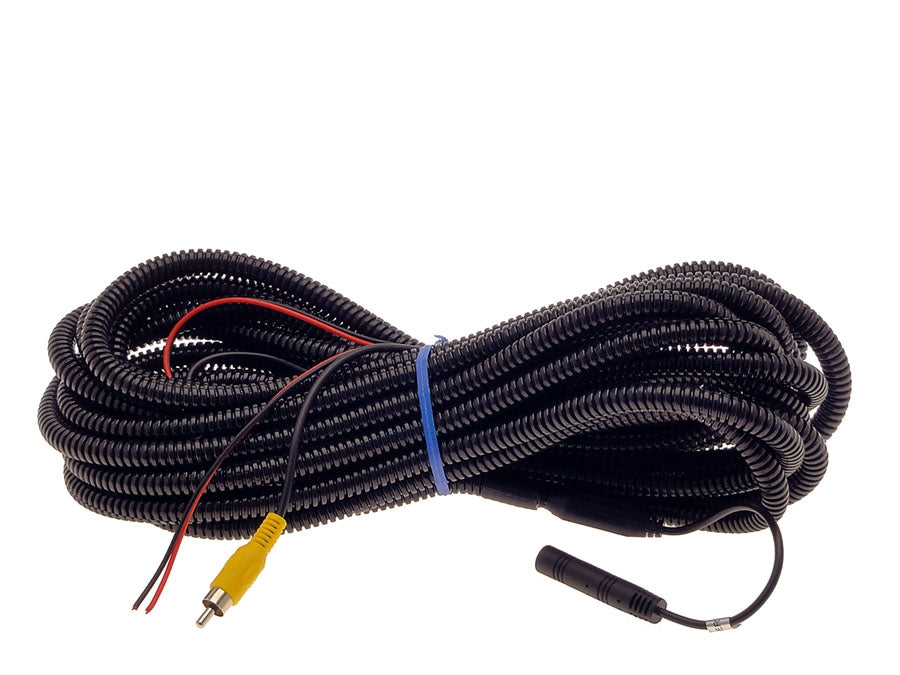

- Camera wiring harness

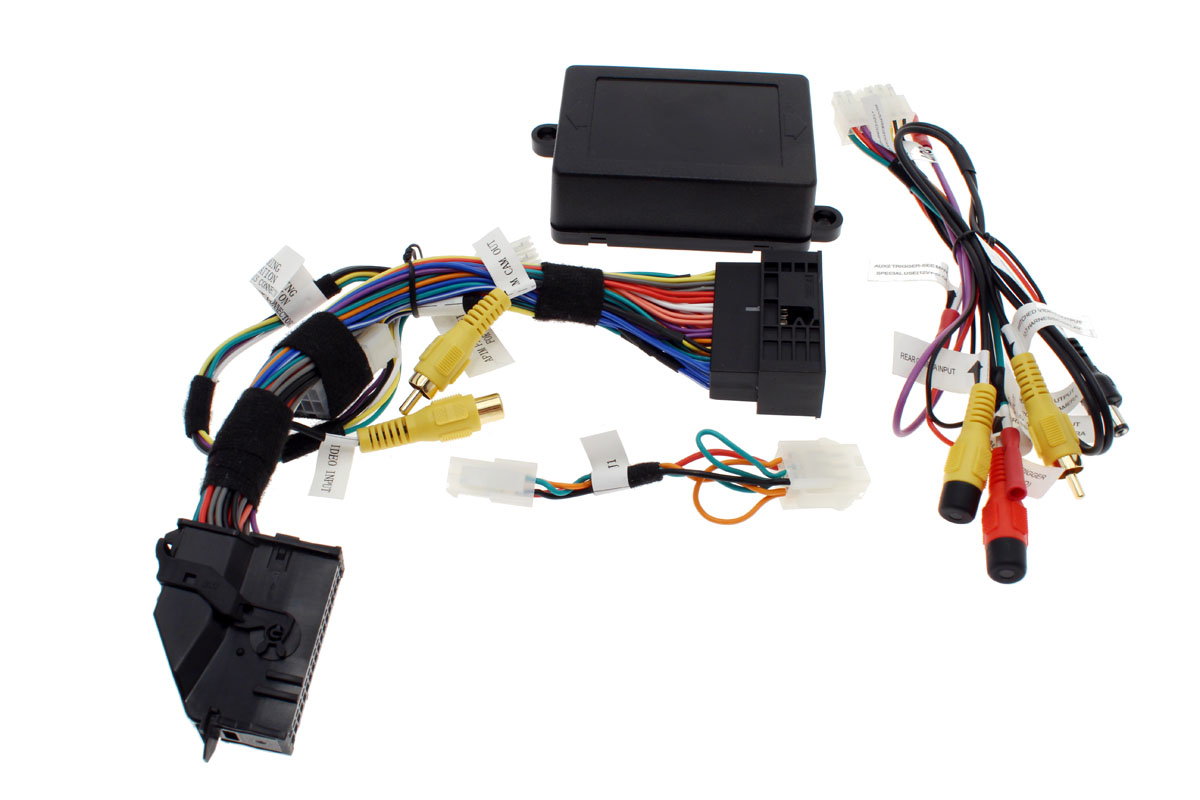

- SYNC 2" camera interface module
- Zip ties
- Detailed installation instructions
- 3 year warranty on the cameras
- NOTE: Parking guidelines are not available in this front camera
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- forward looking camera - designed for front applications
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!
MyTouch Multi Cam interface:
- Uses existing MyFord® Touch 8” SYNC 2 factory radio display-screen not included
- Allows addition of included front camera that can be manually triggered using your OK button on the steering wheel
- Pass through for existing factory backup camera or RCA input for aftermarket rear camera
- Shuts off front video at speeds over 7mph. Factory rear camera NOT available over 7 mph in motion.
- Press OK button on the steering wheel to manually activate front camera, then tap again to toggle between them
- 2 additional inputs for side cameras (cameras not included)

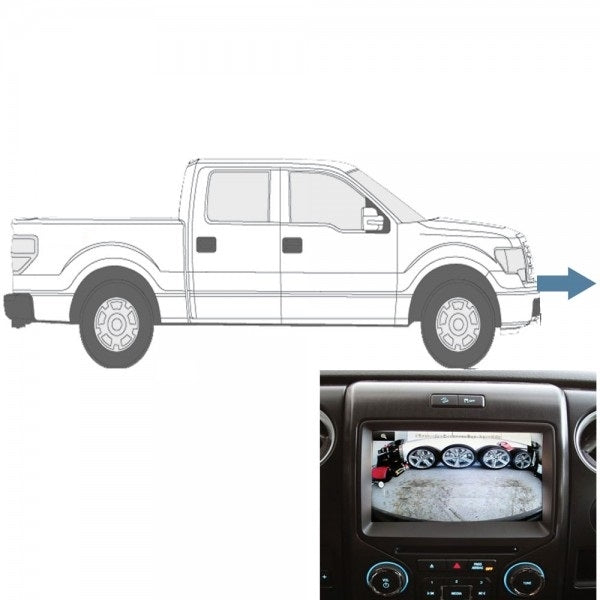

This kit allows you to see what is directly in front of truck and will look like it came from the factory! This camera comes with a 3 year warranty and is guaranteed to fit or your money back. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford |
| Camera Mount Location | Front Grille |
| Night Vision | .1 Lux |
| Camera Orientation | Front Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8” Ford Sync 2 |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | F-150 |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2015 |
| Make Filter | Ford |
| Model Filter | F-150 |
| Year Filter | 2015 |
Compatibility
2015 F150 with MyFord® Touch 8" SYNC 2 radio. Not compatible with standard grille so this kit will require a grille replacement, grille not included. See your Ford dealer for a replacement grille that is designed for the Ford® 360 front camera.
NOTE: This camera is a bracket style system that is designed by Ford to mount under the center of the front Ford emblem. This kit uses an OEM bracket and cannot be retrofitted to any other application. You cannot use the CS-FTRF emblem camera kit because the factory blue oval is no longer removable from the existing grille.
Installation

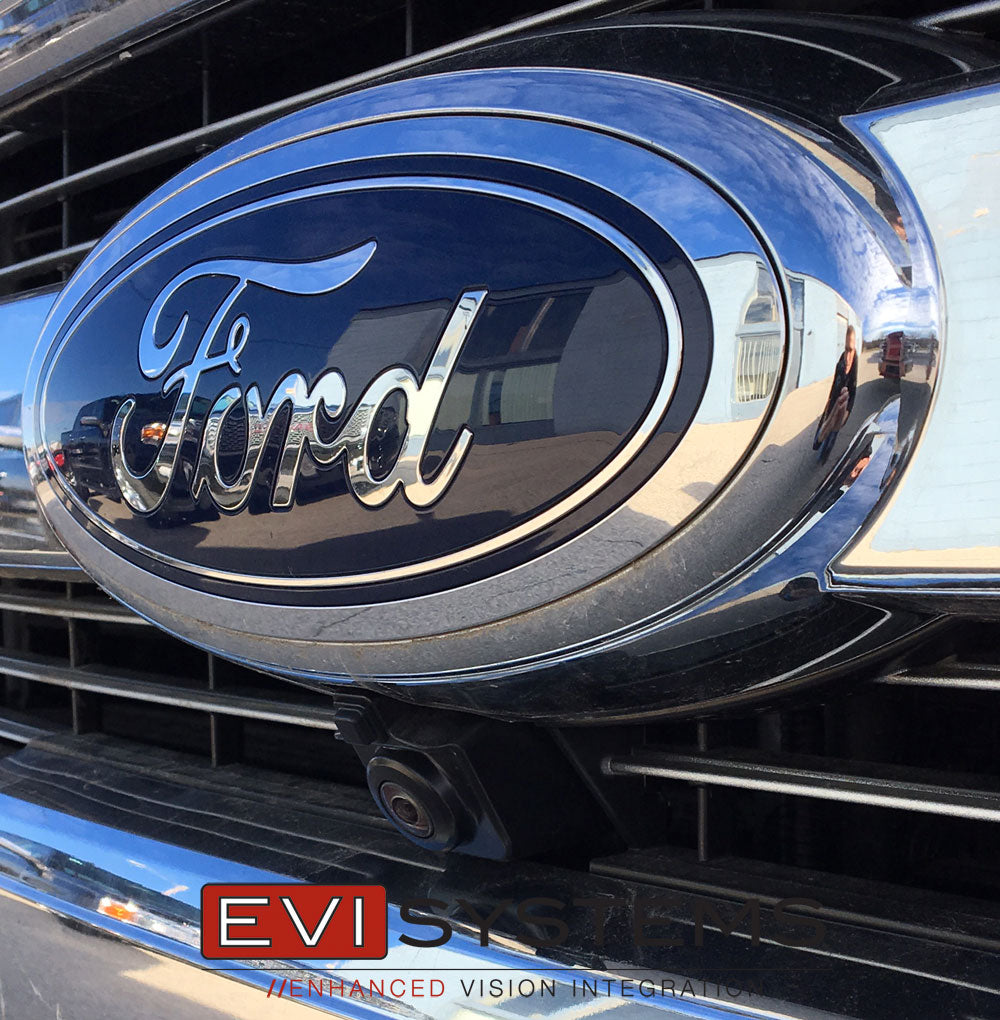

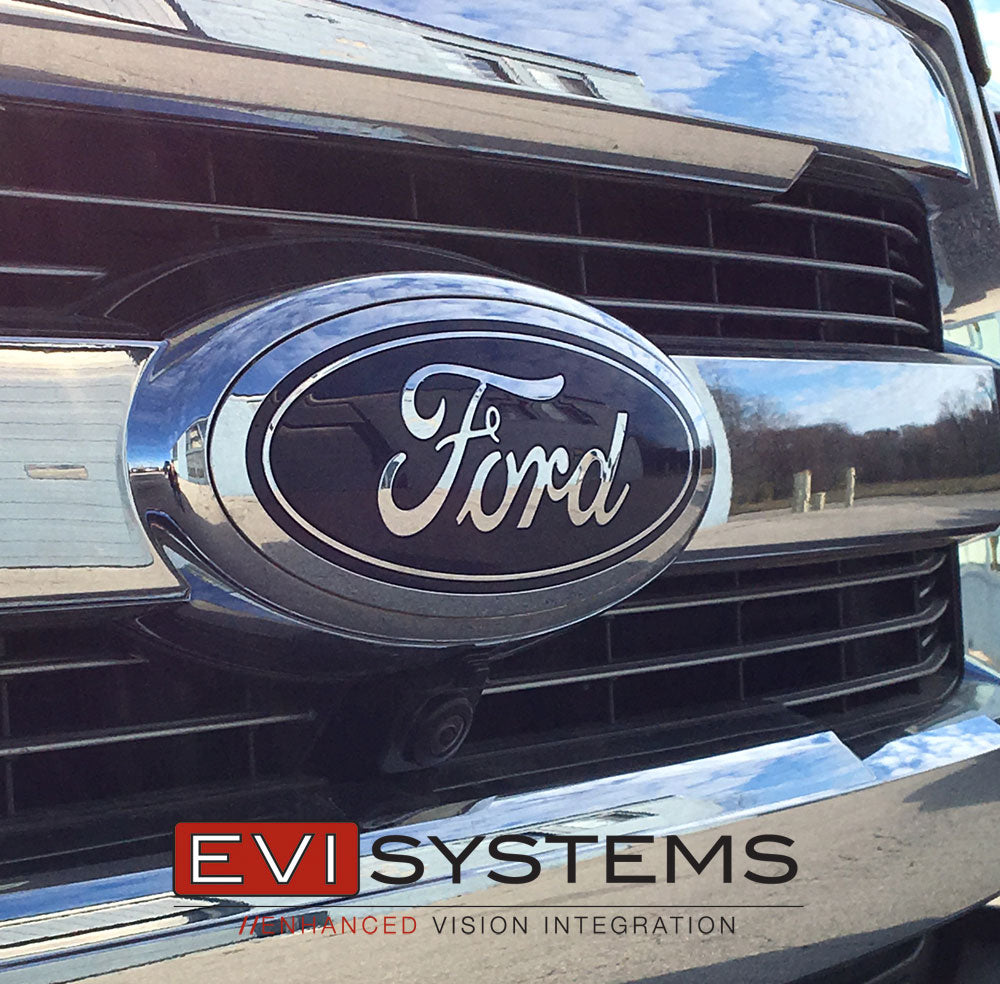

The front camera mounts into your factory grille by attaching to the cutout location under the Ford emblem, then run the harness to the cab and connect to your factory MyFord® Touch screen radio using the included interface. All plug and play - no cutting of factory wires! You must remove your factory radio in order to gain access to the wiring, professional installation is recommended.
