Front Grille Camera System for Universal Display, Fits 2015+ F150
SKU#: CS-FTRFSM
Availability:
In Stock
SKU#:
CS-FTRFSM
$179.00
Quantity
Chrome or Black Surface Mount, RCA harness!
Description
Can't see over that hood? This is your solution and is a Camera Source exclusive for your Ford® Truck!! This camera is available in either chrome or black and utilizes our latest Super CMOS forward looking camera for a kit that looks like it came from the factory! Includes factory Ford® parking guidelines in the display!

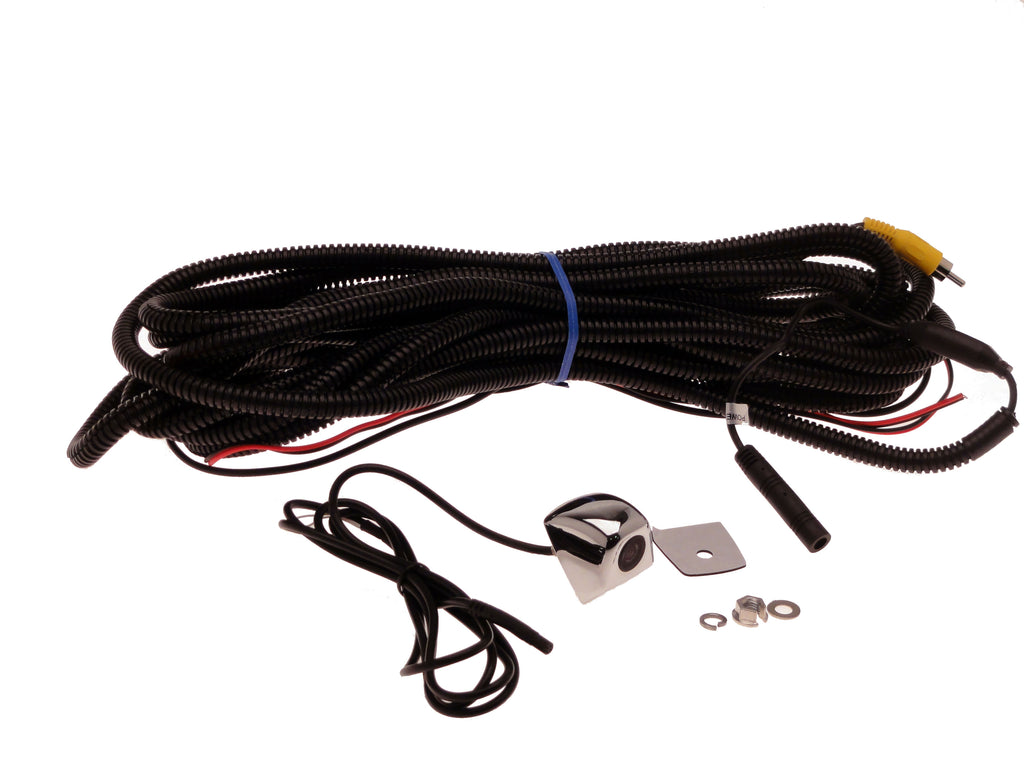

Kit includes:

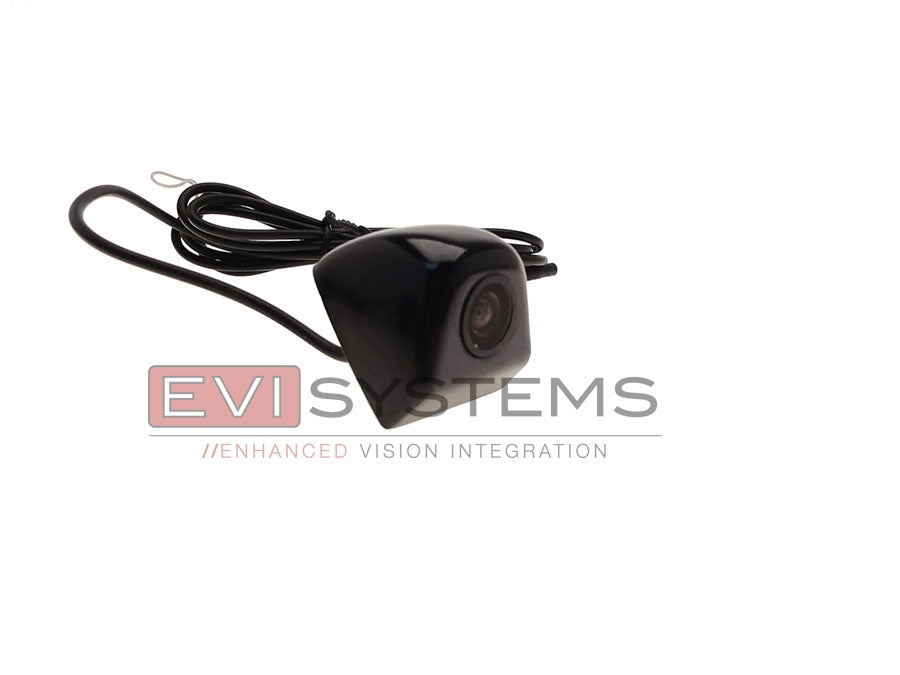

- Chrome or black plated metal grille surface mounted camera with our latest super CMOS camera - the latest camera technology!
- Mounting hardware
- Camera wiring harness
- Zip ties
- Installation instructions
- 3 year limited camera warranty
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- forward looking camera - designed for front applications
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!

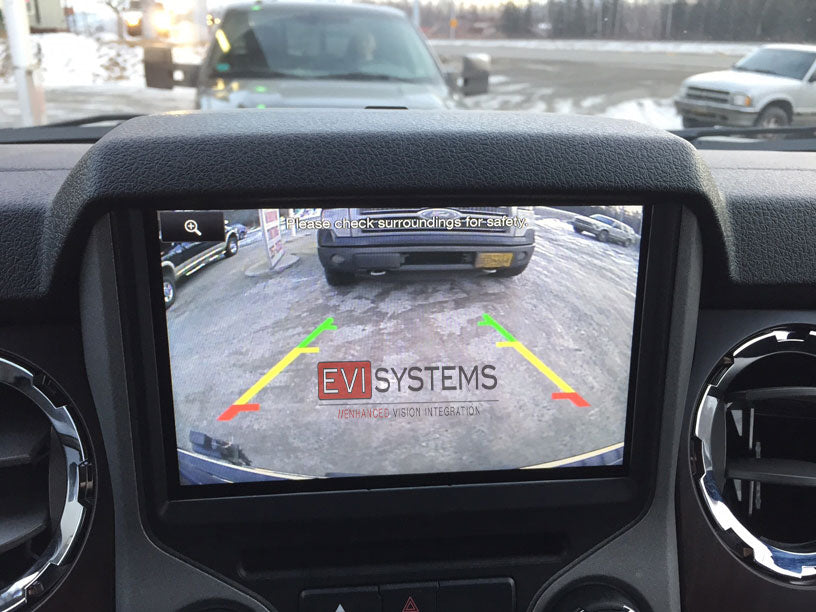

NO RADIO/NAVIGATION MONITOR OR SCREEN INTERFACE IS INCLUDED IN THIS KIT (the photo of the navigation screen is so you can see what the camera looks like on a display radio). We also stock this kit with various configurations for navigation plug and play capabilities... see our online catalog. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your aftermarket display (RCA) |
| Connection | Aftermarket Display (RCA) |
| Make | Ford |
| Camera Mount Location | Front Grille |
| Night Vision | .1 Lux |
| Camera Orientation | Front Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Not Included |
| Vehicle Category | Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | F-150 |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2015 |
| Make Filter | Ford |
| Model Filter | F-150 |
| Year Filter | 2015 |
Compatibility

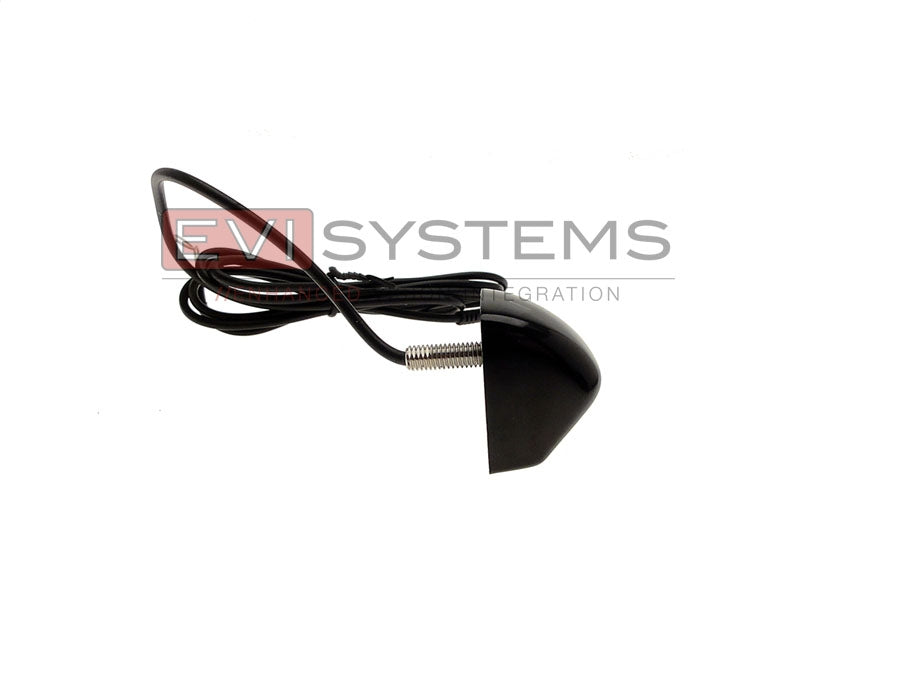

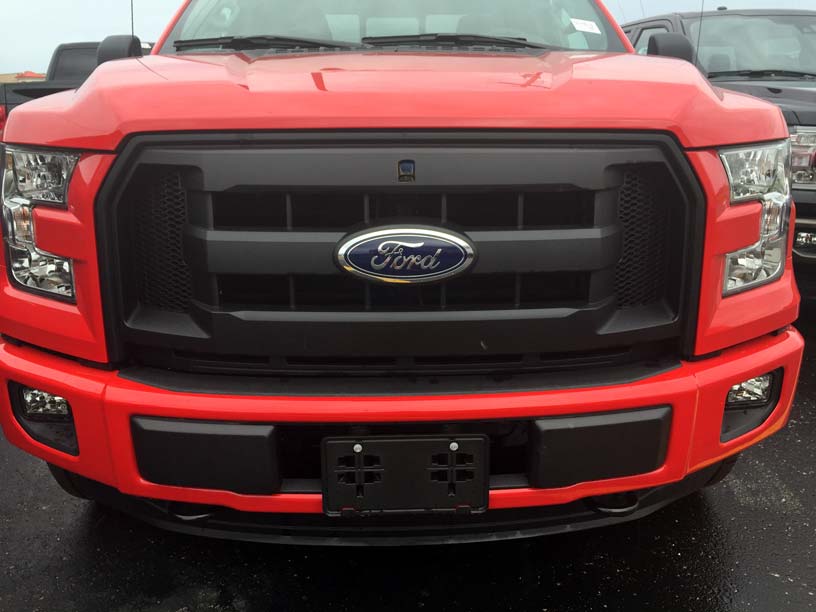

All Ford® trucks with black or chrome grille and... Camera is surface mounted on a cross section of the grille so it will require a flat section approximately 1" x 1" for mounting. Camera is secured with a nut, which threads over the shaft mount of the camera on the back-side of the grille.

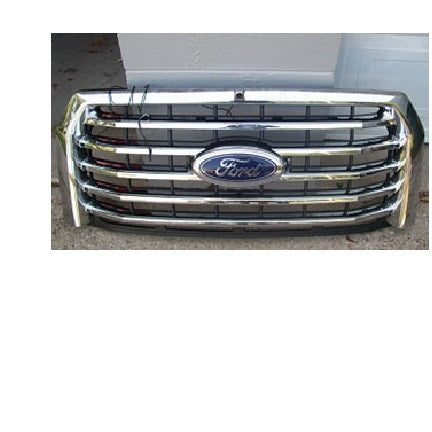

Most Super Duty trucks and 2015+ F150 Lariat and XL with Chrome or Black Grille are compatible. XLT is not compatible with this kit.
NOTE: if you have the 9"x3.5" emblem on your grille you should use our other kit - CS-FTRF. The quick way to tell which kit to use is if the front emblem is larger than the rear emblem, use this kit. If both emblems are the same size use the CS-FTRF kit. The 2015+ F150 must use this camera as it is currently the only option available that will fit.
Installation
Simple installation may not even require the removal of the front grille, drill hole for camera mount, and run harness to the cab through an existing grommet in the firewall. Harness terminates with RCA so it will connect to any monitor with RCA input.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
