Front and Side Camera Kit for 8" Display, Fits 2015 F150
SKU#: CS-15FTRFSM-8FS
Availability:
In Stock
SKU#:
CS-15FTRFSM-8FS
$665.00
Quantity
Front + Side Cams for 8" Display!
Description

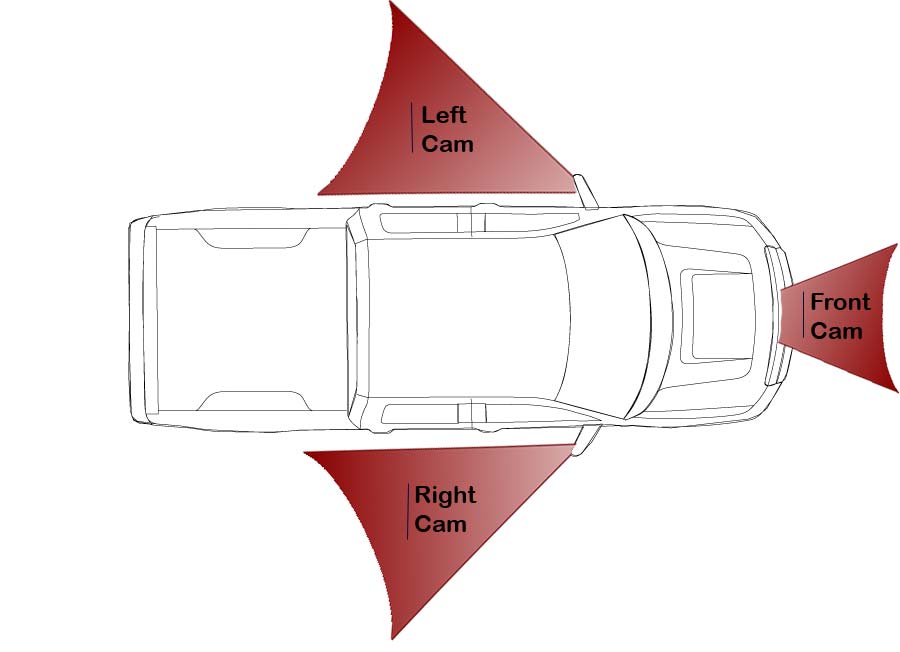

This system consists of a surface grille mounted front camera, 2 mirror mounted side cameras, and a multi-camera interface for your factory 8" SYNC 2 radio.

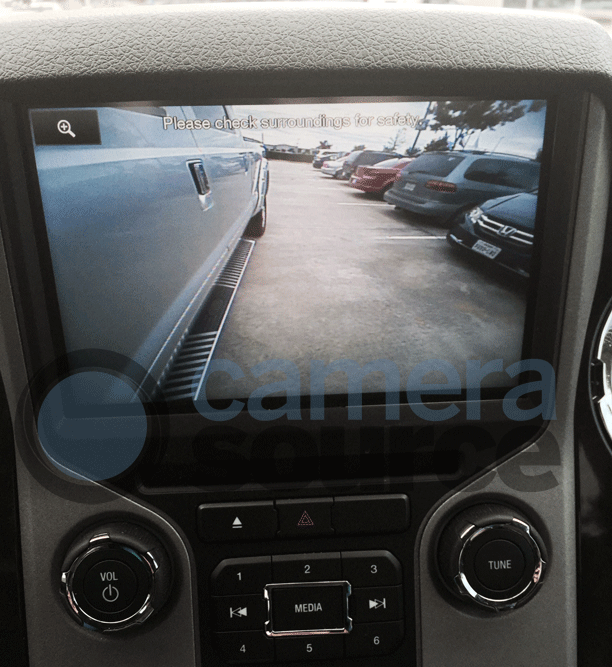

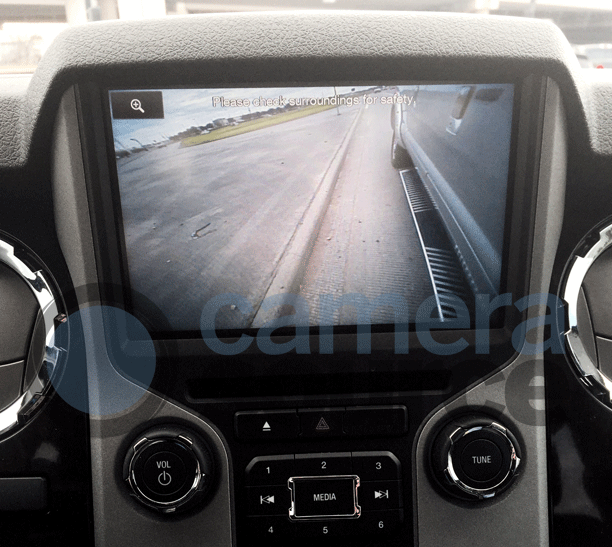

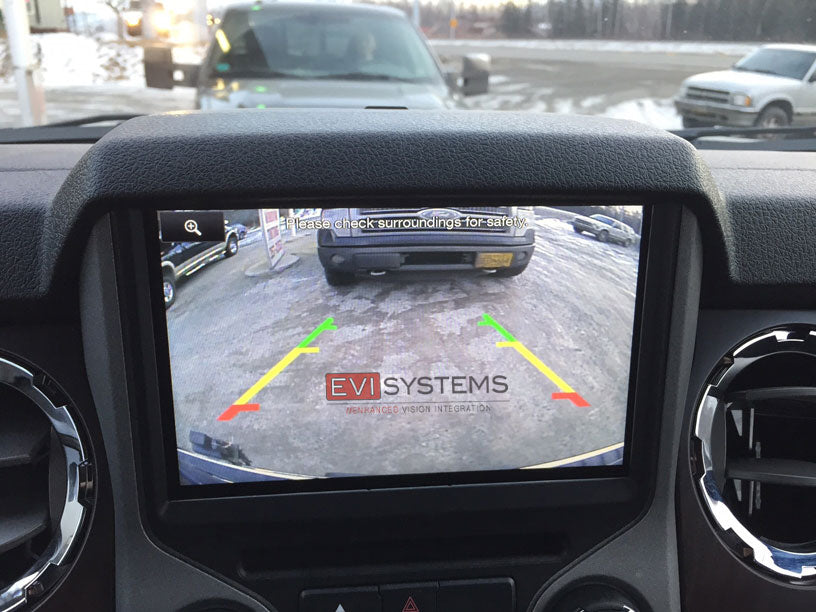

The front camera is chrome or black plated and utilizes our latest Super CMOS forward looking camera for a kit that looks like it came from the factory! Includes parking guidelines in the display! The side cameras get installed under your side mirrors to give you a full view of your typical blind spots - all automatically activated using your turn signals!

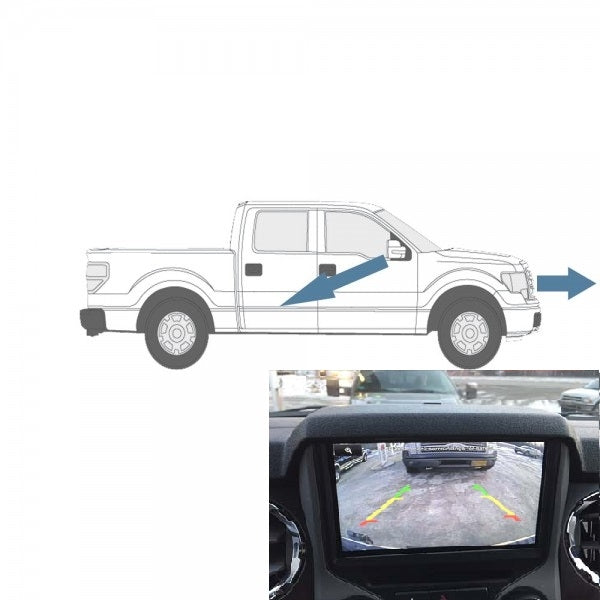

You can enable automatic front camera activation if desired, where the front cam comes on when you shift from reverse to drive and the side cams activate with the turn signal. The front camera can also be manually activated using the OK button on the steering wheel.

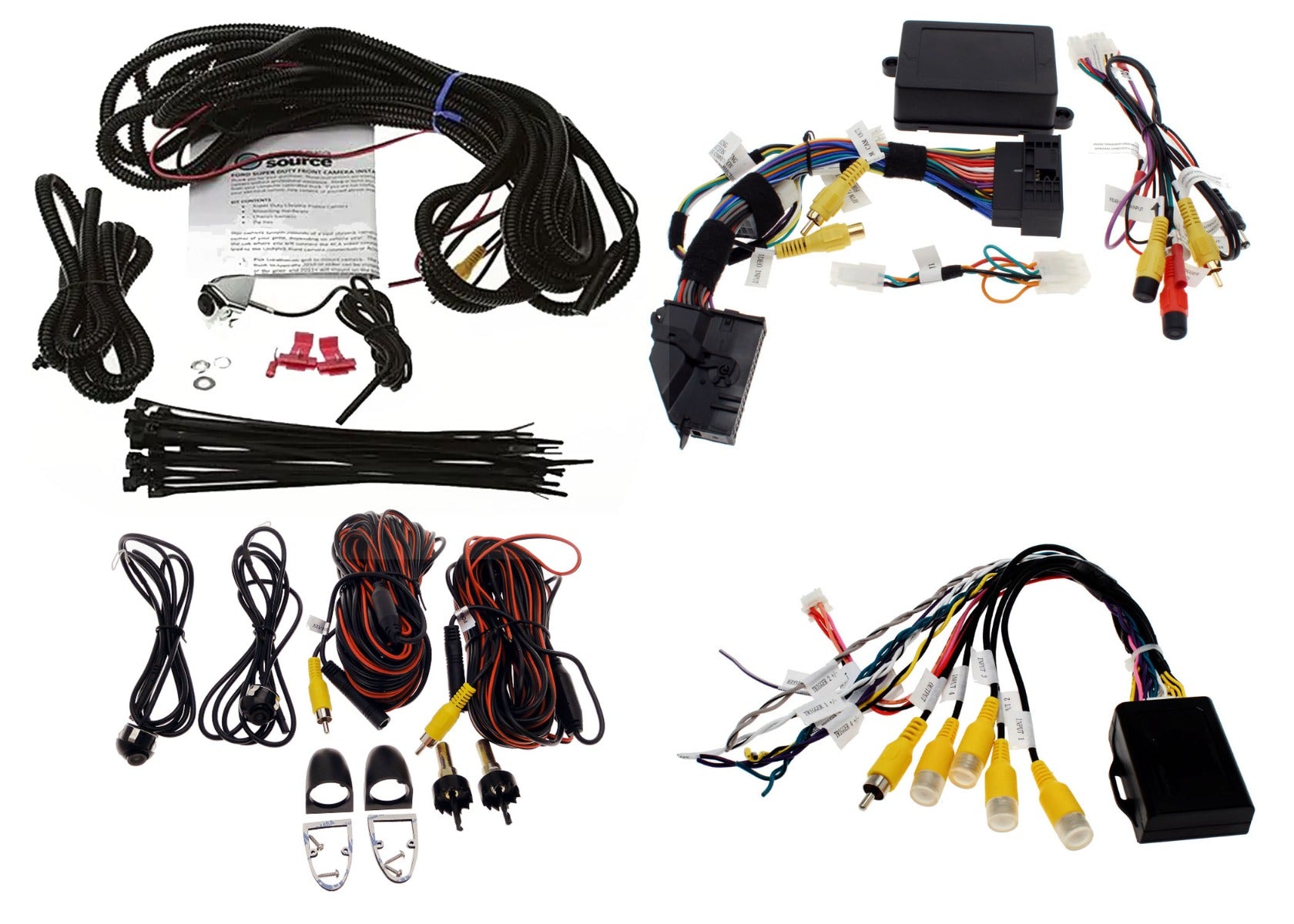

Kit includes:

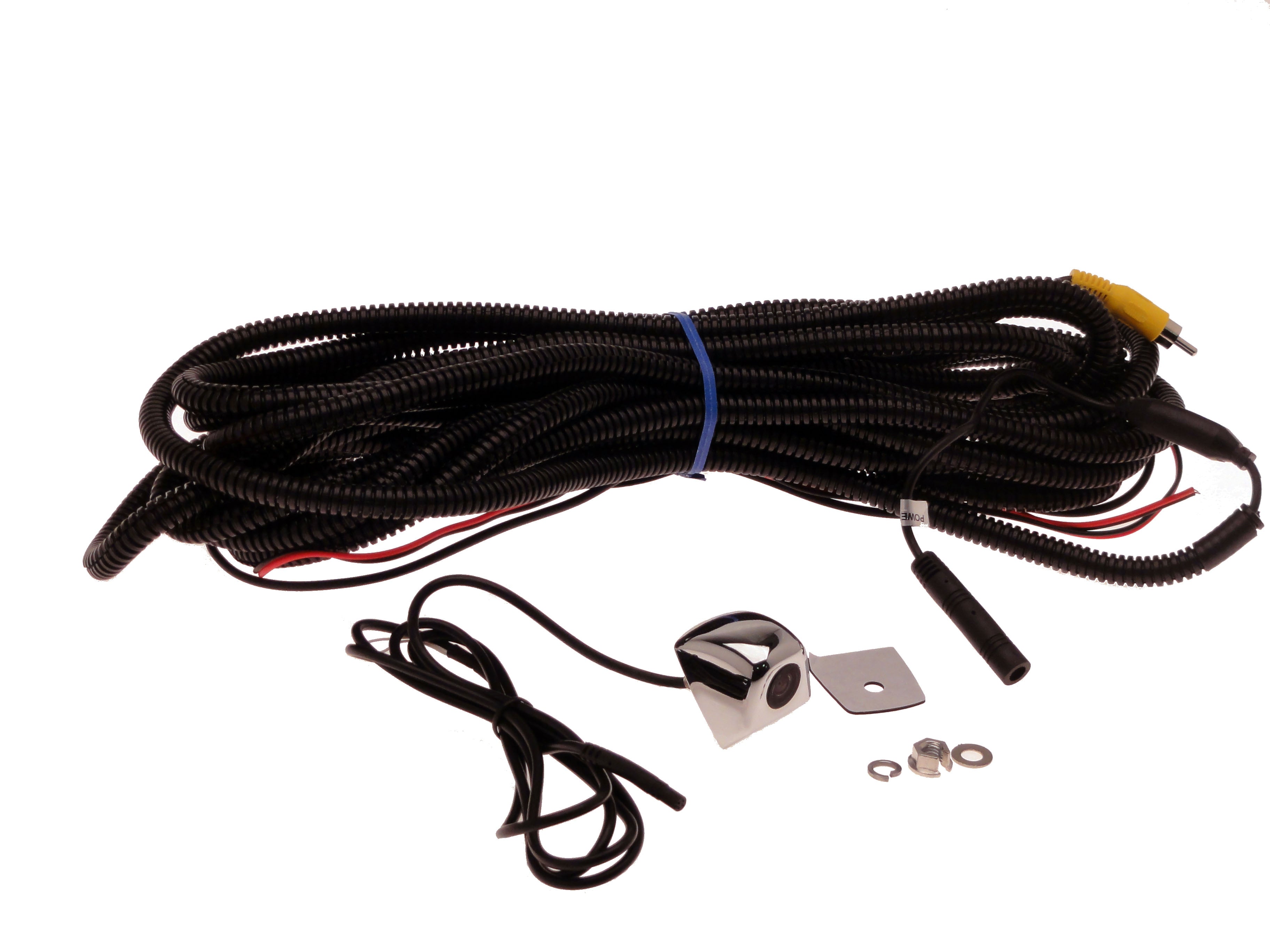

- Chrome or black plated metal grille mounted camera with our latest super CMOS camera - the latest camera technology!

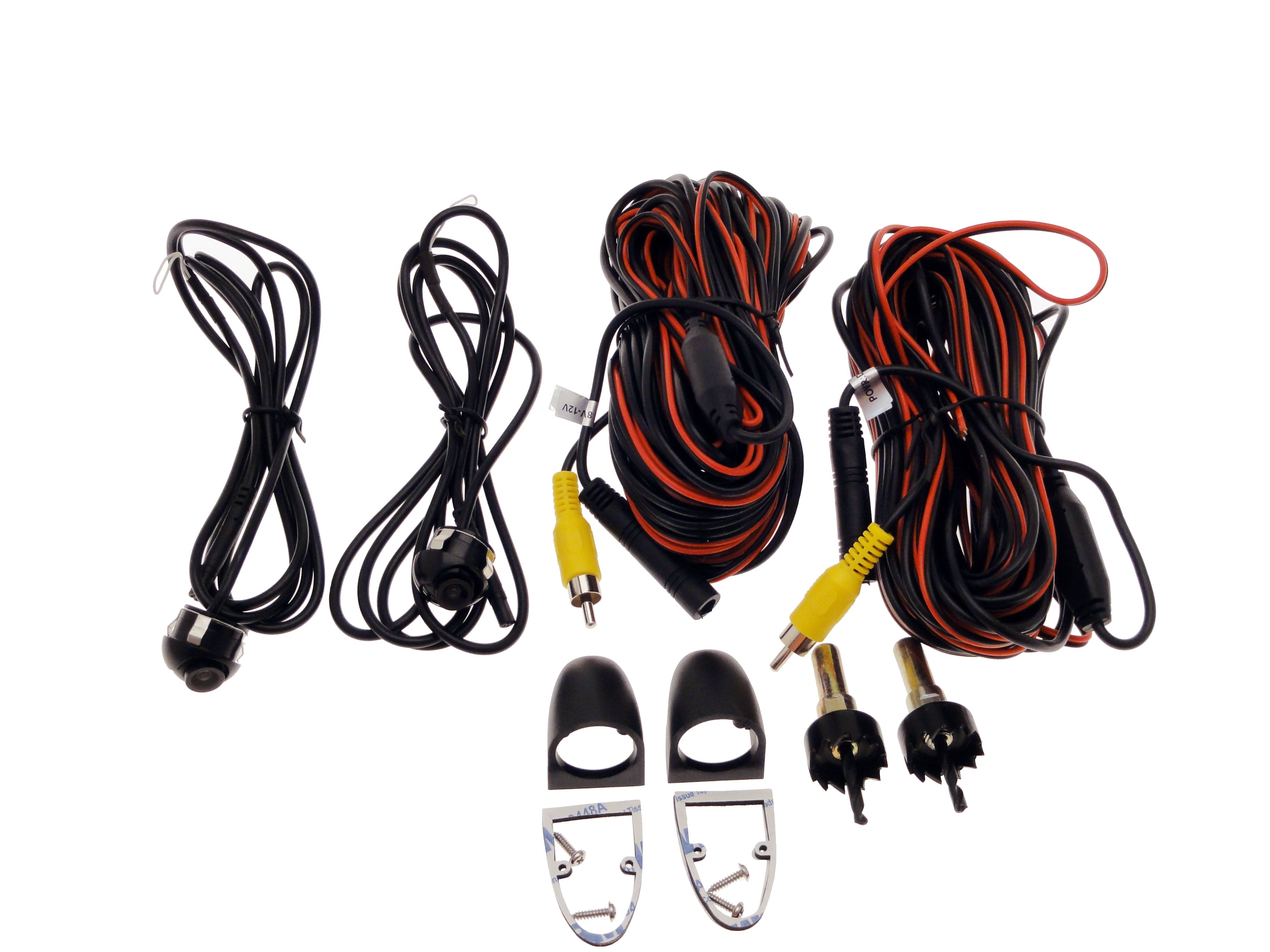

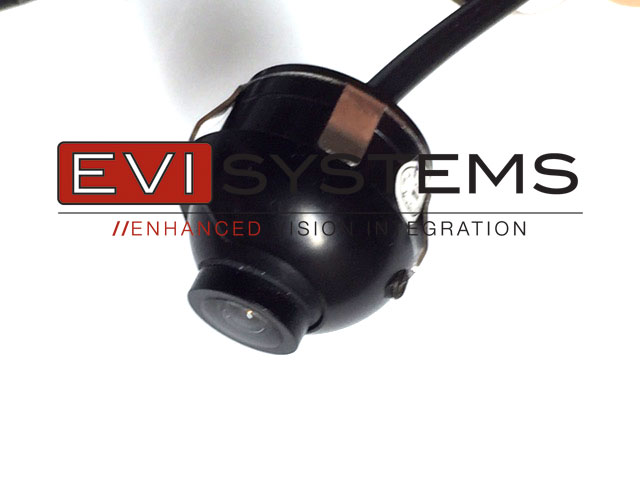

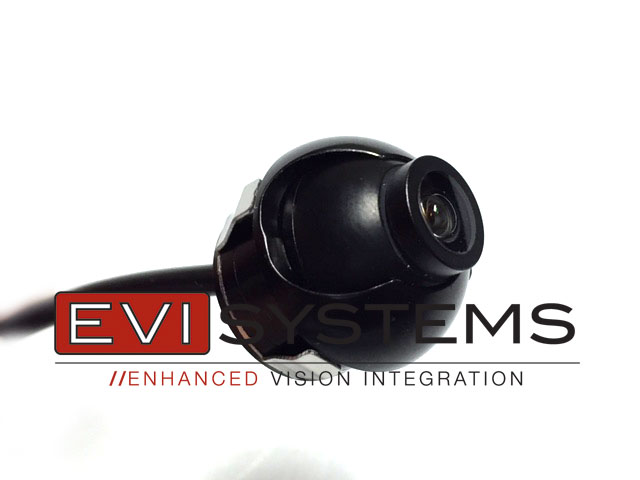

- Two side cameras (mount under your side mirrors)

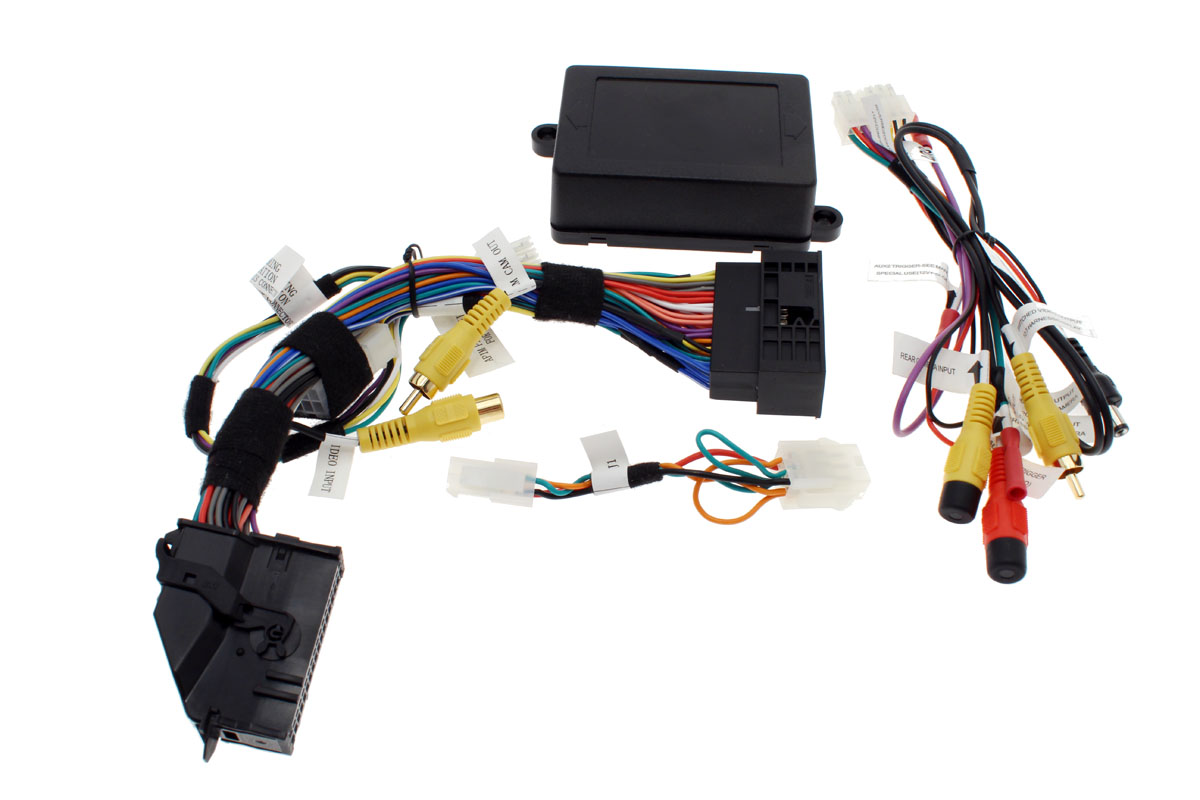

- Interface module for SYNC 2

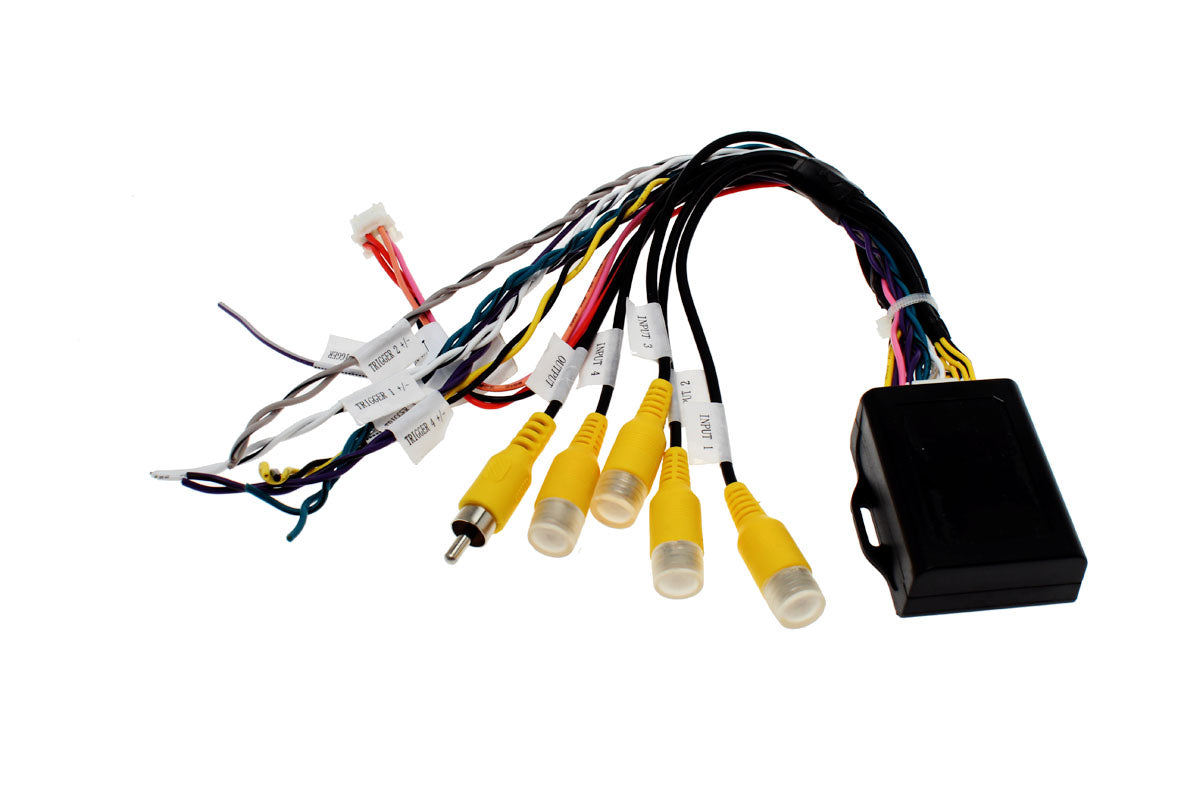

- Multi-cam switch
- Mounting hardware
- Camera wiring harness
- Zip ties
- Detailed installation instructions
- 3 year warranty on the cameras
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- forward looking camera - designed for front applications
- Side cameras are designed for rear-view applications and can be fully adjusted to meet your view needs
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!
MyTouch Multi Cam interface:
- Uses existing 8” SYNC 2 factory radio display (screen not included)
- Allows addition of included front camera that can be manually triggered using your radio power button
- Also add side turn signal-activated cameras
- Pass through for existing factory backup camera or RCA input for aftermarket rear camera
- Shuts off front video at speeds over 7mph. Factory rear cam not available above 7 mph in motion.
- Press ok button on steering wheel to manually activate cameras, then tap button again to toggle between them
This kit allows you to see what is directly in front of truck and beside you and will look like it came from the factory! This camera comes with a 3 year warranty and is guaranteed to fit or your money back. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 3 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera, Side Camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford |
| Camera Mount Location | Side Mirror, Front Grille |
| Night Vision | .1 Lux |
| Camera Orientation | Front Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8” Ford Sync 2 |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | F-150 |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2015 |
| Make Filter | Ford |
| Model Filter | F-150 |
| Year Filter | 2015 |
Compatibility
2015 - F150 Lariat or XL with Ford® 8" SYNC 2 radio. Not compatible with the standard XLT grille at this time. The XLT grille has a upward sloping surface that will not provide a suitable mounting location for the camera.

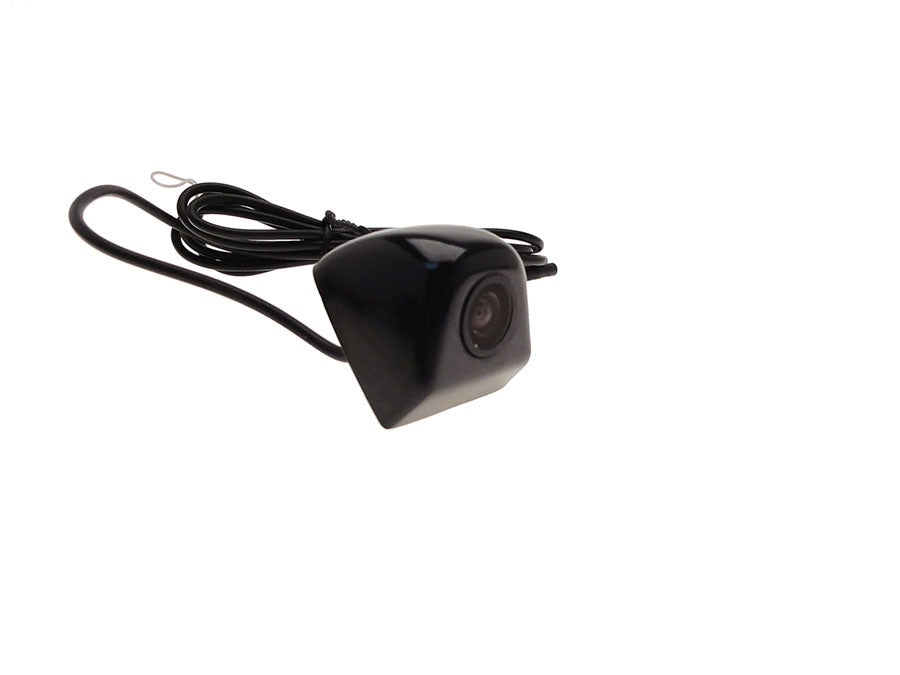

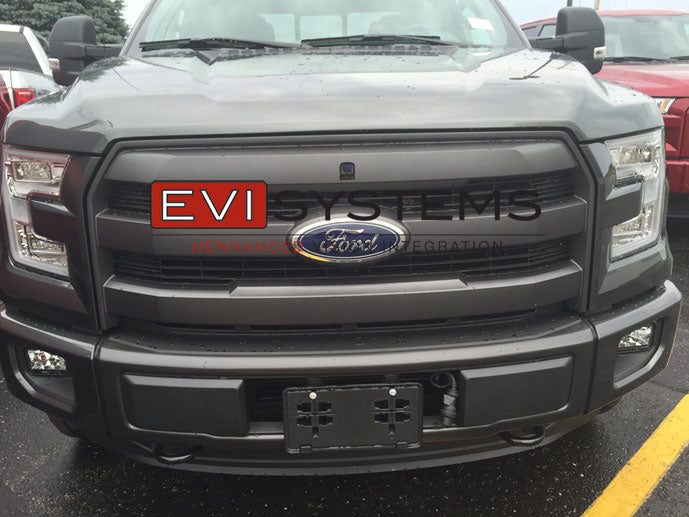

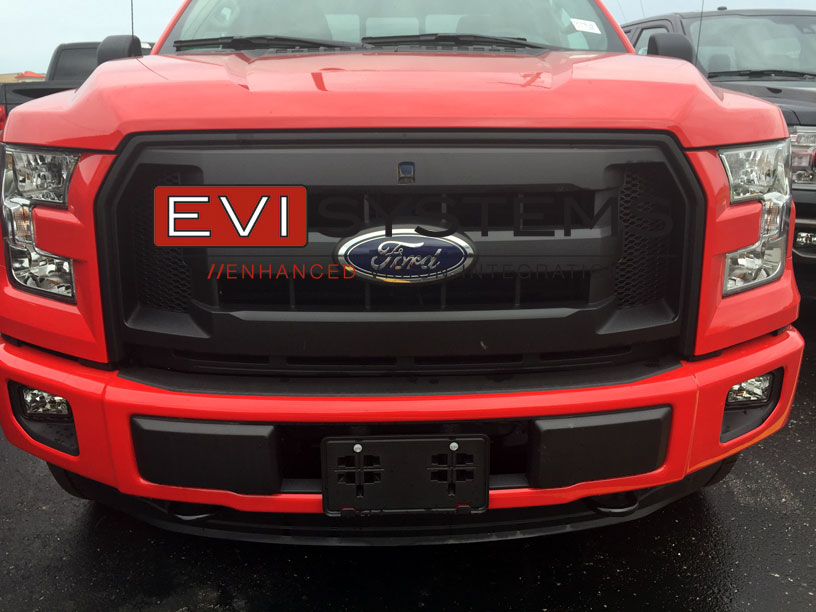

NOTE: You cannot use the CS-FTRF emblem camera kit because the factory blue oval is no longer removable from the existing grille. This camera is a surface mount model that gets mounted on the cross member above the blue oval as shown in the photos.
Installation
The front camera mounts into your factory grille by drilling a single hole in your upper cross member, then run the harness to the cab and connect to your factory SYNC 2 radio using the included interface. All plug and play - no cutting of factory wires! You must remove your factory radio in order to gain access to the wiring, professional installation is recommended.
The side cameras will mount under your side mirrors, which will require complete removal and disassembly of your mirrors. You will need to have a flat level surface to mount the side cameras. A downward taper in your mirror mount will cause the camera to have a downward view and in some cases it cannot be overcome with the amount of camera adjustment available. Installing a bracket will solve that problem. See SKU: CS-SCM for the brackets.
These mirrors can be challenging to disassemble so professional installation is recommended for this kit.
