Universal backup camera for Intellilink/Mylink systems, Fits Select 2014-2018 GM®
SKU#: CS-ULPM-G2TG
Availability:
In Stock
SKU#:
CS-ULPM-G2TG
$272.00
Quantity
No dealer programming required!
Description

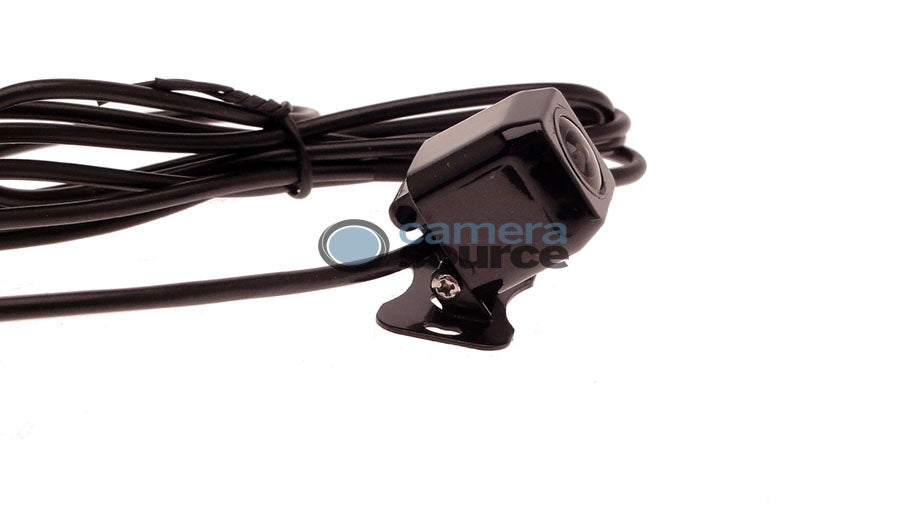

This is a high quality OEM integrated backup camera solution for several GMC®, Chevrolet®, Cadillac®, and Buick® vehicles that integrates right into the factory display screen! No dealer programming is required making this a simple OEM integrated solution for your vehicle The camera can be mounted on the license plate or it also comes with a mini mount that will allow you to mount the camera to the ledge above the license plate if you choose.

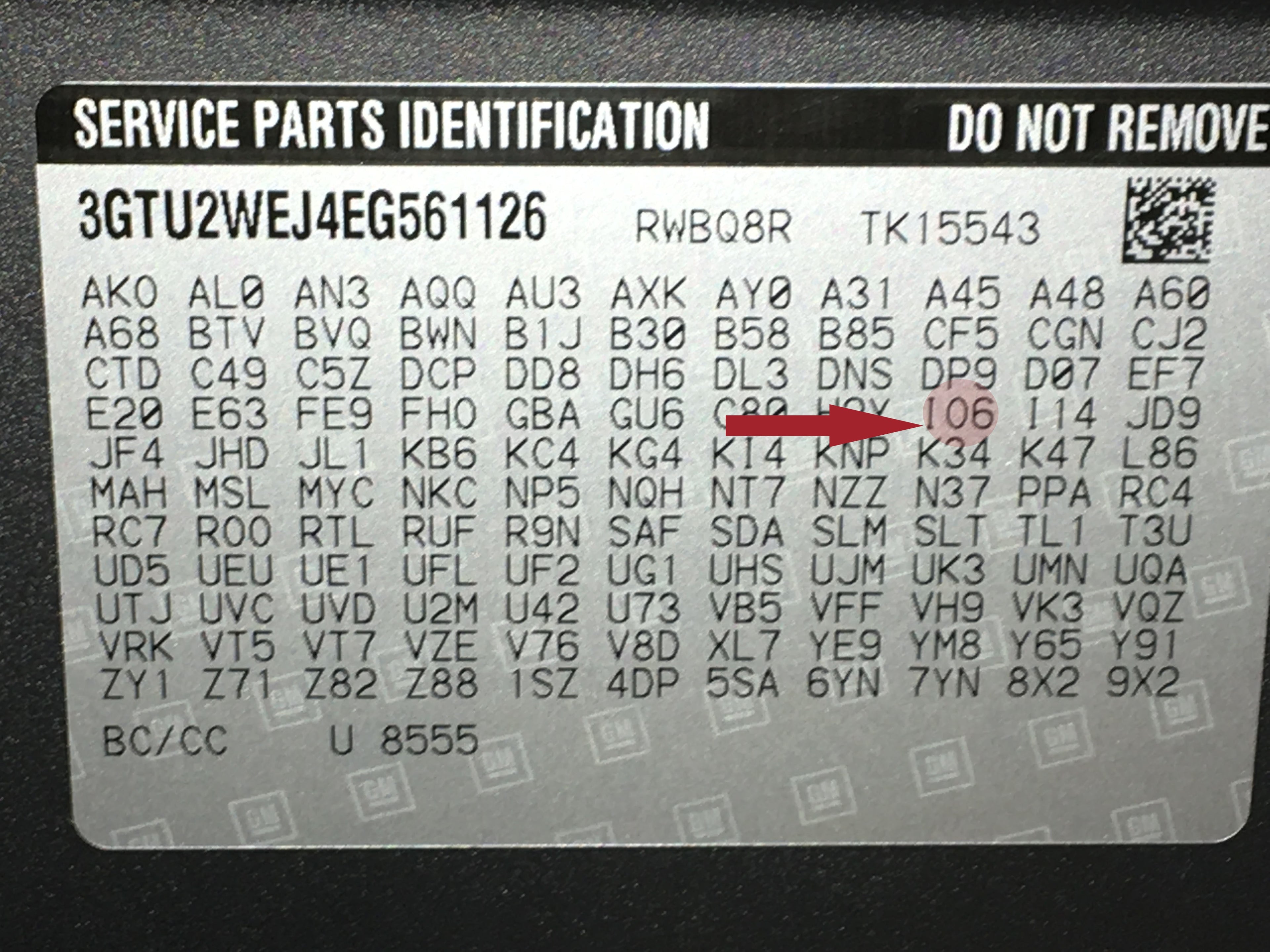

Vehicle must have option code IO4, IO5, or IO6 on the glovebox sticker to be compatible.

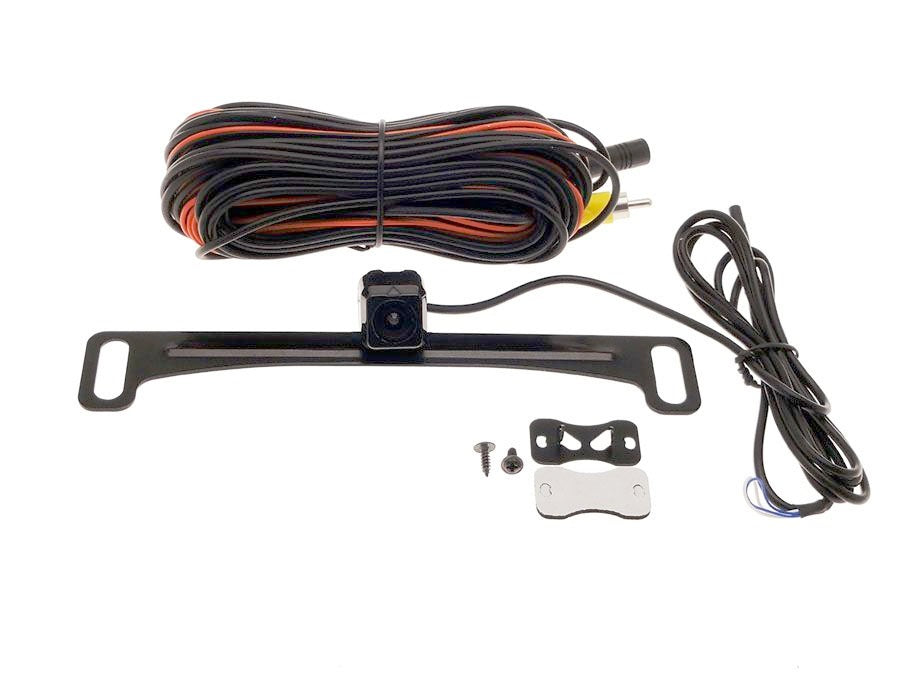

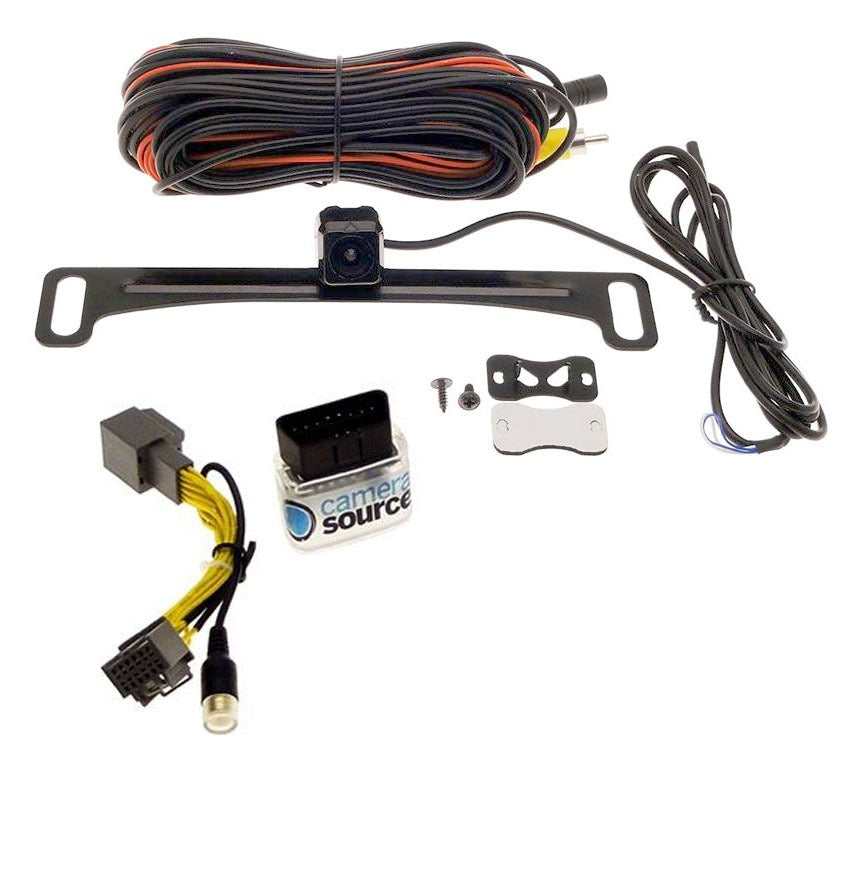

The kit comes with the following:

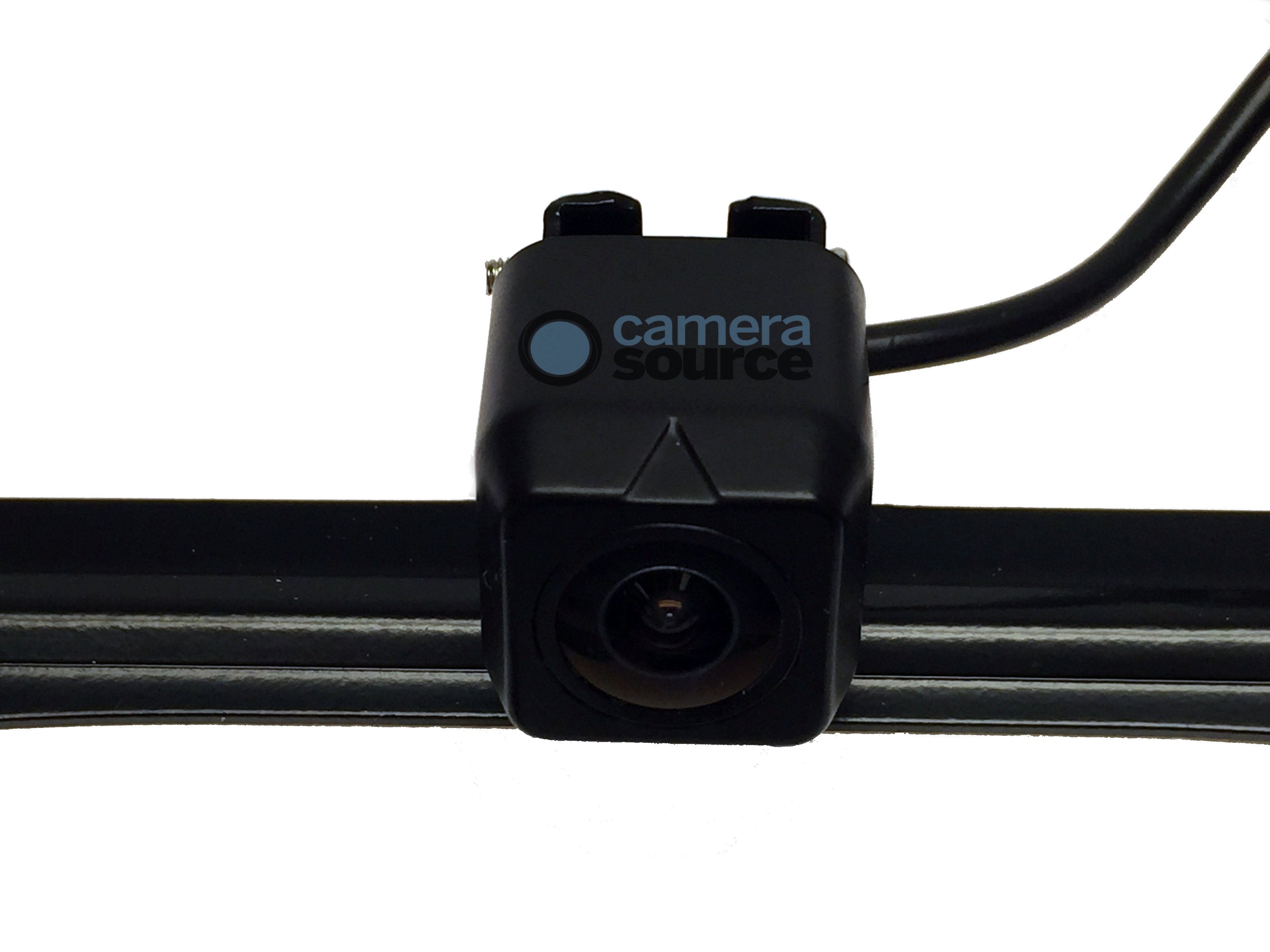

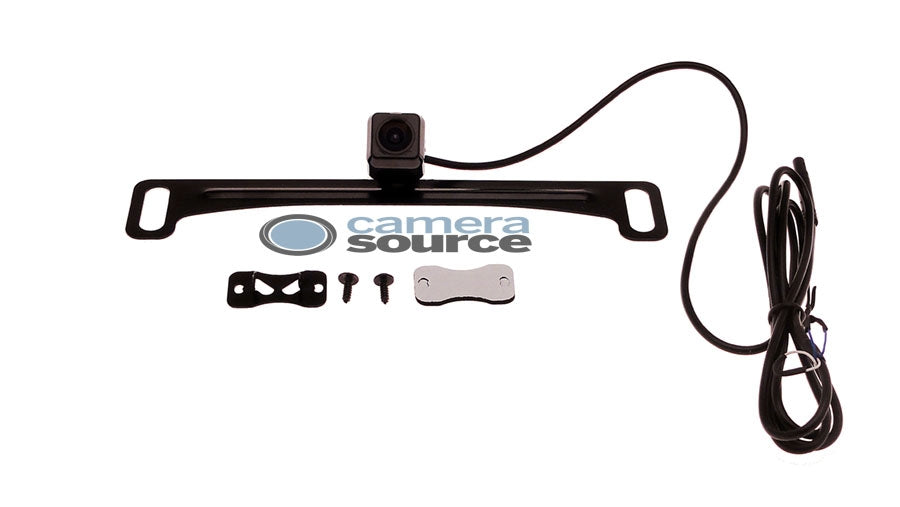

- Dual mount camera system with high grade Super CMOS sensor for an ultra clear view, mount on license plate or lip mount as desired
- Full chassis harness
- MyLink/Intellilink integration harness
- OBD programming module
- Required mounting hardware/connectors
Camera Specifications:
- Camera Source exclusive Super CMOS high grade sensor with night vision

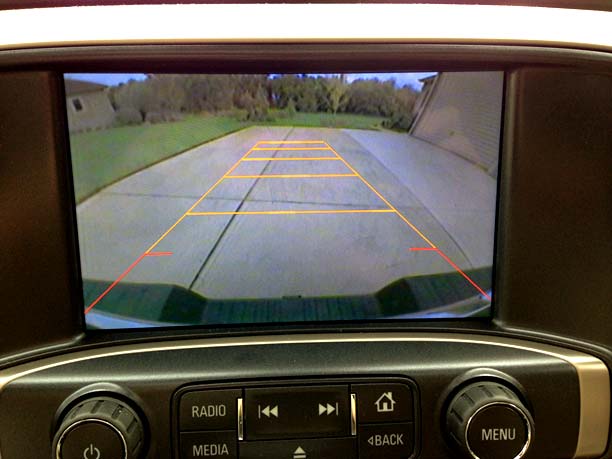

- Selectable parking guidelines (can be turned off if desired) NOTE: Black center line is not present on actual display
- 600 TV lines of resolution
- <.2 lux minimum illumination - Outstanding night vision!
- 170 degree viewing angle
System has a 3 year warranty!
**Monitor not included.**
Specifications
| System Manufacturer | EVI Systems |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Plug and Play to Factory Dash Display |
| Make | Chevrolet,GMC,Cadillac,Buick |
| Camera Mount Location | Universal Mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 4.2\ MyLink, 8\ MyLInk/Intellilink |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | CMOS III |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Car, Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Enclave,Encore,Envision,Lacrosse,Regal,ATS,CTS,CT6,ELR,Escalade,SRX,XT5,XTS,Terrain,Yukon,Camaro,Colorado,Corvette,Cruze,Equinox,Impala,Malibu,Suburban,Tahoe,Traverse,Volt,Canyon,Silverado,Silverado HD,Sierra,Sierra HD,Colorado |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Hard Wired |
| Year | 2014, 2015, 2016,2017,2018 |
| Make Filter | Buick, Cadillac, Chevrolet, GMC |
| Model Filter | ATS, CT6, CTS, Camaro, Canyon, Colorado, Corvette, Cruze, ELR, Enclave, Encore, Envision, Equinox, Escalade, Impala, Lacrosse, Malibu, Regal, SRX, Sierra, Sierra HD, Silverado, Silverado HD, Suburban, Tahoe, Terrain, Traverse, Volt, XT5, XTS, Yukon |
| Year Filter | 2014, 2015, 2016, 2017, 2018 |
Compatibility
Compatible with the listed vehicles that have the MyLink or Intellink systems with 4.2" or 8" screen.
Vehicle must have option code IO4, IO5, or IO6 on the glovebox sticker to be compatible.
**NOT COMPATIBLE WITH IO3 or IOB DISPLAY**
| Buick® | Enclave | 2018 |
| Encore | 2017-2018 | |
| Envision | 2016-2018 | |
| Lacrosse | 2014-2018 | |
| Regal | 2014-2018 | |
| Cadillac® | ||
| ATS | 2013-2018 | |
| CTS | 2014-2018 | |
| CT6 | 2016-2018 | |
| ELR | 2014-2018 | |
| Escalade | 2015-2018 | |
| SRX | 2013-2016 | |
| XT5 | 2017-2018 | |
| XTS | 2013-2018 | |
| GMC® | ||
| Canyon | 2015-2018 | |
| Sierra 1500 | 2014-2018 | |
| Sierra HD 2500-3500 | 2015-2018 | |
| Terrain | 2018 | |
| Yukon | 2015-2018 | |
| Chevrolet® | ||
| Camaro | 2016-2018 | |
| Colorado | 2015-2018 | |
| Corvette | 2014-2018 | |
| Cruze | 2016-2018 | |
| Equinox | 2018 | |
| Impala | 2014-2018 | |
| Malibu | 2016-2018 | |
| Silverado 1500 | 2014-2018 | |
| Silverado HD 2500-3500 | 2015-2018 | |
| Suburban | 2015-2018 | |
| Tahoe | 2015-2018 | |
| Traverse | 2018 | |
| Volt | 2016-2018 |
Installation
Install on either your license plate mount or on any flat surface - comes with two brackets. The wire harness will run to the inside the vehicle and you will connect to a 12v power source.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P

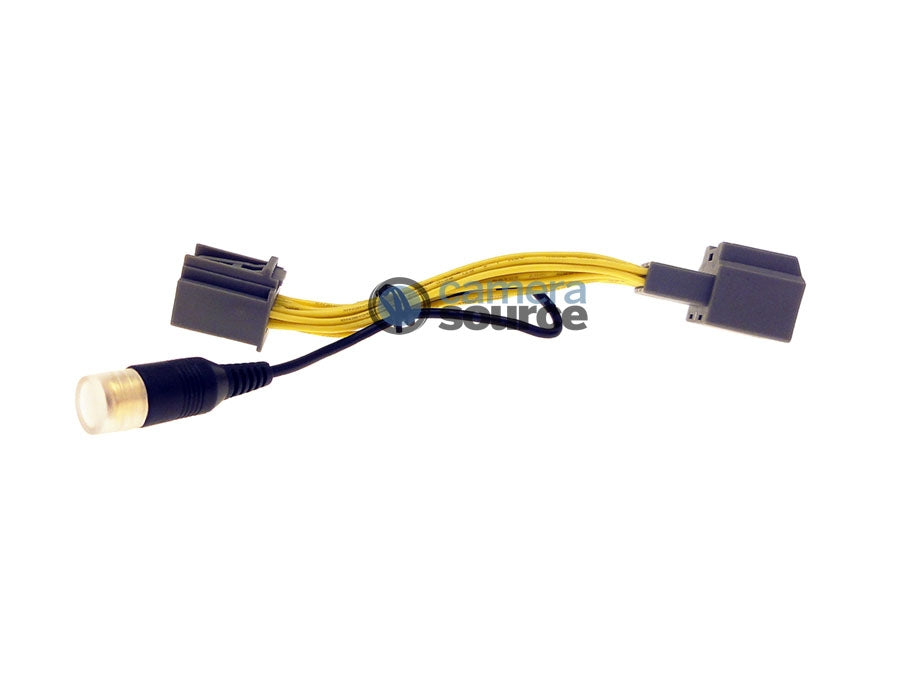

Install the RCA T-Harness to your factory MyLink/Intellilink HMI module. Connect the RCA from the main chassis harness to the T-Harness.

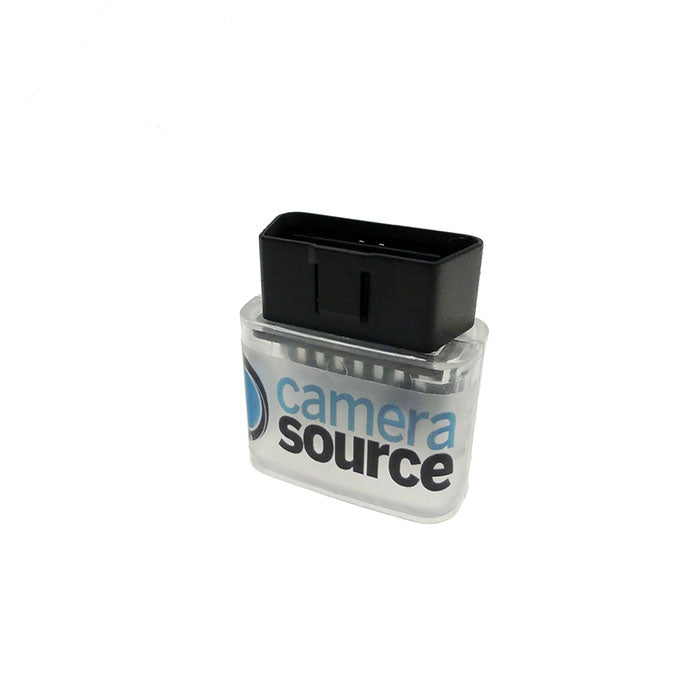

Plug the OBD programmer into the OBD port under the steering wheel and programming is completed in less than a minute!
NO DEALER ACTIVATION REQUIRED
