Front Camera Kit for 8" IO5, IO6 Display, Fits 2014-2019 GM®
SKU#: CS-GMLNK-F
Availability:
In Stock
SKU#:
CS-GMLNK-F
$513.00
Quantity
Front cam for 8" display
Description
This is a complete kit that contains our universal front camera and a multi-cam integration module for your 8" factory IntelliLink/MyLink screen.
Compatible with several 2014-2019 GM® trucks with factory 8" IntelliLink/MyLink radio IO5 or IO6 option code. See compatibility tab.
This kit allows you to see what is directly in front of the truck! This kit does not require any splicing into factory wiring and will work on several 2014-2018 GM® truck with an 8" IntelliLink/MyLink screen. The multi-cam integration module allows for plug and play integration into your factory screen without having the dealer flash program your radio. The factory rear camera will come on automatically when in reverse and front camera will come on when you shift from reverse to drive or you can manually activate it (choose option during installation. Factory rear camera not available above speeds of 7mph.

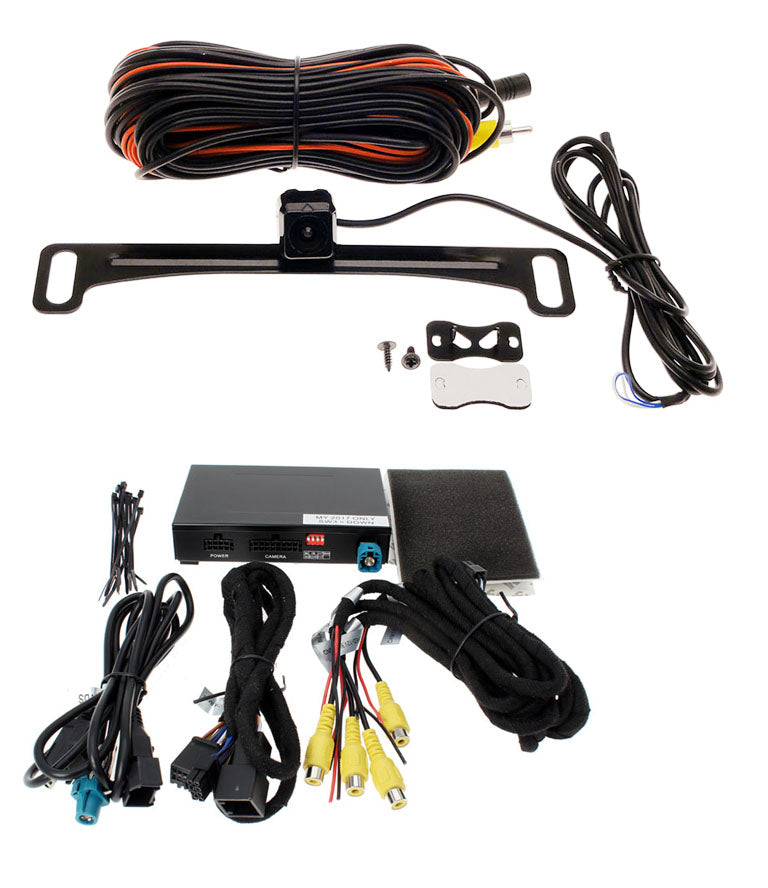

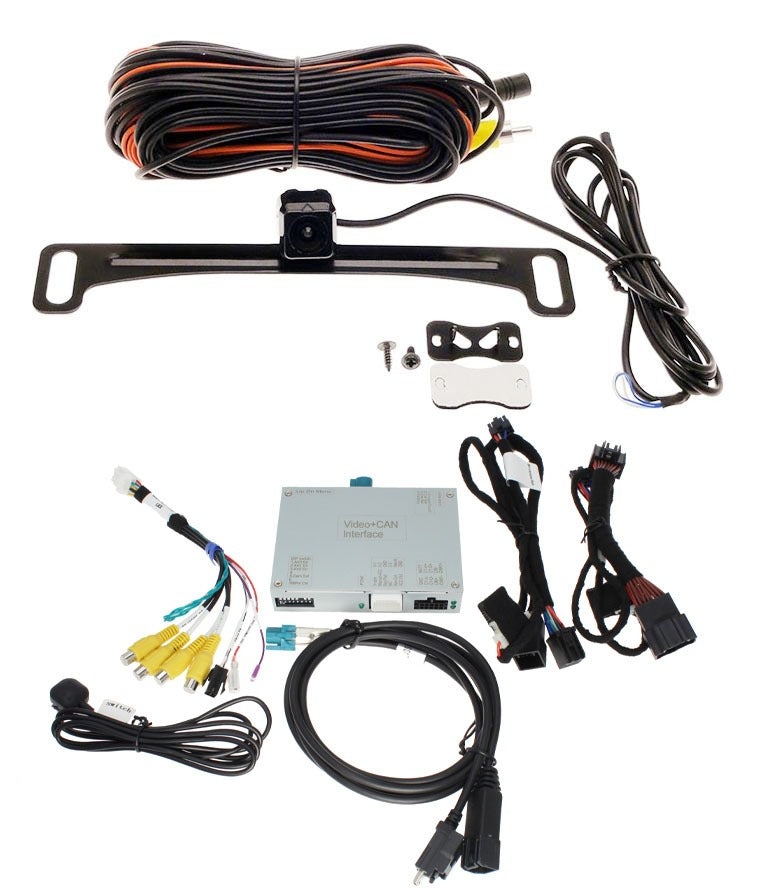

Kit includes:

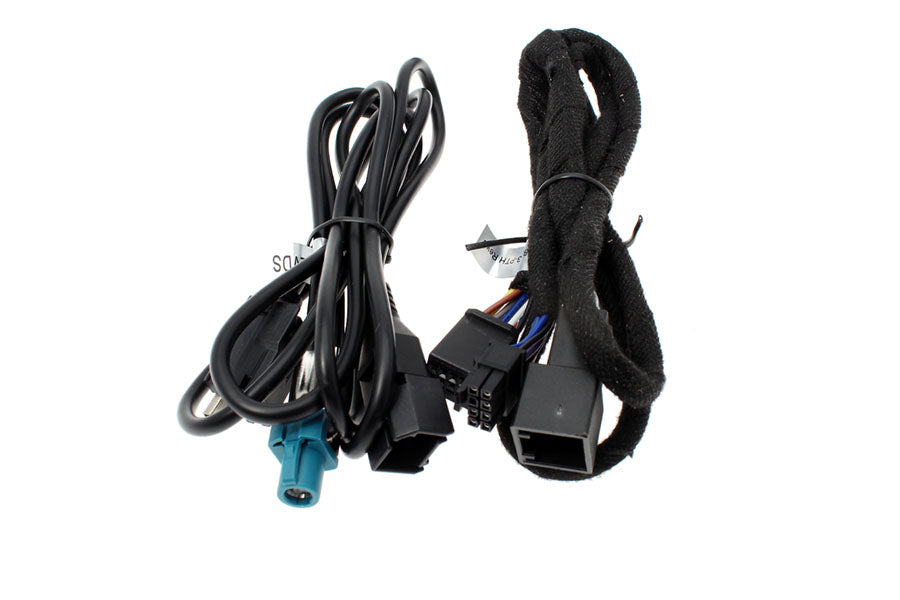

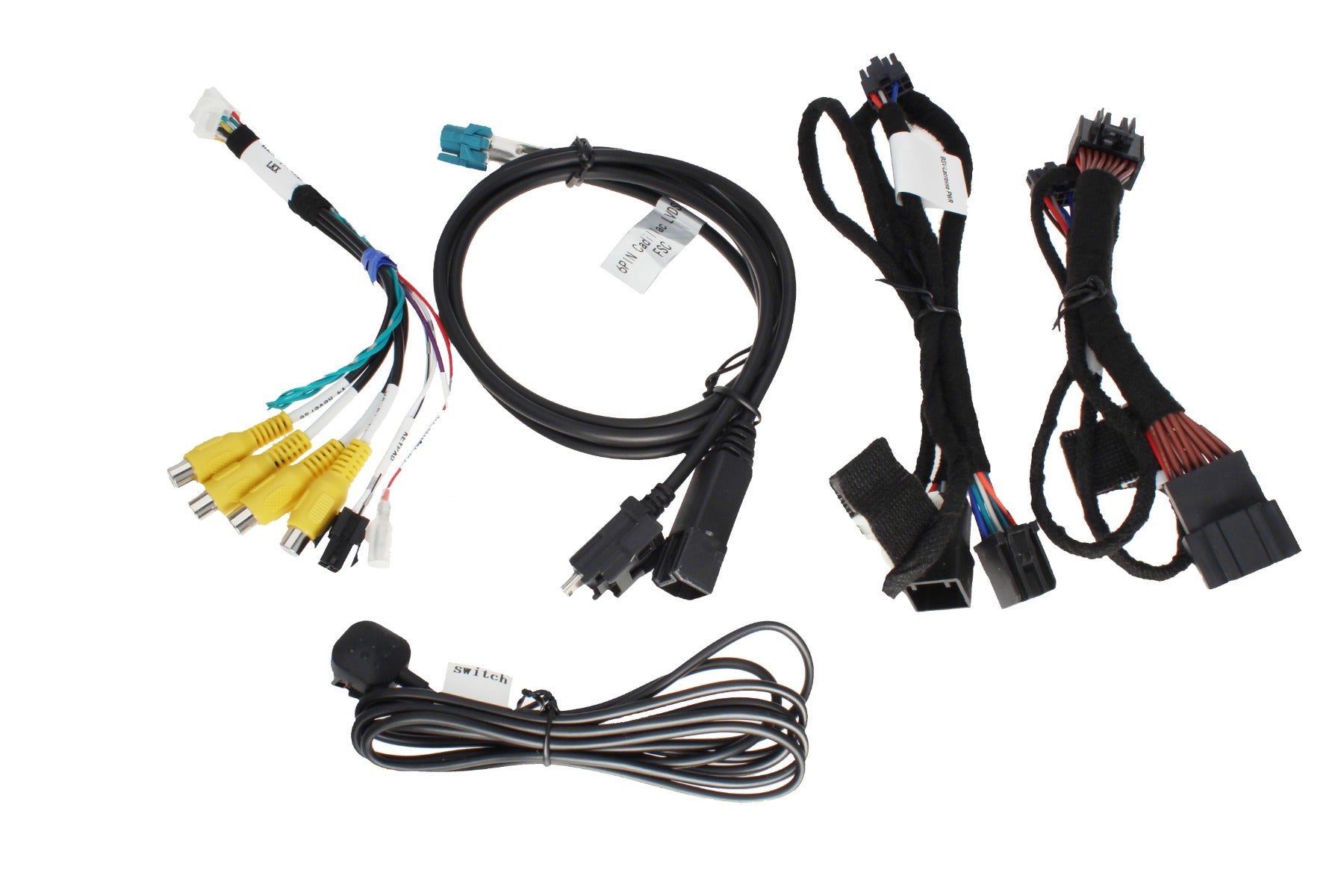

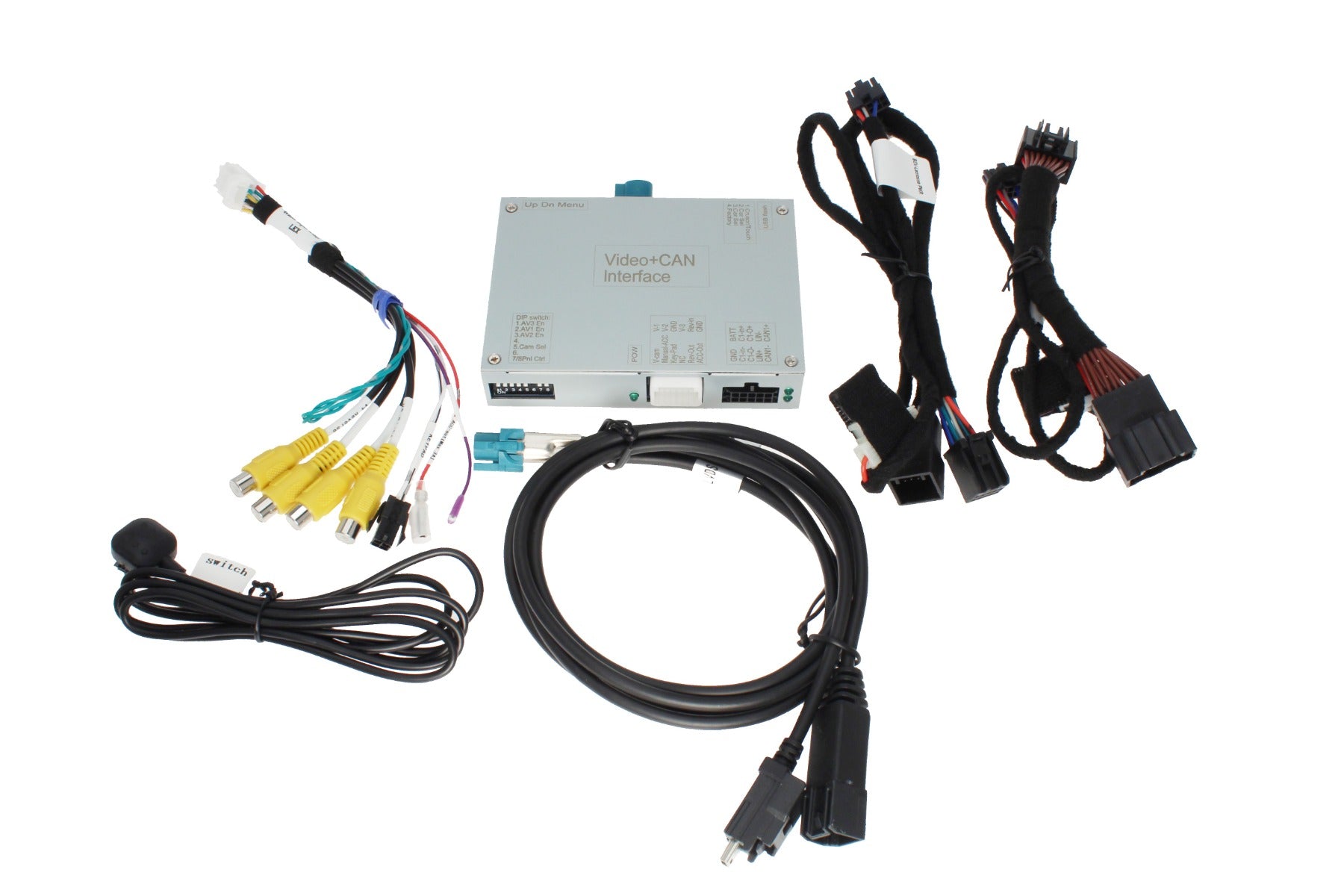

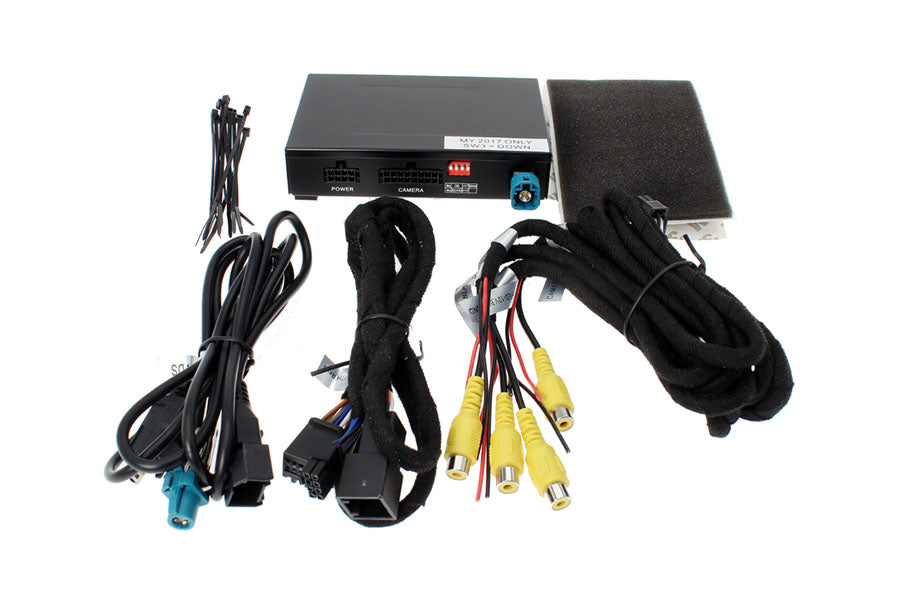

- Multi-cam interface for your IntelliLink/MyLink 8" factory GM® display (display not included)- plug and play and no dealer flashing required!
- Universal front camera with harness and dual mount brackets
- Zip ties
- Detailed installation instructions
- 3 year warranty
Camera Specifications:
- CMOS forward looking camera - designed for front applications
- 170 degree view
- 600 TV lines of resolution
- .2 lux minimum illumination - Outstanding night vision!

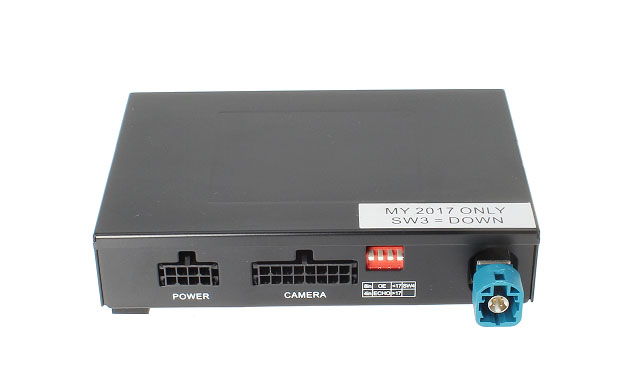

Multi Cam interface features:
- Front facing camera can be triggered to power on automatically when the vehicle is shifted from reverse to drive (5 seconds) or manually by using the included push button. Choose option using DIP switches during installation.
- Turn signal activated mirror mount cameras can also be powered by activating the turn signals. The camera will turn off after 7seconds of turn signal staying "ON" in cases like at a traffic light (Blind Spot mode). Or manually activate via the included push button-Video Mode (Cameras not included)
- Bed-view/cargo camera. Can also be manually powered on using the included push button. (Cam not included)
- NO DEALER ACTIVATION REQUIRED!
The integration module is completely plug and play with your GMC® factory IntelliLink/MyLink system. Allows connection of four cameras to the factory screen in addition to the OEM backup camera. Also, allows monitoring of any connected camera at any time while driving when setup for video mode (not including OEM backup camera). Right and left blind spot camera inputs are automatically triggered by the turn signals (video mode). Factory rear camera is not available above 7 mph.
*Additional cameras and monitor are not included with this kit. It is designed to work with your existing 8" IntelliLink/MyLink radio screen. This kit allows you to see what is directly in front of the truck! This camera kit comes with a 3 year warranty. Professional installation is recommended.
Not compatible if vehicle has Rear Seat Entertainment system.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | GMC,Chevrolet |
| Camera Mount Location | Front Grille |
| Night Vision | .2 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8\ MyLInk/Intellilink |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | CMOS III |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Sierra,Sierra HD,Colorado,Silverado,Silverado HD,Canyon |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2014,2015,2016,2017,2018,2019 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Canyon, Colorado, Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2014, 2015, 2016, 2017, 2018, 2019 |
Compatibility
Vehicle must have IO5 or IO6 option code on the service parts sticker located in the glove box OR 2018+ vehicles will have this sticker located in the driver's side door jam by the "B" pillar. You can scan the QR code on the sticker using a mobile device to view the options.
2014-2019 GMC® Sierra pickup truck with 8" IntelliLink display screen. IO5 or IO6 option code
2014-2019 GMC® Canyon pickup truck with 8" IntelliLink display screen. IO5 or IO6 option code
2014-2019 Chevrolet® Silverado pickup truck with 8" MyLink display screen. IO5 or IO6 option code
2014-2019 Chevrolet® Colorado pickup truck with 8" MyLink display screen. IO5 or IO6 option code
Not compatible if vehicle has Rear Seat Entertainment system.
Installation
Front camera mounts to any flat surface and has parking guidelines that can be turned off. You will need to switch it to the forward-looking image on the harness during the installation.

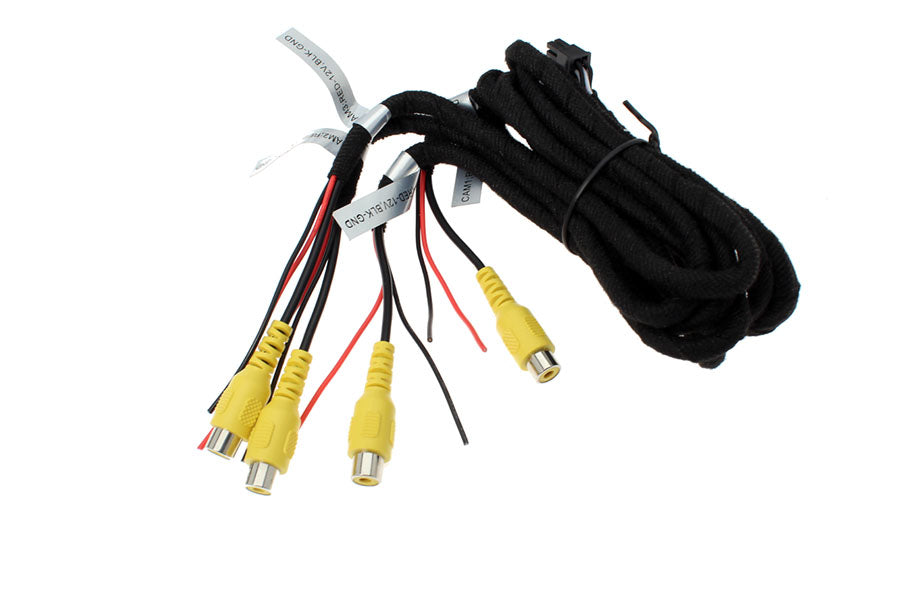

The Multi-cam integration module is plug and play with your factory 8" IntelliLink/MyLink screen. You will need to remove your factory 8" screen to gain access to the back of the connections. The module will be plug and play and has RCA inputs for the cameras to connect directly to the screen.
When interface is setup for Video Mode cameras can only be activated by the push button. When setup for Blind Spot Mode front camera will come on automatically when shifting from reverse to drive, side cameras will come on when turn signals are activated. Unit can only be setup for one option or the other, not both.
