Front and Side Camera Kit for 8" Display, Fits 2014-2019 GM®
SKU#: CS-GMLNK-FS
Availability:
In Stock
SKU#:
CS-GMLNK-FS
$723.00
Quantity
Front & Side cams for 8" display
Description

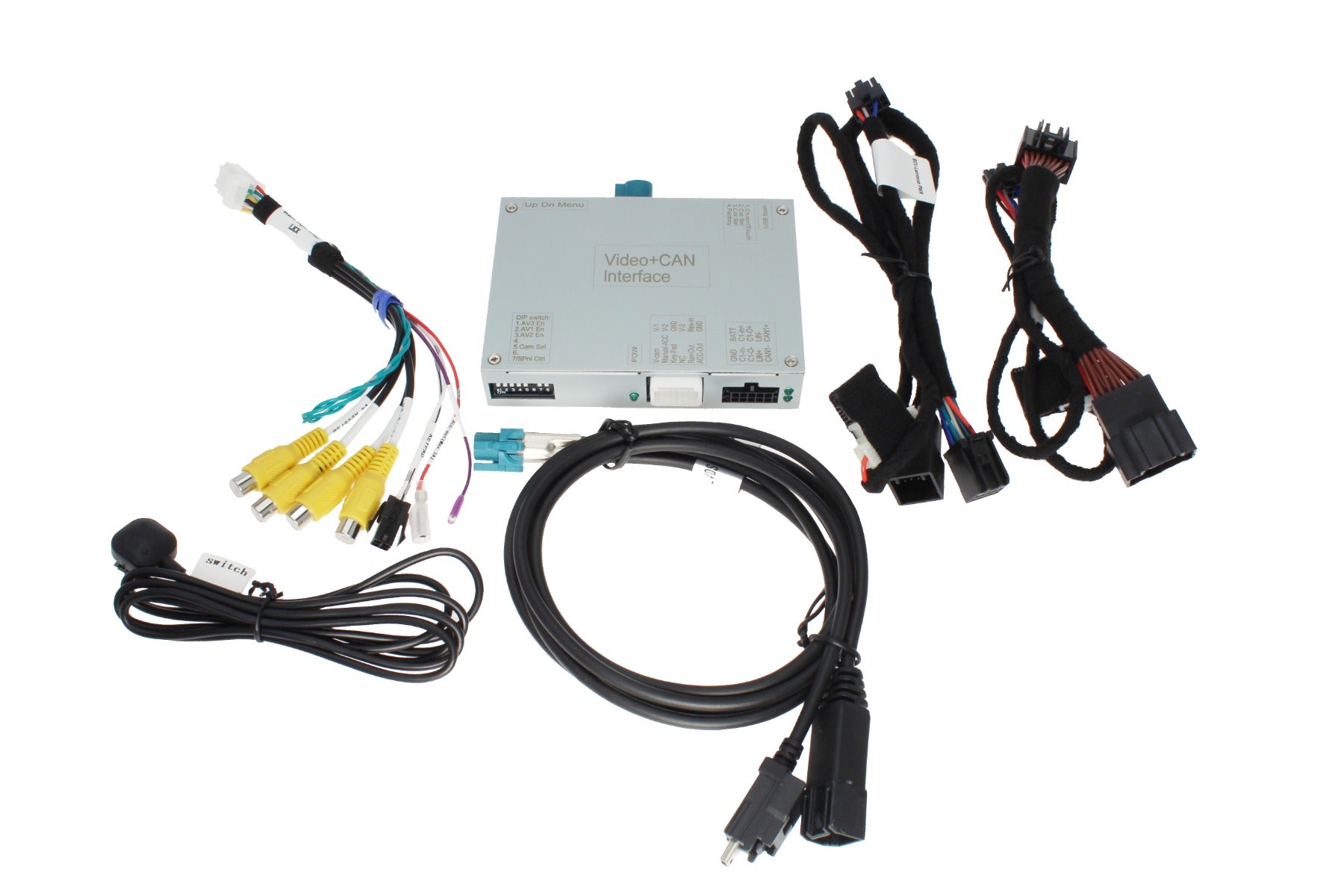

This is a complete kit that contains our universal front camera, two side cameras with brackets, and a multi-cam integration module for your 8" factory IntelliLink/screen.
Compatible with 2014-2019 GMC® trucks with factory 8" MyLink/IntelliLink screen with IO5 or IO6 radio code.
This kit allows you to see what is directly in front of truck and both sides! This kit does not require any splicing into factory wiring and will work on any 2014-19 GM® truck with an 8" MyLink/IntelliLink screen . The multi-cam integration module allows for plug and play integration into your factory screen without having the dealer flash program your radio. The factory rear camera will come on automatically when in reverse and front camera will come on when you shift from reverse to drive or you can manually activate it using the factory display. Factory rear camera not available above speeds of 7mph. The side cameras get installed under your side mirrors to give you a full view of your typical blind spots - all automatically activated using your turn signals!
Because of the complexity of the side mirror disassembly professional installation is recommended.

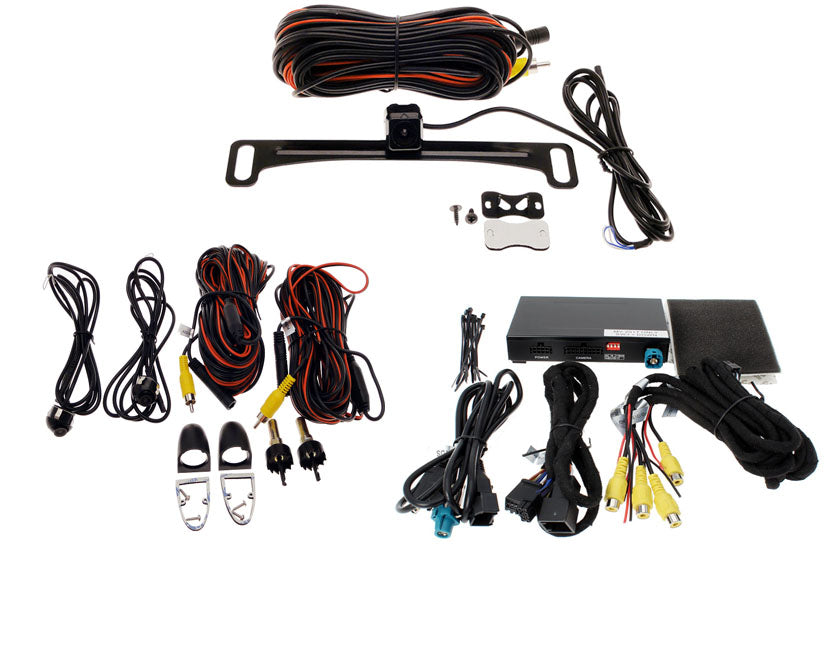

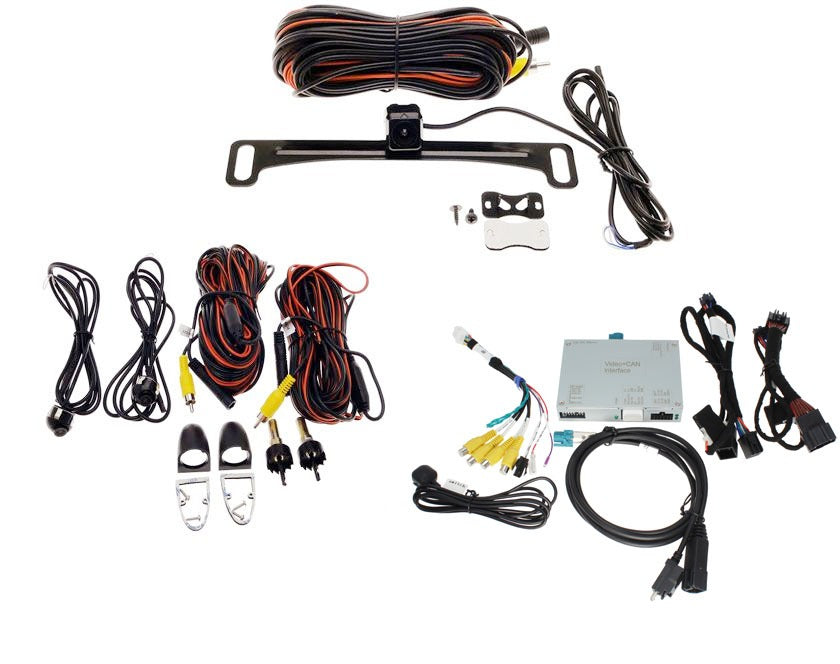

Kit includes:

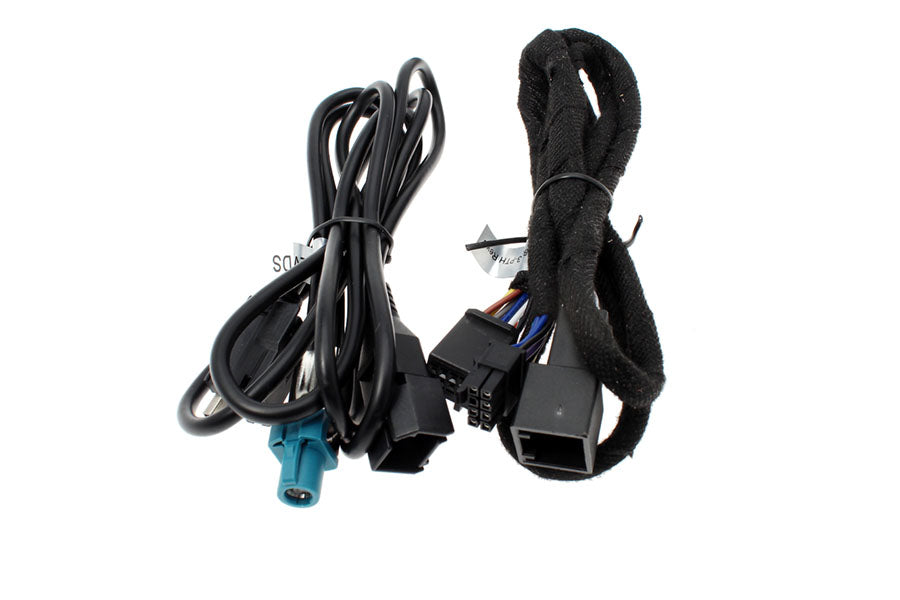

- Multi-cam interface for your MyLink/IntelliLink 8" factory GM® display (display not included)- plug and play and no dealer flashing required!

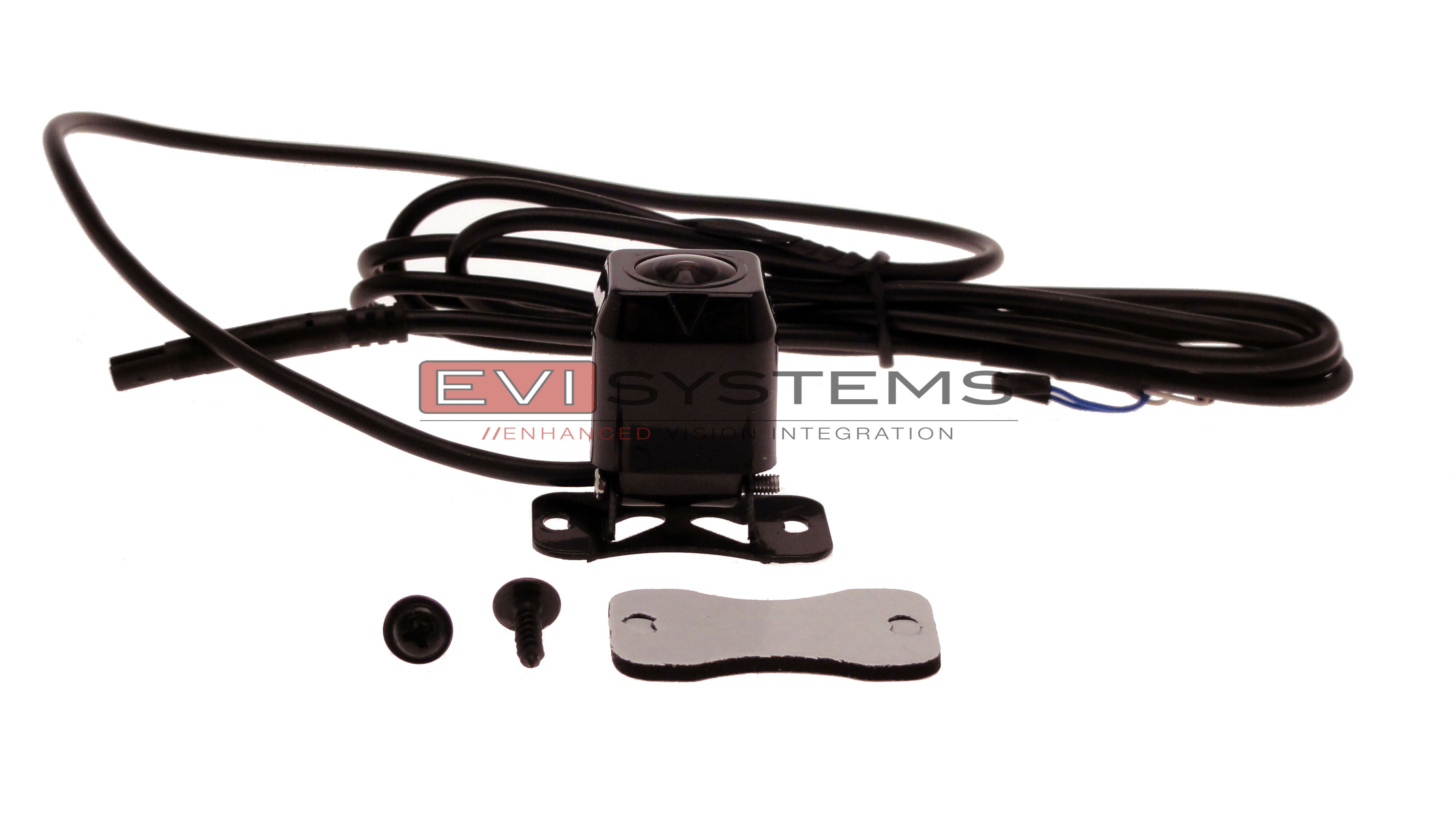

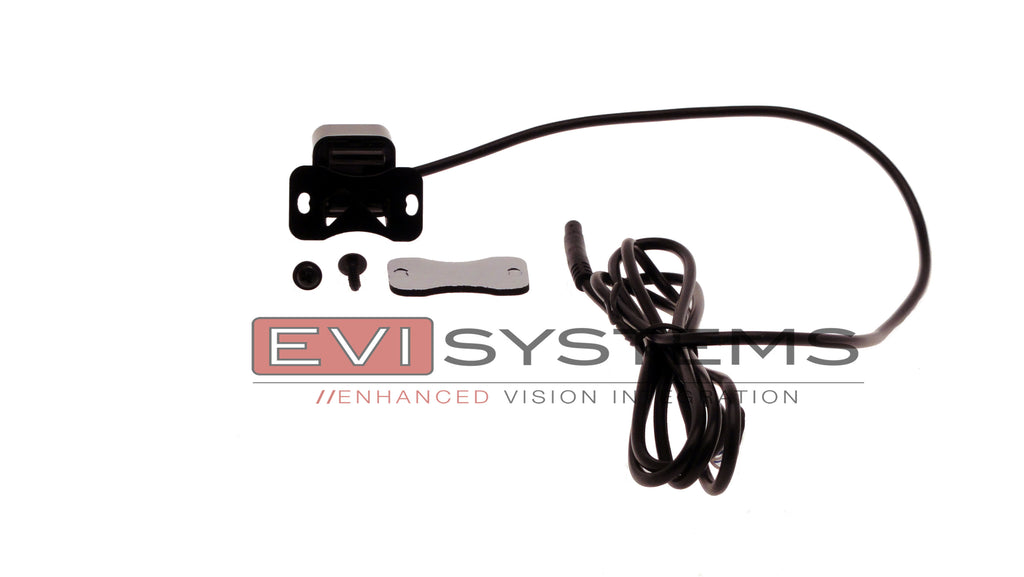

- Universal front camera with harness and dual mount brackets

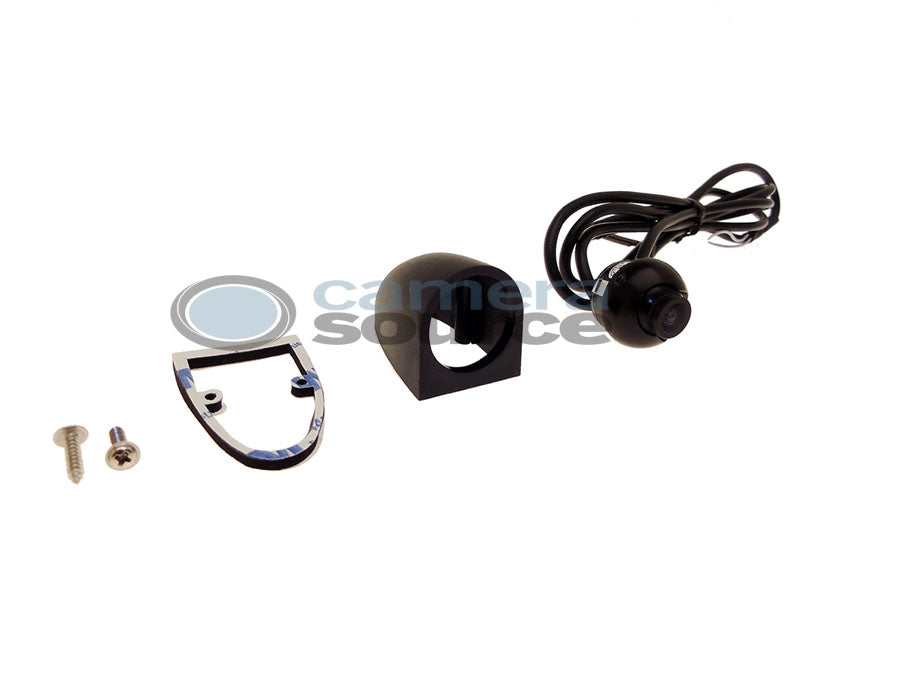

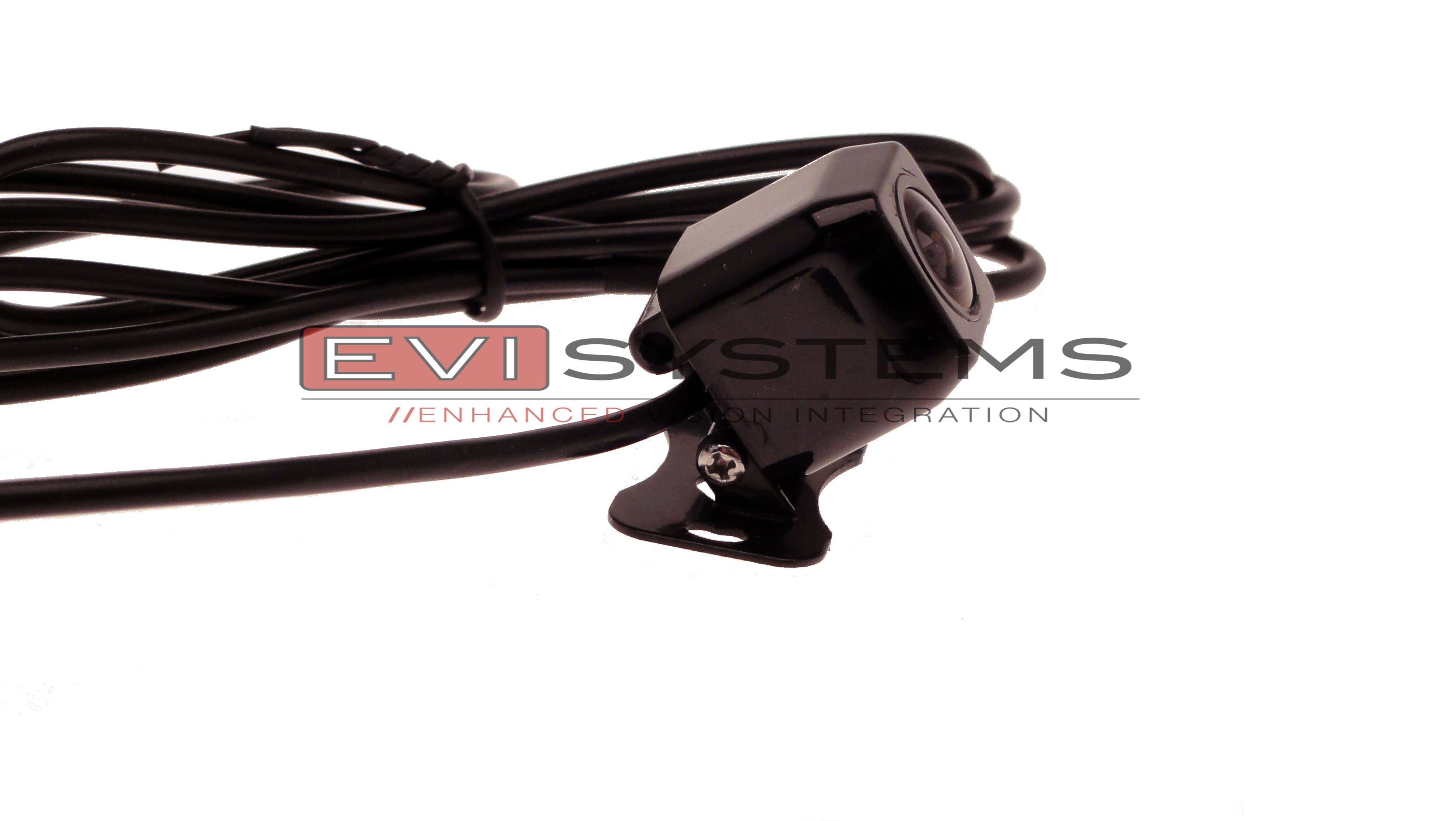

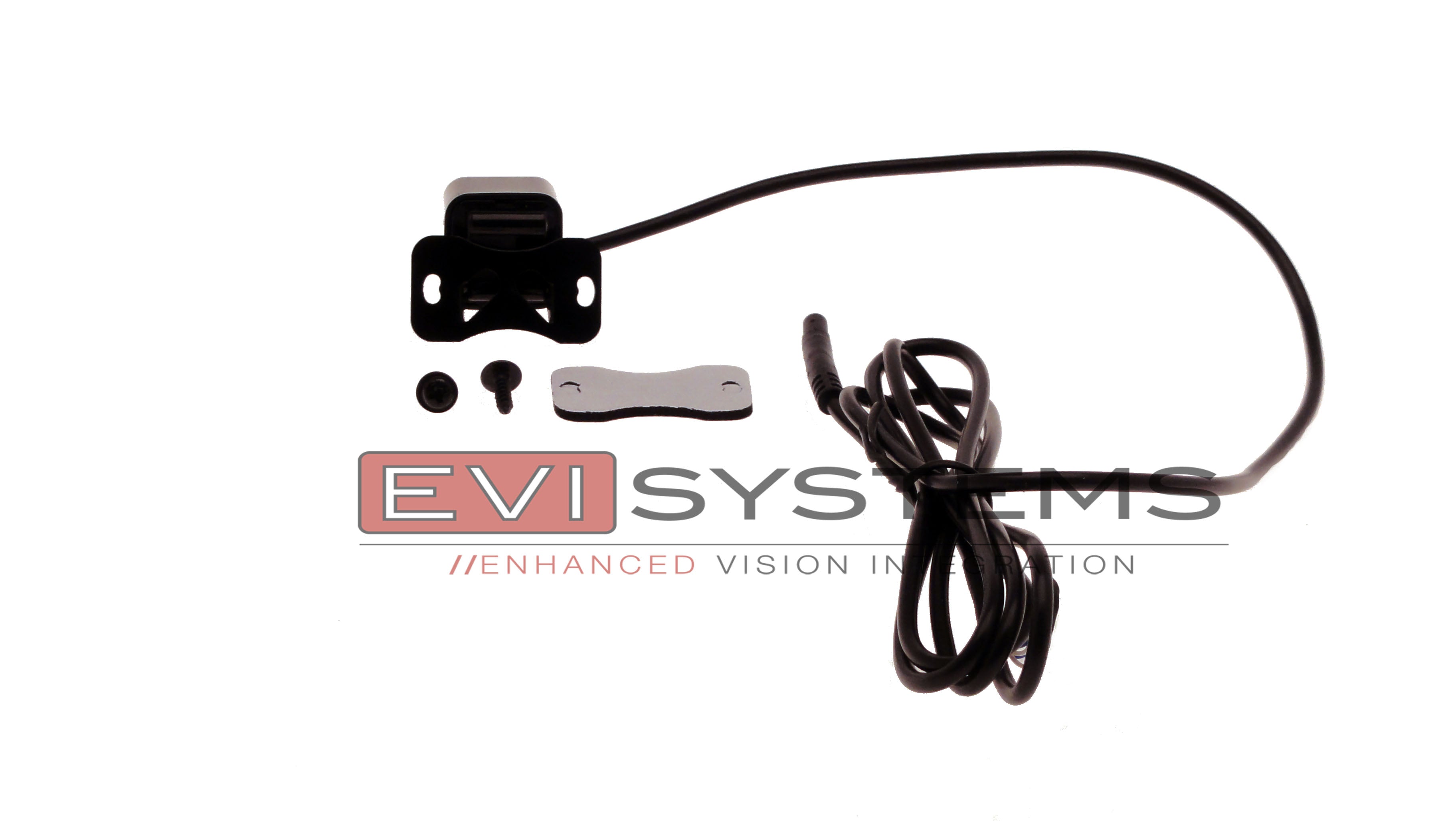

- Two side cameras with brackets (mount under your side mirrors)
- Mounting hardware

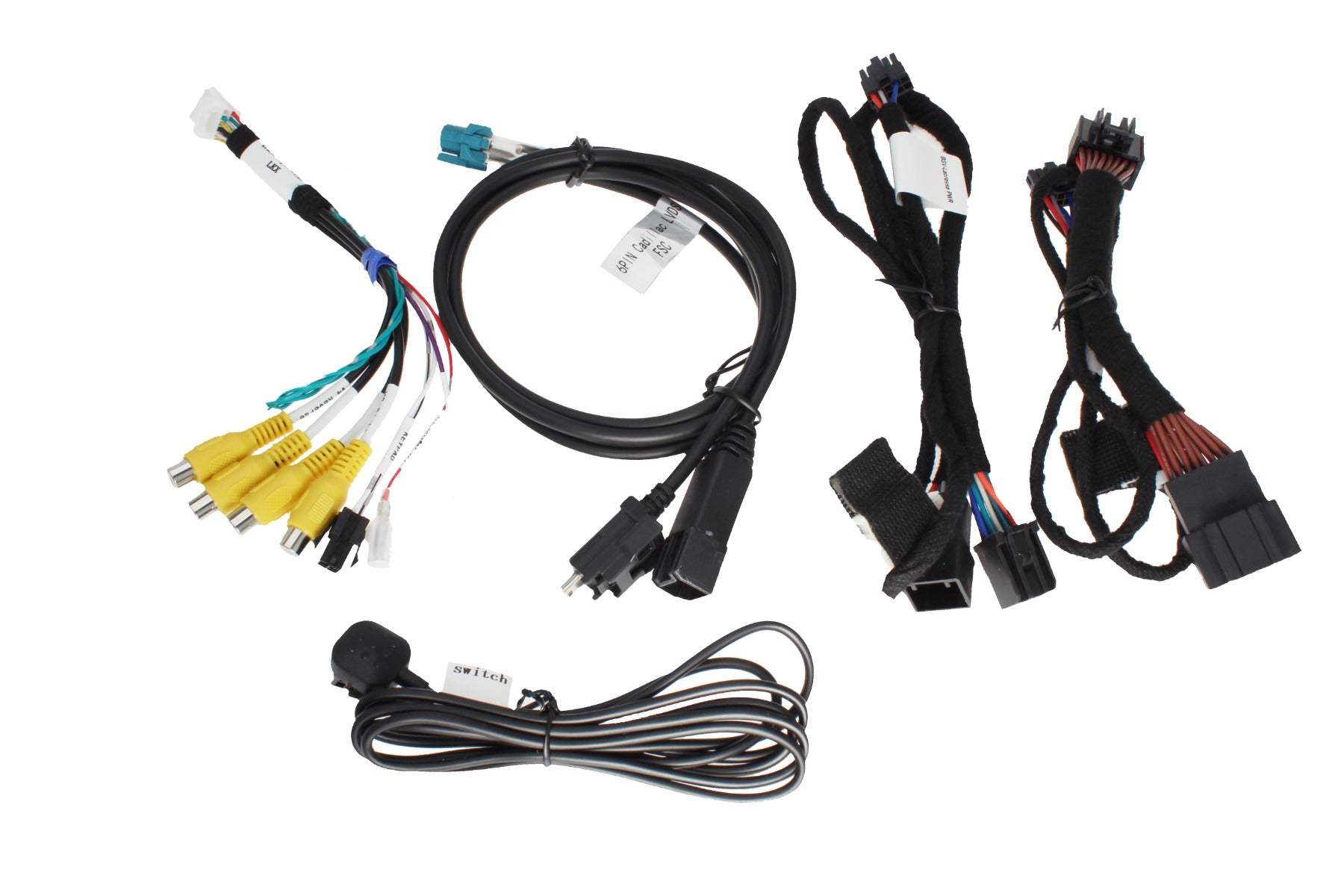

- Camera wiring harnesses
- Zip ties
- Detailed installation instructions
- 3 year warranty on the cameras and interface
Camera Specifications:
- CMOS forward looking camera - designed for front applications
- Side cameras are designed for rear-view applications and can be fully adjusted to meet your view needs
- 150 degree view
- 600 TV lines of resolution
- .2 lux minimum illumination - Outstanding night vision!
Multi Cam interface:
- Front facing camera can be triggered to power on automatically when the vehicle is going less than 8 mph or manually using the BACK button on your factory radio.
- Turn signal activated mirror mount cameras can also be powered on manually via the BACK button.
- Reverse-triggered bed-view/cargo camera. Can also be manually powered on. Cam not included
- NO DEALER ACTIVATION REQUIRED!

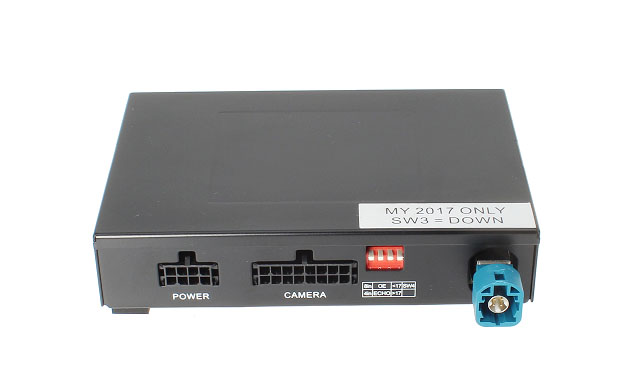

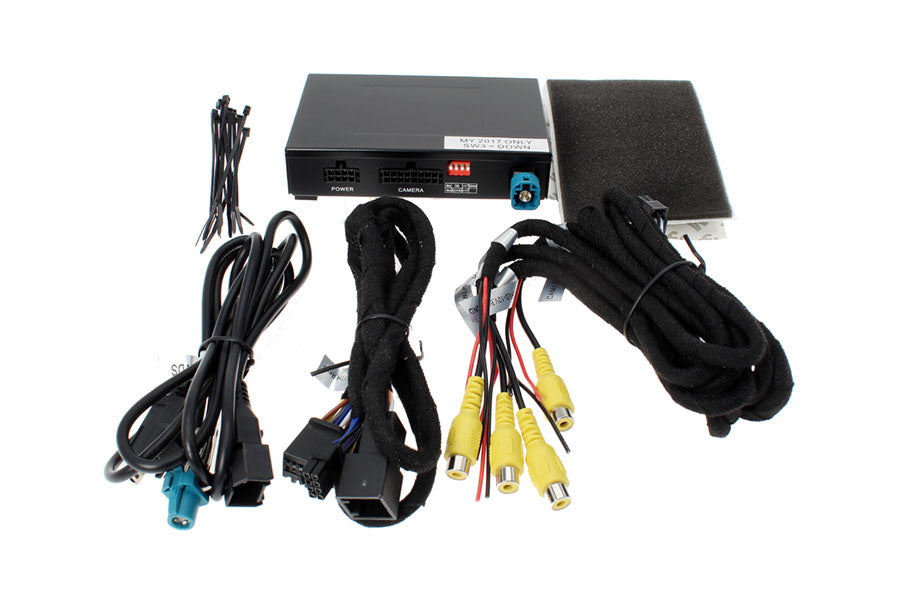

The integration module is completely plug and play with your factory MyLink/IntelliLink system. Allows connection of four cameras to the factory screen in addition to the OEM backup camera. Also, allows monitoring of any connected camera at any time while driving (not including OEM backup camera). Right and left blind spot camera inputs are automatically triggered by the turn signals. Easy to use menus in the factory screen with operation choices. Factory rear camera is not available above 7 mph.
*Additional cameras and monitor are not included with this kit. It is designed to work with your existing 8" MyLink/IntelliLink radio screen. This kit allows you to see what is directly in front of the truck as well as beside the truck! These cameras and interface module come with a 3 year warranty. Professional installation is recommended.
Not compatible if vehicle has Rear Seat Entertainment system.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 3 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera, Side Camera, Multiple cameras (kit) |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | Chevrolet,GMC |
| Camera Mount Location | Side Mirror, Front Grille |
| Night Vision | .2 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8\ MyLInk/Intellilink |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | CMOS III |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 150 Degrees |
| Model | Sierra,Sierra HD,Canyon,Colorado,Silverado,Silverado HD |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2014,2015,2016,2017,2018,2019 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Canyon, Colorado, Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2014, 2015, 2016, 2017, 2018, 2019 |
Compatibility
Vehicle must have IO5 or IO6 option code on the service parts sticker located in the glove box OR 2018+ vehicles will have this sticker located in the driver's side door jam by the "B" pillar. You can scan the QR code on the sticker using a mobile device to view the options.
2014-2019 GMC® Sierra pickup truck with 8" IntelliLink display screen. IO5 or IO6 option code
2014-2019 GMC® Canyon pickup truck with 8" IntelliLink display screen. IO5 or IO6 option code
2014-2019 Chevrolet® Silverado pickup truck with 8" MyLink display screen. IO5 or IO6 option code
2014-2019 Chevrolet® Colorado pickup truck with 8" MyLink display screen. IO5 or IO6 option code
Not compatible if vehicle has Rear Seat Entertainment system.
Installation
The side cameras will mount under your side mirrors, which will require complete removal and disassembly of your mirrors. These mirrors can be challenging to disassemble so professional installation is recommended for this kit.

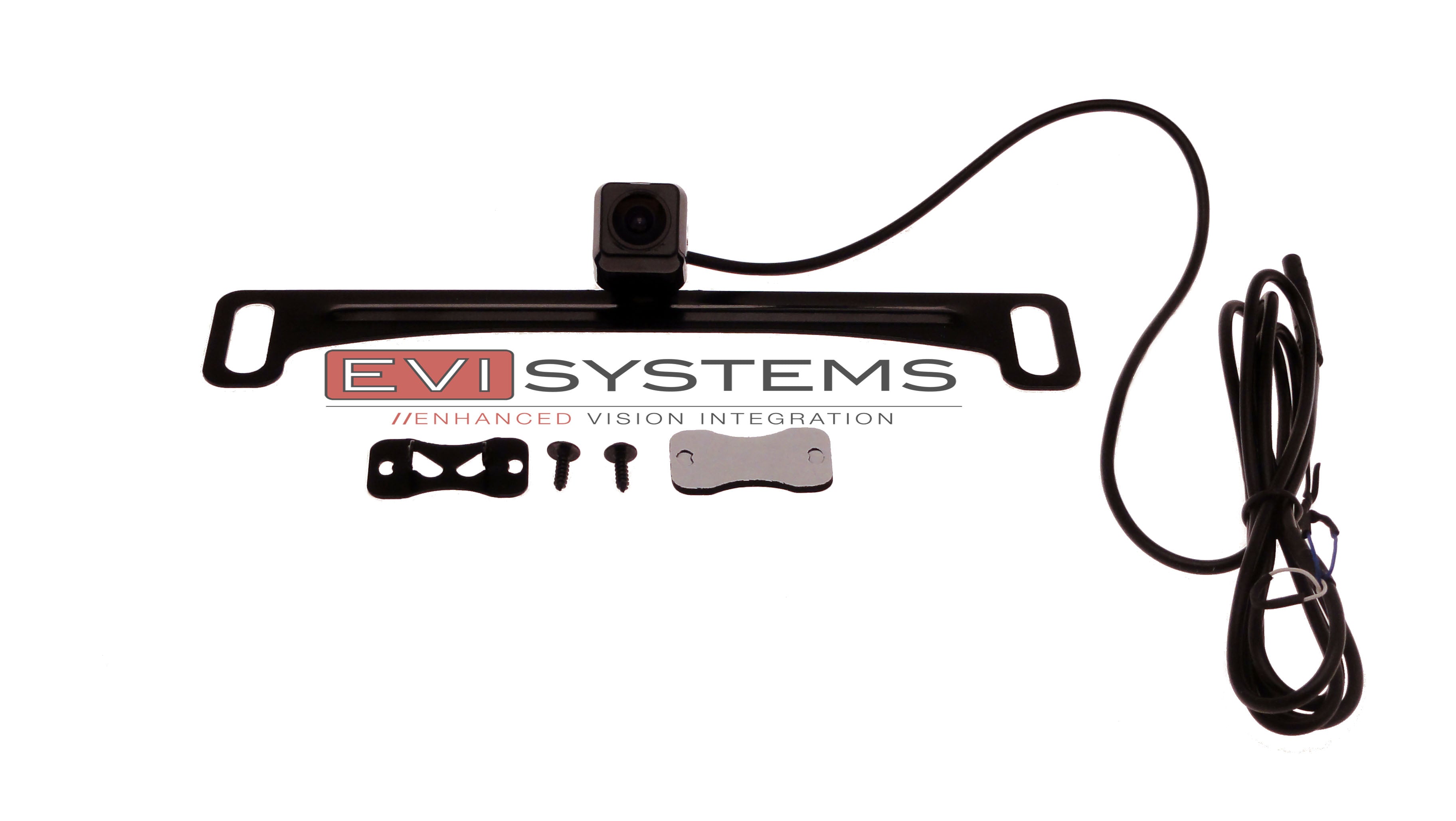

Front camera mounts to your license plate bracket or any flat surface and has parking guidelines that can be turned off. You will need to switch it to the forward looking image on the harness during the installation.

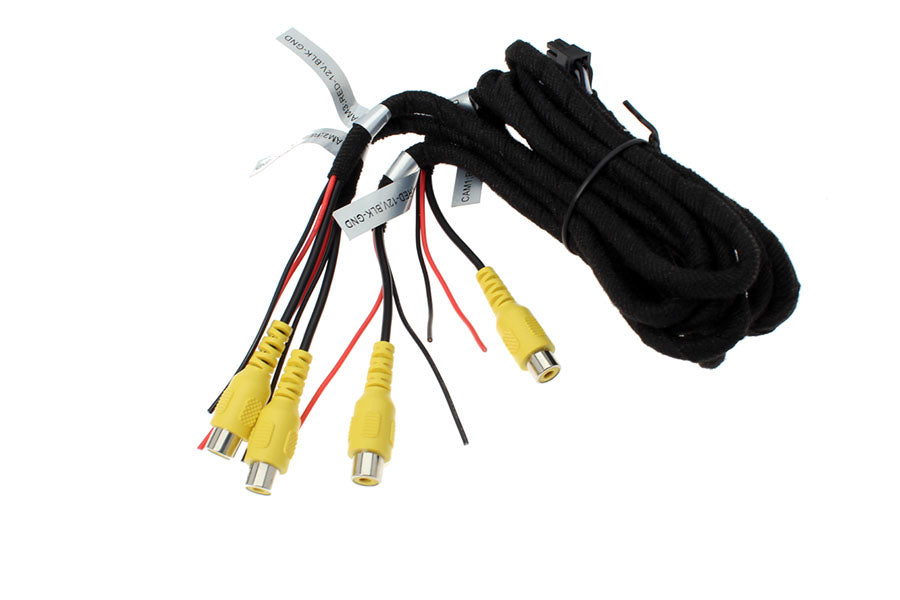

The Multi-cam integration module is plug and play with your factory 8" MyLink/IntelliLink screen. You will need to remove your factory 8" screen to gain access to the back of the connections. The module will be plug and play and has RCA inputs for the cameras to connect directly to the screen.
