Backup Camera for Factory Display Fits 2013-2017 Dodge® Ram
SKU#: CS-13DTR-OBD
Availability:
In Stock
SKU#:
CS-13DTR-OBD
Sale price
Now:
$399.00
Regular price
Was:
$417.00
Quantity
Uses your factory display!
Description
This kit is for a 2013-2017 Ram trucks that have the factory installed 4.3", 5", or 8.4" display screen. NO DEALER PROGRAMMING REQUIRED! NOTE: THE NAVIGATION SCREEN IN THE PHOTO IS NOT INCLUDED.
Premium camera kit- camera will also allow you to see the rear bumper and trailer hitch for easy connections - even at night!

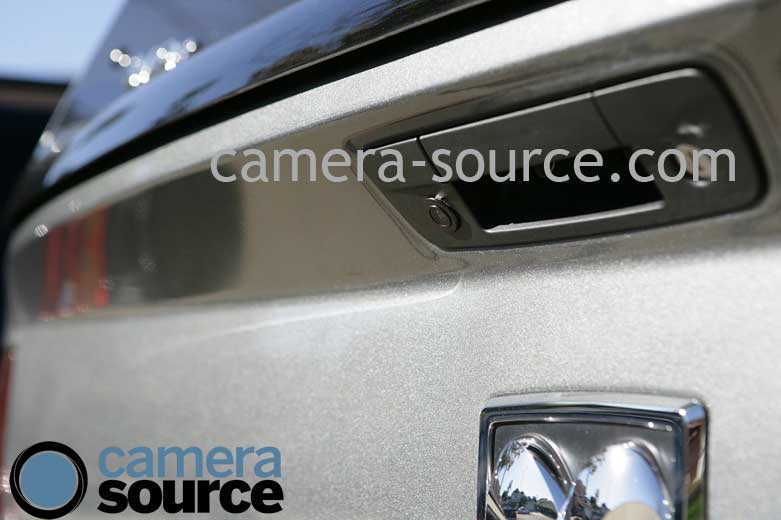

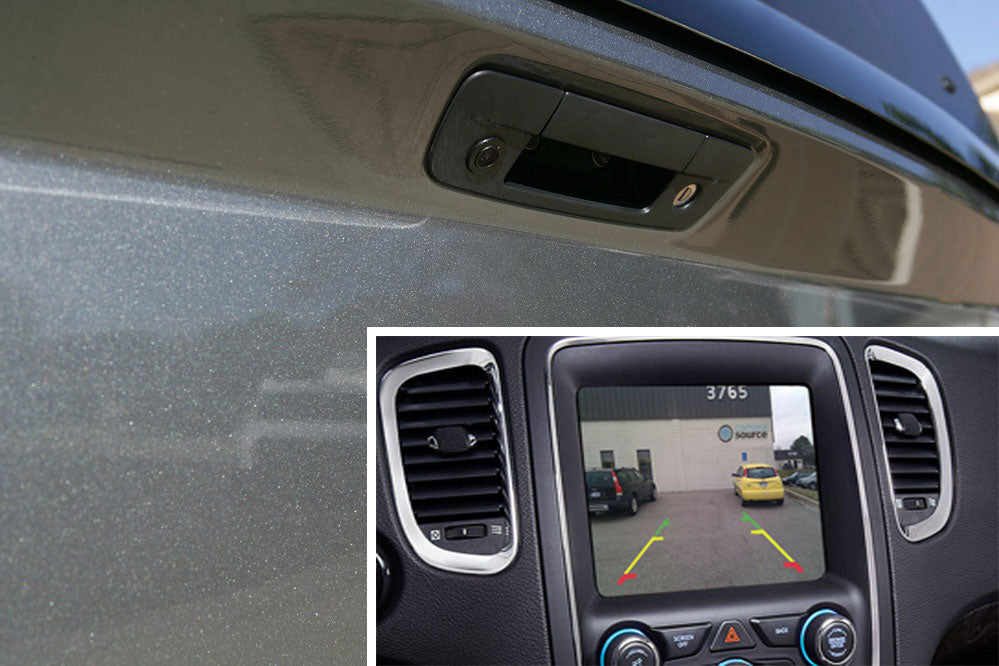

This OE style camera provides superior high definition color, clarity, and excellent night vision! This camera contains our latest Super CMOS technology that even outperforms the factory camera in all categories! Coupled to a OEM Dodge® tailgate handle, this combination will look like it was installed at the factory. When you put your truck in reverse the camera will turn on your factory radio display and show you a crystal clear picture of what is behind you! This kit comes with all the wiring and connectors to install into your truck and connect to your factory 4.3", 5", or 8.4" screen. FACTORY NAVIGATION/RADIO SCREEN IS NOT INCLUDED you must have the 4.3", 5", or 8.4 display mentioned above.

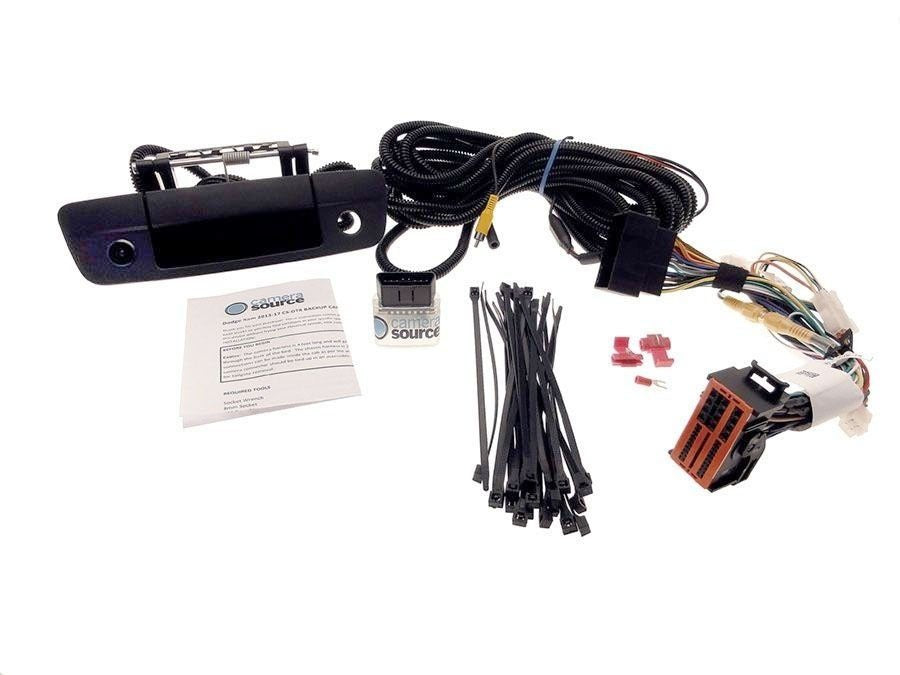

This package contains:

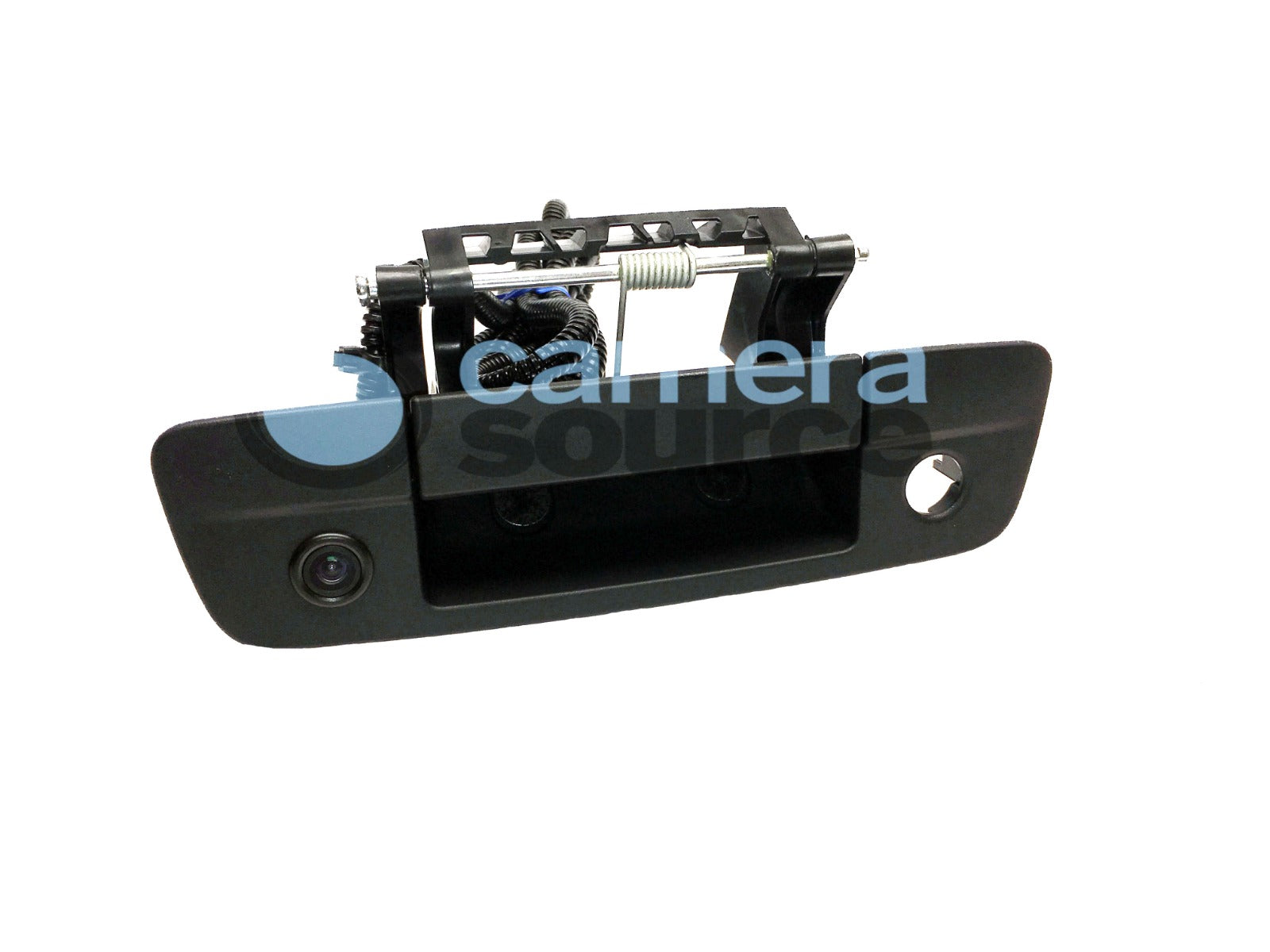

- Premium Super CMOS night vision camera with optional display guidelines, mounted in OEM Dodge® tailgate handle. This is our latest image sensor and has a super wide view and crisp clear picture!
- 25' pre-loomed wiring harness - allows for quick tailgate disconnect with a single connection by the spare tire area. All other electrical connections will be made inside the cab for maximum durability and corrosion avoidance!

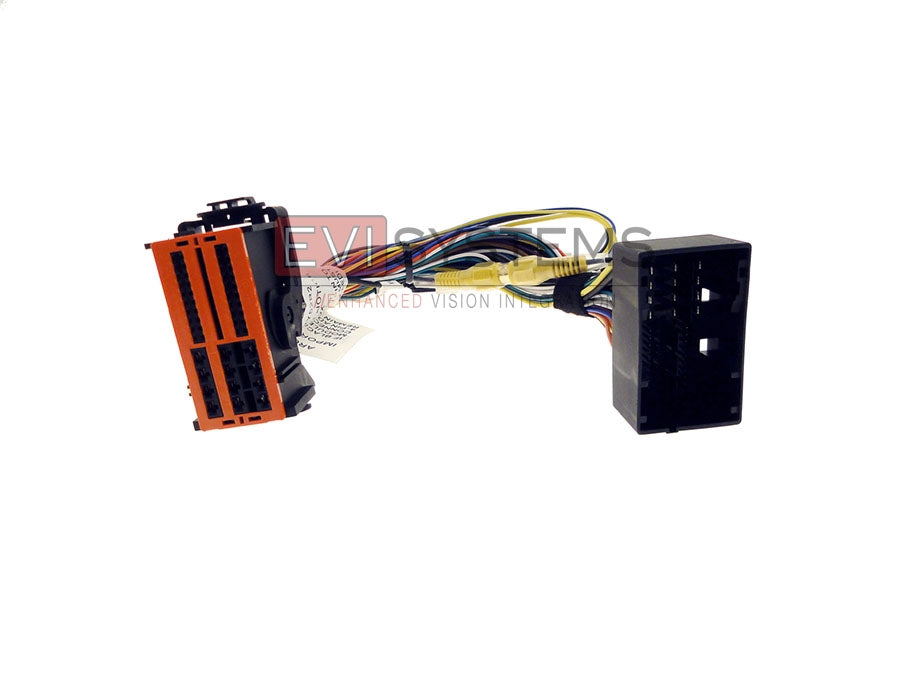

- Factory radio screen T-harness

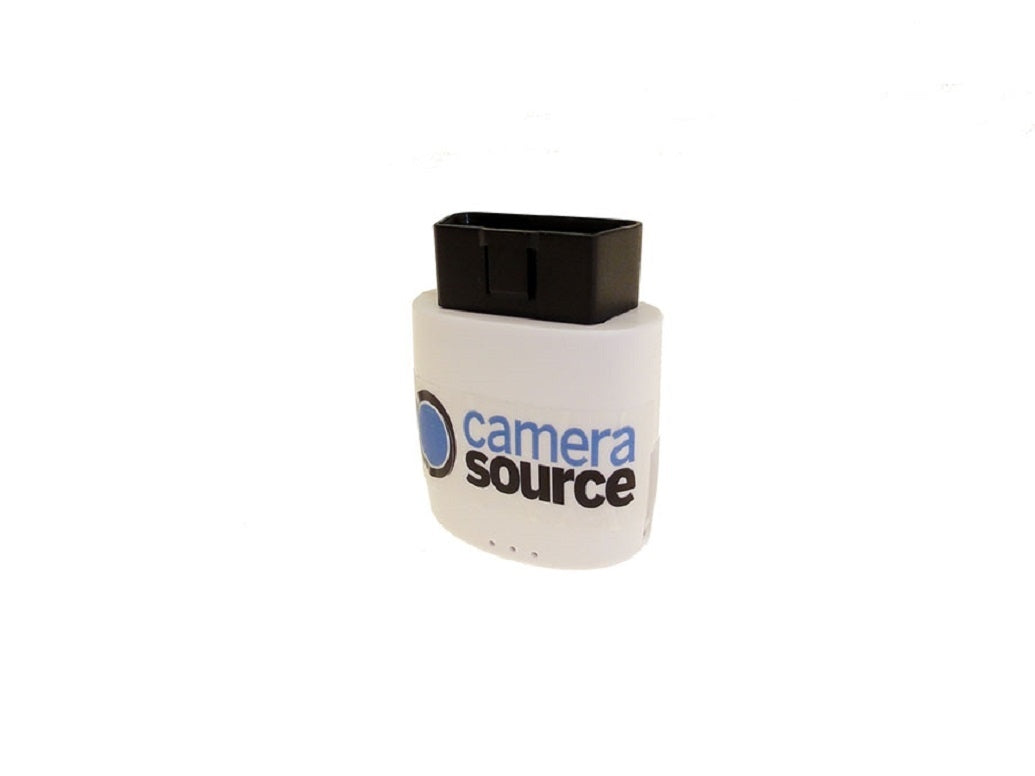

- OBD programmer- No dealer activation required!

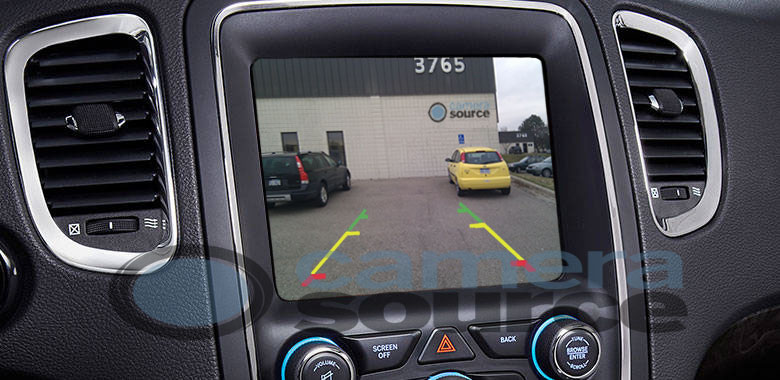

- Selectable OE inspired parking guidelines
- Wire connectors
- Detailed installation instructions
- 3-Year limited camera warranty!
- Factory navigation screen NOT included. NO MONITOR IS INCLUDED IN THIS KIT.
Camera Specifications:
- Camera Source Super CMOS
- 170 degree view
- 600 TV lines of resolution
- .1LUX minimum illumination
- IP67 rating
Additional Information: This MOPAR® tailgate handle replaces your existing handle as a direct replacement kit. This kit is designed for trucks with factory display screen in the radio.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | RAM |
| Camera Mount Location | Factory Tailgate |
| Night Vision | .1 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 4.3\ Mopar, 5\ Mopar, 8.4\ Mopar |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Category | Truck |
| Camera Input Ports | 1 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | 1500,HD |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2013,2014,2015,2016,2017 |
| Make Filter | Ram |
| Model Filter | 1500, HD |
| Year Filter | 2013, 2014, 2015, 2016, 2017 |
Compatibility
All 2013-2017 Dodge® Ram trucks with factory 4.3", 5", or 8.4" radio display.
Installation
Professional installation is recommended. Remove the radio and install the radio T-harness. Then remove the old tailgate handle and replace with the one from this kit, fishing the camera wire through the existing holes in the bottom of the tailgate and bed. The harness is over 25' long and will easily get you into the cab through an existing rubber grommet in the firewall by the gas pedal area. Connect the camera wiring to the radio T-harness and vehicle wiring system.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
Total installation time is between 1.5 hours and 2.5 hours depending on skill level.
