Front & Rear Camera Kit for Factory Display, Fits 2013-18 RAM®
SKU#: CS-DTR-FR
Availability:
In Stock
SKU#:
CS-DTR-FR
$708.00
Quantity
Front & rear cams for factory Display!
Description
This is a complete kit that contains our Mopar® tailgate handle rear camera, surface mount front camera, and multi-cam integration module. Compatible with 2013-18 RAM® trucks with factory 4.3",5", or 8.4" radio system.

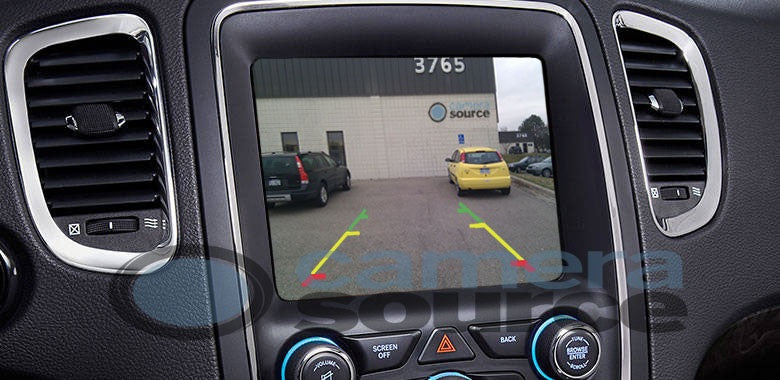

Here's a complete solution for your RAM truck that will allow you to see clearly while backing AND allow you to see forward in tight spaces! This kit does not require any splicing into factory wiring and will work on any 2013-2018 RAM® 1500,2500,3500 series with factory display. The integration module allows for plug and play integration into your factory screen without having to flash program your radio. The rear camera will come on automatically when in reverse and front camera can be manually activated using the forward arrow on the steering wheel.

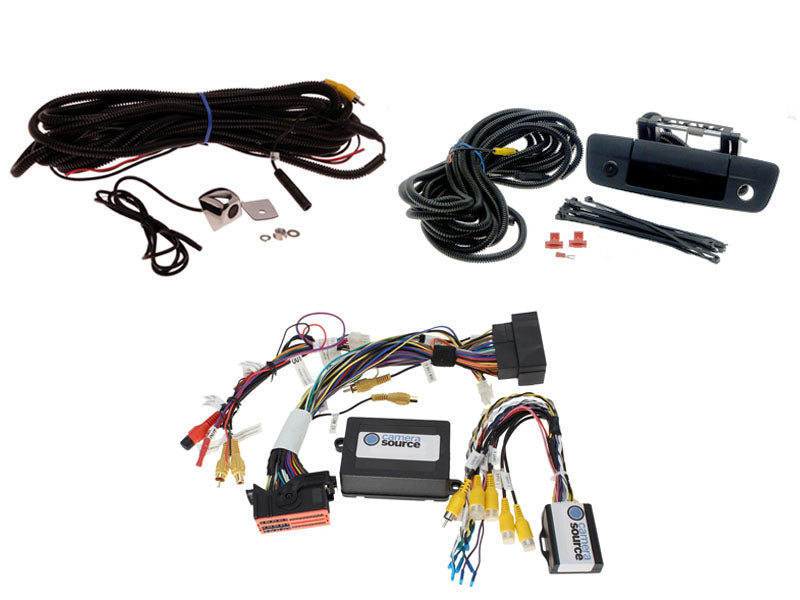

This kit contains the following:

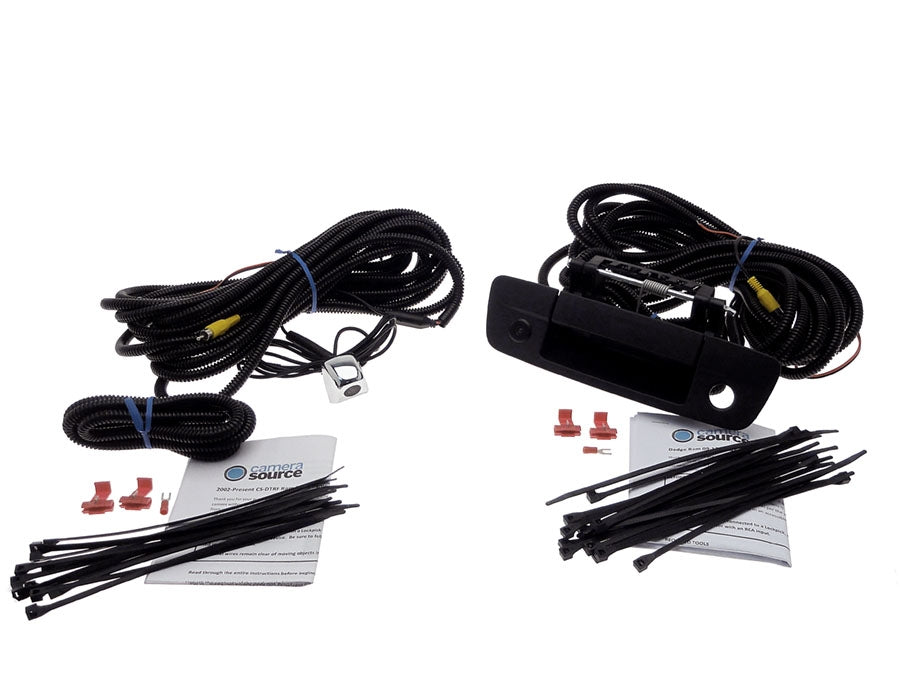

- CS-DTR Rear Camera Kit (with parking lines)

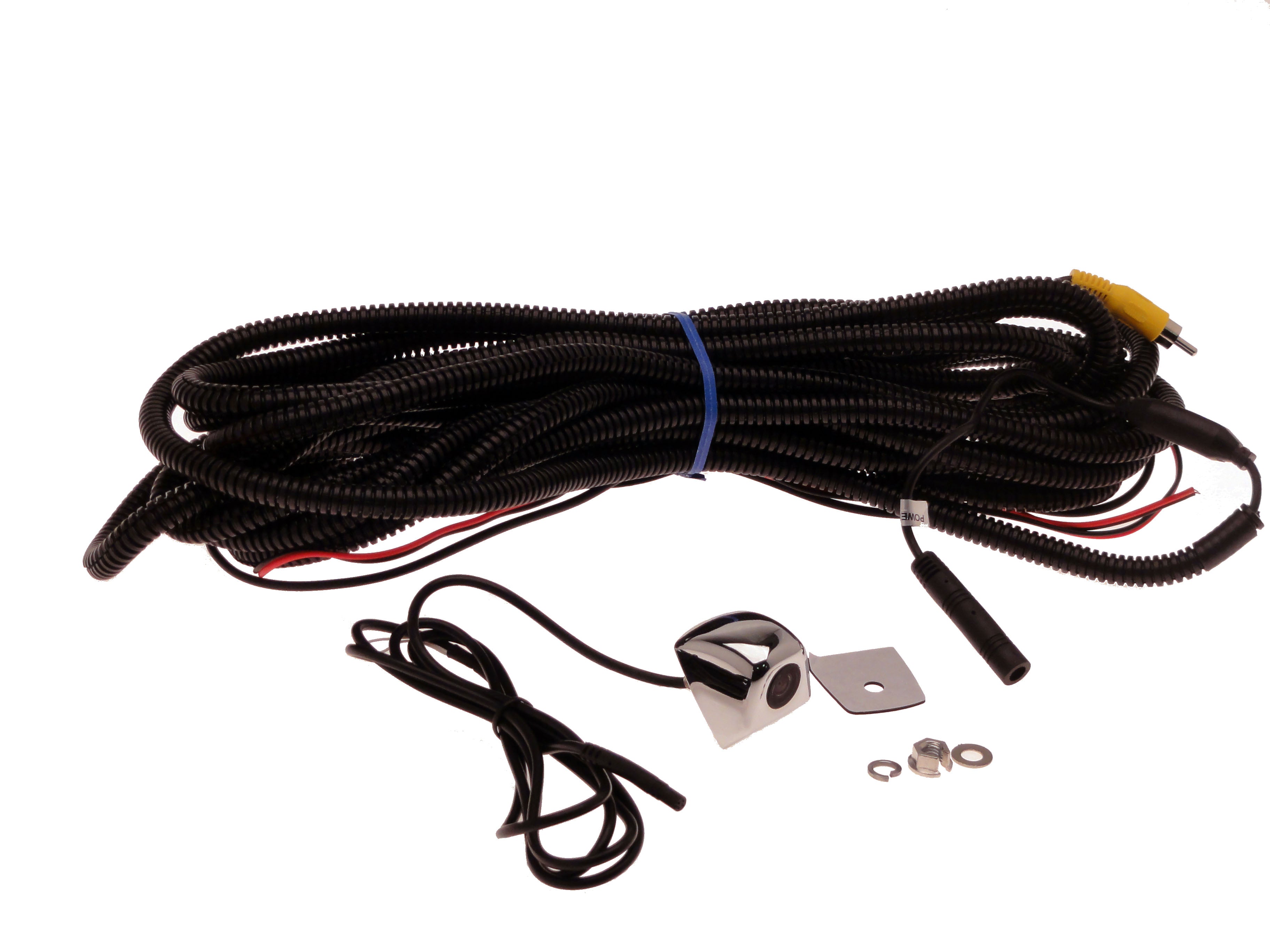

- CS-DTRF Front Camera Kit (with parking lines)

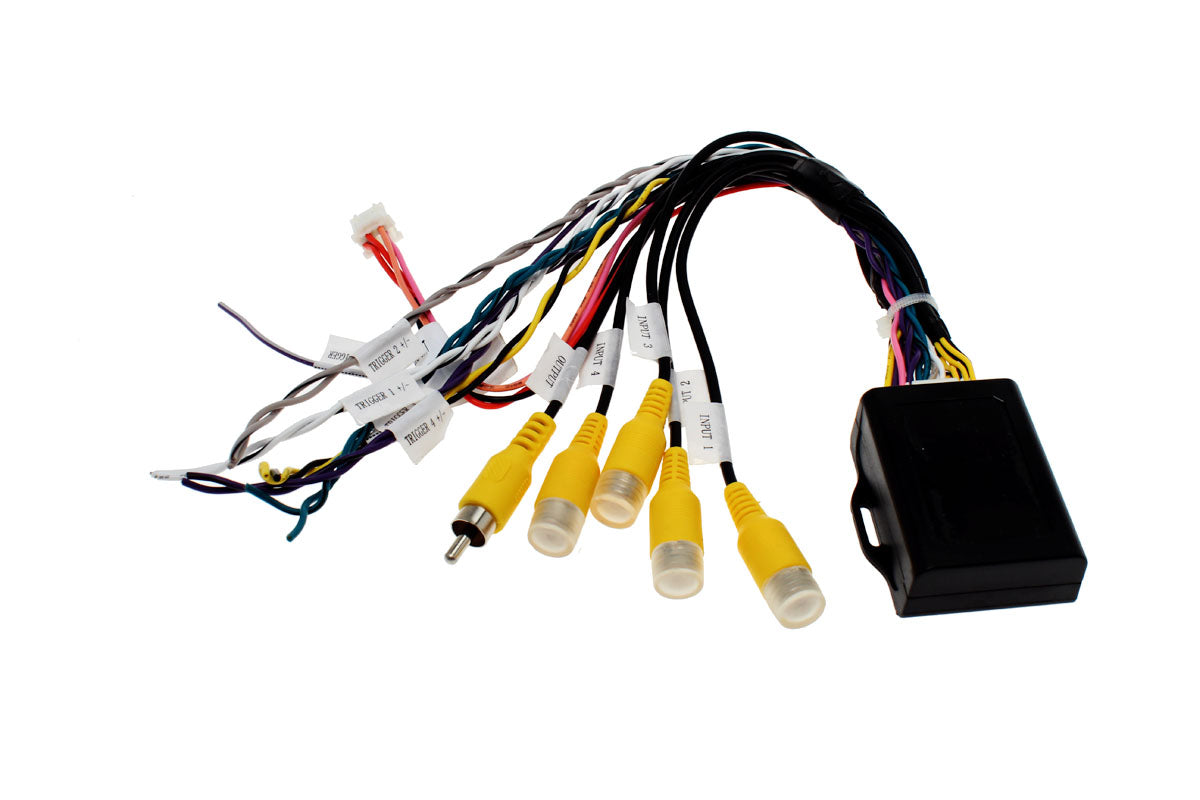

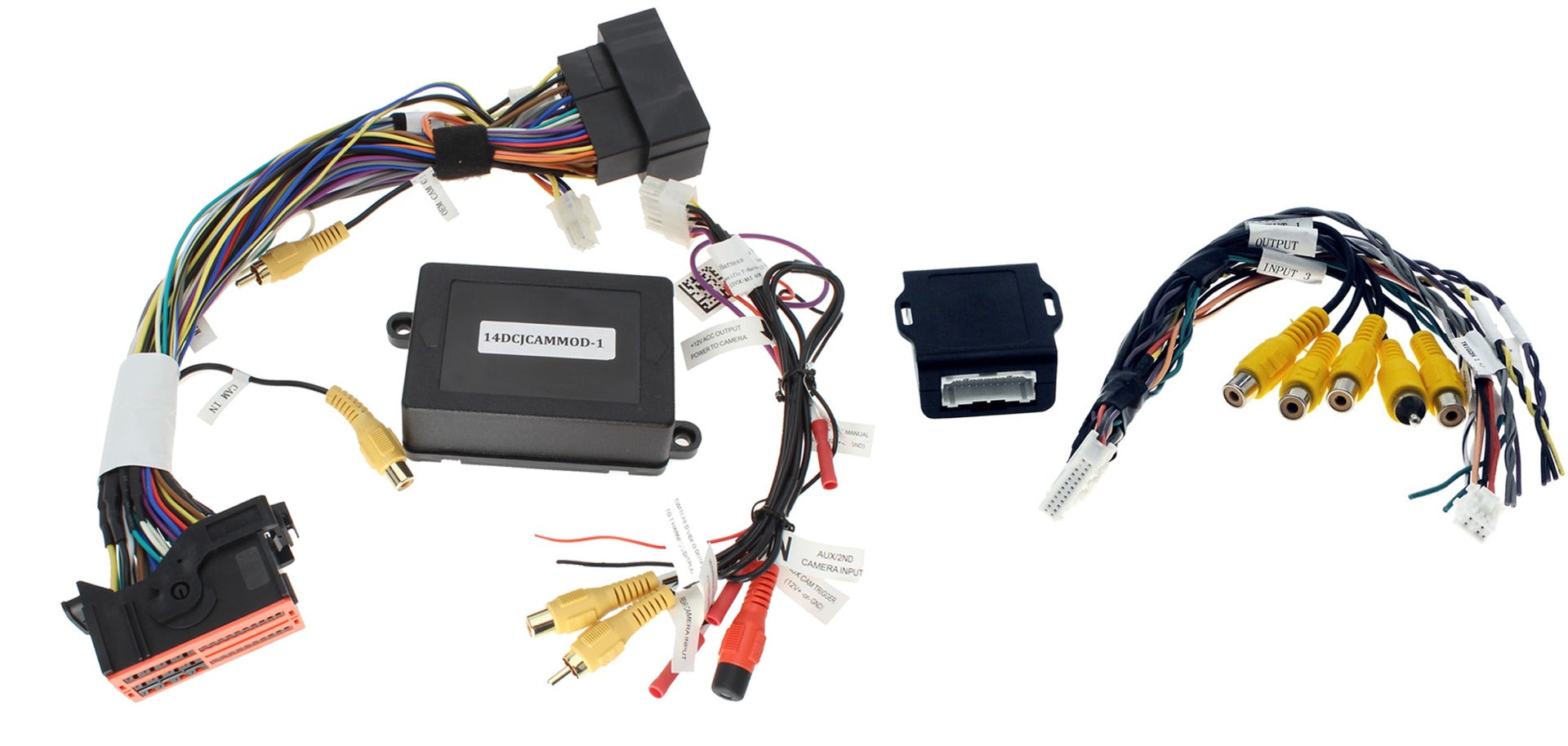

- Multi-cam interface module
- Multi cam switch
**Display not included as this kit uses your existing factory display.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 2 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Front Camera, Multiple cameras (kit) |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | RAM |
| Camera Mount Location | Factory Tailgate, Front Grille |
| Night Vision | .1 Lux |
| Parking Guidelines | Yes |
| Power Supply | 12 Volts |
| Radio Screen Size | 4.3\ Mopar, 5\ Mopar, 8.4\ Mopar |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | 1500,HD |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Factory Plug&Play |
| Year | 2013,2014,2015,2016,2017,2018 |
| Make Filter | Ram |
| Model Filter | 1500, HD |
| Year Filter | 2013, 2014, 2015, 2016, 2017, 2018 |
Compatibility
Compatible with 2013-18 RAM® trucks with factory 4.3",5", or 8.4" radio system.

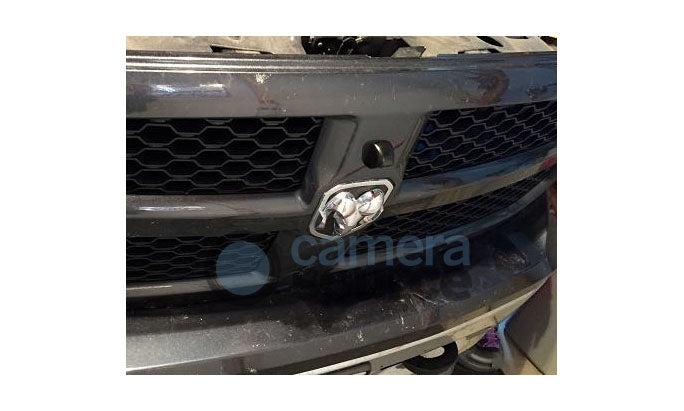

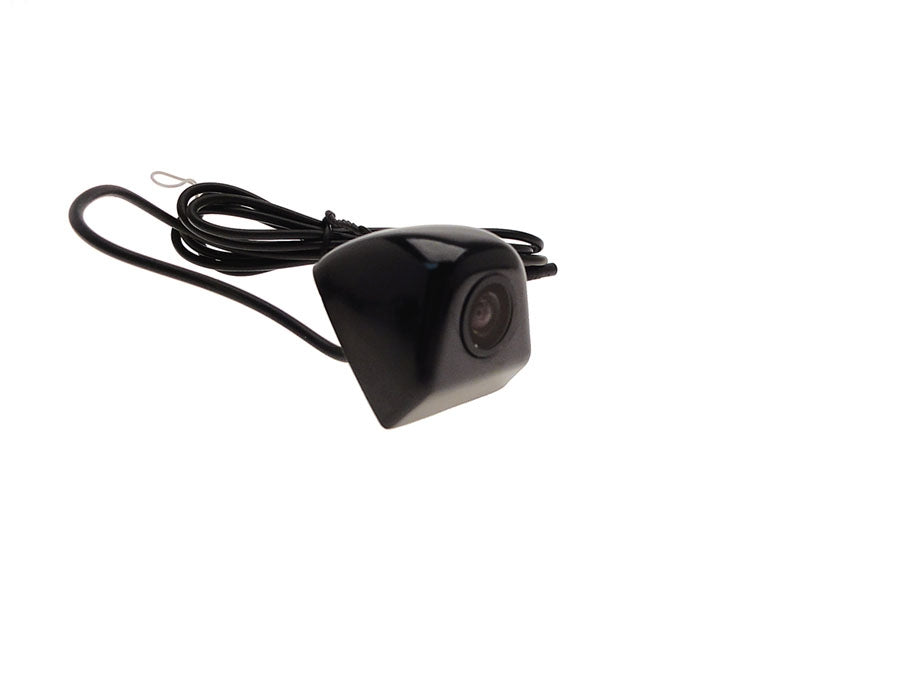

Front camera is a surface mount camera, however it may not be compatible with all grille styles. See thumbnail picture for image of mounting.
Installation

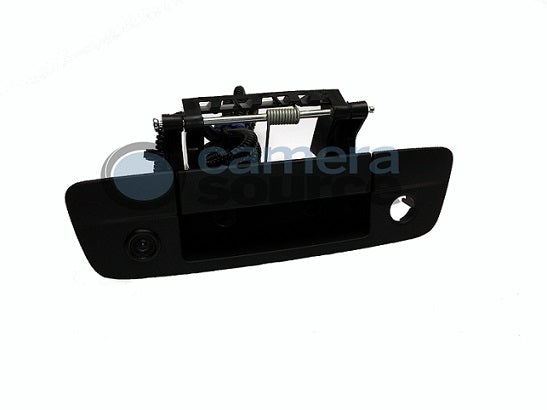

The Multi-cam integration module is plug and play with your factory RAM® screen. The rear camera kit will replace your factory tailgate handle.
Front camera-Simple installation may not even require the removal of the front grille, drill hole for camera mount, and run harness to the cab through an existing grommet in the firewall. All the wiring is included and installation can be accomplished in 2-3 hours (times vary with experience).
You will need to remove your factory screen to gain access to the back of the connections. The module will be plug and play and stubs out to an RCA for the camera to connect directly to the screen. You will also install a video switch for adding more than one camera. Detailed instructions included.
