Front Camera Kit for Factory Display, Fits 2013-18 RAM®
SKU#: CS-DTR-VIF
Availability:
In Stock
SKU#:
CS-DTR-VIF
$547.00
Quantity
Front Cam + Multi-camera Support!
Description

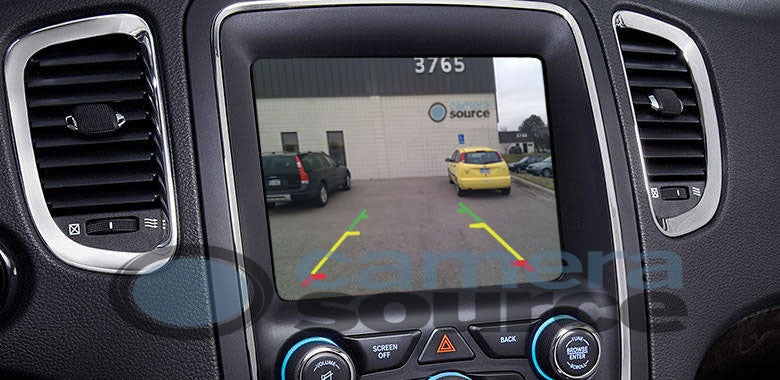

Can't see over that hood? This is your solution and is a Camera Source exclusive for any 2013-2018 RAM® 1500,2500,3500 series with factory display!! This camera is chrome or black plated and utilizes our latest Super CMOS forward looking camera for a kit that looks like it came from the factory! Includes parking guidelines in the display. The screen interface provides multi-cam support so you can add up to 4 total cameras to your factory 4.3", 5", or 8" display screen!
This is a complete kit that contains our Dodge® surface mount front camera, and multi-cam integration module. Compatible with 2013-18 RAM® trucks with factory 4.3",5", or 8.4" radio system.
The integration module allows for plug and play integration into your factory screen without having to flash program your radio. The factory rear camera will come on automatically when in reverse and front camera can be manually activated using the forward arrow on the steering wheel.

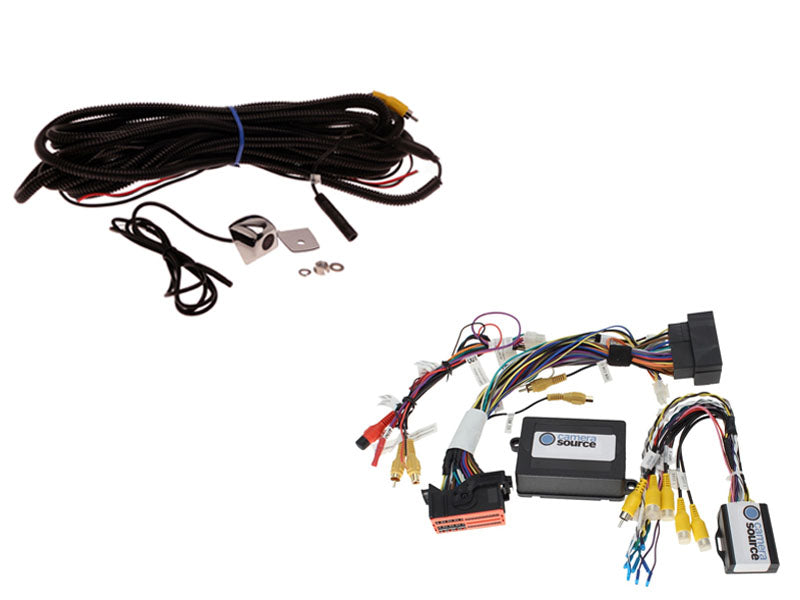

This kit contains the following:

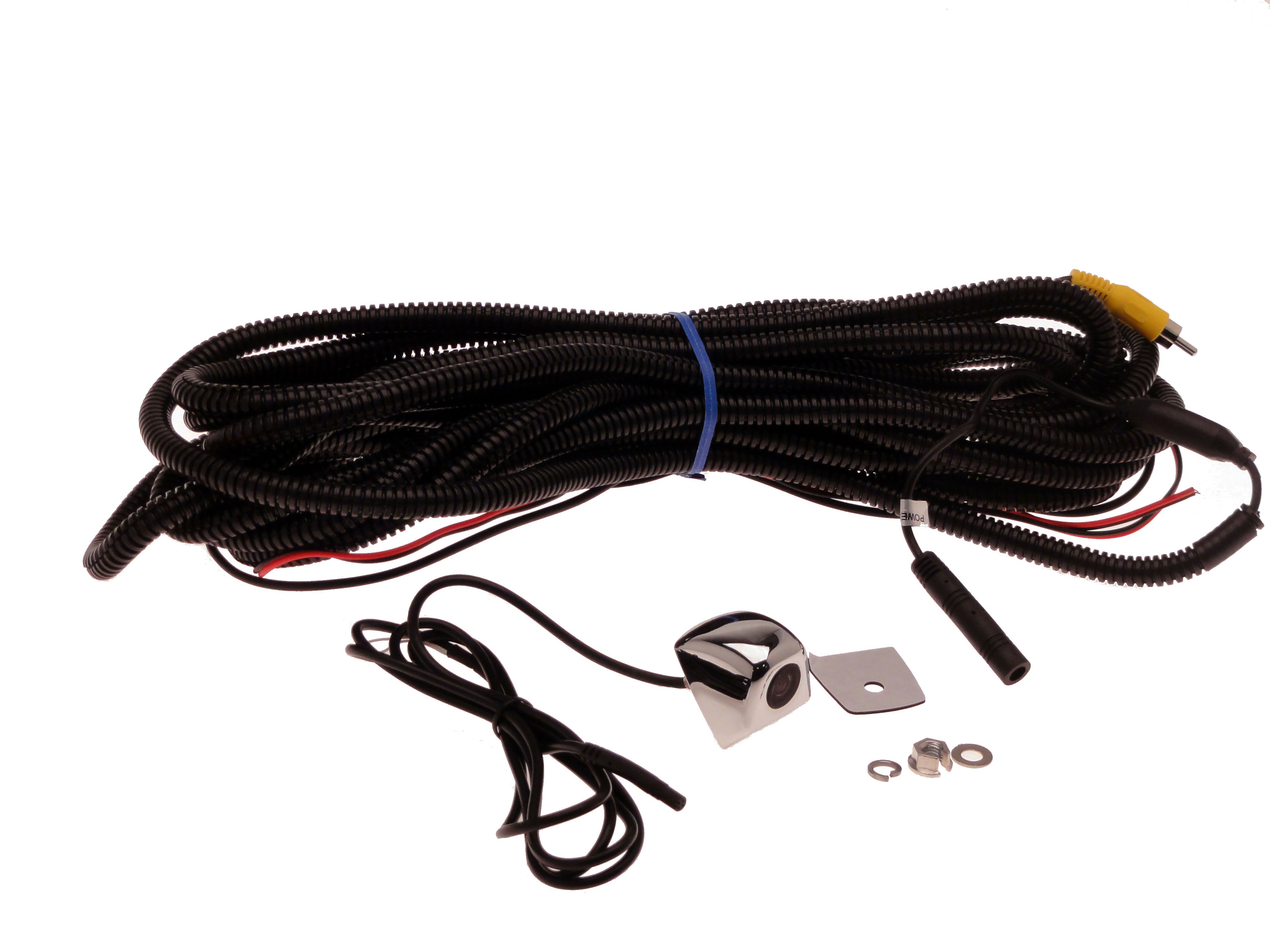

- CS-DTRF Front Camera Kit (with parking lines)

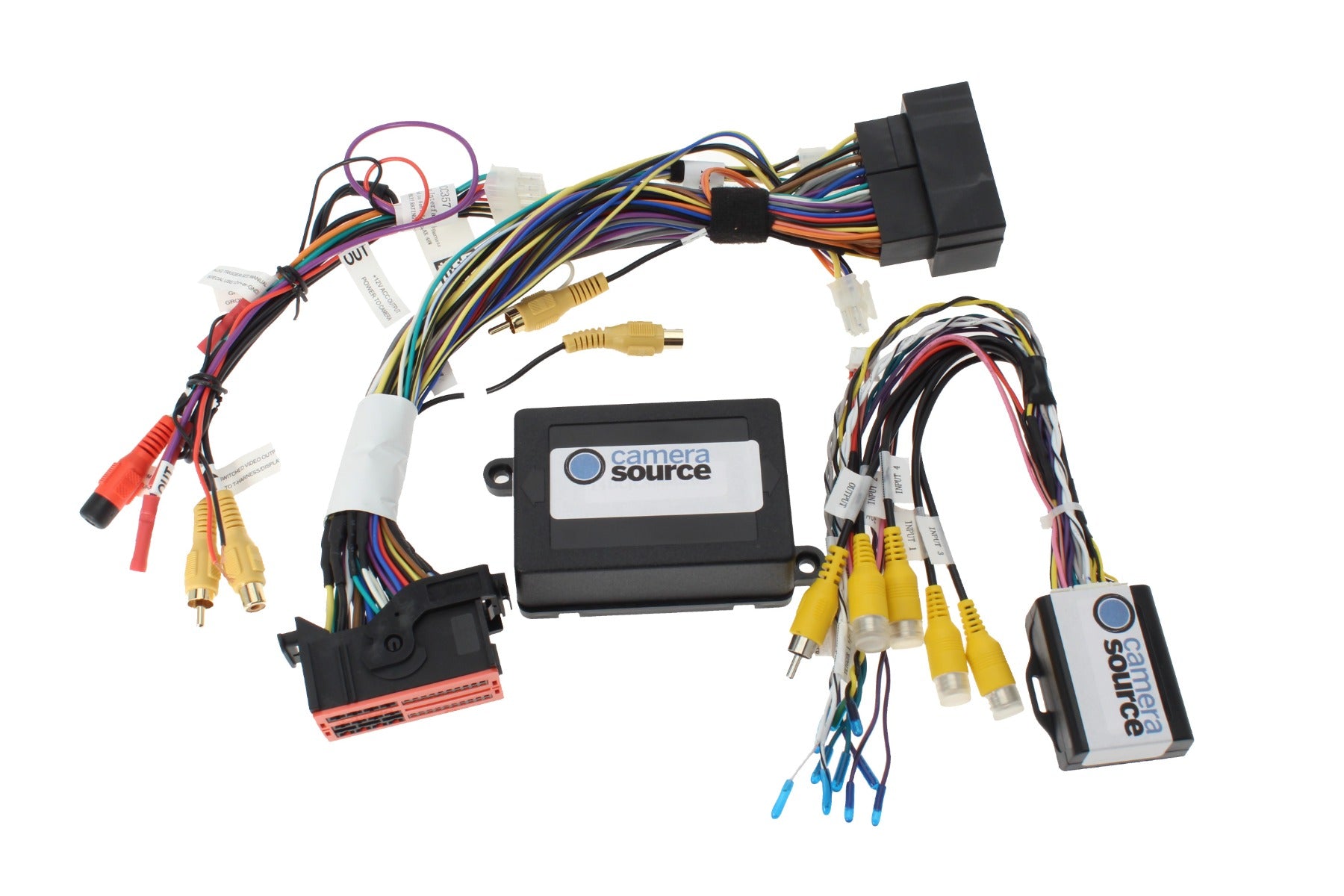

- Uconnect interface module(radio screen not included)

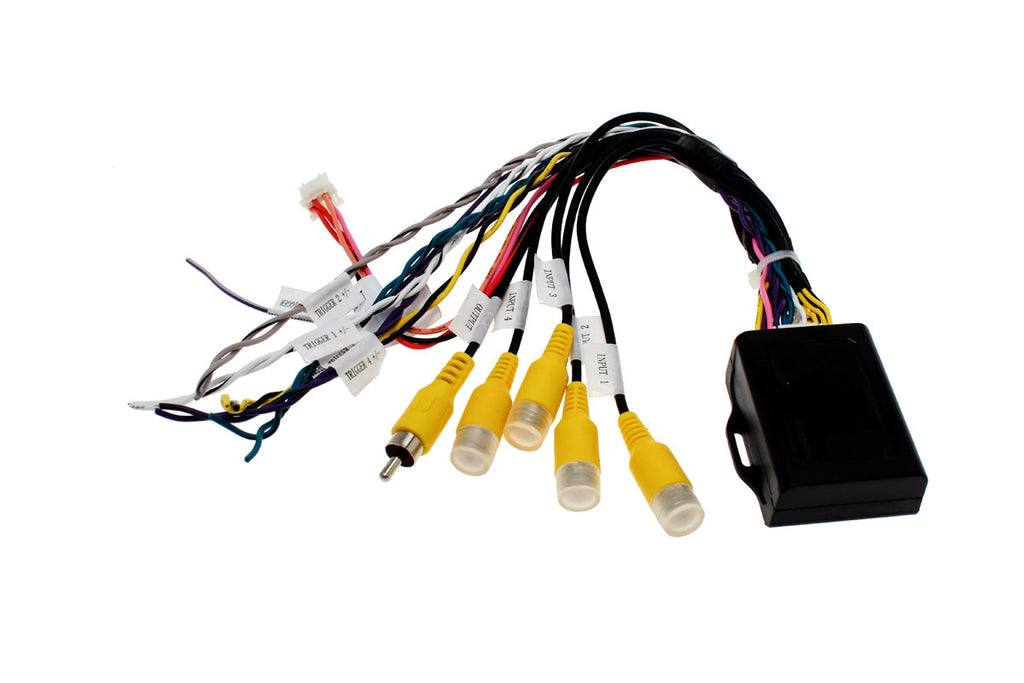

- Multi cam switch
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | RAM |
| Camera Mount Location | Front Grille |
| Night Vision | .1 Lux |
| Parking Guidelines | Yes |
| Power Supply | 12 Volts |
| Radio Screen Size | 4.3\ Mopar, 5\ Mopar, 8.4\ Mopar |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | 1500,HD |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2013,2014,2015,2016,2017,2018 |
| Make Filter | Ram |
| Model Filter | 1500, HD |
| Year Filter | 2013, 2014, 2015, 2016, 2017, 2018 |
Compatibility

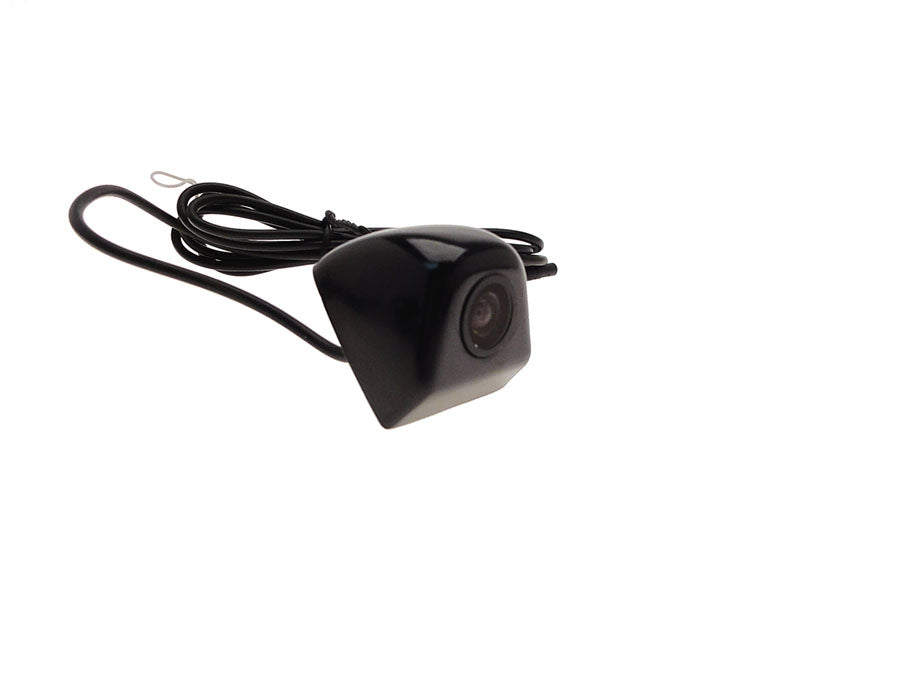

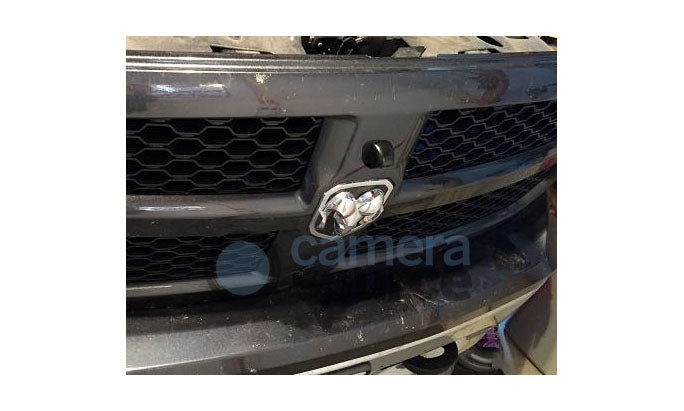

Compatible with 2013-2018 RAM® trucks with factory 4.3",5", or 8.4" radio system. Camera is a surface mount camera, however it may not be compatible with all grille styles. See thumbnail picture for image of mounting.
*Not compatible if truck has a factory tailgate camera and factory cargo camera.
Installation
Front camera-Simple installation may not even require the removal of the front grille, drill hole for camera mount, and run harness to the cab through an existing grommet in the firewall. All the wiring is included and installation can be accomplished in 2-3 hours (times vary with experience).
You will need to remove your factory screen to gain access to the back of the connections. The module stubs out to a female RCA connection for the camera to connect directly to the screen. You will also install a video switch for adding more than one camera. Detailed instructions included.
