Front, Rear, and Side Camera Kit for 8" SYNC 2 Display, Fits 2013-16 Super Duty
SKU#: CS-FTRSD-8FRS
Availability:
In Stock
SKU#:
CS-FTRSD-8FRS
$914.00
Quantity
See all 4 sides through 8" Display!
Description
This kit includes a factory emblem rear camera kit, front grille mounted camera, two side cameras, and the multi cam MyFord® Touch 8" SYNC 2 screen integration module. Everything is plug and play and no dealer programming necessary!
NOTE: this system will not portray a birds-eye view as it is limited to a full screen view one camera at a time.

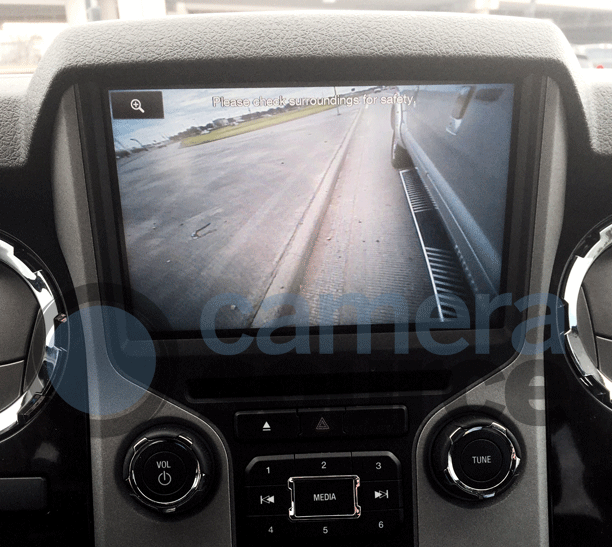

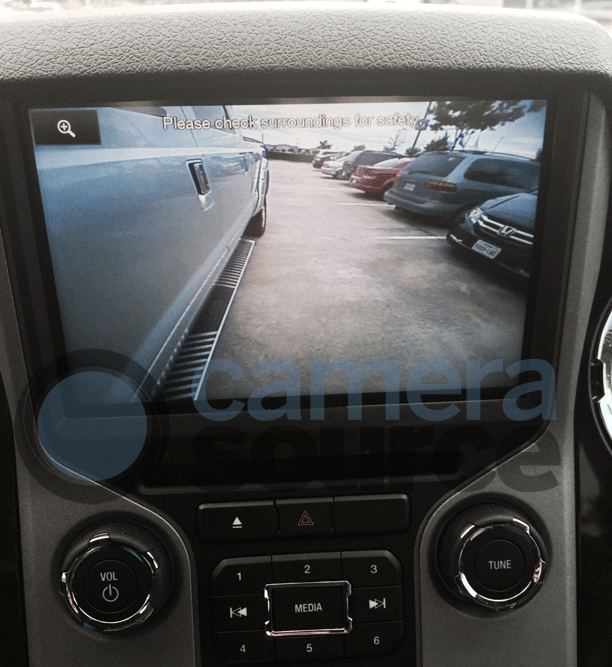

The front camera can be programmed to come on when you shift from reverse to drive, the side cameras can be programmed to come on with the turn signals, and the rear cam automatically when you go to reverse. You can also disable the auto front cam and turn them on manually if you like. Factory rear camera is not available above 7 mph.
Because of the complexity of the side mirror disassembly professional installation is recommended.

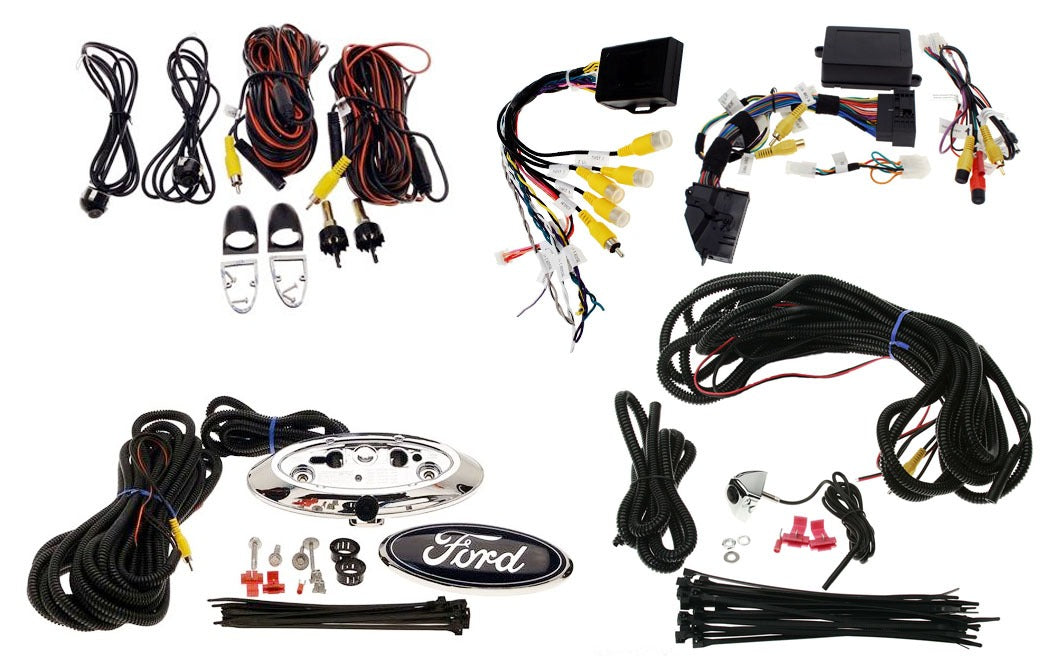

Kit includes:

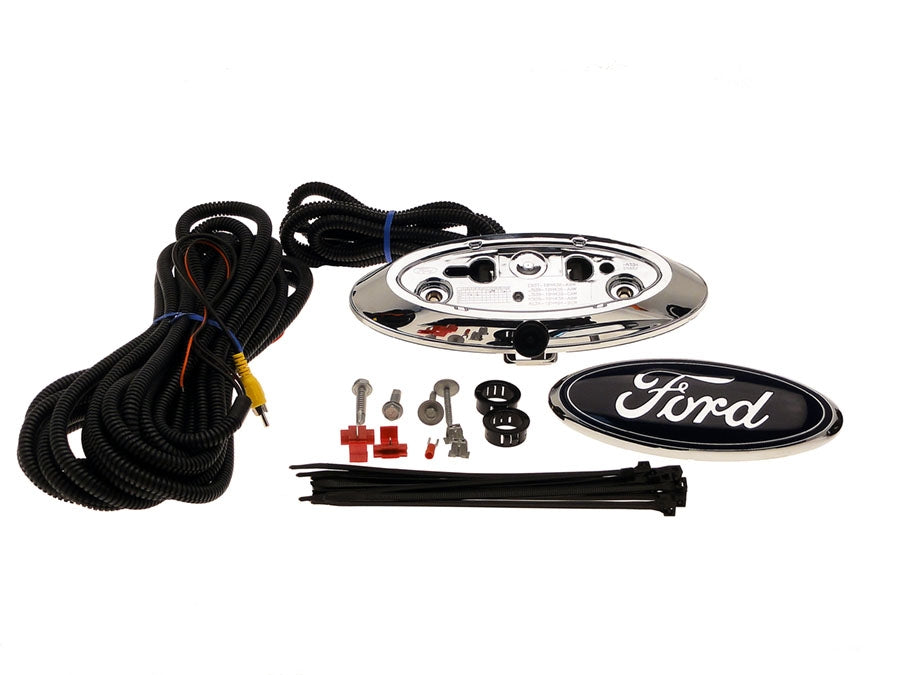

- Camera Source Super CMOS camera mounted in an OEM Ford® rear emblem system

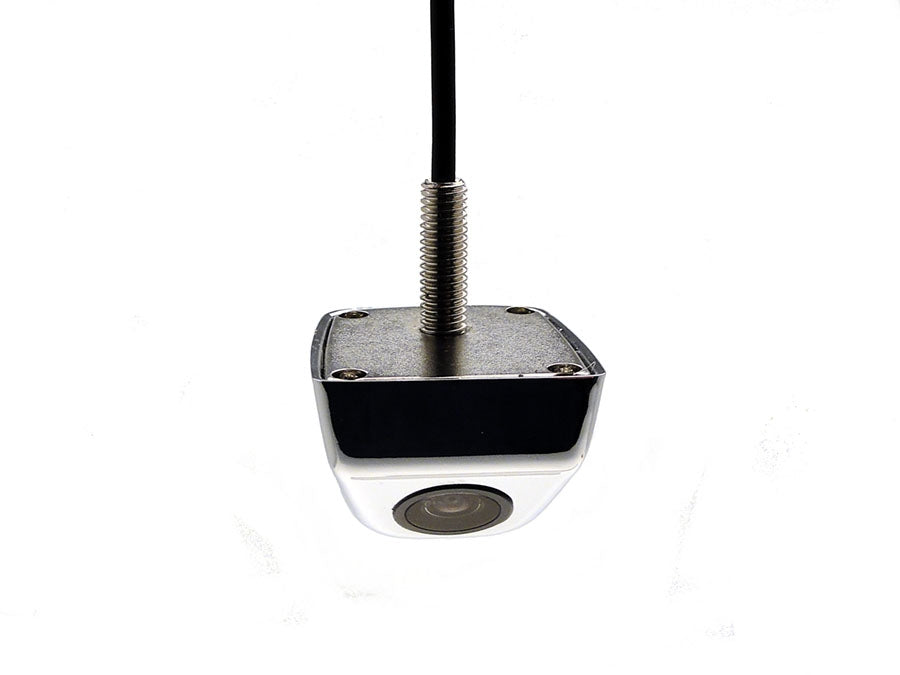

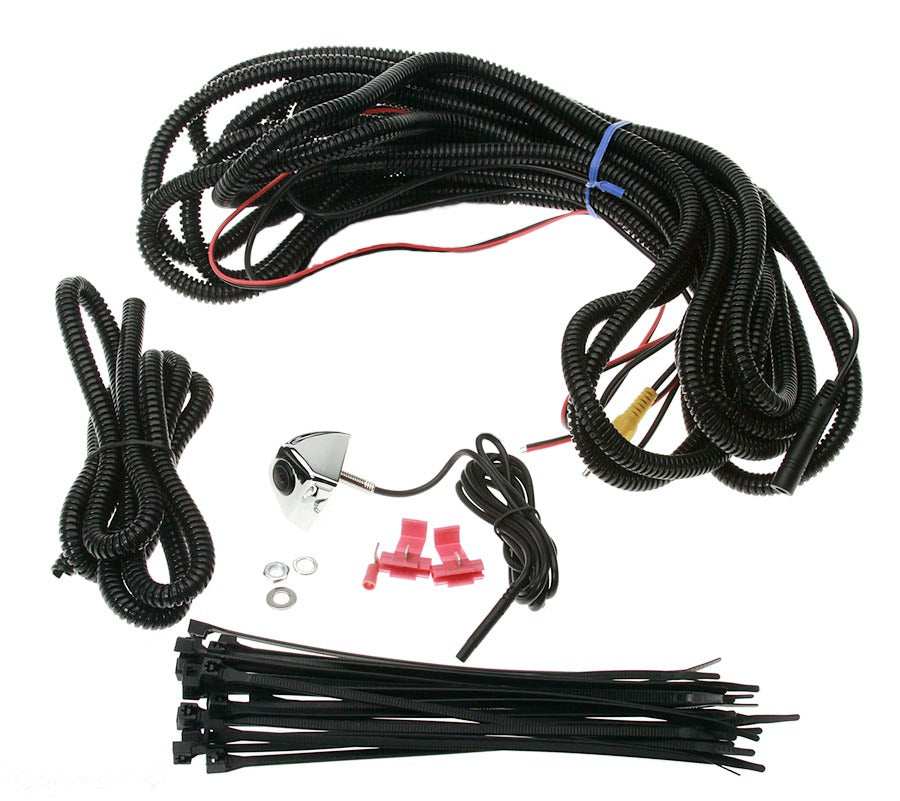

- Chrome plated metal grille mounted camera with our latest super CMOS camera - the latest camera technology!

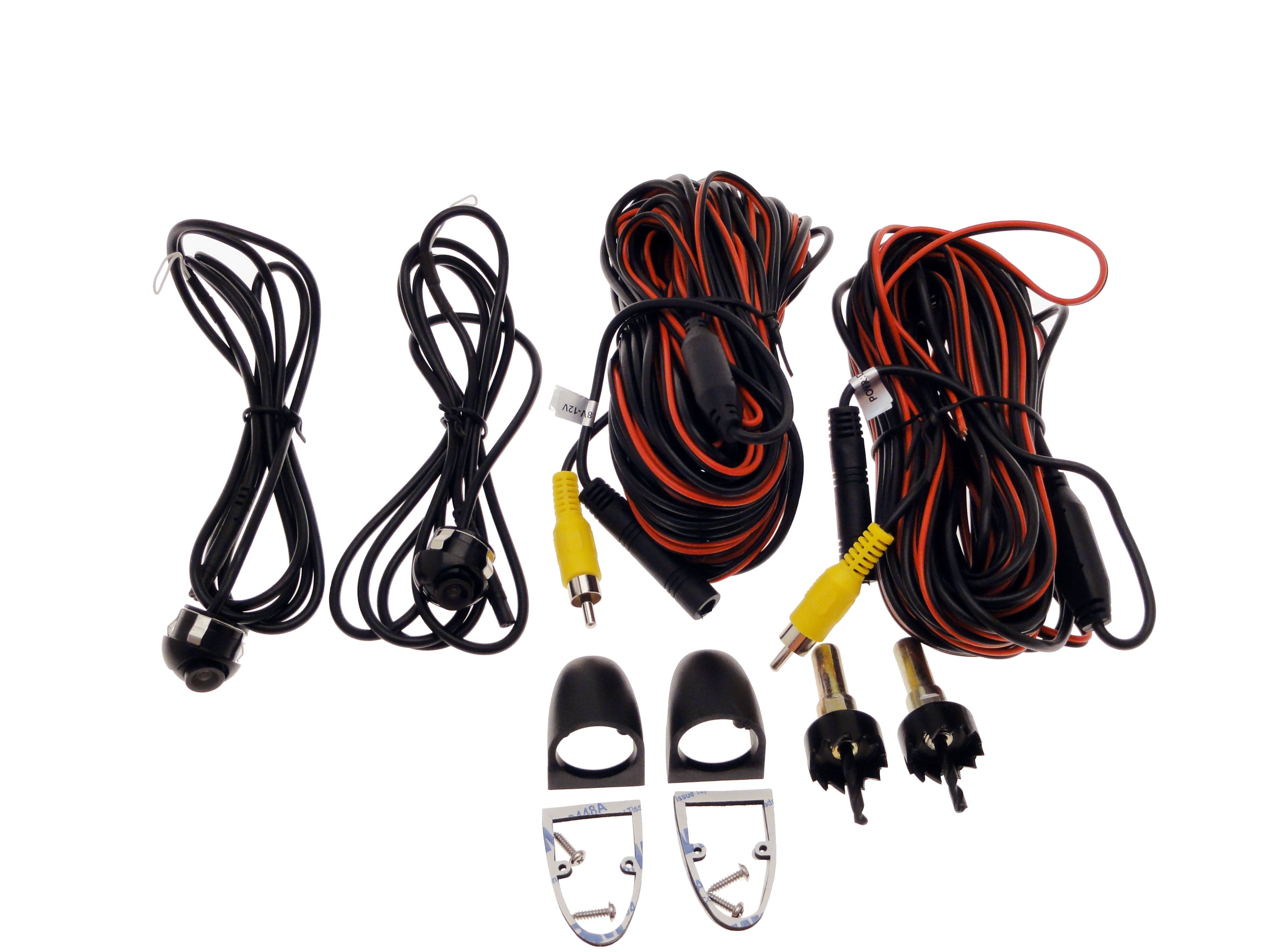

- Camera Source Super CMOS side cameras (2)
- OEM Ford® mounting bolts and clip nuts for tailgate
- 25' pre-loomed wiring harnesses for front and rear cams. This ensures your wiring is protected, all electrical connections can be made inside the cab to avoid corrosion, and the tailgate can be unplugged with ease!
- Wire connectors
- Zip ties
- Detailed installation instructions
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!

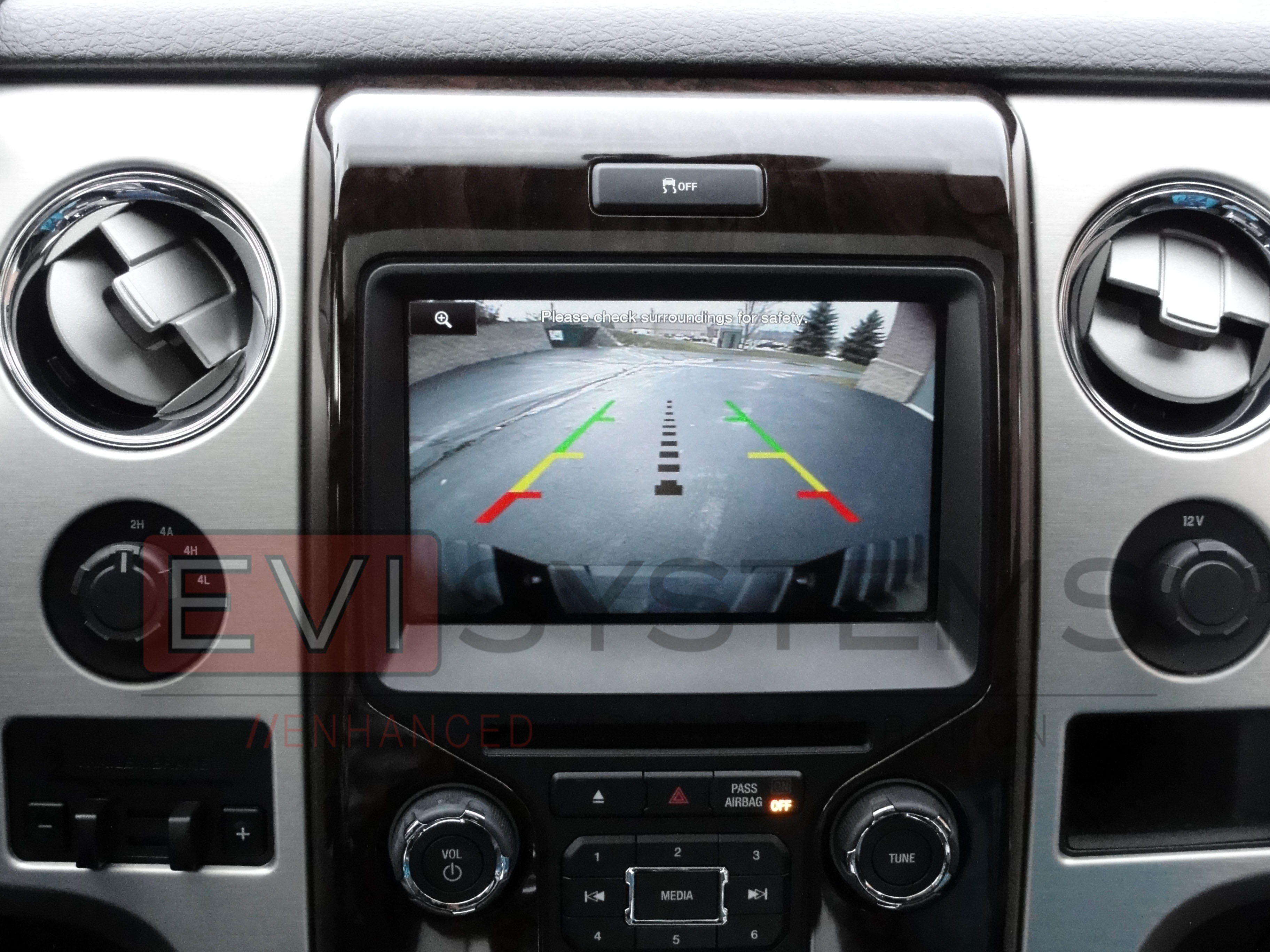

- Factory Ford® backup guidelines on the rear camera- a Camera-Source exclusive! (These are the red, yellow, green lines with the black centering line on the screen)
- Front camera has removable guidelines
- Side cameras do not have guidelines

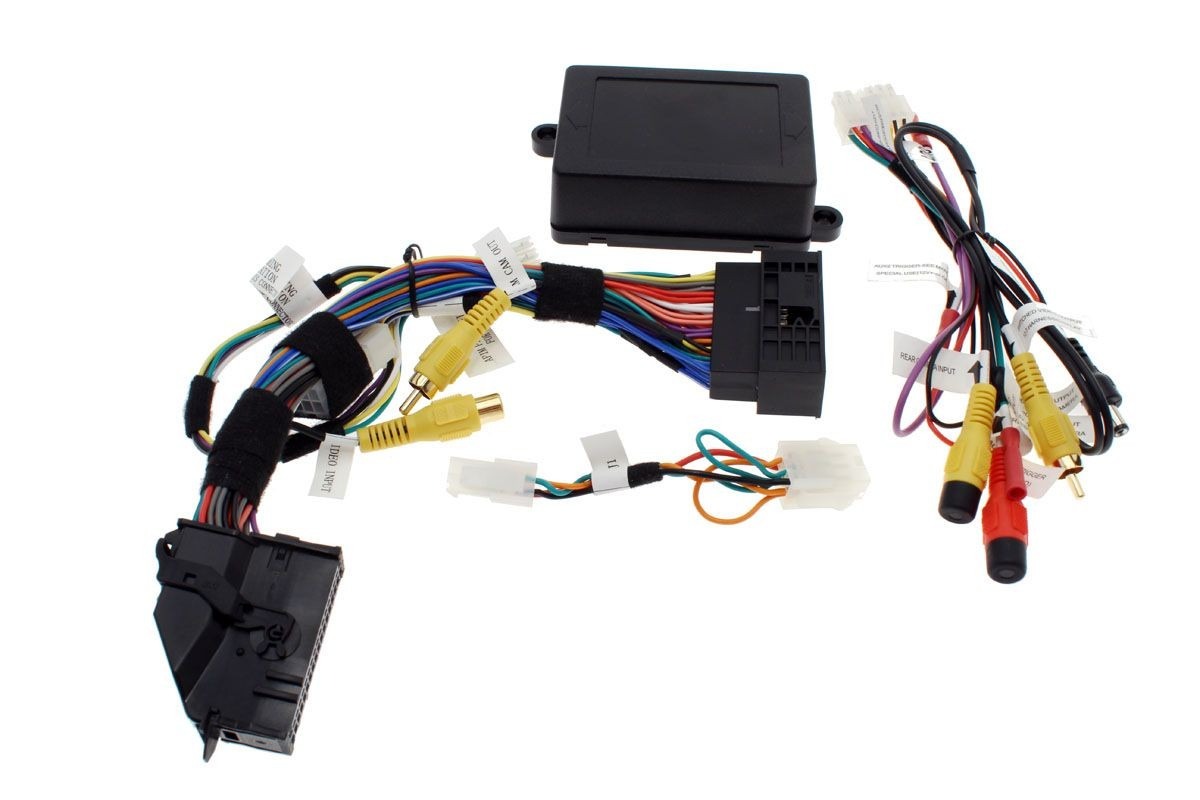

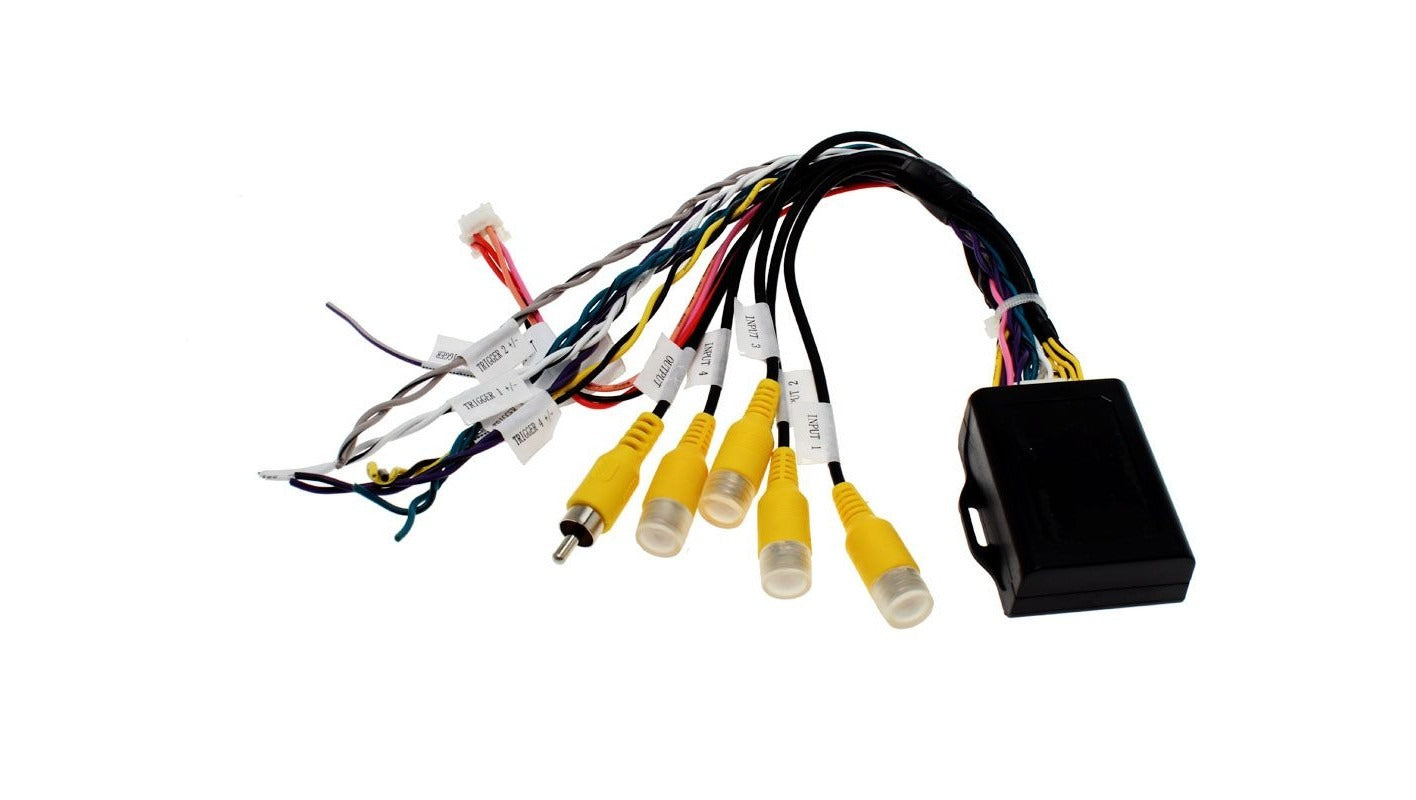

Also Included: MyFord® Touch 8.4" SYNC 2 multi cam interface module and harness for plug and play compatibility WITH NO DEALER ACTIVATION REQUIRED!

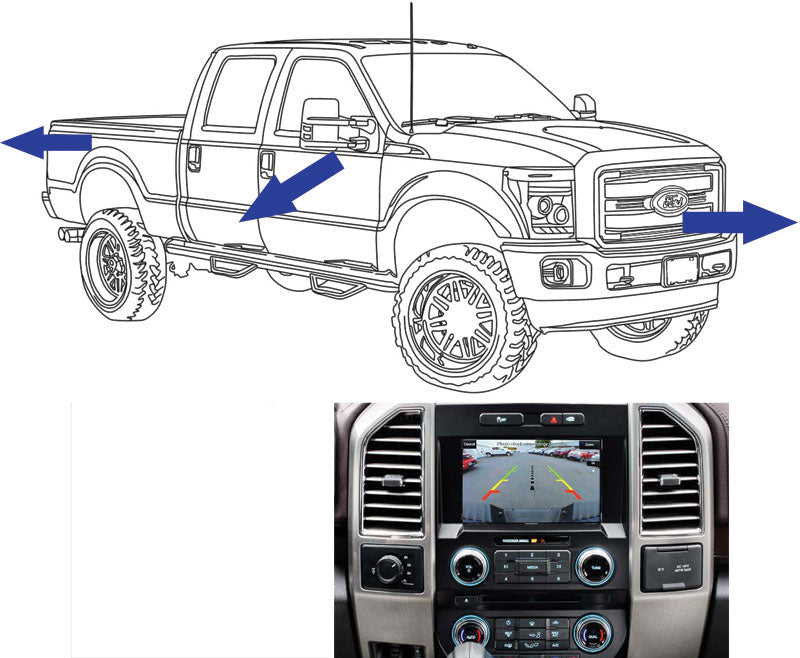

This kit allows you to see what is directly in front of truck, behind the truck, both sides and will look like it came from the factory! This camera comes with a 3 year warranty and is guaranteed to fit or your money back. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 4 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Front Camera, Side Camera, Multiple cameras (kit) |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford |
| Camera Mount Location | Factory Tailgate, Side Mirror, Front Grille |
| Night Vision | .1 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8” Ford Sync 2 |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Super Duty |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2013,2014,2015,2016 |
| Make Filter | Ford |
| Model Filter | Super Duty |
| Year Filter | 2013, 2014, 2015, 2016 |
Compatibility
This kit is compatible with Super Duty trucks with MyFord® Touch 8" SYNC 2 display radio.
-2013-2016 F250, F350 & F450
Installation

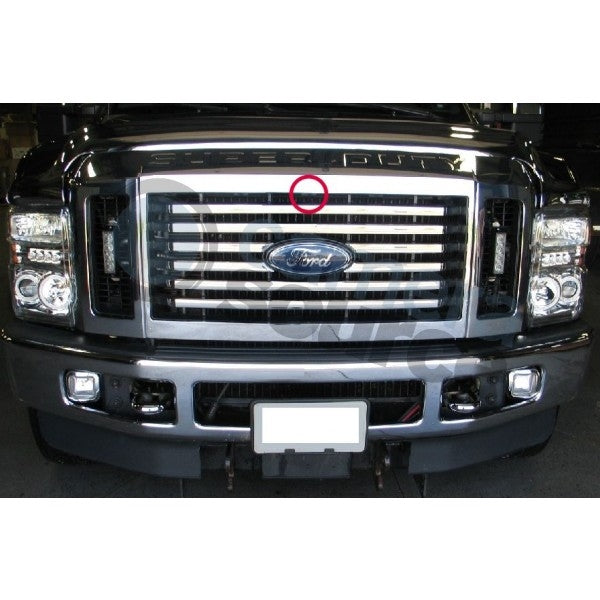

Front camera installation requires the removal of the front grille, drill hole for camera mount, and run harness to the cab through an existing grommet in the firewall. Camera is secured with a nut, which threads over the shaft mount of the camera on the back-side of the grille.

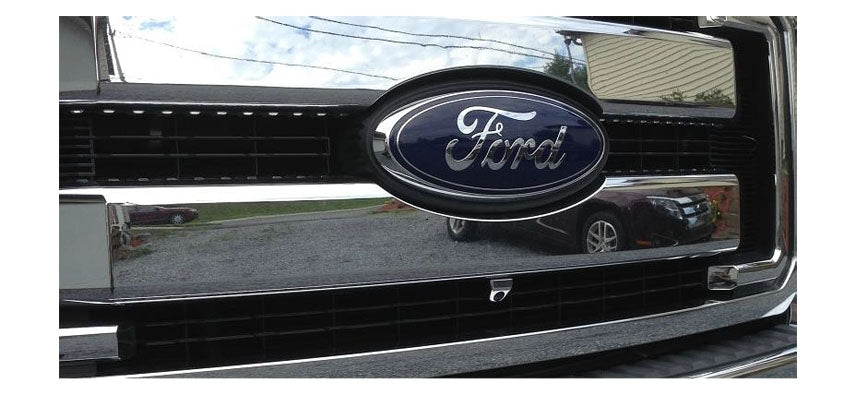

The front camera is mounted in either the top or the bottom wrung of your front grille.
NOTE: if you have an older Super Duty with the 9"x3.5" emblem on your grille you should use our other kit - CS-FTRF-8

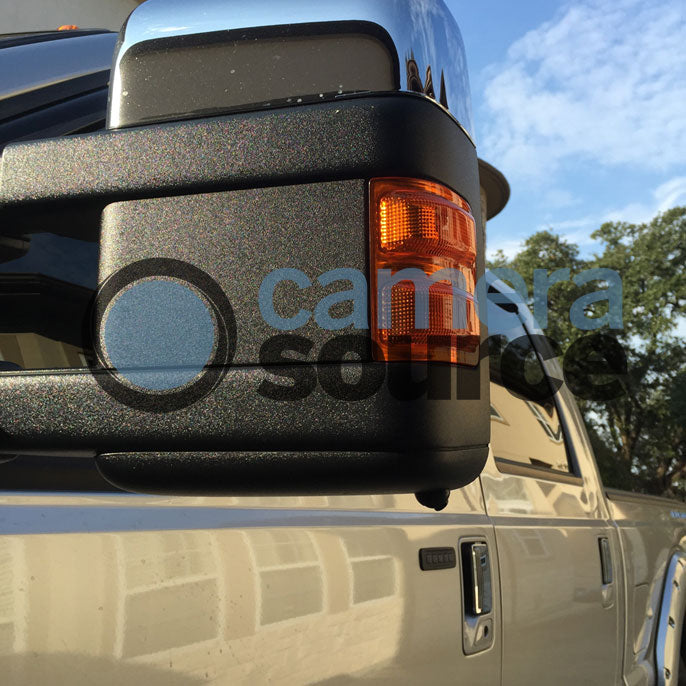

The side cameras will mount under your side mirrors, which will require complete removal and disassembly of your mirrors. These mirrors can be challenging to disassemble so professional installation is recommended for this kit. IMPORTANT: Side camera must be mounted on a flat section.

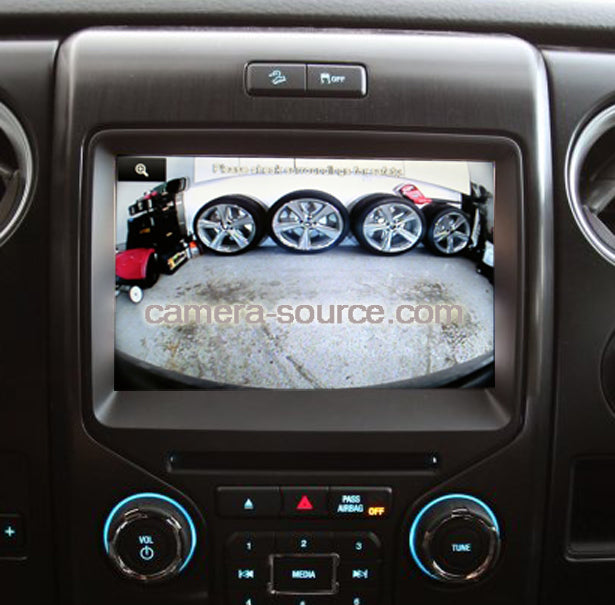

The Multi-cam integration module is plug and play with your factory MyFord® Touch 8" SYNC 2 screen.

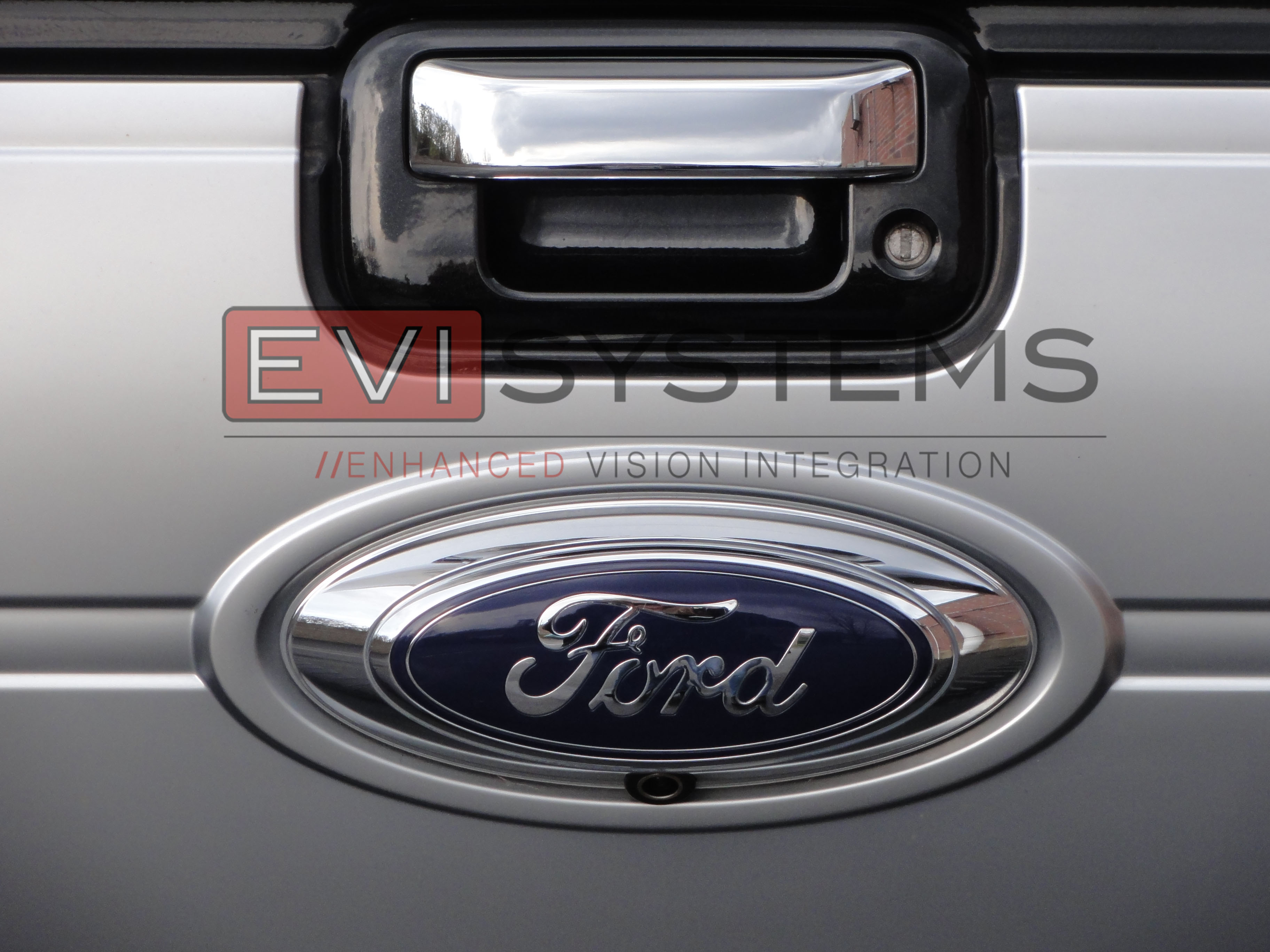

The rear camera kit will replace your 9" X 3.5" rear emblem.
