Front and Side Camera Kit for 8" Display, Fits 2013-16 Super Duty
SKU#: CS-FTRSD-8FS
Availability:
In Stock
SKU#:
CS-FTRSD-8FS
$665.00
Quantity
Add front and side cams to 8" Display!
Description
Can't see over that hood? Want to see what's next to you before changing lanes? This is your solution and is a Camera Source exclusive for your 2013-16 Super Duty with an 8" MyFord® Touch SYNC 2 display!!
This camera is chrome plated and utilizes our latest Super CMOS forward looking camera for a kit that looks like it came from the factory! Includes factory Ford parking guidelines in the display. The screen interface provides multi-cam support so you can add up to 4 total cameras to your factory 8" display screen -SCREEN NOT INCLUDED).

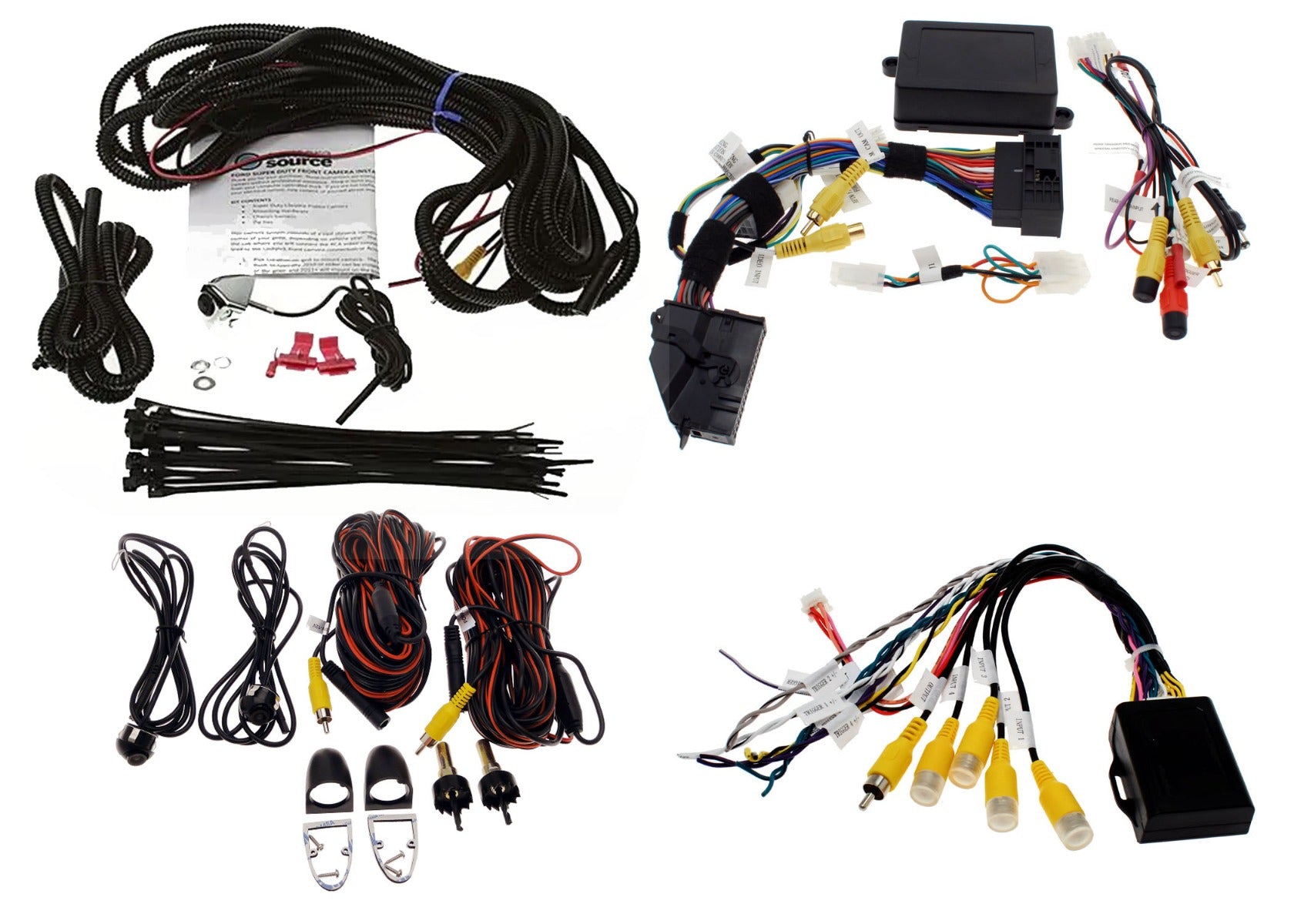

Kit includes:

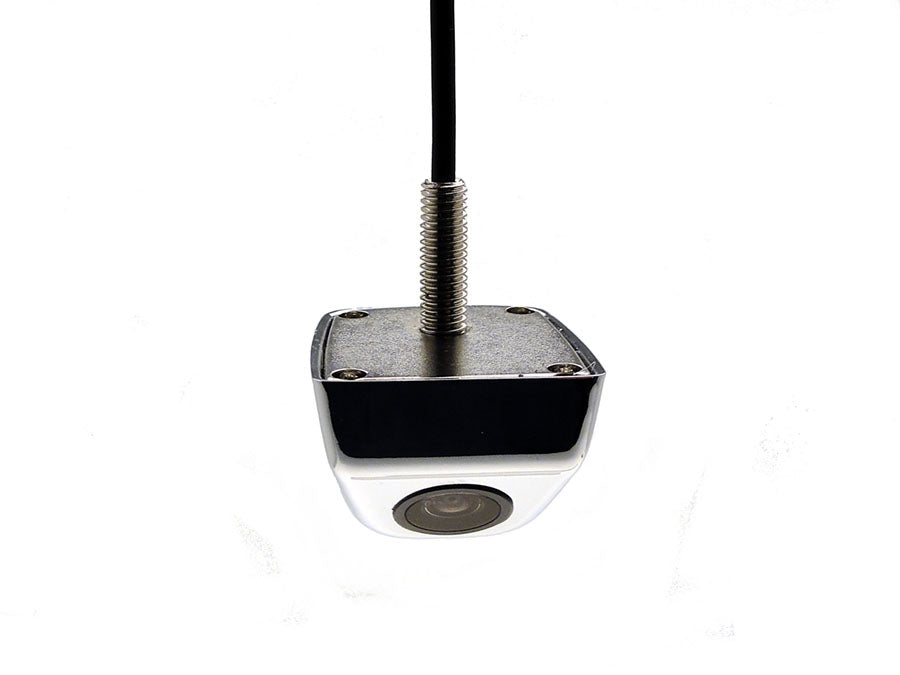

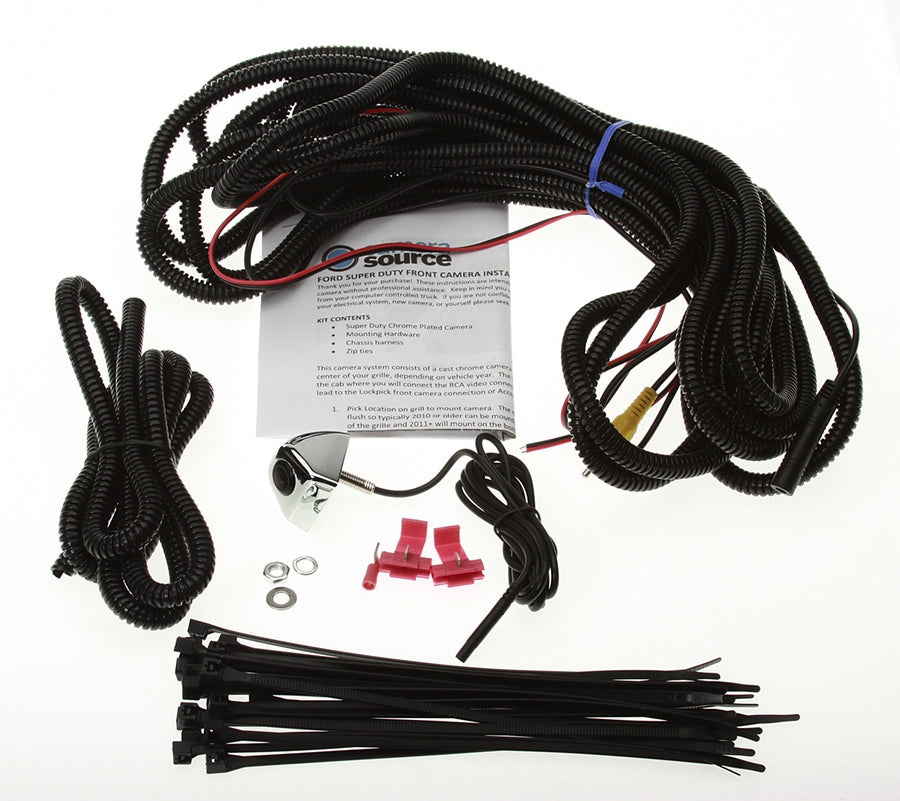

- Chrome plated metal grille mounted camera with our latest super CMOS camera - the latest camera technology!

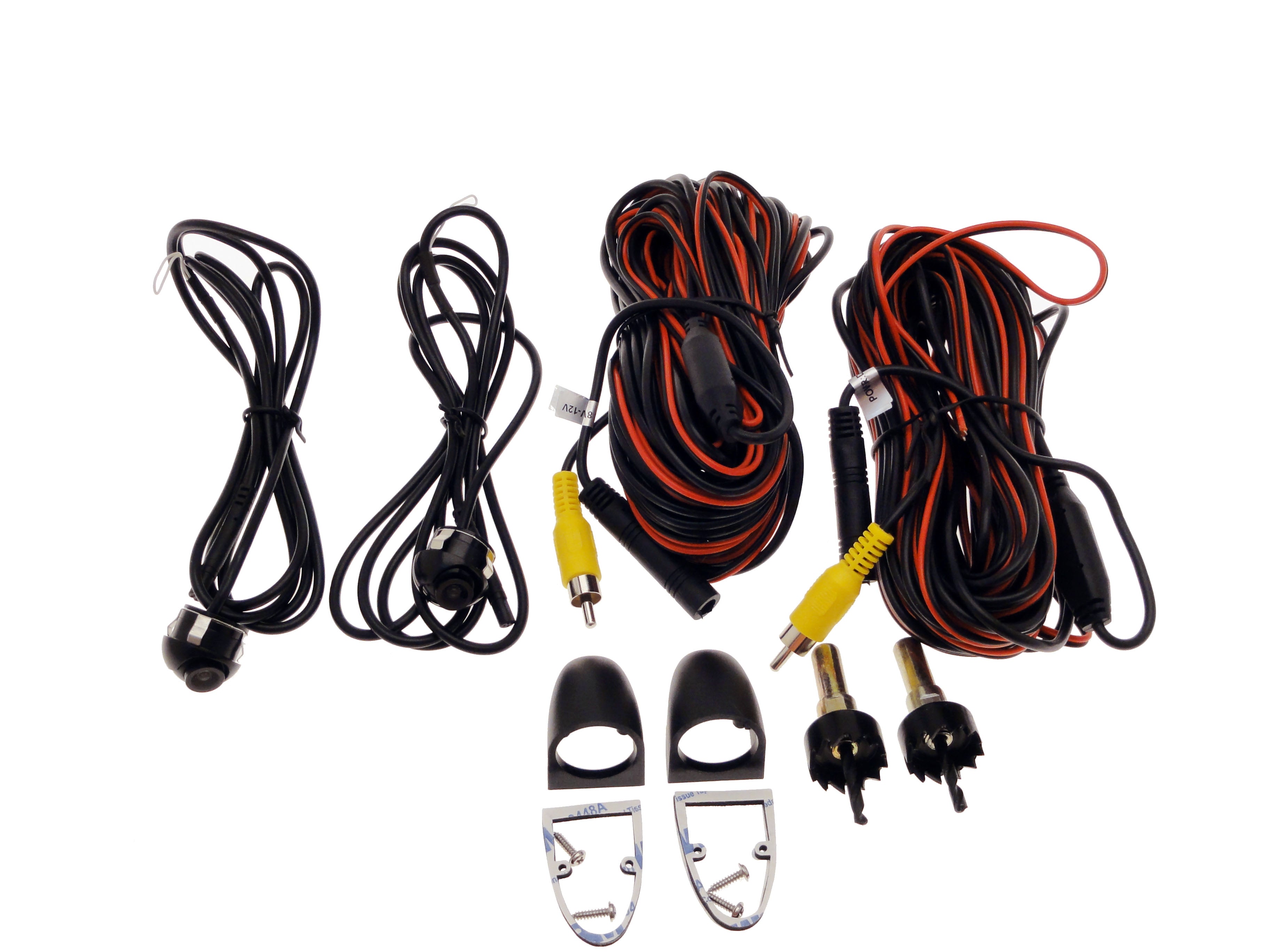

- Camera Source Super CMOS side cameras

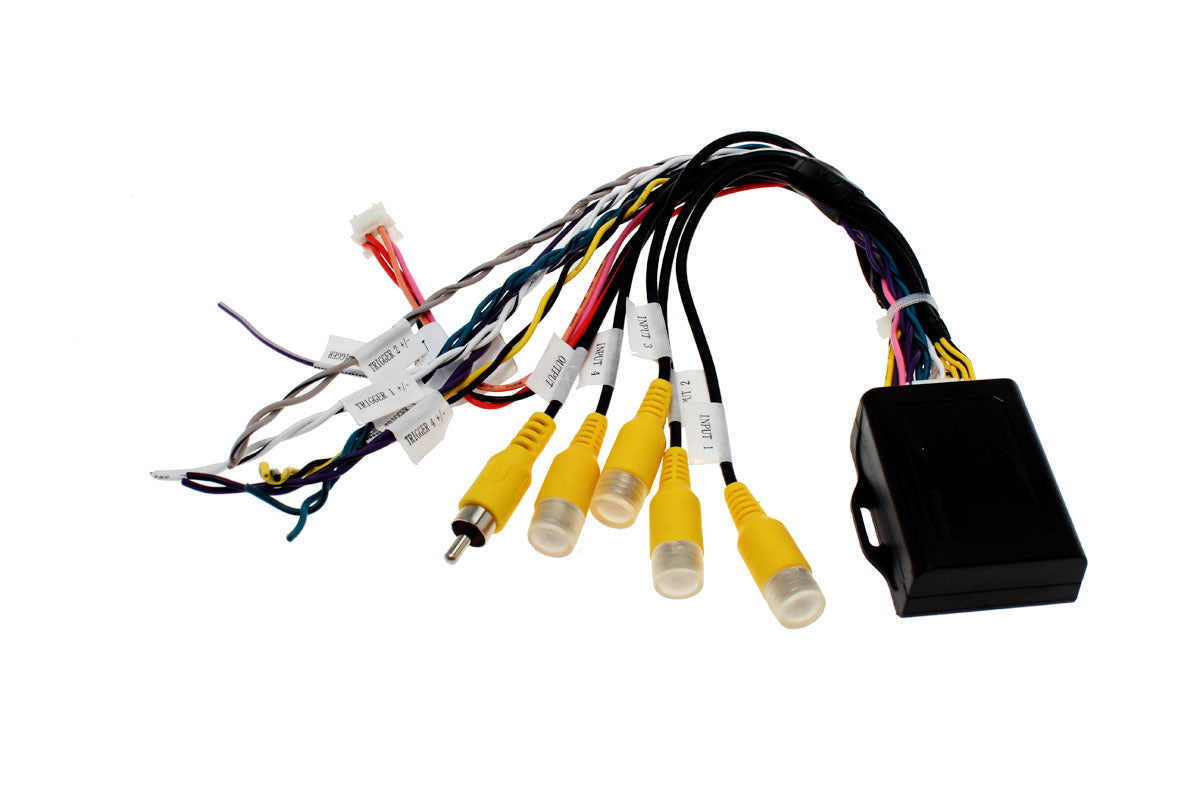

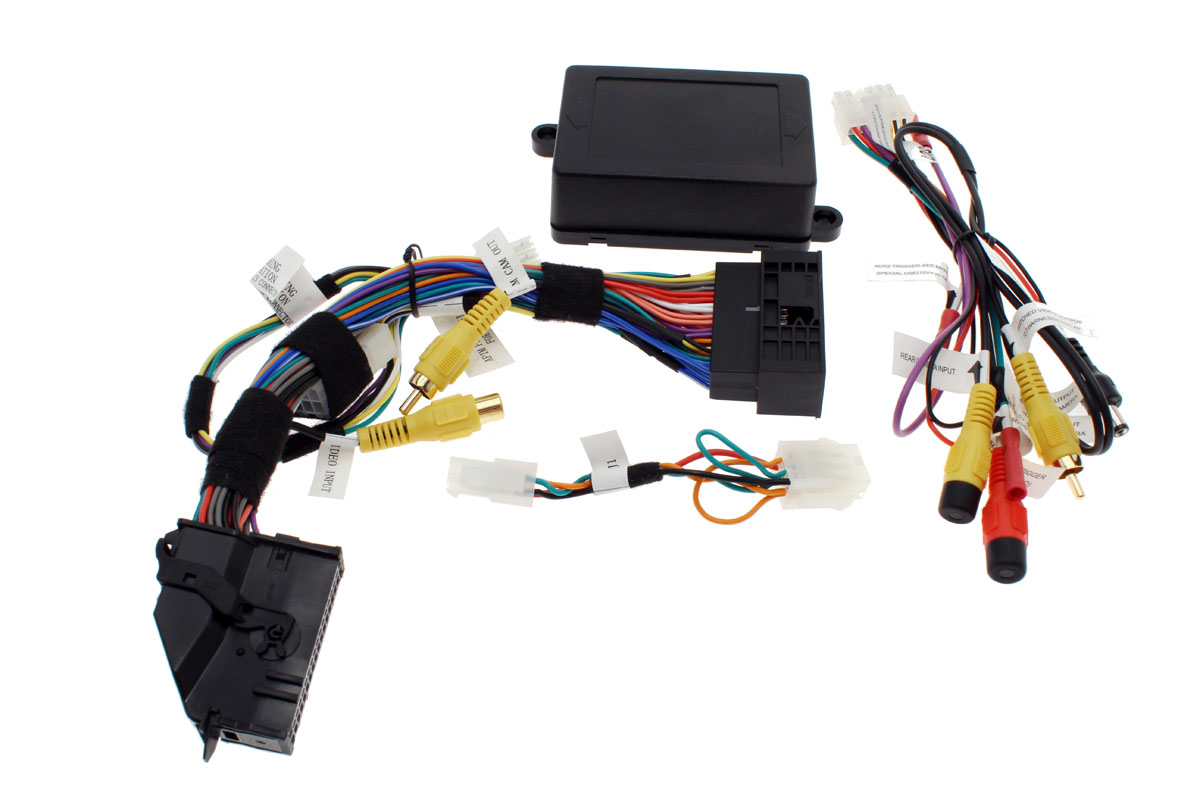

- Screen interface module for your factory SYNC 2 radio(radio not included). Provides multi-camera support for up to 4 total cameras!
- Mounting hardware
- Camera wiring harness
- Zip ties
- Detailed installation instructions
- 3 year limited camera warranty
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- Forward looking camera - designed for front applications (with removable guidelines)
- Side cameras are designed to aim backwards and can be fully adjusted to meet your view needs
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!
8" Display Multi Cam interface:

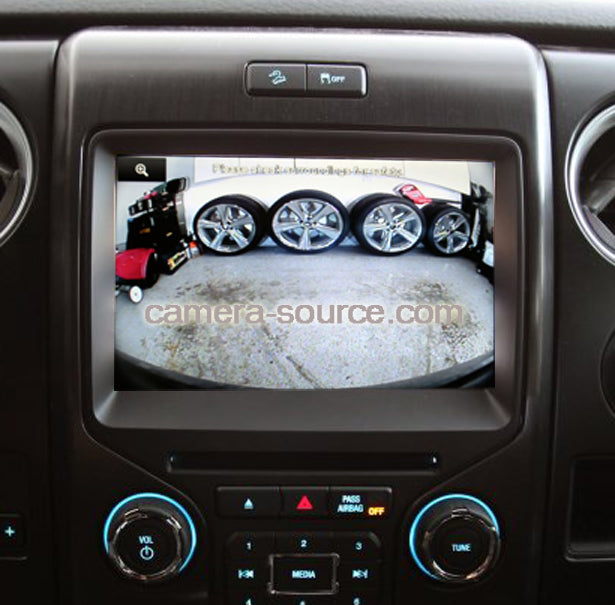

- Uses existing 8” MyFord® SYNC 2 factory display -screen not included
- Allows addition of this front camera that can be automatically triggered when going from reverse to drive or manually using your radio power button
- Shuts off front video at speeds over 7mph
- Pass through for existing factory backup camera

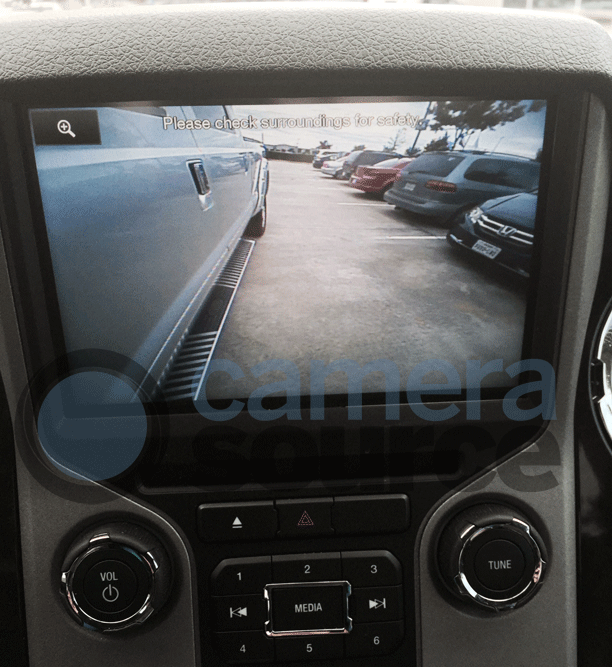

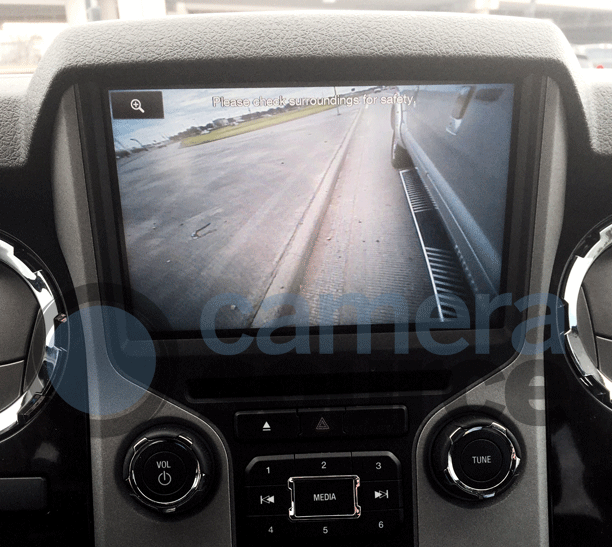

- Side cameras are activated by turn signals

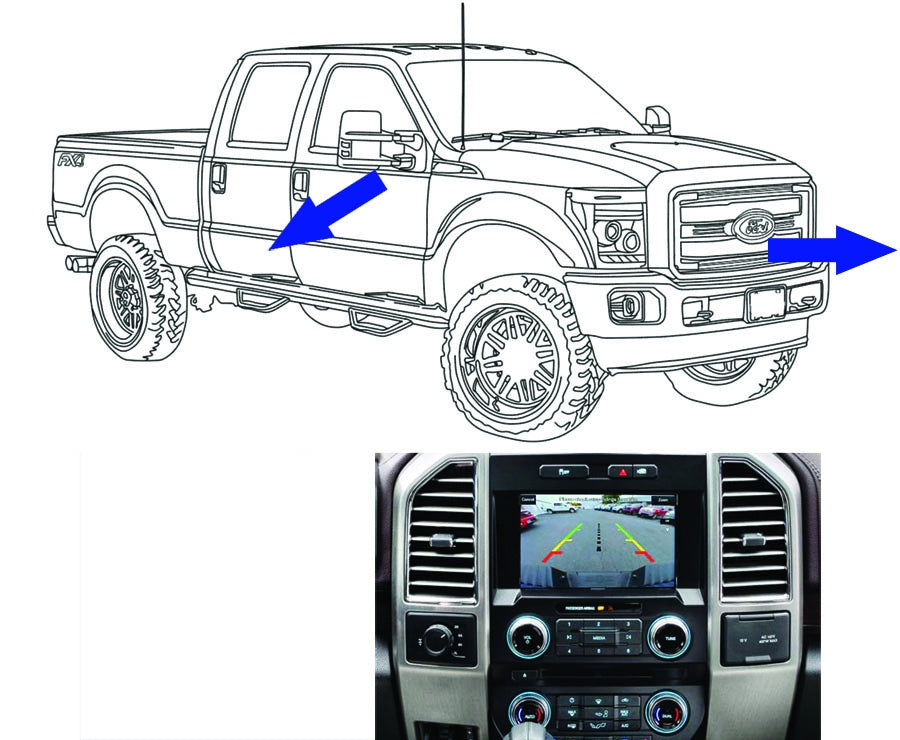

This kit allows you to see what is directly in front of truck and sides and will look like it came from the factory! This camera comes with a 3 year warranty and professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 3 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera, Side Camera, Multiple cameras (kit) |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford |
| Camera Mount Location | Side Mirror, Front Grille |
| Night Vision | .1 Lux |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8” Ford Sync 2 |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Super Duty |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2013,2014,2015,2016 |
| Make Filter | Ford |
| Model Filter | Super Duty |
| Year Filter | 2013, 2014, 2015, 2016 |
Compatibility
This kit is compatible with Super Duty trucks with MyFord® Touch 8" SYNC 2 display radio.
-2013-2016 F250, F350 & F450
NOTE: if you have an older Super Duty with the 9"x3.5" emblem on your grille you should use our other kit - CS-FTRF-8.
Installation

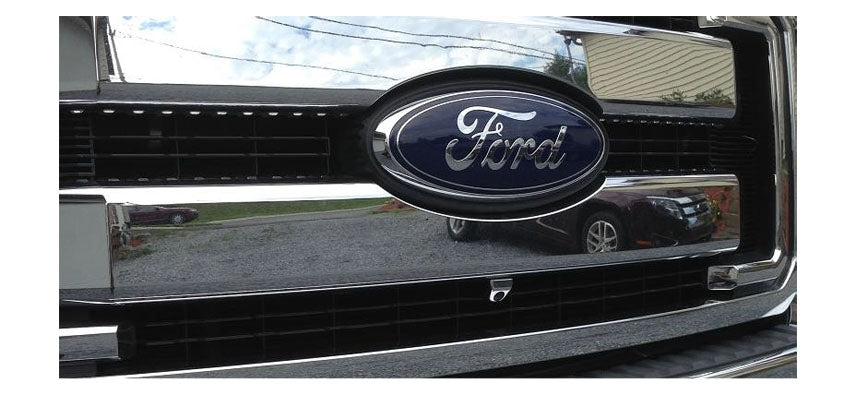

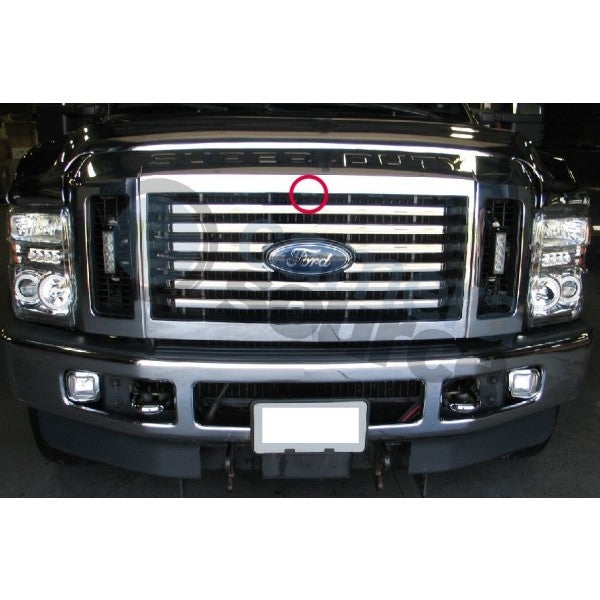

Installation requires the removal of the front grille, drill hole for camera mount, and camera is secured with a nut, which threads over the shaft mount of the camera on the back-side of the grille. Run the harness to the cab through an existing grommet in the firewall, and connect to your factory MyFord® screen using the included 8" screen Interface module. All plug and play - no cutting of factory wires!
SYNC 2 integration module is plug and play with your MyFord® Touch 8" radio.
Side cameras will require you to remove and disassemble the side mirrors. You will need to find a flat section on the mirror for camera mounting. You will need to drill a hole in the bottom of each mirror. (hole saw included).
Because of the complexity of the side mirror disassembly professional installation is recommended.
