Front, Rear, and Side Camera Kit for Factory Display, Fits 2013-18 RAM®
SKU#: CS-DTR-FRS
Availability:
In Stock
SKU#:
CS-DTR-FRS
$906.00
Quantity
See all 4 sides on your factory display!
Description
Want to see behind you while backing up? Can't see over that hood? Want to see what's next to you before changing lanes?

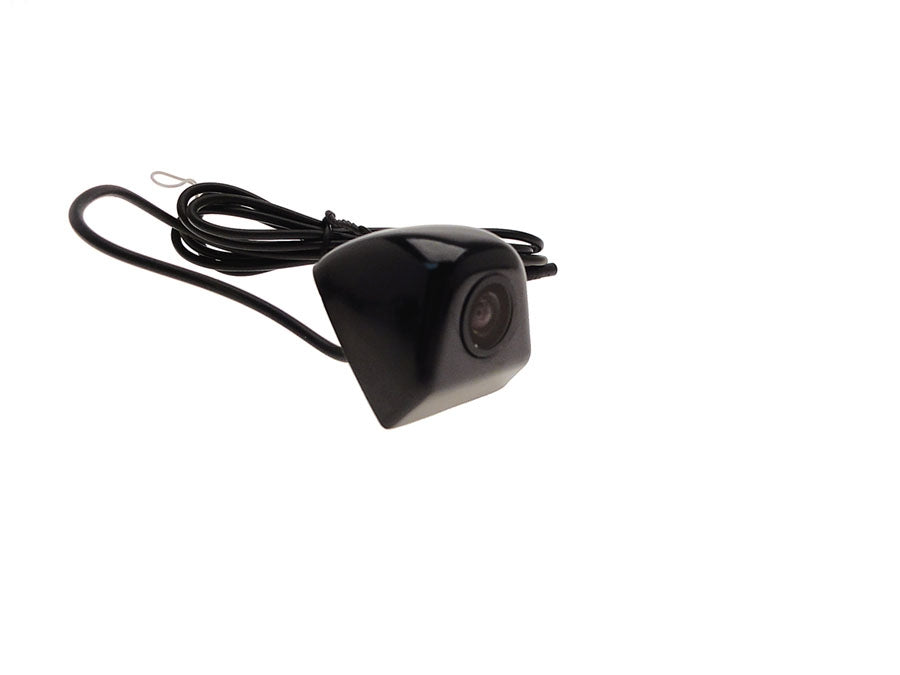

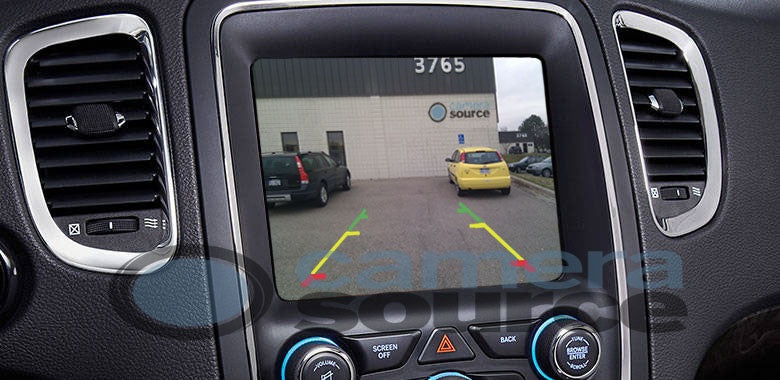

This is your solution and is a Camera Source exclusive for any 2013-2018 RAM® 1500,2500,3500 series with factory display!! This front camera is chrome or black plated and utilizes our latest Super CMOS forward looking camera for a kit that looks like it came from the factory! Includes parking guidelines in the display. The OE style tailgate handle camera looks just like it's from the factory. The side cameras get installed under your side mirrors to give you a full view of your typical blind spots - automatically activated using your turn signals! The screen interface provides multi-cam support so you can add up to 4 total cameras to your factory 4.3", 5", or 8" display screen!
The integration module allows for integration into your factory screen without having to flash a program your radio. The rear camera will come on automatically when in reverse. Front camera can be manually activated using a toggle switch. Side cameras are activated with your blinkers.

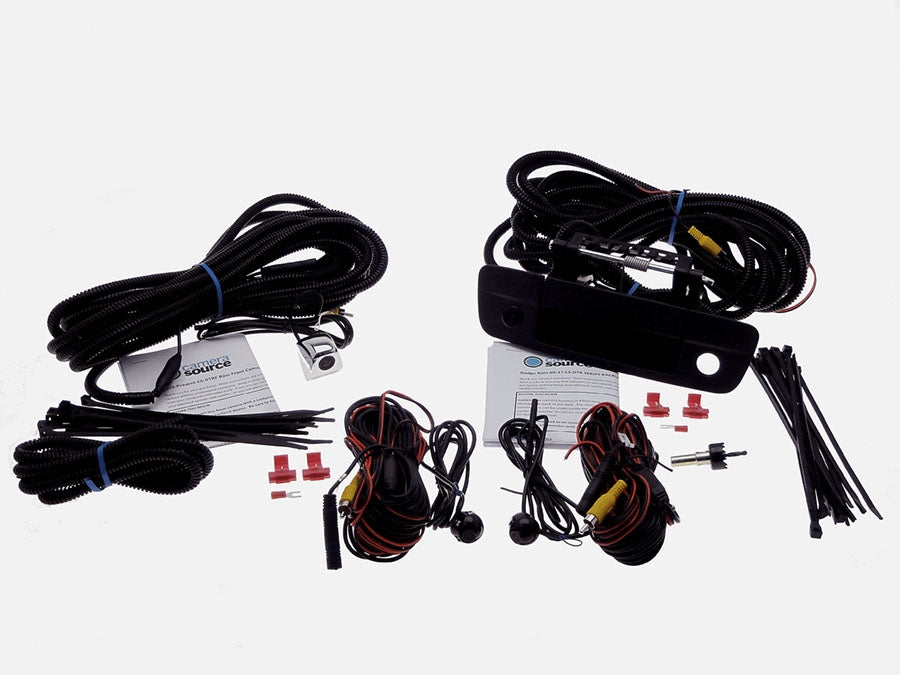

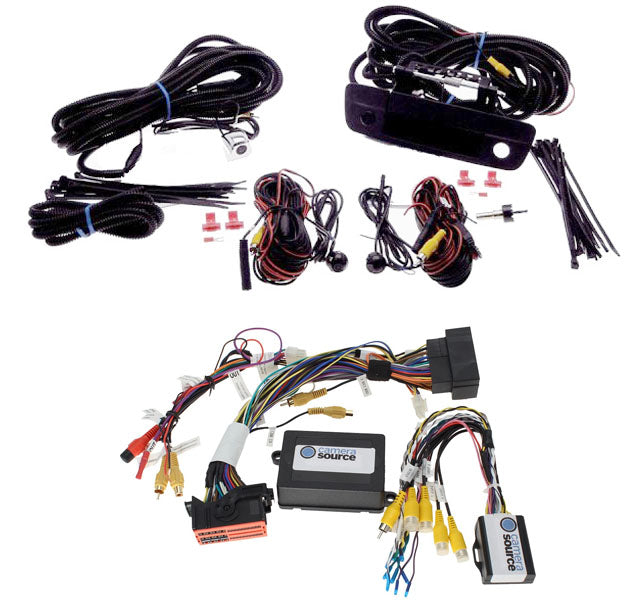

This kit contains the following:

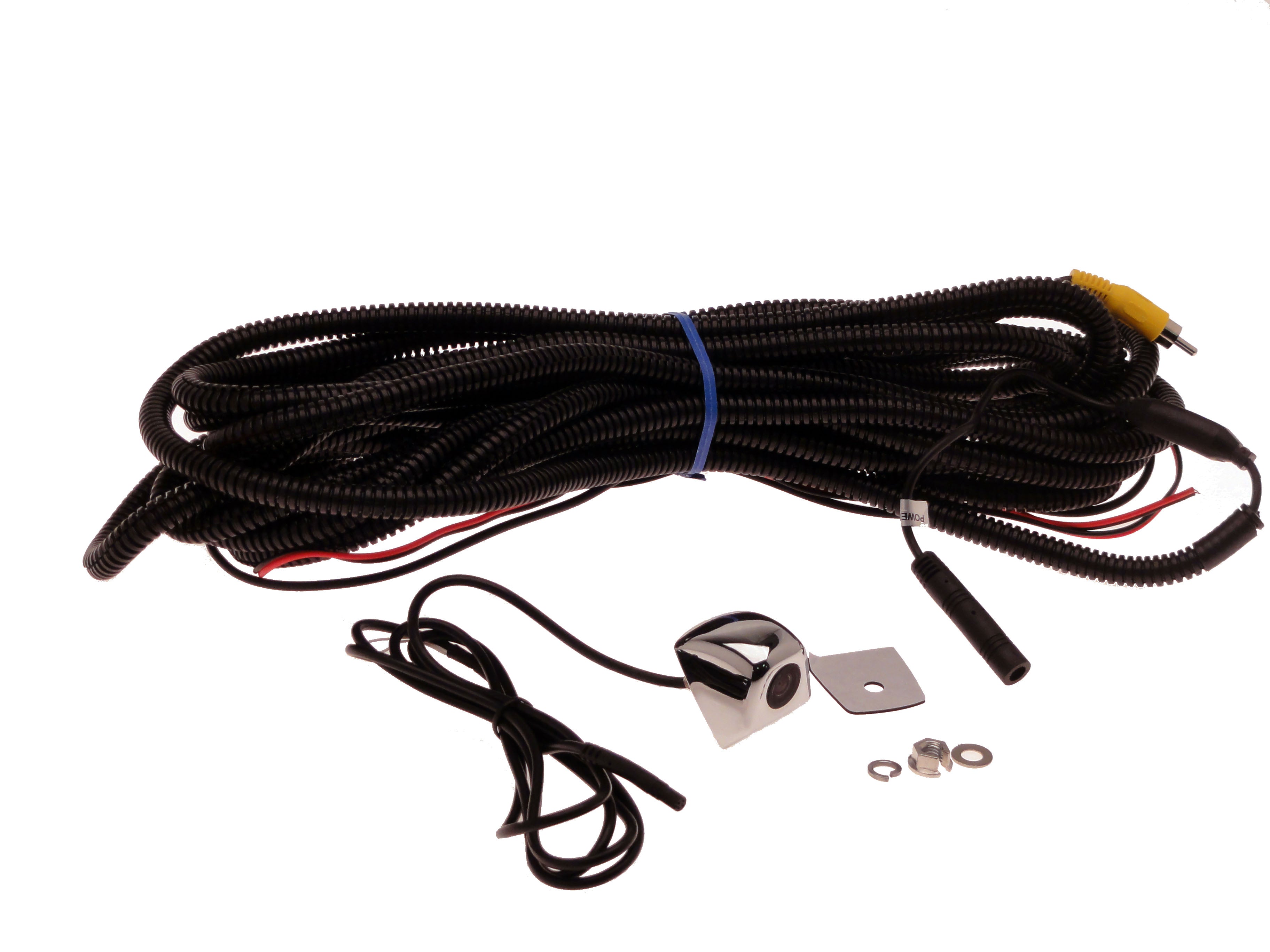

- CS-DTRF Front Camera Kit (with parking lines)
- CS-DTR This rear bezel with camera replace your existing bezel as a direct replacement kit

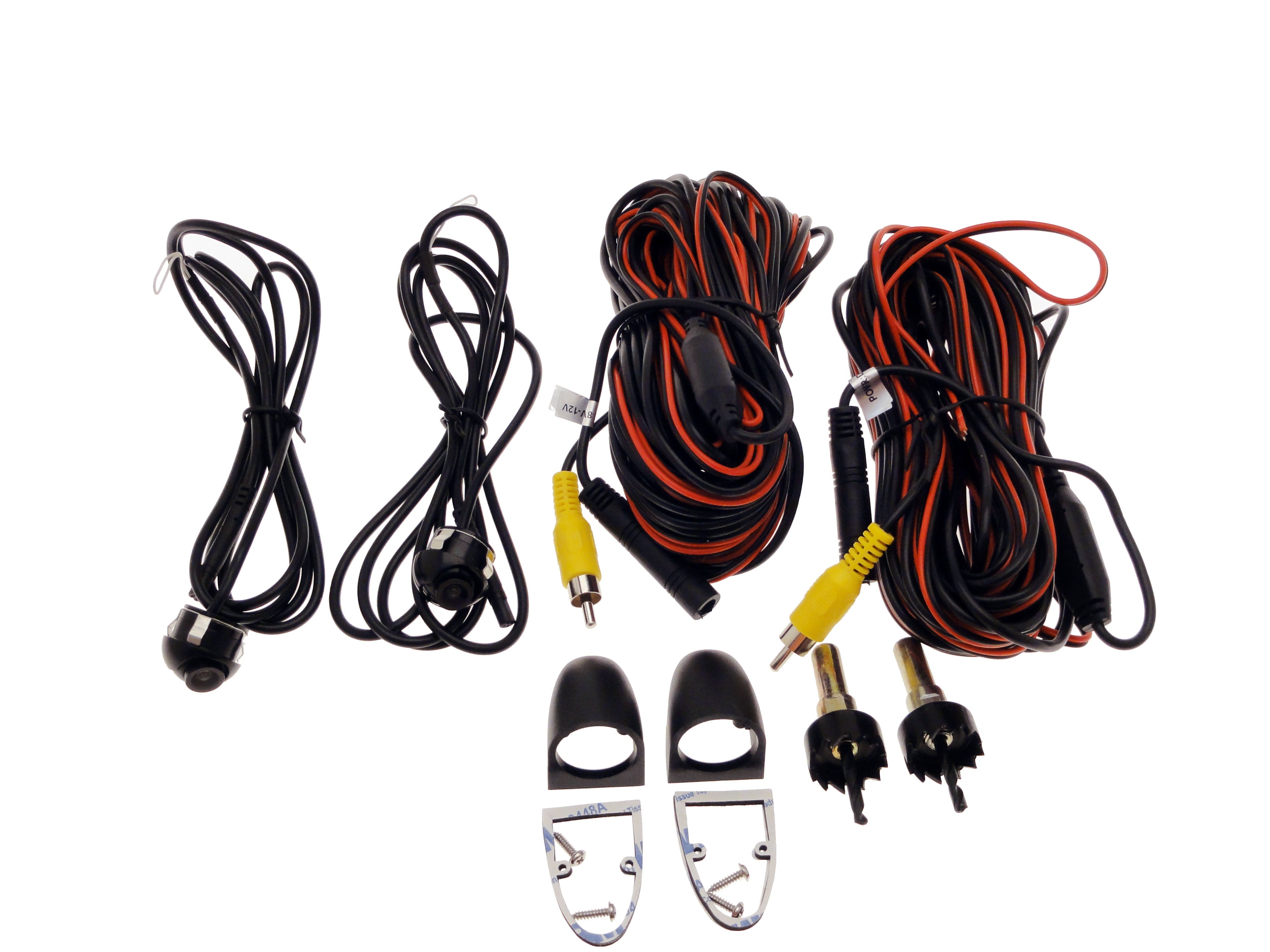

- (2) CS-USCK side camera kits
- UConnect interface module(radio screen not included)
- Multi cam switch
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 4 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Front Camera, Side Camera, Multiple cameras (kit) |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | RAM |
| Camera Mount Location | Factory Tailgate, Side Mirror, Front Grille |
| Night Vision | .1 Lux |
| Parking Guidelines | Yes |
| Power Supply | 12 Volts |
| Radio Screen Size | 4.3\ Mopar, 5\ Mopar, 8.4\ Mopar |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | 1500,HD |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Factory Plug&Play |
| Year | 2013,2014,2015,2016,2017,2018 |
| Make Filter | Ram |
| Model Filter | 1500, HD |
| Year Filter | 2013, 2014, 2015, 2016, 2017, 2018 |
Compatibility
Compatible with 2013-18 RAM® trucks with factory 4.3",5", or 8.4" radio system.
NOTE:
-Vehicles without audio SWC(steering wheel controls), located on the back of the steering wheel, will not support the Navigation Unlock or SWC Swap features.
-RAM® trucks equipped with a manual transmission will not support the forced Reverse Camera or Reverse Output Trigger features.
Installation

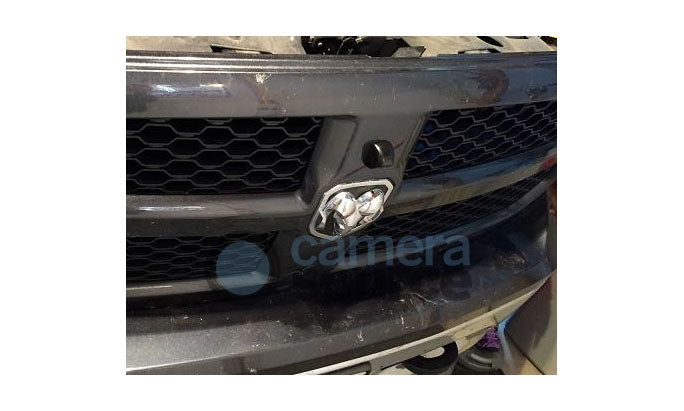

Front camera installation may not even require the removal of the front grille, drill hole for camera mount, and run harness to the cab through an existing grommet in the firewall. All the wiring is included.

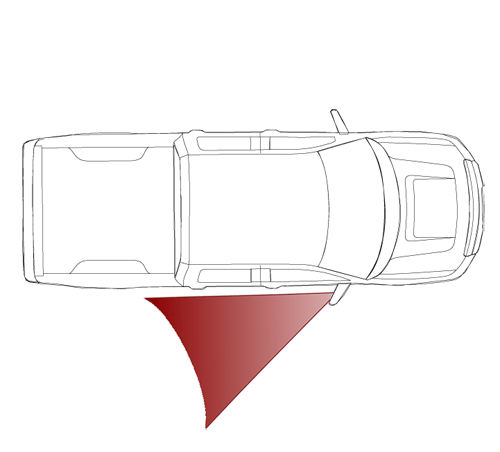

The side cameras will mount under your side mirrors, which will require complete removal and disassembly of your mirrors. These mirrors can be challenging to disassemble so professional installation is recommended for this kit.

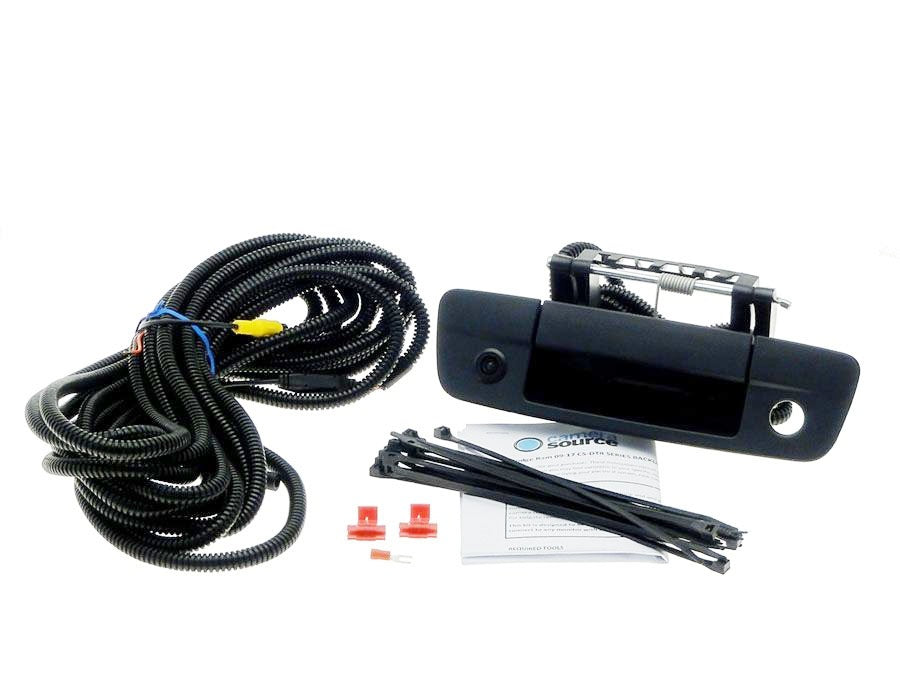

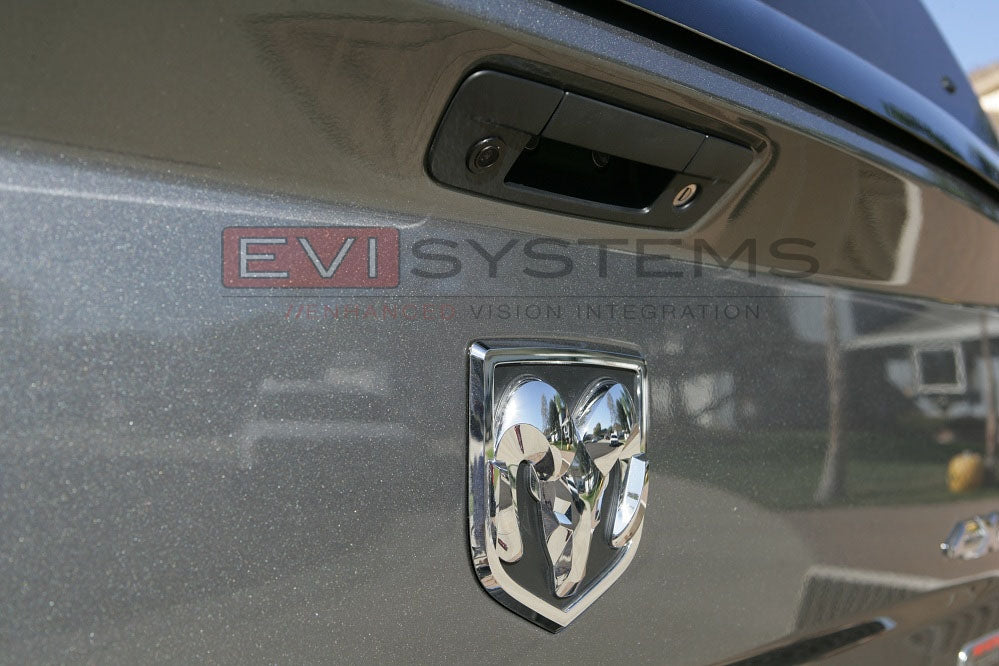

The MOPAR® tailgate handle replaces your existing handle as a direct replacement kit.

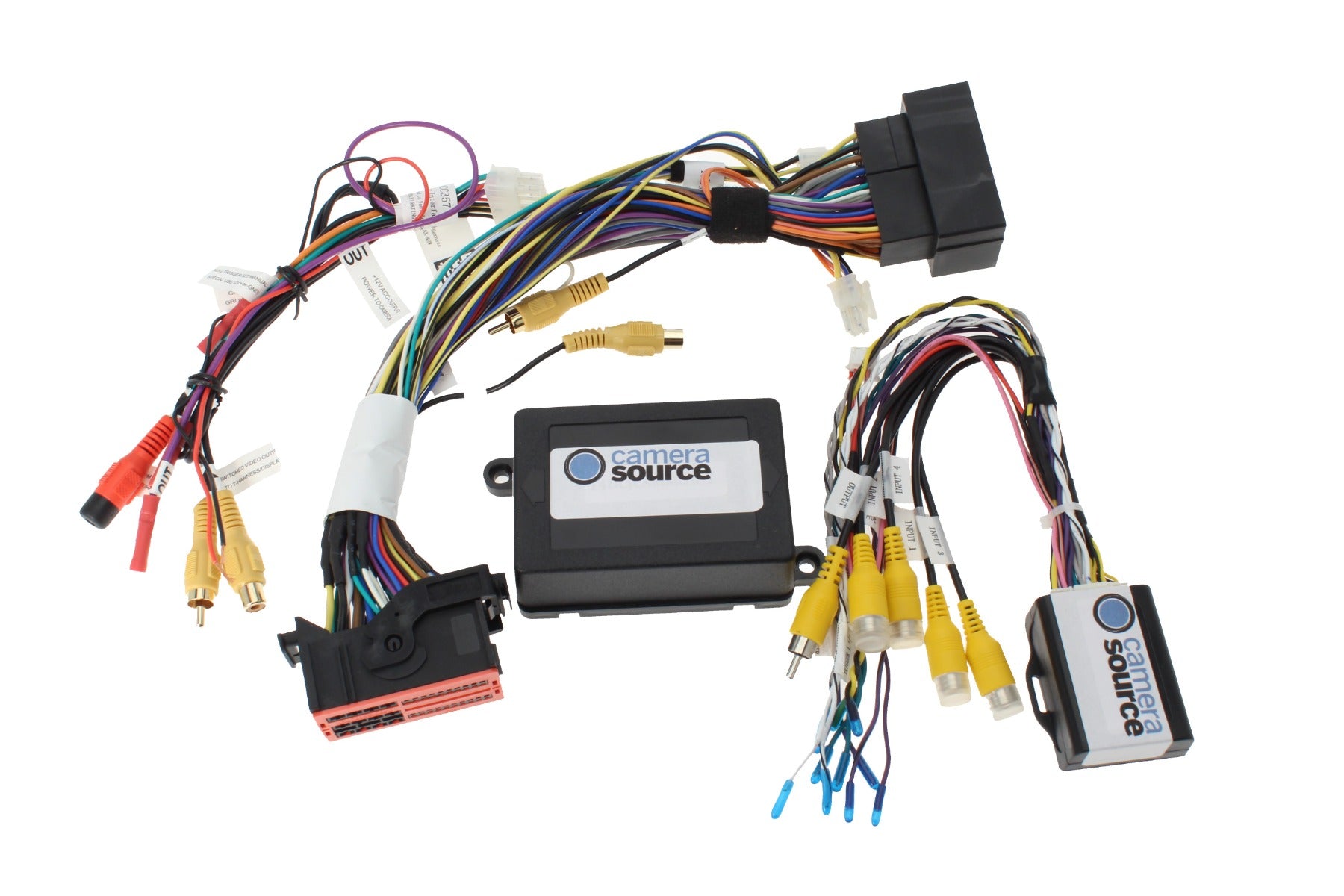

You will need to remove your factory screen to gain access to the back of the connections. The interface module connects to your factory radio and creates RCA connections to allow the cameras to connect directly to the screen. You will also install a video switch for adding more than one camera. Detailed instructions included.
Professional installation is recommended for this kit.
