Front and Side Camera Kit for 8" Display, Fits 2013-14 F150
SKU#: CS-FTRa-8FS
Availability:
In Stock
SKU#:
CS-FTRa-8FS
$758.00
Quantity
Add front and side cams to 8" Display!
Description
This kit comes with front Ford® emblem camera, two side cameras, and multi-camera interface for the MyFord® Touch 8" SYNC 2 displays. Display radio not included.

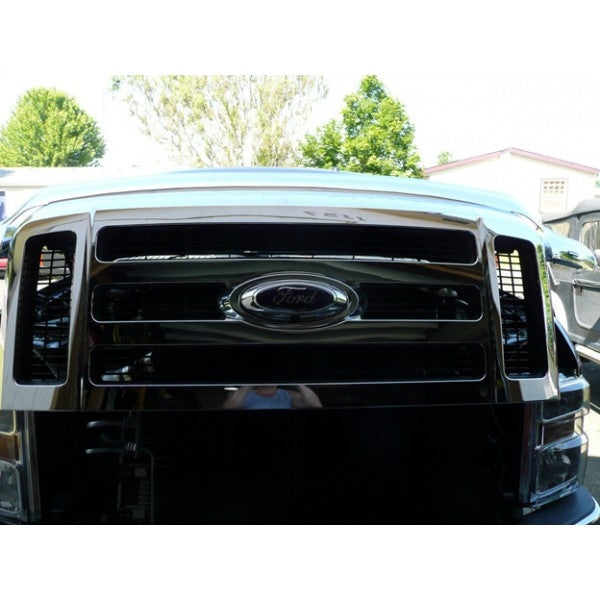

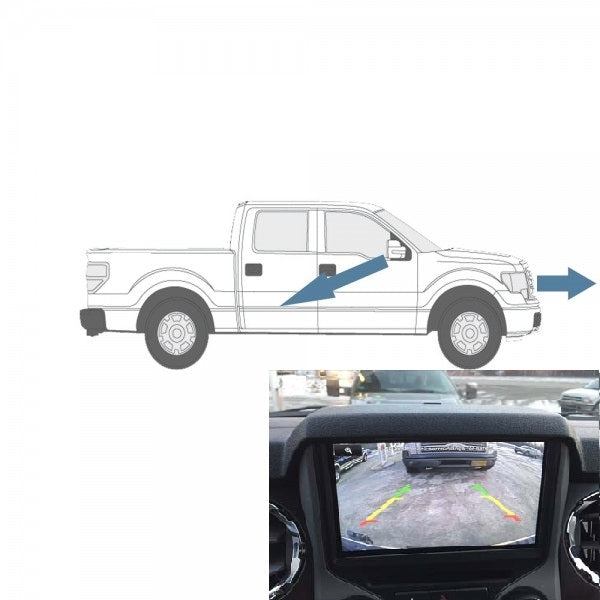

Replace your existing grille blue oval embelm with this factory Ford emblem kit bundled with our latest Super CMOS cameras for a kit that looks like it came from the factory! Professional installation is recommended. Please measure your existing front emblem as this kit will only fit a truck with the 9" x 3-1/2" front emblem and ensure that your front emblem is removable. The side cameras get installed under your side mirrors to give you a full view of your typical blind spots - all automatically activated using your turn signals!

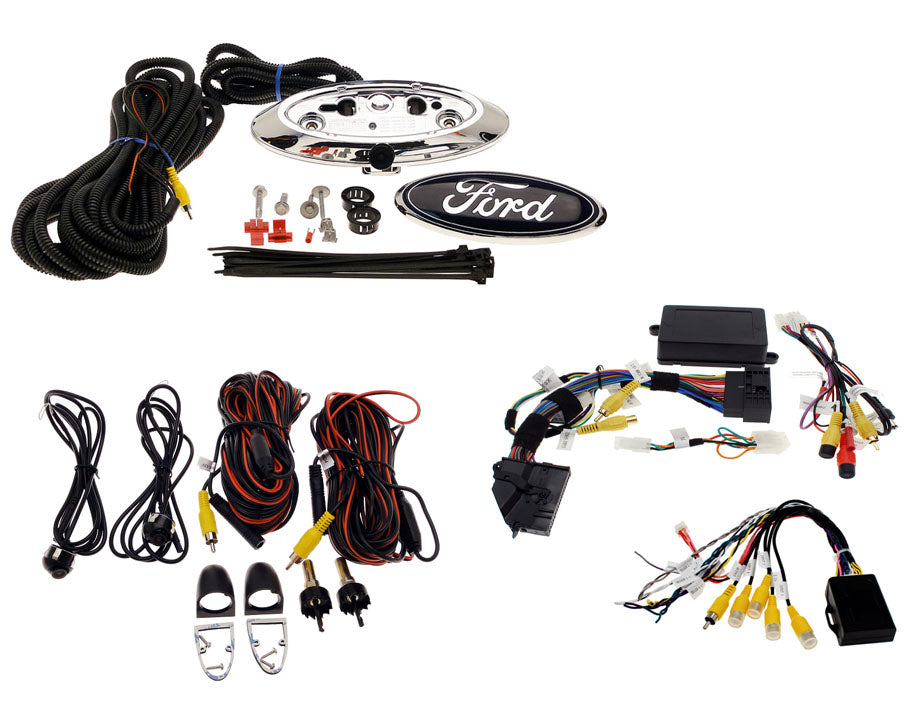

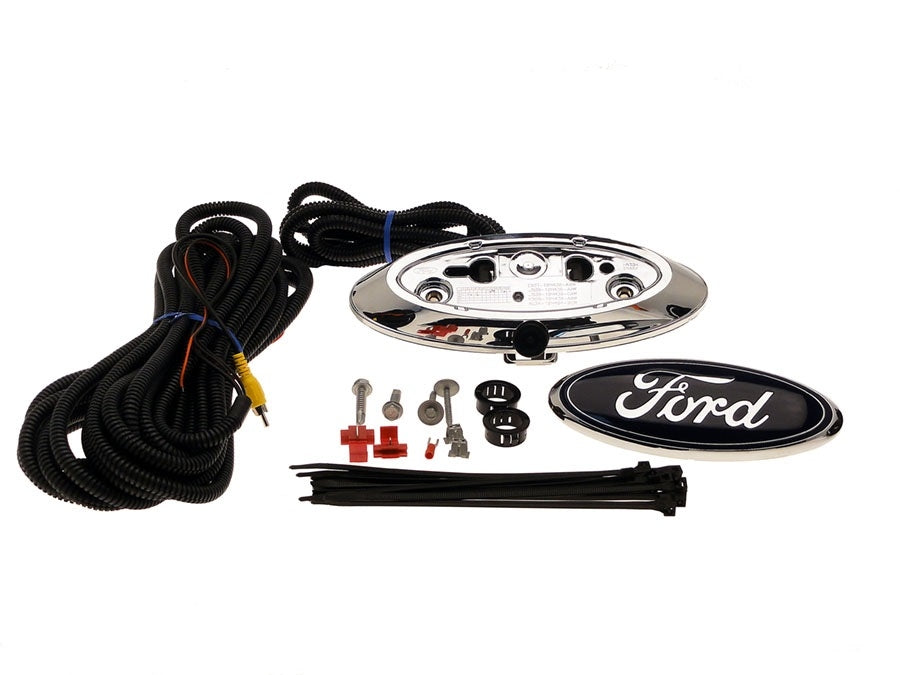

Kit includes:
- Factory Ford® grille nameplate/camera mount
- Factory Ford® blue oval emblem
- Camera Source Super CMOS night vision camera pre-mounted in nameplate mount - Latest camera technology!

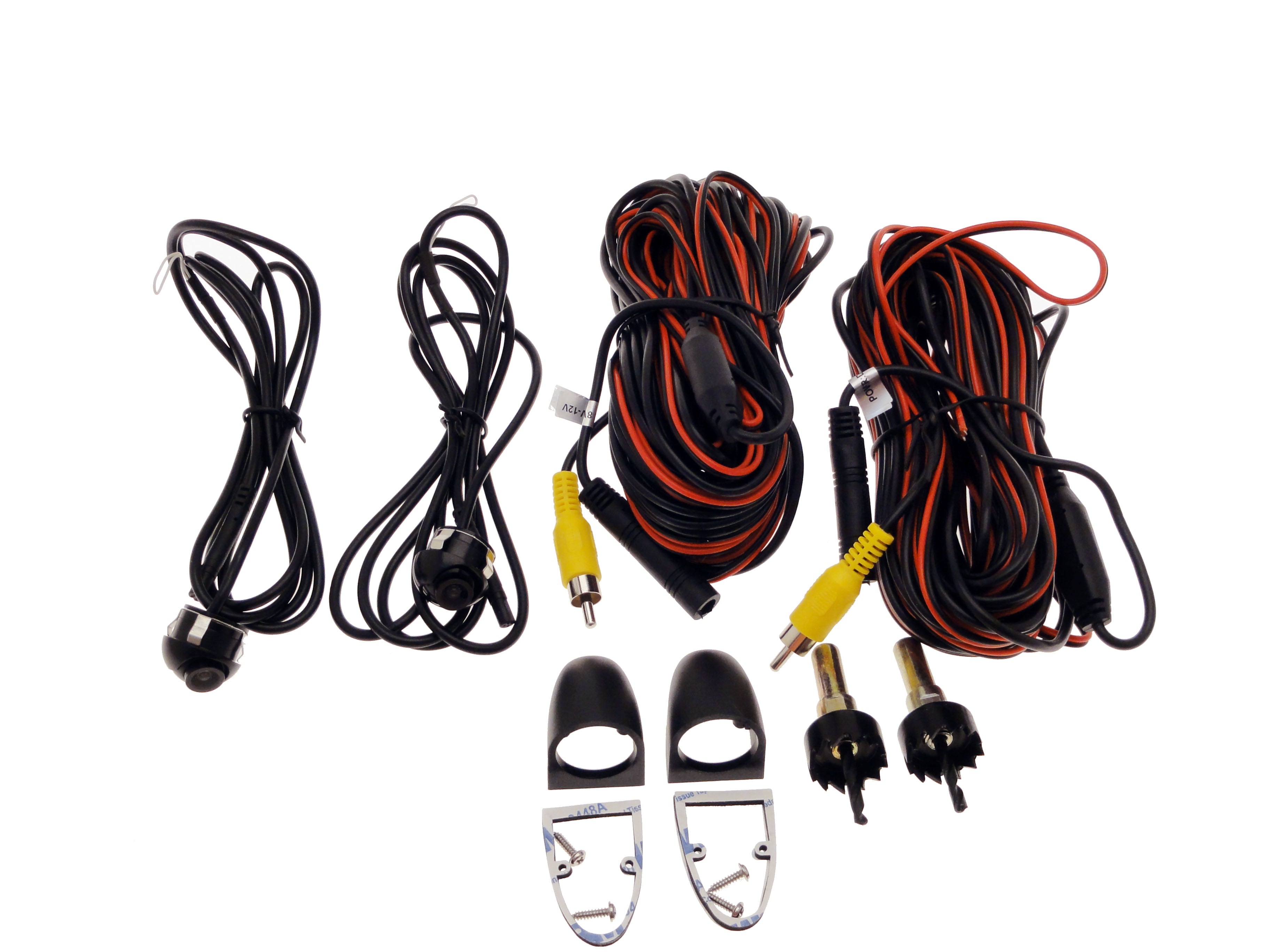

- 2 Super CMOS side cameras with adjustable locking swivel heads
- Mounting bolts
- 25' pre-loomed harnesses including RCA video cable and power harnesses

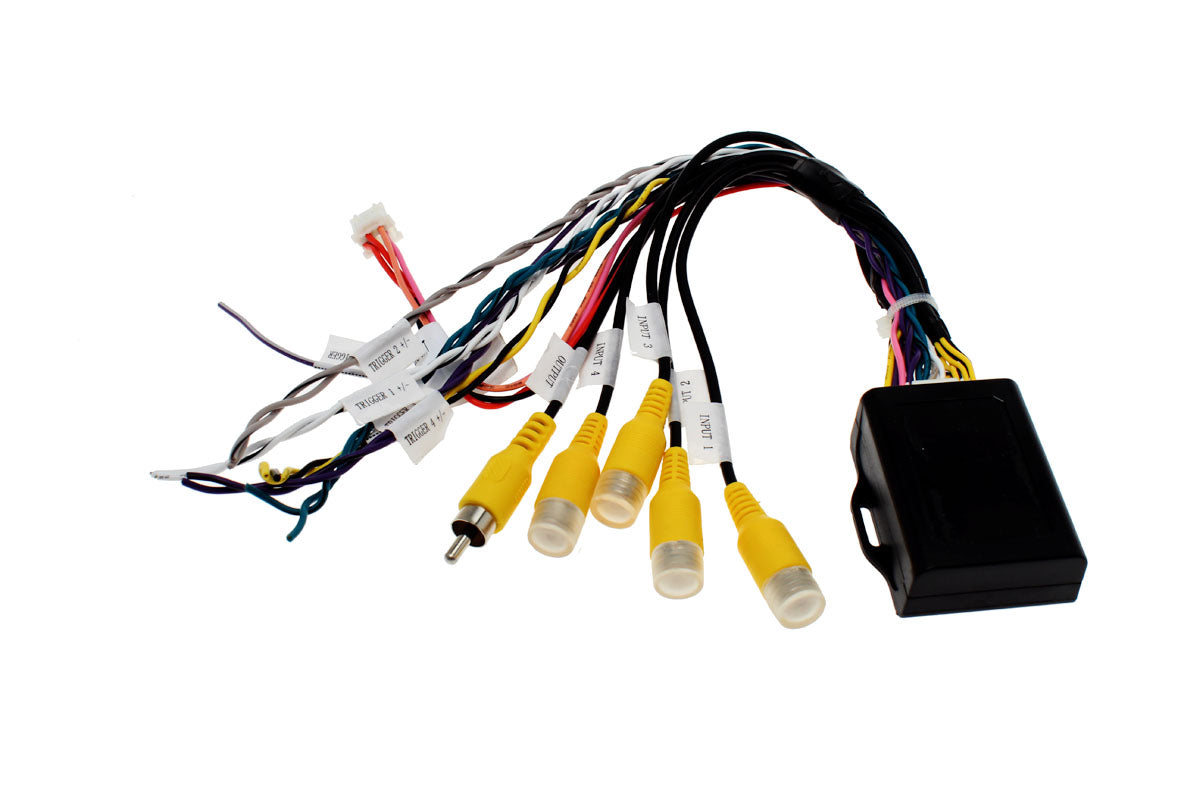

- Multi-Cam interface - supports up to 4 cameras including factory or aftermarket rear camera
- Zip ties
- Detailed installation instructions
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!

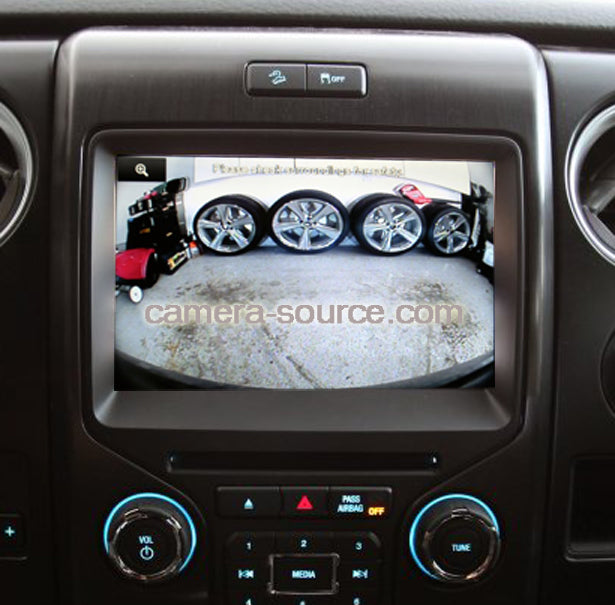

- Forward looking camera - designed for front applications (front camera does not have parking lines)
- Side cameras are designed to aim backwards and can be fully adjusted to meet your view needs (no parking lines)
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!
8" Display Multi Cam interface:
- Uses existing 8” MyFord® Touch SYNC 2 factory display -screen not included
- Allows addition of this front camera that can be automatically triggered or manually using your radio power button
- Pass through for existing factory backup camera. Factory rear cam not available above 7 mph in motion.
- Shuts off front video at speeds over 7mph
- Press power button on radio to manually activate cameras, then tap power button again to toggle between them
This kit allows you to see what is directly in front of truck and will look like it came from the factory! This camera comes with a 3 year warranty and professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 3 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera, Side Camera, Multiple cameras (kit) |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford |
| Camera Mount Location | Side Mirror, Front Grille |
| Night Vision | .1 Lux |
| Parking Guidelines | Yes |
| Power Supply | 12 Volts |
| Radio Screen Size | 8” Ford Sync 2 |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | F-150 |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Factory Plug&Play |
| Year | 2013,2014 |
| Make Filter | Ford |
| Model Filter | F-150 |
| Year Filter | 2013, 2014 |
Compatibility
2013-14 model year F150 with MyFord® Touch 8" SYNC 2 display radio and Ford oval in grille. (Note: front grille emblem must be the same size as the tailgate emblem or this kit will not mount properly)
Installation
You will replace your existing grille emblem with the one from this kit. The instructions walk you through the entire installation process step-by-step.
The side cameras will mount under your side mirrors, which will require complete removal and disassembly of your mirrors. These mirrors can be challenging to disassemble so professional installation is recommended for this kit.

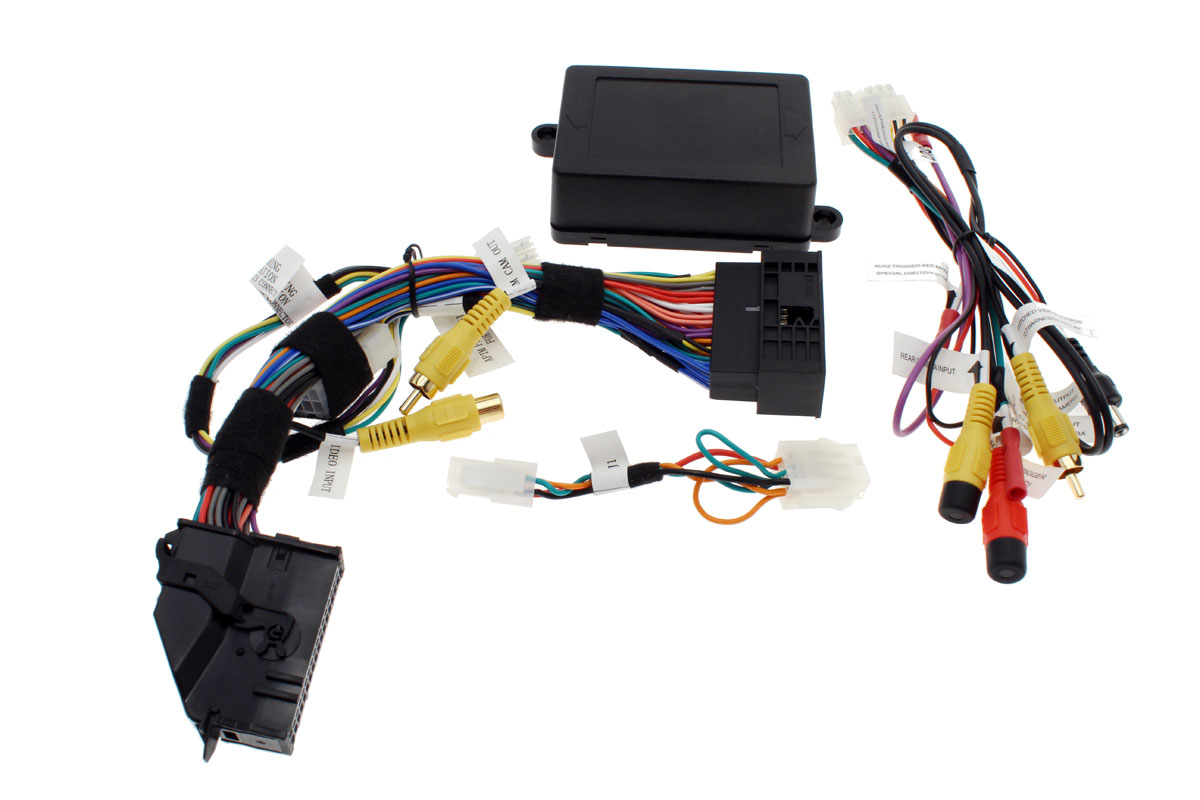

Radio integration module plugs into the back of your factory MyFord® Touch SYNC 2 8" factory display. Dash removal required.
Professional installation recommended.
