2010-2022 4Runner Spare Tire Swing Arm Camera Kit - Plug and Play
SKU#: CS-4RUN-RSM-U
Availability:
In Stock
SKU#:
CS-4RUN-RSM-U
$225.00
Quantity
Uses your factory camera connector!
Description
Perfect for trucks that have a RiG'd UltraSwing® or other aftermarket spare tire mount where the factory backup camera is now obstructed!
This is a plug and play camera kit that will allow you to mount a camera to the underside of a surface on your truck and have it plug into the existing camera connector behind your rear bumper.
This universal camera is surface mounted to the underside of a flat surface so it will require a flat section approximately 1" x 1" for mounting. Attach the camera to the bracket and run the cable through to your factory backup camera connection.

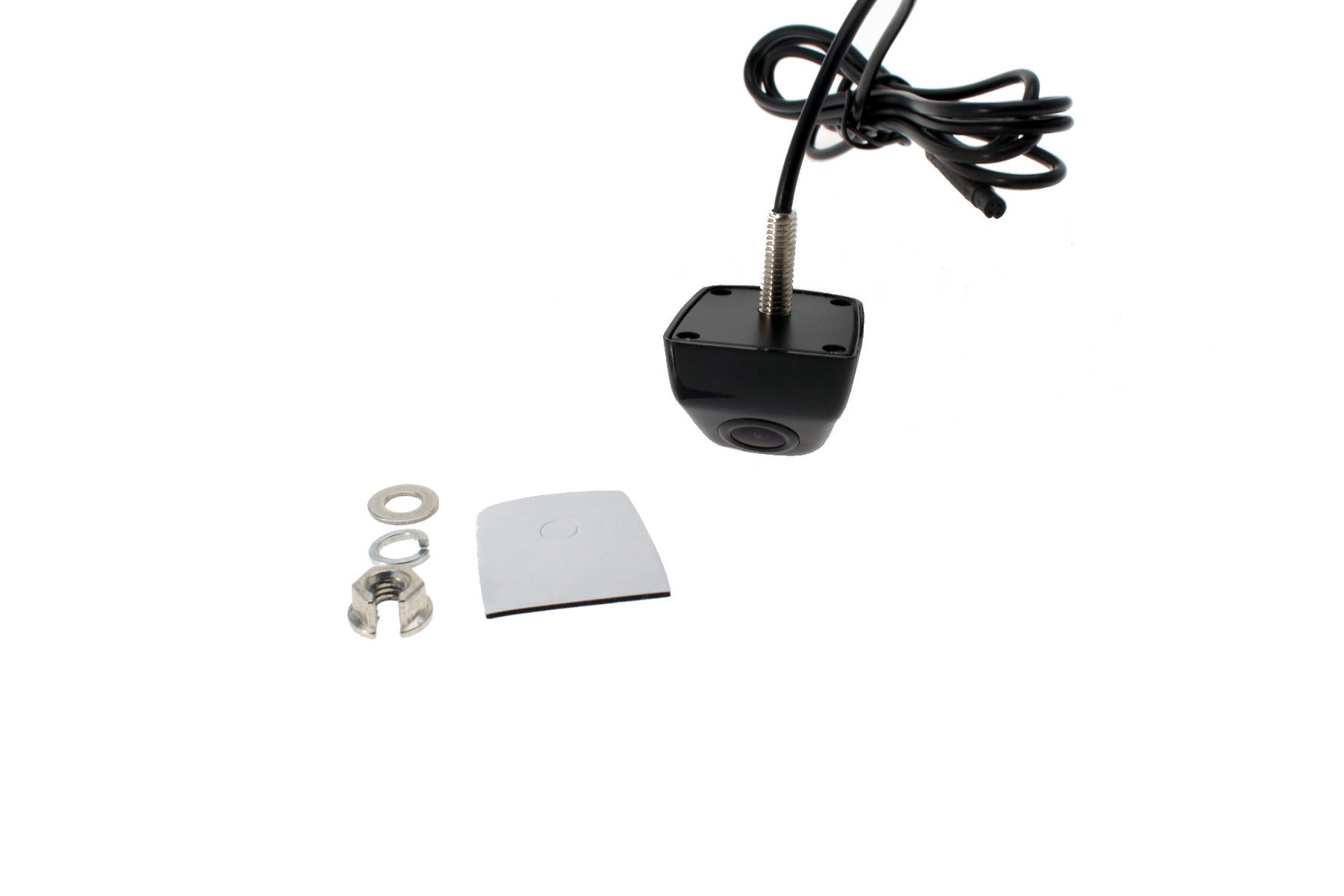

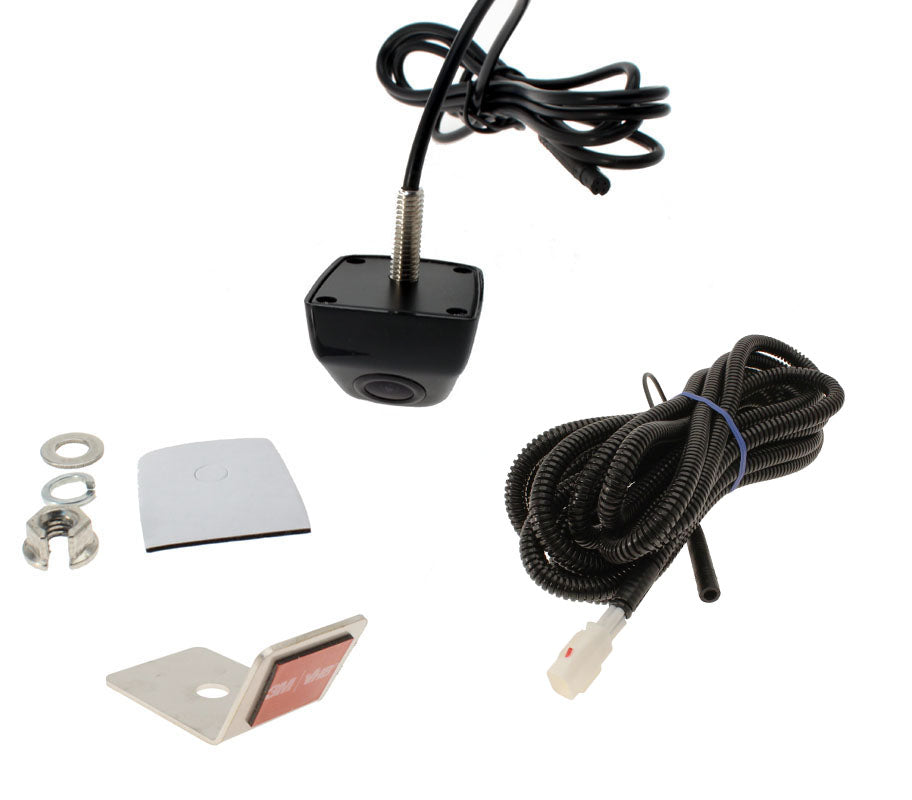

Kit includes the following:

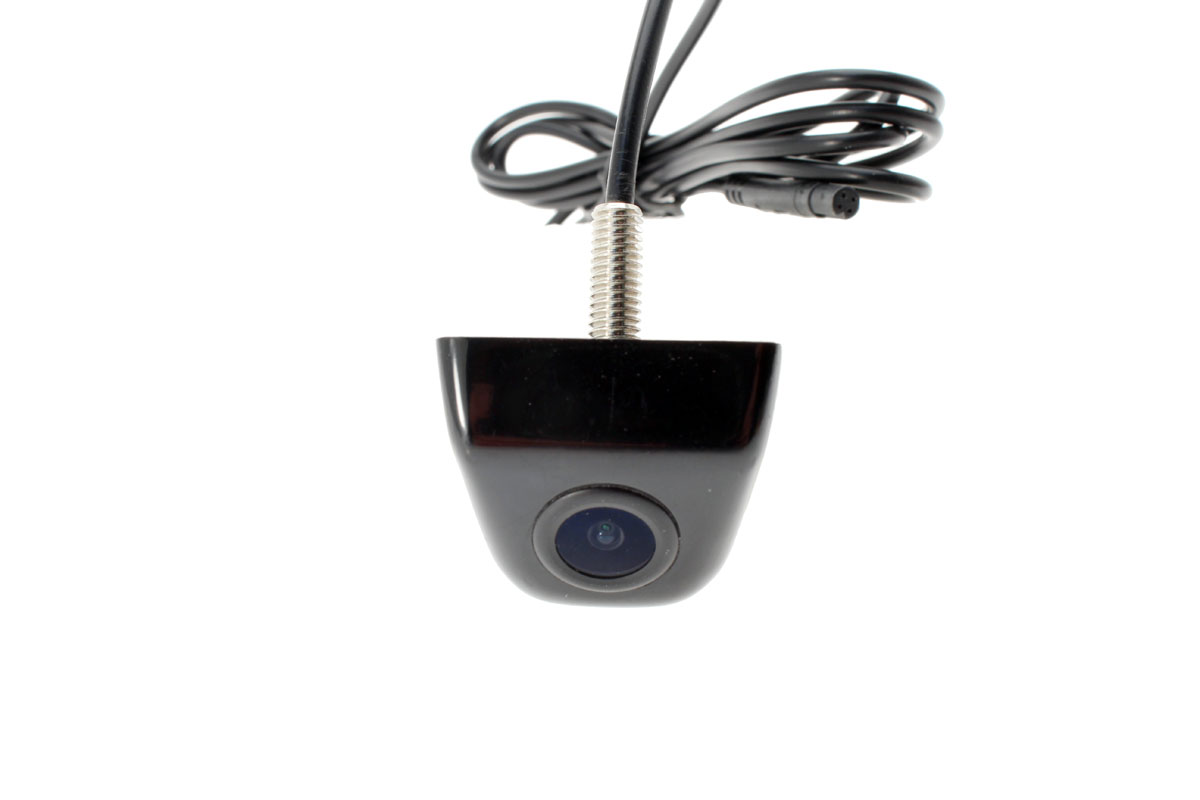

- Under Surface mount Super CMOS camera with night vision and optional parking lines
- Mounting bracket and hardware

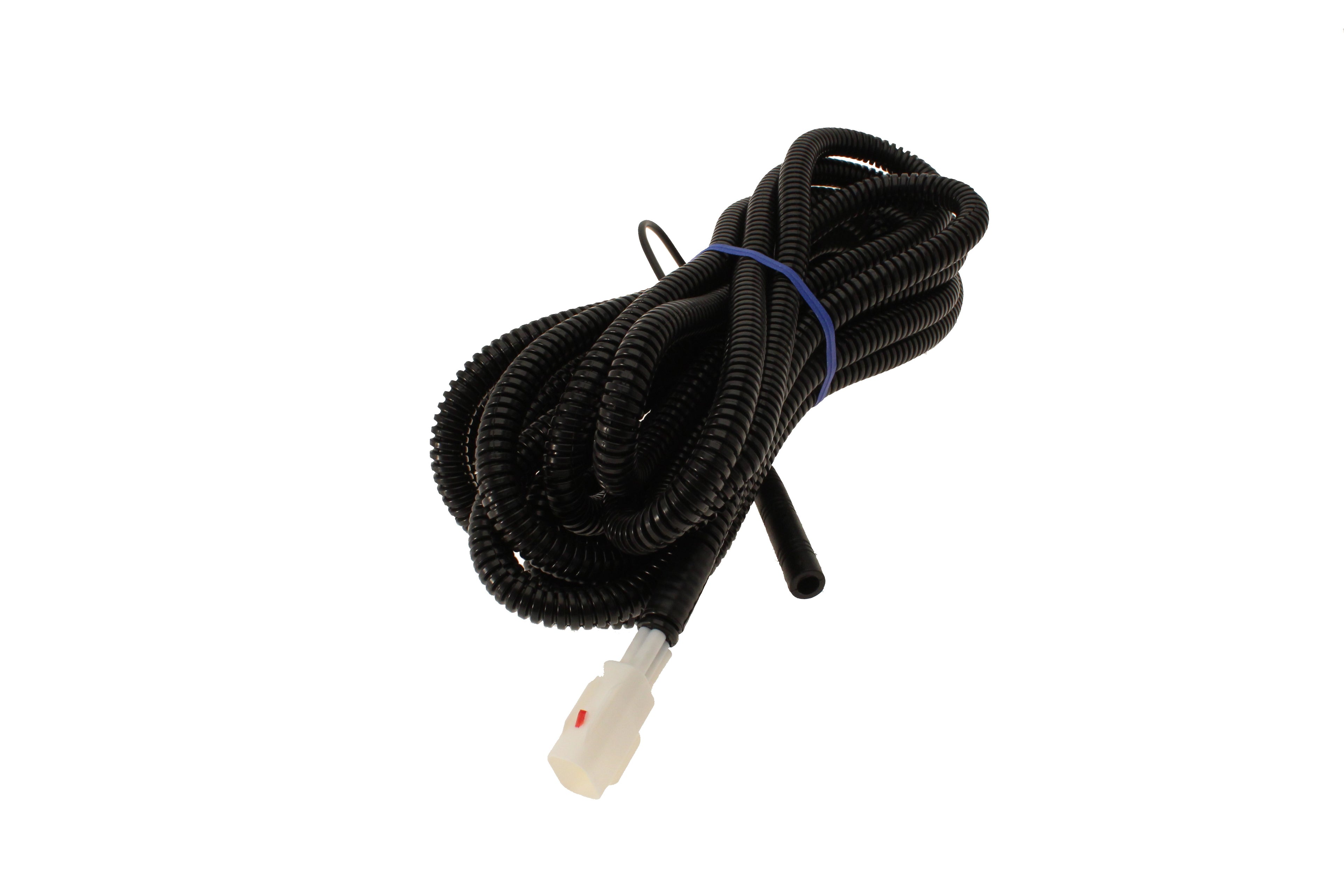

- Factory integration cable (plugs in under the box just in front of the rear bumper, uses the same connector as your factory camera). Cable with camera is approximately 8' long.
- 3 year warranty!
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- Removable parking guidelines
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Utility Bed Camera Systems |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Factory Connector |
| Make | Toyota |
| Camera Mount Location | Undermount/Lip Mount, Spare tire swing arm |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 6 Volts |
| Reason for Shopping | Relocating factory camera |
| Sensor Type | Super CMOS |
| Vehicle Category | Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | 4Runner |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Factory Plug&Play |
| Year | 2014,2015,2016,2017,2018,2019,2020,2021,2022 |
| Make Filter | Toyota |
| Model Filter | 4Runner |
| Year Filter | 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 |
Compatibility
2010-2022 4Runner with factory installed backup camera.
NOTE: vehicle must have come from the factory with a rear camera in order for this kit to function.
Installation
It will require a flat section approximately 1" x 1" for mounting. Mounts under a flat surface so it is essentially mounted upside down. Attach the camera to the bracket and connect the camera harness to the OEM conversion harness.
Mount the bracket under the truck on the frame using the included 3M adhesive or desired mounting hardware. Run the cable to your factory backup camera connection under the truck and plug it in.
