2010-2022 4Runner Lug Mount Camera Kit - Plug and Play
SKU#: LG-4RUN-LP
Availability:
In Stock
SKU#:
LG-4RUN-LP
$249.00
Quantity
Uses your factory camera connector!
Description
The new Lug Mounted Camera Relocation Kit improves rear visibility and allows the camera to be relocated to the RiG’d UltraSwing® or other aftermarket spare tire mount where the factory backup camera is now obstructed.
Simply mount the camera with lug mount bracket to your spare tire mount and connect the cable to your factory backup camera connection for a simple and seamless installation.

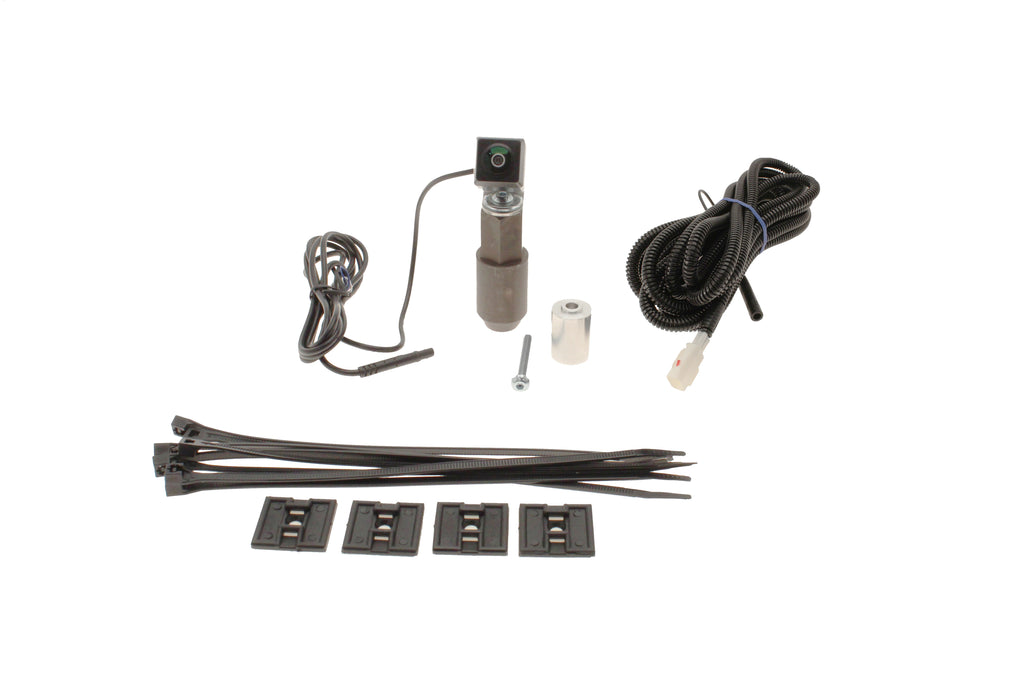

Kit includes the following:
- Super CMOS camera with night vision and optional parking lines
- Factory integration cable (plugs in under the box just in front of the rear bumper, uses the same connector as your factory camera). Cable is 14’ long to easily route through the tailgate and allow you to mount the camera to the lug mount bracket.
- Lug mount bracket — mounts to your spare tire lug
- 3 year warranty!
Camera Specifications:
- Super CMOS 600 TV lines of resolution
- Optional parking lines — cut a wire on the harness to turn them off
- IR sensor for night vision
- 170 degree view
- 6 volt input designed specifically for Toyota® applications
- <.2 lux (very little light required to operate)
Lug Mount Specifications:
- Heat treated stainless steel 19mm hex lug nut
- Stainless steel camera mounting bracket
- Billet aluminum spacer
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Factory Connector |
| Make | Toyota |
| Camera Mount Location | Spare Tire Swing Arm |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 6 Volts |
| Radio Screen Size | Factory LCD |
| Reason for Shopping | Relocating factory camera |
| Sensor Type | Super CMOS |
| Vehicle Category | Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | 4Runner |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Factory Plug&Play |
| Year | 2010,2011,2012,2013,2014,2015,2016,2017,2018,2019,2020,2021,2022 |
| Make Filter | Toyota |
| Model Filter | 4Runner |
| Year Filter | 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 |
Compatibility
2010-2022 4Runner with factory installed backup camera and has a RiG'd UltraSwing® or other aftermarket spare tire mount .
NOTE: vehicle must have come from the factory with a rear camera in order for this kit to function.
Installation
Camera is pre-mounted to the lug mount bracket. Attach the lug mount to your spare tire lug and tighten. Camera tilt is adjustable so the view can be adjusted to accommodate any view required!
Plug OEM conversion harness into factory camera connection.
