2010-2019 Tacoma Under Surface Mount Swing Arm Camera Kit - Plug and Play
SKU#: CS-TAC-RSM-U
Availability:
In Stock
SKU#:
CS-TAC-RSM-U
$225.00
Quantity
Uses your factory camera connector!
Description
This kit is perfect for Tacoma's that have a RiG'd UltraSwing® or other aftermarket spare tire mount where the factory backup camera is now obstructed!
This backup camera relocation kit for a 2010-2019 Tacoma will allow you to unplug the factory camera from a connection under the bumper and plug in this relocation kit. Mount the camera to the underside of a surface on your vehicle. No need to pull the factory camera. To revert back to stock, simply unplug the relocation camera and plug it back into the tailgate camera.

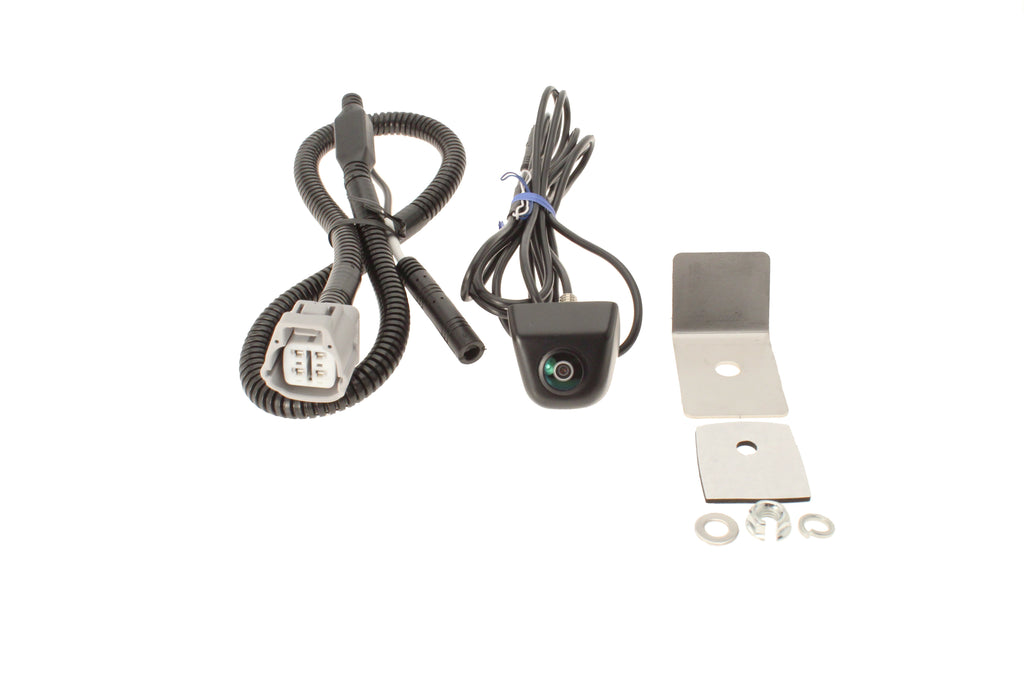

Kit includes the following:

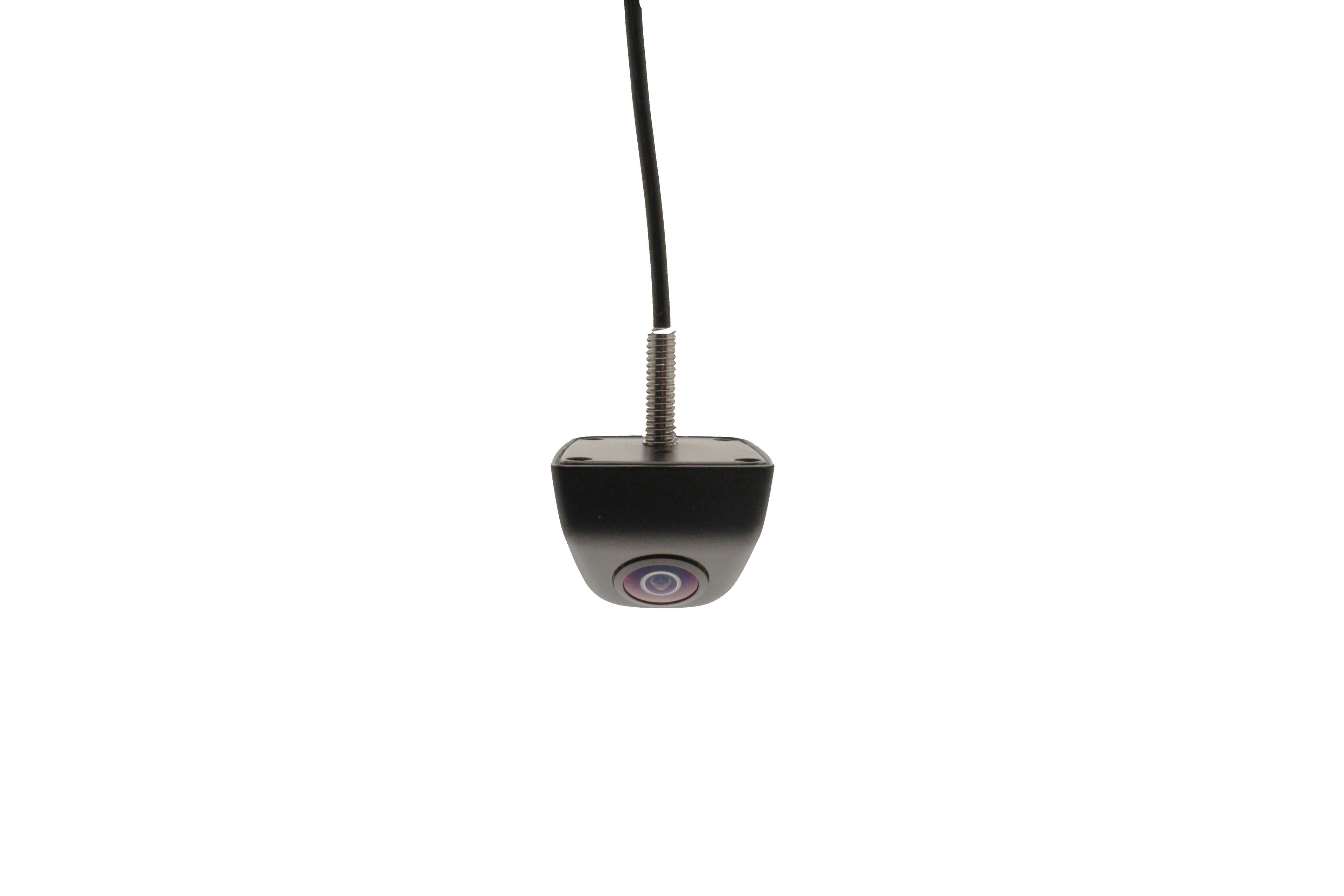

- Undermount Surface Super CMOS camera with night vision and optional parking lines
- Mounting bracket, spacer, and hardware

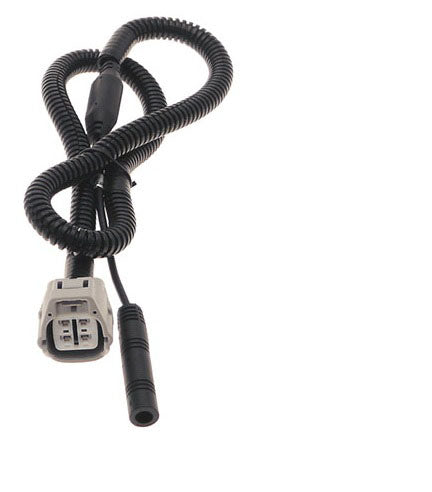

- Factory integration cable (plugs in under the box just in front of the rear bumper, uses the same connector as your factory camera). Camera and cable length is approximately 8' long.
- 3 year warranty!
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- Removable parking guidelines
- IP 68
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Factory Connector |
| Make | Toyota |
| Camera Mount Location | Universal Mount, Spare tire swing arm |
| Night Vision | < .2 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 6 Volts |
| Reason for Shopping | Relocating factory camera |
| Sensor Type | Super CMOS |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Tacoma |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Factory Plug&Play |
| Year | 2010,2011,2012,2013,2014,2015,2016,2017,2018,2019 |
| Make Filter | Toyota |
| Model Filter | Tacoma |
| Year Filter | 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 |
Compatibility
2010-2019 Tacoma with factory installed backup camera have a RiG'd UltraSwing® or other aftermarket spare tire mount where the factory backup camera is now obstructed.
NOTE: vehicle must have come from the factory with a rear camera in order for this kit to function.
Installation
Attach camera to the mounting bracket using the included washers and nut. Note: Locate desired mounting location centered under the vehicle. It will require a flat section approximately 1" x 1" for mounting. Mounts under a flat surface so it is essentially mounted upside down. Connect the camera harness to the OEM conversion harness.
Run the cable to your factory backup camera connection under the truck and plug it in.
