Backup Camera Fits 2009-2018 Ford® Transit Connect
SKU#: CS-TRANSIT
Availability:
In Stock
SKU#:
CS-TRANSIT
$109.00
Quantity
Ford® Transit OE Fit Backup Camera
Description
2009-2018 Ford® Transit Connect backup camera.

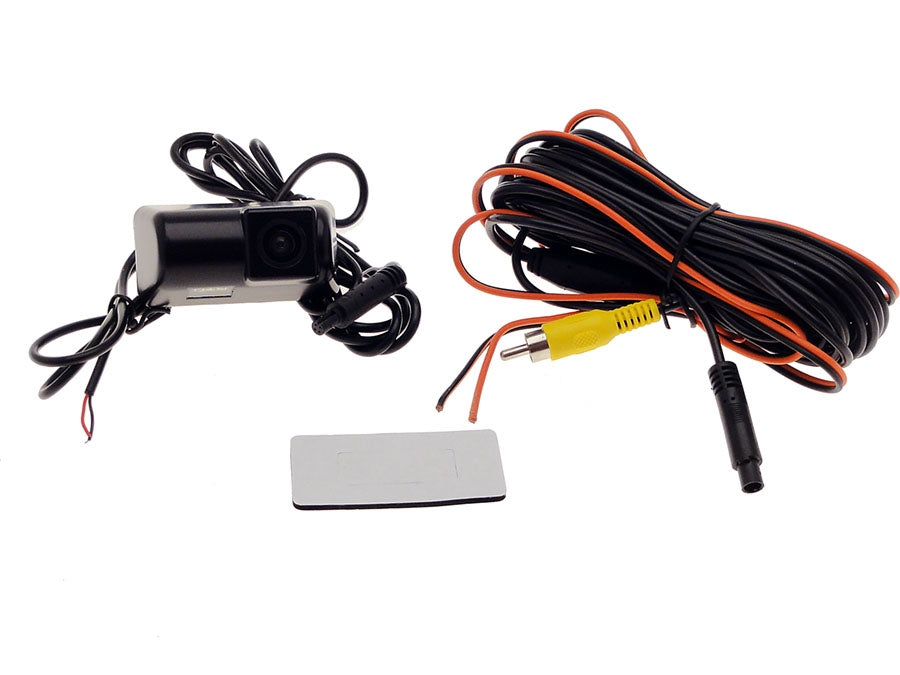

The Transit is a workhorse but it can be extremely difficult to see behind the vehicle while backing . To ensure the safety of those around you and protect your liability this is a simple addition that could pay for itself in no time! The kit comes with a high quality CCD camera and wiring harnesses.
Camera specifications:

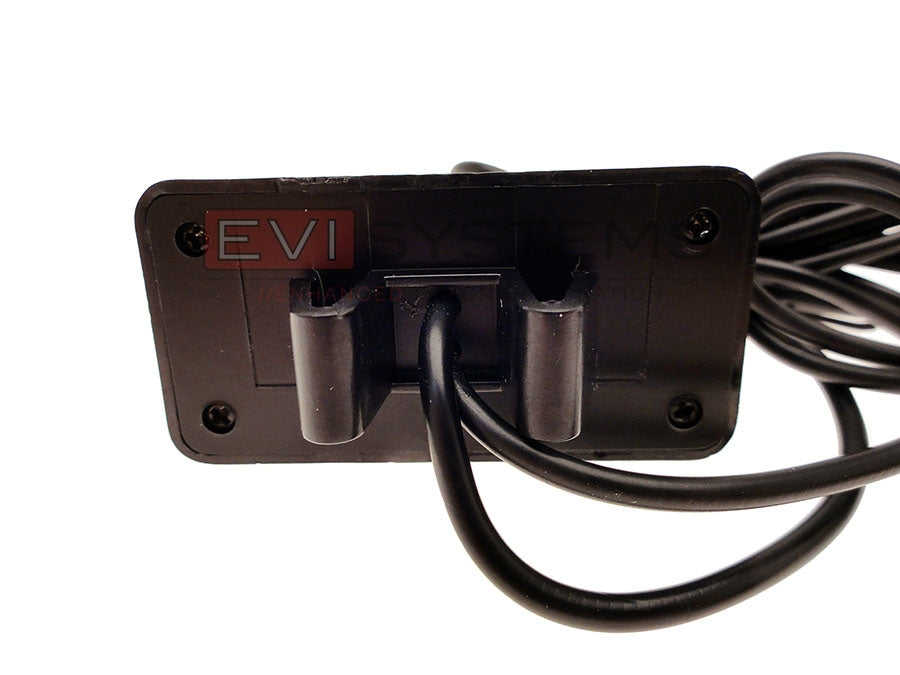

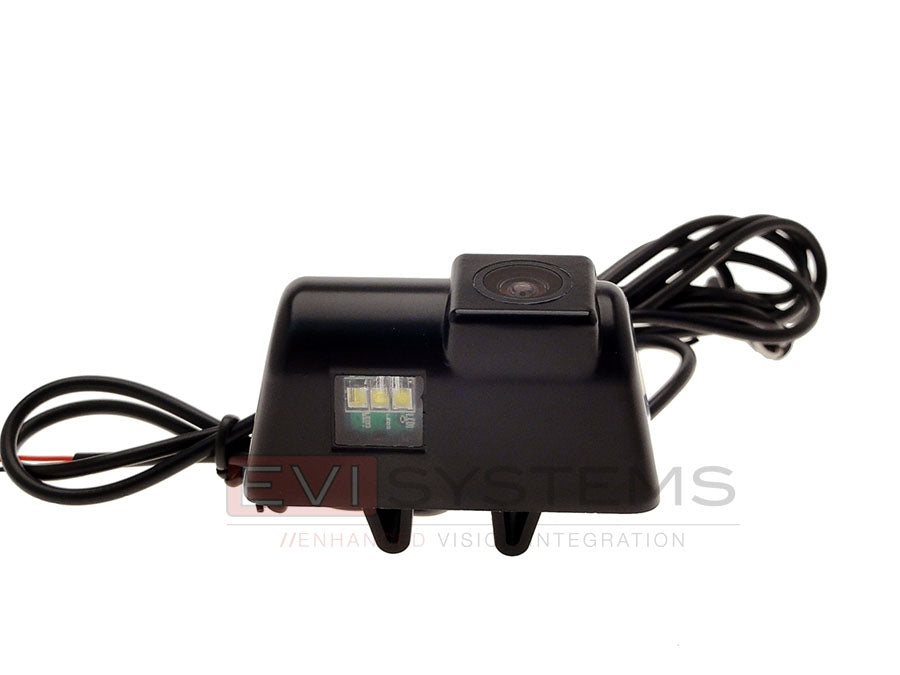

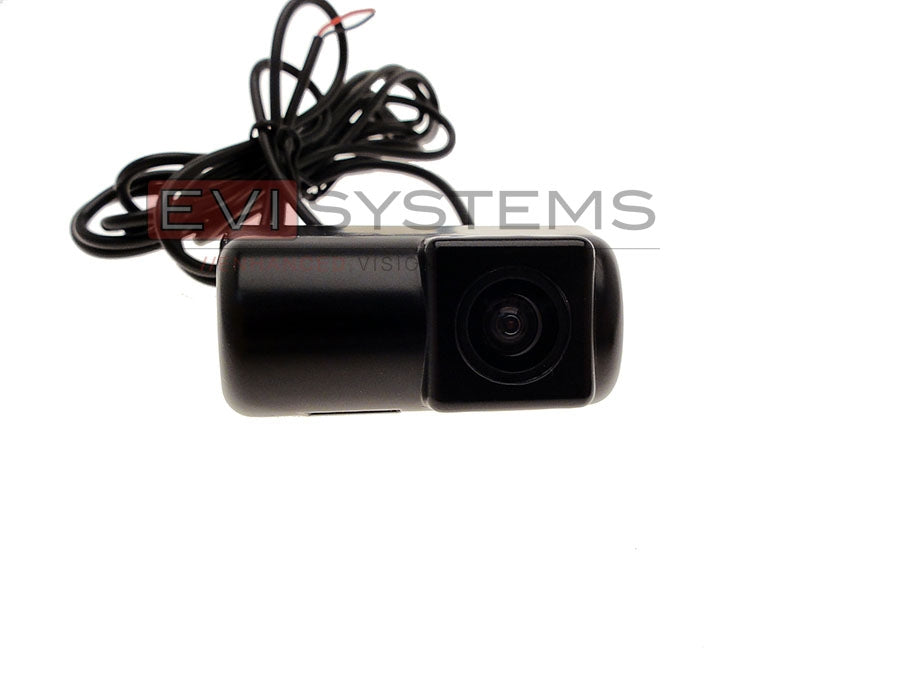

- OEM casing license plate light with integrated camera
- DC 12v
- 1/3" SONY CCD camera for a sharp image
- Parking guidelines
- 728 x 582 pixels
- .1 LUX minimum illumination
- NTSC
- 520 TVL
- 170 degree viewing angle
- IP67 waterproof
- 1 year warranty!
Specifications
| System Manufacturer | EVI Systems |
| Bracket Type | OE fit, replaces license plate light assembly |
| Number of Cameras | 1 |
| Camera Resolution | 500 TVL |
| Camera Type | Rear Camera |
| Cam Only/Complete Kit | Cam Only |
| For a monitor it uses | Your aftermarket display (RCA) |
| Connection | Aftermarket Display (RCA) |
| Make | Ford |
| Camera Mount Location | Undermount/Lip Mount |
| Night Vision | .1 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Yes |
| Power Supply | 12 Volts |
| Sensor Brand | Sony |
| Sensor Type | CCD |
| Sound Options | Without Microphone |
| Vehicle Interface | Not Included |
| Vehicle Category | Fleet Vehicle (i.e. cargo van) |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Transit |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2009,2010,2011,2012,2013,2014,2015,2016,2017,2018 |
| Make Filter | Ford |
| Model Filter | Transit |
| Year Filter | 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 |
Compatibility
2009-2018 Ford® Transit cargo and passenger, Transit Connect.
Installation
Replace your right license plate light assembly with this assembly that is preloaded with a high quality CCD camera. The camera power wire should be connected to a reverse light if you only want the camera for reversing or an accessory power source if you want the camera on at any time. The included RCA cable is 25' long and will get you to the front of the vehicle where you will plug into your monitor.
