Camera Kit OE fit, Full Harness, with Gentex® Mirror fits 2010-2013 Tundra®
SKU#: CS-10TUN-332-FH
Availability:
In Stock
SKU#:
CS-10TUN-332-FH
$448.00
Quantity
Includes video mirror!
Description

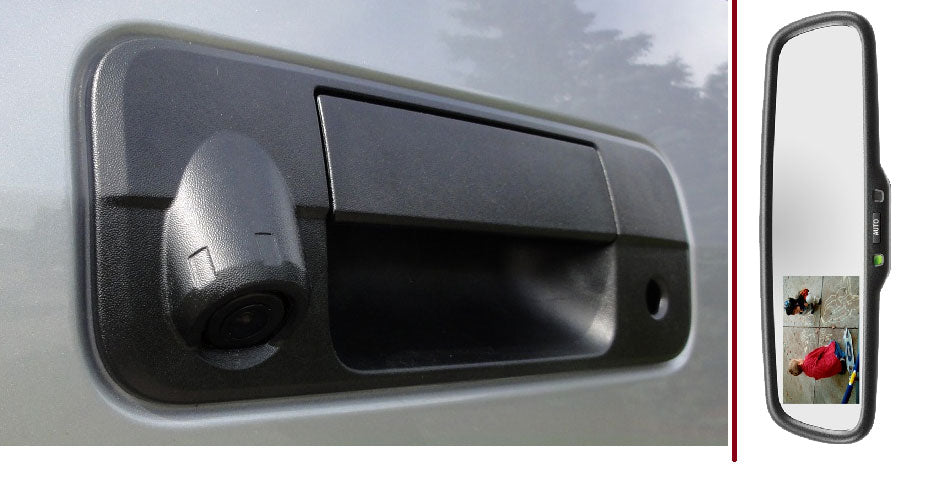

Add an OE style camera and video mirror to your 2010-2013 Tundra! This kit utilizes our ultra clear super CMOS camera in a factory Tundra® OEM handle and a Gentex auto dimming mirror - Finally see what is behind your vehicle while keeping your truck looking stock!

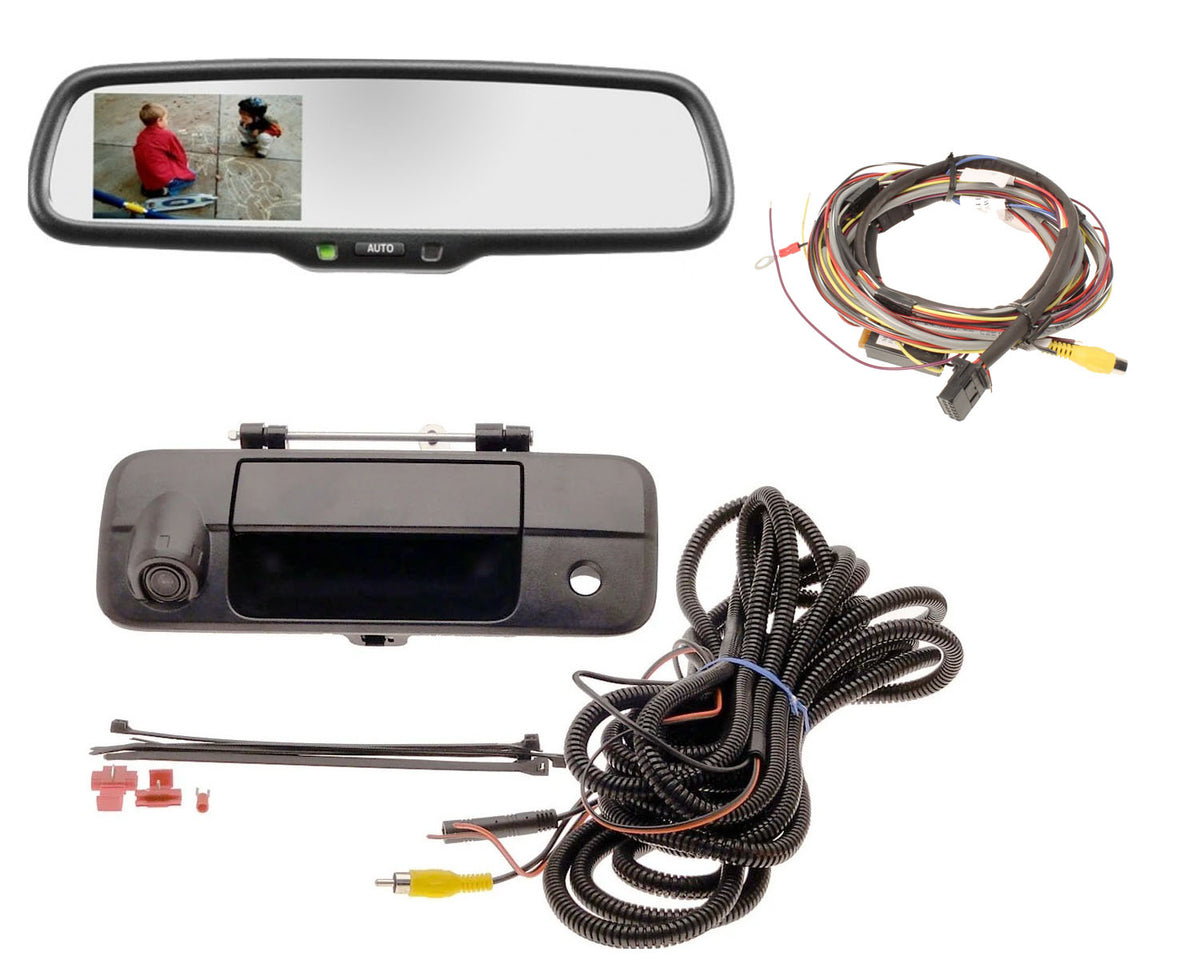

Kit includes:

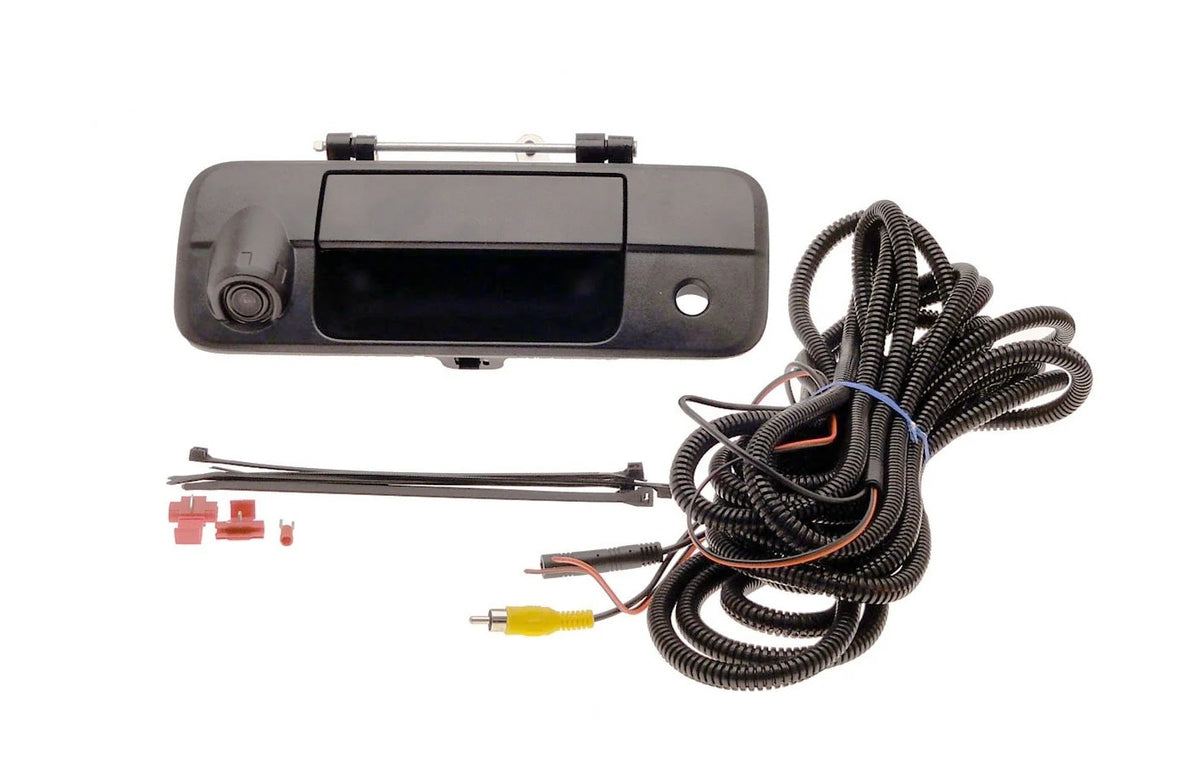

- Factory Toyota® tailgate camera handle or camera module only (options)
- Camera Source Super CMOS night vision camera - Latest camera technology for the ultimate in color, contrast, and clarity!

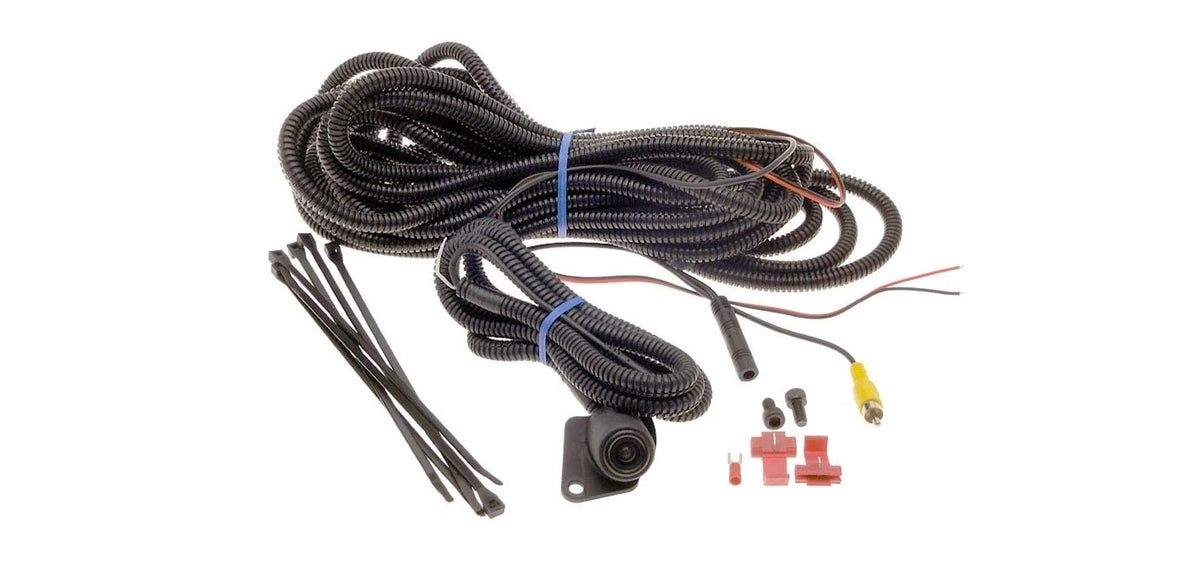

- Full chassis harness for camera

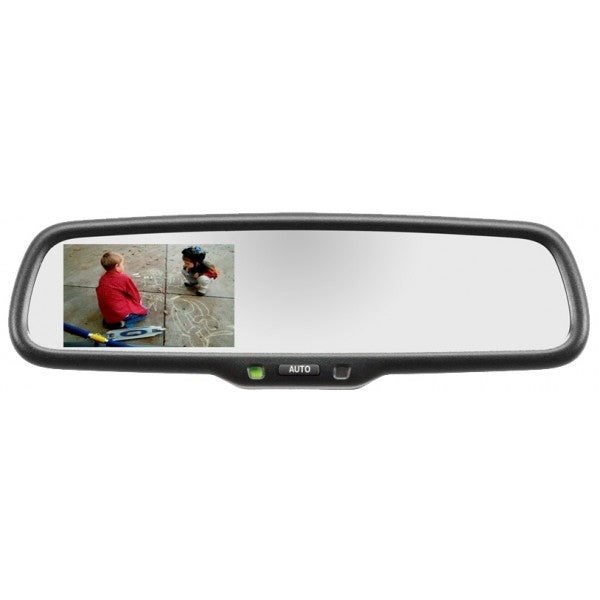

- Gentex® auto-dimming video mirror with 3.5" LCD screen

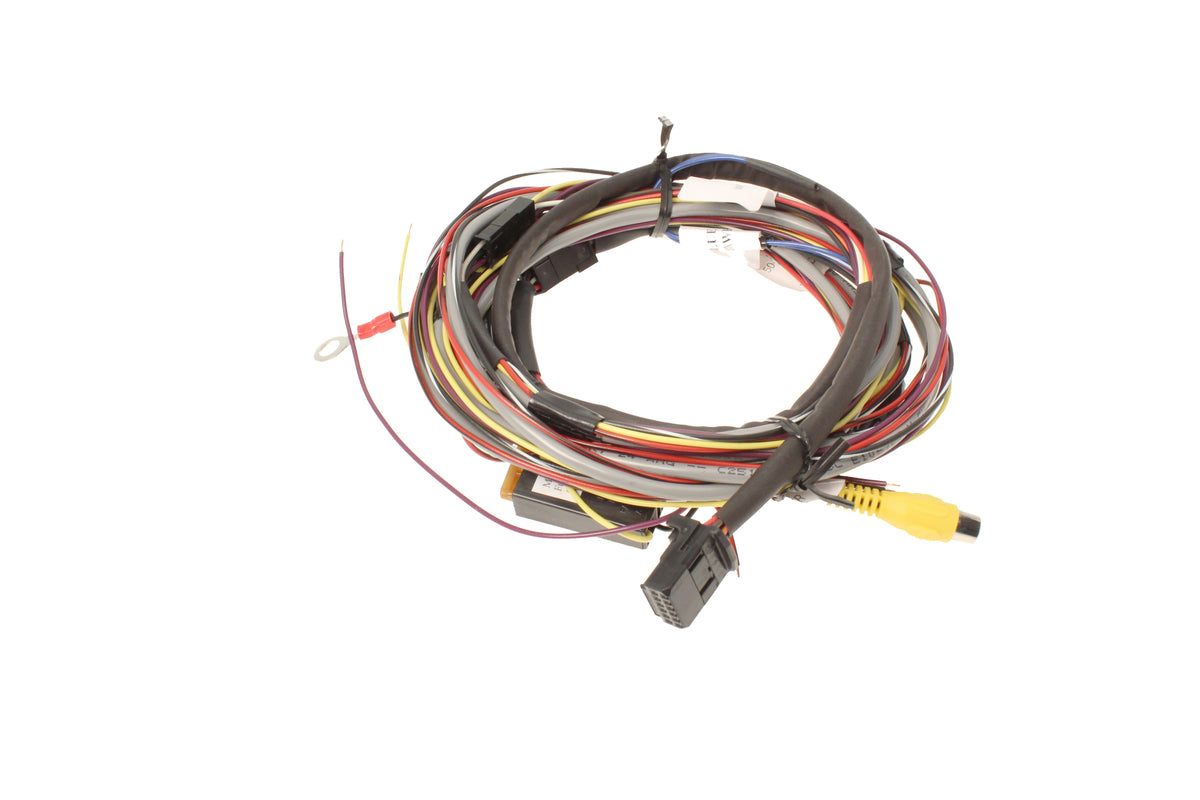

- Mirror harness
- Zip ties
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- 170 degree view
- Optional parking guidelines - turn them off on the harness by snipping a wire if you don't want them
- 600 TV lines of resolution
- .2 lux minimum illumination - Outstanding night vision!
This kit allows you to see what is directly behind the truck - it will even see the rear bumper and hitch! Save $$$$$ over a factory kit and get a better quality camera!
This camera kit comes with a limited 3 year warranty!
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Packaged w/Rear view mirror display |
| Connection | Rearview Mirror |
| Make | Toyota |
| Mirror Mount | Wedge Style |
| Mirror Options | Auto Dim, Video |
| Monitor Size | 3.5" |
| Camera Mount Location | Factory Tailgate |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Rearview Mirror |
| Vehicle Category | Truck |
| Camera Input Ports | 1 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Tundra |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Factory Plug&Play |
| Year | 2010,2011,2012,2013 |
| Make Filter | Toyota |
| Model Filter | Tundra |
| Year Filter | 2010, 2011, 2012, 2013 |
Compatibility
2010-2013 Tundra® - Select the desired handle configuration from the box above when ordering.
Installation
If you purchase just the camera module you will install our camera module into your camera-ready handle using the included bolts, route the harness through the bottom of tailgate and towards the front of the truck. This will only bolt into a factory or aftermarket handle with the OEM camera opening. You cannot drill a hole and make this system work.
If you purchase in a handle simply replace your existing tailgate handle with this handle containing the integrated backup camera. Two 10mm bolts hold your handle in place, swap the lock, fish the camera wire through the tailgate, run the harness towards the front of the truck, and reassemble.
Locate a 12 volt power source and a reverse power source. Replace your factory mirror with the included Gentex® mirror by removing the upper center console, remove the old mirror, swap with the new mirror, run the mirror harness to your power source, connect the camera male RCA to the female RCA on the mirror harness.
